CSI Web Server
The CSI Web Server allows you to view your RTMC projects using a web
browser. Included with the CSI Web Server are the CSI Web Server
Administrator and the Web Publisher. The CSI Web Server Administrator
allows you to configure the web server, check the status of the web server, set
up user accounts and passwords, and easily browse to sites running on the web
server. The Web Publisher allows you to publish your RTMC project to either
a PC website using the CSI Web Server or to an HTTP-enabled datalogger.
The diagram below shows the basic steps in creating your web content.
Lay Out and Design
Web Pages in
RTMC
Publish Web Files
Using
Web Publisher
Datalogger
Web Server
CSI
Web Server
Web Browser Displays
Interactive Web Pages
You first use RTMC to create a project containing the display and/or control
components that you want to be available from your website. Next, the Web
Publisher is used to publish the web files. From RTMC Pro, you can press the
Publish to Web button (
project. (The Web Publisher can also be opened from the Windows Start Menu
by selecting Programs | Campbell Scientific | CSI Web Server | Web
Publisher.) From the Web Publisher, you can choose to add a PC Website or a
Datalogger Website. After filling in the desired settings, press the Publish
Website button to publish the content.
) to bring up the Web Publisher and publish your
1
CSI Web Server
The CSI Web Server supports the following target browsers at the indicated
version or later:
Chrome 10
Firefox 4
Internet Explorer 9
Opera 11
Safari 5
NOTE
If firewalls exist between your web server (i.e., a PC running CSI
Web Server or a web-enabled datalogger) and the target audience
of your website(s), the firewalls will need to be configured to
allow incoming traffic on the port being used by the web server.
(The port used by the CSI Web Server is configured through the
CSI Web Server Administrator. The port used by a web-enabled
datalogger is configured through DevConfig. The default port is
80 for both the CSI Web Server and a web-enabled datalogger.)
See your network administrator for help in configuring the
firewalls.
1. CSI Web Server Administrator
The CSI Web Server Administrator allows you to configure the web server,
check the status of the web server, set up user accounts and passwords, and
easily browse to sites running on the web server. It can be opened from the
Windows Start Menu by selecting Programs | Campbell Scientific | CSI Web
Server | CsiWebAdmin.)
1.1 Status
The Status tab shows the status of the web server and allows you to browse to
sites running on the web server.
2
If the web server is not running, click on the image to start the web server.
When the web server is running, the version of the web server running will be
displayed. The protocol, port, and status (e.g., Protocol HTTP, port 80, status
Listening) will also be displayed.
A list of sites provided by the web server will be shown. You can click on any
site to browse to that site.
The keys icon (
.csipasswd file for that site. See Section 3, Web Security, for more information
about .csipasswd files and how they control users and their website access
rights.
The plus icon (
use the keys icon next to the new remote folder to create the .csipasswd file for
that remote folder before publishing a website to the folder. See Section 2,
Web Publisher, for information on publishing a website to the remote folder.
) next to each site can be used to create or edit the
) next to “Root” creates a new remote folder. You can then
CSI Web Server
The trash can icon ( ) next to each website can be used to remove the
website.
NOTE
Only sites published to the web server’s root directory and
immediate subdirectories of the root directory will be shown.
Sites cannot be published to deeper subdirectories.
1.2 Configuration
1.2.1 Edit Root Permissions
The Edit Root Permissions button is used to create or edit the root .csipasswd
file. It performs the same function as the keys icon next to Root on the Status
tab, but can be used to edit the root permissions even when the CSI Web Server
is not running. See Section 3, Web Security, for more information on the
function of the root .csipasswd file.
1.2.2 HTTP
The HTTP tab controls the root directory and HTTP server port that will be
used by the CSI Web Server.
HTML Root Directory – The directory that the web server will use to
store/serve web pages, scripts, password files, and source description files.
HTTP Server Port – The TCP Port on which the HTTP server will listen for
unencrypted connections. You may need to change this port if there is already a
web server running on this machine or if your firewall does not allow service
on TCP port 80.
1.2.3 HTTPS
The HTTPS tab can be used to set up the CSI Web Server for encrypted
service. This requires a Private Key File and Certificate File obtained from a
third party Certificate Authority.
HTTPS Enabled – Specifies whether the web server will attempt to offer an
HTTPS (encrypted) service.
Server Name – Specifies the domain name that the server will report when it
redirects requests from an unsecure link to a secure one. This will only happen
if the HTTPS protocol is enabled and the private key and certificate have valid
content. This value should be the Fully Qualified Domain Name (FQDN) for
your web server and, depending upon firewalls, proxies, and port-forwarding
configurations, may be different from the host machine name.
HTTP Server Port – Specifies the TCP port on which the HTTP server will
listen for unencrypted connections. You may need to change this port if there
is already a web server running on this machine or if your network or personal
firewall do not allow service on TCP port 80.
3
CSI Web Server
1.2.4 Log Control
Private Key File – Specifies the name of the PEM encoded file that contains
the HTTPS private key. The TLS/SSL stack used by the web server supports
only AES128 or AES256 encryption for the private key file.
Private Key Password – Specifies the password used to decrypt the TLS/SSL
private key. It will be ignored if a private key is specified that is not encrypted.
Certificate File – Specifies the name of the PEM-encoded file that contains the
x509 HTTPS certificate.
The Log Control tab allows you to configure how log files are maintained by
the CSI Web Server.
Log File Mode – Controls the way that the web server will write its log files.
Select Disabled to disable log files, New Log on Time Intervals to specify
that a new log file will be started on the time interval specified by the Baling
Interval, or New Log after Max Size to specify that a new log file will be
started after the current log file exceeds the size specified by the Maximum
Log File Size.
Log Files Directory – Specifies the directory in which the web server will
write its log files.
Baling Interval – Specifies the maximum time interval that will be recorded in
any one log file when the Log File Mode is set to New Log on Time Intervals.
Maximum Log File Size – Specifies the maximum size (in bytes) that will be
recorded in any one log file when the Log File Mode is set to New Log after
Max Size.
Maximum Log Files Count – Specifies the maximum number of log files that
will be kept by the web server before the oldest is overwritten.
Log HTTP Headers – Controls whether the web server will write the headers
of HTTP requests and HTTP responses in its log file.
4
2. Web Publisher

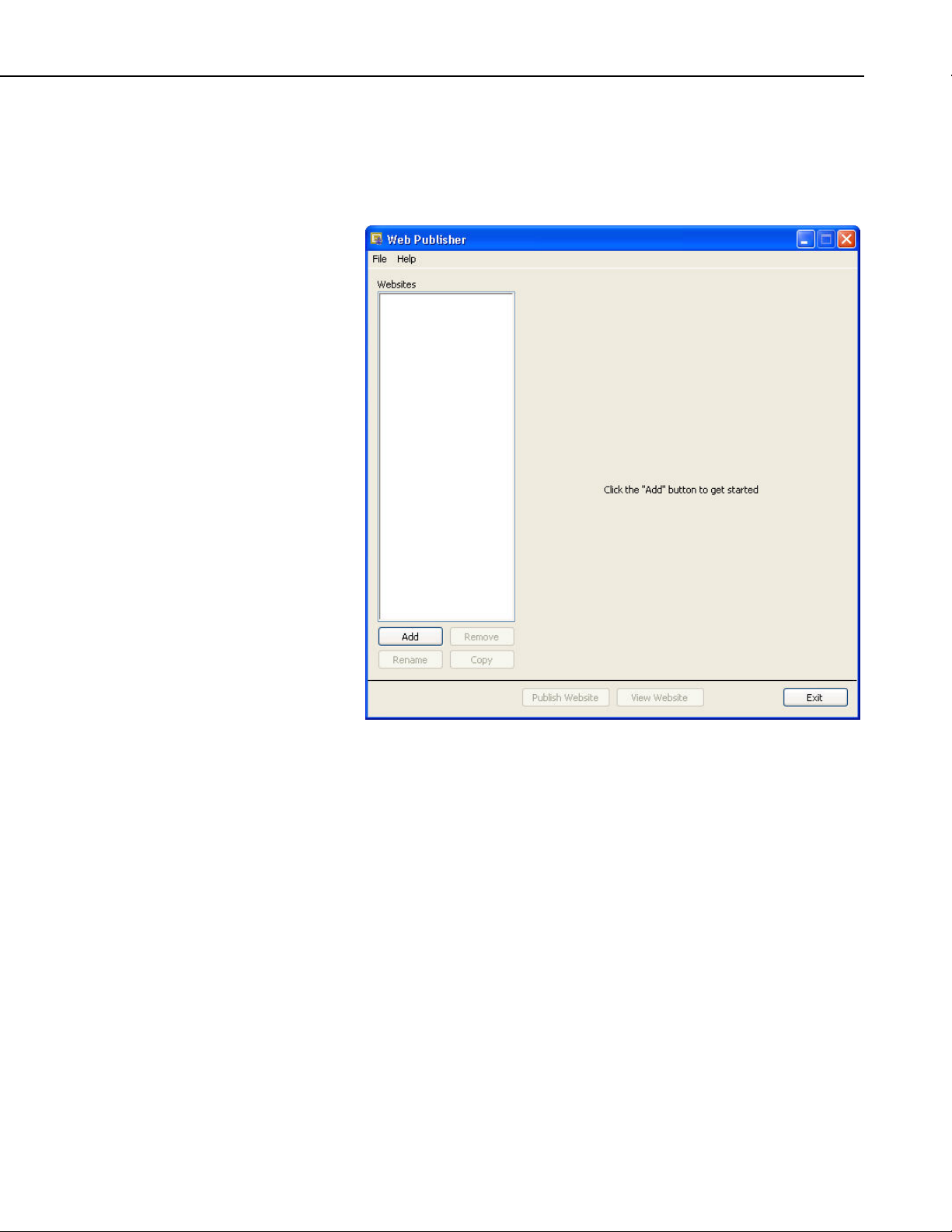

The Web Publisher allows you to publish your RTMC project to the web. In
addition, the Web Publisher has display settings that allow you to show other
tabs such as data browsing and network status.
CSI Web Server
The Web Publisher supports two kinds of websites: PC websites and
Datalogger websites.
PC Website - PC websites run on the CSI Web Server. The CSI Web Server
supports any number of websites and lets you control user access rights for
each website. PC websites support all of the different data sources supported
by RTMC (LoggerNet, Data File, Database, HTTP Datalogger, and Virtual
Data Sources).
Datalogger Website - Datalogger websites are websites being run on a
compatible datalogger like the CR800, CR1000, and CR3000. Datalogger
websites must be designed by RTMC Pro and can only have one data source.
The data source must be an HTTP Datalogger Source.
5
Loading...
