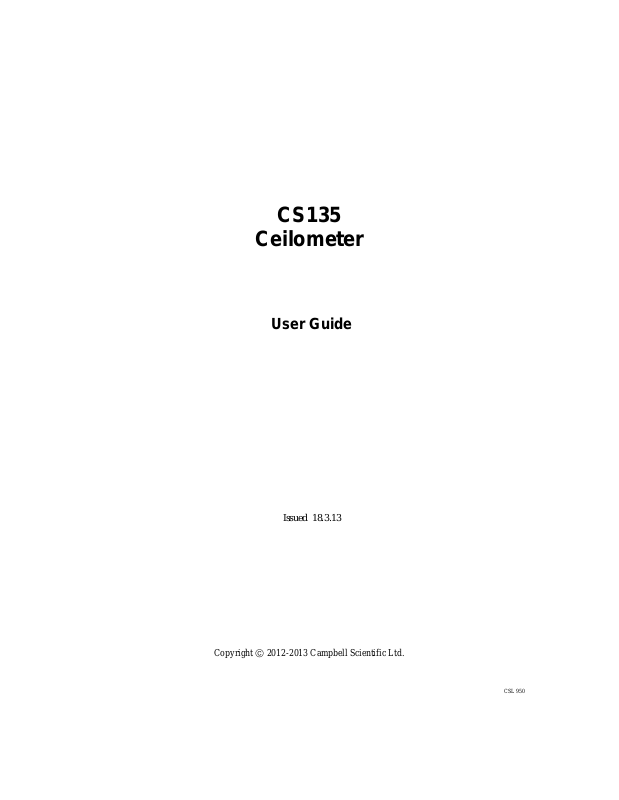

Campbell Scientific CS135 User Manual

CS135
Ceilometer
Issued 18.3.13
Copyright
2012-2013 Campbell Scientific Ltd.
©
CSL 950

Guarantee

This equipment is guaranteed against defects in materials and workmanship. This guarantee applies for twelve months from date of delivery. We will repair or replace products which prove to be defective during the guarantee period provided they are returned to us prepaid. T he guarantee will not apply to:
Equipment which has been modified or altered in any way without the
written permission of Campbell Scientific
Batteries
Any product which has been subjected to misuse, neglect, acts of God or
damage in transit.
Campbell Scientific will return guaranteed equipment by surface carrier prepaid. Campbell Scientific will not reimburse the claimant for costs incurred in removing and/or reinstalling equipment. This guarantee and the Company’s obligation thereunder is in lieu of all other guarantees, expressed or implied, including those of suitability and fitness for a particular purpose. Campbell Scientific is not liable for consequential damage.
Please inform us before returning equipment and obtain a Repair Reference Number whether the repair is under guarantee or not. Please state the faults as clearly as possible, and if the product is out of the guarantee period it should be accompanied by a purchase order. Quotations for repairs can be given on request. It is the policy of Campbell Scientific to protect the health of its employees and provide a safe working environment, in support of this policy a “Declaration of Hazardous Material and Decontamination” form will be issued for completion.
When returning equipment, the Repair Reference Num ber must be clearly marked on the outside of the package. Complete the “Declaration of Hazardous Material and Decontamination” form and ensure a completed copy is returned with your goods. Please note your Repair may not be processed if you do not include a copy of this form and Campbell Scientific Ltd reserves the right to return goods at the customers’ expense.
Note that goods sent air freight are subject to Customs clearance fees which Campbell Scientific will charge to customers. In many cases, these charges are greater than the cost of the repair.
Campbell Scientific Ltd,
Campbell Park, 80 Hathern Road,
Shepshed, Loughborough, LE12 9GX, UK
Tel: +44 (0) 1509 601141
Fax: +44 (0) 1509 601091
Email: support@campbellsci.co.uk
www.campbellsci.co.uk

PLEASE READ FIRST

About this manual
Some useful conversion factors:
Area: 1 in
Length: 1 in. (inch) = 25.4 mm
1 ft (foot) = 304.8 mm 1 yard = 0.914 m 1 mile = 1.609 km
2
(square inch) = 645 mm2
Mass: 1 oz. (ounce) = 28.35 g 1 lb (pound weight) = 0.454 kg
Pressure: 1 psi (lb/in
Volume: 1 UK pint = 568.3 ml
1 UK gallon = 4.546 litres 1 US gallon = 3.785 litres
2
) = 68.95 mb
Recycling information
At the end of this product’s life it should not be put in commercial or domestic refuse but sent for recycling. Any batteries contai ned within the product or used during the products life should be removed from the product and also be sent to an appropriate recycling facility.
Campbell Scientific Ltd can advise on the recycling of the equipment and in some cases arrange collection and the correct disposal of it, although charges may apply for some items or territories.
For further advice or support, please contact Campbell Scientific Ltd, or your local agent.
Campbell Scientific Ltd, Campbell Park, 80 Hathern Road, Shepshed, Loughborough, LE12 9GX, UK
Tel: +44 (0) 1509 601141 Fax: +44 (0) 1509 601091
Email: support@campbellsci.co.uk
www.campbellsci.co.uk

Contents

PDF viewers note: These page numbers refer to the printed version of this document. Use the Adobe Acrobat® bookmarks tab for links to specific sections.
Section 1. General Information ...................................... 1
1.1 Manual Version .......................................................................................... 1
1.2 General Safety ............................................................................................ 1
1.3 Sensor Unit Safety ...................................................................................... 1
1.4 Laser Safety ................................................................................................ 2
1.5 Electrical Safety ......................................................................................... 2
Section 2. Product Overview .......................................... 3
2.1 Introduction .............................................................................................. 4
2.2 Optical Measurement ................................................................................ 5
2.2.1 Optical Arrangement ...................................................................... 5
2.3 Internal Monitoring ................................................................................... 5
2.4 Specifications .......................... ........................... .......................................
2.4.1 Measurement Specifications ......................... .................................6
2.4.2 Mechanical Specifications ............................................................. 6
2.4.3 Electrical Specifications ......................................... ....................... 6
2.4.4 Optical Specifications ....................................................................
2.4.5 Environmental Specifications ........................................................ 7
2.4.6 Communications Specifications .................................................... 7
6
7
Section 3. Initial checks .................................................. 8
Section 4. Installation ...................................................... 9
4.1 Location and Orientation ......................................... ........................... ...... 9
4.2 Grounding ................................................................................................. 9
4.3 Mounting the CS135 ................................................................................. 9
4.4 Tilt Angle ........................................ ........................... ............................. 10
4.5 Connectors and wiring ............................................................................ 12
4.5.1 Base connectors ............................................................................ 12
4.5.2 Wiring using supplied Campbell Scientific Cables ...................... 13
4.5.3 USB connection ............................................................................ 15
4.5.4 SDI-12 connection ........................................................................ 15
4.6 Connecting the Back-up Battery ............................................................. 16
4.6.1 Removing the Cover .................................................................... 17
4.6.2 Removing the Enclosure Lid ....................................................... 17
4.7 Storage Information ................................................................................ 18
Section 5. Operation ...................................................... 19
5.1 Terminal Mode ................... .......................... .......................................... 19
5.1.1 Entering / Exiting the CS135 Terminal Mode ............................. 19
5.1.2 Terminal Mode Commands General ............................................ 19
5.1.3 Terminal Mode Command Examples ........................................ 20
5.1.4 MCFG Command Message Types ............................................... 23
5.1.5 STATUS Command ..................................................................... 24
5.1.6 Message Polling ........................................................................... 27
5.1.7 Loading a New Operating System ............................................... 28
5.2 Restoring Factory Defaults ..................................................................... 28
i
5.3 LED Indicator ......................................................................................... 29
Section 6. Messages ..................................................... 30
6.1 Data Messages General ..................................................... ..................... 30
6.2 CS Messages ........................................................................................... 30
6.3 CL31 Messages ...................................... ................................................ 42
6.4 CT25K Messages ................................ ........................... .........................
52
Section 7. Maintenance ................................................. 57
7.1 General ................................................................................................... 57
7.2 Cleaning .................................................................................................. 5
7.3 Removing the Cover ...............................................................................
7.4 Removing the Enclosure Lid ..................................................................
7.5 Diagnostic LED Indicators Within the Enclosure .............................
7.6 Electrical Safety Testing .........................................................................
7 58 59
..... 60
61
Figures
2-1. CS135 Ceilometer ................................................................................... 3
2-2. Principle of operation .............................................................................. 5
4-1. Mounting footprint ................................................................................ 10
4-2. Setting the tilt angle ............................................................................... 11
4-3. Connector layout ................................................................................... 12
4-4. Cable Connections ................................................................................ 15
4-5. USB port ........................................... .................................................... 16
4-6. Connecting Battery ................................................................................ 16
4-7. Removing the cover .............................................................................. 17
4-8. Removing the enclosure lid ................................................................... 17
5-1. Restoring factory defaults ..................................................................... 29
5-2. LED indicator ................................................ ........................................ 29
7-1. Removing the cover .............................................................................. 5
7-2. Removing the enclosure lid ................................................................... 5
7-3. Diagnostic LED indicators .............................................................
8
9
....... 60
Tables
1-1. Manual revisions ..................................................................................... 1
4-1. Function of the connector pins .............................................................. 13
5-1. Summary of the terminal mode commands available ............................ 21
ii
CS135 Ceilometer

1. General Information

1.1 Manual Version

Manual Version Revisions
Applicable to Operating System OS1
Applicable to Operat ing System OS2,
Top Board OS2, PSU OS1
Applicable to Operat ing System OS3,
Top Board OS2, PSU OS1
Applicable to Operat ing System OS6,
Top Board OS5, PSU OS1

1.2 General Safety

This manual provides important safety considerations for the installation, operation and maintenance of the CS135. These safety considerations are classified into three levels:
WARNING
Warnings alert the installer or user to serious hazards. Ignoring these warnings could result in injury or death and/or irrevocable damage to the sensor unit.
1.0
2.0
3.0
4.0
Table 1.1 Manual revisions
N/A
CAUTION
NOTE
Cautions warn of potential hazards. Ignoring these cautions could result in the sensor being damaged and data being lost.
Notes highlight useful information in the installation, use and maintenance of this product. These should be followed carefully in order to gain the maximum benefit from the use of this product.

1.3 Sensor Unit Safety

The CS135 sensor has been checked for safety before leaving the factory and contains no internally replaceable or modifiable parts.
WARNING
Do not modify the CS135 unit. Such modifications will lead to damage of the unit and could expose users to dangerous light levels and voltages.
1
CS135 Ceilometer
CAUTION
Ensure that the correct voltage supply is provided to the sensor.

1.4 Laser Safety

The CS135 sensor incorporates a laser diode which is rated as a class 3B device. This is an embedded laser where the output from the sensor unit, through the optics, is minimised to class 1M. This classification indicates that viewing of the beam with the naked eye is safe but looking directly into the beam with optical instruments, e.g. binoculars can be dangerous.
From the laser head the output has the following characteristics: Maximum pulse energy: 73 nJ Pulse duration: 100 ns Pulse frequency 10 kHz Wavelength: 905 nm EN 60825-1:2001
The sensor is marked with the following warning:
INVISIBLE LASER RADIATION
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
WARNING
WARNING
Removing the laser module with the power applied to the CS135 or battery connected may expose the user to hazardous class 3B laser radiation.
No attempt should be made to operate the laser module outside of the housing.
Check that the laser w arning label on the sensor is still visible and can be clearly read on an annual basis.
When installing the sensor avoid pointing the laser housing towards areas where binoculars are in common use.

1.5 Electrical Safety

As the sensor is powered from potentially hazardous mains voltages the wiring of its power supply should only be carried out by personnel qualified to install electrical equipment. For permanent installations outside, this usually requires a certified electrician who is also familiar with local electrical and safety legislation. Some general guidance is given in section 5.5, but the responsibility for the installation lies with that installer.
2
User Guide
NOTE
WARNING
The unit should only be serviced by trained personnel.
Removal of electronic module covers or connectors while the unit is powered will expose the operator to potentially hazardous voltages and risk damage to the sensor.

2. Product Overview

Fig 2.1 CS135 Ceilometer
3
CS135 Ceilometer

2.1 Introduction

The CS135 is a LIDAR (LIght Detection And Ranging). It emits short pulses of near infra-red light into the atmosphere from a sem iconductor laser. These are scattered back by aerosols including cloud droplets. The time between transmission of the pulse and the return signal gives the range, and therefore height, of the scattering aerosols. The variation in the strength of the backscattered light signal with height gives a profile of scatter coefficients and allow cloud bases to be identified. If significant scattering is detected but there is no defined cloud base then a vertical visibility can be calculated.
Cloud heights are calculated from the scatte r profile as follows: -
Close range signal distortion is removed (the signal response is effectively flattened).
The signal amplitude is range corrected.
This is then inverted (using the Klett inversion technique) and a cloud extinction profile is calculated.
Likely cloud bases are estimated based upon changes in slope of the extinction profile and an extinction threshold. This threshold is based on the extinction coefficient and is equivalent to a visibility (MOR) of 1000m. This results in a number of possible cloud bases at different heights.
The original flattened signal is also passed through three frequency filters to produce three different filtered back scatter profiles. Peaks in each of these filtered profiles are detected using thresholds based upon the filter bandwidth used and the high frequency signal noise level. This results in another set of likely cloud bases.
Cloud bases are reported by the sensor only when the likely cloud bases candidates by these two methods above correlate, i.e. the peaks are seen by both processing methods.
To report a cloud layer above a lower one the scatter coefficient first has to fall below the extinction threshold used for cloud definitions (less a small hysteresis offset). The scatter profile must then again meet the criteri a above.
To avoid many very narrow close laye rs being reported when the y h av e litt le significance a minimum separation based on WMO reporting intervals is applied. After the scatter coefficient has fallen below the threshold a new cloud base will not be reported until it has stayed below this threshold for at least a set interval. This interval varies, increasing with height.
If no clouds are detected the CS135 will give one of the following reports:-
No significant backscatter.
Full obscuration determined but no cloud base detected. This is reported if the
criteria for detecting cloud base is not met but the inte grated scattering coefficient reaches the limit of vert ical visibility below 2,000 m. The height at which this occurs is given as vertical visibility.
Some obscuration detected but determined to be transparent is reported if
scattering is detected but no cloud is detected and the calculated vertical visibility exceeds 2,000 m.
4
User Guide
The control system of the CS135 is divided into three modules, DSP, TOP and PSU as follows:-
DSP is the main data processing and communications unit of the CS135.
TOP provides a number of safety shutdown features such as over and under laser output level. It also contains the calibration circuitry and dirty windows system.
PSU controls the power supply, including battery charging and deep disc harge protection.
The CS135 has a rugged environmental enclosure that protects the instrument from the harshest conditions and will measure the atmosphere with high stability and repeatability.

2.2 Optical Measurement

2.2.1 Optical Arrangement
The CS135 employs a novel split-lens design to increa se optical signal to noise ratio over other instruments while maintaining Class 1M eye safety by integrating larger optics into a compact package (see Fig 2.2). This optical design provides an alternative to traditional biaxial or common-optics designs. The optical isolation of traditional biaxial systems is maintained to increase detector sensitivity, while the low overlap onset height of common-optics systems is incorporated to allow measurements at close ranges.

2.3 Internal Monitoring

The CS135 monitors a large number of parameters relevant to its performance. These include window contamination, key voltages and currents and internal temperature and relative humidity. Data messages, see Section 5, include this information allowing remote diagnosis of the CS135 condition. In addition a special status message can be polled.
Fig 2.2 Prin ciple of operation
5
CS135 Ceilometer

2.4 Specifications

2.4.1 Measurement Specifications
Maximum Reporting Range: 10 km / 32,800 ft Minimum Reporting Resolution: 5 m / 15 ft Hard Target Range Accuracy: +/- 0.25% +/- 4.6 m Reporting Cycle: 2 to 120s Cloud Layers Reported: Up to four layers reported, user selectable
2.4.2 Mechanical Specifications
Height: 1000 mm Width: 330 mm Depth: 316 mm Total weight: 33 kg (excluding cables) Packed weight: 58 kg
2.4.3 Electrical Specifications
Power required: Nominal 115 (106-137) or nominal 230 (216-253) VAC, 47-63 Hz, 470 W maximum in total.
The hood heater requires a maximum of 270 W. The internal heater requires a maximum of 120 W. The supply voltage required is specified at the time of order. If it has to be
changed later please contact Campbell Scientific for advice. Fuses: The power supply contains two fuses as follows: AUX fuse HBC 5 A (T)
PSU fuse HBC 500mA (T)
All fuses are 5 x 20 mm slow blow (T) and are the same for both 115 VAC and 230 VAC.
Battery: Internal 12V 2Ah battery provides 1hr measurement without the blower/heater. The power supply is equipped with a system to prevent deep discharge of the battery.
The CS135 uses Positive Temperature Coefficient (PTC) heaters within its design. These heaters are self-regulating, simplifying the internal design of the sensor and improving safety. Due to the nature of these devices the CS135 takes a higher current during start up.
The CS135 will take up to 1 KW for the first few seconds of operation dropping off quickly to its normal operating power over a period of a minute.
In cold environments the power consumption of the CS135 may be as high as 470 W. Also, in warmer environments it may be as low as 200 W.
The heaters within the CS135 are purely resistive which will prove advantageous when connected to generators or when the power factor of your supply is important.
6
User Guide
2.4.4 Optical Specifications
Pulse duration: 100 ns Pulse frequency 10 kHz Wavelength: 905 nm Half-angle laser divergence: 0.35 mrad Laser lifetime: 10 years typical Eye safety class: 1M
2.4.5 Environmental Sp ecifications
Standard Operating Temperature Range: -40°C to +60°C Relative Humidity Range: 0 to 100% IP Rating: IP 66
2.4.6 Communications Specifications
Supported serial settings
8 bits, no parity, 1 stop bit (default) 7 bits, even parity, 1 stop bit 7 bits, odd parity, 1 stop bit
Supported data rates
300 bps 600 baud 1200 baud 2400 baud 4800 baud 9600 baud 19200 baud 38400 baud 57600 baud 76800 baud 115200 baud (default)
Supported standards
RS232 full duplex (default) RS232 half duplex RS485 full duplex RS485 half duplex
7
CS135 Ceilometer
Signal voltage levels
RS232 Communications
RS232 input threshold Low 0.8V 1.5V ­RS232 input threshold High - 2.0V 2.4V RS232 input absolute maximum -15V - +15V RS232 input resistance RS232 output voltage low - - 0.4V RS232 output voltage high (into
3KΩ)
RS485/422 Communications
RS485/422 input threshold voltage RS485/422 output (Unloaded) - - 5V
RS485/422 output (Load 50Ω) Maximum voltage at any terminal -7V - +7V
Minimum
Value
12KΩ
4.4V - -
-0.2V - +0.2V
2V - -
Nominal
Value
- -
Maximum
Value

3. Initial checks

WARNING
USB Service Port USB1.1 and 2.0 compatible, fixed 115200 baud.
The following steps will provide basic familiarisation with the CS135 and perform basic functionality checks. To do these you must first remove the cover and enclosure lid (see Sections 4.6.1 and 4.6.2) and then connect the battery (see Section 4.6). Connect the hood heater plug once you have done these stages. See Fig 4.3 in Section 4.5.1.
The laser will be operating as soon as the battery is connected. It should not point in any direction where it could be viewed with magnifying optics.
The green LED visible from above should now be flashing once every 10 seconds (see Fig 5.2).
Connect a PC using a terminal emulation program to the USB port (Fig 4.5). The terminal emulator should be set to 115200 baud, 8N1 bits/parity.
PC operating systems should identify the USB connection and allocate a port number. The terminal emulator program you are using should then be set to this port number. Older PC operating systems may need upgrading or additional software.
The CS135 will be outputting message type 001 every 10 seconds (see Section
6.2).
Open terminal mode with the command “open 0”. You should now see the prompt “CS135>”, Type “Status”. You will now see the sensor status information described in Section 5.1.5. If you plan to use date/time information this should be checked as it can drift up to ±14 seconds per day.
8

4. Installation

4.1 Location and Orientation

User Guide
If the unit has been in storage or transit for more than a few months, the clock battery may be discharged. However, it will charge from the back-up battery or mains power.
Close terminal mode with the com mand “close” (it will close automatically after 10 minutes of inactivity).
If you are not installing the unit straight away you should disconnect the battery to avoid it being discharged.
The CS135 measures environmental variables and is designed to be located in harsh weather conditions. However there are a few considerations to take into account if accurate and representative data from a site a re to be obtained.
In order to reduce the service frequency with the unit, the CS135 should be placed away from sources of contamination. More regular maintenance will be required when the instrument is placed in areas where contamination is unavoidable or where measurements may be safety related.
Take care that the orientation allows tilting in whatever direction is desired.

4.2 Grounding

The CS135 must be properly grounded by taking a ground wire with a minimum cross sectional area of 16 mm grounding boss to an adequate grounding point. Figure 4.3 shows the location of the grounding boss.
2
and maximum length of 10 m from the brass

4.3 Mounting the CS135

The CS135 is designed to be bolted to a firm, level foundation. When bolting down take care that the orientation allows tilting in whatever direction is desired.
Fig 4.1 shows the mounting footprint.
If a suitable surface does not already exist then a concrete foundation should be constructed at least 600 mm square and 600 mm deep.
Drill four 12 mm diameter holes using the mount base as a template to a depth of 77 mm.
Clean the holes of all debris.
Place washers and nuts on the ends of the wedge anchors supplied (to protect the threads during installation).
Hammer the wedge anchors into the holes until the start of the threads are below the surface.
Tighten the nuts until about 25 mm of thread protrudes above the surface.
9
CS135 Ceilometer
Remove the washers and nuts from the protruding length screw. Then lower the CS135 into place. If you plan to tilt the unit make sure it is orientated so that when tilted in the preferred direction the window angle steepens.
Finally, secure the CS135 with the washers and nuts.
If the surface is not level and flat it may be necessary to add washers under the base on one or more of the foundation screws.

4.4 Tilt Angle

Fig 4.1 Mounting footprint
The CS135 is designed to be tilted 6°, 12°, 18° or 24° from vertical. There are several reasons why this might be done. In tropical regions it might be advantageous to tilt the sensor north in the northern hemisphere and south in the southern hemisphere to prevent the sun shining directly into it, it can reduce problems caused by direct specular reflections from ice crystals and reduce problems from rain or snow falling onto the window. To adjust the tilt angle remove the bolts shown in Fig 4.2, move the CS135 to the required tilt angle and replace them.
The CS135 has tilt sensors in both axes so that if it is not possible to provide a level base cloud height can be compensated. This feature can be useful for mobile or marine applications. Note that profile data is NOT compensated but tilt angles are included in data messages.
Note that increasing the tilt angle beyond 24° can cause significant errors in vertical visibility measurements if scatter coefficients vary significantly with height.
10
User Guide
Fig 4.2 Setting the Tilt Angle
11
CS135 Ceilometer

4.5 Connectors and wiring

4.5.1 Base connectors
The CS135 has three connectors on its base. One is for communications, one provides power input to the unit itself and the other one takes power from the unit to the hood heater and blower.
NOTE
Tilting the unit will provide better access to these connectors.
Grounding boss
12
Fig 4.3 Connector Layout
The function of the connector pins is shown in Table 4.1.
User Guide
Table 4.1 Function of the connector pins
Mains Connector
Pin Function Colour of supplied cable
cores 1 Live Brown 2 Not connected NA 3 Neutral Blue 4 Earth Green/yellow
Blower/Heater Connector
Pin Function Colour of supplied cable
cores 1 Neutral Black (1)
2 Fan + Black (2) 3 Therm Black (3) 4 Therm (0V) Black (4) 5 Switched 230/115 AC
Live
6 Fan on Black (6)
E Earth Green/yellow
Communications Connector
Pin Colour of
supplied
cable cores
1 Red 8 CTS* Y Y/Tx non-inverting 2 Yellow 7 RTS* B/Rx non-inverting 3 Green 5 Gnd 4 Black Gnd Gnd 5 White 2 Tx Z Z/Tx inverting 6 Blue 3 Rx A/Rx non-inverting
E Screen
9-PIN `D’ Connector
(fig 4.4)
RS232 RS485
Half
duplex
Black (5)
RS485 Full duplex/
RS422
*If hardware handshaking is not used pins 7 and 8 should be connected together.
4.5.2 Wiring Using Supplied Campbell Scientific Cables
Two cables are supplied, each 10m long. One is for the mains power supply, the other is for communications.
WARNING
If the power cable is incorrectly wired then irrevocable damage can be done to the unit and there is risk of serious injury or death.
13
CS135 Ceilometer
WARNING
The power cable must not be carrying mains voltage when it is being connected or disconnected.
4.5.2.1 Power Connections
The following guidance is given to help the wiring and installation of a permanent power supply to the sensor.
As the sensor is used outside, the installation of the power cables will normally have to be carried out by a qualified electrician. Please check local safety regulations.
A mains power source needs to be identified and the type of termination, cable type and cable run matched to comply with local regulations and the type of installation.
The power source needs to be able to provide the correct voltage and frequency and current in excess of the power requirement of the system. See below.
Voltage requirements: 106-137V or 216-253V AC (check power supply switch and fuses match the nominal 115/230V supply)
Current requirements: 5A Input frequency: 47-63 Hz.
The power source needs to be fused. The fuse rating should be 5A or larger and a “slow blow” design. Any extensions to the cable supplied or alternative replacement should be capable of carrying current in excess of that fuse rating.
The power source should be fitted with a two-pole isolator and should be fitted as near to the sensor as is possible.
The power cable needs to have three conductors, live, neutral and a protective earth, normally with IEC wiring colours to match those used.
This equipment requires a protective earth. THIS MUST BE CONNECTED FOR SAFETY REASONS. Ensure the earth connection at the power source is suitable for this purpose. The connection should be made via the earth wire of the power connector/cable or via the earth stud on the sensor base.
This equipment also requires correct connection of the live and neutral conductors – make sure these are identified and wired correctly at the power source.
Normally, the power source should be fitted with its own or system wide earth leakage breaker (also known as an RCD).
For short term testing of the sensor a suitable plug can be fitted to the end of the power cable and the sensor plugged into a standard mains supply capable of providing 5A at the rated voltage. If this is done the earth wire of the sensor must be connected to a suitable protective earth point.
14
4.5.2.2 Communications connections
The communications cable is terminated at one end with a removable 9 pin D-connector (DB9). The D-connector can be connected directly t o a PC or da ta logger such as the Campbell Scientific CR1000 using a suitable interconnecting cable such as the SC110. Connections and wire colours are shown in Fig 4.4. The connector can easily be removed for direct connection to screws terminals.
If hardware handshaking is not to be used then pins 7 and 8 should be connected together.
User Guide
CAUTION
The type of cable supplied is not recommended for lengths greater than 10 m. In particular, longer length RS485 cables should incorporate twisted pairs. Please contact Campbell Scientific if you wish to use a longer length of cable.
Fig 4.4 Cable Connections
Tilting the unit, see Fig 4.2 will make wiring easier.
4.5.3 USB Connection
A USB port is provided inside the enclosure to aid on-site maintenance. This allows communication of commands to the CS135 and responses in the same form as the main serial port except that the baud rate is fixed at 115200 (see Fig 4.5).
4.5.4 SDI-12 Connectio n
A SDI-12 port is provided to allow interface to other sensors but will only be active in future operating systems.
15
CS135 Ceilometer

4.6 Connecting the Back-up Battery

Fig 4.5 USB port
The CS135 will be shipped with the back-up battery disconnected. It should be connected as shown in Fig 4.6 before bringing the unit into use.
Fig 4.6 Connecting Batte ry
16
To do this the cover and enclosure lid must first be removed. The desiccant included for transport should be removed at the same time.
4.6.1 Removing the Cover
The cover is removed by removing the four screws as shown in Fig 4.7.
User Guide
The cover can then be lifted away.
CAUTION
The cover contains a flying lead used to take power to the hood heater and blower. Be careful not to trap and damage this when lifting the cover clear.
4.6.2 Removing the Enclosure Lid
Removing the lid covering the electronics unit is accomplished by removing the four screws as shown in Fig 4.8.
Fig 4.7 Removing the Cover
Fig 4.8 Removing the Enclosure Lid
17
CS135 Ceilometer
WARNING
WARNING
Opening the access door MUST be carried out by a competent person
Removing the enclosure lid may expose hot surfaces

4.7 Storage Information

The CS135 should be stored between -40°C to +70°C in a dry place, preferably with the enclosures securely fastened. The optics should be protected from possible accidental damage. For storage the back-up battery should be disconnected.
NOTE
NOTE
Leaving the battery connected during storage will mean that the unit will still be powered until the battery voltage falls below a shut­down threshold.
If the CS135 has been stored below 0.0°C the start up time from will progressively take longer - up to 10 minutes at -40.0°C. Full accuracy will not be achieved for an hour at -25°C.
18

5. Operation

5.1 Terminal mode

5.1.1 Enteri ng/Exitin g t h e CS 1 35 T er m inal Mode
The menu system is entered with the command OPEN Sensor_ID Password (The menu will time out & close automat ically if not used for 10 minutes).
Sensor_ID is the CS135 identification, a single ASCII character 0-9,a-f,A-F case sensitive. The default is 0. If a password is set then it must be entered here otherwise it can be omitted. The following text should now be displayed:- "CS135>". The CS135 is now ready for terminal mode commands.
The CS135 Commands are not case sensitive. The Parameters and/or password following the command are case sensiti ve.
Example of the “open” command followed by the parameter “0”:
User Guide
OPEN 0
Example of the open command with the password “Secret”:
open 0 Secret
5.1.2 Terminal Mode Commands General
Table 5.1 gives a summary of the terminal mode commands available.
Commands will always output all parameters on a new line after a CR LF & then the CS135 prompt ‘CS135>’. If you only want to see parameter values without changing them then enter the command without parameters. If a particular parameter did not need changing then the paramet er can be replaced with a comma (,). Back space will abort the command.
The CS135 can be setup and controlled by using the terminal interface where discrete commands are sent. The terminal commands can be sent via a logger to the CS135 removing the need for a local PC to set up the unit.
The terminal emulators built i nto many Campbell Scientific software products can also be used. Note however that DevConfig and PW Viewer cannot be used to load a new operating system as this requires XMODEM protocol. One common, freely available terminal emulator with this feature is called “TeraTerm” whic h is easily available on the in ternet.
19
CS135 Ceilometer
The following settings are used:
RS232/422/485 interface (default) RS232 Full Duplex Baud: rate 115200 Baud rate: 115200 Data bits: 8 Data bits: 8 Parity: none Parity: none Stop bits: 1 Stop bits: 1 Flow control: none Flow control: none
Ensure that if the baud rate of the unit has been adjusted and then the corresponding bits per second value are entered in the port settings of the terminal emulator. The CS135 should now be ready to accept commands.
Note: commands will always output all parameters on a new line after a CR LF & then the CS135 prompt ‘CS135>’. If you only want to see parameter values without changing them then enter the command without parameters. If a particular parameter did not need changing then the parameter c an be replaced with a comma (,). Back space will abort the command.
USB service port
5.1.3 Terminal mode command examples
The following text shows an example of setting up the CS135 serial port. This example would set the serial port to RS232 full duplex at 115200bps, 8 data bits, no parity and if it was in RS485 mode then a 100mS turn around delay.
serial 0 10 0 100
You could also type the following to obtain the same results as the RS 485 turn around delay is not needed:
NOTE
serial 0 10 0
If all you wish to do is change the data baud rate and nothing else you can replace the first number, the mode parameter, with a ‘,’ as shown below.
serial , 10
Alternatively if you just wished to change the parity to 8-bits no parity then type the following:
serial , , 0
You do not need to replace the remaining parameters with ‘,’ you only need to replace the ones up to the parameter you wish to edit.
Remember to leave a space character between the command and the parameters as shown in the examples.
20
User Guide
L
L
Table 5.1 Summary of the terminal mode commands available
Command Parameter/
Description
Parameter block
ALARMS Angle Angle is the threshold tilt angle of the sensor beyond which an alarm
will be flagged. The settable range is 0 to 90.0 degrees tilt and the default is 45 degrees.
BS Attenuated_SCAL
E BS_Av_Time Noise_Gate Measurement_ Period
Attenuated_SCALE is the scalar for the attenuated backscatter, default
100% BS-Av_Time is the back scatter average time in seconds (default 2.0).
Noise_Gate controls the noise threshold applied to backscatter. Noise_Gate = -1000, all back scatter range is corrected. Noise_Gate = 0.0-1000.0, standard deviation for noise threshold,
default 2.0. Only back scatter above this is range corrected. Measurement_Period 0 or 2 to 600 (default 10). If set to 0 and the CS135 is polled it will first take a measurement and then output the message. If it is between 2 and 600 seconds then the CS135 will continually update measurements and any poll command will output the last measurement made.
CLOSE No parameters Closes the terminal interface to allow normal message output and saves
new settings to flash non-volatile storage. DEFAULTS No parameters Loads factory defaults HEATERS Hood
Internal Laser
Sets or reads heater settings as follows:-
Hood = 0, Hood blower and heater OFF
Hood = 1, Hood blower ON and heater OFF
Hood = 2, Hood blower ON and heater ON
Hood = 3, Hood blower and heater AUTO (default)
Internal = 0, Internal heater OFF
Internal = 1, Internal heater ON
Internal = 2, Internal heater AUTO (default)
Laser = 0, laser heater off
aser= 1, laser heater on (default)
HELP No parameters Calls up a list of user commands with briefdescriptions HOFFSET Height_offset Height_offset is the offset to be added or subtracted in the range -
1000m to +1000m or -3281ft to +3281ft. Positive values are added to
measured height and negative values are subtracted from measured
height. The default is 0. ID Sensor_ID Reads or sets the sensor ID, a single ASCII character, 0-9, a - z or A - Z,
case sensitive. Default ID = 0. Note that if a CT25K message is to be
used lower case letters are not allowed. LASER Laser
Laser_Power
Laser = 0, Laser off after power up (user must switch laser on).
Laser = 1, Laser on after power up (default).
aser_Power= 20%-100%, default 100%.
LASEROFF No parameters Instructs the CS135 to turn the laser off until either a power cycle or the
sensor is instructed to turn the laser back on. LASERON No parameters Instructs the CS135 to try and turn the laser on LOADOS Module Loads new operating system into modules as follows: -
Module =1, DSP
Module =2, TOP
Module =3, PSU
This command must be sent using the XMODEM protocol. Refer to
Section 5.1.7 for more information. MCFG Message_Interval
Set or read message configuration.
Message_ID_A Message_ID_B Message_ID_C
Message_Interval is the message interval in seconds, 2 - 600 seconds,
0 gives polled messages, default 10.
21
CS135 Ceilometer
N
g
Message_ID_D Message_ID_E
Note that if low baud rates and message intervals or short polling are required it may not be possible to output multiple longer messages.
Message_ID is the message type to output between 0 and 999 (default
001). If Message_ID = 0 no message type will be output. Up to 5 messages can be set. Please refer to Section 5.1.4.
EWLASER No parameters Resets the laser run time counter.
OPEN ID
Password
Open the CS135 terminal mode.
ID = Sensor ID as per the terminal command “ID”
Password = The sensors user password as per the terminal command
“PASSWORD”. The default is no password.
PASSWORD Password Sets or clears a password from 1 to 10 characters in length. Valid ASCII
characters 0-9, a - z or A – Z and letters are case sensitive. Typing the command PASSWORD without any para meters clears the password. The default is no password.
POLL Sensor_ID
Message_ID
Requests the message Message_ID from the sensor Sensor_ID. Refer to the Section 5.1.6 for more information on this command Note: Message_ID outputs the message configured by MCFG.
PSU Blower_Voltage
Boost_Volts Battery_Current PSU_Present
Sets PSU battery charge paramete rs and external blower speed.
Blower_Voltage sets the voltage applied to the external blower in milli­volts (mV). From 8000 to 14000. The default is 12000.
Boost_Volts sets the boost voltage to be applied to the PSUs battery in mV. From 11000 to 16000. (Note: It is not recommended that the customer alters this parameter without first consulting Campbell Scientific.). The default is 14520.
Battery_Current sets the charge current in milli-amps (mA). From 100 to 1500. The default is 400.
PSU_Present sets a flag indicating if a PS135E PSU is connected to the sensor.
PSU_Present = 0, Power supply is not fitted. PSU_Present = 1, Power supply is fitted. (default)
REBOOT No parameters Forces a system reboot. This will restore previously saved user settings.
Any unsaved changes will be lost. (Settings are saved in terminal mode when the command CLOSE is typed, which exits the terminal mode).
SENSITIVITY Boundary
Detector Alpha
SERIAL Mode
Baud Bits_Parity Delay
Boundary From 1 to 20, default 4 Detector From 1 to 20, default 6 Alpha From 0.0001 to 0.1, default 0.01
(Do not chan
e without consulting Campbell Scientific Ltd)
Set or read the serial port
Mode = 0, RS232, full duplex (default). Mode = 1, RS232, half duplex. Mode = 2, RS485, full duplex. Mode = 3, RS485, half duplex. Mode = 4, reserved. Mode = 5, RS422.
Baud = 0, 300 baud. Baud = 1, 600 baud. Baud = 2, 1200 baud. Baud =3, 2400 baud. Baud = 4, 4800 baud. Baud = 5, 9600 baud.
22
User Guide
Baud = 6, 19200 baud.
Baud = 7, 38400 baud.
Baud = 8, 57600 baud.
Baud = 9, 76800 baud.
Baud = 10, 115200 baud (default).
Bits_Parity = 0, 8 bits, no parity, 1 stop bit (default).
Bits_Parity = 1, 7 bits, even parity, 1 stop bit.
Bits_Parity = 2, 7 bits, odd parity, 1 stop bit.
Delay is the delay time in mS to TX (RS485 half-duplex mode only).
Range 0-1000mS, default 100mS. STATUS No parameters Outputs CS135, serial number, DSP OS version, TOP OS ver sion, PS U
OS version, time & date, blower heater mode, internal heater mode,
serial parameters, message parameters, tilt angle, units,
temperature/humidity, hood temperature, height offset, alarms,
warnings, PSU voltage and backup battery voltage .
Note: Refer to Section 5.1.5 for more information on this command. TERMINAL Terminal
Timeout
Sets CRC16-CCITT checking and the user terminal time out.
Terminal = 0, CRC16-CCITT off (default).
Terminal = 1, CRC16-CCITT on (reserved for future OS).
Timeout is the delay in minutes from 1 to 15 where the terminal will
automatically close if no characters are sent to the CS135. The default
is 10 minutes. TIME Date_Time
Date is format yyyy/mm/dd
Time is format hh:mm:ss
yyyy=year, mm=month, dd=day
hh=hours, mm=minutes, ss=seconds
(i.e. time 2000/01/01 10:00:00, would set the time to January 1
st
2000 at 10:00:00) Note: The set time could drift by up to ±14 seconds a day.
UNITS Units Sets measurement units and tilt correction for cloud height and vertical
visibility.
Units = 0, metres corrected by tilt. Units = 1, metres not corrected by tilt. Units = 2, feet corrected by tilt (default). Units = 3, feet not corrected by tilt.
5.1.4 MCFG command message types
The MCFG commands “Message_ID_x” parameter defines the following output types. Refer to Section 6 for further information on message output types.
Message_ID_x type Description
000 No message 001 (default) Campbell Scientific Message 1, no sky condition, no profile data 002 Campbell Scientific Message 2, no sky condition, profile data, 2048 range bins, 5m resolution 003* Campbell Scientific Message 3, sky condition, no profile data 004* Campbell Scientific Message 4, sky condition and profile data, 2048 range bins, 5m resolution 101 CL31 Message 1, 770 range bins, 10m resolution 102 CL31 Message 1, 385 range bins, 20m resolution 103 CL31 Message 1, 1500 range bins, 5m resolution 104 CL31 Message 1, 770 range bins, 5m resolution 105 CL31 Message 1, No profile data 106 CL31 Message 1, Full CS135 output, 2048 range bins, 5m resolution 107* CL31 Message 2, 770 range bins, 10m resolution 108* CL31 Message 2, 385 range bins, 20m resolution
23
CS135 Ceilometer
109* CL31 Message 2, 1500 range bins, 5m resolution 110* CL31 Message 2, 770 range bins, 5m resolution 111* CL31 Message 2, No profile data 112* CL31 Message 2, Full CS135 output, 2048 range bins, 5m resolution 113 CT25K message 1 114* CT25K message 6
* = available in future OS
5.1.5 STATUS command
The STATUS command returns the following information:
Line Example line output
1 Identification CS135 SN1000 ID 0
Description of the line sections Section Description
CS135 Product name SN1000 Sensor serial number ID 0 Sensor identification number
Line Example line output
2 Date Time 2012/01/10 11:39:46
Description of the line sections Section Description
2012/01/10 Date in the format yyyy/mm/dd 11:39:46 Time in the format hh:mm:ss
Line Example line output
3 DSP_OS A
Description of the line sections Section Description
A DSP OS revision number
Line Example line output
4 TOP_OS 1
Description of the line sections Section Description
A TOP board OS revision number
Line Example line output
5 PSU_OS 1
Description of the line sections Section Description
A PSU board OS revision number
Line Example line output
6 Watchdog A
Description of the line sections Section Description
A Watchdog counter for unscheduled system resets
Line Example line output
7 Serial A B C D
Description of the line sections Section Description
A Serial mode (Note: Refer to the SERIAL command) B Serial baud rate (Note: Refer to the SERIAL command) C Parity and stop bits (Note: Refer to the SERIAL command) D Receive to transmit delay time in RS485 mode (Note: Refer to the SERIAL
24
User Guide
command)
Line Example line output
8 Heaters A B C
Description of the line sections Section Description
A Hood blower mode B Internal heater mode C Laser heater mode
Line Example line output
9 MCFG X A B C D E
Description of the line sections Section Description
X Message interval (Note: Refer to the MCFG command) A Message ID A (Note: Refer to the MCFG command) B Message ID B (Note: Refer to the MCFG command) C Message ID C (Note: Refer to the MCFG command) D Message ID D (Note: Refer to the MCFG command) E Message ID E (Note: Refer to the MCFG command)
Line Example line output
10 Angle A B C
Description of the line sections Section Description
A X axis tilt B Y axis tilt C Beam angle from vertical
Line Example line output
11 Units A
Description of the line sections Section Description
A Measurement units and tilt correction. (Note: Refer to the UNITS command)
Line Example line output
12 TRH A B C
Description of the line sections Section Description
A Sensor internal temperature reading in degrees Celsius. B Sensor internal humidity reading as a percentage C Sensors internal dew point value in degrees Celsius
Line Example line output
13 T A B C D E F
Description of the line sections Section Description
A External fan blower assembly temperature in degrees Celsius B PSU internal temperature in degrees Celsius C TOP board laser monitor temperature in degrees Celsius D TOP board calibration LED temperature in degrees Celsius E Laser module temperature in degrees Celsius F Photo diode module temperature in degrees Celsius
Line Example line output
14 SupplyVoltage A B
Description of the line sections Section Description
A DSP board supply voltage B PS135E internal supply voltage
25
CS135 Ceilometer
p
Line Example line output
15 HOffset A
Description of the line sections Section Description
A Height offset reported in feet or metres dependent upon the UNITS command
Line Exam
16 La serRunDays A
Description of the line sections Section Description
A Number of days that the laser module has been active for
Line Example line output
17 Flags 0000 0000 0000
Description of the most significant alarm word (left side, bits going left to right). Each alarm word is a hexadecimal sum of all the error bits. Bit Description
8000 XXXX XXXX Units. Feet = 0, metre = 1. 4000 XXXX XXXX Reserved for future use 2000 XXXX XXXX Reserved for future use 1000 XXXX XXXX Reserved for future use 0800 XXXX XXXX Reserved for future use 0400 XXXX XXXX Laser shut down due to operating temperature out of range 0200 XXXX XXXX The lead acid battery voltage is reading low 0100 XXXX XXXX Mains supply has failed (Required a PSU to be present) 0080 XXXX XXXX The external heater blower assembly temperature is out of bounds 0040 XXXX XXXX External heater blower failure 0020 XXXX XXXX The PSUs internal temperature is high 0010 XXXX XXXX PSU OS has failed its signature check 0008 XXXX XXXX No communications between DSP and PSU 0004 XXXX XXXX Photo diode and Laser windows are dirty. This can only be set if the laser is on 0002 XXXX XXXX Tilt beyond limit set by user, default 45 degrees 0001 XXXX XXXX No communications between DSP and inclinometer board
Description of the middle alarm word (middle word, bits going left to right) Bit Description
XXXX 8000 XXXX The sensors internal humidity is high XXXX 4000 XXXX Communications to the DSP boards temperature and humidity chip have failed XXXX 2000 XXXX DSP input supply voltage is low XXXX 1000 XXXX Self-test active XXXX 0800 XXXX Watch dog counter updated XXXX 0400 XXXX User setting stored in flash failed their signature checks XXXX 0200 XXXX DSP factory calibration stored in flash has failed its signature check XXXX 0100 XXXX DSP board OS signature test failed XXXX 0080 XXXX DSP board RAM test failed XXXX 0040 XXXX DSP boards on board PSUs are out of bounds XXXX 0020 XXXX TOP board non-volatile storage is corrupt XXXX 0010 XXXX TOP board OS signature test has failed XXXX 0008 XXXX TOP boards ADC and DAC are not within specifications XXXX 0004 XXXX TOP boards on board PSUs are out of bounds XXXX 0002 XXXX Communications have failed between TOP board and the DSP XXXX 0001 XXXX Photo diode background radiance is out of range
Description of the least significant alarm word (right side, bits going left to right) Bit Description
XXXX XXXX 8000 Photo diode temperature is out of range XXXX XXXX 4000 Photo diode is saturated XXXX XXXX 2000 Photo diode calibrator temperature is out of range
le line output
26
User Guide
XXXX XXXX 1000 Photo diode calibrator has failed XXXX XXXX 0800 The sensor could not reach the desired gain levels XXXX XXXX 0400 Laser run time has been exceeded XXXX XXXX 0200 Laser temperature out of range XXXX XXXX 0100 Laser thermistor failure XXXX XXXX 0080 Laser is obscured. This can only be set if the laser is on XXXX XXXX 0040 Laser did not achieve significant output power XXXX XXXX 0020 Laser max power exceeded XXXX XXXX 0010 Laser max drive current exceeded XXXX XXXX 0008 Laser power monitor temperature out of range XXXX XXXX 0004 Laser power monitor test fail XXXX XXXX 0002 Laser shutdown by top board XXXX XXXX 0001 Laser is off
5.1.6 Message Polling
The command 'POLL Sensor_ID Message_ID ' requests the message Message_ID from sensor Sensor_ID. Where Message_ID is a CS135message type as defined in Section 5.1.4.
Example of how to use the CS135 POLL command to request preconfigured message outputs.
First configure the CS135 to use polling mode from the terminal interface via the “MCFG” command as follows:
CS135> MCFG 0
0 1 0 0 0 0
This configures the CS135 into polling mode leaving your message output configurations unchanged. Exit the terminal by typing the “close” command. This will save the changes you just made.
CS135> CLOSE
COMMAND CLOSED
Any automatic message outputs should not have stopped. Type the “POLL” command as shown below to ver i f y tha t the system is work ing as expected. Note: Once you have exited the terminal characters will not be automatically echoed back to you.
POLL 0
This should return all messages you have set via the MCFG command. In this example, only one message output was set, the default message. So the POLL command will return text similar to that shown below. Note: If you have no message configured (i.e. MCFG returned 0 0 0 0 0 0) then nothing will be returned from the command you just typed.
CS0100001
10 100 12345 ///// ///// ///// 000000000000 abcd
27
CS135 Ceilometer
10 12345 ///// ///// 00000f80
5.1.7 Loading a New Operating System
Example of how to use the POLL command to request a specific message output type.
First configure the CS135 into polling mode as shown in the example above and exit the terminal interface. To poll the CS135 for a particular message type, type the following.
POLL 0 113
The example text above will request the “CT25K Message 1” and should look similar to the text below.
CT00010
A new OS can be entered with the LOADOS module command. Note three different modules each have their own OS. The paramete r module loads a new operating system into different modules as follows:-
Module =1, DSP (file type *. ldr) Module =2, TOP (file type * . hex) Module =3, PSU (file type*. hex)
NOTE
For example, to load a new DSP operating system:-
Enter terminal mode by typing “Open 0” (for a sensor with the default ID “0”)
The new OS must be sent using xmodem protocol.
This will return the prompt “CS135>” Type the command “LOADOS 1” The CS135 will respond:-
“Load OS into DSP DO NOT REMOVE POWER DURING OS UPDATE!!! Waiting for xmodem”
At this point use your terminal emulator to send the appropriate file. Loading the OS could take a few minutes.
When the process is complete the CS135 will return the message “Wait 40 sec for OS to restart” after which it will resume operation according to the previously set operating parameters. It will no longer be in terminal mode.

5.2 Restoring Factory Defaults

Factory defaults can be restored using the terminal mode command “DEFAULTS”. Alternatively, they can be set using a push switch on the DSP as shown in Fig 5.1. The cover and enclosure lid first have to be removed. Please refer to Sections 4.6.1 and 4.6.2.
28
User Guide
If the switch is pushed for four seconds the CS135 will reboot in exactly the same way as the REBOOT terminal comm and. If it is held closed while the CS135 is powered off and on again it will return to factory defaults. Note that to power cycle the CS135 the battery has to be disconnected as well as switching the main power off and on.
Fig 5.1 Restoring Factory Defaults
NOTE
Opening the access door MUST be carried out by a competent person.

5.3 LED Indicator

Figure 5.2 LED indicator
29
CS135 Ceilometer
A green LED is visible through the window, see Fig 5.2. It will give 0.5 second flashes as follows:-
1 flash every 10 seconds = OK, no fault 2 flashes every 10 seconds = warning (possible degraded performance) 3 flashes every 10 seconds = alarm (measurements not possible)

6. Messages

6.1 Data Messages General

The CS135 can provide a variety of data message types to allow efficient output of data. Not all messages provide the full information available but these messages may be more efficient in terms of data storage and transmission.
CL31 and CT25K messages follow formats used by comm on existing CL31 and CT25K sensors allowing easier replacement or network expansion.

6.2 CS Messages

Message 001 (no profile, no sky condition) – Default message
LINE 1
STX CS ID OS N ETX CR LF
where
STX = Start-of-Heading character
CS = Always "CS"
ID(1 character) = A single ASCII character, 0-9, a - z or A - Z, case sensitive. Default ID = 0
OS (3 characters) = Operating system, 001 ... 999
N (3 characters) = Message number
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
LINE 2
9
S WA
where
S (1 character) = message status:
0 = No significant backscatter
tr9h19h29h39h49flags CR LF
30
1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Four cloud bases detected 5 = Full obscuration determined but no cloud base detected 6 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
tr (3 characters) = Window transmission, %
h1 (5 characters) = 1st Height
If detection status is 1, 2, 3 or 4 h1 = Lowest cloud base reported If detection status is 5 h1 = If detection status is 0 or 6 h1 =
Vertical visibility as calculated
"/////"
h2 (5 characters) = 2nd Height If detection status is 2, 3 or 4 h2 = Second highest cloud base reported If detection status is 5 h2 = If detection status is 0, 1, or 6 h2 =
Highest signal received
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 or 4 h3 = Third highest cloud base reported If detection status is 0, 1, 2, 5 or 6 h3 =
"/////"
h4 (5 characters) = 4th Height If detection status is 4 h4 = Highest cloud base reported If detection status is 0, 1, 2, 3 or 5 h4 = "/////"
flags (12 characters in 3 groups of 4, space separated) = Alarm or warning information
Description of the most significant alarm word (left side, bits going left to right). Each alarm word is a hexadecimal sum of all the error bits. Bit Description
8000 XXXX XXXX Units. Feet = 0, metre = 1. 4000 XXXX XXXX Reserved for future use 2000 XXXX XXXX Reserved for future use 1000 XXXX XXXX Reserved for future use 0800 XXXX XXXX Reserved for future use 0400 XXXX XXXX Laser shut down due to operating temperature out of range 0200 XXXX XXXX The lead acid battery voltage is reading low 0100 XXXX XXXX Mains supply has failed (Required a PSU to be present) 0080 XXXX XXXX The external heater blower assembly temperature is out of bounds 0040 XXXX XXXX External heater blower failure 0020 XXXX XXXX The PSUs internal temperature is high 0010 XXXX XXXX PSU OS has failed its signature check 0008 XXXX XXXX No communications between DSP and PSU
User Guide
31
CS135 Ceilometer
r
0004 XXXX XXXX 0002 XXXX XXXX Tilt beyond limit set by user, default 45 degrees 0001 XXXX XXXX No communications between DSP and inclinometer board
Description of the middle alarm word (middle word, bits going left to right) Bit Description
XXXX 8000 XXXX The sensors internal humidity is high XXXX 4000 XXXX Communications to the DSP board temperature and humidity chip have failed XXXX 2000 XXXX DSP input supply voltage is low XXXX 1000 XXXX Self-test active XXXX 0800 XXXX Watch dog counter updated XXXX 0400 XXXX U ser setting stored in flash failed their signature checks XXXX 0200 XXXX DSP factory calibration stored in flash has failed its signature check XXXX 0100 XXXX DSP board OS signature test failed XXXX 0080 XXXX DSP board RAM test failed XXXX 0040 XXXX DSP boards on board PSUs are out of bounds XXXX 0020 XXXX TO P board non-volatile storage is corrupt XXXX 0010 XXXX TO P board OS signature test has failed XXXX 0008 XXXX TO P boards ADC and DAC are not within specifications XXXX 0004 XXXX TOP boards on board PSUs are out of bounds XXXX 0002 XXXX Communications have failed between TOP board and the DSP XXXX 0001 XXXX Photo diode background radiance is out of range
Photo diode and Laser windows are dirty. This can only be set if the laser is on
Description of the least significant alarm word (right side, bits going left to right) Bit Description
XXXX XXXX 8000 Photo diode temperature is out of range XXXX XXXX 4000 Photo diode is saturated XXXX XXXX 2000 Photo diode calibrator temperature is out of range XXXX XXXX 1000 Photo diode calibrator has failed XXXX XXXX 0800 The sensor could not reach the desired gain levels XXXX XXXX 0400 Laser run time has been exceeded XXXX XXXX 0200 Laser temperature out of range XXXX XXXX 0100 Laser thermistor failure XXXX XXXX 0080 Laser is obscured. This can only be set if the laser is on XXXX XXXX 0040 Laser did not achieve significant output powe XXXX XXXX 0020 Laser max power exceeded XXXX XXXX 0010 Laser max drive current exceeded XXXX XXXX 0008 Laser power monitor temperature out of range XXXX XXXX 0004 Laser power monitor test fail XXXX XXXX 0002 Laser shutdown by top board XXXX XXXX 0001 Laser is off
CR LF = Carriage Return and Line Feed
32
LINE 3
ETX CRC16 EOT CR LF
where
ETX = End-of-Text character CRC16 (4 characters) = CRC16-CCITT Checksum EOT = End-of-Transmission character CRLF = Carriage Return + Line Feed
User Guide
33
CS135 Ceilometer
MESSAGE 002 (Profile, no sky condition)
LINE 1
SOH CS ID OS N ETX CR LF
where
SOH = Start-of-Heading character
CS = Always "CS"
ID(1 character) = A single ASCII character, 0-9, a - z or A - Z, case sensitive. Default ID = 0
OS (3 characters) = Operating system, 001 ... 999
N (3 characters) = Message number
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
LINE 2
9tr9h19h29h39h49
S WA
flags CR LF
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Four cloud bases detected 5 = Full obscuration determined but no cloud base detected 6 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
tr (3 characters) = Window transmission, %
h1 (5 characters) = 1st Height
If detection status is 1, 2, 3 or 4 h1 = Lowest cloud base reported If detection status is 5 h1 = If detection status is 0 or 6 h1 =
Vertical visibility as calculated
"/////"
34
User Guide
h2 (5 characters) = 2nd Height If detection status is 2, 3 or 4 h2 = Second highest cloud base reported If detection status is 5 h2 = If detection status is 0, 1, or 6 h2 =
Highest signal received
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 or 4 h3 = Third highest cloud base reported If detection status is 0, 1, 2, 5 or 6 h3 =
"/////"
h4 (5 characters) = 4th Height If detection status is 4 h4 = Highest cloud base reported If detection status is 0, 1, 2, 3 or 5 h4 = "/////"
flags (12 characters in 3 groups of 4, space separated) = Alarm or warning information. Refer to Message 001 for a breakdown of the flags.
CR LF = Carriage Return and Line Feed
LINE 3
scale9res9n9 energy9lt9ti_bl9pulse
9
rate9sum CR LF
where
scale (5 characters) = Attenuated_SCALE parameter, %, 0 ... 99999. 100% is default
res (2 characters) = Backscatter profile resolution in metres.
n (4 characters) = Profile length 2048
energy (3 characters) = Laser pulse energy, %.
lt (3 characters including leading +/-) = Laser temperature, degrees C
ti (2 characters) = Total tilt angle, degrees bl (4 characters) = Background light, millivolts at internal ADC input (0 ... 2500)
pulse (4 characters) = Pulse quantity x 1000 (0000-9999)
rate (2 characters) = Sample rate, MHz, (00-99)
sum = Sum of detected and normalized backscatter, 0 ... 999. Multiplied by scaling factor times
4
10
. At scaling factor 100 the SUM range 0 ... 999 corresponds to integrated backscatter 0 ... 0.
-1
srad
.
CR LF = Carriage Return + Line Feed
35
CS135 Ceilometer
LINE 4
SSSSSSSSSSSSSSSSSSSSSSSSSSSSS........(2048 x 5 bytes) CR LF
The two-way attenuated normalised backscatter profile (100000·srad·km)
-1
unless otherwise scaled by the Attenuated_SCALE parameter. Each sample is
coded with a 20-bit HEX ASCII character set; msb nibble and bit first, 2's complement.
NOTE
The profile is not corrected for the tilt angle.
CR LF = Carriage Return + Line Feed
LINE 5
ETX CRC16 EOT CR LF
where
ETX = End-of-Text character CRC16 (4 characters) = CRC16-CCITT Checksum EOT = End-of-Transmission character CR LF = Carriage Return + Line Feed
36
User Guide
MESSAGE 003 (no profile, sky condition, available in future OS)
LINE 1
SOH CS ID OS N ETX CR LF
where
SOH = Start-of-Heading character
CS = Always "CS"
ID(1 character) = A single ASCII character, 0-9, a - z or A - Z, case sensitive. Default ID = 0
OS (3 characters) = Operating system, 001 ... 999
N (3 characters) = Message number
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
LINE 2
9tr9h19h29h39h49
S WA
flags CR LF
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Four cloud bases detected 5 = Full obscuration determined but no cloud base detected 6 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
tr (3 characters) = Window transmission, %
h1 (5 characters) = 1st Height
If detection status is 1, 2, 3 or 4 h1 = Lowest cloud base reported If detection status is 5 h1 = If detection status is 0 or 6 h1 =
Vertical visibility as calculated
"/////"
37
CS135 Ceilometer
h2 (5 characters) = 2nd Height If detection status is 2, 3 or 4 h2 = Second highest cloud base reported If detection status is 5 h2 = If detection status is 0, 1, 5 or 6 h2 =
Highest signal received
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 or 4 h3 = Third highest cloud base reported If detection status is 0, 1, 2, 5 or 6 h3 =
"/////"
h4 (5 characters) = 4th Height If detection status is 4 h4 = Highest cloud base reported If detection status is 0, 1, 2, 3 or 5 h4 = "/////"
flags (12 characters in 3 groups of 4, space separated) = Alarm or warning information. Refer to Message 001 for a breakdown of the flags.
CR LF = Carriage Return and Line Feed
LINE 3
__d_h1h1h1__d2_h2h2h2__d3_h3h3h3__d4_h4h4h4__d5_h5h5h5 CR LF (note spaces)
where
d (1 character) = Data available 0 to 8 Amount of lowest layer in oktas 9 Vertical visibility only available
-1 No sky condition data available 99 Insufficient data
h1h1h1 (3 characters) = Height of the lowest cloud layer in 10s of metres or 100s of feet
d2 (1 character) = Cloud amount of the 2nd layer in oktas
h2h2h2 (3 characters) = Height of the 2nd cloud layer in 10s of metres or 100s of feet, if no 2nd layer is reported h2h2h2 = '///'.
d3 (1 character) = Cloud amount of the 3rd layer in oktas
h3h3h3 (3 characters) = Height of the 3rd cloud layer in 10s of metres or 100s of feet, if no 3rd layer is reported h3h3h3 = '///'.
d4 (1 character) = Cloud amount of the 4th layer in oktas
h4h4h4 (3 characters) = Height of the 4th cloud layer in 10s of metres or 100s of feet, if no 4th layer is reported h4h4h4 = '///'.
d5 (1 character) = Cloud amount of the 5th layer in oktas
38
User Guide
h5h5h5 (3 characters) = Height of the 5th cloud layer in 10s of metres or 100s of feet, if no 5th layer is reported h5h5h5 = '///'.
CR LF = Carriage Return + Line Feed
LINE 5
ETX CRC16 EOT CR LF
where
ETX = End-of-Text character CRC16 (4 characters) = CRC16-CCITT Checksum EOT = End-of-Transmission character CR LF = Carriage Return + Line Feed
39
CS135 Ceilometer
MESSAGE 004 (profile, sky condition, available in future OS)
LINE 1
SOH CS ID OS N ETX CR LF
where
SOH = Start-of-Heading character
CS = Always "CS"
ID(1 character) = A single ASCII character, 0-9, a - z or A - Z, case sensitive. Default ID = 0
OS (3 characters) = Operating system, 001 ... 999
N (3 characters) = Message number
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
LINE 2
9tr9h19h29h39h49
S WA
flags CR LF
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Four cloud bases detected 5 = Full obscuration determined but no cloud base detected 6 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
tr (3 characters) = Window transmission, %
h1 (5 characters) = 1st Height
If detection status is 1, 2, 3 or 4 h1 = Lowest cloud base reported If detection status is 5 h1 = If detection status is 0 or 6 h1 =
Vertical visibility as calculated
"/////"
40
User Guide
h2 (5 characters) = 2nd Height If detection status is 2, 3 or 4 h2 = Second highest cloud base reported If detection status is 5 h2 = If detection status is 0, 1, or 6 h2 =
Highest signal received
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 or 4 h3 = Third highest cloud base reported If detection status is 0, 1, 2, 5 or 6 h3 =
"/////"
h4 (5 characters) = 4th Height If detection status is 4 h4 = Highest cloud base reported If detection status is 0, 1, 2, 3 or 5 h4 = "/////"
flags (12 characters in 3 groups of 4, space separated) = Alarm or warning information. Refer to Message 001 for a breakdown of the flags.
CR LF = Carriage Return + Line Feed.
LINE 3
__d_h1h1h1__d2_h2h2h2__d3_h3h3h3__d4_h4h4h4__d5_h5h5h5 CR LF (note spaces)
where
d (1 character) = Data available 0 to 8 Amount of lowest layer in oktas 9 Vertical visibility only available
-1 No sky condition data available 99 Insufficient data
h1h1h1 (3 characters) = Height of the lowest cloud layer in 10s of metres or 100s of feet
d2 (1 character) = Cloud amount of the 2nd layer in oktas
h2h2h2 (3 characters) = Height of the 2nd cloud layer in 10s of metres or 100s of feet, if no 2nd layer is reported h2h2h2 = '///'.
d3 (1 character) = Cloud amount of the 3rd layer in oktas h3h3h3 (3 characters) = Height of the 3rd cloud layer in 10s of metres or 100s of feet, if no 3rd layer is reported h3h3h3 = '///'.
d4 (1 character) = Cloud amount of the 4th layer in oktas
h4h4h4 (3 characters) = Height of the 4th cloud layer in 10s of metres or 100s of feet, if no 4th layer is reported h4h4h4 = '///'.
d5 (1 character) = Cloud amount of the 5th layer in oktas h5h5h5 (3 characters) = Height of the 5th cloud layer in 10s of metres or 100s of feet, if no 5th layer is reported h5h5h5 = '///'.
41
CS135 Ceilometer
CR LF = Carriage Return + Line Feed
LINE 4
9
scale9res9n9 energy9lt9tr9ti_bl9pulse
rate9sum CR LF
where
scale (5 characters) = Scale parameter,%, 0 ... 99999. 100% is default
res (2 characters) = Backscatter profile resolution in metres.
n (4 characters) = Profile length 2048
energy (3 characters) = Laser pulse energy, %.
lt (3 characters including leading +/-) = Laser temperature, degrees C
ti (2 characters) = Total tilt angle, degrees
bl (4 characters) = Background light, millivolts at internal ADC input (0 ... 2500)
pulse (4 characters) = Pulse quantity x 1000 (0000-9999)
rate (2 characters) = Sample rate, MHz, (00-99)
sum = Sum of detected and normalized backscatter, 0 ... 999. Multiplied by scaling factor times
4
10
. At scaling factor 100 the SUM range 0 ... 999 corresponds to integrated backscatter 0 ... 0.
-1.
srad
CR LF = Carriage Return + Line Feed
LINE 5
SSSSSSSSSSSSSSSSSSSSSSSSSSSSS........(2048 x 5 bytes) CR LF
The two-way attenuated normalised backscatter profile (100000·srad·km)
-1
scaled by the Attenuated_SCALE parameter. Each sample is coded with a
20-bit HEX ASCII character set; msb nibble and bit first, 2's complement.
NOTE
The profile is not corrected for the tilt angle.
CR LF = Carriage Return + Line Feed
42
LINE 6
ETX CRC16 EOT CR LF
where
ETX = End-of-Text character CRC16 (4 characters) = CRC16-CCITT Checksum EOT = End-of-Transmission character CR LF = Carriage Return + Line Feed
6.3 CL31 Messages
MESSAGES 101 - 106, (CL31 MESSAGE 1)
LINE 1
SOH CL ID OS 1 Samples ETX CR LF
where
SOH = Start-of-Heading character
CL = Always CL
ID = A single ASCII character, 0-9, a - z or A - Z, case sensitive. Default ID = 0
OS = Operating system, 100 ... 999
1 = Always 1
Samples = backscatter resolution and number of samples
1 = MESSAGE 101, 10 m x 770 samples, range 7700 m 2 = MESSAGE 102, 20 m x 385 samples, range 7700 m 3 = MESSAGE 103, 5 m x 1500 samples, range 7500 m 4 = MESSAGE 104, 5 m x 770 samples, range 3850 m 5 = MESSAGE 105, no backscatter profile 6 = MESSAGE 106, extended range, 5 m x 2048 samples, range 10,240 m
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
User Guide
43
CS135 Ceilometer
LINE 2
9h29
S WA9h1
h39flags CR LF
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Full obscuration determined but no cloud base detected 5 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
h1 (5 characters) = 1st Height If detection status is 1, 2 or 3 h1 = Lowest cloud base reported If detection status is 4 h1 = If detection status is 0 or 5 h1 =
Vertical visibility as calculated
"/////"
h2 (5 characters) = 2nd Height If detection status is 2 or 3 h2 = Second highest cloud base reported If detection status is 4 h2 = If detection status is 0, 1 or 5 h2 =
Highest signal received
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 h3 = Highest cloud base reported If detection status is 0, 1, 2, 4 or 5 h3 =
"/////"
flags (12 characters) = Alarm or warning information.
44
Description of the most significant alarm word (left word, bits going left to right)
r
Bit Description
8000 XXXX XXXX Transmitter shut-off 4000 XXXX XXXX Transmitter failure 2000 XXXX XXXX Receiver failure 1000 XXXX XXXX Reserved for future use 0800 XXXX XXXX Reserved for future use 0400 XXXX XXXX Memory erro 0200 XXXX XXXX Light path obstruction 0100 XXXX XXXX Receiver saturation 0080 XXXX XXXX Reserved for future use 0040 XXXX XXXX Reserved for future use 0020 XXXX XXXX Reserved for future use 0010 XXXX XXXX Reserved for future use 0008 XXXX XXXX Reserved for future use 0004 XXXX XXXX Reserved for future use 0002 XXXX XXXX Reserved for future use 0001 XXXX XXXX Ceilometer engine board failure
Description of the middle alarm word (middle word, bits going left to right) Bit Description
XXXX 8000 XXXX Window contamination XXXX 4000 XXXX Battery voltage low XXXX 2000 XXXX Transmitter expires XXXX 1000 XXXX High humidity XXXX 0800 XXXX Reserved for future use XXXX 0400 XXXX Blower failure XXXX 0200 XXXX Reserved for future use XXXX 0100 XXXX Humidity sensor failure XXXX 0080 XXXX Heater fault XXXX 0040 XXXX High background radiance XXXX 0020 XXXX Ceilometer engine board failure XXXX 0010 XXXX Reserved for future use XXXX 0008 XXXX Laser monitor failure XXXX 0004 XXXX Receiver warning XXXX 0002 XXXX Tilt beyond limit set by user, default 45 degrees XXXX 0001 XXXX Reserved for future use
Description of the least significant alarm wor d (right word, bits going left to right) Bit Description
XXXX XXXX 8000 Blower is on XXXX XXXX 4000 Blower heater is on XXXX XXXX 2000 Internal heater is on XXXX XXXX 1000 Working from battery XXXX XXXX 0800 Reserved for future use XXXX XXXX 0400 Self test in progress XXXX XXXX 0200 Reserved for future use XXXX XXXX 0100 Reserved for future use XXXX XXXX 0080 Units are metres if on, else feet XXXX XXXX 0040 Reserved for future use XXXX XXXX 0020 Polling mode is on XXXX XXXX 0010 Reserved for future use XXXX XXXX 0008 Reserved for future use XXXX XXXX 0004 Reserved for future use XXXX XXXX 0002 Reserved for future use XXXX XXXX 0001 Reserved for future use
User Guide
45
CS135 Ceilometer
CR LF = Carriage Return + Line Feed
LINE 3
scale9res9n9 energy9lt9tr9ti_bl9L0112HN159sum CR LF
where
scale (5 characters) = Scale parameter,%, 0 ... 99999. 100% is typical
res (2 characters) = Backscatter profile resolution in metres.
n (4 characters) = Profile length 385, 770, 1400, or 1500 samples.
energy (3 characters) = Laser pulse energy, %.
lt (3 characters including leading +/-) = Laser temperature, degrees C
tr (3 characters) = Window transmission, %
ti (2 characters) = Total tilt angle, degrees
bl (4 characters) = Background light, millivolts at internal ADC input (0 ... 2500)
"L0112HN15" (9 characters) = Reserved, defaults shown
sum = Sum of detected and normalized backscatter, 0 ... 999. Not used in Operating System 1
CR LF = Carriage Return + Line Feed
NOTE
This line is omitted from message 105.
LINE 4
SSSSSSSSSSSSSSSSSSSSSSSSSSSSS........(5 x 770 bytes) CR LF
The two-way attenuated normalised backscatter profile (100000·srad·km)
-1
unless otherwise scaled by the Attenuated_SCALE parameter. Each sample is
coded with a 20-bit HEX ASCII character set; msb nibble and bit first, 2's complement.
NOTE
The profile is not corrected for the tilt angle.
CR LF = Carriage Return + Line Feed
NOTE
This line is omitted from message 105.
46
LINE 5
ETX CRC16 EOT CR LF
where
ETX = End-of-Text character CRC16 (4 characters) = CRC16-CCITT Checksum EOT = End-of-Transmission character CR LF = Carriage Return + Line Feed
User Guide
47
CS135 Ceilometer
MESSAGES 107 - 112, CL31 Message 2 (available in future OS)
LINE 1
SOH CL ID OS 2 Samples ETX CR LF
where
SOH = Start-of-Heading character
CL = Always CL
ID = A single ASCII character, 0-9, a - z or A - Z, case sensitive. Default ID = 0
OS = Operating system, 100 ... 999
2 = Always 2
Samples = backscatter resolution and number of samples
1 = MESSAGE 107, 10 m x 770 samples, range 7700 m 2 = MESSAGE 108, 20 m x 385 samples, range 7700 m 3 = MESSAGE 109, 5 m x 1500 samples, range 7500 m 4 = MESSAGE 110, 5 m x 770 samples, range 3850 m 5 = MESSAGE 111, no backscatter profile 6 = MESSAGE 112, extended range, 5 m x 2048 samples, range 10,240 m
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
48
LINE 2
9h29
S WA9h1
h39flags CR LF
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Full obscuration determined but no cloud base detected 5 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
h1 (5 characters) = 1st Height If detection status is 1, 2 or 3 h1 = Lowest cloud base reported If detection status is 4 h1 = If detection status is 0 or 5 h1 =
Vertical visibility as calculated
"/////"
h2 (5 characters) = 2nd Height If detection status is 2 or 3 h2 = Second highest cloud base reported If detection status is 4 h2 = If detection status is 0, 1 or 5 h2 =
Highest signal received
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 h3 = Highest cloud base reported If detection status is 0, 1, 2, 4 or 5 h3 =
"/////"
flags (12 characters) = Alarm or warning information.
Same as for messages 101 – 106
CR LF = Carriage Return + Line Feed
LINE 3
__d_h1h1h1__d2_h2h2h2__d3_h3h3h3__d4_h4h4h4__d5_h5h5h5 CR LF (note spaces)
where
d (1 character) = Data available
User Guide
49
CS135 Ceilometer
0 to 8 Amount of lowest layer in oktas 9 Vertical visibility only available
-1 No sky condition data available 99 Insufficient data
h1h1h1 (3 characters) = Height of the lowest cloud layer in 10s of metres or 100s of feet
d2 (1 character) = Cloud amount of the 2nd layer in oktas
h2h2h2 (3 characters) = Height of the 2nd cloud layer in 10s of metres or 100s of feet, if no 2nd layer is reported h2h2h2 = '///'.
d3 (1 character) = Cloud amount of the 3rd layer in oktas
h3h3h3 (3 characters) = Height of the 3rd cloud layer in 10s of metres or 100s of feet, if no 3rd layer is reported h3h3h3 = '///'.
d4 (1 character) = Cloud amount of the 4th layer in oktas
h4h4h4 (3 characters) = Height of the 4th cloud layer in 10s of metres or 100s of feet, if no 4th layer is reported h4h4h4 = '///'.
d5 (1 character) = Cloud amount of the 5th layer in oktas
h5h5h5 (3 characters) = Height of the 5th cloud layer in 10s of metres or 100s of feet, if no 5th layer is reported h5h5h5 = '///'.
CR LF = Carriage Return + Line Feed
LINE 4
scale9res9n9 energy9lt9tr9ti_bl9L0112HN159sum CR LF
where
scale (5 characters) = Scale parameter,%, 0 ... 99999. 100% is typical
res (2 characters) = Backscatter profile resolution in metres.
n (4 characters) = Profile length 385, 770, 1400, or 1500 samples.
energy (3 characters) = Laser pulse energy, %. lt (3 characters including leading +/-) = Laser temperature, degrees C
tr (3 characters) = Window transmission, %
ti (2 characters) = Total tilt angle, degrees
bl (4 characters) = Background light, millivolts at internal ADC input (0 ... 2500)
50
User Guide
"L0112HN15" (9 characters) = Reserved, defaults shown
sum = Sum of detected and normalized backscatter, 0 ... 999. Not used in Operating System 1
CR LF = Carriage Return + Line Feed
NOTE
This line is omitted from message 111.
LINE 5
SSSSSSSSSSSSSSSSSSSSSSSSSSSSS........(5 x 770 bytes) CR LF
The two-way attenuated normalised backscatter profile (100000·srad·km)
-1
unless otherwise scaled by the Attenuated_SCALE parameter. Each sample is
coded with a 20-bit HEX ASCII character set; msb nibble and bit first, 2's complement.
NOTE
The profile is not corrected for the tilt angle.
CR LF = Carriage Return + Line Feed
NOTE
This line is omitted from message 111.
LINE 6
ETX CR LF
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
51
CS135 Ceilometer
6.4 CT25K Messages
MESSAGE 113, CT25K Data Message No. 1
LINE 1
SOH CT ID OS 10 ETX CR LF
where
SOH = Start-of-Heading character
CT = Always CT
ID (1 character) = Unit number 0 ... 9, A ... Z (capitals only) Default ID = 0
OS (2 characters) = Operating system 00 ... 99
1 = Always = '1' 0 = Always = '0'.
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
LINE 2
9h29
S WA9h1
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Full obscuration determined but no cloud base detected 5 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
h1 (5 characters) = 1st Height If detection status is 1, 2 or 3 h1 = Lowest cloud base reported
h39flags CR LF
52
If detection status is 4 h1 =Vertical visibility as calculated If detection status is 0 or 5 h1 =
"/////"
h2 (5 characters) = 2nd Height If detection status is 2 or 3 h2 = Second highest cloud base reported If detection status is 4 h2 = If detection status is 0, 1 or 5 h2 =
Height of highest signal detected
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 h3 = Highest cloud base reported If detection status is 0, 1, 2, 4 or 5 h3 =
"/////"
flags (8 characters) = Alarm or warning information 4-byte hex coded
Description of the most significant alarm word (left side, bits going left to right). Each alarm word is a hexadecimal sum of all the error bits. Bit Description
8000 XXXX Transmitter shut-off 4000 XXXX Transmitter failure 2000 XXXX Receiver failure 1000 XXXX DSP, voltage or memory failure 0800 XXXX Reserved for future use 0400 XXXX Reserved for future use 0200 XXXX Reserved for future use 0100 XXXX Reserved for future use 0080 XXXX Window contaminated 0040 XXXX Battery low 0020 XXXX Transmitter expire warning 0010 XXXX Heater or humidity sensor failure 0008 XXXX High radiance warning, also XXXX 0004 0004 XXXX DSP, receiver, or laser monitor failure warning 0002 XXXX Relative humidity > 85 % 0001 XXXX Light path obstruction, receiver saturation or receiver failure
Description of the second alarm word (bits going left to right) Bit Description
XXXX 8000 Blower failure XXXX 4000 Reserved for future use XXXX 2000 Reserved for future use XXXX 1000 Reserved for future use XXXX 0800 Blower on XXXX 0400 Blower heater on XXXX 0200 Internal heater on XXXX 0100 Units metres if on, feet if off. XXXX 0080 Polling mode on XXXX 0040 Working from battery XXXX 0020 Always 0 XXXX 0010 Always 0 XXXX 0008 Tilt beyond limit set by user, default 45 degrees XXXX 0004 High radiance warning, also 0008 XXXX XXXX 0002 Reserved for future use XXXX 0001 Reserved for future use
CR LF = Carriage Return + Line Feed
User Guide
53
CS135 Ceilometer
LINE 3
ETX CR LF
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
54
MESSAGE 114, CT25K Data Message No. 6 (available in future OS)
LINE 1
SOH CT ID OS 10 ETX CR LF
where
SOH = Start-of-Heading character
CT = Always CT
ID (1 character) = Unit number 0 ... 9, A ... Z (capitals only) Default ID = 0
OS (2 characters) = Operating system 00 ... 99
1 = Always = '1' 0 = Always = '0'.
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
LINE 2
9h29
S WA9h1
h39flags CR LF
where
S (1 character) = message status:
0 = No significant backscatter 1 = One cloud base detected 2 = Two cloud bases detected 3 = Three cloud bases detected 4 = Full obscuration determined but no cloud base detected 5 = Some obscuration detected but determined to be transparent / = Raw data input to algorithm missing or suspect
WA (1 character) = Warning or alarm status:
0 = No alarm or warning W = Warning A = Alarm
h1 (5 characters) = 1st Height If detection status is 1, 2 or 3 h1 = Lowest cloud base reported If detection status is 4 h1 = If detection status is 0 or 5 h1 =
Vertical visibility as calculated
"/////"
h2 (5 characters) = 2nd Height
User Guide
55
CS135 Ceilometer
If detection status is 2 or 3 h2 = Second highest cloud base reported If detection status is 4 h2 = If detection status is 0, 1 or 5 h2 =
Height of highest signal detected
"/////"
h3 (5 characters) = 3rd Height If detection status is 3 h3 = Highest cloud base reported If detection status is 0, 1, 2, 4 or 5 h3 =
"/////"
flags (8 characters) = Alarm or warning information 4-byte hex coded
As for CT25K message 1.
CR LF = Carriage Return + Line Feed
LINE 3 (SKY CONDITION)
__d_h1h1h1__d2_h2h2h2__d3_h3h3h3__d4_h4h4h4 CR LF (note spaces)
where
d (1 character) = Data available 0 to 8 Amount of lowest layer in oktas 9 Vertical visibility only available
-1 No sky condition data available 99 Insufficient data
h1h1h1 (3 characters) = Height of the lowest cloud layer in 10s of metres or 100s of feet
d2 (1 character) = Cloud amount of the 2nd layer in oktas
h2h2h2 (3 characters) = Height of the 2nd cloud layer in 10s of metres or 100s of feet, if no 2nd layer is reported h2h2h2 = '///'. d3 (1 character) = Cloud amount of the 3rd layer in oktas h3h3h3 (3 characters) = Height of the 3rd cloud layer in 10s of metres or 100s of feet, if no 3rd layer is reported h3h3h3 = '///'.
d4 (1 character) = Cloud amount of the 4th layer in oktas
h4h4h4 (3 characters) = Height of the 4th cloud layer in 10s of metres or 100s of feet, if no 4th layer is reported h4h4h4 = '///'.
CR LF = Carriage Return + Line Feed
56
LINE 4
ETX CR LF
ETX = End-of-Text Character
CR LF = Carriage Return + Line Feed
7. Maintenance
7.1 General
The CS135 is a robust weather resistant instrument and there is no need for routine maintenance other than cleaning. The instrument performance is monitored and any potential problems are covered by error messages.
7.2 Cleaning
The CS135 window will require cleaning from time to time. The frequency of required cleaning depends on the exposure of the instrument to contaminants such as salt and dust. This will vary depending on the site location. The CS135 is capable of self diagnosing dirty lenses and will indicate in its output when the lenses are contaminated.
User Guide
CAUTION
In any case we suggest six monthly intervals for locat ions not prone to contaminants and monthly intervals for those prone to contamination (coastal, roadside or airport use). In some cases more frequent cleaning may be required where there are high levels of contaminants and high dependency on the instrument output.
If the window requires cl eaning, it is very important that on ly a proper lens cloth or lens tissue is used. The use of inappropriate materials to clean the windows can permanently damage or reduce their effectiveness leading to reduced performance.
57
CS135 Ceilometer
7.3 Removing the Cover
It is advisable to use an air duster to blow any loose dust and dirt from the window as a first step. Using a lint free lens cloth or lens tissue impre gnated with a small amount of isopropyl alcohol solvent clean the surface by dragging the cloth across it being careful not to apply excessive pressure.
Excessive pressure may lead to some types of contaminant scratching the window surface. Over time such scratche s can lead to reduced sensitivi ty.
The cover is removed by removing the four screws as shown in Fig 7.1.
58
CAUTION
Fig 7.1 Removing the Cover
The cover can then be lifted away.
The cover contains a flying lead used to take power to the hood heater and blower. Be car eful not to trap and damage this when lifting the cover clear.
Removing the cover reveals two carrying handles that allow the CS135 to be moved easily.
7.4 Removing the Enclosure Lid
In some circumstances it may be necessary to remove the lid covering the electronics unit, for example to replace desiccant or carry out a hardware reset. This is accomplished by removing the four screws as shown in Fig 7.2.
User Guide
WARNING
WARNING
NOTE
NOTE
Fig 7.2 Removing the Encl osure Lid
Opening enclosure lid MUST be carried out by a competent person
Removing the enclosure lid may expose hot surfaces
The unit will still be powered by the battery even if the mains is disconnected.
Do not use any grease or oil on any seals including the enclosure lid gasket. The silicone rubber seals used throughout the CS135 can be damaged by some mineral oils.
59
CS135 Ceilometer
7.5 Diagnostic LED Indicators Within the Enclosure
Two green LEDs labelled "LASER ON" and "STATUS" are visible on the DSP (see Fig 7.3). Their function is as follows:-
"LASER ON" LED:­ Off = laser off Flashing = laser fault On = laser on
"STATUS" LED
1 flash every 10 seconds = OK
2 flashes every 10 seconds = warning (possible degraded performance)
3 flashes every 10 seconds = alarm (measurements not possible)
The DSP "STATUS" LED duplicates the LED visible through the top window.
There is a red LED on the PSU. It will give 0.5 second flashes as follows:-
1 flash every 10 seconds = PSU OK 2 flashes every 10 seconds = running in battery mode 3 flashes every 10 seconds = no communications to the DSP. This takes 60 seconds to start after a communications failure.
60
Fig 7.3 Diagnostic LED indicators
There is a red LED on the Laser module
Off = Laser off On = Laser on
7.6 Electrical Safety Testing
User Guide
NOTE
If carrying out insulation tests do not use voltages above 300V RMS as the mains input has devices that effectively short circuit any voltages above this level.
61

CAMPBELL SCIENTIFIC COMPANIES

Campbell Scientific, Inc. (CSI)
815 West 1800 North
Logan, Utah 84321 UNITED STATES
www.campbellsci.com
Campbell Scientific Africa Pty. Ltd. (CSAf)
Somerset West 7129
www.csafrica.co.za
Campbell Scientific Australia Pty. Ltd. (CSA)
QLD 4814 AUSTRALIA
www.campbellsci.com.au
Campbell Scientific do Brazil Ltda. (CSB)
Rua Luisa Crapsi Orsi, 15 Butantã
CEP: 005543-000 São Paulo SP BRAZIL
www.campbellsci.com.br
Campbell Scientific Canada Corp. (CSC)
11564 - 149th Street NW
Edmonton, Alberta T5M 1W7
www.campbellsci.ca
Campbell Scientific Centro Caribe S.A. (CSCC)
300N Cementerio, Edificio Breller
Santo Domingo, Heredia 40305
www.campbellsci.cc info@campbellsci.cc
Campbell Scientific Ltd. (CSL)
Shepshed, Loughborough LE12 9GX
UNITED KINGDOM
www.campbellsci.co.uk
Campbell Scientific Ltd. (France)
3 Avenue de la Division Leclerc
www.campbellsci.fr
Campbell Scientific Spain, S. L.
Avda. Pompeu Fabra 7-9
Local 1 - 08024 BARCELONA
www.campbellsci.es
Campbell Scientific Ltd. (Germany)
Fahrenheitstrasse13, D-28359 Bremen
www.campbellsci.de
Please visit www.campbellsci.com to obtain contact information for your local US or International representative.
info@campbellsci.com
PO Box 2450
SOUTH AFRICA
sales@csafrica.co.za
PO Box 8108
Garbutt Post Shop
info@campbellsci.com.au
suporte@campbellsci.com.br
CANADA
dataloggers@campbellsci.ca
COSTA RICA
Campbell Park
80 Hathern Road
sales@campbellsci.co.uk
92160 ANTONY
FRANCE
info@campbellsci.fr
SPAIN
info@campbellsci.es
GERMANY
info@campbellsci.de
Loading...
