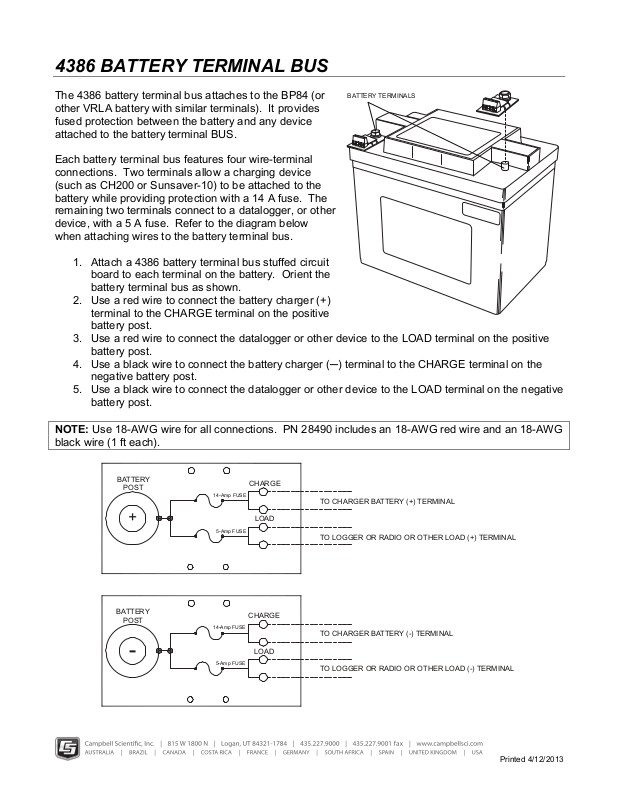

4386 BATTERY TERMINAL BUS
The 4386 battery terminal bus attaches to the BP84 (or
other VRLA battery with similar terminals). It provides
BATTERY TERMINALS
LOAD CHARGE
fused protection between the battery and any device
attached to the battery terminal BUS.
LOAD CHARGE
Each battery terminal bus features four wire-terminal
connections. Two terminals allow a charging device
(such as CH200 or Sunsaver-10) to be attached to the
battery while providing protection with a 14 A fuse. The
remaining two terminals connect to a datalogger, or other
device, with a 5 A fuse. Refer to the diagram below
when attaching wires to the battery terminal bus.
1. Attach a 4386 battery terminal bus stuffed circuit
board to each terminal on the battery. Orient the
battery terminal bus as shown.
2. Use a red wire to connect the battery charger (+)
terminal to the CHARGE terminal on the positive
battery post.
3. Use a red wire to connect the datalogger or other device to the LOAD terminal on the positive
battery post.
4. Use a black wire to connect the battery charger (─) terminal to the CHARGE terminal on the
negative battery post.
5. Use a black wire to connect the datalogger or other device to the LOAD terminal on the negative
battery post.
NOTE: Use 18-AWG wire for all connections. PN 28490 includes an 18-AWG red wire and an 18-AWG
black wire (1 ft each).
BATTERY
POST
BATTERY
POST
14-Amp FUSE
5-Amp FUSE
14-Amp FUSE
5-Amp FUSE
CHARGE
TO CHARGER BATTERY (+) TERMINAL
LOAD
TO LOGGER OR RADIO OR OTHER LOAD (+) TERMINAL
CHARGE
TO CHARGER BATTERY (-) TERMINAL
LOAD
TO LOGGER OR RADIO OR OTHER LOAD (-) TERMINAL
Printed 4/12/2013
