Model 092 Barometric Pressure Sensor

1. Introduction

The Model 092 Barometric Pressure Sensor is designed to measure ambient
atmospheric pressure and is configured at Campbell Scientific for analog
output. It is recommended for wind-farm power-performance research.

2. Cautionary Statements

• Install the sensor such that it faces north in the northern hemisphere, or

south in the southern hemisphere. This orientation will shield the
polycarbonate sensor housing from most direct sunlight.

• The pressure sensor element is light sensitive. Only operate the 092 when

the polycarbonate case is closed.

• Pressure conditions in the range of 10 to 10,000 millibars will not harm the

sensor, but the measurement accuracy is not guaranteed beyond the range
of 600 to 1100 millibars.

3. Initial Inspection

• Upon receipt of the 092, inspect the packaging and contents for damage.

File damage claims with the shipping company, but contact Campbell
Scientific to arrange for repair or replacement.

• The model number and cable length are printed on a label at the

connection end of the cable. Check this information against the shipping
documents to ensure the expected product and cable length are received.

4. Quickstart

4.1 Installation

Please review Section 7, Installation, for complete guidelines.

To install the 092:

1. The 092 enclosure is pre-supplied with desiccant and does not need to be

opened.

2. Attach the 092 to the tripod or tower leg using the supplied u-bolts.

FIGURE 4-1 shows the 092 installed on a vertical mast.

1

Model 092 Barometric Pressure Sensor

FIGURE 4-1. 092 installed on a vertical mast

Individual wire leads connect to the CR1000 datalogger as shown in step 5 of
the procedure in Section 4.2, Programming with Short Cut. A generalized
wiring diagram is provided in Section 7.2, Wiring.

2

4.2 Programming with Short Cut

Short Cut Program Generator for Windows can be used to program the
CR1000 datalogger to measure the 092 as outlined in the following procedure.
Short Cut can also program other 092-compatible Campbell Scientific
dataloggers.

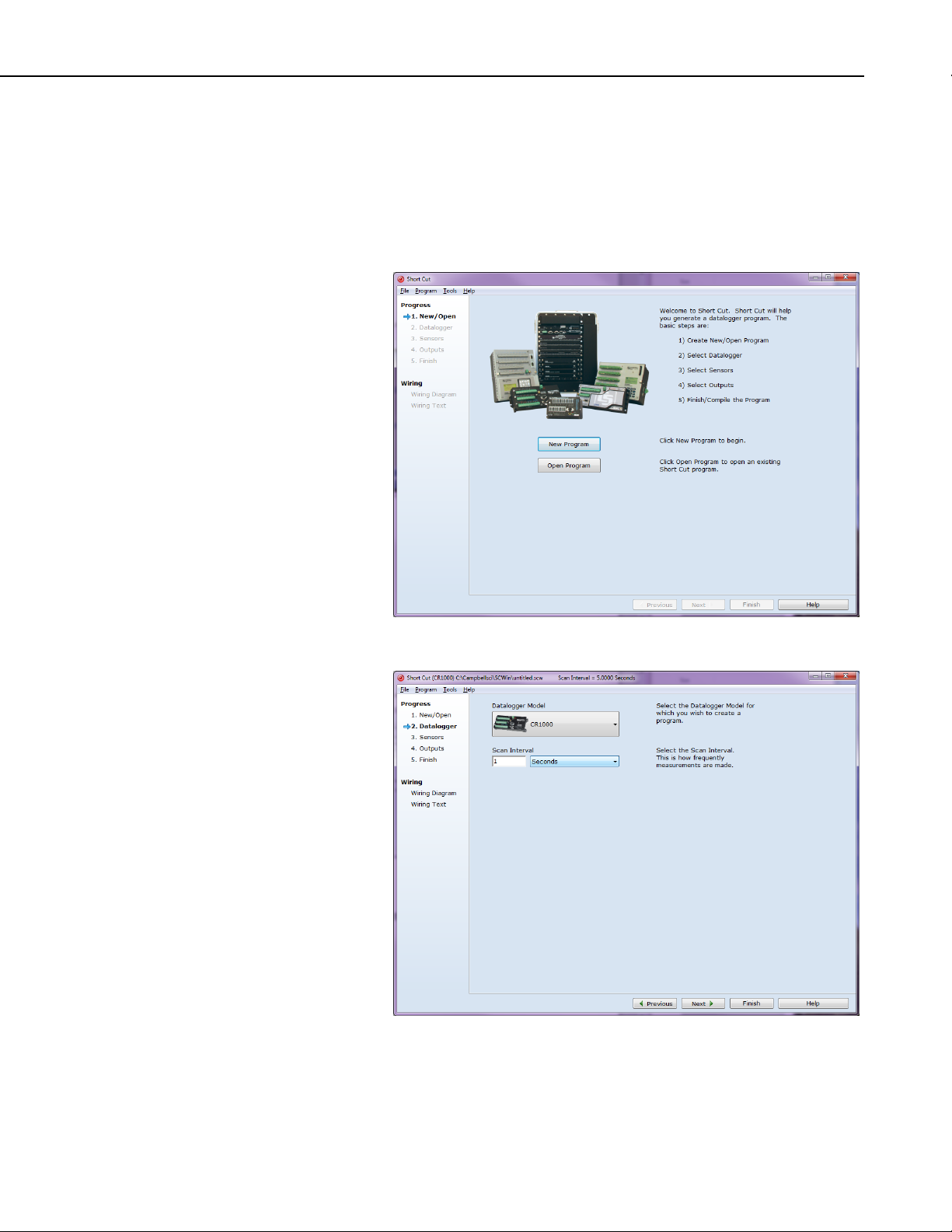

1. Open Short Cut and click on New Program.

Model 092 Barometric Pressure Sensor

2. Select a scan interval.

3

Model 092 Barometric Pressure Sensor

3. Select 092 Barometric Pressure Sensor and click the right arrow in the

middle of the page to add it to the list of sensors to be measured.

4. Define the name of the public variable, or use the default BP_mmHg to

hold the barometric pressure measurement. Select the desired units of
measure, or use the default mmHg.

4

Model 092 Barometric Pressure Sensor

5. Sensor connections to the CR1000 datalogger are shown in the Wiring

tab.

6. Select the desired output data for final storage and click Finish.

7. Click Wiring Diagram for a description of sensor wiring for this example.

Send the program from the PC to the CR1000 datalogger when prompted
if a telecommunications link is active.

5

Model 092 Barometric Pressure Sensor

5. Overview

The 092 ships from Campbell Scientific pre-wired for analog output with the
following settings:

• Analog Output Voltage: 0 to 5 Vdc

• Range: 600 to 1100 mbar

Refer to Appendix A, Analog Output Configurations, for available analog
output options.

The 092 uses an on-board microcontroller and piezoresistive pressure sensor
module. This module contains an analog-to-digital converter, a temperature
sensor, and non-volatile memory for storage of factory-determined calibration
coefficients. The microcontroller polls the sensor module once per second.
Measurements are temperature corrected, the calibration coefficients applied,
and the processed pressure measurement stored for output.

NOTE

The pressure sensor element is light sensitive. Do not operate
the 092 without the top cover of the polycarbonate case securely
in place.

All wiring terminals on the 092 are protected from static-surge damage by
transzorbs and current-limiting resistors.

Although the 092 is configured at Campbell Scientific for analog output,
digital output options including RS-232 and SDI-12 are available. Refer to the
MetOne 092, 594, 6633A Barometric Pressure Sensor Manual for more
information.

6

6. Specifications

Features:

Compatibility: CR800 series

Measurement

Model 092 Barometric Pressure Sensor

• The following 092 barometer settings are configurable:

o measurement range

o data output option / communication option

o analog output range

• Specifications listed here are limited to those applicable to the 092 as

it is configured and shipped by Campbell Scientific, Inc.

CR1000
CR3000
CR23X
CR10(X)

Range: 600 to 1100 mbar
Resolution: 0.1 mbar (.003 Hg)
Accuracy: ±0.35 mbar at 25°C

±0.75 mbar at 0° to55°C
±1.5 mbar at -40°C
Long-term stability: ±1 mbar in 12 months

7. Installation

7.1 Mounting

Temperature

Operating range: -40° to 55°C
Compensated range: -40° to 55°C

Power requirement

Source: 6 to 16 Vdc
Load: 10 mA at 12 Vdc

Output: Analog, 0 to 5 Vdc

Enclosure: Polycarbonate

Size: 120 x 80 x 55 mm (4.7 x 3.1 x 2.2 in)

CE Certification: See Appendix C

Calibration: Factory-calibrated against a NIST

traceable anemometer.

The 092 is factory-mounted to a solar shield. The solar shield mounts by way
of two u-bolts to a vertical pipe with diameter of up to 2-inch IPS. Install the
sensor such that it faces north in the northern hemisphere, or south in the

7

Model 092 Barometric Pressure Sensor

southern hemisphere. This orientation will shield the polycarbonate sensor
housing from most direct sunlight.

7.2 Wiring

TABLE 7-1. Connecting the 092 to Campbell Scientific Dataloggers

Wire Color

Wire Description

Red Power 12V 12V 12V

White Signal SE Input SE Input

Black Ground G G

Green Signal Reference

Clear Shield

7.3 Programming

The following CR1000 programming example can be used, in whole or in part,
if the datalogger is being programmed with CRBasic Editor. Programming is
similar with the CR800 and CR3000.

'CR1000 with 092 Barometric Pressure Sensor

'-Wiring­'1H: White
'Ground: Green
'Ground: Clear
'G: Black
'12V: Red

'Declare Variables and Units
Public BattV
Public PTemp_C
Public BP_mmHg

Units BattV=Volts
Units PTemp_C=Deg C
Units BP_mmHg=mmHg

'Define Data Tables
DataTable(Table1,True,-1)
DataInterval(0,60,Min,10)
Average(1,BP_mmHg,FP2,False)
EndTable

DataTable(Table2,True,-1)
DataInterval(0,1440,Min,10)
Minimum(1,BattV,FP2,False,False)
EndTable

CR23X
CR800-series
CR1000
CR3000
CR5000
Terminal

CR10(X)
CR500
CR510
Terminal

G

G

8

'Main Program
BeginProg
'Main Scan
Scan(5,Sec,1,0)
'Default Datalogger Battery Voltage measurement 'BattV'
Battery(BattV)
'Default Wiring Panel Temperature measurement 'PTemp_C'
PanelTemp(PTemp_C,_60Hz)
'092 Barometric Pressure Sensor measurement 'BP_mmHg'
VoltSE(BP_mmHg,1,mV5000,1,1,0,_60Hz,0.1,600)
BP_mmHg=BP_mmHg*0.75006
'Call Data Tables and Store Data
CallTable(Table1)
CallTable(Table2)
NextScan
EndProg

8. Maintenance

8.1 Cleaning

Periodic cleaning of the sintered filter at the base of the unit may be required in
dusty conditions. Remove the filter and clean with distilled water.

Model 092 Barometric Pressure Sensor

8.2 Calibration

Calibration is performed against a NIST traceable standard. Calibration
coefficients are stored in non-volatile memory at the factory. No user
calibration procedure is available. The sensor must be returned to Met One
Instruments when calibration is desired. Yearly calibrations are recommended.

For calibration, contact:

Met One Instruments
1600 Washington Blvd.
Grants Pass, OR 97526
Phone: [phone]
Fax: [phone]

Met One Instruments
3206 Main Street
Suite 106
Rowlett, TX 75088
Phone: [phone]
Fax: [phone]

9

Model 092 Barometric Pressure Sensor

10

Appendix A. Analog Output Configurations

The 092 ships from Campbell Scientific pre-wired and pre-configured for
analog output with the following settings:

• Analog Output Voltage: 0 to 5 Vdc

• Range: 600 to 1100 mbar

Output voltage and measurement ranges are set by switches. Dip switch
settings are listed in TABLE A-1 and TABLE A-2. Highlighted settings are
those set at the factory by Campbell Scientific. Complete information
concerning measurement, output, and communications settings is available in
the Met One 092, 594, 6633A Barometric Pressure Sensor Manual, which is
available at www.campbellsci.com.

TABLE A-1. Dip Switches SW1:

Analog Output Voltage Settings

Range SW1-1 SW1-2

0-1 Vdc On On

0-2 Vdc On Off

0-2.5 Vdc Off On

0-5 Vdc* Off* Off*

*Factory configuration at Campbell Scientific.

A-1

Appendix A. Analog Output Configurations

TABLE A-2. Dip Switches SW2: Analog Output Pressure Range Settings

RANGE SELECTION SWITCH SETTINGS

mbar mm Hg in. Hg

LOWER UPPER LOWER UPPER LOWER UPPER SW2-1 SW2-2 SW2-3 SW2-4

600 800 450 600 17.72 23.62 ON ON ON ON

600 900 450 675 17.72 26.58 OFF ON ON ON

600 1000 450 750 17.72 29.53 ON OFF ON ON

6001 11001 4501 8251 17.721 32.481 OFF1 OFF1 ON1 ON1

700 800 525 600 20.67 23.62 ON ON OFF ON

700 900 525 675 20.67 26.58 OFF ON OFF ON

700 1000 525 750 20.67 29.53 ON OFF OFF ON

700 1100 525 825 20.67 32.48 OFF OFF OFF ON

677.1 1083.6 508.0 812.8 20.00 32.00 ON ON ON OFF

800 900 600 675 23.62 26.58 OFF ON ON OFF

800 1000 600 750 23.62 29.53 ON OFF ON OFF

800 1100 600 825 23.62 32.48 OFF OFF ON OFF

2 2

2 2

2

2

2

2

2

2

2

ON2 ON2 OFF2 OFF2

2

OFF2 ON2 OFF2 OFF2

900 1000 675 750 26.58 29.53 ON OFF OFF OFF

900 1100 675 825 26.58 32.48 OFF OFF OFF OFF

1

Factory configuration at Campbell Scientific

2

Settings with no pressure values are invalid settings. If the switches are set to either of these combinations,

the analog output will default to the full range of 600 to 1100 mbar.

A-2

Appendix B. Wiring

The 092 ships from Campbell Scientific pre-wired for analog output. Internal
cable connections are shown in FIGURE B-1.

FIGURE B-1. Analog wiring

B-1

Appendix B. Wiring

B-2

Appendix C. CE Certification

C-1

Appendix C. CE Certification

C-2

Campbell Scientific Companies

Campbell Scientific, Inc. (CSI)

815 West 1800 North

Logan, Utah 84321

UNITED STATES

www.campbellsci.com

Campbell Scientific Africa Pty. Ltd. (CSAf)

Somerset West 7129

SOUTH AFRICA

www.csafrica.co.za

Campbell Scientific Australia Pty. Ltd. (CSA)

Garbutt Post Shop QLD 4814

www.campbellsci.com.au

Campbell Scientific do Brazil Ltda. (CSB)

Rua Luisa Crapsi Orsi, 15 Butantã

CEP: 005543-000 São Paulo SP BRAZIL

www.campbellsci.com.br

Campbell Scientific Canada Corp. (CSC)

11564 - 149th Street NW

Edmonton, Alberta T5M 1W7

www.campbellsci.ca

Campbell Scientific Centro Caribe S.A. (CSCC)

300 N Cementerio, Edificio Breller

Santo Domingo, Heredia 40305

www.campbellsci.cc

Campbell Scientific Ltd. (CSL)

Shepshed, Loughborough LE12 9GX

UNITED KINGDOM

www.campbellsci.co.uk

Campbell Scientific Ltd. (France)

3 Avenue de la Division Leclerc

www.campbellsci.fr

Campbell Scientific Spain, S. L.

Avda. Pompeu Fabra 7-9, local 1

www.campbellsci.es

Please visit www.campbellsci.com to obtain contact information for your local US or interna tional representative.

• [e-mail]

PO Box 2450

• [e-mail]

PO Box 8108

AUSTRALIA

• [e-mail]

• [e-mail]

CANADA

• [e-mail]

COSTA RICA

• [e-mail]

Campbell Park

80 Hathern Road

• [e-mail]

92160 ANTONY

FRANCE

• [e-mail]

08024 Barcelona

SPAIN

• [e-mail]
