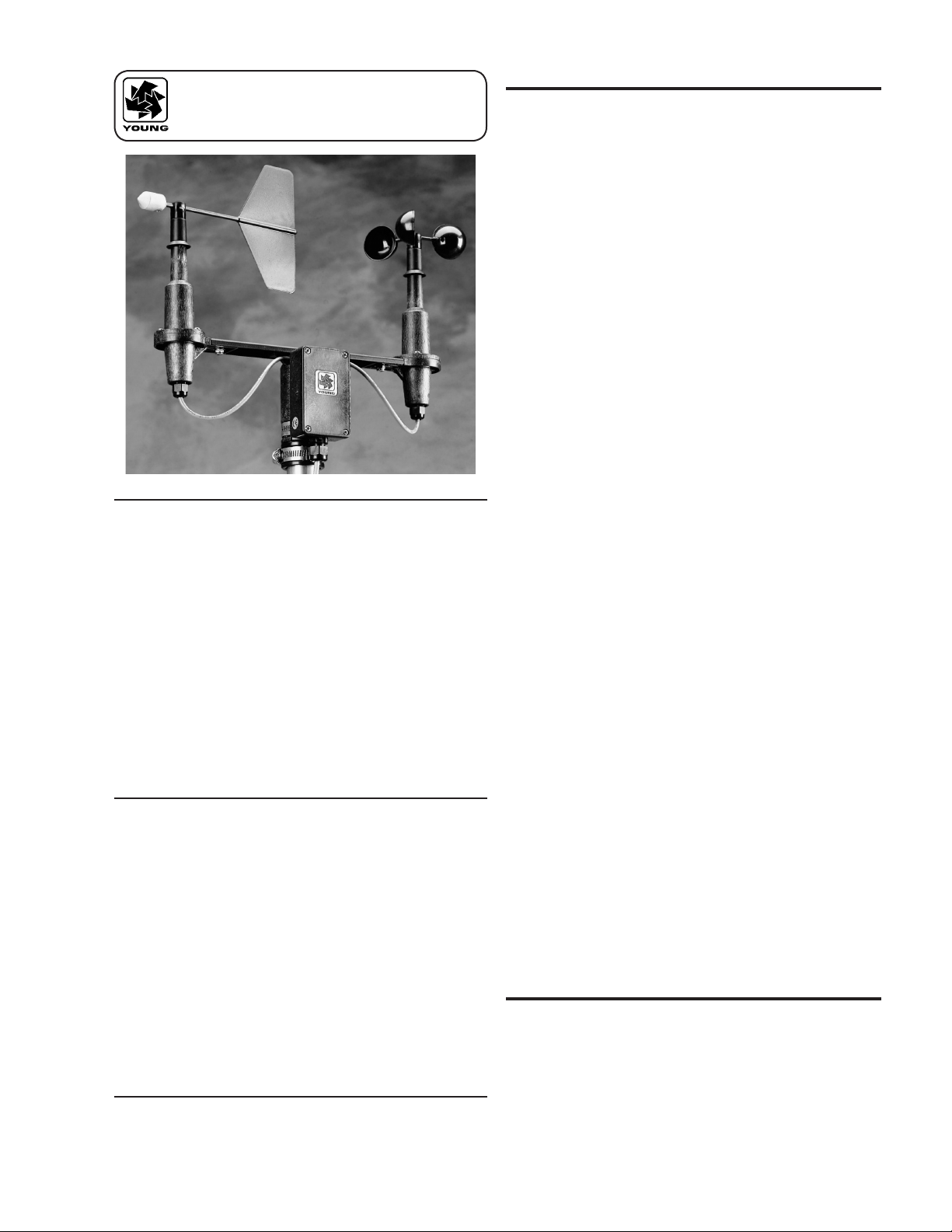

R.M. Young Wind Sentry

1. Introduction

The 03002 Wind Sentry Set measures both wind speed and direction. It
consists of a 3-cup anemometer and a wind vane mounted on a small crossarm.
The anemometer (pn 03101) and vane (pn 03301) may be purchased
separately.

Before installing the 03002, please study

• Section 2, Cautionary Statements

• Section 3, Initial Inspection

• Section 4, Quickstart

2. Cautionary Statements

• The 03002 is a precision instrument. Please handle it with care.

• If the 03002 is to be installed at heights over 6 feet, be familiar with tower

safety and follow safe tower climbing procedures.

• Danger — Use extreme care when working near overhead electrical wires.

Check for overhead wires before mounting the 03002 or before raising a
tower.

• The black outer jacket of the cable is Santoprene® rubber. This

compound was chosen for its resistance to temperature extremes, moisture,
and UV degradation. However, this jacket will support combustion in air.
It is rated as slow burning when tested according to U.L. 94 H.B. and will
pass FMVSS302. Local fire codes may preclude its use inside buildings.

3. Initial Inspection

• Upon receipt of the 03002, inspect the packaging and contents for damage.

File damage claims with the shipping company. Immediately check
package contents against the shipping documentation (see Section 3.1,
Ships With List). Contact Campbell Scientific about any discrepancies.

• The model number and cable length are printed on a label at the

connection end of the cable. Check this information against the shipping
documents to ensure the expected product and cable length are received.

1

R.M. Young Wind Sentry

3.1 Ships With List

The 03002 Wind Sentry ships with:

(1) 03002 Wind Sentry including
03102 anemometer
03302 vane
crossarm
band clamp (pn 4919)
(1) 12" x 1.0" unthreaded aluminium pipe (pn 3659)
(1) Allen wrench (pn 5201)

The 03101 anemometer ships with:

(1) 03101 anemometer
(1) 10" x 3/4" threaded galvanized pipe (pn 12243)
(1) Allen wrench (pn 5201)

The 03301 Vane ships with:

(1) 03301 vane
(1) 10” x 3/4” threaded galvanized pipe (pn 12243)
(1) Allen wrench (pn 5201)

4. Quickstart

4.1 Step 1 — Mount the Sensor

This quick start is for the 03002 wind set. Refer to Section 7, Installation, if
installing just the 03101 anemometer or 03301 vane. Section 7, Installation,
also provides siting information.

Tools required:

• 5/64” Allen wrench

• Allen wrench provided with sensor

• 1/2” open end wrench

• compass and declination angle for the site (see Appendix A)

• small screw driver provided with datalogger

• UV resistant cable ties

• small pair of diagonal-cutting pliers

• 6 – 10” torpedo level

Install the 03002 using:

• Standard 1.0-in. IPS schedule 40 pipe (pn 3659)

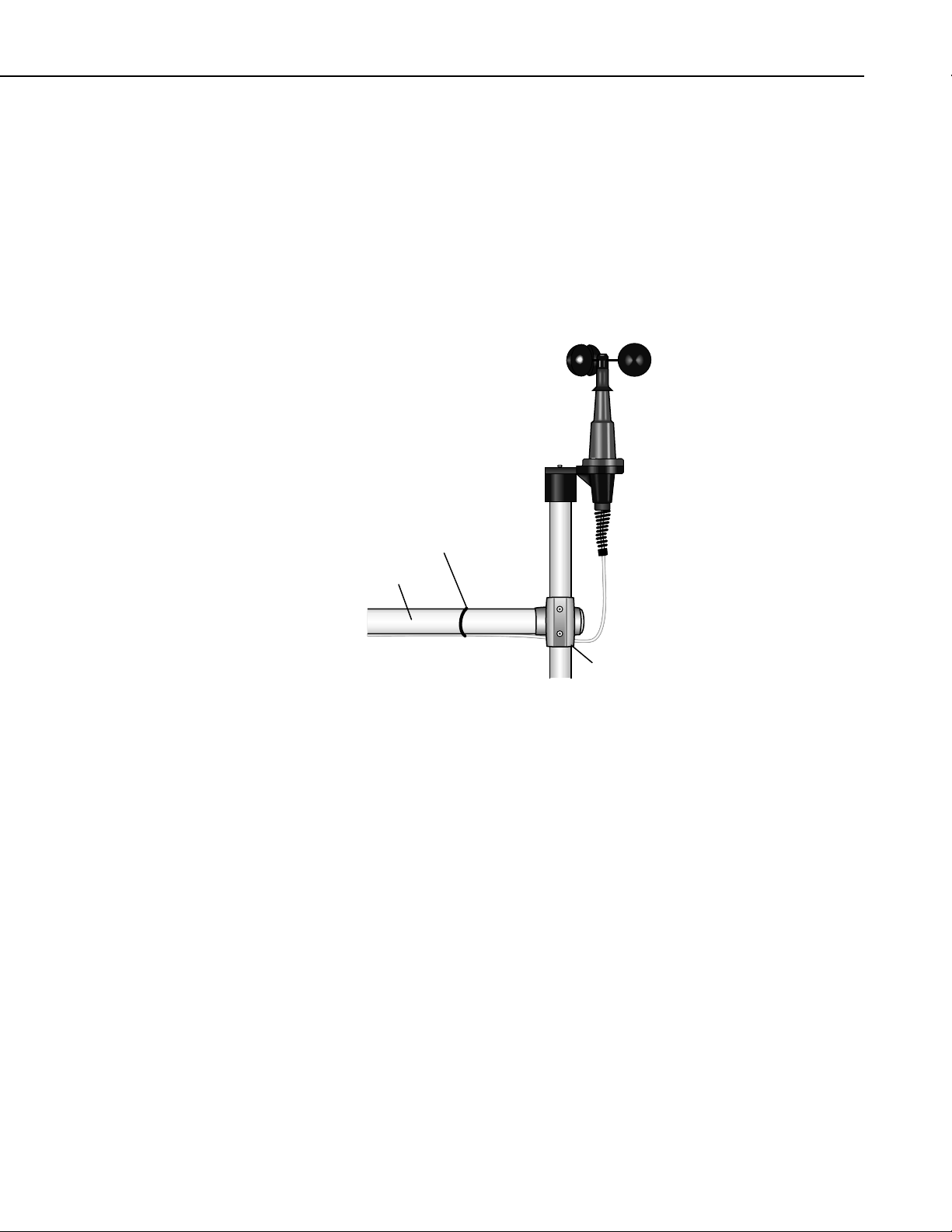

• CM220 Right-Angle Mounting Kit (FIGURE 4-1 and FIGURE 4-2),

or

• 17953 1 x 1 inch NU-RAIL Crossover Fitting (FIGURE 4-3)

2

R.M. Young Wind Sentry

1. Install the cup wheel to the anemometer shaft using the Allen wrench

provided with the sensor.

2. Mount a CM202, CM204, or CM206 crossarm to the tripod or tower.

3. Orient the crossarm North-South, with the CM220 mount or 17953 NU-

RAIL on the north end. Appendix A contains detailed information on
determining True North using a compass and the magnetic declination for
the site.

4. Secure the 12 in. aluminum pipe to the CM220 mount or 17953 NU-RAIL.

The 3659 aluminum pipe is shipped with the 03002.

5. Place the 03002 on the pipe, and orient the sensor crossarm North-South

with the vane to the North.

6. Tighten the mounting post band clamp. Final sensor orientation is done

after the datalogger has been programmed to measure wind direction as
described in Appendix A.

7. Route the sensor cable along the underside of the crossarm to the tripod or

tower, and to the instrument enclosure.

8. Secure the cable to the crossarm and tripod or tower using cable ties.

CM220

CM200-Series Crossarm

FIGURE 4-1. CM200-Series Crossarm with CM220 Right Angle

Mounting Bracket

3

R.M. Young Wind Sentry

Alumimum Pipe

CM220

FIGURE 4-2. 03002 mounted to CM200-Series Crossarm with CM220

Aluminum Pipe

CM200-Series Crossarm

pn 17953 NU-RAIL

4

CM200-Series Crossarm

Cable Tie

FIGURE 4-3. 03002 mounted to CM200-Series Crossarm with

pn 17953

R.M. Young Wind Sentry

4.2 Step 2 — Use SCWin Short Cut to Program Datalogger and Generate Wiring Diagram

The simplest method for programming the datalogger to measure the 03002 is
to use Campbell Scientific's SCWin Short Cut Program Generator.

1. Open Short Cut and click on New Program.

2. Select the Datalogger and enter the Scan Interval and select Next.

5

R.M. Young Wind Sentry

3. Select 03002 Wind Speed & Direction Sensor and select the right arrow

(in center of screen) to add it to the list of sensors to be measured then
select Next.

4. Select Wind Vector for the output and then select Finish.

6
