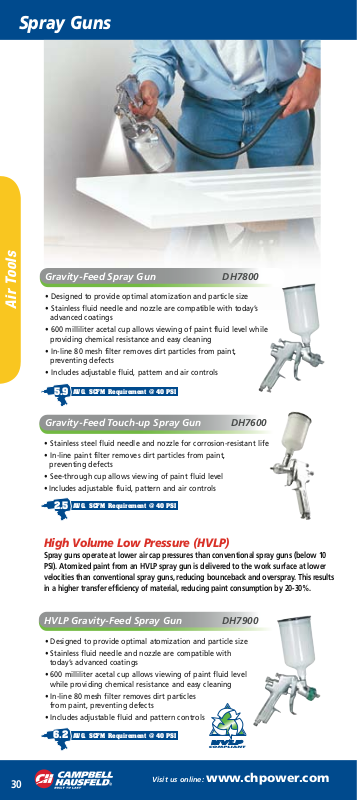

Campbell Hausfeld DH7900, DH7600, DH7800 User Manual

AVG. SCFM Requirement @ 40 PSI
Spray Guns
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Gravity-Feed Spray Gun DH7800
• Designed to provide optimal atomization and particle size
Air Tools
• Stainless fluid needle and nozzle are compatible with today’s advanced coatings
• 600 milliliter acetal cup allows viewing of paint fluid level while providing chemical resistance and easy cleaning
• In-line 80 mesh filter removes dirt particles from paint, preventing defects
• Includes adjustable fluid, pattern and air controls
5.9
Gravity-Feed Touch-up Spray Gun DH7600
• Stainless steel fluid needle and nozzle for corrosion-resistant life
• In-line paint filter removes dirt particles from paint, preventing defects
• See-through cup allows viewing of paint fluid level
• Includes adjustable fluid, pattern and air controls
2.5
High Volume Low Pressure (HVLP)
Spray guns operate at lower air cap pressures than conventional spray guns (below 10 PSI). Atomized paint from an HVLP spray gun is delivered to the work surface at lower velocities than conventional spray guns, reducing bounceback and overspray. This results in a higher transfer efficiency of material, reducing paint consumption by 20-30%.
HVLP Gravity-Feed Spray Gun DH7900
• Designed to provide optimal atomization and particle size
• Stainless fluid needle and nozzle are compatible with today’s advanced coatings
• 600 milliliter acetal cup allows viewing of paint fluid level while providing chemical resistance and easy cleaning
• In-line 80 mesh filter removes dirt particles from paint, preventing defects
• Includes adjustable fluid and pattern controls
6.2
30
Visit us online: www.chpower.com
Spray Guns
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Why Use Spray Guns?
Spraying offers quality finishes on a consistent basis. Spray guns offer several advantages over wiping, brushing or rolling on a paint finish. These include speed, versatility, control, ease of repair, simplicity and consistency of application.
HVLP Gravity-Feed Touch-up Spray Gun
• Stainless steel fluid needle and nozzle for corrosion-resistant life
• HVLP increases transfer efficiency and reduces paint consumption
• In-line paint filter removes dirt particles from paint, preventing defects
• See-through chemical-resistant cup allows viewing of paint fluid level
• Includes adjustable fluid and pattern controls
DH7700
2.8
Siphon-Feed Spray Gun DH6500
• Great choice in an economical spray gun
• Produces a fine finish for most automotive, furniture and equipment painting
• Pattern control adjusts fan size
• Includes 1 qt. anti-drip canister
7.0
Siphon-Feed Spray Gun DH7500
• Designed to provide optimal atomization and particle size
• Stainless fluid needle and nozzle are compatible with today’s advanced coatings
• Built-in air adjusting valve provides easy adjustment at tool
• Includes 1 qt. anti-drip canister
Air Tools
6.3
Model Fluid Fluid tip Paint Viscosity Adjustment Fan Pattern Canister No. Delivery Type (in./mm) Range Controls Size Size
DH7800 Gravity .055/1.4 Low-Med. Pattern/Material/Air 1.5-11 600 ml DH7600 Gravity .025/1.0 Low-Med. Pattern/Material/Air .75-6.0 5 oz. DH7900 Grav./HVLP .055/1.4 Low-Med. Pattern/Material 1.5-10 600ml DH7700 Grav./HVLP .025/1.0 Low-Med. Pattern/Material .75-5.0 5 oz. DH6500 Siphon .071/1.8 Very Low-Med. Pattern/Material 1.5-9.5 1 qt. DH7500 Siphon .071/1.8 Very Low-Med. Pattern/Material 1-10 1 qt..
Or call CH Air Tools at : 1- 800-543- 6400
31
Spray Guns
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Siphon-Feed Detail Spray Gun DH5500
Air Tools
• Provides full size pattern in a small package
• Nickel plated body provides easy clean-up
• Features both fluid and pattern controls
• Includes 8 fl. oz canister
4.2
Pressure-Feed Spray Gun DH3800
• Pressure-feed design sprays low to high viscosity materials
• Ball burnished finish allows for easy clean-up
2.0
Basic Spray Gun DH3200
• Pressure-feed design sprays low to high viscosity materials
• Bleeder design operates with most tankless air compressors
• Fluid control regulates amount of paint sprayed
2.7
General Purpose Spray Gun DH4200
• Changes from siphon to pressure-feed for use with a variety of materials
• Convertible from non-bleeder to bleeder style for use with standard or tankless air compressors
• Works with paint tanks and remote canisters
2.0
32
Visit us online: www.chpower.com
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
General Purpose Spray Gun DH5300
• Easily changes from siphon to pressure-feed with the twist of a knob for use with a variety of materials
• Pattern control adjusts fan size for better results
• Convertible from non-bleeder to bleeder style for use with standard or tankless air compressors
• Works with paint tanks and remote canisters
4.3
Pressure-Feed Spray Gun System DH6600
Spray Guns
• Remote canister allows spraying in tight areas for better maneuverability
• Sprays in any position for added convenience
• Includes 2 qt. pressure canister, regulator and 6’ air and material hoses
7.0
Air Brush Set
• Paints fine lines for pin striping, graphics, detail­ing, modeling, and more
• Dual action trigger allows the user to vary the line width while spraying
• Includes a protective cap, 22cc cup, 5cc metal cup, 60cc mix jar with lid, 6’ air hose with adapter, hanger, and molded case
.23
1
2
/
Gallon Stainless Steel Paint Tank PT2813
2
• Bucket holds 2 1/2 gallons of paint for longer spraying between refills
• Tank accepts 1 gallon paint can for added convenience
• Compatible with most paint materials and solvents
• Includes tank pressure regulator, gauge, safety valve, and 15’ material hose and air hose
Air Tools
MP2900
Model Fluid Fluid tip Paint Viscosity Adjustment Fan Patter n Canister No. Delivery Type (in./mm) Range Controls Size Size
DH5500 Siphon .071/1.8 Very Low-Med. Pattern/Material 1.5-9 8 oz. DH3800 Pressure .050/1.3 Low-High Material 6.5 1 qt. DH3200 Pressure .049/1.2 Low-High Material 6.5 1 qt. DH4200 Pressure/Siphon .050/1.3 Low-High Material 6.5 1 qt. DH5300 Pressure/Siphon .050/1.3 Low-High Pattern/Material 1- 8 1 qt. DH6600 Pressure .039/1.0 Low-High Pattern/Material 1- 9 2 qt. MP2900 Siphon .015/0.38 Low Material/Air --- 60cc,22cc,5cc
Or call CH Air Tools at : 1- 800-543- 6400
