NL100/105 NETWORK LINK INTERFACE
INSTRUCTION MANUAL
REVISION: 4/03
COPYRIGHT (c) 2000-2003 CAMPBELL SCIENTIFIC, INC.
This is a blank page.
Warranty and Assistance
815 W. 1800 N.
Logan, UT 84321-1784
USA
Phone (435) 753-2342
FAX (435) 750-9540
www.campbellsci.com
Campbell Scientific Canada Corp.
11564 -149th Street
Edmonton, Alberta T5M 1W7
CANADA
Phone (780) 454-2505
FAX (780) 454-2655
Campbell Scientific Ltd.
Campbell Park
80 Hathern Road
Shepshed, Loughborough
LE12 9GX, U.K.
Phone +44 (0) 1509 601141
FAX +44 (0) 1509 601091
The NL100/105 NETWORK LINK INTERFACE is warranted by
CAMPBELL SCIENTIFIC, INC. to be free from defects in materials and
workmanship under normal use and service for twelve (12) months from date of
shipment unless specified otherwise. CAMPBELL SCIENTIFIC, INC.'s
obligation under this warranty is limited to repairing or replacing (at
CAMPBELL SCIENTIFIC, INC.'s option) defective products. The customer
shall assume all costs of removing, reinstalling, and shipping defective products
to CAMPBELL SCIENTIFIC, INC. CAMPBELL SCIENTIFIC, INC. will
return such products by surface carrier prepaid. This warranty shall not apply
to any CAMPBELL SCIENTIFIC, INC. products which have been subjected to
modification, misuse, neglect, accidents of nature, or shipping damage. This
warranty is in lieu of all other warranties, expressed or implied, including
warranties of merchantability or fitness for a particular purpose. CAMPBELL
SCIENTIFIC, INC. is not liable for special, indirect, incidental, or
consequential damages.
The NL100/105 has no user-serviceable parts and must be returned to
Campbell Scientific, Inc. or an authorized agent of Campbell Scientific, Inc. for
repair. Products may not be returned without prior authorization. To obtain a
Returned Materials Authorization (RMA), contact CAMPBELL SCIENTIFIC,
INC., phone (435) 753-2342. After an applications engineer determines the
nature of the problem, an RMA number will be issued. Please write this
number clearly on the outside of the shipping container. CAMPBELL
SCIENTIFIC's shipping address is:
CAMPBELL SCIENTIFIC, INC.
RMA#_____
815 West 1800 North
Logan, Utah 84321-1784
CAMPBELL SCIENTIFIC, INC. does not accept collect calls.
Non-warranty products returned for repair should be accompanied by a
purchase order to cover the repair.
This is a blank page.
NL100/105 Table of Contents
1. Introduction.................................................................1
1.1 Physical Description of the NL100/105....................................................1
1.2 Specifications............................................................................................2
2. Setting up the NL100/105 for Communication..........3
2.1 Computer to NL100/105 Physical Connection .........................................3
2.2 Communication with the NL100/105........................................................4
2.2.1 Establishing the Initial Communication ..........................................4
2.2.2 Establishing Communication Outside of ConfMon Mode ..............4
2.3 NL100/105 Menu Options........................................................................5
2.3.1 Ver ..................................................................................................5
2.3.2 Show ...............................................................................................6
2.3.3 Edit..................................................................................................6
2.3.4 Defaults.........................................................................................12
2.3.5 Reset..............................................................................................13
2.3.6 Help...............................................................................................13
2.3.7 Bye................................................................................................13
3. Connecting the NL100/105 to a Network.................13
3.1 Network to NL100 Connection...............................................................13
3.2 NL100/105 to Datalogger Connections - Array Based Dataloggers .......14
3.2.1 Direct Connect from the NL100/105 to a Datalogger ...................15
3.2.2 MD9 Connection from NL100/105 to Datalogger ........................16
3.2.3 RF Connection from NL100/105 to Datalogger............................17
3.2.4 Short Haul Modem Connection from NL100/105 to Datalogger..18
3.2.5 Phone Modem Connection from NL100/105 to Datalogger .........19
3.3 NL100/105 to Datalogger Connections - CR9000/CR5000....................20
3.3.1 Software Setup ..............................................................................20
3.3.2 Hardware Setup for NL105 Communication with the
CR9000 via TLink...................................................................20
A. CS I/O Port.............................................................. A-1
B. Null-Modem Cable.................................................. B-1
C. 10 Base-T Cabling..................................................C-1
Glossary
i
NL100/105 Table of Contents
Figures
1. NL100/105 ................................................................................................. 2
2. NL100/105 Jumper Placement ................................................................... 5
3. Typical NL100/105 Setup in LoggerNet.................................................. 15
4. LoggerNet Setup for NL100/105 to MD9 to Datalogger Connection...... 17
5. LoggerNet Setup for NL100/105 to RF to Datalogger Connection.......... 18
6. LoggerNet Setup for NL100/105 to Phone to Datalogger Connection..... 19
7. PC9000 Setup for TCP/IP Communication.............................................. 20
ii
NL100/105 Network Link Interface
1. Introduction
The NL100 and NL105 Network Link Interfaces are devices used to
communicate with Campbell Scientific dataloggers using an Ethernet 10 BaseT communications link. The NL100 includes a CS I/O port (see Appendix A)
and an RS-232 port for communication; the NL105 adds a TLink interface for
communication with a CR9000(C) system. An RS485 port is also available on
the NL100/105; however, this is reserved for future use. No dataloggers or
datalogger interfaces are capable of RS485 communication at this time.
The NL100/105 can be configured to act as a Serial Server in a standard
TCP/IP network, to act as a PakBus node in a PakBus network, or to transfer
MODBUS/TCP packets. All of the available settings are described in Section
2.3. However, not all settings are required for all configurations. This manual
will focus mainly on setting up the NL100/105 for a standard TCP/IP network.
For PakBus and MODBUS configurations, please contact Campbell Scientific
for applications notes or other information that may be available.
Campbell Scientific's LoggerNet software is used to communicate with the
dataloggers once the NL100/105 is configured properly and connected to a
network (refer to Section 2.). Communication with CSI’s array-based
dataloggers (CR10X, CR510, CR23X, CR7, and 21X) and table-based
dataloggers (CR10X-TD, CR510-TD, CR23X-TD, CR5000, and CR9000)
requires LoggerNet version 2.0 or greater. Communication with PakBus
dataloggers (CR10XTD-PB, CR510TD-PB, CR23XTD-PB, and CR200)
requires LoggerNet 2.1 or greater. PC208W version 3.2 or higher may also be
used with array-based dataloggers (CR10X, CR510, CR23X, CR7, 21X).
PC9000 may also be used for CR9000 and CR5000 dataloggers.
1.1 Physical Description of the NL100/105
The NL100/105 is housed in a rectangular case with all power and
communication connections on one edge. On the opposite outside edge are tabs
for mounting the NL100/105 in an enclosure. Figure 1 below shows the
position of these connections and the mounting tabs.
1
NL100/105 Network Link Interface
n
t
k
Logan, Utah
Corner Screws
Mounting Tabs
12 V Power
Connectio
POWER
G 12V
RS485
RS485
RS485 Ports
CS I/O Por
1.2 Specifications
Standards
CS I/O
C
S
I/O
NL100
RS232
RS232
LAN
LAN
LINK
MADE IN USA
LINK
10 BASE T
10 BASE T
SN:
NETWORK LINK INTERFACE
RS-232
10 Base-T Lin
Communication
Indicator LEDs

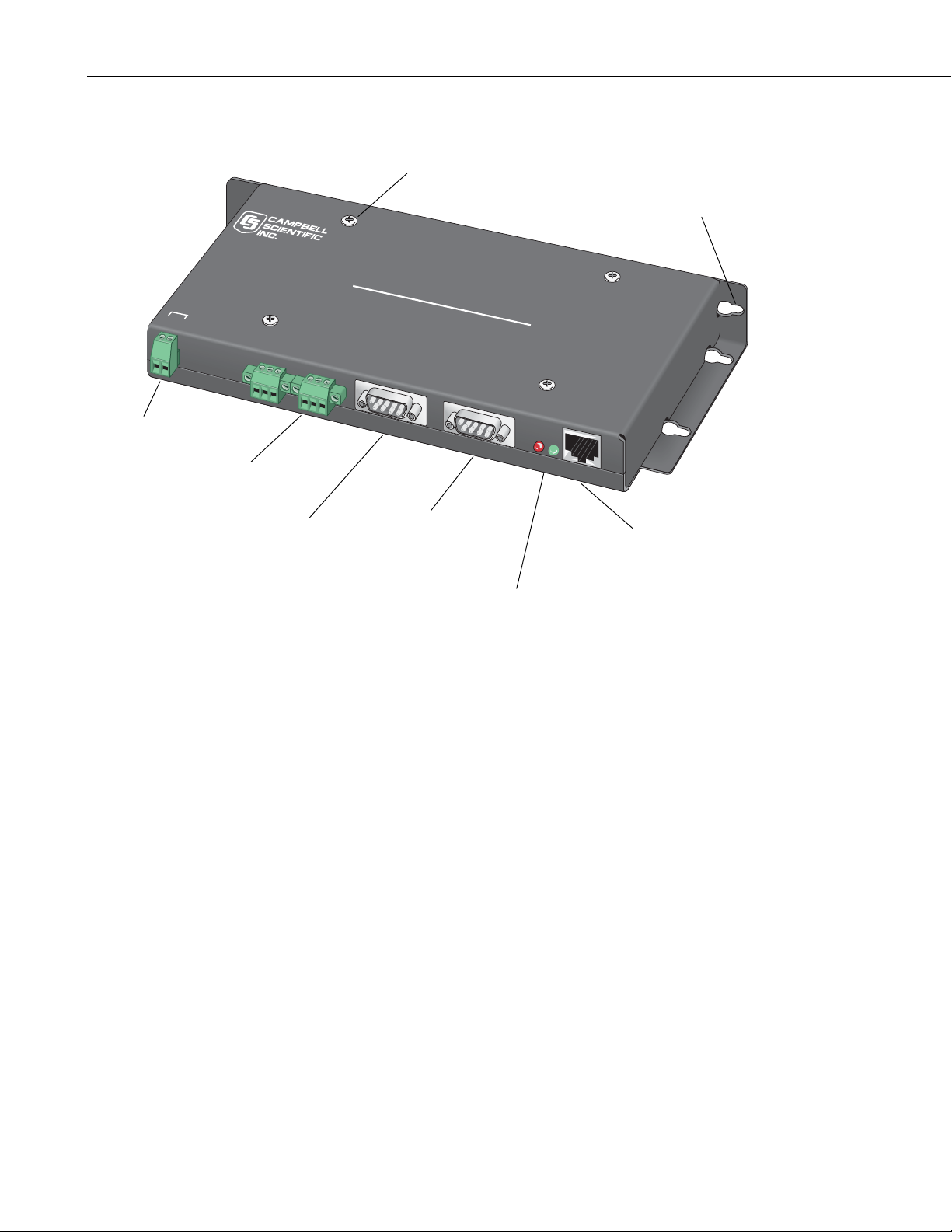

FIGURE 1. NL100/105
Ethernet Standard IEEE 802.3 (CSMA/CD Access Method)
TCP/IP Protocol
Case Dimensions
9 ¼” x 4 ¼” x 1”
Environment
Temperature: -25 to +50 °C
Power Supply Requirements
The NL100/105 is powered via the green G 12V connector (11 to 16 VDC
at 140 mA average current) on the front panel of the unit.
Cable Specifications
The Ethernet 10 Base-T cable should be a Category 5 twisted pair cable.
The two active pairs in an Ethernet 10 Base-T network are pins 1 & 2 and
pins 3 & 6. Use only dedicated wire pairs (such as blue/white &
white/blue, orange/white & white/orange) for the active pairs.
RJ-45 Pin-Outs: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-
2
NL100/105 Network Link Interface
The RS-232 should be a standard straight through cable. It is
recommended that the cable be kept at lengths of ≤ 6 feet to maintain high
data throughput rates.
The CS I/O 9 Pin cable is a straight through cable with all 9 pins
connected. Campbell Scientific’s SC12 cable is recommended.
Compliance
The NL100/105 is encased in metal and meets requirements for a Class A
device under European standards:
APPLICATION OF COUNCIL DIRECTIVE(S)
89/336/EEC as amended by 89/336/EEC and 93/68/EEC.
STANDARD(S) TO WHICH CONFORMITY IS DECLARED:
ENC55022-1; 1995 AND ENC 50082-1: 1992
EUROPEAN REGULATIONS
WARNING: This is a Class A product. In a domestic environment
this product may cause radio interference in which case the user may
be required to correct the interference at the user’s expense.
2. Setting up the NL100/105 for Communication
The NL100/105 must be set up by configuring one or more of the
communications ports for communication with your datalogger or other devices
in the network. To do this, you must establish a direct communication link with
the NL100/105 using a PC computer. You will need a null modem cable
between the computer and the NL100/105 and a terminal communication
software package (such as HyperTerminal, which ships with Microsoft
Windows operating system software).
2.1 Computer to NL100/105 Physical Connection
An RS-232 null-modem cable is required to establish communication between
the NL100/105 and your computer. One end of the cable is connected to the
computer's 9-pin RS-232 communications port and the other end is connected
to the RS-232 port of the NL100/105. If the null-modem cable does not have a
female connector on both ends, you may also need a female-to-female adapter.
For additional information on null-modem cables, refer to Appendix B.
The NL100/105 requires 12 VDC for operation. This power source can be
supplied by the datalogger's 12 V supply or by a regulated external power
source. When connecting the power leads, the ground lead should be connected
first and then the 12 V lead.
3
NL100/105 Network Link Interface
2.2 Communication with the NL100/105
2.2.1 Establishing the Initial Communication
Once the physical connection has been made, communication should be
established with the NL100/105 using a terminal communications package. The
steps below demonstrate configuring the NL100/105 using HyperTerminal,
which is shipped with Windows operating systems.
NOTE
The NL100/105 is shipped from the factory with its RS-232 port
set in the ConfMon mode (configuration monitor). Refer to
Section 2.2.2 if the RS-232 port has been set to some other
configuration and direct communication is necessary.
Ensure the NL100/105 has an appropriate power source applied. (Refer to
Section 2.1, above.)
Create a new connection in HyperTerminal. Choose the COM port to which the
null-modem cable is connected, and set the baud rate to 115,200 bps. Most of
the other settings can be left at the default (data bits = 8, parity = none, stop bits
= 1). Flow control should be set to none.
Once HyperTerminal indicates you are connected, press <Enter> a couple of
times to gain the attention of the NL100/105. When communication is
established, the current port settings will be returned, followed by the
NL100/105 prompt line:
NL100/105 (ver, show, edit, defaults, reset, help, bye):
To set up the NL100/105 for communication with the network, go into the Edit
menu (Section 2.3.3 Edit) and complete the appropriate information. Note that
the Ethernet 10 Base-T connection must be configured (Section 2.3.3.5) and at
least one of the other port options.
2.2.2 Establishing Communication Outside of ConfMon Mode
If the RS-232 port has been disabled or set to some configuration other than
ConfMon, communication can still be established with the NL100/105 by
connecting the boot jumper.
To access the boot jumper, remove the NL100/105's cover by removing the
four screws at the corners.
The boot jumper is shown in Figure 2 below. The NL100/105 ships with this
jumper connected to only one post. Place the jumper so that it connects the two
posts.
4
Jumper
NL100/105 Network Link Interface
FIGURE 2. NL100/105 Jumper Placement
When the jumper is in place, open the HyperTerminal connection to the
NL100/105 and power up the device. The prompt "NL100 boot" will appear.
At this prompt, press <Enter> a few times to ring up the NL100/105. If
communication is successfully established, a message will be returned
indicating that the NL100/105 is initialized, along with the jumper setting (1 =
on, 0 = off), the TCP/IP address, Telnet port address, and current
communication configuration. If <Enter> is pressed again, the NL100/105
menu prompt will appear.
WARNING
After reconfiguring the NL100/105 for communication,
the jumper should be disconnected. If this jumper
remains in place and power to the NL100/105 is cycled
off and back on, the NL100/105 will remain at the
"NL100 boot" prompt and will not boot up. This will
render the NL100/105 inaccessible via remote
communications.
2.3 NL100/105 Menu Options
The NL100/105 prompt lists all of the available menu options. Only the first
few characters of the main menu options need to be typed – the remaining
characters will be completed automatically. Press <Enter> to execute the
command. Each menu option is explained below.
2.3.1 Ver
Ver returns version information about the NL100/105. The ROM number, OS
version, Ethernet physical address, and some diagnostic statistics are displayed.
5
NL100/105 Network Link Interface
Version information may be requested by a Campbell Scientific Applications
Engineer when troubleshooting a communication problem.
NOTE
2.3.2 Show
2.3.3 Edit
The Ethernet physical address that is displayed is a hexadecimal
representation of the address assigned to this device. An Ethernet
address is unique to the specific device to which it is assigned.
This assignment is made at the factory and cannot be changed by
the user. The Ethernet physical address is not the same as the
TCP/IP address.
The Show command displays the current settings for the NL100/105 ports, the
user password, and watchdog time-out.
The Edit menu option is used to set up the communications link for the
NL100/105. You should work closely with your network administrator to
determine the correct settings for your specific network.
You can progress through the menu options by pressing <Enter>. If you make a
mistake after entering a setting, press the up cursor arrow on your keyboard to
return to the previous setting. All available selections will be listed on the
prompt line enclosed in parenthesis, with the current setting displayed in
brackets at the end of the selections (e.g., [disabled]). Help for a setting can be
displayed by pressing F1 or the ? key.
2.3.3.1 TLink Config
Once changes have been made and you have come to the end of the prompts for
the communication options, you can choose "save" to put the new settings into
effect or "cancel" to disregard the changes and keep the current settings.
This setting is applicable to the NL105 only, and is used when communicating
with a CR9000 datalogger. TLink is an interface used to communicate with a
CR9000 datalogger over an Ethernet connection. A physical connection is
made between the TLink port on the CR9000's 9031 CPU module and the port
marked TLink on the NL105. TLink Config is used to set the TLink
communications port to one of three options:
TcpSer - The NL105 acts as a serial server for the TLink port. A serial server is
a device that allows serial communication over a TCP/IP communications link.
When configured as a serial server, there is one parameter to set:
TLink Serial Server Port Number - Enter the port number, in the range of
3000 to 65000, that will be used for TLink communication. The default
port number is 6781.
232-Bridge - The NL105 transparently passes data between the TLink port and
its RS-232 ports. The 232-Bridge configuration has only one setting, RS-232
bps. This is the bits per second (bps) at which the NL105 will communicate
6
2.3.3.2 RS485 Config
2.3.3.3 CS I/O Config
NL100/105 Network Link Interface
with the device connected to the RS-232 port. This is a fixed rate (i.e., it is not
a maximum baud rate or an autobaud rate). The default is 115k bps.
Disabled - The TLink communications port is disabled.
Currently there are no dataloggers with RS485 ports, or RS485 to RS-232
interfaces for a datalogger's CS I/O port. The RS485 communication option
will be implemented in the future.
This option is used to configure the NL100/105's CS I/O port. The port can be
configured for PakBus communication, as a TcpSer serial server, or as a
PakSer serial server.
NOTE
CR10X, CR510, CR23X, 21X, and CR7 dataloggers ship with an
array-based operating system. Array-based dataloggers do not
support the PakBus communications protocol. Therefore, you
cannot communicate with them over a port configured for
PakBus. However, the CR10X, CR510, and CR23X dataloggers
can be special-ordered with a PakBus operating system. Check
with your technical support representative for details.
PakBus - This option is only used when setting up the NL100/105 to
communicate with other PakBus devices in the network. Packets transferred
over the CS I/O port in this mode are framed as PakBus packets; therefore, any
device attached to the port must be capable of PakBus communication. PakBus
is a packet based communications protocol developed by CSI. One of the
advantages of PakBus is that other communications protocol packets, such as
TCP/IP or MODBUS, can be "wrapped" in a PakBus packet and transferred
among PakBus devices in the network, thus allowing various communication
protocols within one network. When configured for PakBus, the NL100/105's
CS I/O port has the following settings:
CS I/O SdcAddr/bps - This option is used to set up the CS I/O port to
communicate with the datalogger as an addressable SDC device or a
modem enabled device. If SDC7 or SDC8 is chosen, the NL100/105 will
use that address to communicate with the datalogger in a synchronous
communication mode. If one of the baud rates is chosen, the NL100/105
will communicate with the datalogger as a modem enabled device using
the selected baud rate. If another SDC device is connected to the
NL100/105, the two devices must use different SDC addresses.
CS I/O Beacon Interval - The NL100/105 can be set to transmit a beacon
to a PakBus network via the selected port. The beacon allows the
NL100/105 to determine which devices in the PakBus network it can
communicate with. Note that because a beacon is broadcast to all devices,
it can interfere with other communication in the network (such as RF), so a
frequent beacon may not be desirable. If 0 is entered, no beacon will be
sent; the default beacon is 60 seconds.
7
NL100/105 Network Link Interface
TcpSer - This option configures the NL100 to act as a TCP/IP based serial
server when communicating with the datalogger over its CS I/O port. This is
the most common setup option for this port.
PakSer - The CS I/O port of the NL100/105 can be configured as a PakBus
serial server. This sets up the device as a serial server. In this mode, PakBus
framing is removed from the packet and routed via the CS I/O port. Typically,
the attached device would be one that does not support PakBus communication
(such as an array-based CR10X).
CS I/O SdcAddr/bps - This option is used to set up the CS I/O port to
communicate with the datalogger as an addressable SDC device or a
modem enabled device. If SDC7 or SDC8 is chosen, the NL100/105 will
use that address to communicate with the datalogger in a synchronous
communication mode. If one of the baud rates is chosen, the NL100/105
will communicate with the datalogger as a modem enabled device using
the selected baud rate. Note that array-based dataloggers (CR10X, CR510,
CR23X, 21X, CR7) can be configured only as modem enabled devices;
e.g., they do not support communication using SDC7 or SDC8.
CS I/O serial server port number - Enter the port number, in the range of 1
to 65000, that will be used for communication. The default port number is
6783.
NOTE
2.3.3.4 RS-232 Config
CS I/O SdcAddr/bps - This option is used to set up the CS I/O port to
communicate with the datalogger as an addressable SDC device or a
modem enabled device. If SDC7 or SDC8 is chosen, the NL100/105 will
use that address to communicate with the datalogger in synchronous
communication mode. If one of the baud rates is chosen, the NL100/105
will communicate with the datalogger as a modem enabled device using
the selected baud rate.
CS I/O Serial Server AppId number - Enter the application ID, in the
range of 1 to 65000, that will be used to identify the PakSer in the
network. The default ID is 6783.
The usual AppId for MODBUS devices is 501.
This option configures the NL100/105's RS-232 port for communication. The
port can be set up to communicate with a datalogger or other communications
device (short haul modem, RF modem, phone modem), or to be connected to
directly and configured for communication. The setup options for the port are
PakBus, TcpSer serial server, PakSer PakBus serial server, or ConfMon
(configuration monitor).
8
NL100/105 Network Link Interface
NOTE
CR10X, CR510, CR23X, 21X, and CR7 dataloggers ship with an
array-based operating system. Array-based dataloggers do not
support the PakBus communications protocol. Therefore, you
cannot communicate with them over a port configured for
PakBus. However, the CR10X, CR510, and CR23X dataloggers
can be special-ordered with a PakBus operating system. Check
with your technical support representative for details.
PakBus - This option is only used when setting up the NL100/105 to
communicate with other PakBus devices in the network. Packets transferred
over the RS-232 port in this mode are framed as PakBus packets; therefore, any
device attached to the port must be capable of PakBus communication. PakBus
is a packet based communications protocol developed by CSI. One of the
advantages of PakBus is that other communications protocol packets, such as
TCP/IP or MODBUS, can be "wrapped" in a PakBus packet and transferred
among PakBus devices in the network, thus allowing various communication
protocols within one network. When configured for PakBus, the NL100/105's
RS-232 port has the following settings:
RS-232 bps - This is the bits per second (bps) at which the NL100/105
will communicate using the RS-232 port. This is a fixed rate (i.e., it is not
a maximum baud rate or an autobaud rate). Note that the CR10XTD-PB
and the CR510TD-PB can communicate at a maximum baud rate of 9600
bps, so to communicate with one of those dataloggers, this setting must be
9600 bps or less. The default rate is 115K bps.
PakBus Beacon Interval - The NL100/105 can be set to transmit a beacon
to a PakBus network via the selected port. The beacon allows the
NL100/105 to determine which devices in the PakBus network it can
communicate with. Note that because a beacon is broadcast to all devices,
it can interfere with other communication in the network (such as RF), so a
frequent beacon may not be desirable. If 0 is entered, no beacon will be
sent; the default beacon is 60 seconds.
TcpSer - This option configures the NL100 to act as a TCP/IP based serial
server when communicating with a datalogger over its RS-232 port.
RS-232 bps - This is the bits per second (bps) at which the NL100/105
will communicate using the RS-232 port. This is a fixed rate (i.e., it is not
a maximum baud rate or an autobaud rate). Note that the CR10(X) and the
CR510 can communicate at a maximum baud rate of 9600 bps, so to
communicate with one of those dataloggers, this setting must be 9600 bps
or less. The default setting is 115K bps.
RS-232 serial server port number - Enter the port number, in the range of
1 to 65000, that will be used for communication. The default port number
is 6784.
PakSer - The RS-232 port of the NL100/105 can be configured as a PakBus
serial server. This sets up the device as a serial server. In this mode, PakBus
framing is removed from the packet and routed via the RS-232 port. Typically,
the attached device would be one that does not support PakBus communication
(such as an array-based CR10X).
9
NL100/105 Network Link Interface
RS-232 bps - This is the bits per second (bps) at which the NL100/105
will communicate using the RS-232 port. This is a fixed rate (i.e., it is not
a maximum baud rate or an autobaud rate). Note that the CR10(X) and the
CR510 can communicate at a maximum baud rate of 9600 bps, so to
communicate with one of those dataloggers, this setting must be 9600 bps
or less. The default setting is 115K bps.
RS-232 Serial Server AppId number - Enter the application ID, in the
range of 1 to 65000, that will be used to identify the PakSer in the
network. The default ID is 6784.
NOTE
2.3.3.5 Ethernet 10 Base-T
The usual AppId for MODBUS devices is 501.
ConfMon - Configuring the RS-232 port as a ConfMon allows you to connect
directly to the NL100/105 via a computer. There are no parameters; the baud
rate is automatically set to 115,200 bps. Refer to Section 3.2.1 for additional
information.
The 10 Base-T communications link is used to connect the NL100/105 to a
TCP/IP network using a Category 5 twisted pair cable. The Ethernet 10 Base-T
link must be configured, or you will not be able to communicate with the
NL100/105 over a TCP/IP connection. The following options must be
configured. These values should be provided by your network administrator.
10BASE-T Port IP Address - This number is the address of the
NL100/105 on a TCP/IP network. It is written as 32-bit number written in
four 8-bit decimal-equivalent syllables separated by periods, in the format
XXX.XXX.XXX.XXX. The IP Address must be a static IP Address -- the
NL100/105 does not support DHCP (dynamic host configuration
protocol).
10BASE-T Port Network Mask - The network mask is used to help a
network router to more efficiently transfer information. Typically, a class
C mask will be 255.255.255.0, a class B mask will be 255.255.0.0, and a
Class A mask will be 255.0.0.0. The tighter the mask, the more the
NL100/105 will rely on the default gateway to route packets.
10
If you enter Yes for "Is there a default gateway", you will also need to
configure the following option:
IP Address of the Default Gateway - Enter the IP address of the device
that is responsible for forwarding information to destinations outside the
internal network, defined by the network mask.
2.3.3.6 PakBus Node ID
If the NL100/105 is to be used in a PakBus network, a PakBus Node ID must
be assigned. If the NL100/105 will not be used in a PakBus network, this
setting can be ignored. All devices in the network must have a unique PakBus
Node ID. Valid IDs are 1 through 4094. The default ID is 678.
Clock Neighbor Node ID - In a PakBus network, a "neighbor" is another
PakBus device that the NL100/105 can communicate with directly (e.g., it
does not have to route data through another PakBus device to reach the
neighbor). A neighbor can be designated for the NL100/105 as the device
from which the NL100/105 will accept a clock set command. If this setting
is enabled, once the NL100/105 has received a clock set from its
designated neighbor, it will broadcast its clock information along with its
beacon. Thus, the NL100/105 can be used to set the clock of other PakBus
devices in the network. Set this ID to 0 to disable the function.
2.3.3.7 PakTcp Server Config
Enabling this option will set up the NL100/105 to act as a server in a PakBus
network. The NL100/105 can support up to three concurrent connections. This
option must be enabled when the NL100/105 uses an Ethernet connection to
communicate with other PakBus devices in the network. The NL100/105 will
listen for incoming TCP/IP packets on the socket designated by the PakTcp
server port number setting. If the NL100/105 will not be used in a PakBus
network, or if the PakBus communication among PakBus devices in the
network will take place over a port other than the Ethernet connection, this
setting can be disabled.
NL100/105 Network Link Interface
2.3.3.8 PakTcp Client Config
Enabling this option will set up the NL100/105 to act as a client in a PakBus
network. In this mode, the NL100/105 will actively maintain a TCP/IP
connection with a PakTcp server over the 10 Base-T connection. The Server IP
address is the address of the server to which the NL100/105 will attempt to
connect and act as a client. The Server IP port number is used to specify the
port for that server. This setting is typically used when the NL100/105 is
configured to communicate with another NL100/105 over an Ethernet
connection, so that the two PakBus networks served by the NL100/105s can be
merged. In most situations, this setting can be disabled.
2.3.3.9 MODBUS/TCP Gateway Config
When this setting is enabled, the NL100/105 will translate MODBUS/TCP
packets that arrive on the 10 Base-T link for use in a PakBus network. The
translation provided by this mode is MODBUS/TCP message format to
MODBUS RTU serial message format. Unless you are setting up a PakBus
network to also handle MODBUS communication packets, this setting can be
disabled. Refer to Appendix I in the CR10X, CR510, and CR23X manuals for
additional information on MODBUS.
2.3.3.10 Configuration Monitor Telnet Port
TCP/IP Telnet communications can be used to remotely connect to the
NL100/105. The only option to configure is the port number, which is typically
set to 23. Valid numbers can be 0 to 65,000.
2.3.3.11 Telnet Session Password
The Telnet Session Password is the string that must be entered to communicate
with the NL100/105 over a Telnet session. The string can range from 1 to 20
11
NL100/105 Network Link Interface
alphanumeric characters and is case-sensitive. This security measure is
implemented to help prevent unauthorized users from gaining access to the
NL100/105 device.
2.3.3.12 Serial Server Watchdog
If no communication is detected for a specified number of minutes, the
NL100/105 will drop the communications link. This feature is called a
"watchdog". The watchdog alleviates the problem of a communications port
being held open, thus rendering the device inaccessible, if the NL100/105 and
the remote device failed to terminate the communications link in a "normal"
manner. The number of minutes that the NL100/105 should wait for activity on
a port before timing out is entered for this menu item. This setting affects all
communication modes, including when the NL100/105 is configured as a
PakBus based or TCP/IP based serial server, and when communicating with the
NL100/105 during a Telnet session.
2.3.4 Defaults
The Defaults option displays the factory default settings for the different
telecommunication options. Following the display is a prompt to Save or
Cancel. If Save is selected, the NL100/105 will be reset to the factory defaults.
If Cancel is chosen, the current settings will remain in effect and the user will
be returned to the main menu prompt. The default settings are as follows:
TLink config: [disabled]
RS485 config: [PakBus]
RS485 bps: [38k]
RS485 beacon interval (sec): [60]
CS I/O config: [PakBus]
CS I/O SdcAddr/bps: [SDC7]
CS I/O beacon interval (sec): [60]
RS-232 config: [ConfMon]
EtherNet 10BASE-T: [enabled]
10BASE-T port IP address: [0.0.0.0]
10BASE-T port network mask: [255.255.0.0]
Is there a default gateway: [no]
PakBus node Id: [678]
Clock neighbor node Id: [0]
PakTcp server config: [enabled]
PakTcp server port number: [6785]
PakTcp client config: [disabled]
12
MODBUS/TCP gateway config: [disabled]
Configuration monitor telnet port: [23]
2.3.5 Reset
NL100/105 Network Link Interface
Telnet session password: [nl100]
Serial server watchdog (minutes): [2]
This option is different from the Reset menu item. The Default menu item
resets the NL100/105 back to the factory defaults. Reset reboots the device
using the last-saved configuration.
After the NL100/105 reboots, it may take a few moments to reestablish
communication. Press enter a few times until the NL100/105 status line is
returned.
This option reboots the NL100/105, using the last saved settings that have been
programmed by the user. This option is different from the Defaults menu item.
The Defaults menu item resets the NL100/105 back to the factory defaults.
After the NL100/105 reboots, it may take a few moments to reestablish
communication. Press enter a few times until the NL100/105 status line is
returned.
NOTE
When using the NL100/105 in a PakBus network, resetting the
NL100/105 (or making other changes to the network that might
change the known route to remotes), may result in lengthy
communication interruptions until the new routes can be learned
by all the devices in the network.
2.3.6 Help
The Help option provides tips for navigating within the NL100/105 menu
prompts and gives a brief description of each menu item. Help for a particular
setting can be displayed by pressing F1 or ? at the prompt for that setting.
2.3.7 Bye
The Bye option is used to close the Socket connection at the end of a Telnet
session.
3. Connecting the NL100/105 to a Network
3.1 Network to NL100 Connection
The connection from the computer network to the NL100/105 10 Base-T port
should be a twisted pair cable. A male RJ-45 plug connector should be on the
cable end going into the 10 Base-T port.
If the cable is to be run directly from the computer to the NL100/105, a
crossover cable is required. If the cable will be run from a hub to the
NL100/105, a straight through cable should be used. Appendix C shows the
pin-outs for these two cable types.
13
NL100/105 Network Link Interface
3.2 NL100/105 to Datalogger Connections - Array Based Dataloggers
The cases below assume the NL100/105 is being connected to an array-based
datalogger using the datalogger's CS I/O port (CR10X, CR510 CR23X) or RS232 port (CR23X). TD-based dataloggers (CR10X-TD, CR510-TD, and
CR23X-TD) are configured similarly. In these instances, the communication
port(s) being used on the NL100/105 should be set up as TcpSer (TCP/IP based
serial server).
For all cases, the network map for the LoggerNet software should depict an
IPPort root device with the datalogger attached directly to the IPPort (see
Figure 3) unless otherwise noted. In some instances, extra response time (3 to 4
seconds) may need to be added to the IPPort and/or the datalogger to account
for network traffic delays over a TCP/IP connection.
NOTE
The IP Address entered in the software for the NL100/105 should
not contain leading zeros. If leading zeros are used, the
communications attempts will fail.
Some of the communication links require additional peripherals or cables that
can be purchased from Campbell Scientific. In some cases, a standard RS-232 9
to 25 pin or 25 to 25 pin cable is required. RS-232 cables can be purchased
from Campbell Scientific or from a computer accessories supplier.
14
NL100/105 Network Link Interface
FIGURE 3. Typical NL100/105 Setup in LoggerNet
3.2.1 Direct Connect from the NL100/105 to a Datalogger
Either the CS I/O port or the RS-232 port can be used to directly connect a
datalogger to the NL100/105. Cabling or additional peripherals are required as
listed below. Note that two dataloggers can be connected to one NL100/105 by
using combinations of the connections described below. Each port must be
assigned a unique port number.
NL100/105 CS I/O port to datalogger CS I/O port - An SC12 cable is
connected to the CS I/O ports on both devices. An SC12 is typically shipped
with all datalogger peripherals.
NL100/105 RS-232 port to datalogger RS-232 port - A standard 9 to 9 pin
communications cable should be connected to the RS-232 port on both devices.
NL100/105 RS-232 port to datalogger CS I/O port - A serial communications
cable should be connected to the RS-232 port of the NL100/105. This cable
should be connected to an SC32A or SC32B optically isolated interface, and
15
NL100/105 Network Link Interface
the datalogger should be connected to the 9 pin port of the SC32A/B with an
SC12 cable.
3.2.2 MD9 Connection from NL100/105 to Datalogger
Campbell Scientific's MD9 Multidrop Interface can be used to connect one or
more dataloggers to the NL100/105 via the NL100/105’s RS-232 port. A
multidrop network is capable of addressing up to 254 dataloggers, but the
actual number of dataloggers that can be connected depends upon attenuation
of the signal due to coax cable length, the number of devices on the network,
and the number of coax terminator pairs used. Refer to the MD9 manual for
determining the maximum number of dataloggers that can be connected based
on these factors.
An SC532 or SC532A Interface device should be connected to the serial port of
the NL100/105. The cable to an SC532 should be a standard 9 to 25 pin RS232 cable, with the 25 pin male connection mated to the RS-232 side of the
SC532. The cable to an SC532B should be a standard 9 to 9 pin RS-232 cable.
Note, however, that the RTS line in the cable must be disabled (pin 7 on the 9pin connector or pin 4 on the 25-pin connector). An SC12 cable is used to
connect the 9 pin peripheral connection of the SC532/A to the serial I/O port of
the MD9. Coax cable, running from the coax port of the base MD9, is run to
each of the remote MD9 devices, which are connected to the dataloggers with
SC12 cables. Refer to the MD9 User's Manual for additional information.
The Setup window in LoggerNet should depict an MD9 Base modem attached
to the IPPort, with the datalogger attached to an MD9Remote Modem. Refer to
Figure 4 below.
16
NL100/105 Network Link Interface
FIGURE 4. LoggerNet Setup for NL100/105 to MD9 to Datalogger Connection
3.2.3 RF Connection from NL100/105 to Datalogger
NL100/105 to radio frequency (RF) modems to datalogger connections allow
wireless communication to remote dataloggers stations over a TCP/IP network.
Up to 254 datalogger sites can be addressed in an RF network.
The communication link requires an RF base station connected to the NL100's
RS-232 port via a standard RS-232 9 to 25 pin cable. Note, however, that the
RTS line in the cable must be disabled (pin 7 on the 9-pin connector or pin 4 on
the 25-pin connector). The base station can be made up of an RS-232 RF Base
Station or the combination of an SC532, RF modem (e.g., RF95A) and a
transceiver (e.g., RF300). The remote datalogger is connected to an RF station
that typically consists of an RF modem, transceiver, and power supply.
The Setup window in LoggerNet should depict an RF Base modem attached to
the IPPort, with the datalogger attached to an RFRemote Modem. Refer to
Figure 5 below.
17
NL100/105 Network Link Interface
18
FIGURE 5. LoggerNet Setup for NL100/105 to RF to Datalogger Connection
Refer to Campbell Scientific's Radiotelemetry Network Instruction Manual for
more information on setting up RF stations.
3.2.4 Short Haul Modem Connection from NL100/105 to Datalogger
The use of Short Haul Modems (SRM-5A, SRM6-A) allows a connection to a
datalogger via TCP/IP to a twisted pair cable. The short haul modem at the
NL100/105 should be connected to the device using a standard RS-232 9 to 25
pin communication cable. It is recommended that a short haul surge protection
device (P/N 5563) be connected next and then the twisted pair cable. Another
surge protection device is recommended between the cable and the remote short
haul modem. The short haul modem should be connected to an SC932 RS-232
9 to 25 pin DCE interface, which is then connected to the datalogger's CS I/O
port via an SC12 cable.
NL100/105 Network Link Interface
3.2.5 Phone Modem Connection from NL100/105 to Datalogger
A Hayes-compatible phone modem can be connected to the NL100/105 to
allow a TCP/IP to phone link between a computer and a datalogger. The phone
modem should be connected to the NL100/105's RS-232 port using an
appropriate RS-232 serial cable. Connection of the remote phone modem to the
datalogger will vary, depending upon the type of remote modem used. Refer to
the user's manual for the system you purchased for additional information on
assembling the remote site.
In the LoggerNet communications software, the phone modem on the
NL100/105 side should be shown attached to the IPPort. The datalogger is then
shown as connected to the remote phone modem. Refer to Figure 6 below.
FIGURE 6. LoggerNet Setup for NL100/105 to Phone to Datalogger Connection
19
NL100/105 Network Link Interface
3.3 NL100/105 to Datalogger Connections - CR9000/CR5000
3.3.1 Software Setup
As an alternative to LoggerNet, PC9000 software (version 3.5 or higher) can be
used to communicate with the CR9000 and CR5000 dataloggers via the
NL100/105 and a TCP/IP Network. To configure the software for
communication, choose the Tools | CommLink menu option. From the I/O Port
drop-down list box, select NET. On the bottom left side of the screen, there are
fields in which to type the TCP/IP address and the port number. The setup
should look similar to Figure 7, below.
20
FIGURE 7. PC9000 Setup for TCP/IP Communication
3.3.2 Hardware Setup for NL105 Communication with the CR9000 via TLink
A CR9000 can be connected to a TCP/IP network by connecting the TLink port
of the CR9000 9031 CPU module to the TLink port of the NL105 (note that the
NL100 does not have this communication port). A twisted pair cable is used to
make this connection.
Appendix A. CS I/O Port
The CS I/O port is Campbell Scientific's input/output port. It is not a standard
RS-232 pin-out. The following table provides pin-out information on the port
when connected to a datalogger.
Pin Name
Signal
Type Description
1 5 V (supplied by the
datalogger)
2 Signal Ground Provides reference for voltage
3 Ring Output Raised by a NL100/105 to put
4 RXD Output Serial data transmitted to the
5 Modem Enable Input Raised by the datalogger when
6 Synchronous Device
Enable
7 Clock/Handshake Input Used by the datalogger with
8 12 V (supplied by the
datalogger)
Input Not used by NL100/105
levels
the datalogger into the
telecommunications mode
datalogger
it determines that the
NL100/105 raised the ring line
Input Used by the datalogger to
address the NL100/105 when
the NL100/105 is configured as
a synchronous device
SDE and TXD lines to address
and transfer data to
synchronous devices
Not used by the NL100/105
9 TXD Input Serial data received from the
datalogger
A-1
This is a blank page.
Appendix B. Null-Modem Cable
A null-modem cable allows communication between two similar devices. It is
sometimes called a crossover cable, because the transmit and receive lines are
crossed so that the two devices can communicate. An RS-232 null modem cable
usually also crosses other handshaking lines.
An RS-232 null-modem cable can be purchased at a local computer store. The
pin-outs for this cable are provided below.
Carrier Detect
Transmit Data
Receive Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request to Send
Clear to Send
Not Used 9 9 Not Used
1 ⇔ 4
2 ⇔ 3
3 ⇔ 2
4 ⇔ 1, 6
5 ⇔ 5
6 ⇔ 4
7 ⇔ 8
8 ⇔ 7
Data Terminal Ready
Receive Data
Transmit Data
Carrier Detect, Data Set Ready
Signal Ground
Data Terminal Ready
Clear to Send
Request to Send
B-1
This is a blank page.
Appendix C. 10 Base-T Cabling
The cable that runs from the computer to the NL100/105 should be a Category
5 twisted pair cable. If the NL100/105 will be connected directly to the
computer, a crossover cable should be used. If the NL100/105 will be
connected to the computer through a hub, a straight through cable should be
used. The pin-outs for each of these cables is shown below.
Straight Through Cable
1 ⇔ 1
Twisted Pair 1
2 ⇔ 2
3 ⇔ 3
Twisted Pair 2
6 ⇔ 6
Crossover Cable
1 ⇔ 3
Twisted Pair 1
2 ⇔ 6
Twisted Pair 2
3 ⇔ 1
6 ⇔ 2
C-1
This is a blank page.
Glossary
Beacon Interval - Devices in a PakBus network may broadcast a message to
other devices, in order to determine "neighbor" devices. Neighbor devices are
devices that can be communicated with directly by the current device without
being routed through an intermediate device. A beacon in a PakBus network
helps to ensure that all devices in the network are aware of which other devices
are viable in the network.
If configured to do so, a clock set command may be transmitted with the beacon
interval. This function can be used to synchronize the clocks of devices within
the PakBus network.
MODBUS - MODBUS is a communications protocol developed by Modicon
which was designed to provide a common communications protocol among
intelligent devices in the manufacturing industry.
Neighbor (PakBus Neighbor) - Neighbor devices are devices that can be
communicated with directly by the current device without being routed through
an intermediate device.
PakBus - PakBus is a packet-based communications protocol developed by
Campbell Scientific. One of the advantages of PakBus is that other
communications protocol packets, such as TCP/IP or MODBUS, can be
"wrapped" in a PakBus packet and transferred among PakBus devices in the
network, thus allowing various communication protocols within one network.
Devices that are capable of PakBus communication include the CR10XTD-PB,
CR510TD-PB, CR23XTD-PB dataloggers, the RF400 modem, and the
NL100/105.
PakBus Node - A device in the PakBus network with a unique PakBus ID. The
device can be a datalogger, a computer, or an NL100/105.
Serial Server - A serial server is a device that allows serial communication
over a TCP/IP communications link.
This is a blank page.
Loading...
