Page 1
INSTRUCTION MANUAL
Tel.
Fax.
E-mail
Internet
Address
+49 (0) 4154 / 80 83 - 0
+49 (0) 4154 / 80 83 - 20
[email protected]
www.camos-multimedia.com
CAMOS Europe GmbH
Carl-Zeiss-Str. 3 D-22946 Trittau
Page 2
INSTRUCTION MANUAL
Thank you for purchasing this product.
Please read this instruction manual thoroughly.
For proper usages and application,
RV-430 / RV-400
REAR VIEW SYSTEM FOR VEHICLE
PRINTED IN KOREA
* Design and specifications are subject to change without notice.
ver. 1.0
Page 3
INHALT
VIDEORÜCKFAHRSYSTEM
SAFEGUARD INSTRUCTIONS
FEATURE
BOX CONTENTS
FUNCTION OF EACH PART
FUNCTIONS
INSTALLATION
CABLE CONNECTION
SPECIFICATIONS
..............................................................................5
................................................................. 5
.............................................. 5
........................................................................ 6
................................................................... 8
..................................................... 10
............................................................. 11
......................................... 3
2
Page 4
SAFEGUARD INSTRUCTIONS
REAR VIEW SYSTEM FOR VEHICLE
Please pay attention to the warnings and cautions listed in order to prevent the potential risks.
“WARNING” and “CAUTION” symbols are divided according to the different level of risk.
WARNING
CAUTION
May cause bodily harm or even death if user ignores
cautions in the safety rules.
May cause damage or shorten usage time of product if
user ignores cautions in the safety rules.
WARNING
Do not put the product in place where sudden temperature increasing and should use
on optimum voltage, temperature and humidity.
- It may cause to electronic shock or malfunction.
Do not get product wet and operate with wet hands.
- It may cause to electronic shock or malfunction.
Do not place where interfere with visual field and watch or operate monitor during
driving. - It may cause traffic accident.
Do not place near of air bag effective range.
- It may cause malfunction of air bag or accident, injury due to hitting monitor by
air bag.
Keep clean dust on power socket.
- It may cause electronic shock and fire by bad connection.
Do not pull cord with a jerk, should catch a plug and pull. Do not use damaged cord.
- It may cause cord malfunction, electronic shock and fire.
When clean exterior, power off and wipe with dry cloth.
- Wet cloth may cause a electronic shock.
Do not clean exterior with volatility or oily solvent.
Neither keep touching rubber and plastic for long time.
- It may cause change of surface, fall of paint, malfunction and fire.
Do not place where vibration and shock.
- It may cause throw down and then malfunction and accident.
Do not put metals as like pin and needle into hole and chink of grill, speaker.
- In case of inserting them, stop to operate, it may cause electronic shock, fire and
malfunction.
3
Page 5
Do not use in problem condition as like smoking, smell something burn.
- It may cause fire. Stop to use and make inquiries to agency.
Do not disassemble, repair and remodeling.
- It may cause malfunction and injury, can not get warranty.
- Make inquiries to agent for repair and checkup.
When the power cable cord touches a metal case, cover it with a friction tape.
- Short circuit or disconnection of wire may cause a fire or accident.
Do not use bolts or nuts from a parts for vehicle.
- Using bolt or nuts from steering column or break may cause an accident.
After installing, check it break lamp, head lamp and wipe works properly.
CAUTION
Should install while power off. (After install products, connect DC jack)
- It may cause to electronic shock or malfunction.
Do not push a LCD panel.
- It may cause LCD broken.
While stop driving (parking), set the car in motion.
- It may cause battery discharge.
Do not use multi socket or extended adaptor.
- It may cause unexpected heating, fire and malfunction.
Unplug product when do not use for a long time.
- It may case fire by short circuit due to heating.
Do not place near magnet.
- It may cause malfunction and trouble.
Do not disassemble the device.
- It may cause a fire or malfunction of device.
Do not install the camera projected out from the vehicle
- It may harm the pedestrians.
Do not let the extension cable pass through the seat rail. Properly wire the cables.
- It may cause a fire or accident.
Do not install the camera bracket on the surface of glass.
- Use the screws to install the camera bracket.
4
Page 6

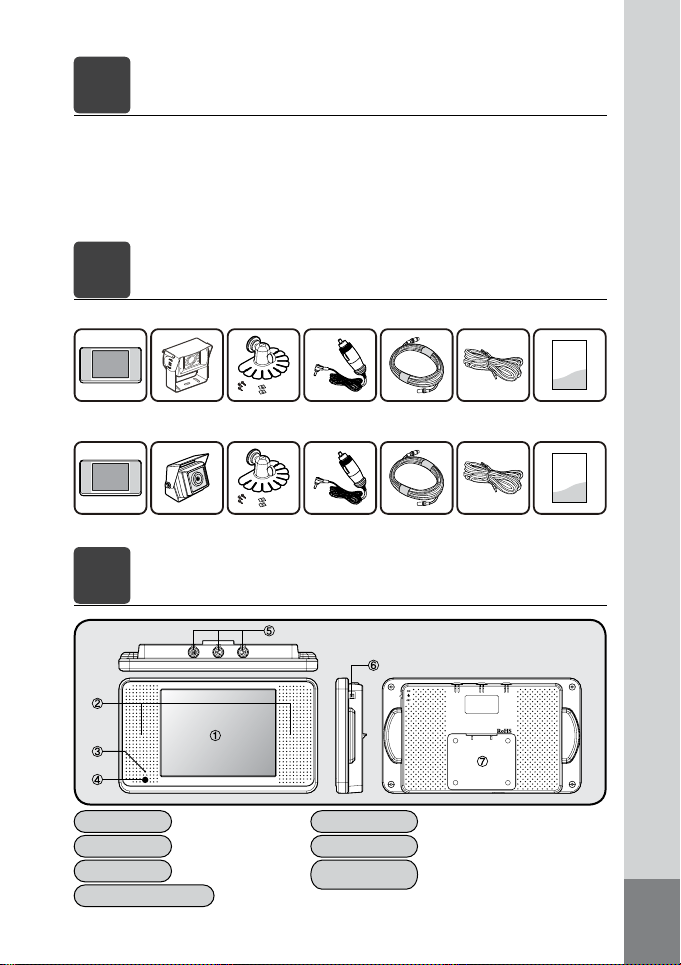

FEATURE
1
REAR VIEW SYSTEM FOR VEHICLE
[ MONITOR ]
• Adopting high resolution LCD panel
• All functions are displayed on screen(OSD function)
• 5 languages display selection
(ENG-DEU-ITA-FRA-ESP)
BOX CONTENTS
2
REAR VIEW SYSTEM FOR VEHICLE
[RV-430]
CM-410 CL-5S
[RV-400]
CM-410 CL-5S
3
CM-30
CM-43 Extension Cable
FUNCTION OF EACH PART
REAR VIEW SYSTEM FOR VEHICLE
[ CAMERA ]
• Aluminum die-casting housing
• High quality color CCD image sensor
• Completely waterproof [IP-66(CM-30) / IP-67(CM-43)]
• IR-LED, Heating, CdS sensor, MIC. adopt (only CM-30)
Cigar Cable Instruction
Cigar Cable Instruction
Extension Cable
(for camera)
Extension Cable
(for camera)
Extension Cable
(for TRG)
(for TRG)
Manual
Manual
1. Display
2. Speaker
3. S/BY LED
4. Illumination Sensor
4.1” TFT LCD(320x240) 5. Function Key
Max. 2W(MONO)
S/BY LED
Brightness sensor
6. Power Switch
7. Bracket
Menu / Volume setting and change
Power ON/OFF switch
Stand Bracket connect part
5
Page 7

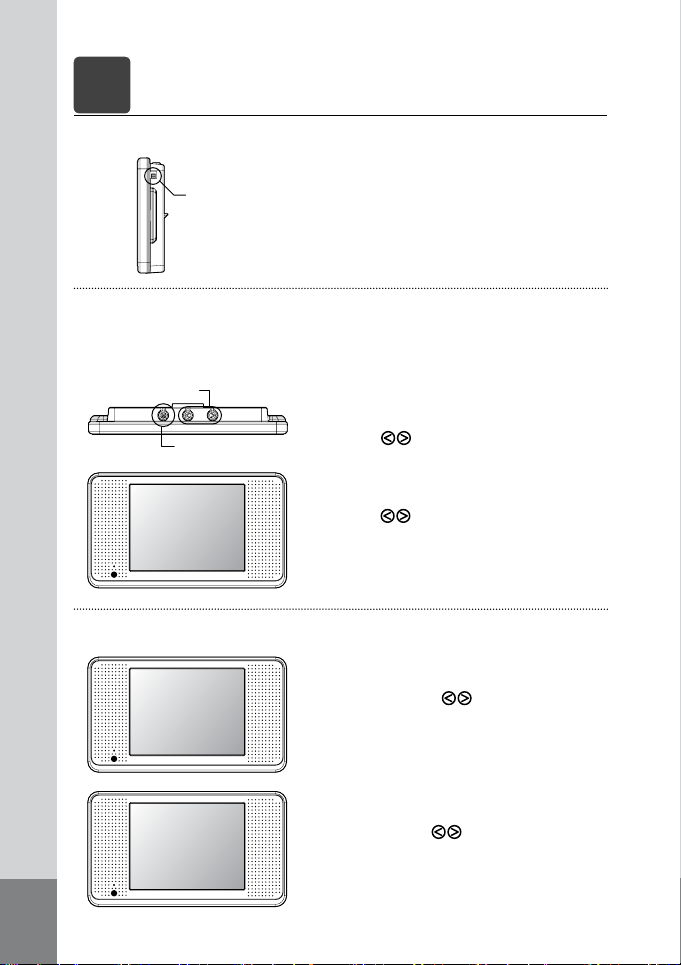

FUNCTIONS
4
REAR VIEW SYSTEM FOR VEHICLE
1. Power ON/OFF
Power ON/OFF switch.
1) POWER ON : If you switch up, POWER ON.
2) POWER OFF : If you switch down, POWER OFF.
2. Button function
When push [MENU] button for a long time while power on, the screen off and stand-by LED will turn on.
When push [MENU] button shortly while power off, the screen on and stand-by LED will turn off.
Volume / Setting changes
MENU button
VO LU ME 50
The menu changes [BRIGHTNESS] - [CONTRAST] - [COLOR]
- [TINT] - [DIMMER] - [LANGUAGE] - [MONITOR] - [RESET] every
push [MENU] button.
When you push button, it controls volume normally.
·[VOLUME] : Volume control
When you push button, it controls volume normally.
(0~100)
[0 : Min. volume / 100 : Max. volume]
3. MENÜ-Funktionen
·[BRIGHTNESS] : Adjust Brightness
On Brightness setting mode, buttons control screen
brightness. (0~100)
HE LL IG KEI T 70
[0 : Dark / 100 : bright]
·[CONTRAST] : Adjust Contrast
On Contrast setting mode, buttons control the difference
between brightness and darkness on screen. (0~100)
KO NT RA ST 70
[0 : Min. difference between brightness/darkness
100 : Max. difference between brightness / darkness]
6
Page 8

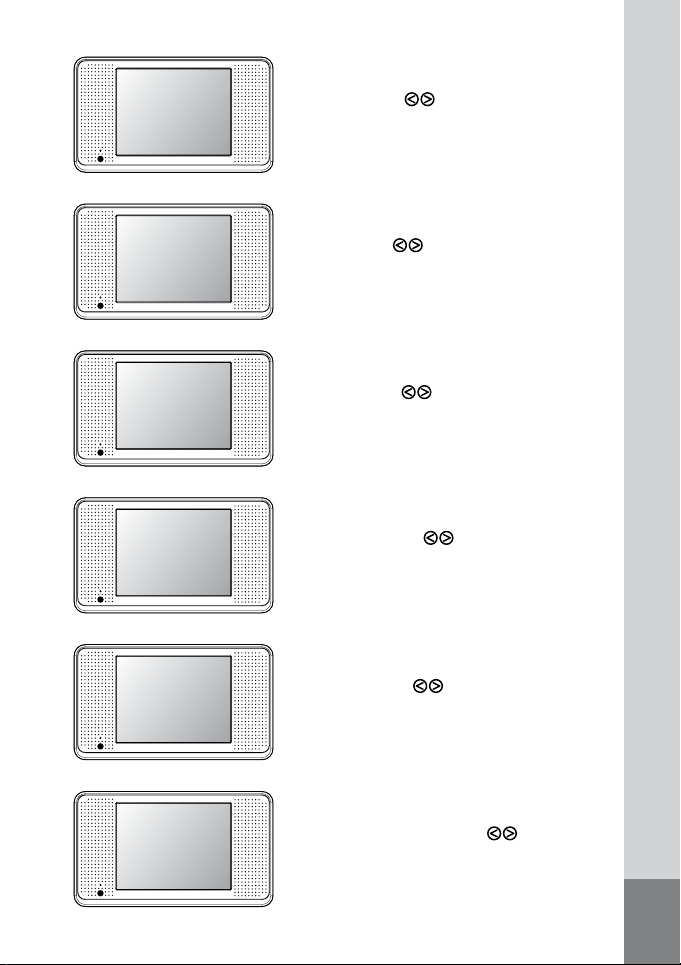

FA RBD IC HT E 50
FA RBT ON 50
DI MM ER A UTO
SPRACHE ENGLISH
·[COLOR] : Density adjusting on screen color
On Color setting mode, buttons control density of screen
color. (0~100)
[0 : Low density / 100 : High density]
·[TINT] : Screen color adjusting
On Tint setting mode buttons control screen color. (0~100)
·[DIMMER] : Automatic brightness adjusting
On Dimmer setting mode, the menu changes [AUTO] - [DAY] [NIGHT] every pushing buttons.
• AUTO : Automatic brightness control through illumination
detecting sensor.
• DAY : Making bright screen conpulsorily.
• NIGHT : Making dark screen compulsorily.
·[LANGUAGE] : OSD language choice
On language setting mode, buttons change OSD language
(5 languages)
[ENG]-[DEU]-[ITA]-[FRA]-[ESP]
MO NI TO R AU TO
RE SE T ►
·[MONITOR] : Screen ON/OFF setting
On Monitor setting mode, buttons change [AUTO] - [Manual]
mode.
• AUTO : The screen turns on, when put the reverse gear.
• MANUAL : Always screen on.
·[RESET] : Reset (Factory mode)
On Reset setting mode, when you push button, it turns to
initial setting mode.
7
Page 9
INSTALLATION
5
REAR VIEW SYSTEM FOR VEHICLE

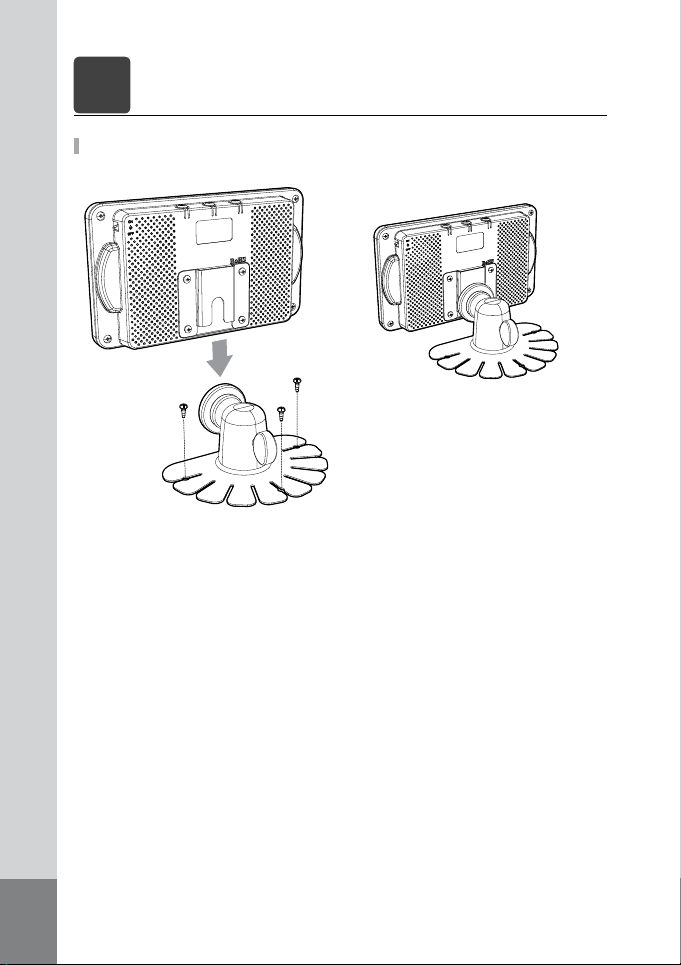

MONITOR INSTALLATION
1. Remove protecting tape from below of stand and attach stand with double stick tape.
2. Fix a stand with enclosed 3 screws.
3. Connect stand and monitor.
8
Page 10

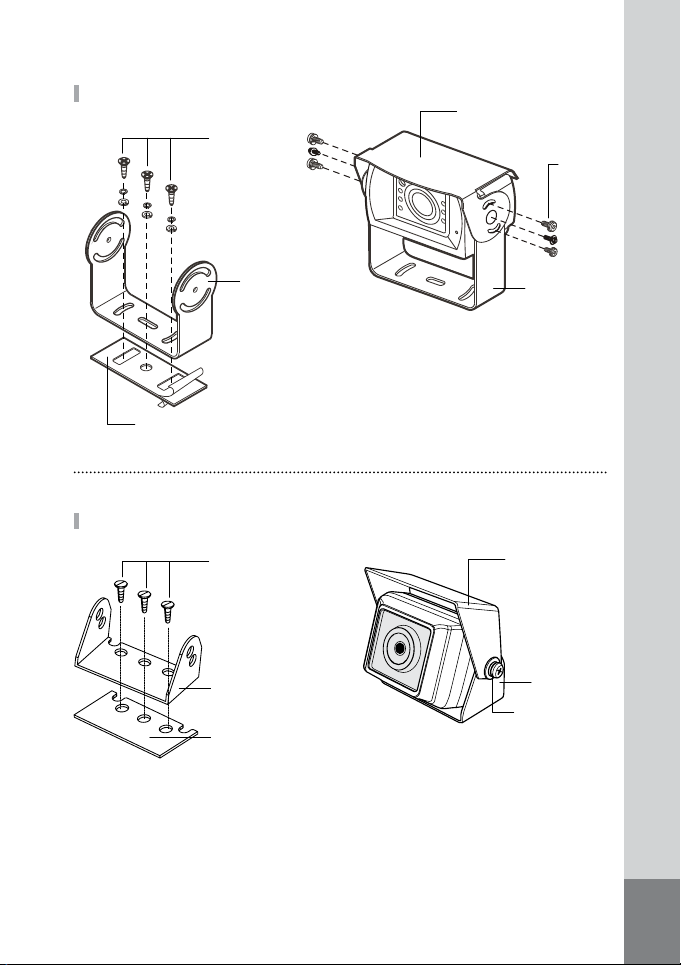

RV-430 CAMERA INSTALLATION (CM-30)
Screws
Sun Visor
Screws
Camera Bracket
Camera Bracket
1. Determine a position and direction of installation and attach a
camera bracket using double stick tape and screws.
2. Connect a camera with bracket on vehicle and fix them with
screws. After that fix a sun visor with screws.
Double stick tape
3. Run the cable as following cable connection guide.
RV-400 CAMERA INSTALLATION (CM-43)
Screws
Camera Bracket
Double stick tape
1. Determine a position and direction of installation and attach a camera bracket using double
stick tape and screws.
2. Connect a camera and sun visor with bracket on vehicle and fix them with screws.
3. Run the cable as following cable connection guide.
Sun Visor
Camera Bracket
Screws
9
Page 11

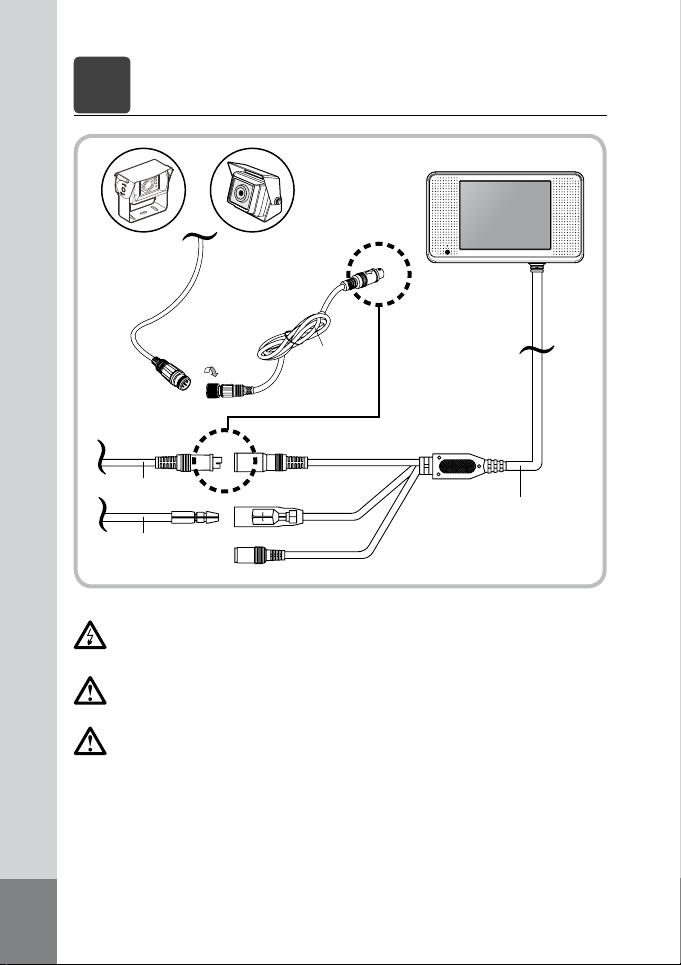

CABLE CONNECTION
6
REAR VIEW SYSTEM FOR VEHICLE
OR
CM-30 CM-43
CM-410
Extension Cable
(for Camera)
CAMERA
Extension Cable
(for camera)
Extension Cable
(for TRG)
TRG
DC IN (12~24V)
Monitor Cable
Before making the connection, disconnect the ground terminal of the car
battery to avoid short circuiting.
The plug should be fully inserted into the connector, should be check pin
arrangement before inserting. A loose connection may be caused mallfunction or problem of the unit.
10
When use extension cable, connect it as follows arrow direction.
Page 12
SPECIFICATIONS
7
REAER VIEW SYSTEM FOR VEHICLE
CM-410 (MONITOR)
DISPLAY
CONTRAST RATIO
VIEW ANGLE(L/R/U/D)
BRIGHTNESS
VOLTAGE
CURRENT
FREQUENCY
VIDEO SIGNAL
VIDEO INPUT
AUDIO INPUT
SPEAKER
OPERATING TEMPERATURE
STORAGE TEMPERATURE
DIMENSION
WEIGHT
CM-30 (CAMERA)
IMAGE SENSOR
VIEW ANGLE
MIN. ILLUMINATION
VOLTAGE
OPERATING TEMPERATURE
DIMENSION
WEIGHT
4.1” QVGA(320x240) TFT-LCD, 260,000 colors
200 : 1
65 / 65 / 60 / 65
280 cd
DC 12~24V
500mA
H : 15.734kHz / V : 60Hz
NTSC / PAL
CVBS 1Vp-p
MONO input 400mVrms
Max. 2W (MONO)
-10°C ~ 60°C
-20°C ~ 70°C
145(W) x 84(H) x 19(D) mm
176g (Monitor Only)
1/3”250,000 pixels COLOR CCD (NTSC)
120° (Diagonal)
0.001 lux
DC 12V / 200mA Max.
-15°C ~ 65°C
70(W) x 44(H) x 57(D) mm
400g (included Bracket and Sun Visor)
CM-43 (CAMERA)
IMAGE SENSOR
VIEW ANGLE
MIN. ILLUMINATION
VOLTAGE
OPERATING TEMPERATURE
DIMENSION
WEIGHT
1/4”250,000 pixels COLOR CCD (NTSC)
150° (Diagonal)
1 lux at F:2.0 / 30 IRE
DC 12V / 200mA Max.
-20°C ~ 50°C
38(W) x 30(H) x 26(D) mm
131g (included Bracket and Sun Visor)
11
Page 13
MEMO
VIDEORÜCKFAHRSYSTEM
12
Page 14
MEMO
VIDEORÜCKFAHRSYSTEM
13
