Page 1
C50i Chipper
Operating Instructions
Before commissioning the machine, read operating instructions and
observe warning and safety instructions.
Page 2
Page 3
Manufacturer Detail s
Tracmaster Ltd
Sovereign Centre
Victoria Road
Burgess Hill
West Sussex
RH15 9LR
UNITED KINGDOM
Tel: +44 1444 247689
Fax: +44 1444 871612
www.tracmaster.co.uk
[email protected]
Machine Details
Model: CAMON C50i Chipper
Serial Number: ..................................................
Engine Serial No: ..................................................
Date of Purchase: ..................................................
Supplier: ..................................................
Page 4
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
2 For parts diagrams visit www.tracmaster.co.uk
Table of Contents
1.0 What the Machine is Designed For .......................................................................................... 3
1.1 Applications ................................................................................................................. 3
2.0 Specifications ........................................................................................................................... 4
3.0 Unpacking and Assembly ......................................................................................................... 5
3.1 Major Components Diagram........................................................................................ 5
3.2 Unpacking Instructions ................................................................................................ 5
4.0 Safety Instructions – Pre-Operation ......................................................................................... 6
4.1 Basic Safety Instructions ............................................................................................. 6
4.2 Main Components and Operating Elements ................................................................ 6
4.3 Engine and Drive ......................................................................................................... 6
4.4 In-Feed Chute ............................................................................................................. 6
4.5 Chipping Blade ............................................................................................................ 6
4.6 Discharge Chute .......................................................................................................... 7
4.7 Collection Bag ............................................................................................................. 7
4.8 Commissioning ............................................................................................................ 7
4.9 General Safety Instructions ......................................................................................... 7
4.10 Engine Specific Safety Instructions ............................................................................. 8
5.0 Safety Instructions Starting and Operating ............................................................................... 9
5.1 To Start the Engine ...................................................................................................... 9
5.2 To Stop the Engine .................................................................................................... 10
5.3 Safety Equ ipment ...................................................................................................... 10
5.4 Operation................................................................................................................... 10
5.5 Procedure for Unexpected Shut Down ....................................................................... 11
5.6 Residual Risks of the C50i Chipper ............................................................................ 11
6.0 Maintenance .......................................................................................................................... 12
6.1 Schedule ................................................................................................................... 12
6.2 Basic Maintenance .................................................................................................... 12
6.3 Advanced Maintenance ............................................................................................. 12
6.3.1 Belt ............................................................................................................... 12
6.3.2 Changing the Chipping Blade ....................................................................... 13
6.4 Engine ....................................................................................................................... 13
6.4.1 Check Engine Oil Level ................................................................................ 13
6.4.2 Change Engine Oil ........................................................................................ 13
6.4.3 Air Filter ........................................................................................................ 14
6.4.4 Spark Plug .................................................................................................... 14
6.5 Cleaning .................................................................................................................... 14
6.6 Troubleshooting ......................................................................................................... 15
6.6.1 Machine ........................................................................................................ 15
6.6.2 Engine .......................................................................................................... 15
6.6.3 Lubricants ..................................................................................................... 15
7.0 Transportation, Storage and Handling ................................................................................... 16
7.1 Transportation ........................................................................................................... 16
7.2 Storage ...................................................................................................................... 16
7.3 Handling .................................................................................................................... 16
8.0 Service Record ...................................................................................................................... 17
EC Declaration of Conformity ......................................................................................................... 18
Warranty Registration ..................................................................................................................... 19
Page 5
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 3
1.0 What the Machine is Designed For
1.1 Applications
CAMON C50i Chipper has been designed by Tracmaster Ltd for chipping wood up to 55mm
(2”) in diameter.
The benefit of chipping branches of wood is to reduce its volume to a smaller volume.
Additionally wood chippings can be used a mulch or in the creation of compost.
The blade of the CAMON C50i Chipper is designed to chip wood only.
Do not use the CAMON C50i Chipper for chipping any material other than wood. Metal will
cause significant damage to the chipping blades and machine.
Page 6
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
4 For parts diagrams visit www.tracmaster.co.uk
2.0 Specifications
ENGINE
Engine Manufacturer
Honda
Engine Model
GX200 or GP200
Engine T y pe
4-stroke OHV, single cylinder
Net Engine Power
4.1kW (5.5hp) @ 3600rpm
Engine Shaft Size
¾” straight
Spark Plug
BPR6ES (NGK) / W20EPR-U (DENSO)
Spark Plug Gap
0.70 - 0.80mm
Engine Ignition T ype
Recoil
Cold Start System
Choke
Fuel Tank Capacity
3.1 litres
Fuel T y pe
Unleaded
Fuel Consumption
1.7 litres per hour @ 3600rpm
Air Filter
Paper
Rated Engine Speed
3600rpm
Engine Oil
10w/30 API SJ or later
Engine Oil Capacity
0.6 litres
Dry Weight
16.1kg
The power rating of t he engine indicated in this tabl e is the net power output tested on a production engine for the engine m odel and
measured in accordance with SAE J1349 at a specified rpm
MACHINE
Model
C50i
Chipping Capacity
55mm
Wheel Types
Foam-filled
Noise Level
104db(A)
Weight
65kg
Dimensions (l x w x h)
80 x 64 x 60cm
Page 7
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 5
3.0 Unpacking and Assembly

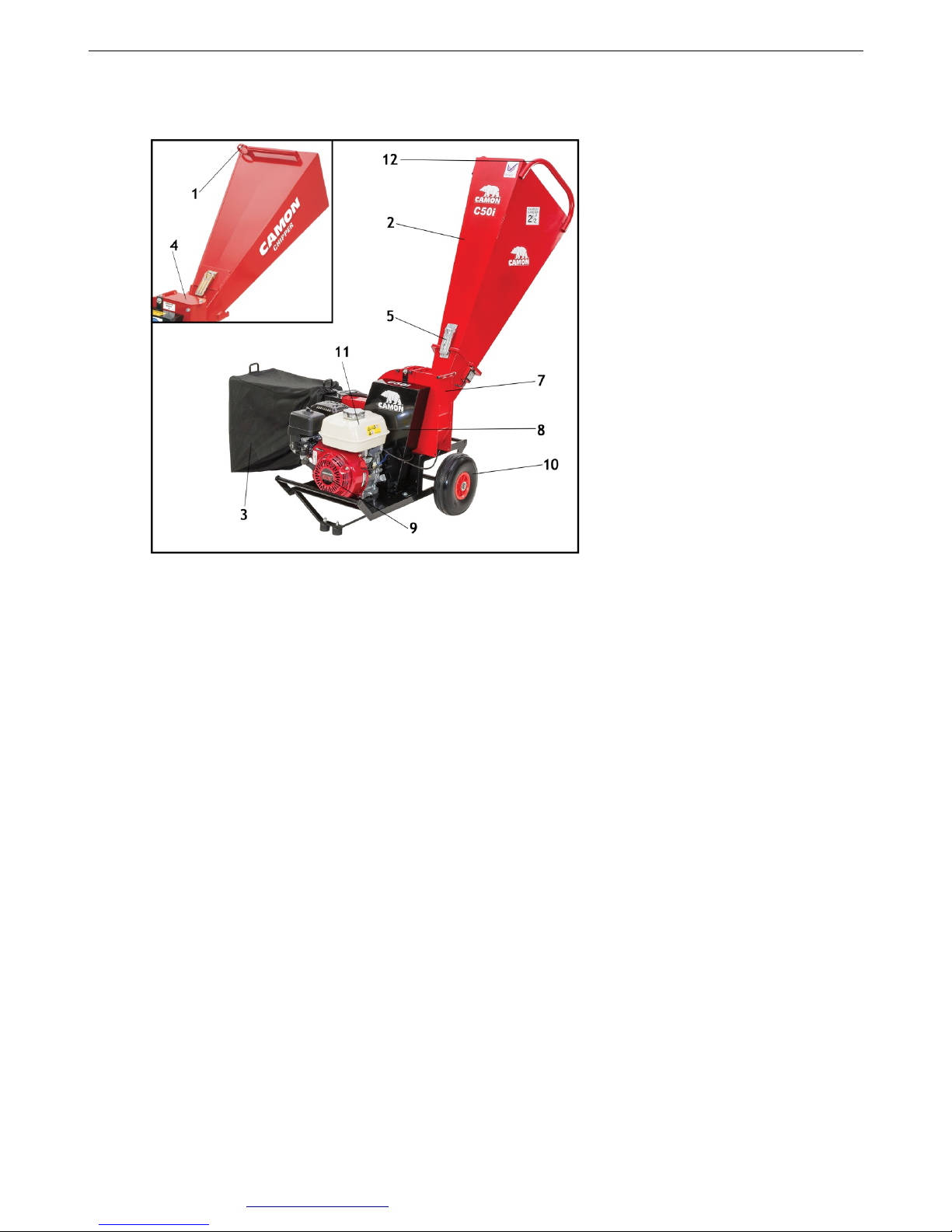

3.1 Major Components Diagram
1
Capacity Gauge (NB: Not
fitted on current chutes)
2 In-feed Chute
3 Collection Bag
4
Service Hatch (NB: Not
fitted on current housin g )
5 Locking Latch
6 Bottom Bracket
7 Rotor Housing
8 Belt Guard
9 Engine
10 Wheel
11 Fuel Tank
12 Transportation Handles
3.2 Unpacking Instructions
Open the top of cardboard box.
Cut the box open by using a sharp knife to cut down through the four corners of the box.
Page 8
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
6 For parts diagrams visit www.tracmaster.co.uk
4.0 Safety Instructions – Pre-Operation
4.1 Basic Safety Instructions
Before starting the machine, read and understand these operating instructions.
4.2 Main Com pone nt s a nd O pe ra t ing Elements
Below is a description of the main components of the C50i and how they operate.

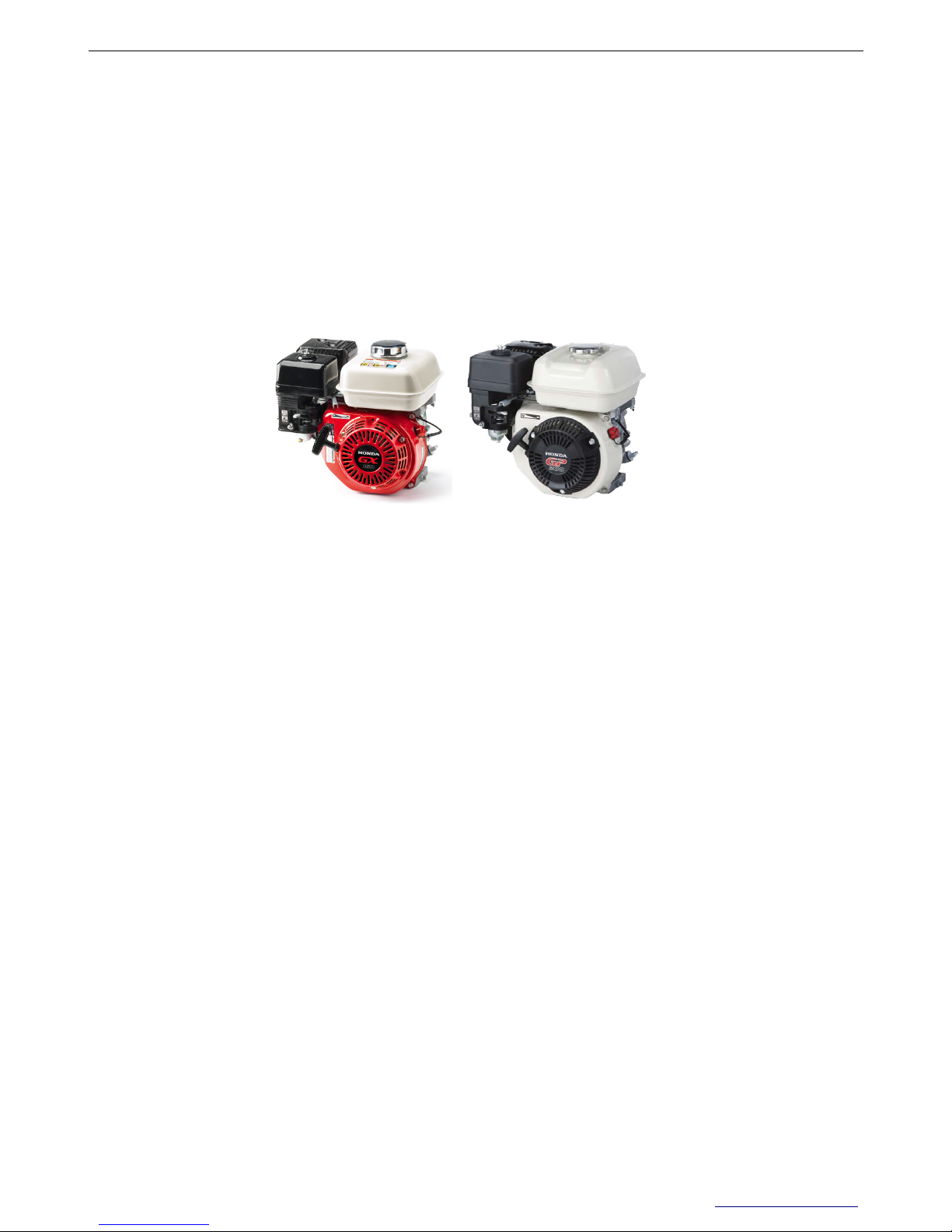

4.3 Engine and Drive
The Honda GX200 and GP200 are four stroke engines that run on standard unleaded fuel.
The engines are fitted with a red on/off lever that is the main operating control for the
engine. Rotating the switch to the ‘I’ position allows the engine to be started. Rotating the
switch to the ‘O’ position will turn off the engine.
The engine is air cooled and therefore it is important that the grille covering the recoil rope is
kept clear from debris.
The engine air filter cleans the air drawn in by the engine. A clogged air filter will reduce
performance.
The engine is fitted with a fuel on/off lever and a choke lever. Read the engine operating
instructions to understand the operation of these levers.
4.4 In-Feed Chute
The in-feed chute must be connected to the chute bracket on the rotor housing for the C50i
Chipper to function. Without the in-feed chute being fitted, the Honda engine will not start.
The in-feed chute is fitted onto the housing bracket of the chipper housing using the locating
lugs at the bottom of the in-feed chute. The chute is secured firmly in place using the latch
on top of the chute that connects to a bracket on top of the chute bracket.
4.5 Chipping Blade
A chipping blade must be fitted to the rotor disc of the C50i Chipper for it to be able to
function in the manor for which it is designed. Without a chipping blade the C50i Chipper will
not chip wood, and damage to the machine is likely to occur.
Page 9
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 7
The chipping blade must be kept sharp for the C50i Chipper to efficiently chip wood.
A blunt chipping blade will cause damage to the machine.
4.6 Discharge Chute
The discharge chute swivels from a storage position into its operating position. The Honda
engine will not start unless the discharge chute has been moved into its working position. A
hook on a spring is used to hold the discharge chute in place.
4.7 Coll e c ti on Ba g
An optional collection bag can be fitted over the discharge chute to collect wood chippings
from the machines.
The bag frame is located using the slots on the outside of the discharge chute. Once the bag
frame has been located, pull the drawstring of the bag to tighten the bag around the mouth
of the discharge chute.
4.8 Commissioning
Prior to operation it is necessary to check the engine oil level and add engine oil level to the
levels indicated in the table in section 5.1.
The engine fuel tank will not contain fuel so will need filling to the recommended level before
use.
Check that the chipping blade is sharp prior to using the C50i Chipper.
4.9 General Safety Instructions
Be aware of all the safety requirements for the machine.
Visually check the machine for operational safety, complete componentry and fixed guarding
prior to each use.
Read and be aware of the warning and instr u ct ion signs located on the machiner y.
Cordon off the work area to access from the general public.
Before starting work clear the area of any objects that may cause damage to the machine.
Do not operate the machine if you are under the influence of alcohol or drugs. This
equipment must only be operated by persons who are medically fit both physically and
mentally.
Only work in good light and visibility.
Wear the correct personal protection equipment as instructed by this manual.
Operator clothing should not be loose and footwear should offer good grip.
Know how to stop the machine in an emergency.
Page 10
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
8 For parts diagrams visit www.tracmaster.co.uk
4.10 Engine Specific Safety Instructions
Always ensure the engine is turned off when transporting the machinery, cleaning the
machinery and making adjustments.
Always start the engine in open air. Starting an engine within a confined space can lead to
the inhalation of toxic substances.
Do not smoke or use a naked flame when refueling.
Do use only unleaded petrol from fuel containers designed for this purpose. Refuel outdoors
only and replace the fuel tank cap securely.
Do not mix oil with the fuel.
Leave one inch of space in the fuel tank during refilling.
Clear up any petrol spillages immediately.
Avoid contact with the engine during operation as it will become hot. Leave the engine to
cool prior to contact.
Never interfere with the control settings of the engine.
Page 11
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 9
5.0 Safety Instructions Starting and Operating
5.1 To Start the Engine
Using the dipstick provided,
check the engine oil level. Top
up with 10w/30 oil if the dipstick
is clear of oil.
Check the fuel level. Refill as
necessary and as determined by
the fuel tank type – see diagram.
Switch the engine ignition switch
to the ON position.
Turn the fuel tap located on the
engine carburetor to the ON
position. If the engine is cold or
has not been operated recently
set the choke lever on the
carburetor to the ON position.
Pull the engine recoil handle slowly until it engages then pull hard and fast to start the
engine.
After the start, guide the cord back into its position. Do not let it snap back.
Once the engine has started, if the choke lever has been used, return this to its OFF positi on
after the engine has run for a few seconds.
Page 12
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
10 For parts diagrams visit www.tracmaster.co.uk
5.2 To Stop the Engine
Release the operating lever.
Switch the engine ON/OFF switch to the ‘O’ o ff position.
Turn the fuel tap lev er to the OFF posi ti o n.
Ensure the blades have stopped rotating prior to moving the machine.
WARNING: THE EXHAUST COVER MAY BE HOT – DO NOT TOUCH.
5.3 Safety Equipment
The C50i operator must be wearing:
• Ear Defenders
• Gloves
• Protective Footwear
• Safety Glasses
5.4 Operation
Increase engine to FULL throttle and allow the machine to build up to its FULL operating
speed.
Ensure the maximum thick ness o f timber is not exceeded. Timber less than 25mm (1”) in
diameter usually self-feeds through the machine. If it is over 25mm (1”) in diameter, it may
be necessary to pull the timber back to avoid over-feeding if the engine speed starts to drop.
Always put the thickest end of the branch into the chute first. FAILURE TO OBSER VE THIS
PRECAUTION WILL CAUSE DAMAGE - correct feed pressure and eng i ne speed is
important to reduce the possibility of damage to the machine. DO NOT pull out or push in
the short end pieces with hands. Use the next branch to feed the short end through the
chipper each time. BE CAREFU L - short ends sometimes feed themselves through the
chipper but are occasionally thrown out.
Clear processed material regularly; do not allow it to build up underneath the machine.
Empty the collection bag regularly if used.
NEVER overload the machine.
NEVER stand in front of the chipper chute when the machine is operating.
NEVER position the machine on a ledge higher or lower than the operator. Machine and
operator must be on the same level.
ALWAYS operate the machine a FULL throttle.
ALWAYS allow the machine to run at full speed for 2 minutes before switching off.
Allow the machine to cool down before moving the discharge and in-feed chu te for
transportation.
Page 13
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 11
WARNING - The exhaust may be hot.
TURN OFF THE FUEL TAP BEFORE TRANSPORTING THE MACHINE.
FAILURE TO OBSERVE THESE POINTS MAY RESULT IN PERSONAL INJURY.
If you are using the collection bag over the discharge chute then ensure it is not obstructing
the exhaust as damage to the bag will occur from a hot exhaust.
Never stand on the discharge side of the machine or directly in front of the chipper chute.
KEEP TO ONE SIDE.
5.5 Procedure for Unexpected Shut Down
Turn the engine operating switch located on the engine to the OFF position.
Ensure that the rotor disc and blade have stopped rotating prior to moving the machine.
WARNING: ALWAYS TILT THE C50i CHIPPER AWAY FROM THE AIR FILTER TO AVOID
OIL IN THE ENGINE FLOODING INTO AREAS WHERE IT WILL CAUSE DAMAGE.
5.6 Residual Risks of the C50i Chipper
The rotor disc will continue to rotate for a couple of seconds once he engine has been
switched off. Ensure that the blade has stopped rotating prior to moving or tilting the
machine.
The C50i Chipper is designed to be pushed by the operator during transportation. It has no
brake system and the operator must position the machine only on flat areas during
operation.
DO NOT OPERATE THE C50i ON SLOPED AREAS OR AT AN ANGLE.
Page 14
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
12 For parts diagrams visit www.tracmaster.co.uk
6.0 Maintenance
6.1 Schedule
Operation Daily Every
Week
Every
Month
Engine Check engine oil level 10w/30
See separate engine manual
X X
Machine Check condition of blades
X
Check belt condition
X
Check collection bag condition
X
Check rotor shaft bearings
X
Tighten all nuts and bolts
X
6.2 Basic Maintenance
Check that all guards are fitted securely.
6.3 Advance d Maintenance
We strongly recommend that an Authorised Representative is consulted prior to any major
machine maintenanc e pr oj ects .
6.3.1 Belt
Inspection Check:
Check every 25 hours that the drive belt is not frayed or cracked. If it appears frayed
or cracked then it is time to replace the belt.
Changing the Belt:
Remove the belt guard from machine by removing the three bolts that hold it to the
chassis and the one bolt that connects it to the rotor housing.
Loosen the bolts that hold the engine to the chassis, allowing it to be moved freely
and to release the tension on the belt.
Remove the belt from the rotor disc pulley and
from the engine pulley.
Fit a new belt onto the rotor pulley and engine
pulley.
Tighten the belt by moving the engine in the
direction shown below and tightening the
engine chassis bolts to hold it in position.
Ensure that the rotor pulley and engine pulley
are in the same plane as indicted by the
dashed line on the diagram.
Page 15
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 13
6.3.2 Cha ngi ng the Chipping Blade
Inspection Check:
Over time blades will lose their point and sharpness. This will lead to poor chipping
performance. Check regularly to ensure the chipping blade has a sharp leading edge.
Changing the Blade:
The chipping blade must be changed as soon as it is blunt.
Ensure that the machine is at a stop and the engine is off. To ensure the machine is
safe to work on remove the spark plug cap. Remove the in feed chute and in-feed
chute bracket.
Remove the rear belt guard.
Remove the top curved guard.
Locate an allen key through the chipping aperture of the rotor housing onto one of the
bolt heads holding the chipping blade onto the rotor disc.
Position a 13mm spanner on the nut that holds the chipping blade onto the rotor disc.
Turn the spanner to undo the nut that holds the chipping blade. Do not turn the allen
key. Use this as a locking point only.
Remove the two other nuts holding the blade onto the rotor disc.
Once the blade has been removed, it is possible to fit a new sharp chipping blade
using the reverse process. Ensure that the nut is tightened onto the bolt using the
13mm spanner to ensure the allen key head on the bolt is not damaged during the
process.
6.4 Engine
6.4.1 Check Engine Oil Level
This is to be checked prior to each use and every 8 hours during operation.
Check only when the engine is off and in a horizontal position.
Clean the oil filler plug and its surrounding parts.
Remove the oil filler plug. Clean the dipstick with a clean cloth and put the oil filler
plug all the way back into the engine. Remove the oil filler plug and check the oil
level.
Refill the oil if indicator shows more is required. For the Honda GX200 and GP200
engines the recommended oil is SAE 10w/30 API SJ or later.
6.4.2 Change Engine Oil
Refer to the engine manufacturer's manual for location of components and more
detailed assistance.
Do not change the oil if the engine is hot.
Page 16
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
14 For parts diagrams visit www.tracmaster.co.uk
The first oil change is after 50 hours of work.
Subsequent oil changes should be made after each 100 hours of work.
At extreme temperatures or conditions change the oil after every 50 hours.
Open the drain plug on the engine and the filling plug and drain the oil into a suitable
container or use a suction pump to remove oil through filler neck.
Ensure the waste oil is disposed of properly.
Re-fit the drain plug and tighten.
Fill fresh engine oil through the oil filling opening. Use a funnel or similar device for
ease of filling.
Replace the oil filler plug and tig hten.
6.4.3 Air Filter
Inspection Check:
Remove the air cleaner cover and inspect the filter elements.
Cleaning:
See diagram below containing information provided by Honda.
6.4.4 Spark Plug
Clean and replace.
6.5 Cleaning
After cleaning, particularly if a pressure washer has been used, ensure any lubrication points
are re-lubricated.
Clean the engine with a cloth only. Avoid spraying the engine with jets of water as this may
leak into the fuel and ignition systems.
Page 17
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 15
6.6 Troubleshooting
6.6.1 Machine
Have all serious malfunctions on the machine and engine repaired by an authorised
Tracmaster or Hond a ag ent.
Problem Possible Cause Remedy
No drive to blades Broken belt Replace belt
Poor chipping performance Chipping blade is blunt Replace blade
6.6.2 Engine
Problem Possible Cause Remedy
Engine does not start
Spark plug connector not
connected
Connect spark plug
connector
Choke lever is not actuated Actuate choke lever
Fuel tank empty Fill fuel tank
Fuel line clogged Clean fuel line
Defective spark plug
Clean or replace spark
plug
Engine has too much fuel
Dry and adjust spark
plug and start engine
Engine overheats
Low engine oil Refill immediately
Impaired cooling Clean cooling fan grille
Air filter clogged Clean air filter
6.6.3 Lubricants
Use the specified 10w/30 oil specified by Honda for the engine oil.
Page 18
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
16 For parts diagrams visit www.tracmaster.co.uk
7.0 Transportation, Storage and Handling
7.1 Transportation
Use ramps where possible to manoeuvre the Chipper into a transportation vehicle.
The C50i must be fixed securely using straps and by placing chocks behind the wheels.
Always transport the C50i horizontally and not at an angle.
Ensure that the fuel control lever on the engine is moved into the OFF position so fuel does
not leak into the carburetor during transportation.
7.2 Storage
Always clean the machine and dry thoroughly prior to storage and ensure all lubrication
points have been re-greased.
For periods of long storage, change the engine oil.
Either drain the fuel completely or fill the fuel tank and add fuel stabilizer.
Do not store the Chipper in wet rooms, where fertiliser is stored, or in stables as heavy
corrosion may occur.
Always store the machine in a horizontal position.
7.3 Handling
Do not attempt to lift the machine alone. At least two people is the minimum required.
Gloves must be worn when lifting the C50i Chipper.
Do not tilt the machine so that fuel can leak into the air filter of the engine.
When performing maintena nce on t he Chipper when it is situated on a work bench, ensure
that the machine is firmly held in position at all times.
Do not lift the machine solely by the engine at any point.
Page 19
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 17
8.0 Service Record
To ensure your machine is kept in peak condition we recommend that your CAMON C50i Chipper
is serviced regularly.
Contact Trac master on 01444 24768 9 to find out w ho y our local Authorised Agent is.
Company:__________________________
Date:______________________________
Company:__________________________
Date:______________________________
Company:__________________________
Date:______________________________
Company:__________________________
Date:______________________________
Company:__________________________
Date:______________________________
Company:__________________________
Date:______________________________
Page 20
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
18 For parts diagrams visit www.tracmaster.co.uk
EC Declaration of Conformity
Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of:
Machinery Directive 2006/42/EC
EMC Directive 2004/108/EC
and the National Laws and Regulations adopting these directives and other relevant directive.
Manufacturer: Tracmaster Ltd
Sovereign Centre
Victoria Road
Burgess Hill
RH15 9LR
UNITED KINGDOM
Machine Description: Wood Chipper
Type: CAMON C50i Chipper
Serial No: …....................................
Harmonised Standards applied: (including parts of):
BS EN ISO 12100:2010 Safety of machinery. General principles for design. Risk assessment and risk
reduction
BS EN 13525:2005+A2:2009 Forestry machinery. Wood chippers. Safety
BS EN ISO 13857:2008 Safety of machinery. Safety distances to prevent hazard zones being reached by
upper and lower limbs
BS EN 953:1997+A1:2009 Safety of machinery. Guards.General requirements for the design and
construction of fixed and movable guards
BS EN ISO 14119:2013 Safety of machinery. Interlocking devices associated with guards. Principles for
design and selection
BS EN 60947-5-1:2004+A1:2009 Low-voltage switchgear and control gear. Control/circuit devices and switching
elements. Electromechanical control circuit devices
BS EN ISO 4871:2009 Acoustics. Declaration and verification of noise emission values of machinery and
equipment
BS ISO 11684:1995 Tractors, machinery for agriculture and forestry, powered lawn and garden
equipment. Safety signs and hazard pictorials. General principles
BS EN ISO 13850:2006 Safety of machinery. Emergency stop. Principles for design
BS EN 1037:1995+A1:2008 Safety of machinery. Prevention of unexpected start-up
Responsible Person: Jody Symons
Position in Company: Technical Director
Address: Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR
Date: 30 September 2014
Signature: …...............................................
Page 21
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 19
Warranty Registration
To validate your warranty please complete the form below and return it to:
Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR
Alternatively visit www.tracmaster.co.uk and complete the online form.
CUSTOMER DETAILS
Name: ...............................................................................................................
Company (if applicable): ...............................................................................................................
Address: ...............................................................................................................
...............................................................................................................
............................................... Postcode: .........................................
Email: ...............................................................................................................
Phone: ...............................................................................................................
MACHINE DETAILS
Machine: CAMON Chipper
Model: C50i
Serial Number: ...............................................................................................................
Engine Serial Number: ...............................................................................................................
Purchase Date: ...............................................................................................................
SUPPLIER DETAILS (if not supplied directly by Tracmaster)
Dealer Name: ...............................................................................................................
Dealer Address: ...............................................................................................................
...............................................................................................................
............................................... Postcode: .........................................
We will never pass your details to any third party, however, we may occasionally send you emails with offers
and promotions, if you do not want us to do this, please tick this box.
Page 22
CAMON C50i Chipper Tracmaster Ltd
_______________________________________________________________________________________________
20 For parts diagrams visit www.tracmaster.co.uk
Page 23
Tracmaster Ltd CAMON C50i Chipper
_______________________________________________________________________________________________
For parts diagrams visit www.tracmaster.co.uk 21
Visit our website for more information on the CAMON C50i Chipper.
www.camon.co.uk
or
www.tracmaster.co.uk
Videos, parts diagrams, technical bulletins, FAQ’s and more.
Page 24
© 2015 Tracmaster Ltd
Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR
Tel: +44 (0)1444 247689 Fax: +44 (0)1444 871612
www.tracmaster.co.uk [email protected]
Loading...
