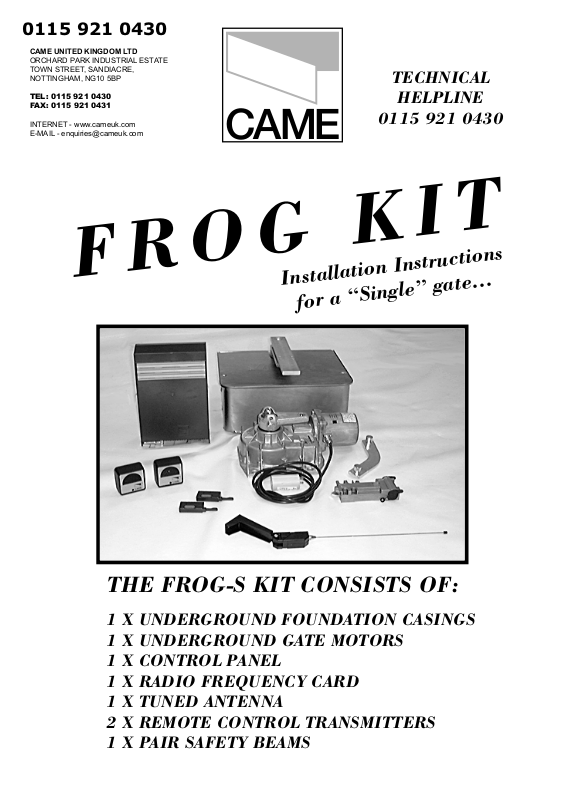

FROG KIT
HELPLINE
0115 921 0430
Installation Instructions
for a “Single” gate...
THE FROG-S KIT CONSISTS OF:
1 X UNDERGROUND FOUNDATION CASINGS
1 X UNDERGROUND GATE MOTORS
1 X CONTROL PANEL
1 X RADIO FREQUENCY CARD
1 X TUNED ANTENNA
2 X REMOTE CONTROL TRANSMITTERS
1 X PAIR SAFETY BEAMS
INTRODUCTION
THESE INSTRUCTIONS WILL SHOW YOU HOW TO INSTALL
A FROG UNDERGROUND GATE KIT TO A SINGLE GATE.
PLEASE READ THESE INSTRUCTIONS AND DIAGRAMS
CAREFULLY BEFORE STARTING ANY WORK.
UNDER NO CIRCUMSTANCES SHOULD THIS EQUIPMENT BE OPERATED UNLESS FITTED TO A GATE.
FAILURE TO COMPLY WILL INVALIDATE THE GUARANTEE.
INSTALLATION INSTRUCTIONS
CONTENTS
1) Stage 1:- Civil & Mechanical Section Page
1.1 INSTALLATION OF THE FOUNDATION 3
1.2 BASIC CABLE LAYOUT 4
1.3 LOW VOLTAGE CABLE LAYOUT 4
1.4 INSTALLING THE MOTOR 5
1.5 HANGING THE GATE 5
1.6 FITTING THE GATE LOCK 6
2) Stage 2:- Wiring & Electrical
2.1 FITTING THE CONTROL PANEL IN THE CASING 8
2.2 WIRING THE MOTOR 9
2.3 WIRING IN THE SAFETY PHOTOCELLS 10
2.4 INSERTING THE RADIO FREQUENCY CARD 10
2.5 WIRING IN THE TUNED ANTENNA 11
2.6 CODING THE REMOTE CONTROLS 11
2.7 POWERING UP THE CONTROL PANEL 11
3) Stage 3:- Commissioning the Control Panel
3.1 INITIAL WIRING & CONTROL PANEL SETUP 13
3.2 OPENING & CLOSING THE GATE 14
3.3 CONTROL PANEL ADJUSTMENTS 15
3.4 AUTOMATIC CLOSE & SAFETY PHOTOCELLS 16
3.5 PROGRAMMING THE REMOTE CONTROLS TO THE
CONTROL PANEL 17
4) Troubleshooting Guide 19
5) Technical Information 20
5.1 TECHNICAL SPECIFICATIONS 21
5.2 CASING DIMENSIONS 21
5.3 OPERATING LIMITS 21
5.4 MOTOR TORQUE SETTINGS 22
5.5 ZA5 CONTROL PANEL DESCRIPTION 23
5.6 ZA5 WIRING DIAGRAM 25
5.7 CONTROL PANEL ADJUSTMENTS 26
5.8 ELECTRICAL CONNECTIONS 27
5.9 DIPSWITCH FUNCTIONS 29
5.10 RE-HANDING THE MOTOR 30
6) Contact Information
“TIME MARCHES ON BUT CAME AUTOMATION EQUIPMENT STANDS THE TEST OF TIME...”
D
U
C
T
IN
G
F
O
R
M
O
T
O
R
W
IR
E
S
H
E
E
L O
F C
A
S
IN
G
S
O
AK
A
W
A
Y
STAGE 1
CIVIL & MECHANICAL SECTION
1.1 - Installation of Foundation Casing
THE UNDERGROUND CASING SHOULD BE CONCRETED IN THE GROUND. THE
CASING SHOULD HAVE ADEQUATE DRAINAGE TO A SUITABLE SOAK AWAY.
WHEN INSTALLING THE FOUNDATION CASING AS A GUIDE ALLOW APPROXIMATELY 100mm AROUND THE CASING AND 100MM UNDERNEATH THE CASTING
FOR CONCRETE.
Fig 1
WHEN CONCRETING THE CASING IN PLACE, ENSURE THAT THE HEEL OF THE CASING
IS PACKED WITH CONCRETE AS THIS WHERE ALL OF THE WEIGHT OF THE GATE WILL
SIT. ALLOW AT LEAST TWO DAYS FOR THE CONCRETE TO GO OFF.
WHEN SETTING THE CASING IN PLACE ENSURE THAT THE TOP HINGE PIN IS PLUMB IN
LINE WITH THE HINGE PIVOT IN THE CASING. THE CENTRE OF PIVOT IS 65mm
STANDOFF FROM THE BACK OF THE CASING. THE CASING SHOULD BE SET PERFECTLY
SQUARE AND LEVEL AND PROTRUDING APPROXIMATELY 3MM FROM GROUND LEVEL.
160mm
67mm
67mm
60mm
160mm
100mm
3mm
3mm
Fig 2
100mm
3
60mm
1.2 - Basic Cable Layout
THIS DIAGRAM DETAILS THE BASIC CABLE LAYOUT FOR
A SINGLE MOTOR.
THE POWER SUPPLY TO THE CONTROL PANEL SHOULD BE LIVE AND
PROTECTED IN ACCORDANCE WITH THE 16TH EDITION ELECTRICAL
REGULATIONS. THE SUPPLY SHOULD BE RATED AT A MINIMUM OF 6 AMPS.
WHEN INSTALLING WIRES OUTDOORS THE CABLE APPROACH TO ALL
DEVICES MUST BE FROM BELOW TO CREATE A “DRIP-LOOP” AND THEREBY
AVOID UNNECCESSARY WATER INGRESS.
Fig 3
CONTROL
HOUSING
PANEL
JOINT BOX
240V A.C.
3 CORE
SWA 1.5mm
MOTOR CABLE IN DUCTING
1.3 - Low Voltage Cable Layout
WHEN INSTALLING LOW VOLTAGE CABLE AROUND THE GATEWAY IT IS ADVISED TO PUT ALL LOW
VOLTAGE CABLE IN EITHER DUCTING OR ALKATHENE PIPING. ALL CABLE JOINTING SHOULD BE
CARRIED OUT ABOVE GROUND.
ALL CAME ACCESSORIES CAN BE WIRED IN 0.2mm STRANDED LOW VOLTAGE CABLE
(BURGLAR ALARM TYPE). TUNED ANTENNA SHOULD BE WIRED WITH COAXIAL CABLE.
Fig 4
TUNED ANTENNA
CONTROL PANEL
HOUSING
COAX CABLE
DOC E SAFETY
BEAMS
8mm CORE 0.2mm
STRANDED TO ALL
SAFETY BEAMS
4
1.4 - Installing the Motors
INSERT THE MOTORS ONTO THE STUDS IN THE CASING. IF THE GATES
ARE HUNG BETWEEN THE POSTS AND THE GATES OPEN INWARDS THE
MOTORS NEED TO BE POINTING INTO THE PROPERTY.
Fig 5
A BACKSTOP AND
90°
GATE CLOSING
STOPS ARE ALWAYS
ADVISED
CLOSING
STOP
90°
BACKSTOP
MOTOR STOP
ADJUSTERS
IF THE GATES ARE HUNG ON THE BACK OF THE POSTS THE MOTORS NEED
TO BE POINTING TOWARDS THE OTHER POST.
1.5 - Hanging the Gate
BEFORE ATTACHING THE GATE ENSURE THAT THE GATE PIVOT POINT IS
ADEQUATELY GREASED.
WHEN HANGING THE GATE ENSURE THAT IT IS SQUARE AND LEVEL
BEFORE WELDING THE GATE TO THE FROG SHOE. WHEN WELDING THE
GATE TO THE FROG SHOE DO NOT WELD OVER THE THREADED HOLES IN
THE SHOE.
WHEN HANGING A WOODEN GATE IT IS NECCESSARY TO CREATE A
U-SHAPED CARRYING SHOE IN MILD STEEL WHICH CAN BE WELDED TO
THE TOP SURFACE OF THE FROG SHOE. THEN THE WOODEN GATE CAN BE
BOLTED INTO POSITION WITH THE U-SHAPED CARRYING SHOE
CLAMPING TO THE BOTTOM OF THE GATE.
5
1.6 - Fitting the Gate Lock
Fig.
Secure the unlocking device to the FROG shoe with the 4 allen bolts provided.
Fig.
king
To release the gate, raise the protective cap, insert the three sided key and turn it to activate the
mechanism. Simultaneously push and/or pull the gate. Remove the key and replace the protective cap.
Fig.
To re-engage the gate, reposition the gate and the mechanism will automatically engage it.
6
END OF INSTALLATION
STAGE 1
BEFORE STARTING STAGE 2 - Wiring & Electrical
PLEASE CHECK THAT YOU HAVE CORRECTLY:
Ref Page
1. INSTALLED THE FOUNDATION CASING 1.1 3
2. PREPARED THE CABLING CORRECTLY 1.2 4
1.3 4
3. INSTALLED THE MOTOR CORRECTLY 1.4 5
4. HUNG THE GATE CORRECTLY 1.5 5
5. CHECKED THE MANUAL RELEASE
SYSTEM 1.6 6
NOW STAGE 1 IS FULLY COMPLETED YOU ARE READY TO
BEGIN STAGE 2 OF YOUR FROG AUTOMATION KIT
INSTALLATION
7
STAGE 2 - WIRING & ELECTRICAL
2.1 - Fitting the Control Panel in the Casing
Securely fasten the control panel PCB to the
casing with the screws supplied.
Screw positioning holes
Fastening screws
Green connector point
Screws
Plug the green connector from the transformer to
the PCB ensuring that it connects the correct way .
NB FROG Series Motors:
connect the black wires
coming out of the board to one capacitor.
8
2.2 - Wiring the Motor
THE FROG MOTOR ALWAYS COMES PREWIRED AND THE CONNECTIONS TO
THE MOTOR SHOULD BE MADE IN THE JUNCTION BOXES AT THE BASE OF
THE GATE POST (I.E OUT OF THE GROUND OR FOUNDATION CASING) AS
SHOWN IN FIG 3.
UNDER NO CIRCUMSTANCES MUST THE MOTOR BE DISCONNECTED FROM
THE GEARBOX AS THIS WILL INVALIDATE THE WARRANTY.
WHEN CONNECTING THE MOTOR TO THE CONTROL PANEL THE BLUE WIRE
ON THE MOTOR IS THE COMMON WIRE AND IS ALWAYS TO THE “W” ON
THE TERMINAL STRIP IN THE CONTROL PANEL. THE BROWN AND BLACK
WIRES ARE THE MOTOR DIRECTIONS AND ARE CONNECTED TO “X+Y” FOR
MOTOR 2. MOTOR 2 IS ALWAYS USED FOR SINGLE GATE
INSTALLATIONS.
ENSURE THAT THE MOTOR IS ADEQUATELY EARTHED.
U V W
Fig 7
MOTOR
EARTH
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
9
2.3 - Wiring in the Safety Photocells
SAFETY BEAMS SHOULD BE FITTED APPROXIMATELY
15 INCHES FROM GROUND LEVEL
CONTROL PANEL
Fig 8
10 11 2 C1
NC
C
C
TX
10
11
NC
RX
10
11
SAFETY
BEAM
TRANSMITTER
SAFETY
BEAM
RECEIVER
IF FITTING A SECOND ARC LINE OF SAFETY BEAMS THEN C & NC MUST BE WIRED IN “SERIES”
2.4 - Inserting the Radio Frequency Card
Fig 9
INSERT THE RADIO FREQUENCY
CARD INTO THE SMALL SOCKET
ON THE CONTROL PANEL
(ENSURE THAT THE POWER IS
TURNED OFF TO THE CONTROL
PANEL BEFORE INSERTING THE
FREQUENCY CARD)
ZA4
ANTENNA
WIRING
POINT
10
2.5 - Wiring in the Tuned Antenna
Bat
8 9 10
Bt
Batt
1
Fig 10
ANTENNA
WIRING
POINT
2.6 - Coding the Remote Controls
1. REMOVE THE BATTERY COVER & CASING OF THE REMOTE CONTROL
HANDSET TO REVEAL THE DIAGRAM BELOW
2. SET THE BANK OF
DIPSWITCHES ON
ALL REMOTES TO
EXACTLY THE SAME
CODE OF YOUR
CHOICE.
Fig 11
ON OFF
ON
1 2 3 4 5 6 7 8 9 10
Battery 12V
3. UNLESS PROGRAMMING FOR GATES AND
GARAGE DOORS TO OPEN BY REMOTE
CONTROL FROM THE SAME HANDSET ENSURE
THAT THE JUMPER STRAPS SHOWN HERE ARE
IN THE SAME POSITIONS ON ALL REMOTES
2.7 - Powering up the Control Panel
CONNECT PROTECTED MAINS POWER TO TERMINALS L1 + L2 IN THE
CONTROL PANEL (L2 BEING LIVE!). ENSURE THAT THE CONTROL PANEL
IS ADEQUATELY EARTHED.
11
END OF INSTALLATION
STAGE 2
BEFORE STARTING STAGE 3 -
Commissioning the Control Panel
PLEASE CHECK THAT YOU HAVE CORRECTLY:
Ref Page
1. FITTING THE CONTROL PANEL
IN THE CASING 2.1 8
2. WIRED THE MOTOR AS SHOWN (Fig 7) 2.2 912
3. WIRED IN THE SAFETY PHOTOCELLS
AS SHOWN (Fig 8) 2.3 10
4. INSERTED THE RADIO FREQUENCY
CARD AS SHOWN (Fig 9) 2.4 10
5. WIRED IN THE TUNED ANTENNA
CODED AS SHOWN (Fig 10) 2.5 11
6. PROGRAMMED THE REMOTE CONTROLS
AS SHOWN (Fig 11) 2.6 11
7. POWERED UP THE CONTROL PANEL 2.7 11
NOW STAGE 2 IS FULLY COMPLETED YOU ARE READY TO
BEGIN STAGE 3 OF YOUR FROG AUTOMATION KIT
INSTALLATION
12
STAGE 3
COMMISSIONING THE CONTROL PANEL
3.1 - Initial Wiring & Control Panel Setup
Fig 12
1. CONNECT POWER TERMINALS L1 - L2
AND A SUITABLE EARTH (L2 BEING LIVE!)
2. SELECT THE MOTOR POWER SETTING ON
THE TRANSFORMER TO LEVEL 1 FOR
COMMISSIONING
ZA4
Fig 13
3. INSERT THE ‘START-UP’ CAPACITOR INTO
THE CONTROL PANEL. THE TWO BLACK
WIRES SHOULD BE CONNECTED TO THE
CAPACITOR.
4. ENSURE THAT THE MOTORS ARE
ADEQUATELY EARTHED
13
ON
OFF
5. SELECT DIPSWITCHES 1 & 2 OFF FOR
1
1
COMMISSIONING
Fig 14
6. ENSURE HARD WIRE LINK IS FITTED
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
3.2 - Opening & Closing the Gate
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
Fig 16
BETWEEN TERMINALS 1 & 2 AND
2 & C1
Fig 15
1. MOMENTARILY PULSE TERMINALS
2 & 3 WITH A PIECE OF WIRE
TRAILING FROM TERMINAL 2 AND
MOMENTARILY TOUCHING
TERMINAL 3.
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
Fig 17
THE GATE SHOULD START TO
OPEN. IF THE MOTOR STARTS TO
CLOSE TURN THE POWER OFF TO
THE CONTROL PANEL AND CHANGE
AROUND X-Y (MOTOR 2) TO
CHANGE THE MOTOR DIRECTION.
2. ONCE YOU HAVE PROVED THE
MOTOR DIRECTION USE
TERMINALS 2 & 7 TO OPEN AND
CLOSE THE GATES WITH A
TRAILING WIRE ONCE AGAIN INTO
TERMINAL 2, MOMENTARILY
TOUCHING TERMINAL 7.
14
3.3 - Control Panel Adjustments
1. TO SET THE TOTAL RUNNING TIME OF THE MOTORS, ADJUST
POTENIOMETER TL TO ALLOW THE MOTORS TO RUN FOR A FURTHER
5-7 SECONDS AFTER THE MOVEMENT CYCLE HAS BEEN COMPLETED
(I.E FULLY OPEN OR FULLY CLOSED)
Fig 19
TRIMMER TL
2. CHECK THE SENSITIVITY OF THE GATE
BY TRYING TO PHYSICALLY STOP THE
GATE AND ADJUST THE POWER
SETTINGS ON THE TRANSFORMER
ACCORDINGLY. IF MORE POWER IS
NEEDED FOR A HEAVIER GATE THEN
SWITCH OFF POWER AND MOVE
TRANSFORMER WIRE UP TO SETTING 2.
FOR RECHECKING SENSITIVITY, REPEAT
PROCESS UP TO 3 OR 4 IF EVEN MORE
POWER IS NEEDED.
Fig 20
15
3.4 - Automatic Close & Activating Safety Photocells
Fig 21
ON
OFF
1
1
1. TO SELECT AUTOMATIC CLOSING,
SELECT DIPSWITCH 2 ON.
SET THE AUTOMATIC CLOSING TIME BY ADJUSTING POTENTIOMETER TCA
TRIMMER
TCA
Fig 22
6 O’CLOCK
FULLY ANTI-CLOCKWISE WILL APPROX. AUTOMATICALLY CLOSE THE GATE
AFTER 10 SECONDS AND FULLY CLOCKWISE WILL APPROX. CLOSE THE
GATE AFTER 80 SECONDS. A SENSIBLE SETTING IS ABOUT HALFWAY
(I.E 6 O’CLOCK POSITION) WHICH WILL AUTOMATICALLY CLOSE THE
GATES AFTER APPROX. 30 SECONDS.
ES 10 11 1 2 3 5 7 C1
10 11 C NC
Fig 23
2. FOR RE-OPENING DURING CLOSING.
REMOVE HARD WIRE LINK BETWEEN
2 & C1 AND INSERT SAFETY BEAM
WIRES AS SHOWN.
16
3.5 - Programming the Remote Controls
to the Control Panel
To use the remote control system, proceed as follows:
A) Turn power OFF and insert AF radio frequency board then turn
power back on
B) Code the transmitter. See the relevant instruction sheet
(See Fig 11)
C) To store the code on the circuit board Proceed as follows:
Press and hold down the YellowCH1 button on the radio receiver
card (the signal LED will start to flash)
At the same time transmit on the top button of your remote
control; keep both the top button and the yellow receiver button
pressed until the LED stops flashing and remains on constant to
indicate that the code has been successfully stored.
N.B. If you wish to change the code on your transmitter in the future,
simply repeat the procedure above with all the remotes on the
installation.
WARNING: Disconnect the power supply from the control board before
inserting OR removing the AF radio-frquency card from the
socket.
17
END OF INSTALLATION
STAGE 3
PLEASE CHECK THAT YOU HAVE CORRECTLY:
Ref Page
1. SET POWER SETTING, INSERTED MOTOR
CAPACITORS, SET DIPSWITCHES FOR
COMMISSIONING, ENSURE WIRE LINK
IS FITTED BETWEEN TERMINALS 1 & 2
AND 2 & C1 3.1 12
2. SET THE OPENING AND CLOSING TIMES
FOR GATES 3.2 13
3. ADJUSTED THE CONTROL PANEL 3.3 14
4. IF REQUIRED, ACTIVATED AUTOMATIC
CLOSING AND SAFETY PHOTOCELLS 3.4 15
5. PROGRAMMED THE REMOTE TO THE
CONTROL PANEL 3.5 16
18
4. TROUBLESHOOTING GUIDE
A MULTIMETER WILL BE NEEDED
PROBLEM SOLUTION
GATE WILL NOT RESPOND
WHEN GIVEN A COMMAND
GATE IS OPEN BUT WILL
NOT CLOSE AND GREEN LED
IS FLASHING
1. CHECK POWER SUPPLY TO THE
CONTROL PANEL.
2. CHECK CONTROL PANEL FUSES.
3. CHECK HARD WIRE LINK FITTED
BETWEEN TERMINALS 1 & 2.
4. CHECK THAT CAPACITORS ARE
FITTED AND WIRED CORRECTLY.
1. CHECK SAFETY BEAMS ARE WIRED
CORRECTLY. (IF MORE THAN ONE
SET OF BEAMS ARE FITTED THEY
MUST BE WIRED IN SERIES.)
2. CHECK THAT THERE IS POWER
GOING TO THE BEAMS, IF NOT
RESTORE POWER.
WHEN COMMISSIONING
GATE AUTOMATICALLY OPEN
BUT DO NOT
AUTOMATICALLY CLOSE
3. IF SAFETY BEAMS ARE NOT FITTED
ENSURE THAT A HARD WIRE IS
FITTED BETWEEN TERMINALS 2 &
C1.
4. REMOVE SAFETY BEAM WIRES 2 &
C1 FROM CONTROL PANEL AND
CHECK IF YOU HAVE A NORMALLY
CLOSED CIRCUIT COMING FROM
THE BEAMS.
1. MOTOR WIRES ARE WRONG WAY
ROUND. CHECK AND PROVE MOTOR
DIRECTION BY MOMENTORIALLY
PULSING TERMINALS 2 & 3. THE
GATE SHOULD OPEN UP. TURN
AUTOMATIC CLOSING
SWITCH 2) UNTIL MOTOR
DIRECTION HAS BEEN PROVED.
OFF
(DIP
CONTINUED ON NEXT PAGE
19
PROBLEM
SOLUTION
GATE WILL NOT RESPOND
TO REMOTE CONTROL
COMMAND
1. AF FREQUENCY CARD NOT FITTED TO
CONTROL PANEL.
2. REMOTE CONTROL HAS NOT BEEN
PROGRAMMED INTO THE CONTROL
PANEL.
3. REMOTE CONTROL HAS THE WRONG
CODE SETTING.
4. “OPERATOR PRESENT” HAS NOT BEEN
SELECTED TO DEACTIVATE RADIO
REMOTE CONTROLS (DIPSWITCH 1).
5. WRONG FREQUENCY CARD FITTED
FOR THE REMOTE CONTROL.
IF THE PROBLEM IS STILL APPARENT CONTACT THE
CAME TECHNICAL HELPLINE:
CAME
0115 921 0430
THIS INSTALLATION WAS COMPLETED BY:
..............................................................................
NAME.............................................................................
ADDRESS............................................................
..............................................................................
............................................................................
...........................................................................
TEL........................ MOBILE................................
DATE OF INSTALLATION.......................................
20
5. TECHNICAL INFORMATION
5.1 - Technical Specification
GEARMOTOR WEIGHT POWER CURRENT POWER DUTY MAX. REDUCTION TRAVEL CAPACITOR
SUPPLY CICLE TORQUE RATIO TIME
FROG A 11 Kg 230V a.c 1,9 A 200 W 30% * 320 Nm 1/1152 18 sec. 16 uF
FROG AV 11 Kg 230V a.c 2,5 A 300 W 30% * 240 Nm 1/1152 9 sec. 20 uF
* Can be adjusted using CAME control panels
5.2 - Casing Dimensions
BOLT FOR REMOVAL
& INSERTION OF M6
GREASE NIPPLE
(NOT SUPPLIED)
405mm
Fig 24
60mm60mm
160mm
330mm
5.3 - Operating Limits
WIDTH OF GATE WEIGHT OF GATE
2.00 MTS 800 Kg
2.50 MTS 600 Kg
*3.50 MTS 400 Kg
* AN ELECTRIC LOCK IS SUGGESTED WHEN THE GATE WING IS WIDER
THAN 3.5M
21
5.4 - Motor Torque Settings
SEE ALSO PAGE 14
To vary the motor torque, move the indicated spade connector to one of the
four position : 1=min, 4=max.
N.B. It is always best to start from position one and increase the torque
setting as required.
Fig 25
22
5.5 - ZA5 Control Panel Description
Description of Control Panel:
The ZA5 control board is suitable for controlling one automation of ATI, FERNI
and FROG series 230V swing gates with up to 600W power and 50-60Hz
frequency. Wholly designed and built by CAME S.p.A. it meets UNI8612
regulations in force. The board is inserted and fixed to the ABS case (S4339 or
S4340), which has an IP54 protection level, with air recycling inlet and
transformer. the board requires 230V AC at terminal blocks L1-L2 and the inlet is
proetcted with two 5A fuses. A 3.15A fuse proetcts the low voltage command
devices. The accessories’ total wattage (24V) must not exceed 20W.
Safety:
PHOTOCELLS CAN BE CONNECTED TO OBTAIN:
Re-Opening
obstacle while the gate is closing, they will reverse the direction of movement
until the gate is completely open;
Total stop (1-2), shutdown of gate movement without automatic closing; a
pushbutton or radio remote control must be actuated to resume movement.
: Re-opening during closure (2-C1), if the photocells identify an
Accessories whichcan be Connected to this Unit:
Flashing signal light
Electric lock
Radiofrequency “AF” board
(11-ES)
when gate is in motion 25W max. (E1-W)
Other functions available
Automatic closing
end of the opening cycle. The preset, adjustable automatic closing time is
automatically interrupted by the activation of any safety system, and is
deactivated after a STOP command of in case of power failure.
The automatic closing timer is automatically activated at the
“Operator present” function
down (the radio remote control system is deacticvated);
Gate operators only when the pushbutton is held
Adjustments
Trimmer TL
Trimmer TCA
Caution! Disconnect the unit from the main power lines before carrying out any
operation inside the unit.
Adjustment of operating time;
Adjustment of automatic closing
23
Other functions available:
Automatic closing
: The automatic closing timer is automatically activated at the
“Operator present”
Fig 26
end of the opening cycle. The pre-set, adjustable automatic
closing time is automatically interrupted by the activation of
any safety system, and is deactivated after a STOP
command or in case of power failure.
function:
Gate operates only when the pushbutton is held down (the
radio control system is deactivated)
1 CONTROL PANEL
1 FREQUENCY CARD
UNDERGROUND FOUNDATION
CASING WITH PIVOT ARM.
1 PAIR SAFETY
BEAMS
2 REMOTE CONTROL
TRANSMITTERS
TUNED ANTENNA
24
UNDERGROUND
GATE MOTOR
230V A/C
5.6 - ZA5 Wiring Diagram
Terminals 1 and 2, 2 and C1 are normally closed circuits and if
they are not used they must be linked
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
M2
Single-Phase motor with leaf delay
on closing cycle
11 TX
10
Safety beams which are connected to obtain Re-opening
During the closing cycle
RX
Co-axial cable
11
10
C
NC
25
5.7 - Control Panel Adjustments
Trimmer T.L. - Adjustment of operating time from a minimum of 0 seconds to a
maximum of 120 seconds N.B. it is advised to let the motors run on for between 6 and 8
seconds after the last gate has fully close.
Trimmer T.C.A - Adjustment of automatic closing time from a minimum of 1 to a
maximum of 120 seconds.
T.L T.C.A
Fig 27
TRIMMERS
ADJUSTMENT
26
5.8 - Electrical Connections
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
L1
L2
U
W
V
W
E1
11
ES
10
11
230V (a.c.) power input
230V (a.c.) single-phase motor max. 600W
230V (a.c.) output in motion
(e.g. flashing light - max. 25W)
UVWE1
(12V - 15W max.) connection for electrically-actuated lock
24V (a.c.)Powering accessories (max 20W)
10
5
1
2
2
3
2
7
2
C1
(24V-3W max.) "gate-opened" signal lamp
Pushbutton stop (N.C.)
Open button (N.O.)
Contact radio and/or button for control
Contact (N.C.) for re-opening during the closing
Antenna connection
27
5.10 - Re-Handing the Frog Motors
Fig 28
90°
C
LEFT
C
B
A
B
A
90°
RIGHT
ON RECEIPT YOUR FROG MOTOR WILL HAVE BEEN SETUP FOR YOU AS A PAIR I.E LEFT
HAND AND RIGHT HAND BUT SHOULD YOU NEED TO RE-HAND THESE MOTORS THE
FOLLOWING INSTRUCTIONS WILL SHOW YOU HOW.
SCREW THE M10 X 100MM BOLT (A) AND THE M10 NUT (B) INTO THE
MOTOR TRANSMISSION ARM AS SHOWN IN FIGURE ABOVE. FOR R/H
MOTOR INSTALLATION AND FOR L/H MOTOR INSTALLATION SEE FIGURE ABOVE.
ENSURE THAT THE MOTOR IS CORRECTLY FASTENED INTO THE CASING WITH THE
NUTS AND WASHERS PROVIDED. INSERT THE LIMIT ARM (C) BETWEEN THE MOTOR
TRANSMISSION ARM AND THE FROG SHOE. GIVE THE GATE A COMMAND TO OPEN,
WHEN THE GATE COMES TO THE OPEN POSITION AND THEN ADJUST THE SCREW (A).
CLOSE THE GATES SO THAT SCREW (A) MEETS THE LINK ARM. THEN OPEN THE GATE
AND ADJUST (A) ACCORDINGLY. DURING ADJUSTMENT ALLOW THE GATE TO PUT ADEQUATE PRESSURE ONTO THE CENTRE STOP BUT ALLOWING THE GATE TO BE RELOCKED ONTO THE SHOE AFTER MANUALLY RELEASING THE GATE.
WHEN ADJUSTMENT IS FINISHED FASTEN NUT (B).
28
NOTES
NOTES
6. CONTACT INFORMATION
CAME UNITED KINGDOM LTD
UNIT 3
ORCHARD PARK INDUSTRIAL ESTATE
TOWN STREET, SANDIACRE, NOTTINGHAM NG10 5BP
TEL: 0115 921 0430
FAX: 0115 921 0431
INTERNET : www.cameuk.com
E-MAIL: enquiries@cameuk.com
THIS INSTALLATION WAS COMPLETED BY:
..............................................................................
NAME.............................................................................
ADDRESS............................................................
..............................................................................
............................................................................
...........................................................................
TEL........................ MOBILE................................
DATE OF INSTALLATION.......................................
Loading...
