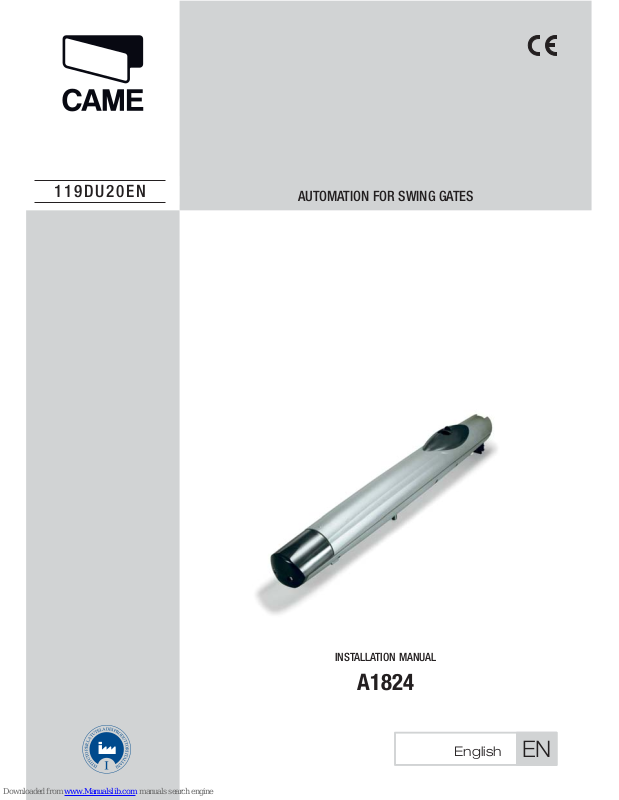

CAME A1824 Installation Manual
INSTALLATION MANUAL
A1824
AUTOMATION FOR SWING GATES
Englis
h
119DU20EN
Pag.
2
2 - Manual code:
119D U20 EN
119 DU 20 EN ver.
2
2 02/2015 © CAME S.p.A. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME S.p.A. to notify users.
ENGLISH
Premise
• Employ this product only for the use for which it was expressly made. Any
other use is dangerous. CAME S.p.A. is not liable for any damage caused by
improper, wrongful and unreasonable use • Keep these warnings together
with the installation and operation manuals that come with the operator.
Before installing
(checking what's there: if your evaluation is negative, do not proceed before
having complied with all safety requirements)
• Check that the automated parts are in good mechanical order, that the operator is level and aligned, and that it opens and closes properly. Make sure you
have suitable mechanical stops • If the operator is to be installed at a height of
over 2.5 m from the ground or other access level, make sure you have any necessary protections and/or warnings in place • If any pedestrian openings are
fi tted into the operator, there must also be a a system to block their opening
while they are moving • Make sure that the opening automated door or gate
cannot entrap people against the fi xed parts of the operator • Do not install the
operator upside down or onto elements that could yield and bend. If necessary,
add suitable reinforcements to the anchoring points • Do not install door or
gate leaves on tilted surfaces • Make sure any sprinkler systems cannot wet
the operator from the ground up • Make sure the temperature range shown
on the product literature is suitable to the climate where it will be installed •
Follow all instructions as improper installation may result in serious bodily
injury • It is important to follow these instructions for the safety of people.
Keep these instructions.
Installing
• Suitably section o and demarcate the entire installation site to prevent
unauthorized persons from entering the area, especially minors and children
• Be careful when handling operators that weigh over 20 kg. If need be, use
proper safety hoisting equipment • All opening commands (that is, buttons,
key switches, magnetic readers, and so on) must be installed at least 1.85 m
from the perimeter of the gate's working area, or where they cannot be reached from outside the gate. Also, any direct commands (buttons, touch panels,
and so on) must be installed at least 1.5 m from the ground and must not be
reachable by unauthorized persons • All maintained action commands, must
be fi tted in places from which the moving gate leaves and transit and driving
areas are visible • Apply, if missing, a permanent sign showing the position of
the release device • Before delivering to the users, make sure the system is
EN 12453 standard compliant (regarding impact forces), and also make sure
the system has been properly adjusted and that any safety, protection and
manual release devices are working properly • Apply Warning Signs (such as
the gate's plate) where necessary and in a visible place
Special user-instructions and recommendations
• Keep gate operation areas clean and free of any obstructions. Make sure that
the photocells are free of any overgrown vegetation and that the operator's
area of operation is free of any obstructions • Do not allow children to play
with fi xed commands, or to loiter in the gate's maneuvering area. Keep any
remote control transmitters or any other command device away from children,
to prevent the operator from being accidentally activated. • The apparatus
may be used by children of eight years and above and by physically, mentally
and sensorially challenged people, or even ones without any experience, provided this happens under close supervision or once they have been properly
instructed to use the apparatus safely and about the potential hazards involved. Children must not play with the apparatus. Cleaning and maintenance by
users must not be done by children, unless properly supervised • Frequently
check the system for any malfunctions or signs of wear and tear or damage to
the moving structures, to the component parts, all anchoring points, including
cables and any accessible connections. Keep any hinges, moving joints and
slide rails properly lubricated • Perform functional checks on the photocells
and sensitive safety edges, every six months. To check whether the photocells
are working, wave an object in front of them while the gate is closing; if the
operator inverts its direction of travel or suddenly stops, the photocells are
working properly. This is the only maintenance operation to do with the power
on. Constantly clean the photocells' glass covers using a slightly water-moi-
stened cloth; do not use any solvents or other chemical products that may ruin
the devices • If repairs or modifi cations are required to the system, release
the operator and do not use it until safety conditions have been restored • Cut
o the power supply before releasing the operator for manual openings and
before any other operation, to prevent potentially hazardous situations. Read
the instructions • If the power supply cable is damaged, it must be replaced
by the manufacturer or authorized technical assistance service, or in any case,
by similarly qualifi ed persons, to prevent any risk • It is FORBIDDEN for users
to perform any OPERATIONS THAT ARE NOT EXPRESSLY REQUIRED OF THEM
AND WHICH ARE NOT LISTED in the manuals. For any repairs, modifi cations
and adjustments and for extraordinary maintenance, CALL TECHNICAL ASSISTANCE • Log the job and checks into the periodic maintenance log.
Additional special recommendations for everyone
• Keep away from hinges and mechanical moving parts • Do not enter the
operator's area of operation when it is moving • Do not counter the operator's
movement as this could result in dangerous situations • Always pay special
attention to any dangerous points, which have to be labeled with specifi c pictograms and/or black and yellow stripes • While using a selector switch or
a command in maintained actions, keep checking that there are no persons
within the operating range of any moving parts, until the command is released
• The gate may move at any time and without warning • Always cut o the
power supply before performing any maintenance or cleaning.
Danger of hand crushing
Danger! High voltage.
No transiting while maneuvering
WARNING!
important safety instructions for people:
READ CAREFULLY!
Danger of foot crushing
#
#
Pag.
3
3 -
Manual code
:
119D U20 EN
119 DU 20 EN ver.
2
2 02/2015
© CAME S.p. A. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME S.p.A. to notify users.
ENGLISH
4.1 Gate Operator
4 Description
2.1 Intended use
1 Legend of symbols
This symbol tells you to read the section with particular care.
This symbol tells you that the sections concern safety issues.
This symbol tells you what to say to the end-users.
2 Intended use and application
The A1824 operator is designed to automate swing gates used in residential or condominium settings..
The use of this product for purposes other than those described above and installation executed in a manner other
than as instructed in this technical manual are prohibited.
3 Reference Standards
2.2 Application
This product is engineered and manufactured by CAME S.p.A. and complies with current safety regulations. Guaranteed 24 months if
not tampered with.
The gearmotor is made up of two aluminium alloy half shells housing the Encoder gearmotor - which features an electric blocking
mechanism - and an epicyclical reduction system with endless screw.
4.2 Technical features
Control board power supply: 230V A.C. 50/60Hz
Motor power supply: 24V D.C.
Max draw: 4A
Power: 100W
Adjustable thrust:400÷2000N
Opening time (90°): Adjustable
Gear ratio: 1/36
Duty Cycle: Intensive use
Protection Rating: IP44
Weight: 7,5 kg
The company CAME S.p.A. is ISO 9001:2000 quality certified; it has also obtained the ISO 14001 environmental safeguarding
certification. Came engineers and manufactures all of its products in Italy.
This product complies with the following standards: EN 12978, UNI EN 954-1, CEI EN 60335-1, UNI EN 12453.
Length of gate leaf 1 m 1,5 m 1,8 m
Weight of gate leaf 250 kg 215 kg 200 kg
We suggest you always fit an electrolock onto swing gates for a more reliable closure.
(mm)
1
3
5
4
2
6
Pag.
4
4 - Manual code:
119D U20 EN
119 DU 20 EN ver.
2
2 02/2015 © CAME S.p.A. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME S.p.A. to notify users.
ENGLISH
4.4 Dimensions
4.3 Description of parts
A1824
1) Operator
2) Pilaster bracket
3) Gate bracket
4) Screw, bushing and nut for the pilaster bracket
5) Bolt and nut for the gate bracket
6) Pin distancer
5 Installation
Before installing, do the following:
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage;
• Fit tubing to drain away any water leaks which may cause oxidation;
• Make sure that any connections inside the case (that provide continuance to the protective circuit) be fitted with extra insulation
as compared to the other conductive parts inside;
• Make sure the structure of the gate is sturdy, the hinges work and that the is no friction between moving and non-moving parts;
• Make sure there is a mechanical stop for opening and closing.
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
5.1 Preliminary checks
