CX-ED1309 Series
Electric Strike
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
1- 4 PIN power connector (12V)
1- 4 PIN power connector (24V)
Faceplate(s) included: CM-ESF2/ESFB2
4- Wire nuts
4- #10-24 x 1/2” machine screws
2- Mounting brackets
1- Varistor
1- Dress Plate
2- #10 x 1-1/4” wood screws

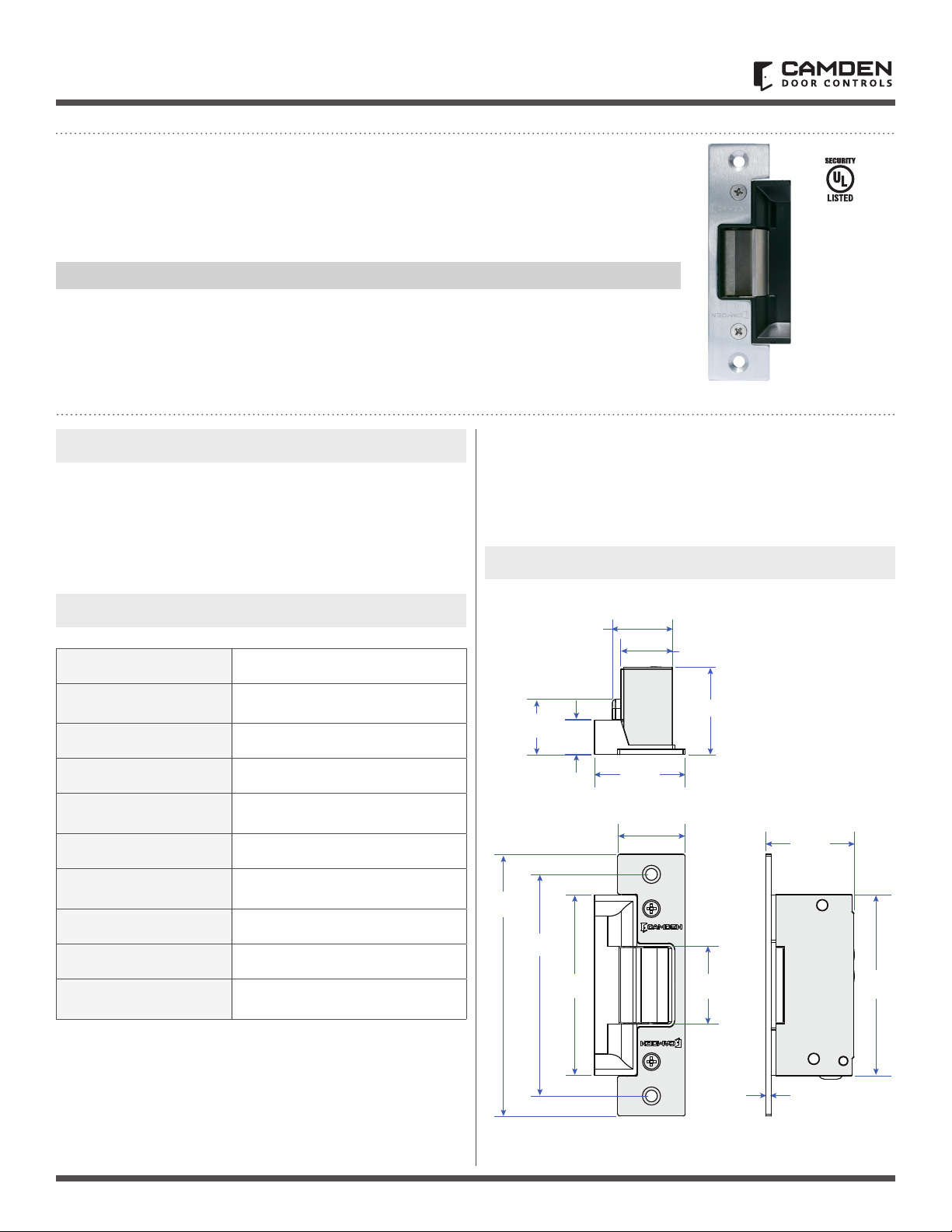

1. DESCRIPTION
Camden CX-ED1309 Series Grade 1 ANSI strikes for cylindrical
locksets offer the very best strike quality and performance.
The ‘Universal’ strike design delivers unparalleled application
exibility, with eld selectable voltage, fail safe/fail secure
operation for use in aluminum jambs and stiles.
2. SPECIFICATIONS
Voltage
Current Draw
Static Strength
Dynamic Strength
12/24V AC/DC
260mA@12V DC
150mA@24V DC
1,500 Lbs.
70 Ft-Lbs.
UL 294 Performance Levels
- Line Security = Level I
- Attack Level = Level I
- Endurance Level = Level IV
- Standby Power = Level I
3. DIMENSIONS
1-1/8” (28mm)
1”
(26mm)
5/8”
(16mm)
1-11/16”
(43mm)
15/16” (25mm)
1-5/8” (42mm)
Endurance
Latch Projection
Mode
Operation
Duty
Dimensions (Body)
1,000,000 Cycles (Factory Tested)
250,000 Cycles (UL Veried)
1/2" - 5/8" (12.5mm - 16mm)
1-1/4”
(32mm)
1-5/8”
(42mm)
Field Selectable
Fail Safe/Fail Secure
AC-Buzz, DC-Silent
4-7/8”
4-1/8”
(105mm)
Continuous
4-7/8” H x 1-11/16” W x 1-5/8” D
3-3/8”
(85mm)
1-7/16”
(37mm)
3-3/8”
(86mm)
(124mm x 43mm x 42mm)
1/8” (2mm)
Page 1 of 3
CX-ED1309 Series Electric Strike
INSTALLATION INSTRUCTIONS

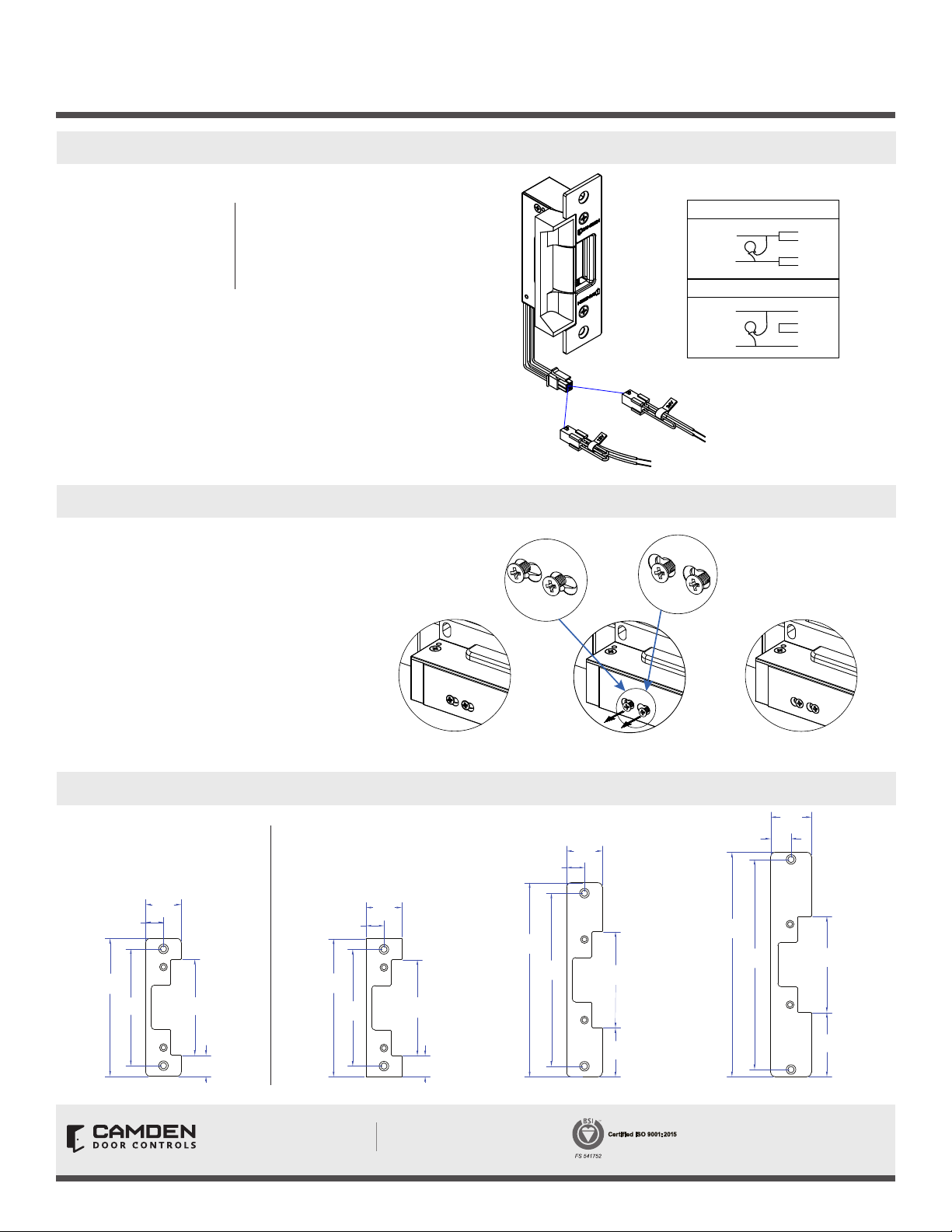

4. INSTALLATION
1. Prepare the door jamb as per the appropriate drawing.
2. Install mounting brackets to jamb using #10-24 screws and
pressed metal nuts. Do not tighten.
3. Connect wires coming from the low voltage side of the
transformer to wire (black) from strike.
MOUNTING BRACKET
#10-24 screws
Jamb
4. Install electric strike jamb by attaching #10-24 screws
and lockwashers.
5. Secure #10-24 screws holding mounting brackets to jamb.
4-7/8”
(124mm)
3-1/2”
(89mm)
4-1/8”
(105mm)
1-7/32”
(31mm)
3-3/8”
(86mm)
ESP1B + ESP2B
Jamb
#10-24 screws
VERTICAL CENTER LINE
Note: The products are intended to be installed in accordance with the
installation wiring diagram, mechanical assembly drawings provided
with each product, the local authority having jurisdiction (AHJ) and the
electric code, NFPA 70. When installed in fail secure mode, the local
authority shall be consulted with the regards to the use of possible
panic hardware to allow emergency exit from the secure area.
The electric door strike shall be installed in such a way and in such a
location so as to not impair the operation of an emergency exit device
or panic hardware mounted on the door.
1-7/32”
(31mm)
1-7/32”
(31mm)
3-3/8”
(86mm)
3-3/8”
(86mm)
ESP3B
5-11/16”
(144mm)
6-1/8”
(155mm)
(200mm)
6-5/8”
(168mm)
7-3/8”
(187mm)
6-7/8”
(173mm)
7-7/8”
Page 2 of 3
ESP4B
5. CONNECTIONS
INCLUDED IN THE PACKAGE
ADDITIONAL FACEPLATE
CX-ED1309 Series Electric Strike
INSTALLATION INSTRUCTIONS
POWER
12V AC/DC
Red/Black: +12V
Blue/Green: Ground
24V AC/DC
Red: +24V
Black/Blue: Green: Ground
A varistor is provided to protect strike from spikes.
Connect varistor between input wires.
Note: For UL 294 / UL 1034 compliance, the door strikes are to be
powered via a UL 294/ UL 603 class 2 power limited output from
a control panel and or power supply. Furthermore, when powered
by AC/DC, the units shall use a UL regulated UL 294/ UL 603 power
limited class 2 output rated 12/24V with AC on indicator.
6. OPERATION
How to modify fail-safe to fail-secure or vice versa.
1. Loosen the screws as per the product diagram below.
2. Slide internal mechanism to the right.
3. Tighten the screws.
For Cut Wires
12V
(+12V)
Varistor
( - )
Red
Black
Blue
Green
24V
(+24V)
Varistor
( - )
Red
Black
Blue
Green
Or
1
2
7. FACEPLATES
INCLUDES
5/8”
(16mm)
4-7/8”
(124mm)
4-1/8”
(105mm)
1-1/4”
(32mm)
OPTIONAL FACEPLATES
3-3/8”
(86mm)
3/4”
(19mm)
Opening New Doors to
Innovation, Quality and Support!
(124mm)
4-7/8”
FAIL SAFE
1-1/4”
(32mm)
5/8”
(16mm)
4-1/8”
(105mm)
3-3/8”
(86mm)
3/4”
(19mm)
Call: 1.877.226.3369 / 905.366.3377
Visit: www.camdencontrols.com
CHANGING
1-1/4”
(32mm)
5/8”
(16mm)
6-7/8”
(175mm)
6-1/8”
(156mm)
3-3/8”
(86mm)
1-3/4”
(44mm)
ESF3 - HOLLOW METAL DOORESF1 - ANSI SQUARE
7-15/16”
(202mm)
ESF4 - WOOD DOORESF2 - ANSI ROUND
7-7/16”
(189mm)
FAIL SECURE
1-7/16”
(37mm)
11/16”
(18mm)
3-3/8”
(86mm)
2-1/4”
(58mm)
File: CX-ED1309 Electric Strike_R2.indd
Rev.: 03/06/20
Part No.: 40-82B231-A
