Camden Door Controls CM-RFL25202-LP-AB, CM-RFL25202-LP-LV, CM-RFL25202-LP-OB, CM-RFL25202-LP-PB, CM-RFL25202-LP-SB Specsheet

DOOR ACTIVATION
DEVICES

ROHS

COMPLIANT

RF TRANSMITTERS & RECEIVERS

LAZERPOINT RF™ 915MHZ.
WIRELESS DOOR CONTROL SYSTEM

Compliant

DESCRIPTION

Lazerpoint RF™ introduces the many advantages of 915MHz. spread spectrum wireless
technology to the automatic door market. The system encompasses the widest range of
transmitters, receivers, activation devices and switch enclosures available today.

Lithium batteries recommended for environments below 0°C (32°F).

APPLICATION

Lazerpoint RF™ 915 Mhz. spread spectrum wireless systems are designed for use
with any automatic door operator. The system offers exceptional reliability and a
complete wireless activation solution, whether in new construction or retrofit (with
the option to utilize existing fixed frequency transmitters), Lazerpoint RF™
technology is also utilized with other wireless activation devices, including CM-120
Series keypads and CM-330 Series Hands Free switches. Lazerpoint RF™ is designed
to reduce the cost of installation with a range of exclusive features, including door
sequencing, which eliminates the need to purchase a separate door control relay.

LAZERPOINT RF™ WIRELESS

DOOR ACTIVATION SYSTEM,

RX-90 RECEIVER

SYSTEM FEATURES

• LAZERPOINT RF™ IS COMPATIBLE WITH
ALL AUTOMATIC DOOR OPERATORS.

• ADVANCED 915MHZ SPREAD SPECTRUM
(BROADBAND) WIRELESS

• MULTI-YEAR BATTERY LIFE (USING
INEXPENSIVE 'AAA' ALKALINE BATTERIES)
AND EXCLUSIVE 'LOW BATTERY','GAS
GAUGE' AND 'STUCK SWITCH' AUDIBLE
ALERTS.

• NEW CM-RX-90 ADVANCED RECEIVER,
WITH 1 RELAY, FEATURES 3 MODES
(DELAY, NON-DELAY & LATCHING). IDEAL
FOR VESTIBULE APPLICATIONS.

• RX-92 RECEIVER MODEL WITH TWO
CHANNELS PLUS 6 OPERATING MODES;
SAVES TIME AND MONEY BY AVOIDING
THE COST OF BUYING AND INSTALLING
ADDITIONAL COMPONENTS.

• OPTIONAL PLUG-IN RECEIVER MODULES
PROVIDE COMPATIBILITY WITH OTHER RF
FREQUENCIES.

• ‘PUSH AND LEARN' TRANSMITTER
ENROLLMENT AND SIGNAL STRENGTH
INDICATORS, MAKES LAZERPOINT RF™
THE EASIEST SYSTEM TO INSTALL

• ULTRA COMPACT SWITCH TRANSMITTER
FITS ANYWHERE, INCLUDING JAMB BOX.
CM-TX9: 2 1/4” X 5/8” X 3/8”
(57MM X 16MM X 10MM)

• ULTRA COMPACT RECEIVERS CAN BE
MOUNTED IN DOOR OPERATOR CABINETS.
CM-RX-90: 2-5/8”L x 1-1/2”W x 1”D
(67MM X 38MM X 25MM)

• COMPACT ADA COMPLIANT 1, 2 AND 4
BUTTON KEY FOBS.
CM-TXLF 1/2/4:
2 9/16”L x 1 9/16”W x 5/8”D
(65MM X 40MM X 16MM)

• INNOVATIVE FOB BASE FOR WHEELCHAIR,
VISOR, BELT OR WALL MOUTING.
CM-TXLFB: 4”L x 1 5/8”W x 3/4”D
(102MM X 42MM X 19MM)

• PLUG-IN LAZERPOINT RF™ WIRELESS
TRANSMITTER MODULE FOR CM-120
SERIES DIGITAL KEYPADS AND CM-330
SERIES HANDS FREE SWITCHES
CM-TX99: 1 9/16”L x 9/16”W x 5/16”H
(40MM X 15MM X 8MM)

• CAMDEN PRODUCT QUALITY BACKED BY
A FULL 3 YEAR REPLACEMENT WARRANTY

CM-TXLF

SERIES FOBS

- 01 -

ACCESSORIES KEYPADS SPECIAL PURPOSE SWITCHES HANDS-FREE SWITCHES RF CONTROLS MOUNTING OPTIONS PUSH BUTTONS KEY SWITCHES

5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)
Tel: [phone] • Fax: [phone] • E-mail: [e-mail] • www.camdencontrols.com

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

LAZERPOINT RF™ RECEIVER FEATURES

CM-RX-90 ADVANCED SINGLE RELAY RECEIVER

• (1) FORM ’C’ RELAY, 3 AMPS @ 30VDC

• 3 OPERATING MODES, INCLUDING
DELAYED, NO DELAY AND LATCHING
RELAY

• EASILY CONFIGURED FOR USE IN
VESTIBULE APPLICATIONS

• ADJUSTABLE DOOR HOLD OPEN/DELAY
TIMER

CM-RX-91 SINGLE RELAY RECEIVER

• (1) FORM ’C’ RELAY, 3 AMPS @ 30V DC

• SLOT FOR (1) OPTIONAL PLUG-IN
RECEIVER BOARD

• ADJUSTABLE DOOR HOLD OPEN TIMER

• CONNECTION FOR CM-RFCT LED
CABLE TOOL

CM-RX-92 DUAL RELAY RECEIVER

• (2) FORM ’C’ RELAYS, 3 AMPS @ 30V DC

• SLOTS FOR (2) OPTIONAL PLUG-IN
RECEIVER BOARDS

• (3) 1-30 SECOND ADJUSTABLE TIMERS

• 4 POSITION DIP SWITCH SELECTS
6 UNIQUE OPERATING MODES
(SEE NEXT PAGE)

• CONNECTION FOR CM-RFCT LED
CABLE TOOL

FIXED FREQUENCY RECEIVER DAUGHTERBOARDS

• 300MHZ, 318MHZ, 390MHZ AND
433MHZ RECEIVERS ARE COMPATIBLE
WITH MOST BRANDS OF FIXED
FREQUENCY WIRELESS SYSTEMS.
CONTACT CAMDEN FOR CONFIRMATION
OF COMPATIBILITY WITH YOUR SYSTEM.

• PLUG-IN DESIGN. UP TO 2 FIXED
FREQUENCY DAUGHTERBOARDS CAN
BE INSERTED INTO A RECEIVER, FOR
A MAXIMUM OF 3 WIRELESS
FREQUENCIES ON ONE RECEIVER
(CM-RX92)

CM-RX-91
RECEIVER

OPTIONAL PLUG-IN

RECEIVER BOARD

(Other Models Similar)

CM-RX-92
RECEIVER

CM-RX-DBW

LAZERPOINT RF™ TRANSMITTER FEATURES

CM-TX9 SINGLE CHANNEL TRANSMITTER

• AUDIBLE BATTERY TEST, LOW BATTERY
AND STUCK SWITCH INDICATION

• ‘INSTANT RESPONSE’ CAPTURES BRIEF
SWITCH ACTIVATIONS

• COMPATIBLE WITH ALL PUSH BUTTONS
AND PUSH PLATES

• READILY AVAILABLE ’AAA’ BATTERY

• OPTIONAL LITHIUM BATTERIES ARE

CM-TXLF FOB TRANSMITTER FEATURES

• COMPACT AND DURABLE WITH
SELECTION OF ONE, TWO AND FOUR
BUTTON KEY FOB TRANSMITTERS.

• LARGE, EASY TO ACTIVATE
RAISED BUTTONS

• EXCLUSIVE BATTERY TEST GAUGE FEATURE

• EXCLUSIVE VISOR/WHEELCHAIR STRAP

• LED VISUAL CONFIRMATION OF

LAZERPOINT RF™ CABLE TOOL FEATURES

• INDICATES RELAY STATUS AND
TRANSMITTER SIGNAL STRENGTH

• FOR USE WITH RX-91/92 RECEIVERS

• IDEAL FOR USE WHEN RECEIVER IS

OPERATION

RECOMMENDED WHERE OPERATING
TEMPERATURES ARE BELOW 32°F (0°C)

FOB BASE, ACCEPTS ANY CM-TXLF
SERIES FOB

WIRELESS ACTIVATION

HIDDEN FROM VIEW DURING
INSTALLATION

CM-TX9 TRANSMITTER

MOUNTING
BASE

FOB TRANSMITTERS

CM-TXLF SERIES

CM-RFCT

CABLE TOOL

- 02 -

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

OPERATING MODES

CM-RX-90

MODE 1 DELAYED (1-15 SECOND DELAY)
MODE 2 NO DELAY (1-30 SECOND HOLD OPEN)
MODE 3 LATCHING

CM-RX-91

MODE 1 ACTIVATION (1-30 SECOND HOLD OPEN)

CM-RX-92

MODE 1 DUAL INDEPENDENT RELAY CONTROL
MODE 2 SWITCHING (MAKE/BREAK RELAY)
MODE 3 VESTIBULE, BI-DIRECTIONAL WIRED SEQUENCING
MODE 4 VESTIBULE, USING 2 CM-RX-92 RECEIVERS
MODE 5 ACCESS CONTROL, SIGNAL INPUT
MODE 6 FREIGHT DOOR, TIMED LOCK OUTPUT

SPECIFICATIONS

1½”

(38mm)

RX-90

2”

(51mm)

CM-RX-90

RECEIVER - FRONT VIEW

25⁄8”

(67mm)

CM-RX-90, CM-RX-91 & CM-RX-92

TRANSMITTER CAPACITY: 40
ENCLOSURE: CLEAR PLASTIC CASE
VOLTAGE: 12/24V, AC/DC
RESPONSE TIME: 3 - 200 MS
LED’S: INDICATE: RELAY STATUS,

LEARN MODE, ERASE MODE &
TIME SETTING

OUTPUTS: CM-RX-90: (1) SPDT RELAY, 3 MODES
CM-RX91: (1) SPDT RELAY, 1 MODE
CM-RX92: (2) SPDT RELAYS, 6 MODES

CONTACT RATING: 3 AMPS @ 30 VDC
OPERATING TIME: 1 - 30 SECONDS
DELAY TIME: 1 – 15 SECONDS
TEMP RATING: -40°F TO 185°F (-40°C TO +85°C)
MOUNTING: SCREWS OR VELCRO
DIMENSIONS: CM-RX-90:

2 5/8” H X1 1/2”W X 1”D
(67mm x 38mm x 21mm)

CM-RX-91/92:
3 1/2”H X 2”W X 1”D
(89mm x 51mm x 25mm)

3½”

(89mm)

CM-RX-91/CM-RX-92

RECEIVERS - FRONT VIEW

- 03-

1”

(25mm)

RECEIVERS - SIDE VIEW

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

(57mm)

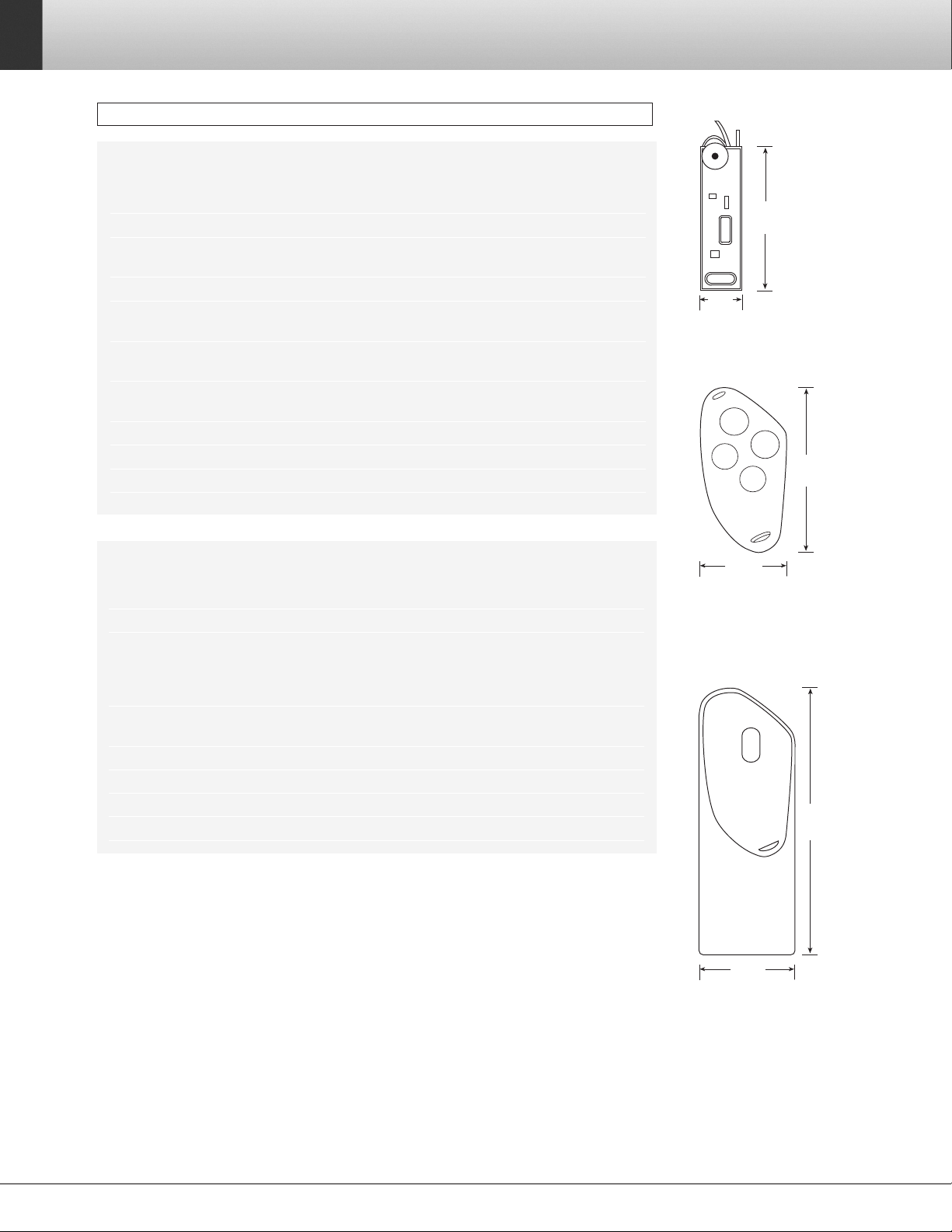

SPECIFICATIONS

CM-TX-9 TRANSMITTER

TRANSMIT FREQUENCY: 905.25 / 915.25 / 925.25 MHZ.
(SPREAD SPECTRUM TECHNOLOGY)

CODES: 1 MILLION UNIQUE (20 BIT) CODES
DIMENSION: 2 1/4” H x 5/8” W x 3/8” D

(57mm x 16mm x 10mm)

MOUNTING: DOUBLE SIDED FOAM TAPE
SWITCH CONNECTION: 2” x 10” LEADS WITH 1/4” QUICK DISCONNECT

TERMINATIONS
BUILT-IN PIEZO SOUNDER: USED FOR LOW BATTERY STATUS, BATTERY GAUGE, AND

STUCK SWITCH INDICATOR
POWER: (2) ’AAA’ ALKALINE BATTERIES (SUPPLIED)

(2) ’AAA’ LITHIUM BATTERIES (OPTION)

BATTERY LIFE: MINIMUM 500,000 OPERATIONS
RANGE: OVER 500 FT (152M), OPEN AREA
TEMPERATURE RATING: -40°F TO 185°F (-40°C TO +85°C)

5⁄8”

(16mm)

3

1

4

2¼”

CM-TX-9
TRANSMITTER

2

(65mm)

2⁄”

CM-TXLF SERIES FOB TRANSMITTERS

TRANSMIT FREQUENCY: 905.25 / 915.25 / 925.25 MHZ.
(SPREAD SPECTRUM TECHNOLOGY)

CODES: 1 MILLION UNIQUE (20 BIT) CODES
DIMENSIONS: FOB: CM-TXLF: 2 9/16”H X 1 9/16” W X 5/8” D

(65mm x 40mm x 16mm)
BASE: CM-TXLFB: 4” H x 1 5/8” W x 3/4” D
(102mm x 42mm x 19mm)

INDICATORS: TACTILE AND VISUAL (LED) INDICATION OF WIRELESS
ACTIVATION WITH BATTERY TEST

POWER: CR-2032 LITHIUM BATTERY (SUPPLIED)
BATTERY LIFE: 115,000 OPERATIONS
RANGE: OVER 250 FT (76M), OPEN AREA
TEMPERATURE RATING: -40°F TO 185°F (-40°C TO +85°C)

1⁄”

(40mm)

FOB TRANSMITTER

4”

(102mm)

15⁄8 ”

(42mm)

FOB BASE

- 04-

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

ORDERING INFORMATION

TRANSMITTER

CM-TX-9 WALL SWITCH TRANSMITTER
CM-TX-99 PLUG-IN TWO CHANNEL TRANSMITTER (FOR CM-330 & CM-120 SERIES)

ADA COMPLIANT FOBS

CM-TXLF-1 ONE BUTTON KEY FOB
CM-TXLF-2 TWO BUTTON KEY FOB
CM-TXLF-4 FOUR BUTTON KEY FOB

RECESSED BUTTON FOBS

CM-TXLF-1LP ONE BUTTON KEY FOB
CM-TXLF-2LP TWO BUTTON KEY FOB

KEY FOB BASE

CM-TXLFB CLIP-ON VISOR/ WHEELCHAIR STRAP BASE

OPTION: LITHIUM BATTERIES FOR CM-TX9

CM-XXX-L2 ADD ’L1’ TO CM-TX9 MODEL # FOR ’AAA’ LITHIUM BATTERIES IN PLACE
OF ALKALINE

CM-LP2 (2) ’AAA’ LITHIUM BATTERIES

RECEIVERS

CM-331

CM-120i

CM-RX-90 ADVANCED SINGLE RELAY RECEIVER
CM-RX-91 BASIC SINGLE RELAY RECEIVER
CM-RX-92 FULL FUNCTION DUAL RELAY RECEIVER

OPTIONAL PLUG-IN RECEIVER BOARDS

CM-RX-DBO 318MHZ. DAUGHTERBOARD (ORANGE ANTENNA) FOR CM-RX91 & CM-RX92

SERVICE TOOL

CM-RFCT PLUG-IN CABLE TOOL, 33”

COMPATIBLE LAZERPOINT RF™ WIRELESS PRODUCTS

SUREWAVE™ HANDS-FREE SWITCHES

CM-330 HANDS-FREE SWITCH, BATTERY POWERED, WIRELESS, 0 RELAYS
CM-331 HANDS-FREE SWITCH, 1 RELAY, WITH OPTION FOR CM-TX99 WIRELESS

TRANSMITTER
CM-332 HANDS-FREE SWITCH, 2 RELAY, WITH OPTION FOR CM-TX99 WIRELESS

TRANSMITTER. SUREWAVE™ SWITCHES HAVE THE OPTION FOR
POLYCARBONATE OR STAINLESS STEEL FACEPLATE, GRAPHIC OPTIONS
AND PLUG-IN LIGHT RING

CM-333 HANDS-FREE SWITCH, BATTERY POWERED, 1 RELAY, OPTION FOR
CM-TX99 WIRELESS TRANSMITTER

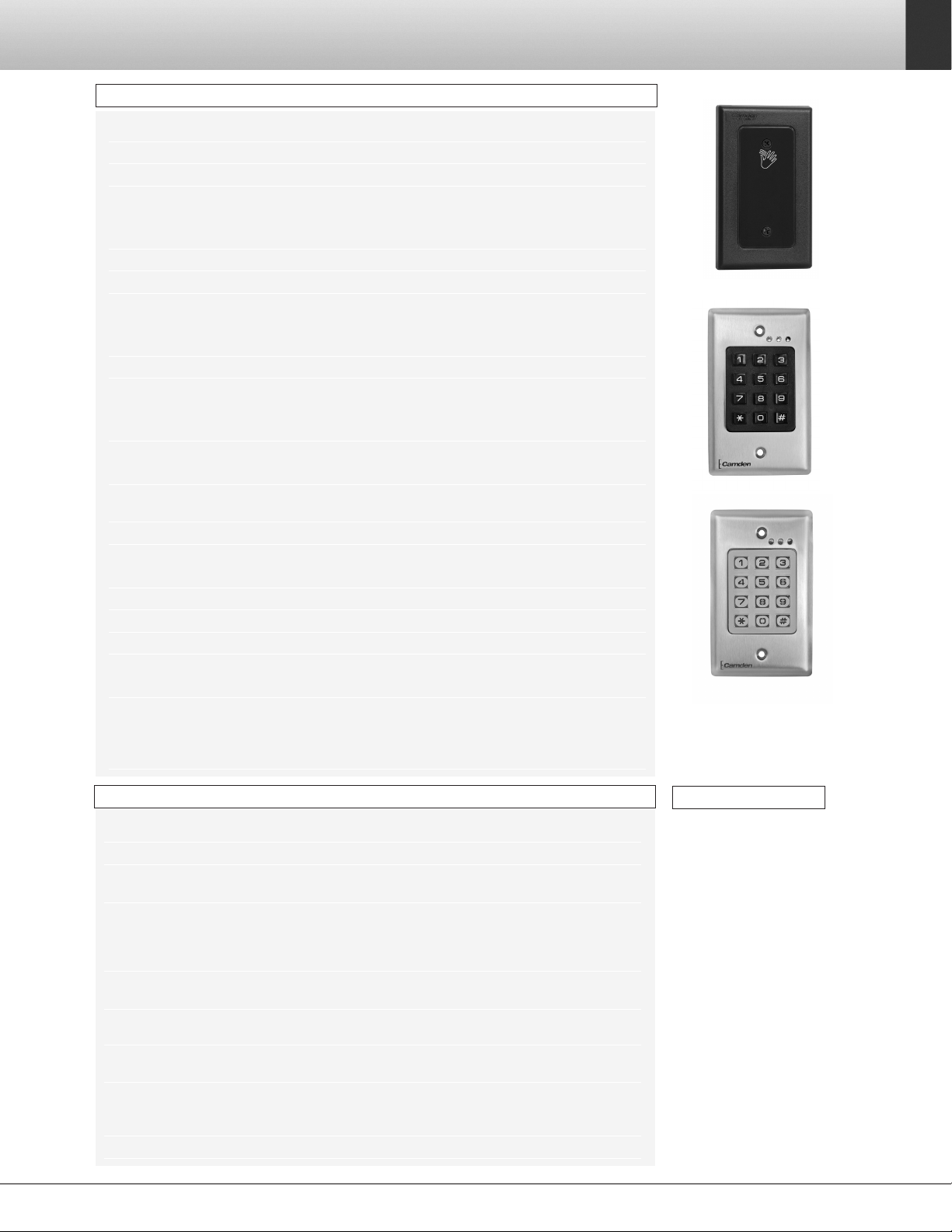

120 SERIES DIGITAL KEYPADS

CM-120wV2

OPTIONS

LITHIUM BATTERIES

(FOR CM-330 AND CM-333
SWITCHES, AND CM-120TX
KEYPAD)

CM-XXXL1

ADD SUFFIX ’L1’ FOR (2)
’AA’ LITHIUM BATTERIES IN
PLACE OF (2) ALKALINE.

CM-LP1

(2) ’AA’ LITHIUM BATTERIES

CM-120i INDOOR, STAND-ALONE OR WEIGAND OPERATION WITH OPTION FOR
CM-TX99 WIRELESS TRANSMITTER.

CM-120wV2 OUTDOOR, BACK-LIT, VANDAL RESISTANT, STAND-ALONE OR
WEIGAND OPERATION WITH OPTION FOR CM-TX99 WIRELESS
TRANSMITTER.

CM-120TX OUTDOOR, BACK-LIT, VANDAL RESISTANT, WIRELESS KEYPAD

- 05-

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

915MHZ. WIRELESS SWITCH KITS

Camden Lazerpoint RF™ 915Mhz. spread spectrum wireless systems lead the market in wireless
performance, exclusive features and the biggest selection of activation devices and receivers!

Lazerpoint RF™ wireless kits include everything you need for your automatic door switch
installation, including a choice of (2) all-active push plate switches, (2) rugged surface mount
boxes/enclosures, (2) RF switch transmitters - all at an economical price.

See page 10 for receiver options.

SWITCH SERIES BASE KIT MODELS

CM-25 JAMB WIDTH PUSH PLATE

CM-RFL252 (2) CM-25/2 WHEELCHAIR SYMBOL, (2) CM-23D SURFACE JAMB BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL253 (2) CM-25/3 'PUSH TO OPEN', (2) CM-23D SURFACE JAMB BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL253F (2) CM-25/3F 'POUSSEZ POUR OUVRIR', BLACK, (2) CM-23D SURFACE JAMB
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL254 (2) CM-25/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-23D SURFACE JAMB
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL254F (2) CM-25/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR' GRAPHICS,
(2) CM-23D SURFACE JAMB BOXES, (2) CM-TX-9 TRANSMITTERS.
ADD SUFFIX FOR RECEIVER OPTION.

CM-26CB BLUE JAMB WIDTH PUSH PLATE

CM-RFL26CB2 (2) CM-26CB/2 WHEELCHAIR SYMBOL, (2) CM-23D SURFACE JAMB BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL26CB3 (2) CM-26CB/3 'PUSH TO OPEN', (2) CM-23D SURFACE JAMB BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL26CB3F (2) CM-26CB/3F 'POUSSEZ POUR OUVRIR', BLACK, (2) CM-23D SURFACE JAMB
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL26CB4 (2) CM-26CB/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-23D SURFACE JAMB
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL26CB4F (2) CM-26CB/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR' GRAPHICS,
(2) CM-23D SURFACE JAMB BOXES, (2) CM-TX-9 TRANSMITTERS.
ADD SUFFIX FOR RECEIVER OPTION.

CM-40 4 1/2" ROUND PUSH PLATE

CM-RFL402-47 (2) CM-40/2 WHEELCHAIR SYMBOL, (2) CM-47S SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL403-47 (2) CM-40/3 PUSH TO OPEN, (2) CM-47S SURFACE BOXES, (2) CM-TX-9
TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL403F-47 (2) CM-40/3 'POUSSEZ POUR OUVRIR', (2) CM-47S SURFACE BOXES, (2)
CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

- 06-

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

CM-RFL404-47 (2) CM-40/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-47S SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL404F-47 (2) CM-40/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (2) CM-47S SURFACE
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL402-49 (2) CM-40/2 WHEELCHAIR SYMBLOL, (2) CM-49A/B FLUSH/SURFACE
ENCLOSURES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL403-49 (2) CM-40/3 PUSH TO OPEN, (2) CM-49A/B FLUSH/SURFACE ENCLOSURES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL403F-49 (2) CM-40/3F 'POUSSEZ POUR OUVRIR', (2) CM-49A/B FLUSH/SURFACE
ENCLOSURES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL404-49 (2) CM-40/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-49A/B FLUSH/ SURFACE
ENCLOSURES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL404F-49 (2) CM-40/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (2) CM-49A/B FLUSH/
SURFACE ENCLOSURES, (2) CM-TX-9 TRANSMITTERS.
ADD SUFFIX FOR RECEIVER OPTION.

CM-45 4 1/2" SQUARE (CONCEALED SCREWS) PUSH PLATE

CM-RFL452-S (2) CM-45/2 WHEELCHAIR SYMBOL, (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL453-S (2) CM-45/3 'PUSH TO OPEN', (2) CM-43CBL SURFACE BOXES, (2) CM-TX-9
TRANSMITTERS.ADD SUFFIX FOR RECEIVER OPTION

CM-RFL453F-S (2) CM-45/3F 'POUSSEZ POUR OUVRIR', (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL454-S (2) CM-45/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-43CB SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

CM-RFL454F-S (2) CM-45/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR' (2) CM-43CB
SURFACE BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL452-LP (2) CM-45/2 WHEELCHAIR SYMBOL, (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL453-LP (2) CM-45/3 'PUSH TO OPEN', (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL453F-LP (2) CM-45/3F 'POUSSEZ POUR OUVRIR', (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL454-LP (2) CM-45/4 WHEELCHAIR & PUSH TO OPEN, (2) CM-43LP SURFACE SHALLOW
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL454F-LP (2) CM-45/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR, (2) CM-43LP SURFACE
SHALLOW BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION.

- 07-

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

CM-46 4 1/2" SQUARE (EXPOSED SCREWS) PUSH PLATE

CM-RFL462-S (2) CM-46/2 WHEELCHAIR SYMBOL, (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL463-S (2) CM-46/3 'PUSH TO OPEN', (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL463F-S (2) CM-46/3F 'POUSSEZ POUR OUVRIR', (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL464-S (2) CM-46/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL464F-S (2) CM-46/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR' (2) CM-43CBL SURFACE
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL462-LP (2) CM-46/2 WHEELCHAIR SYMBOL, (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL463-LP (2) CM-46/3 'PUSH TO OPEN', (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL463F-LP (2) CM-46/3F 'POUSSEZ POUR OUVRIR', (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL464-LP (2) CM-46/4 WHEELCHAIR & PUSH TO OPEN, (2) CM-43LP SURFACE SHALLOW
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL464F-LP 2) CM-46/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR, (2) CM-43LP SURFACE
SHALLOW BOXES, (2) CM-TX-9 TRANSMITTERS.
ADD SUFFIX FOR RECEIVER OPTION

CM-46CB BLUE 4 1/2" SQUARE (EXPOSED SCREWS) PUSH PLATE

CM-RFL46CB2-S (2) CM-46CB/2 WHEELCHAIR SYMBOL, (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB3-S (2) CM-46CB/3 'PUSH TO OPEN', (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB3F-S (2) CM-46CB/3F 'POUSSEZ POUR OUVRIR', (2) CM-43CBL SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB4-S (2) CM-46CB/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-43CB SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB4F-S (2) CM-46CB/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR' (2) CM-43CB
SURFACE BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB2-LP (2) CM-46CB/2 WHEELCHAIR SYMBOL, (2) CM-43LP SURFACE SHALLOW BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB3-LP (2) CM-46CB/3F 'POUSSEZ POUR OUVRIR', (2) CM-43LP SURFACE SHALLOW
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

- 08-

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

CM-RFL46CB4-LP (2) CM-46CB/4 WHEELCHAIR & PUSH TO OPEN, (2) CM-43LP SURFACE SHALLOW
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL46CB4F-LP (2) CM-46CB/4 WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (2) CM-43LP SURFACE
SHALLOW BOXES, (2) CM-TX-9 TRANSMITTERS.
ADD SUFFIX FOR RECEIVER OPTION

CM-60 6" ROUND PUSH PLATE

CM-RFL602-69 (2) CM-60/2 WHEELCHAIR SYMBOL, (2) CM-69S SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL603-69 (2) CM-60/3 'PUSH TO OPEN', (2) CM-69S SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL603F-69 (2) CM-60/3F 'POUSSEZ POUR OUVRIR', (2) CM-69S SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL604-69 (2) CM-60/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-69S SURFACE BOXES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL604F-69 (2) CM-60/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (2) CM-69S SURFACE
BOXES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL602-79 (2) CM-60/2 WHEELCHAIR SYMBOL, (2) CM-79A/B FLUSH/SURFACE
ENCLOSURES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL603-79 (2) CM-60/3 'PUSH TO OPEN', (2) CM-79A/B FLUSH/SURFACE ENCLOSURES,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL603F-79 (2) CM-60/3F 'POUSSEZ POUR OUVRIR', (2) CM-79A/B FLUSH/SURFACE
ENCLOSURES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL604-79 (2) CM-60/4 WHEELCHAIR & 'PUSH TO OPEN', (2) CM-79A/B FLUSH/SURFACE
ENCLOSURES, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR RECEIVER OPTION

CM-RFL604F-79 (2) CM-60/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (2) CM-79A/B FLUSH/
SURFACE ENCLOSURES, (2) CM-TX-9 TRANSMITTERS.
ADD SUFFIX FOR RECEIVER OPTION.

CM-2520 VESTIBULE SWITCH

CM-RFL25202-S CM-2520/2 WHEELCHAIR SYMBOL, (1) CM-53 SURFACE BOX, (2) CM-TX-9
TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92 RECEIVER OPTION

CM-RFL25203-S CM-2520/3 ‘PUSH TO OPEN’, (1) CM-53 SURFACE BOX, (2) CM-TX-9
TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92 RECEIVER OPTION

CM-RFL25203F-S CM-2520/3F 'POUSSEZ POUR OUVRIR', (1) CM-53 SURFACE BOX, (2) CM-TX-9
TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92 RECEIVER OPTION

CM-RFL25204-S CM-2520/4 WHEELCHAIR SYMBOL & ‘PUSH TO OPEN’, (1) CM-53 SURFACE BOX,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92
RECEIVER OPTION

- 09-

CAMDEN LAZERPOINT™ WIRELESS SYSTEM

CM-RFL25204F-S CM-2520/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (1) CM-53 SURFACE BOX,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92
RECEIVER OPTION

CM-RFL25202-LP CM-2520/2 WHEELCHAIR SYMBOL, (1) CM-43LPB SURFACE SHALLOW BOX, (2)
CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92
RECEIVER OPTION

CM-RFL25203-LP CM-2520/3 ‘PUSH TO OPEN’, (1) CM-43LPB SURFACE SHALLOW BOX,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92
RECEIVER OPTION

CM-RFL25203F-LP CM-2520/3F 'POUSSEZ POUR OUVRIR', (1) CM-43LPB SURFACE SHALLOW BOX,
(2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR CM-RX-92
RECEIVER OPTION

CM-RFL25204-LP CM-2520/4 WHEELCHAIR SYMBOL & ‘PUSH TO OPEN’, (1) CM-43LPB SURFACE
SHALLOW BOX, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR
CM-RX-92 RECEIVER OPTION

CM-RFL25204F-LP CM-2520/4F WHEELCHAIR & 'POUSSEZ POUR OUVRIR', (1) CM-43LPB SURFACE
SHALLOW BOX, (2) CM-TX-9 TRANSMITTERS. ADD SUFFIX FOR CM-RX-90 OR
CM-RX-92 RECEIVER OPTION

OPTIONS FOR BASE MODELS

WIRELESS RECEIVER OPTIONS ARCHITECTURAL FINISHES

A

ADD SUFFIX TO ANY RFL KIT FOR CM-RX-90

ADVANCED RECEIVER

B

ADD SUFFIX TO ANY RFL KIT FOR CM-RX91

BASIC RECEIVER

D

ADD SUFFIX TO ANY RFL KIT FOR CM-RX92.

DUAL RELAY RECEIVER

WATER TIGHT OPTION

WT

ADD SUFFIX TO ANY RFL KIT FOR (2)

WATER TIGHT SWITCHES

VESTIBULE SWITCH OPTIONS

-V

ADD '-V' TO ADD CM-RFL2520 KIT, W/

CM-43CBLA SURFACE BOX

-LPV

ADD '-LPV' TO ADD CM-RFL2520 KIT, W/

CM-43LPB SHALLOW BOX

AB

ADD ’AB’ TO PRODUCT # FOR (2) ANTIQUE

BRASS FINISH (US5 / 609)

SB

ADD ’SB’ TO PRODUCT # FOR (2) SATIN

BRASS FINISH (US4 / 606)

OB

ADD ’OB’ TO PRODUCT # FOR (2) OIL RUB

BRONZE FINISH (US10B / 613)

PB

ADD ’PB’ TO PRODUCT # FOR (2) POLISHED

BRASS (US3 / 605)

LITHIUM BATTERIES

L3

ADD SUFFIX ’L#’ FOR (4) ’AAA’ LITHIUM

BATTERIES

(Add suffix to model above)

- 10 -

5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)

Tel: [phone] • Fax: [phone] • E-mail: [e-mail] • www.camdencontrols.com

MKTG-LIT-SP-RFLAZER-R10
