Camden Door Controls CM-30C, CM-30E, CM-30U Specsheet

DOOR ACTIVATION
DEVICES

PUSH/EXIT SWITCHES

UL 294
Compliant

CM-30E

CM-30U
(ENGLISH & SPANISH)

Compliant

CM-30 SERIES

LED ILLUMINATED EXIT SWITCHES

FEATURES

• THE BIGGEST SELECTION OF EASY TO
INSTALL SWITCH LABELS

• UL 294 AND UL 61058-1 COMPLIANT,
MEETS NFPA REQUIREMENTS

• ECONOMICAL HIGH VISIBILITY 2”
(50mm) SQUARE ILLUMINATED
BUTTON

DESCRIPTION

Camden Door Controls CM-30U and CM-30C ‘Universal’ illuminated exit switches are
highly visible, and lead the market with the most complete range of red, green and
blue insert labels. The insert labels are easily field installed and allow the switch to
be customized to meet the requirements of any project. Buttons are supplied with
industrial grade stainless steel (single gang) faceplates.

In addition to UL compliance of the finished switch, the SPDT switch component is
also UL listed and rated 10 amps @ 30V DC , momentary operation.

Supplied with super-bright long-life LED's (10 year life).

• INDUSTRIAL GRADE STAINLESS STEEL
FACEPLATE

• SPDT 10AMP. MOMENTARY CONTACTS

• 12/ 24 V WITH LED BULB

• ’CAMDEN TOUGH’ 3YR. WARRANTY

CM-30C
(ENGLISH & FRENCH)

APPLICATION

CM-30U and CM-30C ‘Universal’ switches are ideal for the widest range of door
control applications. This includes installation as an NFPA compliant ‘Request to
Exit’ (REX) switch, ADA compliant exit switch or for other switch control, where
high visibility is required. The switches may be surface or flush mounted.

Camden illuminated exit switches are designed to control electric locks,
electromagnetic locks, electric strikes, automatic doors, and low energy door
operators. They may also be used for shunting, bypassing alarms, request to exit,
timed functions and many other applications.

Where an 2” square illuminated switch is required with electronic time delay,
Camden offers model CM-30EE with double break circuitry. Please refer to
specification sheet number MKTG-LIT-SP-30EE.

ACCESSORIES KEYPADS SPECIAL PURPOSE SWITCHES HANDS-FREE SWITCHES RF CONTROLS MOUNTING OPTIONS PUSH BUTTONS KEY SWITCHES

5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)
Tel: [phone] • Fax: [phone] • E-mail: [e-mail] • www.camdencontrols.com

LED ILLUMINATED EXIT SWITCHES

ARCHITECTS /ENGINEERS SPECIFICATIONS

The illuminated exit switches to be used throughout the site/complex shall be
Camden Door Controls CM-30U or CM-30C ‘Universal’ LED illuminated exit
switches. Switch label to be determined at time of installation.

The button shall be 2” square, and designed to be easy to activate. The faceplate
shall be constructed of industrial grade stainless steel, and shall be supplied with
stainless steel Torx™ or snake eye security screws. All symbols, letters, and/or
markings shall be inset under the bezel of the button so as to never wear off.

The illuminated switches shall be UL294 and UL 61058-1 compliant. Ratings for all
electrical contacts shall be a minimum of 10 amps @ 30 VDC.

LED models shall be supplied with super-bright LED's. Life expectancy shall be a
minimum of 100,000 hours (10 year life estimated).

ORDERING INFORMATION

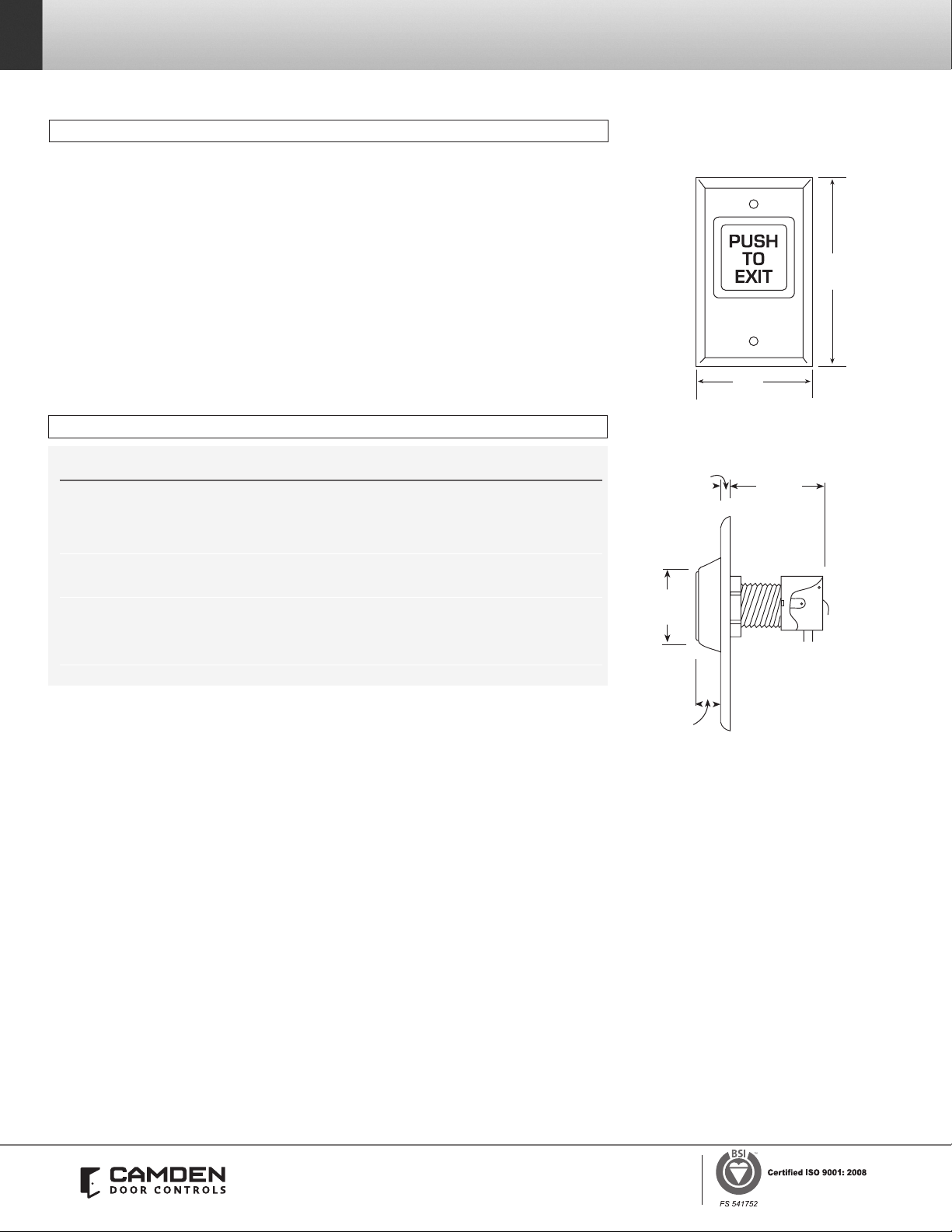

2 ¾”

(70mm)

FRONT VIEW

4 ½”

(114mm)

MODEL DESCRIPTION

UNIVERSAL

CM-30U: (13) ENGLISH AND SPANISH INSERT LABELS, 12V/28V
LED BULB, SPRING RETURN, SPDT MOMENTARY

CM-30C: (13) ENGLISH AND FRENCH INSERT LABELS, 12/28V
LED BULB, SPRING RETURN, SPDT MOMENTARY

ECONOMY

CM-30E: ‘PUSH TO EXIT‘, GREEN, LABEL 12/28V LED BULB,
SPRING RETURN, SPDT MOMENTARY

2”

½”

¼”

(6mm)

1 7⁄8”

(48mm)

SIDE VIEW

5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)

Tel: [phone] • Fax: [phone] • E-mail: [e-mail] • www.camdencontrols.com

MKTG-LIT-SP-30 R3
