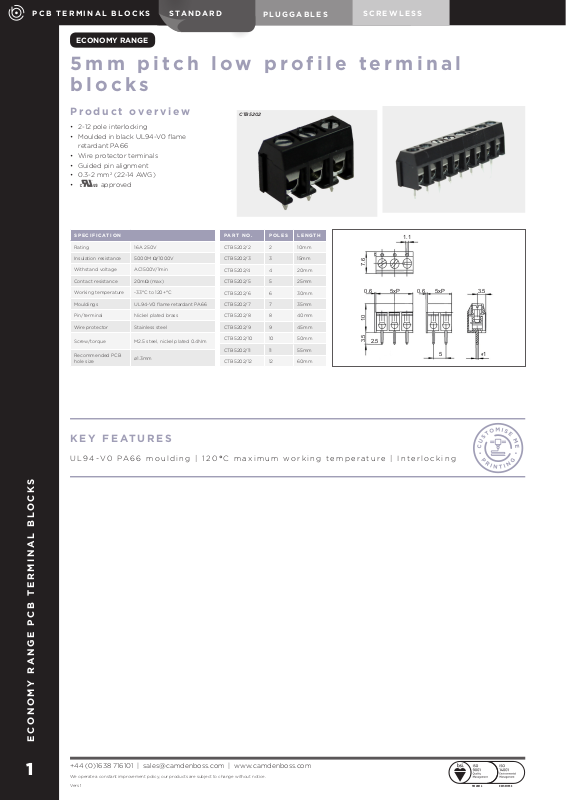

CAMDENBOSS CTB5202-2 Instructions

PCB TERMINAL BLOCKS PLUGGABLESSCREWLESS

STANDARD

PLUGGABLES

SCREWLESS

ECONOMY RANGE

5mm pitch low profile terminal
blocks

Product overview

• 2-12 pole interlocking

• Moulded in black UL94-V0 flame
retardant PA66

• Wire protector terminals

• Guided pin alignment

• 0.3-2 mm2 (22-14 AWG)

• approved

SPECIFICATION

Rating 16A 250V

Insulation resistance 5000M Ω/1000V

Withstand voltage AC1500V/1min

Contact resistance 20mΩ (max)

Working temperature -33°C to 120+°C

Mouldings UL94-V0 flame retardant PA66

Pin/terminal Nickel plated brass

Wire protector Stainless steel

Screw/torque M2.5 steel, nickel plated 0.4Nm

Recommended PCB
hole size

ø1.3mm

CTB5202

PART NO. POLES LENGTH

CTB5202/2 2 10mm

CTB5202/3 3 15mm

CTB5202/4 4 20mm

CTB5202/5 5 25mm

CTB5202/6 6 30mm

CTB5202/7 7 35mm

CTB5202/8 8 40mm

CTB5202/9 9 45mm

CTB5202/10 10 50mm

CTB5202/11 11 55mm

CTB5202/12 12 60mm

0.6

10

7.6

3.5

2.5

5xP

1.1

0.6

5xP

3.5

5

1

KEY FEATURES

UL94-V0 PA66 moulding | 120° C maximum working temperature | Interlocking

ECONOMY RANGE PCB TERMINAL BLOCKS

1
