CAMDENBOSS CRDCG0004, CRDCG0007, CRDCG0006, CRDCG0005, CRDCG0008 Datasheet

UNIVERSAL PLASTIC ENCLOSURES

FM 28614

268

HANDHELD CASES

DIECAST
ACCESSORIES

7000 Series Multipurpose Recessed

292

UNIVERSAL
PLASTIC
ENCLOSURES

317

HEAVY DUTY
AND ELECTRICAL
ENCLOSURES

341

DEVELOPMENT
BOARD
ENCLOSURES

369

VERSATILE IOT
AND SENSOR
ENCLOSURES

PLASTIC ENCLOSURES

Electronic Enclosure

Product overview

Functional yet modern design in nine dierent sizes with
anti-scratch finish. RFI wall mount options available.

• Lid and base moulded in ABS

• Lid mounted by four M3 machine screws

• Plastic screw covers for aesthetic appearance

• Fine texture anti-scratch finish

• Recesses in lid and base designed to accept
membrane keypads or overlays

• Integral mounting guides in lid and base for vertical
PCB mounting

• PCB pillars in lid and base

• Surface mountable via moulded fixing points or wall­mounting kit (optional)

• Can be supplied with optional waterproof gasket

• Can be supplied with optional waterproof gasket and
RFI shielding

• 7000 series has been designed to meet the
requirements of IP54 or additionally, IP65 with the
gasket accessory

GREY LENGTH WIDTH HEIGHT DESCRIPTION

CRDCG0001 90mm 55mm 25mm Designer case

CRDCGG001 90mm 55mm 25mm With gasket

CRDCERG01 90mm 55mm 25mm With RFI and gasket

CRDCG0002 90mm 55mm 40mm Designer case

CRDCGG002 90mm 55mm 40mm With gasket

CRDCERG02 90mm 55mm 40mm With RFI and gasket

CRDCG0003 110mm 85mm 35mm Designer case

CRDCGG003 110mm 85mm 35mm With gasket

CRDCERG03 110mm 85mm 35mm With RFI and gasket

CRDCG0004 127mm 75mm 30mm Designer case

CRDCGG004 127mm 75mm 30mm With gasket

CRDCERG04 127mm 75mm 30mm With RFI and gasket

CRDCG0005 127mm 75mm 45mm Designer case

CRDCGG005 127mm 75mm 45mm With gasket

CRDCERG05 127mm 75mm 45mm With RFI and gasket

CRDCG0006 145mm 90mm 45mm Designer case

CRDCGG006 145mm 90mm 45mm With gasket

CRDCERG06 145mm 90mm 45mm With RFI and gasket

CRDCG0007 190mm 120mm 60mm Designer case

CRDCGG007 190mm 120mm 60mm With gasket

CRDCERG07 190mm 120mm 60mm With RFI and gasket

CRDCG0008 220mm 145mm 50mm Designer case

CRDCGG008 220mm 145mm 50mm With gasket

CRDCERG08 220mm 145mm 50mm With RFI and gasket

CRDCG0009 220mm 145mm 80mm Designer case

CRDCGG009 220mm 145mm 80mm With gasket

CRDCERG09 220mm 145mm 80mm With RFI and gasket

CRDCG0001

SPECIFICATION

Materials Lid, base and screw covers ABS, UL94-V0

Operating temperature -20°C - 80°C

Protection class 7000 series has been designed to meet the

Standard unit includes Base and lid

Options Wall mounting kit

BLACK LENGTH WIDTH HEIGHT DESCRIPTION

CRDCB0001 90mm 55mm 25mm Designer case

CRDCB0002 90mm 55mm 40mm Designer case

CRDCB0003 110mm 85mm 35mm Designer case

CRDCB0004 127mm 75mm 30mm Designer case

CRDCB0005 127mm 75mm 45mm Designer case

CRDCB0006 145mm 90mm 45mm Designer case

CRDCB0007 190mm 120mm 60mm Designer case

CRDCB0008 220mm 145mm 50mm Designer case

CRDCB0009 220mm 145mm 80mm Designer case

requirements of IP54 or additionally, IP65 with the
gasket accessory

4x M3 machine screws (torque 0.5 Nm)
4x screw covers

IP65 gasket kits
RFI screening

296

[phone] | [e-mail] | www.camdenboss.com

We operate a constant improvement policy, our products are subject to change without notice.

Vers 2

Vers 1

UNIVERSAL PLASTIC ENCLOSURES

268

HANDHELD CASES

DIECAST
ACCESSORIES

DIECAST
ACCESSORIES

ACCESSORIES

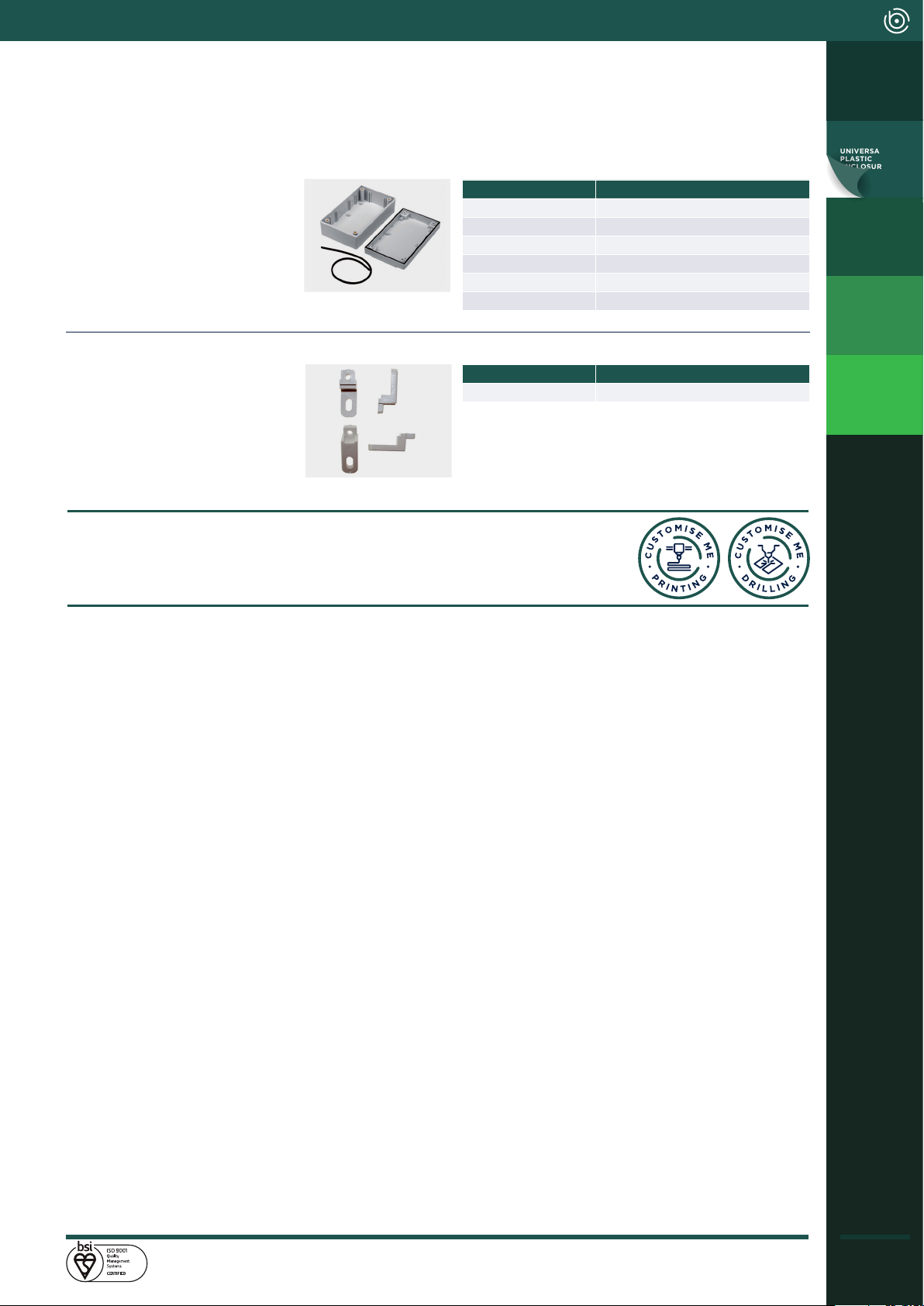

7000 series IP65 gasket kits

• EPDM gasket, dust and water protection from

IP54 to IP65

PART NO. DESCRIPTION

CRDCGASK1 Gasket for designer case size 1 and 2

CRDCGASK2 Gasket for designer case size 3

CRDCGASK3 Gasket for designer case size 4 and 5

CRDCGASK4 gasket for designer case Size 6

CRDCGASK5 Gasket for designer case Size 7

CRDCGASK6 Gasket for designer case size 8 and 9

Wall mounting kit

• Universal design fits all sizes, available in grey

• Fits lid and base, surface 1.5mm from lid or

9.5mm base

PART NO. DESCRIPTION

CRDCWMKIT 4x mounting feet

KEY FEATURES

RFI & wall mount options | Anti-scratch finish | PCB mounting
