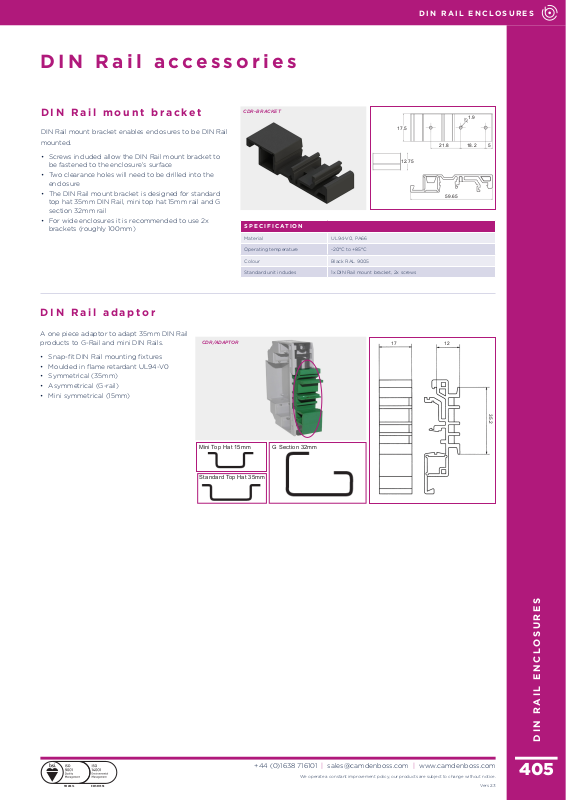

CAMDENBOSS CDR-BRACKET Datasheet

DIN Rail accessories

DIN RAIL ENCLOSURES

DIN Rail mount bracket

DIN Rail mount bracket enables enclosures to be DIN Rail

mounted.

• Screws included allow the DIN Rail mount bracket to
be fastened to the enclosure’s surface

• Two clearance holes will need to be drilled into the
enclosure

• The DIN Rail mount bracket is designed for standard
top hat 35mm DIN Rail, mini top hat 15mm rail and G
section 32mm rail

• For wide enclosures it is recommended to use 2x
brackets (roughly 100mm)

DIN Rail adaptor

A one piece adaptor to adapt 35mm DIN Rail
products to G-Rail and mini DIN Rails.

• Snap-fit DIN Rail mounting fixtures

• Moulded in flame retardant UL94-V0

• Symmetrical (35mm)

• Asymmetrical (G-rail)

• Mini symmetrical (15mm)

CDR/ADAPTOR

CDR-BRACKET

17.5

12.75

SPECIFICATION

Material UL94-V0, PA66

Operating temperature -20°C to +85°C

Colour Black RAL 9005

Standard unit includes 1x DIN Rail mount bracket, 2x screws

17 12

1.9

21.8 18.2 5

59.65

35.2

Mini Top Hat 15mm

Standard Top Hat 35mm

G Section 32mm

FM 28614 EMS 613558
