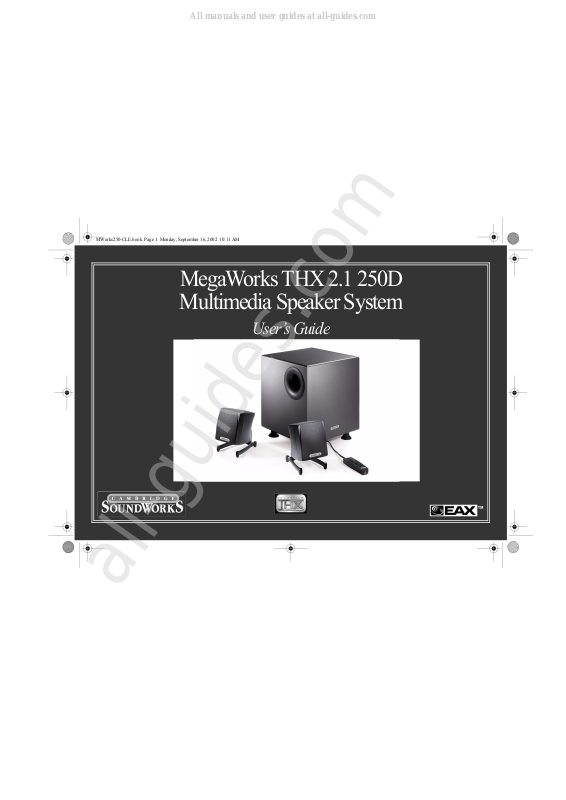

Page 1
MegaWorks THX 2.1 250D
Multimedia Speaker System
User’s Guide
™
MWorks250-CLE.book Page 1 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
all-guides.com
Page 2
EnFrDeItEsNlEnEn EnEnSv Pt
NoDaFiCzRu Pl
English .........................................................................................................
Français .......................................................................................................
Deutsch .......................................................................................................
Italiano.........................................................................................................
Español ........................................................................................................
Nederlands..................................................................................................
Português ....................................................................................................
Svenska........................................................................................................
Norsk ...........................................................................................................
Dansk ...........................................................................................................
Soumi...........................................................................................................
Ceski ............................................................................................................
Polski............................................................................................................
Русский ......................................................................................................
MWorks250-CLE.book Page i Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 3
MWorks250-CLE.book Page ii Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 4
MegaWorks THX 2.1 250D
Multimedia Speaker System
User’s Guide
™
MWorks250-CLE.book Page 1 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 5
2
CAUTION:
This Symbol indicates that the marked item
may be Hot and should not be touched without
proper care.
- To minimise the risk of burns and other inju-
ries to children, position the device such that
hot surfaces are out of their reach.
- To minimise the risk of fire, keep flammable
materials like paper and cloth (for example,
curtains) away from the hot surface.
Safety Warnings
Do not expose this apparatus to dripping or
splashing fluids, and ensure that no objects filled
with liquids — such as vases — are placed on the
apparatus.
Warning:
MWorks250-CLE.book Page 2 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 6
3
En

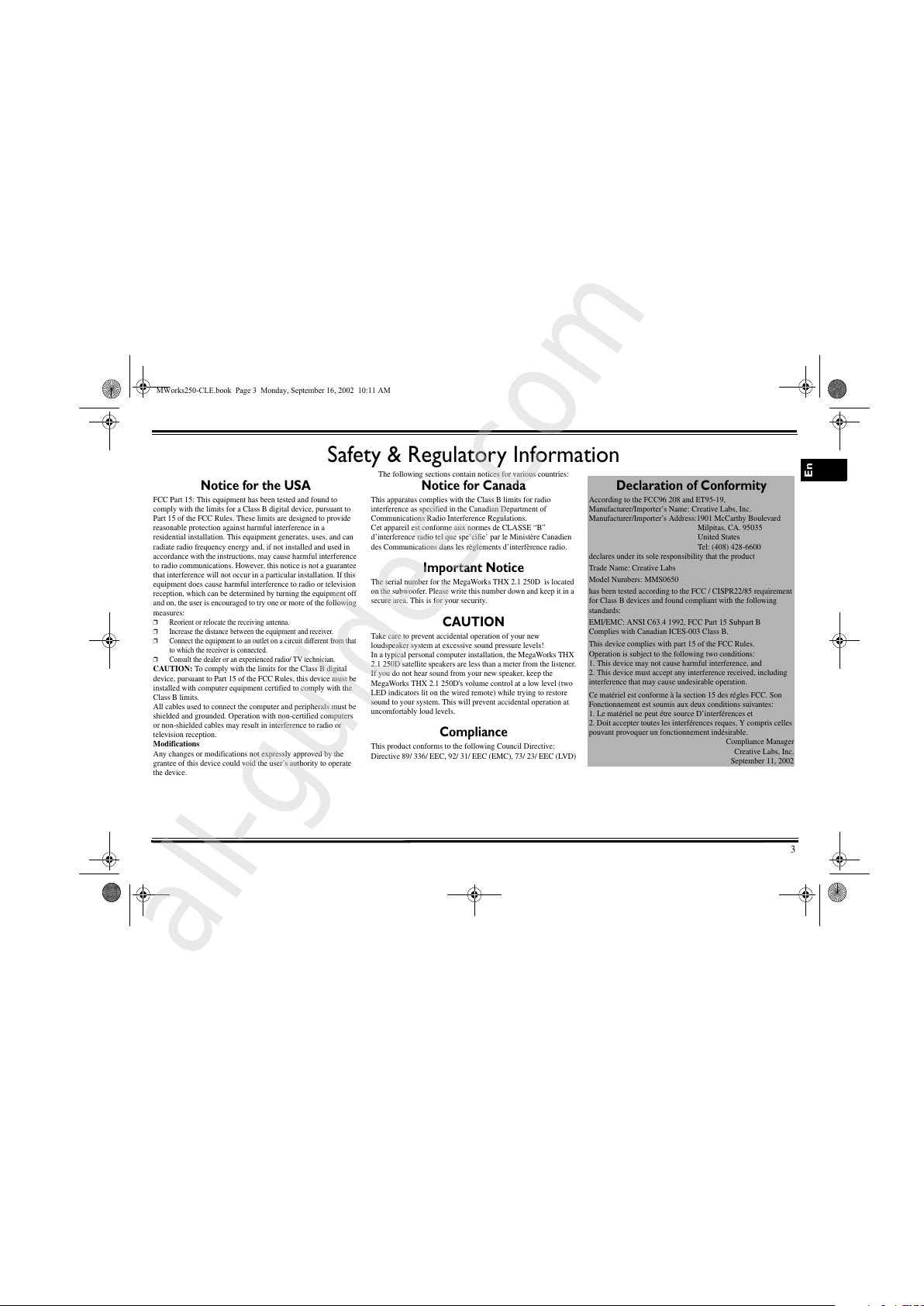

Safety & Regulatory Information
The following sections contain notices for various countries:
Notice for the USA
FCC Part 15: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursu ant to
Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, this notice is not a guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try one or more of the following
measures:
❒
Reorient or relocate the receiving antenna.
❒
Increase the distance between the equipment and receiver.
❒
Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
❒
Consult the dealer or an experienced radio/ TV technic ian.
CAUTION: To comply with the limits for the Class B digital
device, pursuant to Part 15 of the FCC Rules, this device must be
installed with computer equipment certi fied to comply with the
Class B limits.
All cables used to connect the computer and peripherals must be
shielded and grounded. Operation with non-certified computers
or non-shielded cables may result in interference to radio or
television reception.
Modifications
Any changes or modifications not expressly approved by the
grantee of this device could void the user’s authority to operate
the device.
Notice for Canada
This apparatus complies with the Class B limits for radio
interference as specified in the Canadian Department of
Communications Radio Interference Regulations.
Cet appareil est conforme aux normes de CLASSE “B”
d’interference radio tel que spe’ci fie’ par le Ministère Canadien
des Communications dans les règlements d’interfèrence radio.
Important Notice
The serial number for the MegaWorks THX 2.1 250D is located
on the subwoofer. Please write this number down and keep it in a
secure area. This is for your security.
CAUTION
Take care to prevent accidental operation of your new
loudspeaker system at excessive sound pressure levels!
In a typical personal computer installation, the MegaWorks THX
2.1 250D satellite speakers are less than a meter from the listener.
If you do not hear sound from your new speaker, keep the
MegaWorks THX 2.1 250D's volume control at a low level (two
LED indicators lit on the wired remote) while trying to restore
sound to your system. This will prevent accidental operation at
uncomfortably loud levels.
Compliance
This product conforms to the following Council Directive:
Directive 89/ 336/ EEC, 92/ 31/ EEC (EMC), 73/ 23/ EEC (LVD)
Declaration of Conformity
According to the FCC96 208 and ET95-19,
Manufacturer/Importer’s Name: Creative Labs, Inc.
Manufacturer/Importer’s Address:1901 McCarthy Boulevard
Milpitas, CA. 95035
United States
Tel: (408) 428-6600
declares under its sole responsibility that the product
Trade Name: Creative Labs
Model Numbers: MMS0650
has been tested according to the FCC / CISPR22/85 requirement
for Class B devices and found compliant with the following
standards:
EMI/EMC: ANSI C63.4 1992, FCC Part 15 Subpart B
Complies with Canadian ICES-003 Class B.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesirable operation.
Ce matériel est conforme à la section 15 des régles FCC. Son
Fonctionnement est soumis aux deux conditions suivantes:
1. Le matériel ne peut étre source D’interférences et
2. Doit accepter toutes les interférences reques, Y compris celles
pouvant provoquer un fonctionnement indésirable.
Compliance Manager
Creative Labs, Inc.
September 11, 2002
MWorks250-CLE.book Page 3 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
all-guides.com
Page 7
4

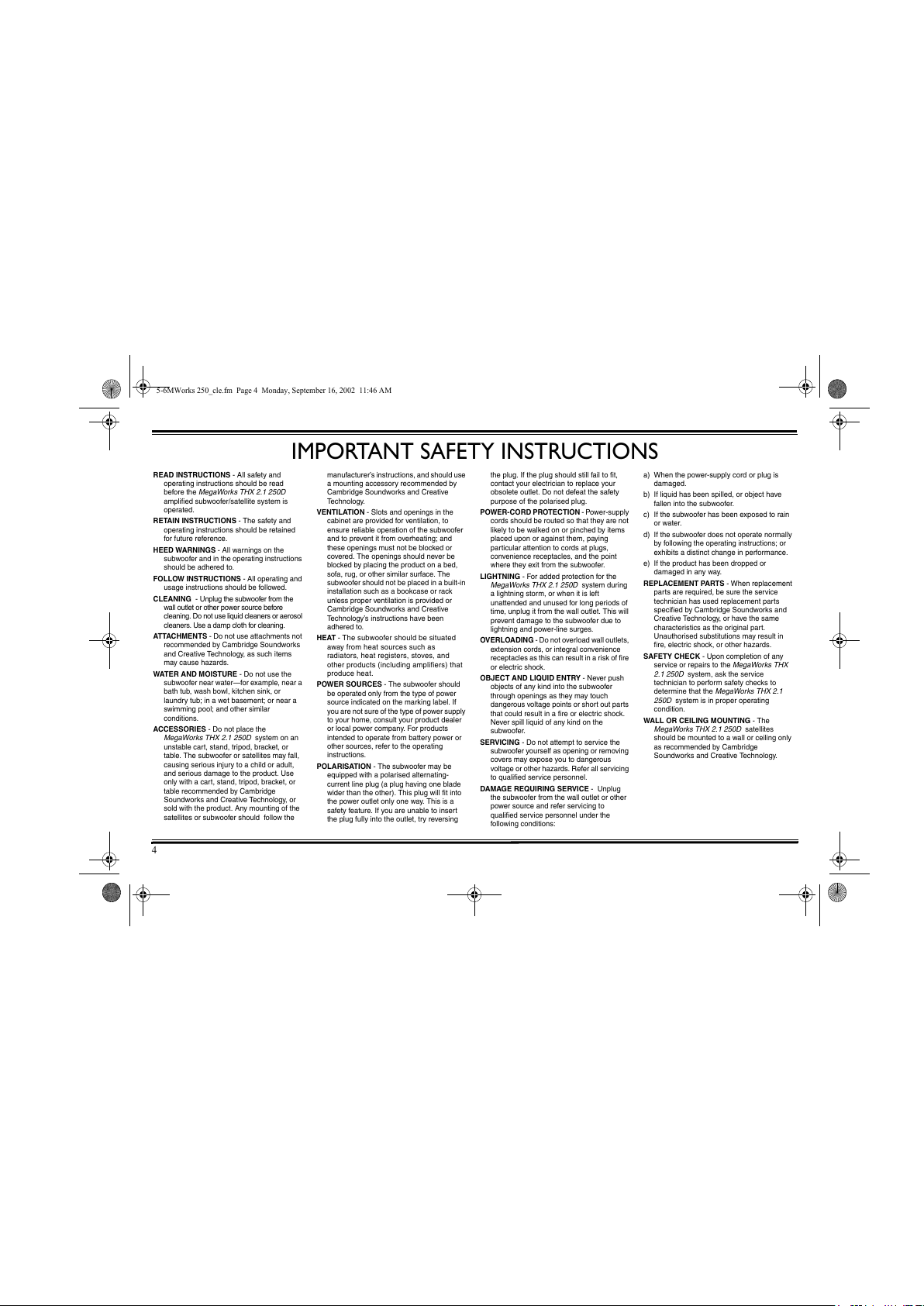

READ INSTRUCTIONS - All safety and
operating instructions should be read
before the MegaWorks THX 2.1 250D
amplified subwoofer/satellite system is
operated.
RETAIN INSTRUCTIONS - The safety and
operating instructions should be retained
for future reference.
HEED WARNINGS - All warnings on the
subwoofer and in the operating instructions
should be adhered to.
FOLLOW INSTRUCTIONS - All operating and
usage instructions should be followed.
CLEANING - Unplug the subwoofer from the
wall outlet or other power source before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
ATTACHMENTS - Do not use attachments not
recommended by Cambridge Soundworks
and Creative Technology, as such items
may cause hazards.
WATER AND MOISTURE - Do not use the
subwoofer near water—for example, near a
bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a
swimming pool; and other similar
conditions.
ACCESSORIES - Do not place the
MegaWorks THX 2.1 250D system on an
unstable cart, stand, tripod, bracket, or
table. The subwoofer or satellites may fall,
causing serious injury to a child or adult,
and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or
table recommended by Cambridge
Soundworks and Creative Technology, or
sold with the product. Any mounting of the
satellites or subwoofer should follow the
manufacturer’s instructions, and should use
a mounting accessory recommended by
Cambridge Soundworks and Creative
Technology.
VENTILATION - Slots and openings in the
cabinet are provided for ventilation, to
ensure reliable operation of the subwoofer
and to prevent it from overheating; and
these openings must not be blocked or
covered. The openings should never be
blocked by placing the product on a bed,
sofa, rug, or other similar surface. The
subwoofer should not be placed in a built-in
installation such as a bookcase or rack
unless proper ventilation is provided or
Cambridge Soundworks and Creative
Technology’s instructions have been
adhered to.
HEAT - The subwoofer should be situated
away from heat sources such as
radiators, heat registers, stoves, and
other products (including amplifiers) that
produce heat.
POWER SOURCES - The subwoofer should
be operated only from the type of power
source indicated on the marking label. If
you are not sure of the type of power supply
to your home, consult your product dealer
or local power company. For products
intended to operate from battery power or
other sources, refer to the operating
instructions.
POLARISATION - The subwoofer may be
equipped with a polarised alternating-
current line plug (a plug having one blade
wider than the other). This plug will fit into
the power outlet only one way. This is a
safety feature. If you are unable to insert
the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit,
contact your electrician to replace your
obsolete outlet. Do not defeat the safety
purpose of the polarised plug.
POWER-CORD PROTECTION - Power-supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them, paying
particular attention to cords at plugs,
convenience receptacles, and the point
where they exit from the subwoofer.
LIGHTNING - For added protection for the
MegaWorks THX 2.1 250D system during
a lightning storm, or when it is left
unattended and unused for long periods of
time, unplug it from the wall outlet. This will
prevent damage to the subwoofer due to
lightning and power-line surges.
OVERLOADING - Do not overload wall outlets,
extension cords, or integral convenience
receptacles as this can result in a risk of fire
or electric shock.
OBJECT AND LIQUID ENTRY - Never push
objects of any kind into the subwoofer
through openings as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the
subwoofer.
SERVICING - Do not attempt to service the
subwoofer yourself as opening or removing
covers may expose you to dangerous
voltage or other hazards. Refer all servicing
to qualified service personnel.
DAMAGE REQUIRING SERVICE - Unplug
the subwoofer from the wall outlet or other
power source and refer servicing to
qualified service personnel under the
following conditions:
a) When the power-supply cord or plug is
damaged.
b) If liquid has been spilled, or object have
fallen into the subwoofer.
c) If the subwoofer has been exposed to rain
or water.
d) If the subwoofer does not operate normally
by following the operating instructions; or
exhibits a distinct change in performance.
e) If the product has been dropped or
damaged in any way.
REPLACEMENT PARTS - When replacement
parts are required, be sure the service
technician has used replacement parts
specified by Cambridge Soundworks and
Creative Technology, or have the same
characteristics as the original part.
Unauthorised substitutions may result in
fire, electric shock, or other hazards.
SAFETY CHECK - Upon completion of any
service or repairs to the MegaWorks THX
2.1 250D system, ask the service
technician to perform safety checks to
determine that the MegaWorks THX 2.1
250D system is in proper operating
condition.
WALL OR CEILING MOUNTING - The
MegaWorks THX 2.1 250D satellites
should be mounted to a wall or ceiling only
as recommended by Cambridge
Soundworks and Creative Technology.
IMPORTANT SAFETY INSTRUCTIONS
5-6MWorks 250_cle.fm Page 4 Monday, September 16, 2002 11:46 AM
All manuals and user guides at all-guides.com
Page 8
5
En
User’s Guide
MegaWorks THX 2.1 250D
Information in this document is subject to change without notice and does not represent a commitment on the part of Creative Technology Ltd. No part of
this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose
without the written permission of Creative Technology Ltd. The software described in this document is furnished under a license agreement and may be
used or copied only in accordance with the terms of the license agreement. It is against the law to copy the software on any other medium except as
specifically allowed in the license agreement. The licensee may make one copy of the software for backup purposes.
Copyright © 2002 by Creative Technology Ltd. All rights reserved.
Version 1.0
September 2002
© 2002 Cambridge SoundWorks, Inc. All rights reserved. Cambridge SoundWorks is a registered trademark of Cambridge SoundWorks, Inc., Andover, MA,
USA. THX is trademark or registered trademark of THX Ltd. All other logos, brand and product names are trademarks or registered trademarks of their
respective holders. All specifications are subject to change without prior notice. Actual contents may differ slightly from those pictured.
MWorks250-CLE.book Page 5 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 9
6
Thank you for purchasing the
MegaWorks THX 2.1 250D by
Cambridge SoundWorks.
This high-quality 2.1 amplified
multimedia speaker system features
the finest drivers, precision internal
crossover and amplifier circuitry in
an elegant enclosure design. Analog
and digital sources up to 24-bit/96
kHz are supported, making
MegaWorks THX 2.1 250D the ideal
2.1-channel companion for the latest
24-bit/96 kHz Sound Blaster
®
Audigy
™
series audio cards.
For instructions on how to set up
your speakers, refer to the Quick
Start leaflet provided in the
MegaWorks THX 2.1 250D package.
Remember to ensure that all plugs
are securely fastened to their
respective sockets.
To experience the full
potential of MegaWorks
THX 2.1 250D, we
recommend that you take a
few minutes to read through
this User Guide.
Safety Warnings................................ Pg 2
Safety and Regulatory Information ..Pg 3
Important Safety Instructions ...........Pg 4
Introduction ......................................Pg 6
Using the Wired Remote...................Pg 7
Using Multiple Inputs .......................Pg 8
Controlling Noise and Distortion .....Pg 9
Specifications....................................Pg 9
Contents
Introduction
MWorks250-CLE.book Page 6 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 10
7
En
Using the Wired Remote
To turn the system On/OffTo turn the system On/Off
Turning the system On/Off
❒
Ensure that the subwoofer’s
main power switch is On.
❒
Press the
Standby/Power
Button
once. The red indicator
above the button shuts off. The
Master Volume Mode
Indicator
lights up.
❒
To switch the system to
Standby Mode
, press the
Standby/ Power Button
again.
❒
If the
Master Volume Mode
Indicator
is lit, press or
to vary the system volume.
❒
If the
Master Volume Mode
Indicator
is not lit, press the
Mode Select Button
until the
Master Volume Mode Indicator
is lit.
Then press or .
❒
To increase the rate of
adjustment, hold down or .
❒
Press the
Mode Select Button
until the
Sub
or
Tre bl e Mo de
Indicator
is lit.
❒
To increase or reduce the
Sub/
Tre bl e
level, press or .
❒
To increase the rate of adjust-
ment, hold down or .
❒
For private listening, you can
connect headphones to the
Headphones Output
of the
wired remote. This will mute
all speakers.
❒
Adjust the headphones volume
as you would for the speakers.
❒
The
Sub Mode
can be used to
adjust the bass level you hear
from the headphones.
Fig 1: Wired
remote
Varying/muting the volume Adjusting Sub/Treble levels Using Headphones
Notes
• On first power-on, the system uses
a preset default master volume
level: two volume
Level
Indicators
will be lit.
• On subsequent power-on, the
system reinstates the last-used
master volume level.
•
All volume and
Sub/Treble
set-
tings will be lost if you turn off the
main power switch, or remove the
AC power cord or wired remote, or
if there is a power interruption. The
system will revert to default master
volume and
Sub/Treble
levels.
Notes
• The remote will revert to
Master
Vol um e M od e
if left idle for some
time.
• To mute the master volume, press
the
Mute Button
once. The
system volume will be muted. All
previously-lit
Level Indicators
will blink during the muting.
• To return to listening,
press the
Mute Button
again. Or press
or to return to normal listening.
•
For your own safety, reduce the
master volume level before switch-
ing the system to
Standby Mode
.
Notes
• On first power-on, default
Sub/
Tre ble
levels (flat response) are
applied. Three
Level Indicators
will be lit to reflect this. Pressing
boosts the level, and causes
more
Level Indicators
to be lit.
Pressing reduces the level, and
causes fewer
Level Indicators
to
be lit.
•
Subsequent
Sub/Treble
settings
will be stored during
Standby
Mode
, and recalled when you next
turn the system on using the remote.
Notes
•
Tre ble
settings can be adjusted in
the same way as for the speakers.
• When you disconnect the
headphones, the system will revert
to a preset default master volume
setting (two
Level Indicators
lit),
in order to prevent high
headphones volume levels from
being applied to the system
speakers.
MWorks250-CLE.book Page 7 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 11
8
Using Multiple Inputs
The MegaWorks THX 2.1 250D
allows you to mix a second audio
program source with the main
program source (Audio Input 1 or
Digital Input).
About the built-in
Digital-to-Analog
Convertors
MegaWorks THX 2.1 250D
features high performance true
24-bit Digital-to-Analog
Convertors and supports
sampling frequencies from 44.1
kHz to 96 kHz, via an RCA
SPDIF digital connection.
Table 1 lists the results of using
the multiple inputs in different
ways on this system.
Table 1: Mixing audio through Digital and Analog inputs
Digital In Audio Input 1 Audio Input 2 Result
Connected Not connected Not connected SPDIF Digital only
Not connected Connected Connected Audio Input 1 and Audio Input 2 mixed
Connected Connected Con nected SPDIF Digital In and Audio Input 2 mixed
Connected Not connected Connected SPDIF Digital In and Audio Input 2 mixed
CD or MP3
player with
miniplug
analog output
Analog Input 2
(Auxiliary Input)
Fig 2: Using Analog Input 2
MWorks250-CLE.book Page 8 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
all-guides.com
Page 12
9
En
MegaWorks THX 2.1 250D has
moderately high input sensitivity, so
it may amplify the hum and hiss
inherent in some audio program
sources (more common in analog
rather than digital sources).
Any noise is not due to a fault in the
speaker system. You can minimise
background noise as follows:
❒
Use the MegaWorks THX 2.1 250D
volume control as your master level
control. Examine your computer's
mixer software (for example,
Surround Mixer in Sound Blaster
software). Turn off any inputs you
don't need (Microphone, for
instance). Set the remaining input
volume controls to about 70% of
their overall scale.
❒
Adjust the sound control program's
master output level so that the
MegaWorks THX 2.1 250D reaches
a comfortably loud output level.
Controlling Noise
and Distortion
Specifications
Total System Burst Power: 300 W
Satellite Frequency Response:
150 Hz - 20 kHz +\- 3dB
Subwoofer Frequency Response:
32 Hz - 150 Hz +\- 3dB
Signal-to-Noise Ratio (SNR): 99 dB
Input voltage
For Europe/Asia:
230Vac 50/60 Hz 2.5A
For USA:
120Vac 60 Hz 5A
Magnetic Shielding
All satellite speakers are shielded to
allow placement close to display
devices that are sensitive to
magnetic fields.
Specifications
MWorks250-CLE.book Page 9 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Page 13
MWorks250-CLE.book Page 10 Monday, September 16, 2002 10:11 AM
All manuals and user guides at all-guides.com
Loading...
