Page 1

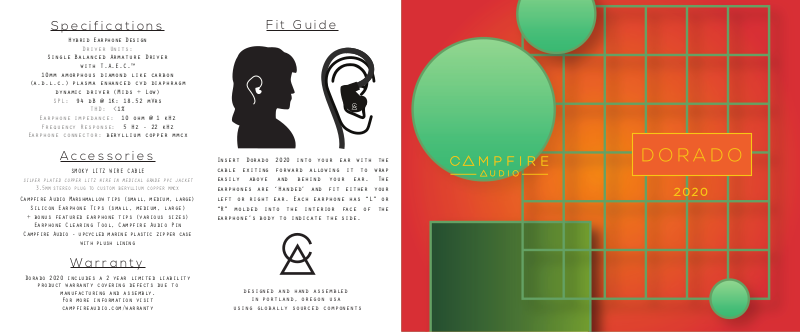

Specifications
Hybrid Earphone Design
Single Balanced Armature Driver
10mm amorphous diamond like carbon
(a.d.l.c.) plasma enhanced cvd diaphragm
Earphone impedance: 10 ohm @ 1 kHz
Frequency Response: 5 Hz - 22 kHz
Earphone connector: beryllium copper mmcx
Driver Units:
with T.A.E.C.™
dynamic driver (Mids + Low)
SPL: 94 dB @ 1K: 18.52 mVrs
THD: <1%
Fit Guide
Accessories
silver plated copper litz wire in medical grade pvc jacket
3.5mm stereo plug to custom beryllium copper mmcx
Campfire Audio Marshmallow tips (small, medium, large)
Silicon Earphone Tips (small, medium, large)
+ bonus featured earphone tips (various sizes)
Earphone Clearing Tool, Campfire Audio Pin
Campfire Audio - upcycled marine plastic zipper case
SMOKY LITZ WIRE CABLE
with plush lining
Insert Dorado 2020 into your ear with the
cable exiting forward allowing it to wrap
easily above and behind your ear. The
earphones are ‘Handed’ and fit either your
left or right ear. Each earphone has “L” or
“R” molded into the interior face of the
earphone’s body to indicate the side.
Warranty
Dorado 2020 includes a 2 year limited liability
product warranty covering defects due to
manufacturing and assembly.
For more information visit
campfireaudio.com/warranty
using globally sourced components
designed and hand assembled
in portland, oregon usa
Page 2
Use Instructions Care Instructions
3
4
1
2
brass spout with black pvd finish
1
high density ceramic body
2
custom beryllium / copper mmcx
3
slim diameter spout design
4
iem-cfa-D20
To remove your earphone cable pull the cable
in the direction parallel to the earphone
connector. Avoid pulling the cable at an
angle, as this can damage the mmcx connectors
of the cable and/or the earphones.
Take care not to drop your earphones. Each
Campfire Audio earphone holds a sensitive
and finely tuned transducer. Sudden shocks
or impact to the shell can potentially cause
damage or alter the performance of the
earphone’s transducer.
Damage to the earphone transducers (drivers)
are not covered under the earphone’s warran-
ty protection and are subject to a reasonable
fee for repair.
Take special care to keep the earphone
openings clear of debris and wax. Carefully
use the clearing tool included with your
earphones to remove build up from the
earphone. Take extra care not to push any
foreign objects into the canal of the
earphone openings. Avoid moisture build up
on the surface and in the interior of the
earphone body.
Opening the body of the earphone will damage
the seal of the shell and alter the precision
tuning of your earphone. Tampering, opening,
or altering the shell will void the warranty
of your earphone.
Note that extended listening periods at high
listening levels can negatively impact your
hearing over time. Please enjoy your
earphones responsibly.
Questions or comments? Please contact us:
“SEAQUAL INITIATIVE is a unique collaborative
community that works with ocean clean-up programs
around the world to transform the marine litter
they recover into Upcycled Marine Plastic; a new,
fully traceable raw material with the power to
raise awareness of the issue of marine pollution
and highlight those helping to fight it. In
choosing products containing Upcycled Marine
Plastic, you are helping to clean our oceans.”
---
thank you for purchasing
Dorado 2020
nicely done.
visit us at
campfireaudio.com
campfire audio® names and logos are
protected by USA Copyright and trademark
and other global copyright protections
