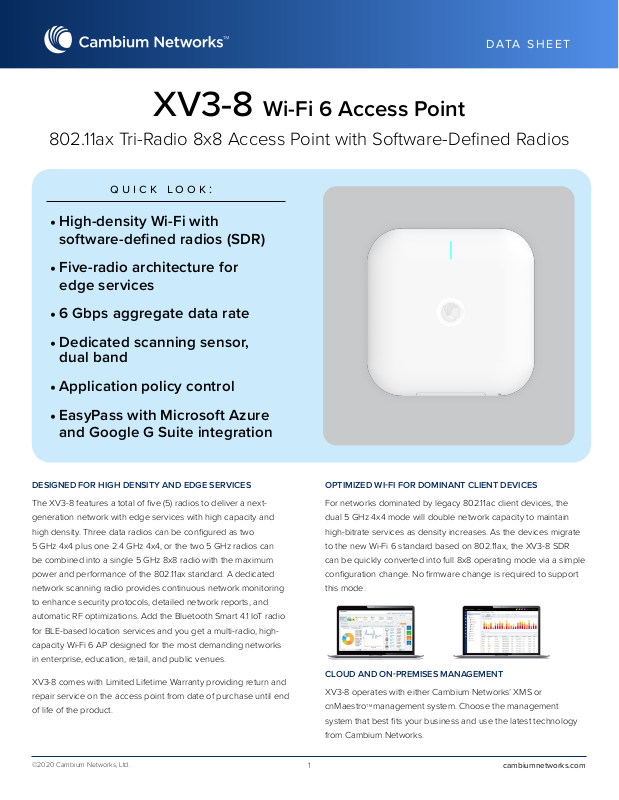

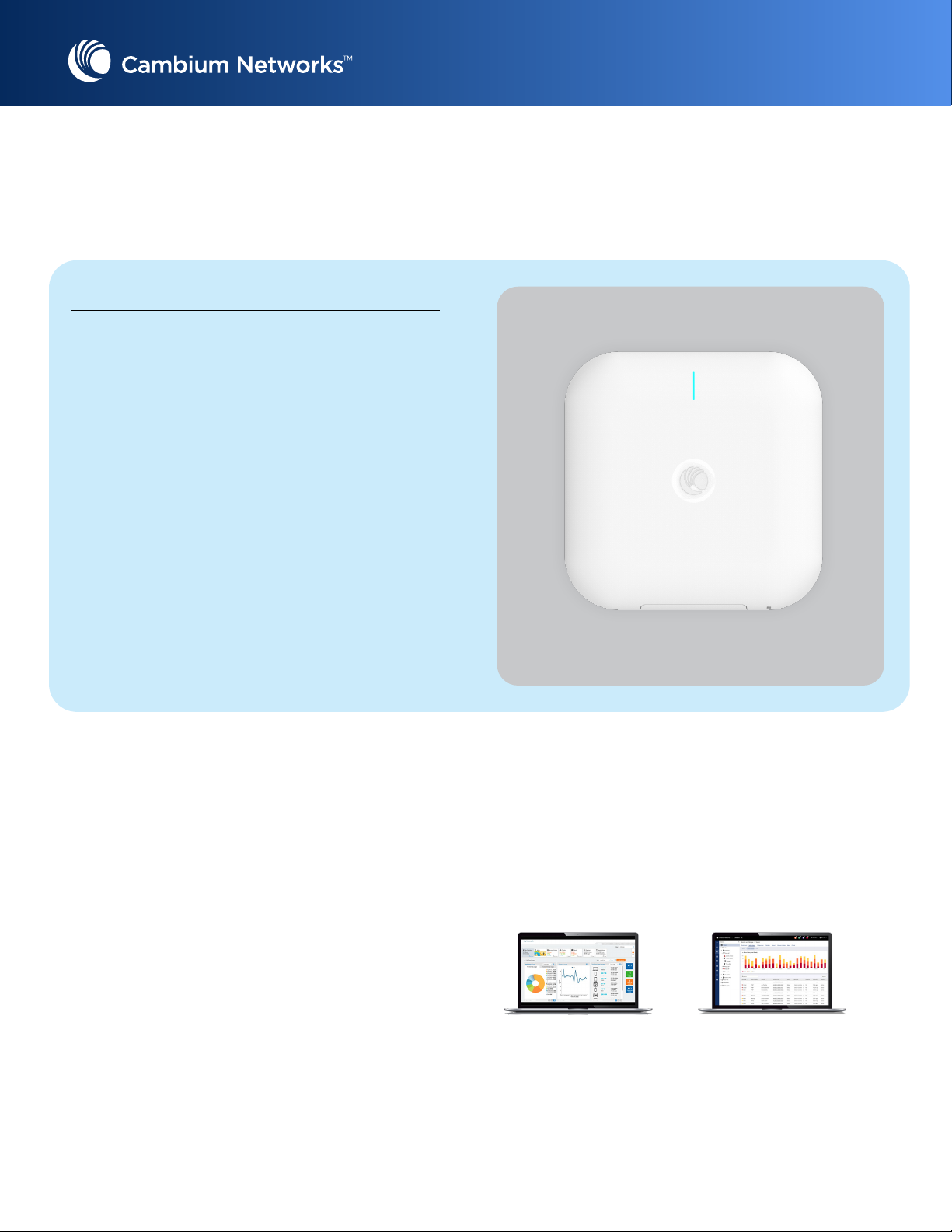

XV3-8 Wi-Fi 6 Access Point

802.11ax Tri-Radio 8x8 Access Point with Software-Deﬁned Radios

 :

• High-density Wi-Fi with software-deﬁned radios (SDR)

• Five-radio architecture for edge services

• 6 Gbps aggregate data rate

• Dedicated scanning sensor,

dual band

• Application policy control

• EasyPass with Microsoft Azure

and Google G Suite integration

DESIGNED FOR HIGH DENSITY AND EDGE SERVICES

The XV3-8 features a total of ﬁve (5) radios to deliver a next-

generation network with edge services with high capacity and

high density. Three data radios can be conﬁgured as two

5 GHz 4x4 plus one 2.4 GHz 4x4, or the two 5 GHz radios can

be combined into a single 5 GHz 8x8 radio with the maximum

power and performance of the 802.11ax standard. A dedicated

network scanning radio provides continuous network monitoring

to enhance security protocols, detailed network reports, and

automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio

for BLE-based location services and you get a multi-radio, high-

capacity Wi-Fi 6 AP designed for the most demanding networks

in enterprise, education, retail, and public venues.

XV3-8 comes with Limited Lifetime Warranty providing return and

repair service on the access point from date of purchase until end

of life of the product.

OPTIMIZED WIFI FOR DOMINANT CLIENT DEVICES

For networks dominated by legacy 802.11ac client devices, the

dual 5 GHz 4x4 mode will double network capacity to maintain

high-bitrate services as density increases. As the devices migrate

to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR

can be quickly converted into full 8x8 operating mode via a simple

conﬁguration change. No ﬁrmware change is required to support

this mode.

CLOUD AND ONPREMISES MANAGEMENT

XV3-8 operates with either Cambium Networks’ XMS or

cnMaestro

system that best ﬁts your business and use the latest technology

from Cambium Networks.

management system. Choose the management

cambiumnetworks.com

Page 2

Access Point Specifications

Note: Some features will be included on subsequent ﬁrmware releases.

DATA SHEET

XV3-8 Wi-Fi 6 Access Point

FCC Ch 1-11, 36-48, 52-64, 100-144, 149-165

ISED Ch 1-11, 36-48, 52-64, 100-144, 149-165

ETSI Ch 1-13, 32-48, 52-64, 100-144

ROW (Individual country limits may apply)

Ch 1-14, 36-48, 52-64, 100-144, 149-165

Radios

Wi-Fi 802.11 a/b/g/n/ac Wave 2/ax

SSID Security

Max PHY Rate

2.4 GHz: 802.11 b/g/n/ax, 4x4

5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8

(or conﬁgure as two 4x4)

2.4/5 GHz scan, 1x1

BLE 4.1

WPA3, WPA2 (CCMP, AES, 802.i), WPA2

Enterprise (802.x/EAP), WPA PSK (TKIP), Open

2.4 GHz: 1,147 Mbps

5 GHz: 4,804 Mbps

Power

Dimensions

Weight 1,250 g (2.76 lbs)

Security Kensington lock slot

LEDs Multi-color status LEDs

Ambient Operating Temperature

Storage Temperature

Humidity 95% RH non-condensing

Max power with USB/BLE, 35 W (802.3bt)

802.3at mode with USB/BT disabled

12 VDC power, 2.1 mm (.083 in)

barrel connector

235 mm x 235 mm x 42 mm (9.25 in x 9.25 in x 1.65 in)

0ºC to 50ºC (32ºF to 122ºF)

-20ºC to 70ºC (-4ºF to 158ºF)

Ports 1 x IEEE 802.3 10/100/1000 Mbps

1 x IEEE 802.3bz 100/1000/2500/5000 Mbps

Auto sensing MDIX

1 x USB 3.0

1 x Serial Console (4 pin)

Antenna

Max EIRP 2.4 GHz: 31 dBm

2.4 GHz: 5 dBi

5 GHz: 6.7dBi

2.4/5 GHz: sensor 5 dBi / 6.3 dBi

BLE 5 dBi

5 GHz: 36 dBm

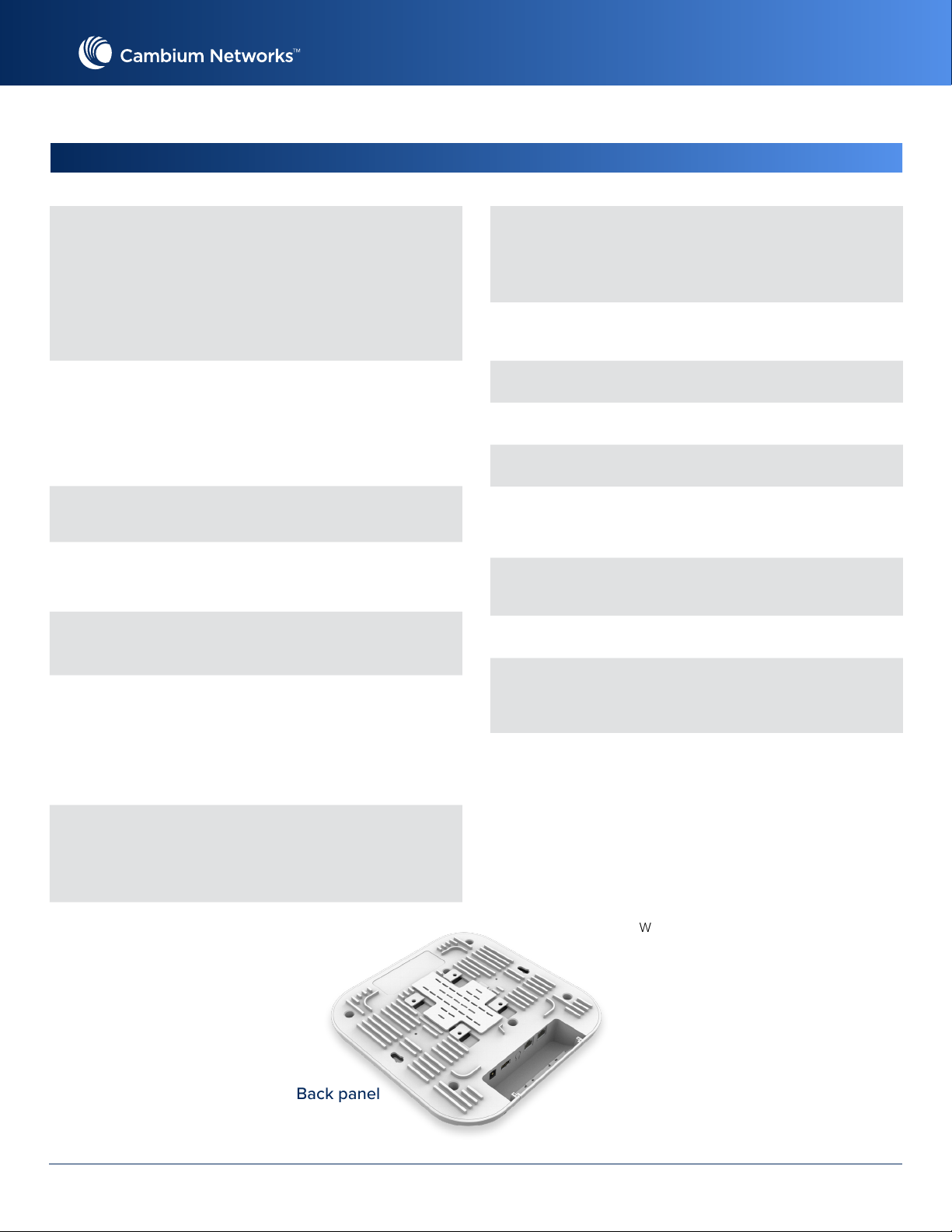

Back panel

Mount Options

Certiﬁcations

(Compliance)

Wall or ceiling, T-bar with included

locking bracket, ceiling tile plate

Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0,

FCC, IC, CE, EN 60601-1-2, EN 60950-1,

IEC 62368-1 Safety, EN 60601-1-2

Medical, EN 61000-4-2/3/5 Immunity, EN

50121-1 Railway EMC, EN 50121-4 Railway

Immunity, IEC 61373 Railway Shock &

Vibration, UL 2043 Plenum,

EN 62311 Human Safety/RF Exposure,

WEEE & RoHS

cambiumnetworks.com2

Page 3

Management

DATA SHEET

XV3-8 Wi-Fi 6 Access Point

Note: Some features will be included on subsequent ﬁrmware releases.

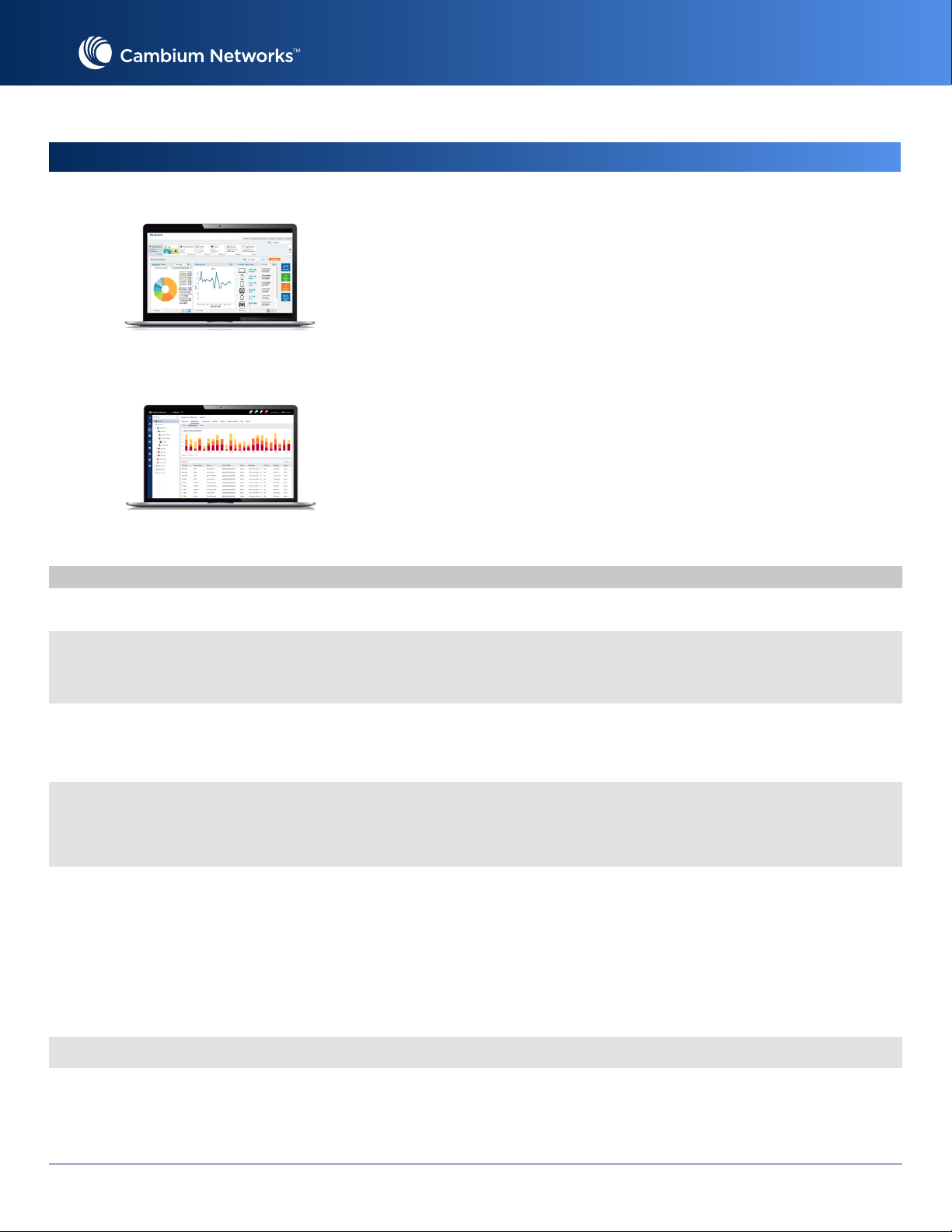

Cambium XMS leverages intelligent access points (AP) with embedded edge

controller to deliver edge services at any network density. The XMS management

plane is a cloud-ﬁrst technology with a simple and easy-to-use interface

delivering application L7 policy-based control, EasyPass BYOD secure access,

and an MSP dashboard with drag and drop design.

XMS management architecture supports SDR to operate the XV3-8 radio in either

single 5 GHz 8x8 or dual 5 GHz 4x4.

Cambium cnMaestro uses a distributed intelligence architecture with cloud-ﬁrst

management and edge-intelligent APs that self-optimize for the RF environment.

cnMaestro delivers a single pane-of-glass management for Cambium broadband

ﬁxed wireless, cnMatrix Ethernet switches, enterprise-grade Wi-Fi APs and

service provider residential routers.

Cambium XMS Management Cambium cnMaestro Management

Deployment Xirrus Management System (XMS-Cloud) cnMaestro Cloud, cnMaestro on-premises, Standalone AP

SDR

Services

APIs RESTful management and statistics API

Captive Portal

Yes,

SDR operation on the 5 GHz band

Conﬁgure as a single 8x8 radio or dual 5 GHz, 4x4

Deep Packet Inspection (DPI) Application Visibility and Control for 2,000+ apps

EasyPass Access Services

Location API

Web Page Redirect, landing page, redirect to internal or external server, landing page and authentication

Client isolation per SSID, per network

Client rate limiting per SSID

Click-through authentication

Microsoft Azure and Google G Suite SSO integration

No,

The 5 GHz operates as a single 802.11ax, 8x8

Monetized, cloud-managed guest portal with design tools

RESTful management and statistics API

Location API

Webhooks

Hosted on cnMaestro

On-AP hosted guest portal

Redirect to HTTP/RADIUS external portal/authentication

Active Directory integration, Google, Facebook, Oce 365 integration

Data rate, time duration, data throughput limit

Server DNS logging, Hotspot 2.0 / Passpoint 2.0

Accounting RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM

cambiumnetworks.com3

Page 4

Network Specifications

DATA SHEET

XV3-8 Wi-Fi 6 Access Point

Note: Some features will be included on subsequent ﬁrmware releases.

Operational Modes

WLAN

Captive Portal

Authentication Encryption

Scheduled WLAN

Guest Access

Data Limit

Subscriber QoS

Fast Roaming

Standalone

Cloud managed cnMaestro or VM

Cloud managed XMS

1,024 clients, 16 SSIDs

WPA3, WPA-TKIP, WPA2 AES, 802.1x,

802.11w PMF

Hosted on cnMaestro or External

On-AP hosted guest portal

Redirect to HTTP/RADIUS

Server DNS logging

802.x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS,

EAP-TLS MAC authentication to

local database or external RADIUS

On/o by day, week, time of day

EasyPass guest self-registration, guest

Ambassador, ePSK, Vouchers, Rate Limit,

Splash page hosted on AP or cnMaestro

Client isolation per SSID, per network

Client bitrate/time/throughput limit per SSID

WMM

802.11r, OKC, Enhanced roaming

Mesh Multi-hop, either band

Channel Selection

RF Management

Network

Band Steer Load Balance

Tunnel

Network and RF Management Tools

Services

Multimodal channel selection with

AutoChannel and AutoBand. Granular

control of o-channel scan and channel

selection

Multimodal RF optimization supporting

AutoCell performed in the intelligent edge

AP. Out-of-band RF spectrum analysis, radio

self test network assurance, RF monitor with

chn/noise/interference

Data rate pruning and minimum data rates

TCP connection log, NAT logging ﬁrewall,

DHCP server, L2, L3 or DNS based access

control, VLAN Pooling, RADIUS attribute VID

VLAN per SSID per user

Ye s

L2TP, L2oGRE, PPPoE

Wired and wireles remote packet capture,

auto logging, ZapD performance tool,

rogue AP detection

NTP, Syslog, SNMP traps, DNS proxy,

auto-o on WAN failure

Standards

Wi-Fi Protocols

VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz

TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO

IEEE 802.11 a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w

cambiumnetworks.com4

Page 5

XV3-8 Wi-Fi 6 Access Point

DATA SHEET

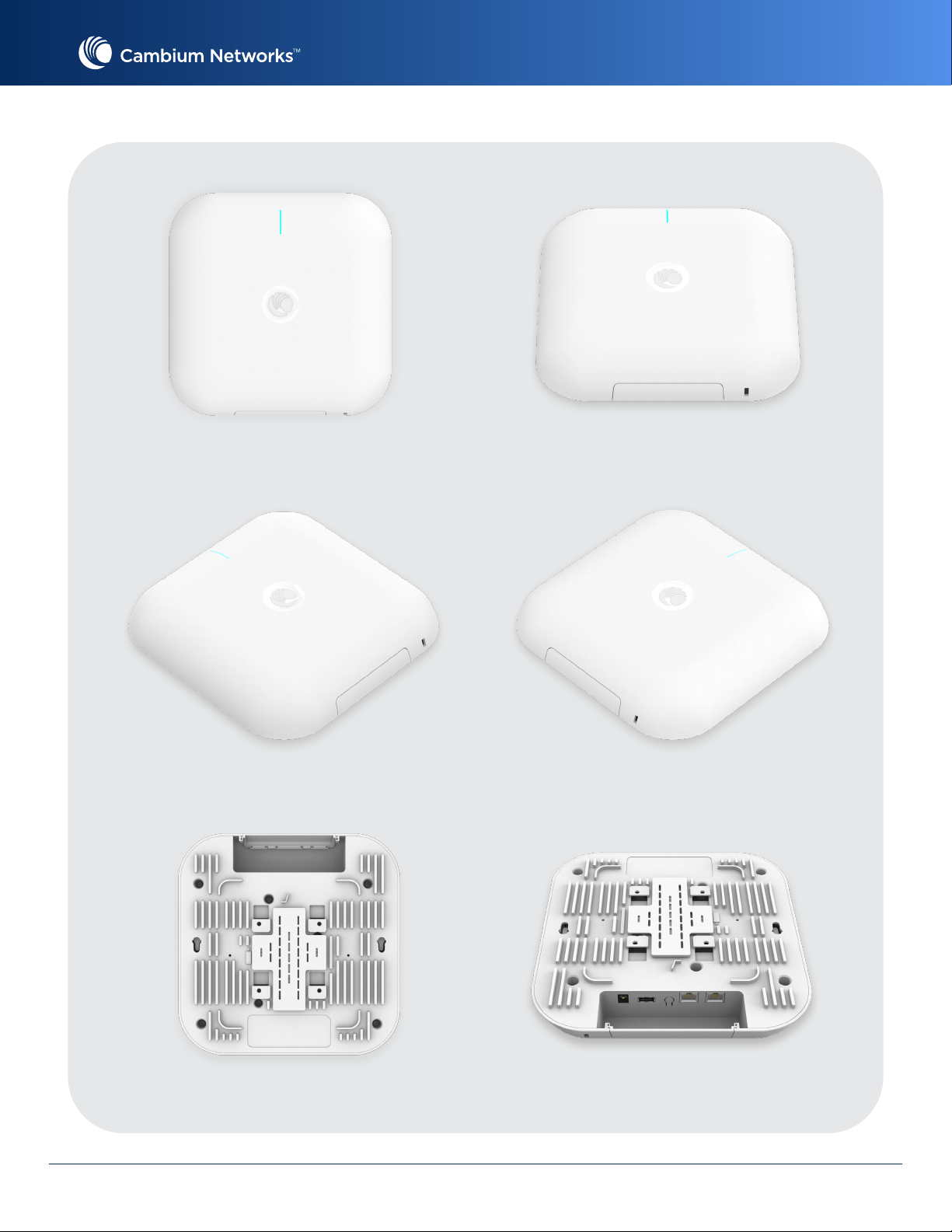

Top view

Left side

Top view

Right side

Back panel

cambiumnetworks.com5

Page 6

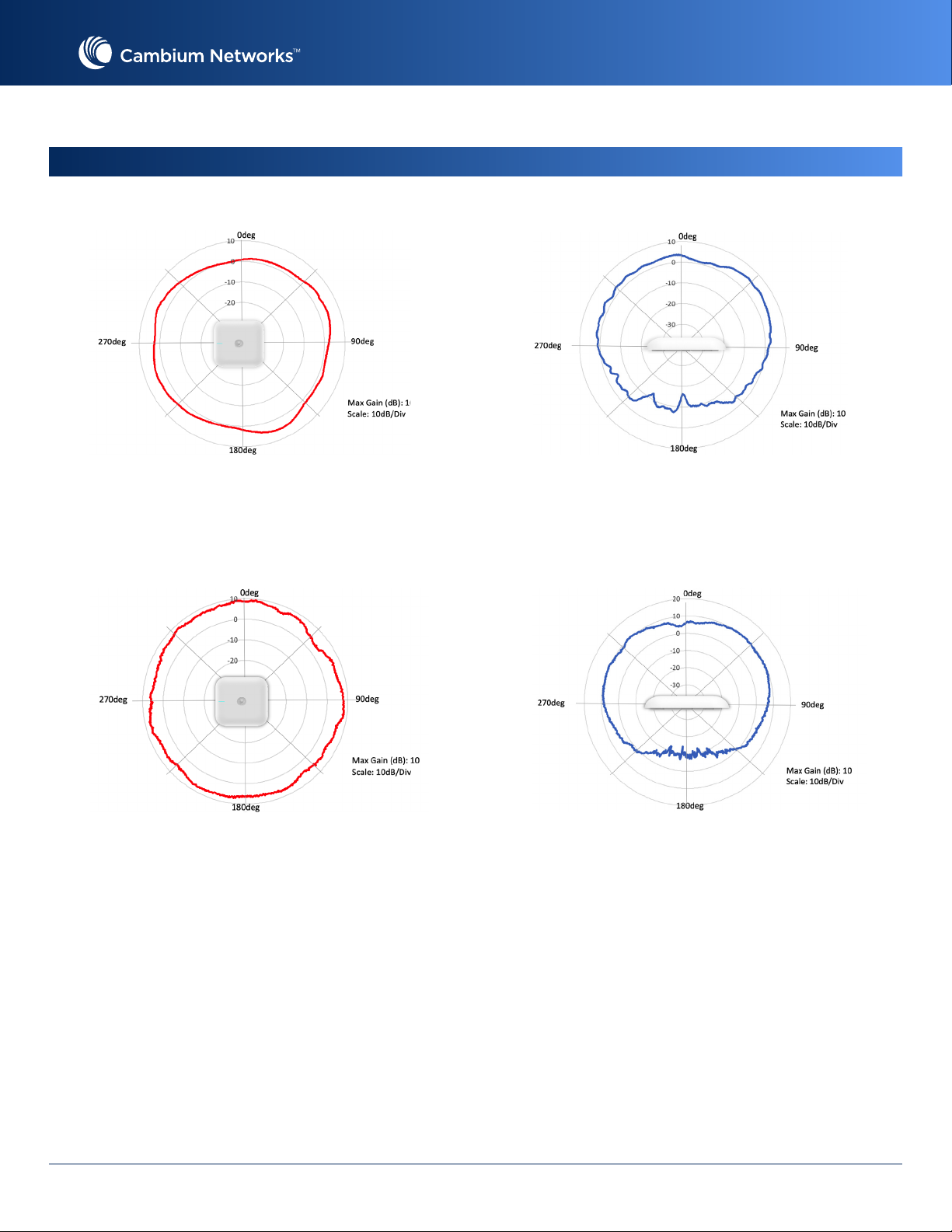

Antenna Patterns

DATA SHEET

XV3-8 Wi-Fi 6 Access Point

2.4 GHz Azimuth

5 GHz Azimuth

2.4 GHz Elevation

5 GHz Elevation

cambiumnetworks.com6

Page 7

DATA SHEET

XV3-8 Wi-Fi 6 Access Point

Cambium Ordering Information

Regulatory Model REG-XV3-8

XV3-8X00A00-US XV3-8 Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, US

XV3-8X00A00-CA XV3-8 Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, CA

XV3-8X00A00-EU XV3-8 Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, EU

XV3-8X00A00-RW XV3-8 Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, RW

XMSC-SUB-2R-1

XMSC-SUB-2R-3

XMSC-SUB-2R-5

EASY-SUB-2R-1 EasyPass 1-year subscription for a 2-radio AP operating with XMS-Cloud or XMS-Enterprise

EASY-SUB-2R-3 EasyPass 3-year subscription for a 2-radio AP operating with XMS-Cloud or XMS-Enterprise

EASY-SUB-2R-5 EasyPass 5-year subscription for a 2-radio AP operating with XMS-Cloud or XMS-Enterprise

CCADV-SUP-XV3-8-1

CCADV-SUP-XV3-8-3

XMS-Cloud 1-year subscription: 2-radio AP with EasyPass Guest Self-Registration and

Guest Ambassador modules and Cambium Care Advanced Support

XMS-Cloud 3-year subscription: 2-radio AP with EasyPass Guest Self-Registration and

Guest Ambassador modules and Cambium Care Advanced Support

XMS-Cloud 5-year subscription: 2-radio AP with EasyPass Guest Self-Registration and

Guest Ambassador modules and Cambium Care Advanced Support

Cambium Care Advanced, 1-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support, SW updates,

and NBD advance replacement for HW

Cambium Care Advanced, 3-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support, SW updates,

and NBD advance replacement for HW

CCADV-SUP-XV3-8-5

CCPRO-SUP-XV3-8-1 Cambium Care Pro, 1-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support and SW updates

CCPRO-SUP-XV3-8-3 Cambium Care Pro, 3-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support and SW updates

CCPRO-SUP-XV3-8-5 Cambium Care Pro, 5-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support and SW updates

Cambium Care Advanced, 5-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support, SW updates,

and NBD advance replacement for HW

cambiumnetworks.com7

Page 8

XV3-8 Wi-Fi 6 Access Point

Cambium Ordering Information

AX-E510RBKT-WW Shock mount bracket for cnPilot e510 and e505, Wi-Fi 6 XV3-8

N000000L142A PoE injector, 60 W, 5 GbE, Indoor, Energy Level 6 Supply

N000900L031A Cable UL Power Supply Cord Set, 720 mm, US

N000900L032A Cable UL Power Supply Cord Set, 720 mm, US

N000900L033A Cable UL Power Supply Cord Set, 720 mm, UK

N000900L034A Cable UL Power Supply Cord Set, 720 mm, BR

N000900L011A Cable UL Power Supply Cord Set, 720 mm, ANZ

DATA SHEET

N000900L012A Cable UL Power Supply Cord Set, 720 mm, IN

N000900L013A Cable UL Power Supply Cord Set, 720 mm, AR

N000900L015A Cable UL Power Supply Cord Set, 720 mm, CN

ABOUT CAMBIUM NETWORKS

Cambium Networks empowers millions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and

government network operators as well as broadband service providers to connect people, places and things. With a single network architecture

spanning ﬁxed wireless and Wi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end

cloud management transforms networks into dynamic environments that evolve to meet changing needs with minimal physical human

intervention. Cambium Networks empowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work.

cambiumnetworks.com

10232020
