Page 1

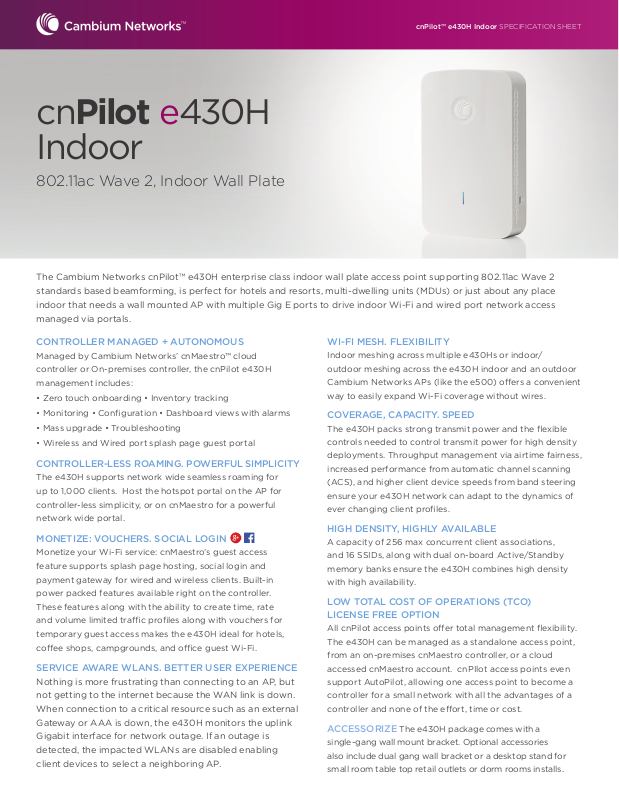

cnPilot™ e430H Indoor SPECIFICATION SHEETcnPilot™ e430H Indoor SPECIFICATION SHEET

cnPilot e430H Indoor

802.11ac Wave 2, Indoor Wall Plate

The Cambium Networks cnPilot™ e430H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.

CONTROLLER MANAGED + AUTONOMOUS

Managed by Cambium Networks’ cnMaestro™ cloud controller or On-premises controller, the cnPilot e430H management includes:

• Zero touch onboarding • Inventory tracking

• Monitoring • Conﬁguration • Dashboard views with alarms

• Mass upgrade • Troubleshooting

• Wireless and Wired port splash page guest portal

CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY

The e430H supports network wide seamless roaming for up to 1,000 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network wide portal.

MONETIZE: VOUCHERS. SOCIAL LOGIN

Monetize your Wi-Fi service: cnMaestro’s guest access feature supports splash page hosting, social login and payment gateway for wired and wireless clients. Built-in power packed features available right on the controller. These features along with the ability to create time, rate and volume limited trac proﬁles along with vouchers for temporary guest access makes the e430H ideal for hotels, coee shops, campgrounds, and oce guest Wi-Fi.

SERVICE AWARE WLANS. BETTER USER EXPERIENCE

Nothing is more frustrating than connecting to an AP, but not getting to the internet because the WAN link is down. When connection to a critical resource such as an external Gateway or AAA is down, the e430H monitors the uplink Gigabit interface for network outage. If an outage is detected, the impacted WLANs are disabled enabling client devices to select a neighboring AP.

WI-FI MESH. FLEXIBILITY

Indoor meshing across multiple e430Hs or indoor/ outdoor meshing across the e430H indoor and an outdoor Cambium Networks APs (like the e500) oers a convenient way to easily expand Wi-Fi coverage without wires.

COVERAGE, CAPACITY. SPEED

The e430H packs strong transmit power and the ﬂexible controls needed to control transmit power for high density deployments. Throughput management via airtime fairness, increased performance from automatic channel scanning (ACS), and higher client device speeds from band steering ensure your e430H network can adapt to the dynamics of ever changing client proﬁles.

HIGH DENSITY, HIGHLY AVAILABLE

A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e430H combines high density with high availability.

LOW TOTAL COST OF OPERATIONS (TCO) LICENSE FREE OPTION

All cnPilot access points oer total management ﬂexibility. The e430H can be managed as a standalone access point, from an on-premises cnMaestro controller, or a cloud accessed cnMaestro account. cnPIlot access points even support AutoPilot, allowing one access point to become a controller for a small network with all the advantages of a controller and none of the eort, time or cost.

ACCESSORIZE The e430H package comes with a

single-gang wall mount bracket. Optional accessories also include dual gang wall bracket or a desktop stand for small room table top retail outlets or dorm rooms installs.

Page 2

cnPilot™ e430H Indoor SPECIFICATION SHEET

SPECIFICATIONS

802.11 CAPABILITIES

802.11AC 2x2:2:2, MIMO, MU-MIMO, VHT MCS rates, 256-QAM, HT20/40/80 MHz, Transmit Beam steering, Airtime Fairness Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC, MIMO Power Save, MRC 802.11a/b/g/n/ac; 802.11h/d/r/u/w

ACCESS POINT SPECIFICATIONS

Operating RF Frequency

SSID Security WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP),

Max Phy Rate 2.4 GHz radio: 400 Mbps

BLE Integrated BLE radio

RJ45 Ports Four IEEE Gigabit Ethernet auto sensing

Antenna Integrated dual polarized, omni

Max EIRP 2.4 GHz: 25.57 dBm

2.4 GHz to 2.4835 GHz

5.15 GHz – 5.875 GHz

WPA PSK, Open

5 GHz radio: 867 Mbps

Two pass-through shielded ports

3.57 dBi (2.4 GHz), 4.96 dBi (5 GHz)

5 GHz: 25.96 dBm

EIRP may be limited by individual country regulation

Physical Environmental

Power PoE In: 802.3at compliant. PSE port enabled

Certiﬁcations WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0

147mm x 94mm x 34mm 390 g Kensington lock slot Tri color status LED 0C - + 45C ambient op temp

-20C - + 70C storage temperature 95% RH non-condensing

PoE In: 802.3af compliant. PSE port enabled Auxiliary 48VDC input power, 2.5mm Typical: 9.6w Max: 25.5w at max duty with full load

802.3af compliant PSE port GE4

FCC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043

WLAN AND NETWORK SPECIFICATIONS

Controller Mode Controller-less standalone

AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM

WLAN 256 clients, 16 SSIDs

WPA-TKIP, WPA2 AES, 802.1x, 802.11i

802.11w PMF, client isolation

Captive Portal Hosted on cnMaestro Controller

On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging

Authentiﬁcation Hotspot 2.0/Passpoint 2.0

802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS

Accounting RADIUS accounting, multiple AAA

Scheduled W On/o by day, week, time of day

Guest Access Vouchers

Rate Limit Splash page hosted on AP or cnMaestro Client isolation per SSID, per network

Data Limit Client rate limit per SSID

Subscriber WMM

Fast Roaming 802.11r, OKC, Enhanced roaming

Mesh Multi-hop, either band

Channel Selection autoTune: Manual, or automatic

Selectable o-channel scan

Auto TX Power AutoRF: controller-less transmit power

Network NAT, NAT logging ﬁrewall, DHCP server

L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user

Band Steer Load Balancer

Tunnel L2TP, L2oGRE, PPPoE

Tools Remote Packet capture

Services NTP

Yes

Channel/noise/interference analyzer auto logging ZapD performance test tool rogue AP detection

Syslog SNMP traps DNS proxy auto-o on WAN failure

API RESTful management and statistics API

Presence location APIs

Page 3

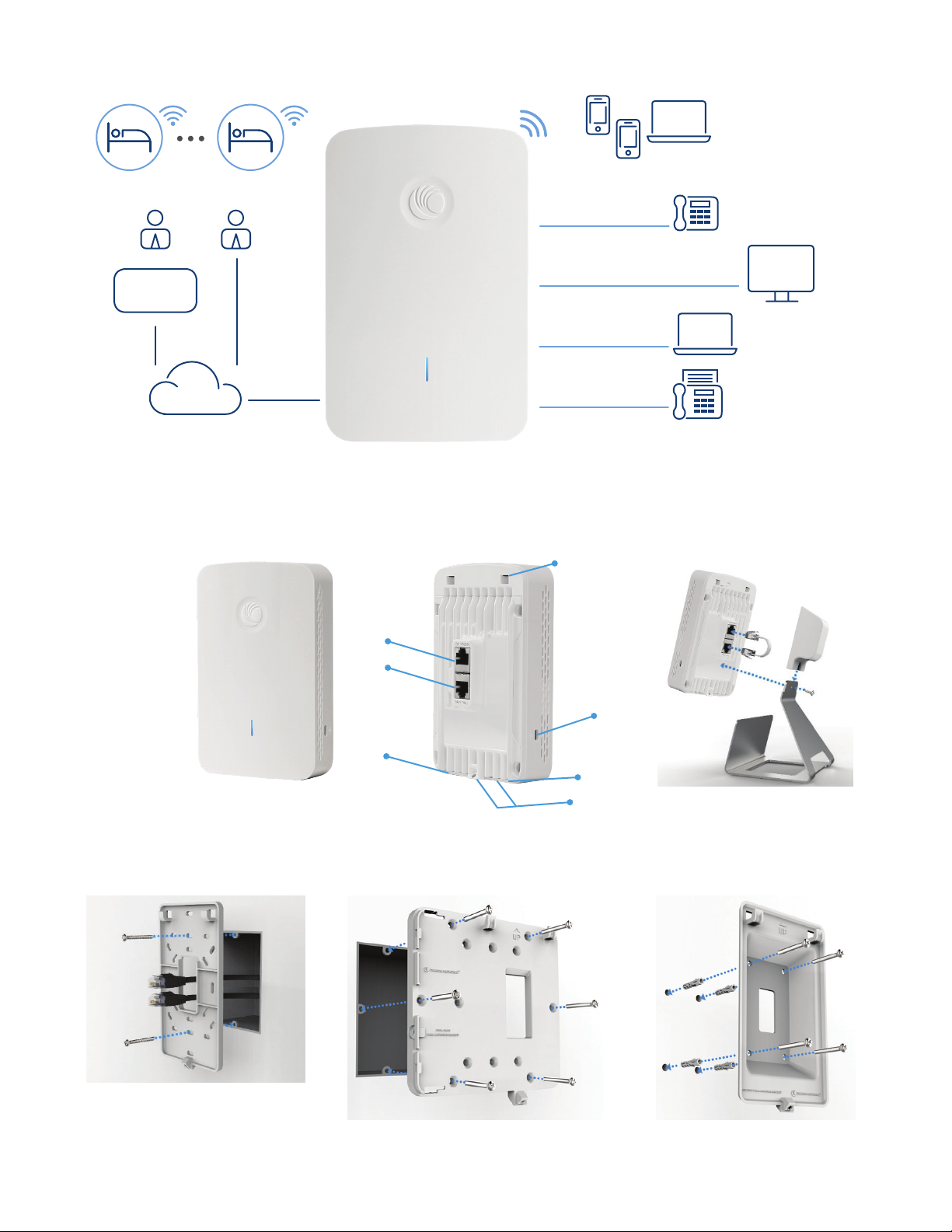

THE e430H SOLUTION ARCHITECTURE VIEW

Role Based Access Control

RADIUS

Authentication

Server

APIs

cnPilot™ e430H Indoor SPECIFICATION SHEET

PoE Powered

IP Phon e

connected clients

Eth

Wi-Fi Devices

Eth: IPT V

Set- top Box

cnMaestro Controller

e430H – Radio unit and Accessories (optional)

e430H radio front facing e430H radio rear facing Optional Accessory: Desktop stand

Dual ba nd 2x2 8 02.11ac Wave 2 MU- MIMO + I ntegra ted BLE

Eth1/In-wall unit

Pass-thru port

non-IP devices

Wall brac ket slots

Kensin gton lock s lot

Eth4: 80 2.3af PoE-o ut

Eth2, 3: Eth ernet p orts

Pass-thru

Optional Accessory: Single gang bracket

Optional Accessory:

Dual gang bracket

Optional Accessory:

Generic wall bracket

The e430H is designed to be powered by an external PoE injector. Alternatively, it may be powered by an external 48V/1A DC adaptor (sold separately). Other optional accessories are available for separate purchase

Page 4

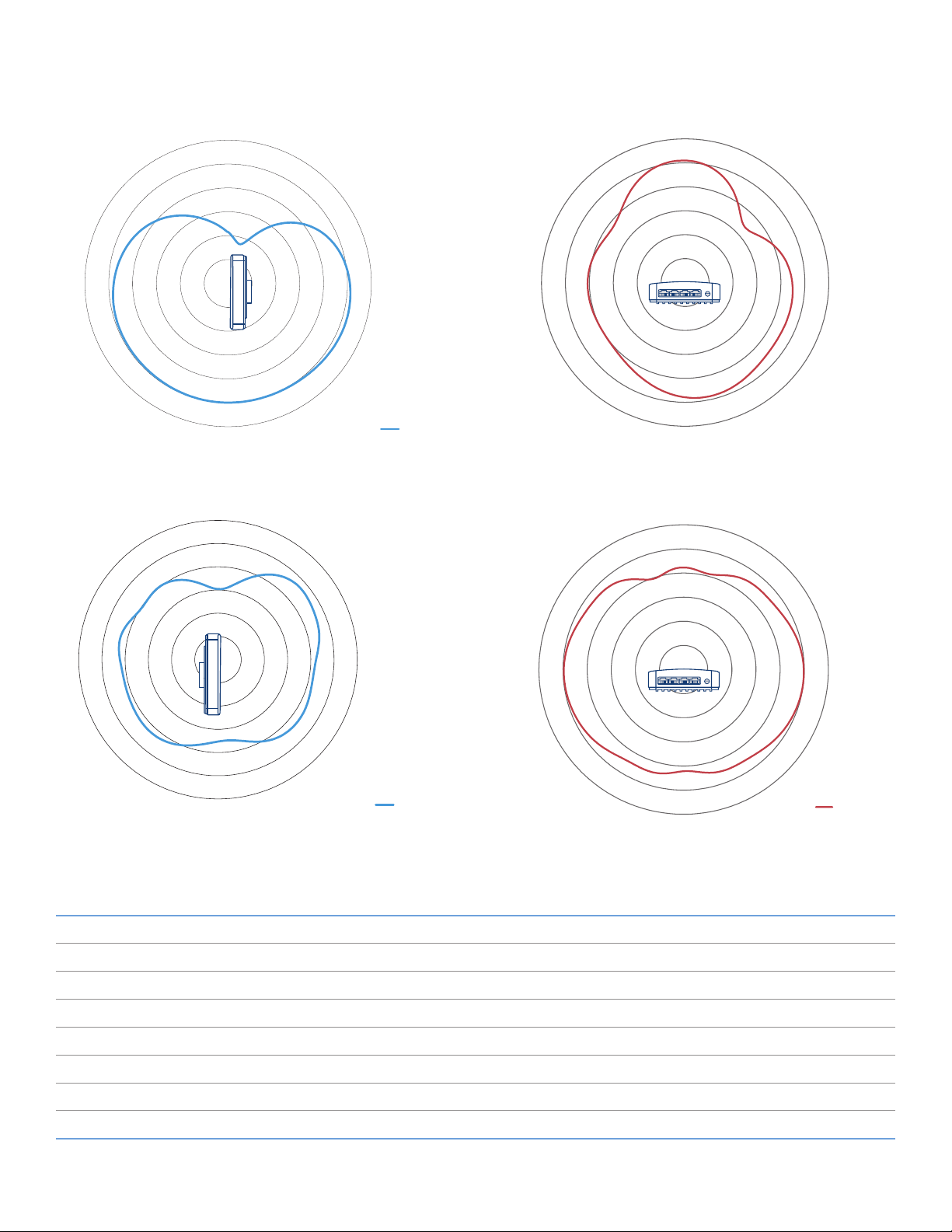

e430H Antenna Patterns

180

-90

2.45 GHz Azimuth

Front Side

180

-90

2.45_Elevaon

180

-90

5.5GHz Azimuth

E430_5.5_Azimuth

180

5.5 GHz Elevaon

E430_5.5_Elevaon

2.4 GHz Elevation 2.4 GHz Azimuth

Angle

-30

-60

-5

-10

-15

-20

cnPilot™ e430H Indoor SPECIFICATION SHEET

BoomSide

-30

-60

10.0

-10.0

-15.0

-20.0

5.0

0.0

-5.0

-120 120

-120

120

TopSide

-150

150

-150

E430_2.45_Elevao

150

5 GHz Elevation 5 GHz Azimuth

Angle

-30

-60

-90

-120

-5

-10

-15

-20

Boom Side

120

-30

-60

-120

-5

-10

-15

-20

Front Side

120

TopSide

-150

150

-150

150

Regulatory Model Number (common to all sales part #s): REG-PL-E430H

Sales part # Description

PL-E430H00A-US cnPilot e430H Indoor (FCC) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket

PL-E430H00A-CA cnPilot e430H Indoor (CA) 802.11ac wave 2, Wall Plate, WLAN AP w/single-gang wall bracket. Canada

PL-E430H00A-EU cnPilot e430H Indoor (EU) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket

PL-E430H00A-RW cnPilot e430H Indoor (ROW) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket

PL-E430H00A-IL cnPilot e430H Indoor (Israel) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket

Discover more information on cnPilot WLAN solutions at: http://community.cambiumnetworks.com/

cnPilot e430H Indoor 12182018
