PROBE BODY w/2 mm TIP & SAFETY CAP
3900B SERIES
CT3974B
USER GUIDE
CAL TEST ELECTRONICS
CT3974B Probe Body with 2 mm Tip & Safety Cap, User Guide
© Cal Test Electronics. All rights reserved.
Cal Test Electronics products are covered by US and foreign patents, issued and pending.
Information on this publication supersedes all earlier versions. Specications are subject to
change without notice.
Made in Taiwan
SYMBOLS AND TERMS
The following symbols may appear on the product or in the documentation.
Caution Symbol (ISO 7000-0434) – Statements or instructions that
must be consulted in order to nd out the nature of the potential
hazard and any actions which must be taken.
Ce symbole de mise en garde (ISO 7000-0434) – indique qu’il
faut consulter les instructions an de déterminer la nature du danger
potentiel et déterminer toutes les mesures adaptées à prendre.
CAUTION
MISE EN GARDE
WARNING
AVERTISSEMENT
A statement calling attention to an operating procedure, practice, or
condition, which if not followed correctly, could result in damage to or
destruction of parts or the entire product.
Une mise en garde attire l’attention sur une procédure, une pratique
ou une condition d’utilisation qui, si elles ne sont pas suivies
correctement, pourraient endommager ou détruire une partie du
produit ou le produit entier.
A statement calling attention to an operation procedure, practice, or
condition, which if not followed correctly, could result in injury or death
to personnel.
Un avertissement attire l’attention sur une procédure, pratique
ou condition de fonctionnement qui, si elles ne sont pas suivies
correctement, pourraient entraîner des blessures, voire la mort de
l’utilisateur.
DEFINITIONS
POLLUTION (P) – addition of foreign matter solid, liquid or gaseous (ionized gases), that may
product a reduction of dielectric strength or surface resistivity.
• Degree 2 (P2) – only non-conductive pollution occurs except that
occasionally a temporary conductivity caused by condensation is
MEASUREMENT CATEGORY (CAT) – classifcation of testing and measuring circuit
expected.
according to the type of mains circuits to which they are intended to be connected.
• CAT II – measuring circuits connected to utilization points of the lowvoltage mains installation.
• CAT III – measuring circuits connected to distribution part of the building’s
low-voltage mains installation.
• CAT IV – measuring circuits connected at the source of the building’s lowvoltage mains installation.
2
CAL TEST ELECTRONICS
GENERAL SAFETY INFORMATION
• Safety is compromised if instructions are not read, understood, and followed.
WARNING
AVERTISSEMENT
• Disconnect from all devices and sources before attaching test leads or adapters.
• Check for damage before usage – Do not use if any part is damaged.
• Do not use in wet or explosive atmospheres.
WARNING
AVERTISSEMENT
WARNING
AVERTISSEMENT
• If the probe assembly is used in a manner not specied by this user guide, the protections
provided may be impaired.
Never exceed the maximum voltage, current, or measurement
category of the probe and adapter assembly as congured for usage.
Ne jamais dépasser la tension maximale, le courant, ou le
catégorie de mesure de la sonde ou du produit assemblé.
Due to the high short-circuit currents which can be followed by
high energy levels in measurement categories CAT III and CAT IV,
measurements made within these locations are extremely dangerous.
Great precautions shall be made to avoid any chance of a shortcircuit.
Du fait des courants de court-circuit élevées qui se
traduisent par des niveaux d’énergie élevés dans les
catégories de mesure CAT III et CAT IV, les mesures faites
dans ces conditions sont extrêmement dangereuses.
Prendre toutes les précautions nécessaires pour éviter les
courts-circuits.
The measurement category of a combination of the probe, test lead,
and tip adapter is the lower of the assembled products.
La catégorie de mesure d’un produit constitué d’une
sonde, d’un câble, d’un adaptateur, est la catégorie la plus
faible d’un des composants du produit (sonde, câble ou
adaptateur).
3
CAL TEST ELECTRONICS
DESCRIPTION
The CT3974B is a UL listed DMM Probe Body featuring a Ø2 x 19 mm long test tip and a 4
mm sheathed banana jack. The probe body can be attached to most test leads featuring a 4
mm sheathed banana plug.
• CT3974B-# Probe Body # : 0 black / 2 red
The probe’s tip is covered by a Locking Tip Cover which limits exposure to <4 mm for use in
CAT III and IV environments. The tip cover can be removed to allow use as a test point or for
attaching (optional) accessories.
SPECIFICATIONS
Voltage: 1000 V CAT III / 600 V CAT IV with Locking Tip Cover in-place
1000 V CAT II without Locking Tip Cover (removed)
Current: 10 A Max.
Operating Temperature: 5° C to 40° C; RH 80% Max.
Storage Temperature: -10° C to 55° C
Pollution Degree: P2
Altitude: 2000 m
SAFETY COMPLIANCE
UL Listed per UL 61010-031:2015 (2nd Edition)
CE COMPLIANCE
Low-Voltage Directive (LVD) 2014/35/EU
Standard EN 61010-031:2015
Reduction of Hazardous Substances Directive (RoHS 2) 2011/65/EU + AMD 2015/863
ANNEX III Exemption 6(c)
4
CAL TEST ELECTRONICS

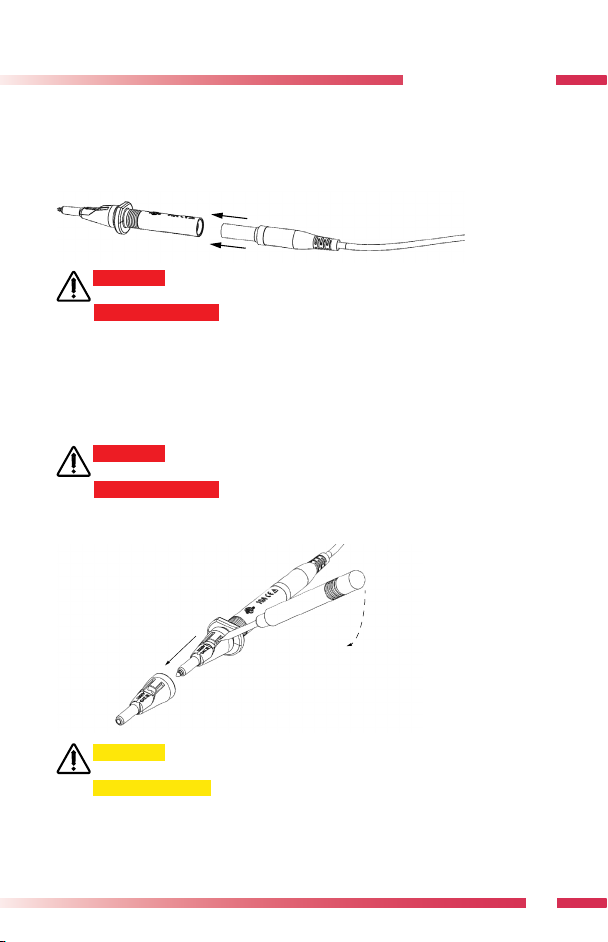

INSTRUCTION FOR USE
Test Lead Connection:
• Insert 4 mm sheathed banana plug lead (supplied separately) into the probe body’s 4 mm
sheathed jack, seating completely.
WARNING
AVERTISSEMENT
Probing:
• Keep hands and ngers behind nger-guard during usage.
Locking Tip Cover Removal:
WARNING
AVERTISSEMENT
• Use small at-blade screwdriver, or similar tool, to carefully lift locking tab and then slide cover
forward and o.
CAUTION
MISE EN GARDE
Sheathed banana plug and lead wire must be of equal or greater
voltage and measurement category rating to maintain safety rating.
Les ches bananes mâles Ø4mm droites de sécurité et les
câbles doivent être de tension et de catégorie supérieures ou
égales à la tension et la catégorie de mesure an d’assurer la
sécurité globale.
Locking tip cover must be in place when probing in CAT III and CAT IV
measurement categories.
L’embout de protection de la pointe doit être en place lors des
mesures dans les catégories de mesure CAT III et CAT IV.
Do not use excessive lifting force on locking tab or permanent damage
may result.
Ne pas forcer en installant le dispositif de verrouillage, sinon
vous pouvez l’endommager de manière permanente.
CLEANING
Clean probe body with cloth lightly moistened with water only. Dry thoroughly before use.
5
INFORMATION
If you have a need for technical or sales support, please contact us.
Cal Test Electronics, Inc.
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
714-221-9330
www.caltestelectronics.com
UserMan_CT3974B_rB
