Cal Spas Inground Spas User Manual

LTR20091002, Rev. B
1/30/09
Preparing for Your New Inground Spa
Clear Water Plan
Inground Spa Installation Checklist.......4
Planning the Best Location For Your Spa...4 Planning the Best Place for the Outdoor
Equipment Pack.......................5
Inground Spa Site Preparation...........5
Electrical Requirements – US and Canada..6
GFCI Wiring Diagram ..................7
Electrical Installation -- Europe..........8
RCD Wiring Diagram ...................9
Installing the Inground Shell ...........10
Equipment Pack Plumbing Connections...11
Plumbing Connections ................11
Electrical and Electronic Connection .....13
Pouring the Deck.....................16
9800 Electronic Control Operation
Adjustable Jets ......................22
Diverter Knobs.......................22
Waterfalls ..........................22
Air Venturis .........................22
Testing and Adjusting Spa Water........24
Sanitation...........................25
Filter Cleaning .......................27
Bather Load . . . . . . . . . . . . . . . . . . . . . . . . .27
Starting the Spa with Fresh Water.......28
Maintenance Schedule ................29
Del Zone Eclipse Ozonator .............30
Troubleshooting Water Clarity Problems..31
Cleaning and Maintenance
Spa Cover...........................32
Draining Your Spa ....................33
Cleaning and Replacing the Filter........33
Winterizing (Cold Climate Draining) .....33
Cleaning the Cover, Shell and Pillows ....34
Appendix
Keeping Fit with your Cal Spa...........37

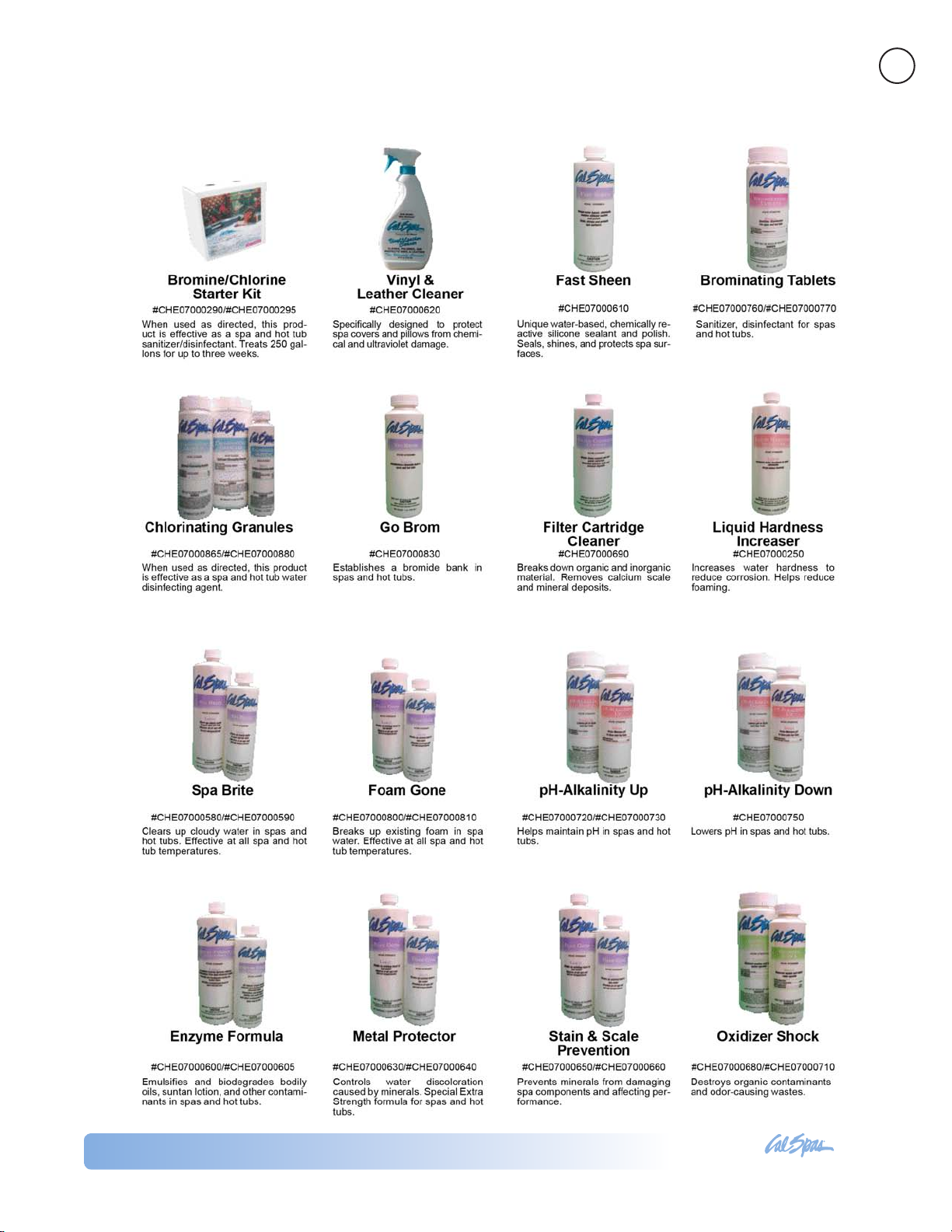

Cal Spas™ Chemicals..................39
Copyright 2008-2009 LMS, Inc. All rights reserved. Duplication without written consent is strictly prohibited.
Cal Spas® is a registered trademark.
Due to continuous improvement programs, all models, operation, and/or specications are
subject to change without prior notice.
LTR20091002, Rev. B 1/30/09
CONTACT INFORMATION For customer service, please contact
your authorized dealer immediately. If you need additional information and/ or assistance, please contact:
LMS Customer Service Department 1462 East Ninth Street Pomona, CA 91766.
Toll Free: 1-800-CAL-SPAS Fax: 1-909-629-3890
www.calspas.com
www. c al sp a s. co m
Important Safety Instructions
When installing and using this electrical equipment, always follow basic safety precautions. Following these instructions will help make your rst spa ses­sion a pleasurable one.
104˚F (40˚C) are considered safe for a healthy
adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
3
Read This First!
READ AND FOLLOW ALL INSTRUCTIONS
NOTE: A licensed electrician may be required to up­grade your standard receptacle and/or circuit break­er.
DANGER -- RISK OF ACCIDENTAL DROWN­ING: Do not allow children to be in or around a spa
unless a responsible adult supervises them. Keep the spa cover on and locked when not in use. See instructions enclosed with your cover for locking pro­cedures.
DANGER -- RISK OF INJURY: The suction ttings in this spa are sized to match the specic water ow
created by the pump. Should the need arise to re-
place the suction ttings, or the pump, be sure the ow rates are compatible.
DANGER -- RISK OF INJURY: Never operate the
spa if the suction tting or lter baskets are broken
or missing. DANGER -- RISK OF INJURY: Never replace a
suction tting with one that is rated less than the ow rate marked on the original suction tting.
DANGER -- RISK OF ELECTRIC SHOCK: Install
the spa at least ve feet (1.5 meters) from all metal
surfaces. As an alternative, a spa may be installed
within 5 feet of metal surfaces if each metal surface
is permanently bonded by a minimum #8 AWG solid copper conductor to the outside of the spa’s control box.
DANGER -- RISK OF ELECTRIC SHOCK: Do not permit any external electrical appliances, such as lights, telephones, radios, televisions, and etc., within ve feet (1.5 meters) of the spa. Never at­tempt to operate any electrical device from inside the spa. This does not apply to lights built in to the spa as factory options from Cal Spas™.
WARNING -- RISK OF INJURY
The spa water should never exceed 104˚F (40˚C). Water temperatures between 100˚F (38˚C) and
High water temperatures have a high potential for causing fetal damage during pregnancy. Women who are pregnant, or who think they are pregnant, should always check with their physician prior to spa usage.
The use of alcohol, drugs or medication before or during spa use may lead to unconsciousness, with the possibility of drowning.
Persons suffering from obesity, a medical history of heart disease, low or high blood pressure, circula­tory system problems or diabetes should consult a physician before using the spa.
Persons using medications should consult a physi­cian before using the spa since some medications may induce drowsiness while others may affect heart rate, blood pressure and circulation.
Hyperthermia Danger
Prolonged exposure to hot air or water can induce hyperthermia. Hyperthermia occurs when the inter-
nal temperature of the body reaches a level 3˚F to 6˚F above the normal body temperature of 98.6˚F (or 2˚C to 4˚C above 37˚C). While hyperthermia has many health benets, it is important not to allow your body’s core temperature to rise above 103˚F (39.5˚C). Symptoms of excessive hyperthermia in-
clude dizziness, lethargy, drowsiness and fainting. The effects of excessive hyperthermia may include:
Failure to perceive heat Failure to recognize the need to exit spa or hot
tub Unawareness of impending hazard Fetal damage in pregnant women Physical inability to exit the spa Unconsciousness
WARNING: The use of alcohol, drugs, or medi­cation can greatly increase the risk of fatal hyper­thermia.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
4

Preparing for Your New Inground Spa

Most cities and counties require permits for exterior construction and electrical circuits. In addition, some communities have codes requiring residential barriers such as fencing and/or self-closing gates on property to prevent unsupervised access to the property by children. Your dealer can provide information on which permits may be required and how to obtain them prior to the delivery of your Cal Spa.

Inground Spa Installation Checklist

Before Delivery

Planning the Best Location For Your Spa

Preparing for Your New Inground Spa
Safety First
Do not place your spa within 10 feet (3 m) of over­head power lines.
Make sure the spa is positioned so that access to the equipment compartment and all side panels will not be blocked. Be certain that your installation will meet all city and local safety codes and requirements.
Consider How You Will Use Your Spa
How you intend to use your spa will help you de­termine where you should position it. For example, will you use your spa for recreational or therapeutic purposes? If your spa is mainly used for family rec­reation, be sure to leave plenty of room around it for activity. If you will use it for relaxation and therapy,
you’ll probably want to create a specic mood around
it.
Plan for Your Environment
If you live in a region where it snows in the winter or rains frequently, place the spa near a house entry. By doing this, you will have a place to change clothes and not be uncomfortable.
Consider Your Privacy
In a cold-weather climate, bare trees won’t provide much privacy. Think of your spa’s surroundings dur­ing all seasons to determine your best privacy op-
Plan your delivery route Choose a suitable location for the shell and
equipment pack Excavate the hole Install dedicated electrical supply Install dedicated NG line for gas heater
After Delivery
Install shell in ground Install equipment pack Connect plumbing Connect electrical components Pour the deck
tions. Consider the view of your neighbors as well when you plan the location of your spa.
Provide A View With Your Spa
Think about the direction you will be facing when sitting in your spa. Do you have a special landscaped
area in your yard that you nd enjoyable? Perhaps
there is an area that catches a soothing breeze dur­ing the day or a lovely sunset in the evening.
Keep Your Spa Clean
Prevent dirt and contaminants from being tracked into your spa by placing a foot mat at the spa’s en­trance where the bather’s can clean their feet before entering your spa. You may also consider keeping a
small water-lled basin nearby for bathers to rinse
their feet before entering your spa. In planning your spa’s location, consider a location
where the path to and from the house can be kept clean and free of debris.
Allow For Service Access
Many people choose to install a decorative structure around their spa. If you are installing your spa with any type of structure on the outside, such as a gaze­bo, remember to allow access for service. It is always best to design special installations so that the spa can still be accessed.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Planning the Best Place for the Outdoor Equipment Pack

The Designer Spa series requires an external equip­ment pack. When locating the outdoor equipment pack, you will want to consider the following:
The equipment pack must be located within a
maximum of 15 feet from the spa.
owner’s manual for important location and safety
information.)
The equipment base and heater must be placed on either a 3 1/2” cement slab or 3” paving stones.
5
Preparing for Your New Inground Spa
Ensure the equipment running its normal ltra- tion cycles does not make too much noise for spa owners and/or neighbors.
Ensure the equipment can be easily serviced for lter cleaning and periodic inspections in the lo­cation chosen.
If you are using a gas heater, you will need to consider wind and drafts as well as heater ex-
haust for proper heater placement. (See heater

Inground Spa Site Preparation

Ensure there is enough room for the spa and equipment.
Plan for proper electrical and gas service to both the equipment area and spa side.
Ensure the required at, level foundation can be
constructed in the area chosen.
The spa must be properly back-lled with wet
sand, underneath and on all four sides. Never place any spa in a sealed area. Water must
be able either to be absorbed into the surround­ing area or channeled away. Water build-up un­der and/or around the spa, will cause the spa to
oat out of the ground.
Grading Prior to Excavation
Selection of the Designer Spas site will determine how much grading will have to be accomplished prior to the actual dig for the spa. Naturally, a level area is best because it will require the least amount of prep­aration for the dig, but in many cases there is no level area, therefore, the site must be prepared to accept the spa prior to dig. The spa site should be elevated slightly higher than the surrounding area.
When dealing with slopes, the severity of the slope will determine if retaining walls must be built in order to have a level area for the spa. If the slope is rela­tively minor, contact your local building safety.
Site Excavation – Hard Bottom
For hard bottom placement for inground spas, you
will need a smooth and at concrete surface at least
Make sure the equipment area selected will not be in an area where water could run or stand.
If the area receives direct sunlight, you will want to provide some protection for the equipment portion of the equipment pack.
The equipment pack and heater are delivered sepa­rately. Do not cover gas heaters unless properly vent-
ed. (See heater owner’s manual for important safety information.)
4” thick as large as the bottom contact points. Be sure not to seal the bottom off and making a sealed box. You will need adequate water drainage for es­cape under the spa. A gravel beds around the con­crete base will help with this.
Site Excavation – Sand Bottom
With the spa area and all elevations planned includ­ing your decided type of decking, you are now ready to proceed with the dig. An ideal excavation is one that is as close as possible to the dimensions of the spa shell, but with the following rules in mind. The excavation should be 2” to 4” deeper than the actual spa for your sand bed. The sand bed is to level the spa shell and provide a perfect support base with no voids when the spa is lowered into the hole. Your excavation should be approximately one foot longer and one foot wider than the spa shell. This will allow for a six inch over dig all the way around the spa once it is in place. Additional hand excavation will be re-
quired to insure the skimmer will t in the excavation
when attached to the spa. Sand or rock dust must be used to bed the shell into
the excavation and for backll. In no event is dirt to
be used. One of the easiest ways to know how much sand is needed to be placed on the bottom of the excavation is to set a grade stake at all four corners, and one on each side of the center line in the bottom of the hole. If there are areas that are deeper than
2” to 4”, these can be lled with sand and are of no
consequence.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
6

Electrical Requirements – US and Canada

All 240V spas must be permanently connected (hard wired) to the power supply. These instructions de-
scribe the only acceptable electrical wiring procedure. Spas wired in any other way will void your warranty and may result in serious injury. See the wiring dia­gram on page 7.
When installed in the United States, the electrical wiring of this spa must meet the requirements of Na­tional Electric Code, ANSI/NFPA 70-2008 and any ap­plicable local, state, and federal codes. The electrical circuit must be installed by an electrical contractor and approved by a local building / electrical inspec­tor.
GFCI and Wiring Requirements
The power supplied to the spa must be on a dedi­cated GFCI protected circuit as required by ANSI/ NFPA 70 with no other appliances or lights sharing the power.
Preparing for Your New Inground Spa
Use copper wire with THHN insulation. Do not use aluminum wire.
Use the table below to determine your GFCI and wir­ing requirements.
When NEC requires the use of wires larger than #6 AWG, install a junction box near the spa and use #6 AWG wire between the junction box and the spa.
Wire runs over 85 feet must increase wire gauge to the next lower number. For example: A normal 50
amp GFCI with four #8 AWG Copper wires run over 85 feet would require you to go to four #6 AWG cop­per wires.
Read and follow the heater manufacturer’s safety and installation instructions prior to installation and op­eration. Incorrect installation may damage the heater and void its warranty.
Testing the GFCI Breaker
Test the GFCI breaker prior to rst use and periodical­ly when the spa is powered. To test the GFCI breaker
follow these instructions (spa should be operating):
Press the TEST button on the GFCI. The GFCI will 1. trip and the spa will shut off.
Reset the GFCI breaker by switching the breaker 2. to the full OFF position, wait a moment, then turn the breaker back on. The spa should have power again.
Spa Model GFCI Required Wires Required
Designer inground spas
with one 5.5 kW heater
Designer inground spa
with two 5.5 kW heaters
One 50 amp GFCI Four #8 AWG copper wires
Service 1: One 50 amp GFCI
Service 2: One 30 amp GFCI
Service 1: Four #8 AWG copper wires Service 2: Three #8 AWG copper wires
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

GFCI Wiring Diagram

7
Preparing for Your New Inground Spa
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
8

Electrical Installation -- Europe

All 230V spas must be permanently connected (hard wired) to the power supply. These instructions de-
scribe the only acceptable electrical wiring procedure. Spas wired in any other way will void your warranty and may result in serious injury.
This the only acceptable electrical wiring procedure. Spas wired in any other way will void your warranty. See the wiring diagram on page 9.
The electrical wiring of this spa must meet the re­quirements of any applicable local, state, and federal codes. The electrical circuit must be installed by an electrical contractor and approved by a local building / electrical inspector.
RCD and Wiring Requirements
The power supplied to the spa must be on a dedi­cated RCD protected circuit with no other appliances or lights sharing the power.
Preparing for Your New Inground Spa
Use copper wire with THHN insulation. Do not use aluminum wire.
Use the table below to determine your GFCI and wir­ing requirements.
When wires larger than #6 AWG are required, install a junction box near the spa and use #6 AWG wire between the junction box and the spa.
Wire runs over 85 feet must increase wire gauge to the next lower number. For example: A normal 50
amp RCD with four #8 AWG copper wires run over 85 feet would require you to go to four #6 AWG cop­per wires.
Testing the RCD Breaker
Test the RCD breaker prior to rst use and periodical­ly when the spa is powered. To test the RCD breaker
follow these instructions (spa should be operating):
Press the TEST button on the RCD. The RCD will 1. trip and the spa will shut off.
Reset the RCD breaker by switching the breaker 2. to the full OFF position, wait a moment, then turn the breaker back on. The spa should have power again.
Spa Model GFCI Required Wires Required
Designer inground spas with one 3 kW heater
Designer inground spa with one 3
kW heater and one 5.5 kW heater
One 32 amp RCD or two 16 amp RCDs
Service 1: One 32 amp RCD or two 16 amp RCDs
Service 2: One 32 amp RCD or two 16 amp RCDs
Four #10 AWG copper wires
Service 1: Four #10 AWG copper wires
Service 2: Three #10 AWG copper wires
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

RCD Wiring Diagram

9
Preparing for Your New Inground Spa
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
10

Installing the Inground Shell

Preparing for Your New Inground Spa
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Equipment Pack Plumbing Connections

The example shown below is typical for a system with two pumps with external heater and external lter.
11
Preparing for Your New Inground Spa
Designer Spa Specications
DIJ401 and DIJ405:
Equipment pack weight = 250 lbs.
DIJ407:
Equipment pack weight = 300 lbs.
One 2.5 HP heat pump
One 4 HP swim pump
Note: Equipment pack cannot exceed 15 feet from
spa.

Plumbing Connections

IMPORTANT! Always check local codes prior to any inground spa installation.
Once the spa and equipment are properly located, you will want to lay out the plumbing run.
Trenches should be deep and wide enough to allow all pipes to be buried below the frost line and should be in as straight a line from the spa to the equipment as possible. Check local code requirements for under­ground pipes. Always know what is under the ground before you dig anywhere.
You will need 2” ex or PVC lines for your suction, in­take, and air line. In ground spas have marked intake
and suction lines, making it easy nd and connect to
and from the spa and equipment pack.
The plumbing run should not be any longer than 15
feet to maximize water pressure. Another way to max-
imize water pressure is to limit (or even eliminate) the use of 90˚ elbows in your plumbing run. A more direct plumbing run using 45˚ elbows is more efcient, and
promotes increased water pressure.
Identifying Plumbing Lines
The spa’s plumbing lines are clearly marked during water testing at the factory. This is done to assist in­stallers in properly identifying the installation. We still recommend that the installers verify plumbing lines prior to gluing. This can be done by using one of the following techniques.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
12
Air Test
The air test requires a wet/dry vacuum. Locate the plumbing line you wish to identify and secure the vacuum hose to cut open end. Turn on the vacuum, enter the spa and listen for vacuum suction sound from inside the spa side
lter canister. If you hear the suction
sound in the canister, the line is prop­erly marked and can be connected to the suction side of the pump on the equipment pack.
Water Test
The water test requires a garden hose and water source. Locate the plumbing line you wish to identify and secure the outlet side of the garden hose to cut open end. Turn on the water supply to the garden hose, enter the spa and
look for water inside the spa side lter
canister. If you see water in the canis-
Preparing for Your New Inground Spa
ter the line is properly marked and can be connected to the suction side of the pump on the equipment pack.
If any plumbing line is not properly marked or not marked at all, follow either the air or water test procedure until all lines are identied prior to glu­ing.
NOTE: Once complete, water test the plumbing run for at least three days prior to covering any plumbing trench­es and back-lling spa cavity com­pletely.
NOTE: Some local inspectors require pressure testing the plumbing lines. Although the spa is pressure tested at the factory, local inspectors may insist on pressure testing the plumbing run between the spa and equipment pack.
Gate/Slice Valves
The use of gate valves is recommended on all plumb-
ing lines (both suction and return lines). These valves
are used to contain the spa’s water in either the equip­ment or the spa. This will assist in the pump priming process and future servicing without needing to drain the spa.
NOTE: When draining the spa to perform mainte­nance, always close the gate valves prior to draining. This will maintain the pumps prime.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
13
Connecting Plumbing to Remote Equipment
Connecting the plumbing from the spa to the equip­ment pack must be performed in accordance to local and city codes.
NOTE: Most codes require plumbing to be rigid PVC schedule 40 or heavier in both above and below
ground installations. In most cases, the use of exible
PVC plumbing is acceptable when properly buried in trenches.
Most water plumbing lines are 2” or larger and must be schedule 40 or heavier PVC. When plumbing, mini-
mize the use of 90˚ elbows as much as possible. The use of 45 ˚ elbows will increase the amount of jet pressure you will have over the use of 90˚ elbows.
The plumbing on the spa shell is labeled by the factory in the following manner:
Pump 1 Suction: 2” line that connects the spa lter and bottom drain assembly to the front of pump 1.
Pump 1 Return: 2” line that connects the top of pump
1, through the equipment lter and heater back to
selected jets in the spa. Pump 2 Suction: 2” line that connects the spa lter
and bottom drain assembly to the front of pump 2. Pump 2 Return: 2” line that connects the top of pump
2 back to selected jets in the spa. Ozone Line: 1” line that connects to a 1” exible line
extending off the bottom of the equipment pack lter canister through an ozone injector (If ozone equipped)
and connected to ozone port on the spa. Air Blower: 1 1/2” line that is plumbed out of the air
blower (located on the equipment pack) and extended
up 18” above the spas water level to prevent water
ooding the air blower.
Air Venturi: 1/2” line that is plumbed 18” above the spa’s water level.
Topside Control Panel and Temp Sensor: 1” line that connects to the bottom of the control box located on the equipment pack.
Preparing for Your New Inground Spa
Electrical and Electronic Con­nection
Remote Equipment Topside Control Panel
The next few steps to complete the installation should be performed along with installation of the tempera-
ture sensor and 12V spa light wiring (if applicable). All
of these components are generally installed using the same conduit.
Locate the topside control panel extension loom 1. in the control box mounted with the equipment pack. This extension loom and attached black ter-
minal connector (see gure at right) will be used
to connect the topside control panel to the control box.
Connect one end of the black terminal connector 2. to the topside control panel cable.
Connect the other end of the terminal connector 3. to the extension loom.
NOTE: This connection must be kept dry. We recom­mend that a waterproof junction box be used in instal­lations where moisture could penetrate this terminal connector.
Lay out the extension loom to verify that you have 4. enough length to reach the control box. Remem­ber that conduit runs are not generally run in a straight line. Every bend, and up and down run consumes line length. Take this into consideration when verifying electrical and plumbing runs.
Connect the extension loom to the control panel 5. location on the circuit board located inside the control box. You will also need to connect both the temperature and high limit sensors to the cir-
cuit board prior to testing. (See the temperature
and high limit installation instruction on the next
page for proper identication and see the wiring
diagram on the inside cover of the control box for
proper placement.)
Turn on the power supply to the spa equipment 6.
and briey test all functions on the topside control
panel to verify that both connections and exten­sion loom are in working order before proceeding with the installation.
NOTE: Circuit board programming will not allow spa operation without both the temperature and high limit sensors being properly connected to the circuit board.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
14
NOTE: This loom and its connector are not meant to withstand heavy pulling. Make sure, when routing the extension loom and temperature sensor lines through conduit, you exercise extreme caution.
Once properly run through the conduit, repeat steps
5 and 6 above.
Inground Spa Light Installation In­structions
On spas ordered with inground lights, the factory installs the light niche for you. The next steps of
installation should be performed by a qualied licensed
electrician. Always read and follow light manufacturer’s safety
and installation instructions prior to installation and operation. Incorrect installation may damage the light and void its warranty.
Preparing for Your New Inground Spa
The light circuit must be on a GFCI protected service (alone or with a switch).
The water resistant junction box (or for 12 volt models, the low voltage transformer) must be located:
Once topside panel operation is veried. Turn off 7. power, disconnect the extension loom from the circuit board and GENTLY route through conduit to complete installation.
at least 8” (20 cm) above water level
Light niche and any metallic items in a 5’ (152 cm) radius must be properly bonded with #8 AWG grounding wire.
Connect rigid conduit to the 3/4” hub located at 1. the back of the light niche and run to a water re-
sistant junction box (or for 12 volt models to a low voltage transformer) no further than 25’ (7.6m).
Remember this is a water cooled light, so the con­duit and all connections must be leakproof.
Feed the light cord through the rigid conduit to 2. the junction box, leaving at least 4 feet of cord at
the end of the light xture. This slack in the light
cord will allow servicing without draining the spa in the future.
Wrap light cord slack around back of light housing 3. and attach light to niche with mounting screw.
Cut the cord at the junction box, leaving at least 4.
6” (15 cm) of cord to make connections.
Strip 6” (15 cm) of the out cord jacket to expose 5.
the three insulated wires. Be careful not to dam­age the insulation on the three inner wires.
Connect the three wires to the corresponding cir-6. cuit wires in the junction box and secure the junc­tion box cover in place.
Replace the light assembly in the niche and tight-7. en the special pilot screw.
at least 4” (10 cm) above ground level, and at least 48” (121 cm) away from the spa.
See gure below.
Fill the spa until the underwater light is completely 8. submerged in water before operating the light for more than 10 seconds. Turn on the main switch or circuit breaker, as well as the spa light control, to check for proper operation
Important: Make sure spa light is submerged in at least 18” of water prior to testing.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
15
Preparing for Your New Inground Spa
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
16

Pouring the Deck

It is recommended that all electrical hook ups and all plumbing be completed before pouring the concrete. Make certain all electrical inspections on lights, bond­ing and all other electrical work have been completed and checked off by the local inspectors prior to pro-
ceeding with your concrete or nish work. It is a good
idea to run the spa for at least 24 hours before pouring the concrete to insure there are no leaks. We under­stand you want to enjoy your spa now, but a 24 hour period with your spa running will let you know of any
problems before they will be extremely hard to x.
The type of decking you have selected will have de­termined the grade of the spa. If you are pouring a regular deck up to the spas coping, then the top of the coping should be 4” above the surrounding area. In either event, it is recommended to dig out an area
around the spa exposing the ange of the coping and
Preparing for Your New Inground Spa
just under it. This is important, as concrete should be
packed under and over the ange of the spa, as the
deck is poured. This will lock the spa into the concrete and provide for a much stronger bond of the spa to the deck. It will also eliminate cracking of the deck where it meets the spa.
When setting your outside forms, remember you want any water from rain or splash out to run off the deck, not into the spa. If your deck is going to tie into an ex­isting deck, then some type of drain system should be planned to handle the run off. Proper drainage plan­ning is very important.
An experienced concrete nisher should always be
used when pouring spa decks, especially when you are doing a cantilevered deck, as the forms must be
taken off at the proper time to allow nishing of the
inside of the form.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

9800 Electronic Control Operation

Initial Start-up
When rst powered up, your spa will perform a self-diagnostic check and then automatically go into priming mode. The topside will display PR to indicate this. Priming mode will be active for less than ve minutes. When the spa has nished priming, the heater will be activated and the water temperature will be maintained in stan­dard mode. The spa will automatically heat to 100°F (37.5°C) at start-up until you change the set temperature
as listed in the “Temperature Adjustment” section below. These instructions will describe features and options
that your particular spa may not be equipped with.
Temperature Adjustment
80°F - 104°F (26.0°C - 40.0°C)
The start-up temperature is set at
100°F (37.5°C). The last measured
temperature is constantly displayed on the control panel. Note that the last measured spa temperature is displayed. The displayed temperature will be updated when the pump has been running for at least two minutes.
Press the “UP” or “DOWN” buttons once to display the set temperature. Each time either button is pressed again, the set temperature will increase or decrease depending on which button is pressed. After three seconds, the control panel will automatically display the last measured spa temperature.
Time
When time hasn’t been programmed, the “TIME” icon
ashes. To set the time, press the “TIME” button and
then the “MODE/PROG” button. Use the “UP” and “DOWN” buttons to adjust time. See the next page for more detailed instructions.
Standard, Economy, Sleep, and Standby Modes
Mode/Prog: This button is used to switch between
standard, economy, and sleep modes.
Press “MODE/PROG” to enter mode program-1. ming.
Press the “DOWN” button to cycle through to the 2. desired mode.
Press “MODE/PROG” to conrm selection.3.
Standard Mode: This is programmed to maintain the desired temperature. Note that the last measured spa temperature displayed is current only when the pump has been running for at least two minutes. The “STAND” icon will display until the mode is changed.
Economy Mode: Economy mode heats the spa to the
set temperature only during lter cycles. The “ECON”
icon will display until the mode is changed. Pressing the “JETS 1” button while in economy mode puts the spa in standard-in-economy mode, which operates the same as standard mode but reverts back to economy mode automatically after one hour. During this time, pressing the “MODE/PROG” button will revert to econ­omy mode immediately.
Sleep Mode: Sleep mode heats the spa to within
20°F (6.7°C) of the set temperature only during lter
cycles. The “SLEEP” icon will display until the mode is changed.
Standby Mode: Pressing “Warm” or “Cool” then “JETS 2” will turn off all spa functions temporarily. This
is helpful when changing a lter. Pressing any button
resets the spa.
Jets 1 and Jets 2
Press the “JETS 1” button once to turn pump 1 on or off and to shift between low and high speeds if equipped. If left running, the low speed turns off af-
ter two hours and the high speed turns off after 15
minutes. On non-circulation systems, the low speed of pump 1 runs when the blower or any other pump is on. It may also activate for at least two minutes every 30 minutes to detect the spa temperature and then to heat to the set temperature if needed, depending upon the mode. When the low speed turns on au­tomatically, it cannot be deactivated from the panel; however, the high speed may be started.
Option
This is an optional feature. Press the “OPTION” but­ton to turn the optional equipment on and off. If left
17
Operating Your Spa
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
18
on, the equipment will automatically turn off after 15
minutes.
Light
Press the “LIGHT” button to turn the spa light on and off and to shift between dim and bright settings if your light is dimmable. On dim, the control panel will show the center circle plus one quarter of the light beams. Half of the light beams will show on medium bright­ness, and all of the light beams will show on bright.
Invert
Operating Your Spa
Press the “INVERT” button to change the numbers in the display to read upside down. Another press returns the display to the right-side-up position. This enables you to read the display while you are in the spa.
Locking the Panel
To lock the panel:
Press “TIME”, “JETS 1”, and the “UP” button within three seconds. When locked, the panel will display “LOCK”. All buttons are frozen except the “TIME” button.
To unlock the panel:
Press “TIME”, “JETS 1” then the “DOWN” button within three seconds.
Setting the Temperature Lock
To activate the temperature lock:
Press the “UP” or “DOWN” button, “TIME”, “JETS 1”, then the “UP” button within three seconds. The panel will display “TEMP LOCK” when the set tem­perature is locked.
To unlock the set temperature:
Press the “UP” or “DOWN” button, “TIME”, “JETS 1”, and then the “DOWN” button.
Circulation Pump
This is an optional feature. The circulation pump will come on when the system is checking temperature,
during lter cycles, during freeze conditions, or when
another pump is on.
Preset Filter Cycles
There are two lter cycles per day. The start and end
times of each cycle are programmable. To program, set the time as instructed above, then press “MODE/
PROG” to advance to the next setting (or to exit after the last setting). The default lter cycles are as fol-
lows:
The rst lter cycle is automatically activated at
8:00 AM and operates the pump until 10:00 AM.
The “FILTER 1” indicator icon will light when lter
1 is running.
The second lter cycle is automatically activated
at 8:00 PM and operates the pump until 10:00 PM.
The “FILTER 2” indicator icon will light when lter
2 is running.
The pump and the ozone generator will run during l­tration. At the start of each lter cycle, the blower will
run on highest speed for 30 seconds to clean out the air channels. The lowest speed of pump 2 and pump
3 will run for ve minutes. In the event of power loss
or shut down, the time of day will need to be reset for lter cycles to run according to your desired program­ming.
Clean-up Cycle
When the pump or blower is turned on by a button press, a clean-up cycle begins 30 minutes after the pump or blower is turned off or times out. The pump and the ozone generator will run for one hour.
Ozone
This is an optional feature. On most systems, the
ozone generator (if installed) runs during lter cycles (except when pump 1 is operating at high speed on a non-circ system) and during clean-up cycles. On some
systems, the ozone generator operates whenever the pump runs. If your system is congured with the op­tional ozone disable feature, the ozone generator will
turn off for one hour any time a function button (“JETS 1”, “JETS 2”, “OPTION” etc.) is pressed.
Freeze Protection
If the temperature sensors detect a drop to 44°F within the heater, the pump automatically activates to provide freeze protection. The equipment stays on until four minutes after the sensors detect that
the spa temperature has risen to 45°F or higher. In
colder climates, an optional additional freeze sensor may be added to protect against freeze conditions that may not be sensed by the standard sensors. Auxiliary freeze sensor protection acts similarly except with the temperature thresholds determined by the switch and without a four-minute delay in turnoff.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
19
Periodic Reminder Messages
Press the “Mode” button to reset a displayed reminder.
Message Frequency Action Required rPH rSA rCL rtg
rdr rCO rCH
Your new Cal Spa comes equipped with an electric heater. Following the directions listed below will ensure
the most efcient operation:
NOTE: This method is only for spa usage under two hours a week.
Every 7 days Test and adjust chemical levels per manufacturer’s instructions. Every 7 days Test and adjust chemical levels per manufacturer’s instructions. Every 30 days Remove, clean, and reinstall lter per manufacturer’s instructions. Every 30 days Test and reset GFCI per manufacturer’s instructions. Drain and rell
spa per manufacturer’s instructions.
Every 90 days Drain and rell spa per manufacturer’s instructions. Every 180 days Clean and condition spa cover Every 365 days Install New Bio-Clean™ Filter
Operating Your Spa
Keep the spa’s operating temperature 5˚ F below the desired usage temperature when not in use. One
or two hours before use, set the temperature to the desired temperature. If the spa usage exceeds two hours a week, the set temperature should remain at the desired usage
temperature. The air venturis should be used sparingly. When open, water temperature drops quite rapidly and can
also dissipate chemicals.
Allowing the water temperature to lower more than 10˚F below the desired usage temperature and reheating
it prior to usage will cause the heater to operate longer than it normally would maintaining the desired tem­perature. Doing this will increase your operating cost and makes your heater work more than necessary.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
20
Operating Your Spa

Diagnostic Messages

Message Meaning Action Required No message
on display
BUF Internal problem detected. Repair required. Contact your dealer or service organi-
dr Insufcient water detected in
dry dY
Ec Indicates heater is in Economy
--F or --C Temperature unknown After the pump has been running for two minutes, the
HL HFL
IC ICE
LF Persistent low ow problems.
OH OHS
1) Spa temperature is unknown. 1) After pump has been running for 2 minutes tempera­ture will be displayed.
2) Spa is in Economy or Sleep
mode.
3) Power has been cut off to the
spa.
heater. Spa will be shut down for
15 minutes.
Insufcient water detected in
heater. Spa is shut down.
(Displays on third occurrence of dr message.)
Mode.
A difference in readings between temperature sensors has been detected indicating a possible
water ow problem.
Potential freeze condition de­tected.
Heater is shut down, but other spa functions continue to run
normally. Displays on the fth
occurrence of the HL or HFL mes­sage within 24 hours.
Overheat protection. The spa has shut down. One of the sensors has detected that the spa water is 110°F.
2) In Economy or Sleep mode, the pump may be off for hours outside a lter cycle. If you wish to see the cur-
rent spa temperature, either switch to Standard mode or turn Jets1 on for at least two minutes.
3) The control panel will be disabled until power re­turns. Spa settings and time of day will be preserved for 30 days with a battery back-up.
zation.
Check water level in spa. Rell if necessary. Make sure pumps are been primed and lter cartridges are clean. Press any button to reset or wait 15 minutes and spa
will automatically reset. If message spa does not reset, call your dealer or service organization.
Follow directions for dr message and press any button to reset spa. Spa will not automatically reset when dry or dY is displayed.
None.
temperature will be displayed.
Make sure spa is lled to proper level and that pumps are primed and lter cartridges are clean. If message
does not reset, call your dealer or service organization.
No action required. The pumps and the blower will au­tomatically activate regardless of spa status.
Follow action required for HL or HFL message. Heating capacity of the spa will not reset automatically. Press any button to reset.
DO NOT ENTER THE WATER. Remove the spa cover and allow water to cool. At 107°F, the spa should automati­cally reset. If spa does not reset, shut off the power to the spa and call your dealer or service organization.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
Message Meaning Action Required HH
OHH
Pr When your spa is rst actuated, it
SF Safety Suction. Spa is shut down. The display will show SF when a vacuum switch closes.
SL Indicates heater is in Sleep Mode. None. SA
Sb SNA Snb
Sns Sn
Overheat protection (spa is shut­down). One sensor has detected 118˚F (48˚C) at the heater.
will go into priming mode.
Spa is shut down. The sensor that is plugged into the sensor “A” or “B” jack is not working.
Sensors are out of balance.
If this is alternating with the temperature, it may just be a temporary condition.
DO NOT ENTER THE WATER! Remove the spa cover and allow spa to cool below
107˚F (42˚C). Press any button on the topside display
to reset spa. If spa will not reset after spa has cooled, turn off power for approximately 30 seconds and then turn power back on. If display message is repeated then shut the power off to the spa and call your dealer or service organization.
The priming mode will last for up to four minutes and then the spa will begin to heat and maintain the water temperature in the Standard mode.
All functions will turn off and the system will be disabled until a panel button is pressed.
If the problem persists, contact your dealer or service
organization. (May appear temporarily in an overheat situation and disappear when the heater cools.)
Contact your dealer or service organization.
21
Operating Your Spa
If the display shows only this • message (periodically blink­ing), the spa is shut down.
ST Indicates heater is in Standard
Mode.
Stby Pressing a button combination
on the user panel has activated Standby Mode.
None.
Press any button to leave Standby Mode and return to normal operation.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
22

Adjustable Jets

Almost all of the jets in your spa are adjustable. Rotating the face of an adjustable jet to the left
(counter-clockwise) will decrease the amount of water ow through the jet. Rotating the face of an adjustable jet to the right (clockwise) will increase the amount of water ow through the jet.
Neck jets adjust in the opposite directions (counter­clockwise to increase, clockwise to decrease).
Operating Your Spa

Diverter Knobs

Diverter knobs are 1” and 2” knobs located around the top of your spa. They allow you to divert water through jets from one side of the spa to the other, or in most cases from oor jets to wall jets. This is ac­complished by rotating the diverter knob to the left
(counterclock­wise), decreas-
ing the amount
of water ow
through a sec­tion of jets. To increase the amount of water
ow through the
other section of jets, rotate the handle to
the right (clock­wise).

Waterfalls

Some spa series include optional waterfalls. When the booster pump is on, turn the knob near the wa-
terfall. Water will immediately start owing through
it.

Air Venturis

Air venturis are the 1” knobs located around the top of your spa. Each one will let you add a mixture of air with the jet pressure. This is accomplished by rotating the air ven­turi knob to the left
(counterclockwise) to
increase the amount of
airow through the jets.
To decrease the amount
of airow through the
jets, rotate the handle
to the right (clockwise).
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Clear Water Plan

Filtration
Ing et augait alit esto dolut dio doleniam quat am vel etue vendiam quis duip ea ating et utem quam, sendit, velesequi­sit am dunt niscil ilit alit nonumsan utatin utat num voloreril in ut pratie dionull umsandio consed dolumsandit at. Rat, consequi tinim ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num­sandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.
Met prate er sit dolor iriureetuer si. Feummy nullamcore magna ad dio er sequamconum nis eu feugiamet, vent et wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons aut alit lut lore tin hent adiam iustrud molor sustis essit wiscilit wisi.
Regularity
Ing et augait alit esto dolut dio doleniam quat am vel etue vendiam quis duip ea ating et utem quam, sendit, velesequi­sit am dunt niscil ilit alit nonumsan utatin utat num voloreril in ut pratie dionull umsandio consed dolumsandit at. Rat, consequi tinim ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num­sandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.
Met prate er sit dolor iriureetuer si. Feummy nullamcore magna ad dio er sequamconum nis eu feugiamet, vent et wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons aut alit lut lore tin hent adiam iustrud molor sustis essit wiscilit wisi.
Sanitation
Ing et augait alit esto dolut dio dole­niam quat am vel etue vendiam quis duip ea ating et utem quam, sendit, velesequisit am dunt niscil ilit alit non­umsan utatin utat num voloreril in ut pratie dionull umsandio consed dolumsandit at. Rat, consequi tinim ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num­sandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.
Met prate er sit dolor iriureetuer si. Feummy nullamcore magna ad dio er sequamconum nis eu feugiamet, vent et wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons aut alit lut lore tin hent adiam iustrud molor sustis essit wis­cilit wisi.
Chemical Balance
Ing et augait alit esto dolut dio dole­niam quat am vel etue vendiam quis duip ea ating et utem quam, sendit, velesequisit am dunt niscil ilit alit non­umsan utatin utat num voloreril in ut pratie dionull umsandio consed dolumsandit at. Rat, consequi tinim
ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num­sandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.
Met prate er sit dolor iriureetuer si. Feummy nullamcore magna ad dio er sequamconum nis eu feugiamet, vent et wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons aut alit lut lore tin hent adiam iustrud molor sustis essit wis­cilit wisi.
F
i
l
t
r
a
t
i
o
n
R
e
g
u
l
a
r
i
t
y
C
h
e
m
i
c
a
l
B
a
l
a
n
c
e
S
a
n
i
t
a
t
i
o
n
Your Key
To Clear
Water
This section is intended for new spa owners with no experience with water chemistry. Everyone’s ex­perience with maintaining water quality is different, but there are some general concepts you need to know.
Water maintenance is not difcult, although it re­quires regular attention. The most important thing to understand about taking care of your spa water is that preventive action is much easier than correcting water quality issues.

The Key to Clear Water

Excellent water quality is a simple matter of four things:
Contents of this section:
Testing and Adjusting Spa Water Sanitation Filtration Bather Load Starting the Spa with Fresh Water Maintenance Schedule Cal Zone Quest Ozonator Cal Clarity Bromine Generator Troubleshooting Water Clarity Problems
23
Clear Water Plan
Regularity
Clear water requires regular maintenance. Establish a routine based on a regular schedule for your spa water maintenance.
Maintaining your water quality helps the en­joyment of your spa and extends your spa’s life by preventing damage from neglect and chemical abuse.
See page 29 for the sched­ule of recommended main­tenance.
Sanitation
Sanitizers kill bacteria and viruses and keep the water clean. A low sanitizer level will allow microbes to grow quickly in the spa water.
We recommend using either chlorine or bro­mine as your sanitizer.
Spa owners with a Cal Zone 2000 ozonator or a Cal Clarity bromine generator also need to add sanitizer, although their requirements are different.
See page 25 for learn how to use sanitizer.
2009 Inground Spas
LTR20091002, Rev. B
Cleaning your lter regularly is the easiest
and most effective single thing you can do to keep your water clear.
A clogged or dirty lter will cause the heater
and pump to work harder than they need to, possibly causing them to fail.
The spa’s heating system will only function
with the proper amount
of water ow through the
system. See page 27 for lter clean-
ing instructions.
Chemical Balance
You will need to test and adjust the chemical bal­ance of your spa water. Al-
Depending on your choice of sanitizer, you need to test the level of calcium hardness, total alkalinity, and pH. Spa owners with a Cal Clarity bromine generator also need to check total dissolved solids and phos­phates.
See page 25 for learn how to balance your spa water.
though this is not difcult,
it needs to be done regu­larly.
Filtration
www. c al sp a s. co m
24
8.2
8.0
7.8
7.6
7.4
7.2
7.0
6.8
6.6
Too alkaline, causes scaling
Ideal balance
Too acidic, causes corrosion
Need to lower the pH level
Need to raise the pH level

Testing and Adjusting Spa Water

You have two types of testing methods to choose from:
The reagent test kit is a method which provides a high level of accuracy. It is available in either liquid
or tablet form.
Test strips are a convenient testing method commonly used by spa owners.
Clear Water Plan
Balancing the Total Alkalinity
Total alkalinity (TA) is the measure of the total lev­els of carbonates, bicarbonates, hydroxides, and other alkaline substances in the water. TA can be considered a “pH buffer”. It is the measure of the ability of the water to resist changes in pH level.
The recommended total alkalinity is 80 - 120 ppm.
If the TA is too low, the pH level will uctuate wide- ly from high to low. Low TA can be corrected by adding Cal Spas “pH-Alkalinity Up”.
If the TA is too high, the pH level will tend to be too
high and may be difcult to bring down. High TA
can be corrected by adding Cal Spas “pH-Alkalinity Down”.
When the TA is balanced, it normally remains sta­ble, although adding water with high or low alkalin­ity will raise or lower the TA level.
Balancing the pH
The pH level is the measure of the balance between acidity and alkalinity.
Balancing the Calcium Hardness
Calcium hardness (CH) is a measure of the total
amount of dissolved calcium in the water. Calcium helps control the corrosive nature of the spa’s wa­ter and is why soft water is not recommended. The low calcium content of soft water is very corrosive to the equipment and can cause staining of the spa shell.
The recommended calcium hardness is 150
- 200 ppm.
If the CH is too low, add Cal Spas “Liquid Hardness Increaser”.
If the CH is too high, dilute the spa water with soft water or, if this is not available, add Cal Spas “Stain and Scale Defense”.
When the CH is balanced, it normally remains sta­ble, although adding soft water or very hard water will raise or lower the CH level.
If the pH is too low, it can cause corrosion of metal x­tures and the heating element. Low pH can be corrected by adding pH-Alkalinity Up.
If the pH is too high, it can cause scaling by allowing metals or minerals to form deposits and stain spa sur­faces. High pH can be corrected by adding pH-Alkalinity Down.
Testing For: Ideal Range (ppm) Chemicals To Use:
Total Alkalinity 80 120 pH-Alkalinity Up pH-Alkaliity Down Calcium Hardness 150 200 Liquid Hardness Increaser Stain and Scale Defense pH 7.4 7.6 pH-Alkalinity Up pH-Alkaliity Down
Minimum Maximum To Raise To Lower
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Sanitation

After you ll your spa, you need to decide which chemical sanitizer you wish to use. Consult your Cal Spas
dealer for the right decision with regards to your lifestyle and spa usage. We recommend either bromine or chlorine as your sanitizer. Both work well when maintained regularly.
DO NOT use trichlor. Trichlor is very acidic and the hot temperature of the spa causes it to dissolve too quickly. It will cause damage to your spa and will void your warranty.
Sanitizers kill bacteria and other organic waste by breaking them down to non-harmful levels and are ltered
out. Make sure you follow all instructions and use only Cal Spas brand chemicals. Whichever plan you decide on, follow it completely and don’t take shortcuts. It will provide you with clean,
safe, clear spa water with a minimum of effort. Spa owners with the Cal Zone Quest ozonator still need to use a chemical sanitizer. See page 30 for instructions on usage.
Using Chlorine as a Sanitizer
If you choose to use chlorine as a sanitizer, only use granulated chlorine, not liquid chlorine. We recommend you use only Cal Spas “Chlorinating Granules”.
25
Clear Water Plan
Once a week, check the chlorine level using either a test strip or a reagent kit. See the table on the following page for the ideal range.
Add one or two tablespoons of Cal Spas “Chlorinating Granules” to the spa water weekly. Note that chlorine dissipation rate will be faster at higher water temperatures and slower at lower temperatures.
When you add chlorine, open all of the jets and run the spa at high speed with the cover open for at least 30 minutes.
Follow the maintenance schedule on page 29.
Using Bromine as a Sanitizer
Bromine is a very effective sanitizer that produces low chemi­cal odors. Unlike chlorine, it can break down bacteria and other impurities to a safe level with a low burn-out rate.
Bromine is available in both granulated and tablet form. Use granulated bromine to establish your bromine base. Use tab-
lets to maintain it. The lter cartridge provided with your spa
has an internal chamber for bromine tablets. Do not use a
oater.
When you begin with fresh water, add 2 ounces of Cal Spas Go Brom. Open all of the jets and run the spa at high speed. This is your base bromine level as the tablets will take a while to dissolve.
Adding Sanitizer Tablets to the Chemical Chamber
Add two ounces of Oxidizer Shock. Open all of the jets and run on high speed with the cover half open for at least 30 minutes.
Place three or four bromine tablets in the chamber inside the
lter cartridge.
Follow the maintenance schedule on page 29.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
26
Testing For: Ideal Range
Chlorine level
Without ozonator With ozonator
Bromine level
Clear Water Plan
Without ozonator With ozonator
Shocking the Water
In addition to using a chemical sanitizer, you will periodically need to shock the water. Shocking the water helps remove burned-out chemicals, bacteria, and other organic material from your spa’s water and im­proves your sanitizer’s effectiveness.
Do not use chlorinating shock, which will damage your spa’s jets and pump seals. The only shock you should use is Cal Spas Oxidizer Shock. It is an easy way to maintain either chlorine or bromine chemical plans.
For best results use the directions below. Add one ounce of Cal Spas Oxidizer Shock:
Chemicals To Use:
(ppm)
Minimum Maximum To Raise To Lower
3.0 5.0
Chlorinating Granules
2.0 4.0
6.7 11.0 Go Brom
5.7 10.0
Once a week After heavy bather loads If water has a strong odor
Spa must be running with all of the jets on high for 30 minutes with the cover open. If necessary, repeat
oxidizer shock in 30 minute intervals.
Chemical Safety
Read and follow all printed instructions listed on bottles, packages and in your owner’s manual.
Failure to follow chemical directions may result in serious injury, sickness, or even death.
Do not exceed chemical dosages as recommended in the Clear Water Plan or on chemical bottles and packages.
Never change chemical brands or types without com-
pletely draining, ushing and thoroughly cleaning the spa and cover rst.
Never mix chemicals together. Do not allow chemicals to come in contact with skin,
eyes or clothing. Remove and wash clothing that
may have been exposed to chemical contact prior to wearing them again.
Inhaling or ingesting chemicals will cause serious in­jury, sickness, or even death.
Chemicals must be stored completely out of the reach of children in an area that is well vented, cool, and dry. Failure to provide a proper area for chemical storage may result in serious injury, sickness, re ex­plosion and even death. Do not store your chemicals inside the equipment area of your spa.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Filter Cleaning

The lter is the part of your spa that removes the debris from the water and needs to be cleaned on a regular basis to maximize your spa’s ltering performance and heating efciency.
In addition to spraying off the lter weekly to remove surface debris, your lter should be deep cleaned pe­riodically to dissolve scale and particles that get lodged deep within the lter bers and impede the ltration process. Even if the lter looks clean, scale and particles can clog the bers and prevent water from owing through the lter resulting in the most common spa problem—no heat, caused by a dirty lter.
We recommend you clean your lter once a month and replace it once a year or as necessary.
Remove the lter by turning it counterclockwise, unscrewing the bottom threads, then pulling it up and 1.
out.
Place the dirty lter into a bucket of water deep enough to cover the lter. Add 8 oz of Cal Spas “Liquid 2.
Filter Cleaner” to the bucket of water.
Note: It is a good idea to keep a spare lter to use in the spa while the dirty lter is being deep cleaned. This way, you can rotate the lters and both will last longer.
Twist off the tablet tube and set it aside3. Soak the lter for a minimum of 24 hours.4.
27
Clear Water Plan
Spray the lter with a water hose. Spray each pleat carefully.5. Put fresh bromine in the tablet tube (if you use it as a sanitizer) and twist it back on top of the lter.6. Reinstall the lter. Do not overtighten.7.

Bather Load

“Bather Load” is the term used to describe the num­ber of people using a spa, combined with the length of usage, and the frequency of usage. All these fac­tors have a great effect on the spa water. The higher the bather load, the more chemicals need to be add-
ed and a longer ltration time will be needed.
All versions of the Cal Spas Clear Water Plan are
designed for spas with average bather load (3 to
4 people, 15 minutes of usage, three times a week at 100 degrees) If your bather load exceeds these
guidelines, and you experience water quality prob-
lems, increase the amount of ltration rst, (go to the next higher ltration number) then if water quality
is still not adequate, consult the advice of your Cal Spas dealer for additional chemical or system recom­mendations. Be sure to give them your bather load information.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
28

Starting the Spa with Fresh Water

We recommend you use Cal Spas chemicals only. Other brands of chemicals may have similar names and/or usage descriptions but due to manufacturing differences, use of other chemicals can increase the likelihood of under- or over-dosing the spa chemi­cals. Damage to the spa or spa’s components from improper chemicals or chemical usage is not covered
Clear Water Plan
under the spa’s warranty. Prior to lling a spa for the rst time, or after a rou-
tine draining, you will want to follow this start-up plan to extend water life and performance.
As with all chemical dosages listed in these Clear Wa­ter Plans, start-up dosages are intended for 500-gal­lon spas. Please adjust the chemical dosages to the capacity of your particular spa.
Clean the surface of the spa with Cal Spas “Multi-1. Purpose Cleaner”.
Apply a protective coat of Cal Spas “Fast Sheen” 2. to the acrylic surface.
Fill the spa to the proper water level with normal 3.
tap water. (Do not use soft water.)
Use test strip and balance the spa water.4.
Adjust total alkalinity (acceptable range is • 80-120ppm).
Adjust pH if necessary (between 7.2 to 7.8).
Pour in 16 oz of Cal Spas “Metal Protector” in the 5. center of the spa.
Add Stain and Scale Prevention.6. Add either chlorine or bromine (but not both).7.
Chlorine: Add two tablespoons of Cal Spas “Chorine
Granules” to the spa water.
Bromine: Add 2 oz of Cal Spas “Go Brom” to estab-
lish a bromine base.
Add 2 Cal Spas “Bromine Tablets” to bro-
mine oater.
Set oater opening at #2.
Turn on jets for 15 minutes. Leave spa uncov-8.
ered during this time. Put cover on spa and allow to heat up to desired 9.
temperature.
Water level is very important to the operation of your spa. If the water lev­el is too low or too high, your spa will not operate properly. The water level should be about six inches from the top when the spa is not being used.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Maintenance Schedule

29
Clear Water Plan
Each time you rell the spa
Prior to each use Test the spa water using either test strips a reagent test kit. Adjust
Once a week Test the spa water using either test strips a reagent test kit. Adjust
Once a month Deep clean your spa’s lter. (Follow lter cleaning instruction at
Every two to four months Drain and clean your spa with “Multi-Purpose Cleaner”.
Follow the section “Starting the Spa with Fresh Water”.
chemical levels as necessary.
chemical levels as necessary.
beginning of Clear Water Plan)
Polish the acrylic surface with “Fast Sheen”.
Clean and treat spa cover, pillows, and Cal Select cabinet (if equipped) with “Cover Protector”.
Rell your spa, following the section “Starting the Spa with Fresh
Water”. If you are using the Cal Clarity Automatic Bromine Generator Clear
Water Plan, add new sodium bromide to the water.
Once a year Replace lter cartridges if the pleats appear frayed.
If you use the Cal Zone Quest 2000 Ozonator, you will need to re­place the ozone cartridge.
We recommend that your spa water be changed every 4 to 6 months. You may nd the need to change your
spa water more frequently with heavy use. When empty, your spa should be cleaned with a non-abrasive cleaner, such as Cal Spas™ All Surface Cleaner, and then rinsed thoroughly.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
30

Del Zone Eclipse Ozonator

The Del Zone Eclipse ozone generator releases ozone into the spa water. You will still need to test for chlorine and occasionally replenish it to return the chlorine level to the baseline.
This plan and its chemical dosages are intended for spas equipped with the optional Del Zone Eclipse ozonator. The chemical references are designed for Cal Spas chemicals only.
Clear Water Plan
Start Up
Follow the spa start up procedures for chlorine Clear Water Plan. 1. Set the spa’s ltration time for “F-4”. This activates the ozonator and 2.
produces the ozone gas.
Note: Filtration time may need to be increased with heavy bather load.
Day One (Monday)
Test spa water using chlorine test strips. (You will need to use a small amount of chlorine as a supplemental 1. sanitizer)
Based on the test strip readings:2.
Add 2 oz of “Stain and Scale Defense”.3.
Remove dirty lter from the spa and rinse off.4.
Place your extra clean lter cartridge back into the spa.5.
Vacuum debris from the bottom of your spa with the spa vacuum.6.
Adjust total alkalinity (acceptable range of 80-120 ppm).
Adjust the pH if needed (range is between 7.2 to 7.8).
Add 1 tablespoon of chlorine granules. The recommended level of Chlorine is 1-3 ppm.
Day Two (Friday)
Test spa water using chlorine test strips.1. Based on the test strip reading: 2.
Adjust total alkalinity, then the pH if needed.
Add 1 tablespoon of chlorine granules (if needed).
Add 2 oz of Cal Spas “Oxidizer Shock” to spa. Run spa for 15 minutes with cover off. 3.
Replace cover.4.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Troubleshooting Water Clarity Problems

Problem Probable Causes Possible Solutions
Cloudy Water Dirty lter
Clean lter
31
Clear Water Plan
Excessive oils / organic mat- ter
Improper sanitization Suspended particles / organ-
ic matter Overused or old water
Water Odor Excessive organics in water
Improper sanitization Low pH
Chlorine Odor Chloramine level too high
Low pH
Musty Odor Bacteria or algae growth Shock spa with sanitizer – if problem is vis-
Organic buildup / scum ring around spa
Algae Growth High pH
Eye Irritation Low pH
Wipe off scum with clean rag – if severe,
Buildup of oils and dirt
Low sanitizer level
Shock spa with sanitizer Add sanitizer Adjust pH and/or alkalinity to recommended
range
Run jet pump and clean lter
Drain and rell the spa
Shock spa with sanitizer Add sanitizer Adjust pH to recommended range
Shock spa with sanitizer Adjust pH to recommended range
ible or persistent, drain, clean and rell the
spa
drain the spa, use a spa surface and tile
cleaner to remove the scum and rell the spa
Shock spa with sanitizer and adjust pH Shock spa with sanitizer and maintain sani-
tizer level Adjust pH
Low sanitizer level
Skin Irritation / Rash Unsanitary water
Stains Total alkalinity and/or pH
Scale High calcium content in
2009 Inground Spas
LTR20091002, Rev. B
Free chlorine level above 5
ppm
too low High iron or copper in
source water
water – total alkalinity and pH too high
Shock spa with sanitizer and maintain sani- tizer level
Shock spa with sanitizer and maintain sani- tizer level
Allow free chlorine level to drop below 5 ppm
before spa use Adjust total alkalinity and/or pH
Use a stain and scale inhibitor
Adjust total alkalinity and pH – if scale re- quires removal, drain the spa, scrub off the
scale, rell the spa and balance the water Use a stain and scale inhibitor
www. c al sp a s. co m
32

Cleaning and Maintenance

Removing and Reseating the Pillows

You can remove the pillows for cleaning and maintenance quickly and easily. This method works for all types of pillows.
Grab the lower edge of the pillow with both hands rmly and pull up. As you do this, the pillow inserts will
pop out of the holes.
Cleaning and Maintenance
Reseat the pillows by aligning the pillow inserts with the holes and striking the pillow hard enough to insert the pegs back into the holes.

Spa Cover

Important! Keep the spa covered when not in use!
Covered spas will use less electricity in maintain- ing your set temperature.
Covering your spa will protect your spa’s nish
from the sun’s ultraviolet rays. You are required to keep the spa covered to
maintain warranty coverage. Covering your spa helps prevent children from
drowning in the spa.
See the manual enclosed with your cover for instruc­tions on mounting the locks and how to lock and un­lock the cover.
In addition, while the spa cover is rigid, it is not de­signed to support any weight. Therefore, as a safety precaution and to preserve the life of your cover, you must not sit, stand, or lie on it; nor should you place objects of any kind on top of it.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Draining Your Spa

Your spa should be drained every four to six months, and relled with fresh tap water. The following is the
recommended method for draining your spa.
Turn off the power at the breaker.1.
Remove all lters.2. Hook up the female end of a garden hose to the drain tting (if equipped).3.
Place the other end of the garden hose where you would like the water to drain to.4.
Let spa drain completely, then remove garden hose and rell.5.

Cleaning and Replacing the Filter

Filtration is one of the most important steps you can take to ensure clean, clear water. It is far less expensive
to x water clarity problems by ltering your spa than by using excessive amounts of chemicals, excessive ltration times, or by water replacement.
See the section “Clear Water Plan” for more information on cleaning your lter.
33
Cleaning and Maintenance

Winterizing (Cold Climate Draining)

In many areas of the country, the temperature drops below 32˚F (0°C). We recommend that you always have your spa full of water and running at normal spa temperatures (80˚F to 100˚F, 26.7°C to 37.8°C). This
will help reduce the risk of freezing in your spa and your spa’s equipment.
WARNING: If you nd the need to drain your spa, please be aware of the potential of freezing in your spas
equipment and plumbing. Even if the directions below are followed perfectly, there is no guarantee that your spa will not suffer freeze damage and thereby void the warranty coverage.
Open all lter covers.1. Remove the lter baskets and lters.2.
Drain your spa completely as described in the instructions above.3. Remove drain plugs from the front of the pumps.4. Disconnect the unions from both sides of the pump.5. Use a wet/dry vacuum to blow any remaining water out of the jets and equipment area.6.
Cover your spa with a good spa cover and an all-weather tarp to ensure that neither rain nor snow enters the spa.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
34

Cleaning the Cover, Shell and Pillows

Due to the constant punishment your spa cover and pillows receive, you should protect them by applying Vinyl and Leather Cleaner as part of your monthly maintenance plan. Cal Spas™ Vinyl and Leather Cleaner is specically designed to protect spa covers and pillows from chemical and ultraviolet light damage. It ac­complishes this without leaving an oily residue behind that is normally associated with common automotive vinyl protectants.
Use of Vinyl and Leather Cleaner
Cal Spas™ Vinyl and Leather Cleaner should be used sparingly. Incorrect usage may cause water clarity issues.
Cleaning and Maintenance
Spa Covers
1.
Remove spa cover from spa. Allow spa cover to dry completely.2. Spray Vinyl and Leather Cleaner to cover evenly 3.
and wipe dry. Allow spa cover to dry completely.4. Reinstall cover on spa.5.
All-Purpose Cleaner (Spa nish
cleaning)
Cal Spas™ All-Purpose Cleaner is an essential part of
maintaining your spa’s nish. Through normal use, the spa’s nish can accumulate dirt, oil, and calcium
causing a rough feel and unsightly scum lines. Cal Spas™ All-Purpose Cleaner is a low detergent, non-
abrasive cleaner specically formulated to clean the spa without damaging its acrylic nish.
The most effective solution to minimize cleaning time is prevention. When the following steps are followed,
the spa’s nish will actually start to resist most of
the elements that cause calcium build-up and make scum line clean up easier.
Prior to Spa Start-Up and Relling
Spray Cal Spas™ Multi-Purpose Cleaner directly 1.
on to the spa’s nish.
Wipe clean with a clean soft cloth.2.
Repeat on heavily calcied areas.3.
Pillows
Wipe pillows dry with a soft 1.
cloth.
Carefully spray Vinyl and 2.
Leather Cleaner directly onto pillow.
3.
Wipe pillows dry. Allow pillows to dry complete-4.
ly.
Warning: Do not use automotive vinyl protectants on spa covers or pillows. These products are gener­ally oil-based and will cause severe water clarity is-
sues that are difcult to correct.
Wipe spa thoroughly with a wet 4.
sponge, rinsing often with a buck-
et of clean water. Allow spa to dry completely.5. Apply a coat of Cal Spas™ Fast 6.
Sheen to the spa’s entire nish
with a soft towel or sponge. Allow Fast Sheen to dry until white 7.
and powdery. Buff clean with a soft cloth, rotating frequently.8.
Periodic Maintenance
Spray Cal Spas™ Multi-Purpose Cleaner directly 1.
to the spa’s nish.
Wipe clean with a clean soft cloth.2. Wipe spa thoroughly with a wet sponge, rinsing 3.
often in a bucket of clean water.
Cal Spas™ Multi-Purpose Cleaner should not be sprayed directly into the spa water. Incorrect usage of this product will cause water clarity issues.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
Fast Sheen (Spa nish protecting
wax)
Cal Spas™ Fast Sheen is an essential part of main-
taining your spa’s nish. Through normal use, the spa’s nish can accumulate dirt, oil, and calcium,
causing a rough feel and unsightly scum lines. Cal Spas™ Fast Sheen is a non-oil based wax that is spe-
cically formulated to protect the spa’s nish from
the chemicals and minerals associated with normal spa use.
The most effective solution to minimize cleaning time is prevention. When the following steps are followed,
the spa’s nish will actually start to resist most of
the elements that cause calcium build-up and make scum line clean-up easier.
Prior to Spa Start-Up and Relling
Spray Cal Spas™ Multi-Purpose Cleaner directly 1.
to the spa’s nish.
Wipe clean with a soft cloth.
2. Repeat on heavily calcied areas.3. Wipe spa thoroughly with a wet 4.
sponge, rinsing often in a bucket
of clean water. Allow the spa to dry completely.5. Apply a coat of Cal Spas™ Fast 6.
Sheen to the spa’s entire nish
with a soft cloth or sponge. Allow Fast Sheen to dry until white and pow-7.
dery. Buff clean with a soft cloth, rotating frequently.8.
IMPORTANT: Cal Spas™ Fast Sheen should not be used on spas full of water. Only apply to clean, cool, dry surfaces. Incorrect product usage may cause water clarity issues.
35
Cleaning and Maintenance
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
36

Appendix

Replacement Parts

Appendix
CXW 5.5” Storm
Standard gray PLU21703425 Stainless steel PLU21703624
mfw 3” Micro Flow
Standard gray PLU21703432 Stainless steel PLU21703631
EW 2” Euro
Standard gray PLU21703420 Stainless steel PLU21703621
SW Swim
Standard face PLU21700565
OZ 2” Ozone Injector
Standard gray PLU21700818
Diverter Valve 2” (2 Way) Silver, Teardrop Handle (2 tone)
PLU21300062
Jets
Lights
Light Inground 100W 120V 30’
LIT16000100
Waltting, Clear Lens Cap,
Jumbo Spa Light, 5”
LIT16100153
Red Lens Insert, Jumbo Spa Light
LIT16100155
Blue Lens Insert, Jumbo Spa Light
LIT16100156
Filter
Filter Cartridge, 75 Sq Ft (Remote Equipment)
FIL11100215
Filter Lids
Filter Lid, Dual
DIJ-401 93” Round
DIJ-405 93 x 130
DIJ-407 93 x 200
FIL11300252
Filter Lid, Single
FIL11300253
Covers
Deluxe
Rust
ACU02200310 ACU02200311 ACU02200315 ACU02200316 ACU02200312 ACU02200313 ACU02200314
ACU02200540 ACU02200541 ACU02200542 ACU02200543 ACU02200544 ACU02200545 ACU02200546
ACU02200300 ACU02200301 ACU02200305 ACU02200306 ACU02200302 ACU02200303 ACU02200304
Deluxe
Gray
Deluxe
Slate
Deluxe
Palomino
Deluxe
Teal
Deluxe
Navy
2009 Inground Spas
LTR20091002, Rev. B
Deluxe Hunter
www. c al sp a s. co m

Keeping Fit with your Cal Spa

IMPORTANT: Always consult your physician before starting any exercise activity or program. The tness series
spas feature rubber exercise bands. When stretched, these bands create a high tension condition. Improper use or failure to connect the exercise bands properly may cause injury. Always inspect all of the exercise equipment prior to beginning any exercise. Do not use any damaged equipment
The tness equipment consists of: two rowing arm bars, two 62” exercise bands, two 32” exercise bands, two
27” exercise bands, two hand grips, two ankle bands, two hand loops, and an exercise belt. This equipment attaches to the exercise anchors located on the spa walls.
37
Appendix
Fitness Series™ Exercise Program
Refer to the equipment congurations shown on the
next page for the following exercises.
Seated Row
Use the exercise bars in a seated position with your feet stable, abs tight and lower back stable. Keep your palms down, arms extended with elbows slightly bent. Pull towards your chest squeezing your shoulder blades to the middle back and returning slowly to the starting position.
Standing Chest Fly
Using the exercise grips, place palms sideways facing your body with your elbows slightly bent. Pull forward your body forward, bringing hands together, squeez-
ing and exing chest muscles, then slowly returning to
the starting position.
Standing Chest Press
Using the exercise grips, place your palms down with
your elbows bent at 90˚. Press forward bringing your hands together, squeezing and exing your chest mus-
cles, then slowly return to the start position.
Standing Shoulder Press
Using the exercise grips, place your palms facing
away from your body with your elbows bent at 90˚.
Press upward bringing your hands together in front of you, above your head and slowly return to the start position.
Arm Curls
Using the exercise grips, place your hands face up with your elbows slightly bent, pull upward towards
your chin squeezing and exing your biceps then
slowly return to start position.
Running or Walking
Attach the exercise belt around your waist and at­tach the two 62” exercise bands to the far wall of the spa. Turn on the two swim jets and walk or run into jet stream.
Leg Streching and Strength Training
Attach an ankle band to your ankle and attach a 62” exercise band to any exercise anchor. Lift your leg to the side or back as the band provides tension.
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m
38
Connecting the Exercise Equipment
The drawings below show different ways the exercise kit can be connected depending on the exercises you wish to do.
Appendix
2009 Inground Spas
LTR20091002, Rev. B
www. c al sp a s. co m

Cal Spas™ Chemicals

39
Appendix
2009 Inground Spas
LTR20091002, Rev. B
LMS Customer Service Department
1462 East Ninth Street
Pomona, CA 91766
Toll Free: 1-800-CAL-SPAS
Fax: 1-909-629-3890
www.calspas.com
LTR20091002, Rev. B
1/30/09
Loading...
