Cal Spas F-1222, F-1681, F-1325, F-1420, F-1439 Owner's Manual

...

Download

LTR20171005, Rev. D 7/20/17

Table of Contents

Preparing for Your New Portable Spa

Pre-Delivery Checklist. . . . . . . . . . . . . . . . . . 2

Planning the Best Location . . . . . . . . . . . . . . 2

Preparing a Good Foundation . . . . . . . . . . . . 3

240 Volt Electrical Installation . . . . . . . . . . . 3

GFCI Wiring Diagrams. . . . . . . . . . . . . . . . . . 5

Filling and Powering Up Your Portable Spa 8

Priming the Pump . . . . . . . . . . . . . . . . . . . . 10

Operating Your Spa

TP400 and TP600 Control Panel Operation 12

TP800 Control Panel Operation . . . . . . . . . 20

spaTouch Icon Driven Control Panel . . . . . 25

Cal Spas Hot Tub Wi-Fi App . . . . . . . . . . . . 33

Cloud Service . . . . . . . . . . . . . . . . . . . . . . . . 34

Electrical Power Efciency . . . . . . . . . . . . . 35

Jets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

LED Lighting. . . . . . . . . . . . . . . . . . . . . . . . . 36

Diverter Knobs. . . . . . . . . . . . . . . . . . . . . . . 36

Waterfalls . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Air Venturis . . . . . . . . . . . . . . . . . . . . . . . . . 36

Hydro Streamer Waterfall. . . . . . . . . . . . . . 36

Water Clarity

The Key to Clear Water . . . . . . . . . . . . . . . . 37

Testing and Adjusting Spa Water . . . . . . . . 37

Sanitation. . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Bather Load . . . . . . . . . . . . . . . . . . . . . . . . . 39

Filter Cleaning . . . . . . . . . . . . . . . . . . . . . . . 39

Pure Cure™ Water Sanitizer . . . . . . . . . . . . 40

Ozonator . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Maintenance Schedule . . . . . . . . . . . . . . . . 40

Troubleshooting Water Clarity Problems . . 41

Cleaning and Maintenance

Removing and Reseating the Pillows . . . . . 42

Jet Remove/Replace . . . . . . . . . . . . . . . . . . 42

Spa Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Draining Your Portable Spa . . . . . . . . . . . . 43

Winterizing (Cold Climate Draining) . . . . . 44

Cleaning and Replacing the Filter. . . . . . . . 44

Vacation Care. . . . . . . . . . . . . . . . . . . . . . . . 44

Cleaning Your Spa . . . . . . . . . . . . . . . . . . . . 45

Changing the UV Lamp . . . . . . . . . . . . . . . . 45

Aquatic AV AQ-DM-5UBT Media Locker . . . 46

Using the Digital Media Locker

Using the Freedom Sound System . . . . . . . 48

Remote and Keypad Functions . . . . . . . . . . 48

Closing and Locking the Door . . . . . . . . . . . 48

Keeping Fit With Your Swim Spa

Jetstream Propulsion System . . . . . . . . . . . 49

Swim Tether. . . . . . . . . . . . . . . . . . . . . . . . . 49

Exercise Equipment. . . . . . . . . . . . . . . . . . . 49

Appendix

Replacement Parts . . . . . . . . . . . . . . . . . . . 51

Basic Troubleshooting. . . . . . . . . . . . . . . . . 54

Limited Warranty. . . . . . . . . . . . . . . . . . . . . 56

Cal Spas®, Adjustable Therapy System™, ATS™, Cal Premium™, Cal Select™, Cal Stone™, Pure Cure™, XL™ Heater, and Ultimate Fitness Spa Series™ are registered trademarks.

Due to continuous improvement programs, all models, operation, and/or specications

are subject to change without prior notice.

LTR20171005, Rev. D 7/20/17

100-1394

CONTACT INFORMATION

For customer service, please contact your authorized dealer immediately. If you need additional information and/or assistance, contact:

LMS Customer Service Department 1462 East Ninth Street Pomona, CA 91766.

Toll Free: 1-800-CAL-SPAS Fax: 1-909-629-3890

Important Safety Instructions

READ AND FOLLOW ALL INSTRUCTIONS.

DANGER -- Risk of accidental drowning:

Do not allow children to be in or around a spa unless a responsible adult supervises them. Keep the spa cover on and locked when not in use. See instructions enclosed with your cover for locking procedures.

DANGER -- Risk of injury:

The suction ttings in this spa are sized to match the specic water ow created by the pump. Should the need arise to replace the suction ttings, or the pump, be sure the ow rates are compatible.

Never operate the spa if the suction tting or lter

baskets are broken or missing. Never replace a

suction tting with one that is rated less than the ow rate marked on the original suction tting.

WARNING -- To reduce the risk of injury:

The spa water should never exceed 104˚F (40˚C). Water temperatures between 100˚F (38˚C) and 104˚F (40˚C) are considered safe for a healthy

adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.

High water temperatures have a high potential for causing fetal damage during pregnancy. Women who are pregnant, or who think they are pregnant, should always check with their physician prior to spa usage.

The use of alcohol, drugs or medication before or

DANGER -- Risk of electric shock:

Read This First!

Install the spa at least 5 feet (1.5 meters) from all metal surfaces. As an alternative, a spa may be installed within 5 feet of metal surfaces if each metal surface is permanently bonded by a minimum #8 AWG solid copper conductor to the outside of the spa’s control box.

Do not permit any external electrical appliances, such as lights, telephones, radios, televisions, and

etc., within ve feet (1.5 meters) of the spa. Never

attempt to operate any electrical device from inside the spa.

Replace a damaged power cord immediately.

Do not bury the power cord.

Connect to a grounded, grounding-type receptacle only.

during spa use may lead to unconsciousness, with the possibility of drowning.

Persons suffering from obesity, a medical history of heart disease, low or high blood pressure, circulatory system problems or diabetes should consult a physician before using the spa.

Persons using medications should consult a physician before using the spa since some medications may induce drowsiness while others may affect heart rate, blood pressure and circulation.

HYPERTHERMIA DANGER:

Prolonged exposure to hot air or water can induce hyperthermia. Hyperthermia occurs when the internal

temperature of the body reaches a level 3˚F to 6˚F above the normal body temperature of 98.6˚F (or 2˚C to 4˚C above 37˚C). While hyperthermia has many health benets, it is important not to allow your body’s core temperature to rise above 103˚F (39.5˚C). Symptoms

of excessive hyperthermia include dizziness, lethargy, drowsiness and fainting. The effects of excessive hyperthermia may include:

• Failure to perceive heat

• Failure to recognize the need to exit spa or hot tub

• Unawareness of impending hazard

• Fetal damage in pregnant women

• Physical inability to exit the spa

• Unconsciousness

2017 Fitness Spa

WARNING: The use of alcohol, drugs, or medication can

LTR20171005, Rev. D

greatly increase the risk of fatal hyperthermia.

WARNING: People with infectious diseases should not use a spa or hot tub.

WARNING: To avoid injury, exercise care when entering or exiting the spa or hot tub.

WARNING: Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.

WARNING: Do not use a spa or hot tub immediately following strenuous exercise.

WARNING: Prolonged immersion in a spa or hot tub may be injurious to your health.

CAUTION: Maintain water chemistry in accordance with manufacturer’s instructions.

www.calspas.com

SAVE THESE INSTRUCTIONS.

Preparing for Your New Portable Spa

Pre-Delivery Checklist

Most cities and counties require permits for exterior construction and electrical circuits. In addition, some communities have codes requiring residential barriers such as fencing and/or self-closing gates on property to prevent unsupervised access to the property by children. Your dealer can provide information on which permits may be required and how to obtain them prior to the delivery of your spa.

Planning the Best Location

Preparing for Your New Portable Spa

Safety First

Do not place your spa within 10 feet (3 m) of overhead power lines.

Consider How You Will Use Your Spa

How you intend to use your spa will help you determine where you should position it. For example, will you use your spa for recreational or therapeutic purposes? If your spa is mainly used for family recreation, be sure to leave plenty of room around it for activity. If you will use it for relaxation and

therapy, you will probably want to create a specic

mood around it.

Plan for Your Environment

If you live in a region where it snows in the winter or rains frequently, place the spa near a house entry. By doing this, you will have a place to change clothes and not be uncomfortable.

Before Delivery

Plan your delivery route

Choose a suitable location for the spa

Lay a 5 - 8 cm concrete slab

Install dedicated electrical supply

After Delivery

Place spa on slab

Connect electrical components

Provide a View with Your Spa

Think about the direction you will be facing when sitting in your spa. Do you have a special landscaped

area in your yard that you nd enjoyable? Perhaps

there is an area that catches a soothing breeze during the day or a lovely sunset in the evening.

Keep Your Spa Clean

In planning your spa’s location, consider a location where the path to and from the house can be kept clean and free of debris.

Prevent dirt and contaminants from being tracked into your spa by placing a foot mat at the spa’s entrance where the bathers can clean their feet before entering your spa.

Allow for Service Access

Consider Your Privacy

In a cold-weather climate, bare trees won’t provide much privacy. Think of your spa’s surroundings during all seasons to determine your best privacy options. Consider the view of your neighbors as well when you plan the location of your spa.

www.calspas.com

Make sure the spa is positioned so that access to the equipment compartment and all side panels will not be blocked.

Many people choose to install a decorative structure around their spa. If you are installing your spa with any type of structure on the outside, such as a gazebo, remember to allow access for service. It is always best to design special installations so that the spa can still be moved, or lifted off the ground.

2017 Fitness Spa

LTR20171005, Rev. D

Preparing a Good Foundation

Preparing for Your New Portable Spa

Your spa needs a solid and level foundation. The area that it sits on must be able to support the weight of the spa, with water and the occupants who use it. If the foundation is inadequate, it may shift or settle after the spa is in place, causing stress that could DAMAGE YOUR SPA SHELL AND FINISH.

Damage caused by inadequate or improper foundation support is not covered by the warranty. It is the responsibility of the spa owner to provide a proper foundation for the spa.

Place the spa on an elevated 3 to 4” / 30 cm concrete slab. Pavers, gravel, brick, sand, timbers or dirt foundations are not adequate to support the spa.

We strongly recommend that a qualied, licensed

contractor prepare the foundation for your spa.

If you are installing the spa indoors, pay close

attention to the ooring beneath it. Choose ooring

that will not be damaged or stained.

If you are installing your spa on an elevated wood deck or other structure, it is highly recommended that you consult a structural engineer or contractor to ensure the structure will support the weight of

150 pounds per square foot (732 kg / m2).

To properly identify the weight of your new spa when full, remember water weighs 8.33 lbs. per gallon, or 1 kg per liter. For example, an average 8’ spa holds approximately 500 gallons, or 1892 liters, of water.

Using this formula, you will nd that the weight of the

water alone is 4,165 lbs, or 1892 kg. Combined with the dry weight of the spa you will note that this spa will weigh approximately 5,000 lbs, or 2267 kg, when full of water.

240 Volt Electrical Installation

All 240V spas must be permanently connected (hard wired) to the power supply. See the GFCI and wiring requirements on page 5.

These instructions describe the only acceptable electrical wiring procedure. Spas wired in any other way will void your warranty and may result in serious injury.

When installed in the United States, the electrical wiring of this spa must meet the requirements of NEC 70 and any applicable local, state, and federal codes.

The electrical circuit must be installed by an electrical contractor and approved by a local building or electrical inspector.

Failure to comply with state and local codes

2017 Fitness Spa

LTR20171005, Rev. D

may result in re or personal injury and will be

the sole responsibility of the spa owner.

The power supplied to the spa must be on a dedicated GFCI protected circuit as required by NEC 70 with no other appliances or lights sharing the power.

Use copper wire with THHN insulation. Do not use aluminum wire.

Use the table below and on the next page to determine your GFCI and wiring requirements.

Wires that run over 100 feet must increase wire gauge to the next lower number. For example: A normal 50 amp GFCI with four #6 AWG copper wires that run over 100 feet would require you to go to four #4 AWG copper wires.

www.calspas.com

GFCI and Wiring Requirements

Applies to all tness spas except F-1781

Standard conguration with one 5.5 kW heater

Preparing for Your New Portable Spa

Spa

Model

F-1222 BP501G1 One 50 amp GFCI

F-1325 BP501G1 One 50 amp GFCI

F-1420 BP501G1 One 50 amp GFCI

F-1439 BP501X One 50 amp GFCI

F-1640 BP20X One 60 amp GFCI

F-1681 BP20X One 60 amp GFCI

Conguration for Option OPT17-200 (auxiliary 5.5 kW heater)

Spa

Model

F-1439 BP501X

F-1640 BP20X

Applies to model F-1781 only

Standard conguration with one 5.5 kW heater

Control System GFCI Required Wires Required Wiring Diagram

Four #8 AWG copper wires

Control System GFCI Required Wires Required Wiring Diagram

One 50 amp GFCI and one 30 amp GFCI

One 60 amp GFCI and one 30 amp GFCI

Four #8 AWG copper wires

Use wiring diagram 1 (see page 5)

Use wiring diagram 2 (see page 6)

Control System Spa Side GFCI Required Wires Required Wiring Diagram

BP501G1

Conguration for Option OPT17-200 (auxiliary 5.5 kW heater)

Control System Spa Side GFCI Required Wires Required Wiring Diagram

BP20X

www.calspas.com

Service (spa

side)

Service 1

(swim side)

Service 2

(swim side)

One 40 amp GFCI Four #8 AWG copper wires

One 60 amp GFCI Four #8 AWG copper wires

One 30 amp GFCI

Three #8 AWG copper wires

Use wiring diagram 2 (see page 6)

Use wiring diagram 3 (see page 7)

2017 Fitness Spa

LTR20171005, Rev. D

GFCI Wiring Diagrams

House Breaker Box

GREEN (Ground)

WHITE

(Neutral)

BLACK

(Hot)

BLACK

(Hot)

RED

(Hot)

RED

(Hot)

GFCI Breaker Box

Front View of GFCI

WHITE

GREEN (Ground)

RED

(Hot)

WHITE (Neutral)

BLACK

(Hot)

BLACK (Load Hot)

RED (Load Hot)

Spa Control Box

CIRCUIT BOARD

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

BP501G1 and BP501X control boxes and Auxiliary Heater

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

GREEN (GROUND)

CIRCUIT BOARD

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

BP20X control box

Two 220V circuit breakers Two GFCIs Seven wires: Two Red (hot) Two Black (hot) Two White (neutral) One Green (ground)

Diagram 1

Preparing for Your New Portable Spa

House Breaker Box

BLACK (Hot)

WHITE

(Neutral)

GREEN (Ground)

RED (Hot)

One 220V circuit breaker One GFCI Four wires: Red (hot)

Black (hot) White (neutral) Green (ground)

Spa Control Box

BP501G1 and BP501X control boxes

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

CIRCUIT BOARD

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

TO OUTSIDE OF SYSTEM BOX)

GFCI Breaker Box

BLACK

(Hot)

GREEN (Ground)

BP20X control box

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

CIRCUIT BOARD

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

WHITE (Neutral)

RED

(Hot)

WHITE

WHITE (Load Neutral)

RED (Load Hot)

BLACK (Load Hot)

Front View of GFCI

RED (HOT)

BLACK (HOT)

WHITE

(LOAD NEUTRAL)

Bottom View of GFCI

Control

Box

See the Cal Spas Pre-Delivery Guide for more information on spa placement for service access and electrical service.

www.calspas.com/manuals

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

House Breaker Box

GREEN (Ground)

WHITE (Neutral)

BLACK

(Hot)

BLACK

(Hot)

RED

(Hot)

BLACK

(Hot)

RED

(Hot)

RED

(Hot)

Three 220V circuit breakers Three GFCIs Ten wires: Three Red (hot) Three Black (hot) Three White (neutral) One Green (ground)

GFCI Breaker Box

Spa Control Box

CIRCUIT BOARD

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

BP501G1 and BP501X control boxes and Auxiliary Heater

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

GREEN (GROUND)

CIRCUIT BOARD

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

BP20X control box

WHITE (Neutral)

GREEN (Ground)

BLACK

(Hot)

Preparing for Your New Portable Spa

Diagram 2

House Breaker Box

Two 220V circuit breakers Two GFCIs Seven wires: Two Red (hot) Two Black (hot) Two White (neutral) One Green (ground)

Spa Control Box

BLACK

(Hot)

RED

WHITE

(Neutral)

(Hot)

RED

(Hot)

GREEN (Ground)

BP501G1 and BP501X control boxes and Auxiliary Heater

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

CIRCUIT BOARD

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

TO OUTSIDE OF SYSTEM BOX)

GFCI Breaker Box

RED

BLACK

(Hot)

GREEN (Ground)

BP20X control box

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

WHITE (Neutral)

WHITE

WHITE (Load Neutral)

RED (Load Hot)

BLACK (Load Hot)

Front View of GFCI

CIRCUIT BOARD

RED

BLACK

(Hot)

GREEN (Ground)

Control

Box

Auxiliary

Heater

RED (HOT)

BLACK (HOT)

WHITE

(LOAD NEUTRAL)

Bottom View of GFCI

WHITE (Neutral)

WHITE

WHITE (Load Neutral)

RED (Load Hot)

BLACK (Load Hot)

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Diagram 3

Preparing for Your New Portable Spa

House Breaker Box

BLACK

(Hot)

RED

(Hot)

WHITE (Neutral)

GREEN (Ground)

(Hot)

RED

(Hot)

RED

(Hot)

BLACK

Three 220V circuit breakers Three GFCIs Ten wires: Three Red (hot) Three Black (hot) Three White (neutral) One Green (ground)

Spa Control Box

BP501G1 and BP501X control boxes and Auxiliary Heater

GFCI Breaker Box

WHITE (Neutral)

BLACK

(Hot)

GREEN (Ground)

RED

(Hot)

WHITE

WHITE (Load Neutral)

RED (Load Hot)

BLACK (Load Hot)

Front View of GFCI

BLACK

(Hot)

RED

(Hot)

WHITE

WHITE (Load Neutral)

RED (Load Hot)

BLACK (Load Hot)

BLACK

(Hot)

RED

(Hot)

RED (HOT)

BLACK (HOT)

WHITE

(LOAD NEUTRAL)

Bottom View of GFCI

WHITE

WHITE (Load Neutral)

RED (Load Hot)

BLACK (Load Hot)

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

CIRCUIT BOARD

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

TO OUTSIDE OF SYSTEM BOX)

BP20X control box

WHITE (NEUTRAL)

BLACK (HOT)

RED (HOT)

CIRCUIT BOARD

GREEN (GROUND)

GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX)

SWIM SIDE

Control

Box

Auxiliary

Heater

Control

Box

SPA SIDE

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Filling and Powering Up Your Portable Spa

1. Inspect the spa equipment.

Inspect all plumbing connections in the equipment area of your spa.

2. Remove the cartridge from lter canister.

• Make sure unions in the equipment pack are tight. (Be careful not to over-tighten the plumbing ttings.)

• If your spa has gate

valves, make sure they are all in the UP or OPEN position.

• Make sure the drain valve is closed and capped. (See page 43 for a description of drain valves.)

Never run the spa with the gate valves closed or without water circulating for long periods of time.

Preparing for Your New Portable Spa

3. Fill the spa.

Place a garden hose in the lter canister and ll your spa with regular tap water

about six inches from the top.

If the water level is too low or too high, your spa will not operate properly.

Unscrew the cartridge and remove it.

After you remove the lter, remove the plastic

wrapper and soak it in water for 30 minutes before

you replace it. A dry lter can allow air into the ltration system which can cause the pump to fail

to prime.

Always ll the spa through the lter canister! Failure to do so may cause air to be trapped in the ltration system and prevent the pumps from operating properly.

Never ll your spa with soft water.

Soft water makes it impossible to maintain the proper water chemistry and may cause the water to foam, which will ultimately harm

the nish of the spa and void your warranty.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

4. Turn on power to the spa.

5. Prime the pump.

When the spa is lled to the correct level, turn on the

power at the GFCI breaker. (Ensure that the 120V spas are connected to the proper electrical outlet.)

Your spa will perform a self-diagnostic check and go into Priming Mode. The control panel will display either RUN PUMPS PURG AIR --- or Priming Mode, depending on which control panel you have.

Do the following:

1. Press the JETS or JETS 1 button once to start the pump in low speed.

Preparing for Your New Portable Spa

2. Press it again to switch the pump to high speed.

3. If you have other pumps, press JETS 2 or JETS 3 to turn them on also.

Running the pumps helps the pumps prime.

After two minutes, the pump should prime. If it does not, follow the priming instructions on the next page. If it does, continue with the next step.

6. Install the lter into the lter canister.

Make sure the lter has soaked at least 30 minutes

before you install it.

7. Adjust water chemistry.

Test and adjust the water chemistry. See the section on page 37 for instructions on water clarity.

8. Let the spa heat up.

When the spa has nished priming, the heater will activate. Put the cover on and let the spa heat to the

set temperature.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Priming the Pump

New spa owners often have difculty the rst time they

start their spa and the pump fails to prime. This can be frustrating, but these simple instructions can help you.

Sometimes air can become trapped in the pump while

lling the spa. You will know this has happened when after you have lled and started the spa, the pump does

not seem to function. You will hear the pump operating, but no water will be moving.

Preparing for Your New Portable Spa

Starting Up: Priming Mode

After the initial start-up sequence, the spa will enter Priming Mode, which lasts 4 to 5 minutes. Depending on your control panel, one of the messages shown at right will appear.

As soon as the Priming Mode screen appears on the panel, press the Jets or Jets 1 button once to start Pump 1 in low speed and then again to switch to high speed. Also, select the other pumps, to turn them on. The pumps should be running in high speed to facilitate priming.

The pump will not work properly while air is trapped in it. Continuing to operate the pump in this way will cause damage.

Exit Jets 1 Jets 2 Jets 3 Circ

If the pumps have not primed after two minutes, and water

is not owing from the jets in the spa, do not allow the

pumps to continue to run. Turn off the pumps and repeat the process. Note: Turning the power off and back on again will initiate a new pump priming session.

Sometimes momentarily turning the pump off and on will

help it to prime. Do not do this more than ve times. If the pumps will not prime, shut off the power to the

spa and call for service.

Important: A pump should not be allowed to run without priming for more than two minutes. Under NO circumstances should a pump be allowed to run without priming beyond the end of the 4 to 5 minute priming mode. Doing so may cause damage to the pump and cause the system to energize the heater and go into an overheat condition.

Priming Mode

Exiting Priming Mode

You can manually exit Priming Mode by pressing an Up or Down button. Note that if you do not manually exit the priming mode as described above, the priming mode will be automatically terminated after 4 to 5 minutes. Be sure that the pumps have been primed by this time.

Once the system has exited Priming Mode, the top-side panel will momentarily display the set temperature but the display will not show the temperature yet. This is because the system requires approximately one

minute of water owing through the heater to determine the water temperature and display it.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Bleeding Air from the Pump

If you have tried priming the pump several times unsuccessfully using the control panel, you can bleed the air from the pump manually.

1. Shut off the power to the spa.

2. Using a Phillips screwdriver, remove the front panel from the spa and locate the pump.

3. Close the gate valve on the discharge side of the pump (if your spa is installed with one.)

4. Turn the bleeder valve counter clockwise with a small pair of pliers until the air has been released from the pump.

5. If this is unsuccessful, loosen the union nut on side of the pump with channel locks. When air is bled out, tighten the nut.

Preparing for Your New Portable Spa

6. Turn on power to the spa and press the JETS button. If there is still air trapped in the pump, repeat steps 2 through 5 until the pump primes.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

TP400 and TP600 Control Panel Operation

TP400 Control Panel TP600 Control Panels

Primary Navigation and Functions

Navigating the entire menu structure is done with 2 or 3 buttons on the control panel.

You can use either Temperature button (Warm and Cool) to navigate and program where a single Temperature icon is shown.

Jets Aux Warm Cool Light

The Light Button is also used to choose the various menus and navigate each section.

Typical use of the Temperature buttons allows changing the Set Temperature while the numbers are

ashing in the LCD.

Pressing the LIGHT button while the numbers are

ashing will enter the menus.

Start here

Press once

Then press:

Press 2X

Press 3X

READY

RANGE

SET

RANGE

SET

READYSET

Main screen

FLTR1

Adjust the set temperature

Set temperature ranges

Select heat mode

Set time of day

The menus can be exited with certain button presses. Waiting several seconds in any screen will allow the display to revert to the main screen.

Most changes are not saved unless the Light button is pressed.

Press 5X

Press 6X

Press 7X

Press 8X

Press 9X

SET

Lock the display (restrict operation)

Hold mode (standby)

Adjust ltration cycle 1

Adjust ltration cycle 2

Set personal preferences

Press 4X

www.calspas.com

SET

Flip (invert display)

Press 10X

System utilities (for diagnostics only)

2017 Fitness Spa

LTR20171005, Rev. D

Adjusting the Set Temperature

arrows on the display.

temperature.

Main Screen

Press the WARM or COOL buttons to adjust the set temperature.

Press Once

When the temperature stops ashing, the spa will heat to the new set temperature

when required. The temperature can be set between 60°F and 104°F.

Operating Your Spa

RANGE

SET

RANGE

SET

Set Temp will show and flash

Press the Temp buttons to change the temperature.

Setting Dual Temperature Ranges

You can set two temperature range settings with independent set temperatures.

Press Once

Then Press

SET

RANGE

Once

The High Range is shown in the display by an “up” arrow and the Low Range with a “down” arrow. The ranges can be used for different reasons, the most common being a “ready to use” setting versus a “vacation” setting. (See “Vacation Setting below.) Each range maintains its own set temperature that you program according to your needs. This way, when a range is chosen, the spa will heat to the set temperature programmed to that range.

High Range can be set between 80°F and 104°F.

Low Range can be set between 50°F and 99°F.

The example below shows setting the Low Range temperature.

RANGE

SET

RANGE

SET

RANGE

FLTR1

READY

RANGE

FLTR1

READY

RANGE

SET

RANGE

FLTR1

SET

FLTR1

Select High Range or Low Range. Toggle the Range

Vacation Setting

Set the spa to operate in the Lower Range temperature choice before you go on vacation.

1. Press the Temp button. The “Set Temp” will show

and ash.

2. Press the Light button. “TEMP” will show on the display, which give you the choice of High Range or Low Range.

3. To set the Low Range, press the Light button,

2017 Fitness Spa

LTR20171005, Rev. D

Set Temp will show and flash

Press a Temp Button

Main Screen

repeatedly to change the

then press the Temp button. The “Set Temp” will

show and ash.

4. Press the Temp buttons to adjust the temperature.

5. Press the Light button or wait several seconds to return to the main screen.

www.calspas.com

Press Jets 1

Main Screen

READY and REST

Operating Your Spa

Setting the Heat Mode

There are two heat modes: READY Mode and REST Mode.

Press Once

Then Press

READYSET

Toggle between

Ready-in-Rest Mode

READY/REST appears in the display if the spa is in Rest Mode and Jet 1 is pressed. When the spa is being used, it will heat to set temperature. While Pump 1 High can be turned on and off, Pump 1 Low will run until set temperature is reached, or 1 hour has passed. After 1 hour, the system will revert to Rest Mode. This mode can also be reset by entering the Mode Menu and changing the Mode.

Twice

SET

READY Mode: In order for the spa to heat, a pump needs to circulate water through the heater. The pump that performs this function is known as the “heater pump.”

The heater pump can be either a 2-Speed Pump 1 or a circulation pump. If the heater pump is a 2-Speed Pump 1, READY Mode will circulate water every 1/2 hour, using Pump 1 Low, in order to maintain a constant water temperature,

heat as needed, and refresh the temperature display.

This is known as “polling.”

READY

RANGE

REST

FLTR1

REST Mode: REST Mode will only allow heating

during programmed lter cycles. Since polling does not

occur, the temperature display may not show a current temperature until the heater pump has been running for a minute or two.

RANGE

REST

READY

/ REST

Freeze Protection

If you live in an area that experiences extreme freezing weather, you need to know how to how to set your spa to prevent freeze damage. Some spa owners choose to drain and winterize their spas, but others prefer

to keep it lled and operating. If you don’t want to drain your spa, you can continue to run it safely through

the winter, providing you program it correctly.

When you expect the temperature to approach freezing, always keep the spa in READY Mode. As long as the spa is in READY Mode, it will regularly check the water temperature (known as “polling”) and circulate water every 1/2 hour.

When the sensors within the heater detect water temperature has dropped to 42°F (5.5°C), then the pumps and the blower automatically activate to provide freeze protection. The pumps and blower will run either continuously or periodically depending on conditions.

Setting Time

Setting the time of day is important for determining ltration times and other

Press Once

Then Press

background features. 24-hour time display can be set under the PREF menu.

Note: This system does NOT display the time of day. The default display on the Main Screen is the current water temperature. Displaying time of day is not a selectable feature.

SET

Set hour Set minutes Main Screen

www.calspas.com

SET

READY

RANGE

FLTR1

2017 Fitness Spa

LTR20171005, Rev. D

Flip (Invert Display)

and hold

twice

Main screen

Operating Your Spa

Press Once

Then Press

Locking the Control

Press Once

Then Press

SET

Press Light button to

lock control panel

SET

Inverting the display allows you to be able to read the control panel while you are in the spa.

SET

Press Temp button to flip the display

SET

READY R

ANGE

FLTR1

Main Screen

The control can be locked to prevent unwanted use or temperature adjustments. You can lock the set temperature or the control panel.

Locking the temperature allows Jets and other features to be used, but the Set Temperature and other programmed settings cannot be adjusted.

Locking the panel prevents the controller from being used, but all automatic functions are still active.

TO LOCK SET TEMPERATURE

SET

You can toggle between ON and OFF using the Warm and Cool buttons

READY

RANGE

The set temperature has been locked

FLTR1

Main screen

TO LOCK THE CONTROL PANEL

SET

You can toggle between ON and OFF using the Warm and Cool buttons

Unlocking the control

While pressing and holding the WARM Button, press the LIGHT button twice.

Hold Mode

Press Once

Then Press

2017 Fitness Spa

LTR20171005, Rev. D

Timer will count down for 60 minutes Main Screen

Hold Mode is used to disable the pumps during service functions like cleaning or

replacing the lter. (See page 39 for instruction on cleaning the lter.)

Hold Mode will last for 1 hour unless the mode is exited manually.

READY

SET

READY

RANGE

FLTR1

Main screen

The control panel has been locked

FLTR1

ANGE

Press

READY

RANGE

READY

RANGE

www.calspas.com

FLTR1

revert to the previous Filter 2 settings.

several seconds,

Adjusting Filtration

Press Once

Then Press

Main Filtration

Filter cycles are set using a duration. Each setting can be adjusted in 15-minute increments. Filter Cycle 1 and Filter Cycle 2 (if enabled) are set to the same duration.

If Filter Cycle 2 is enabled, Filter 2 will appear in the LCD. If Filter 2 is disabled, Filter 1 will appear.

Operating Your Spa

Press Light button to select Filter 2

SET

FLTR1

SET

Shows start time

to show RUN HRS

FLTR1

to show F1 ENDS xx:xx

to set

FLTR

SET

FLTR1 P

FLTR1

FLTR

*****

to set

FLTR1 P

SET

Sets start hour

FLTR1

SET

Sets Filter 1 length in hours

SET

Sets minutes

SET

Selects part of an hour

to set

Note: Waiting several seconds will lose any new Filter 1 Start Time and Run Hours and revert to the previous Filter 1 settings.

If you wait several seconds, it will revert to original setting.

FLTR1 P

FLTR1

*****

FLTR1 P

SET

Sets 15- minute increments

*****

FLTR1

SET

Sets 15-minute increments

If you wait

it will revert to

original setting.

READY

FLTR1

RANGE

Main Screen

READY

FLTR1

RANGE

Main Screen

FLTR

to show F2 ENDS xx:xx

to set

www.calspas.com

2 P

FLTR

SET

Shows start time

to show RUN HRS

FLTR

2 P

FLTR

SET

Sets start hour

FLTR

SET

Sets Filter 2 length in hours

Sets minutes

FLTR

SET

FLTR

SET

Selects part of an hour

to set

Note: Waiting several seconds will lose any new Filter 2 On/Off, Start Time and Run Hours and

*****

2 P

FLTR

SET

Sets 15- minute increments

*****

SET

FLTR

Sets 15-minute increments

READY

FLTR1

RANGE

Main Screen

2017 Fitness Spa

LTR20171005, Rev. D

Setting Preferences

Press Once

Operating Your Spa

This allows you to set the following preferences for system operation:

• Change the temperature between Fahrenheit and Celsius

Then Press

• Change the clock between 12-hour and 24-hour display

• Turn periodic reminders (like “CLEAN FILTER”) on or off

SET

Toggle °F and °C

SET

Toggle 12-hour clock and 24-hour clock

SET

to set

SET

Toggle Yes and No

to set

Utilities

This menu feature is for system information only and is used mainly for repair and troubleshooting.

Other Spa Systems

Several spa functions operate in the background and require no action or maintenance from you. This is for your information only.

Pumps

Press the “Jets 1” button once to turn pump 1 on or off, and to shift between low- and high-speeds if equipped. If left running, the pump will turn off after a time-out period. The pump 1 low-speed will time out after 30 minutes. The high-speed will time out after 15 minutes.

On non-circ systems, the low-speed of pump 1 runs when the blower or any other pump is on. If the spa is in Ready Mode, Pump 1 low may also activate for at least 1 minute every 30 minutes to detect the spa temperature (polling) and then to heat to the set temperature if needed. When the low-speed turns on automatically, it cannot be deactivated from the panel, however the high speed may be started.

Circulation Pump

The circulation pump will come on when the system is checking temperature (polling), during lter cycles,

during freeze conditions, or when another pump is on.

The ozonator will run with the circulation pump during ltration cycles.

Purge Cycles

In order to maintain sanitary conditions, secondary Pumps and/or a Blower will purge water from their respective

plumbing by running briey at the beginning of each lter cycle.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

Diagnostic Messages

Message Meaning Action Required

RUN PMPS PURG AIR

---F - ---C Water Temperature Is Unknown

42F TOO COLD Too Cold - Freeze Protection

WATR TOO HOT Water is Too Hot

SFTY TRIP ---- Safety Trip - Pump Suction

HTR FLOW LOSS ---- Heater Flow Is Reduced

HTR FLOW FAIL ---- Heater Flow is Reduced

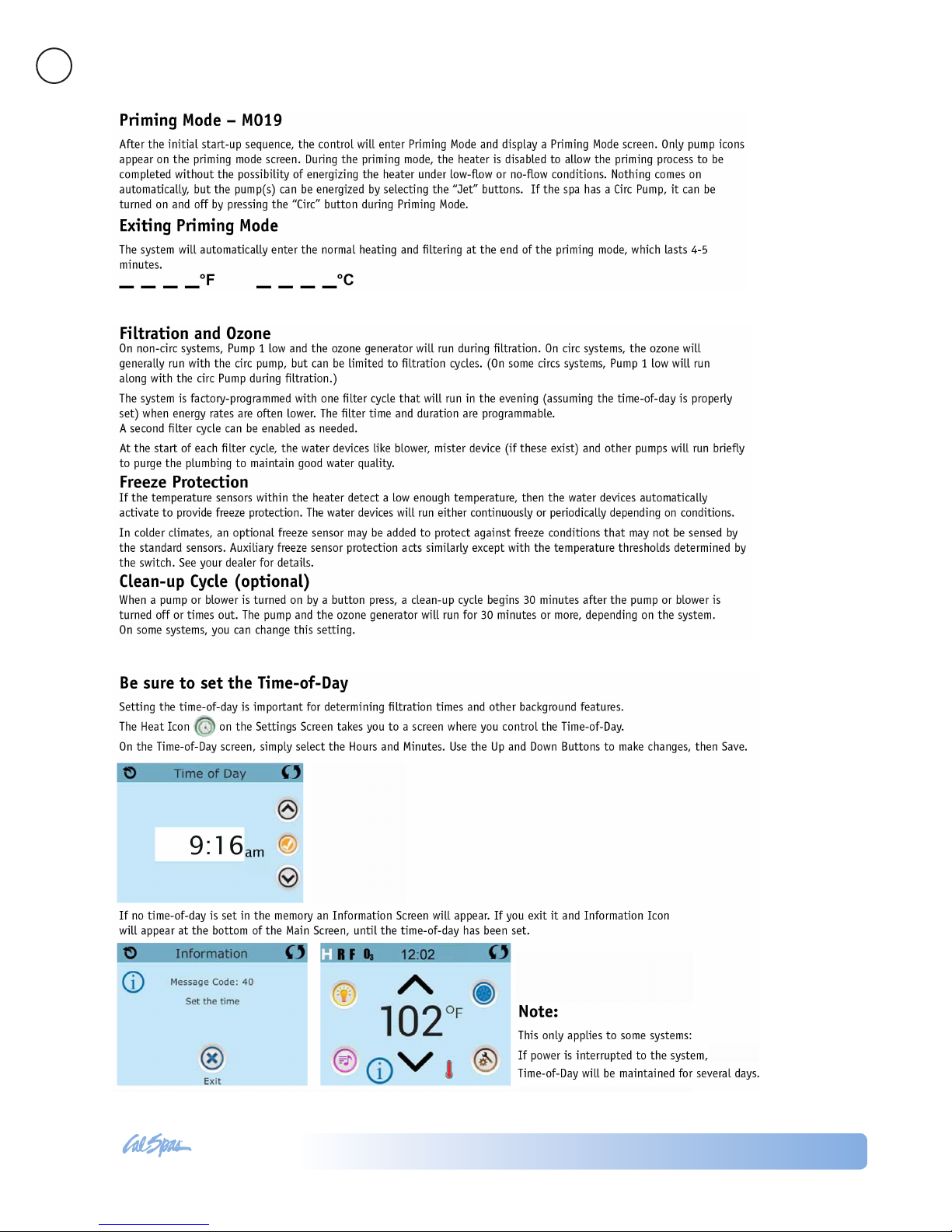

Priming Mode

Each time the spa is powered up, it will enter Priming Mode. The purpose of Priming Mode is to allow the user to run each pump and manually verify that the pumps are primed (air is purged) and

water is owing. This typically requires

observing the output of each pump separately, and is generally not possible in normal operation.

After the pump has been running for 1 minute, the temperature will be displayed.

A potential freeze condition has been detected and all pumps and blower are activated. All pumps and blower are ON for at least 4 minutes after the potential freeze condition has ended. In some cases, pumps may turn on and off and the heater may operate during Freeze Protection.

One of the water temp sensors has detected spa water temp 110°F (43.3°C) and spa functions are disabled.

Blockage

The Safety Trip error message indicates that the vacuum switch has closed. This occurs when there has been a suction problem or a possible entrapment situation avoided. (Note: not all spas have this feature.)

There may not be enough water ow

through the heater to carry the heat away from the heating element.

There is not enough water ow through

the heater to carry the heat away from the heating element and the heater has been disabled.

Priming Mode lasts 4 minutes, but you can exit it earlier by pressing any Temp button. The heater is not allowed to run during Priming Mode.

NOTE: If your spa has a Circ Pump, it will turn on with Jets 1 in Priming Mode. The Circ Pump will run by itself when Priming Mode is exited.

None

None.

None. System will auto reset when the spa water temp is below 108°F (42.2°C). Check for extended pump operation or high ambient temp.

Drain or lter may be covered,

creating a blockage. Clear the blockage and reset by pressing any button on the topside panel.

Check for low water level, suction ow

restrictions, closed valves, trapped air, too many closed jets and pump prime. Heater start up will begin again after about 1 minute.

Check for low water level, suction ow

restrictions, closed valves, trapped air, too many closed jets and pump prime. Heater start up will begin again after about 1 minute.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Message Meaning Action Required

HTR MAY BE DRY ---WAIT ----

HTR DRY ---- Heater Is Dry

Heater May Be Dry

Possible dry heater, or not enough water in the heater to start it. The spa is shut down for 15 min.

There is not enough water in the heater to start it. The spa is shut down.

Check for low water level, suction ow

restrictions, closed valves, trapped air, too many closed jets and pump prime. Press any button to reset the heater start-up.

Check for low water level, suction ow

restrictions, closed valves, trapped air, too many closed jets and pump prime. Press any button to reset the heater start-up.

HTR TOO HOT ---- Heater Is Too Hot

One of the water temp sensors has detected 118°F (47.8°C) in the heater and the spa is shut down.

PRES BTTN TO RSET

----

Spa Needs To Be Reset

This message may appear with other

Check for low water level, suction ow

restrictions, closed valves, trapped air, too many closed jets and pump prime. Press any button to reset when water is below 108°f (42.2°C).

Press any button on the topside control to reset.

messages.

102F SNSR BAL- ANCE Sensor Balance Is Poor

Call for service.

Operating Your Spa

The temperature sensors MAY be out of sync by 2°F or 3°F.

SNSR SYNC ---- CALL FOR SRVC ----

Sensor Balance is Poor

The temperature sensors ARE out of sync.

SNSR A ---- CALL FOR SRVC

SNSR B ---- CALLFOR

Sensor Failure

A temperature sensor or sensor circuit has failed.

SRVC

NO COMM No Communications

The control panel is not receiving communication from the system.

102°T °F or °C is replaced by °T

The control system is in Test Mode.

STUK PUMP ---- A Pump Appears To Be Stuck ON

Water may be overheated.

HOT FALT ---- CALL FOR SRVC ----

A Pump Appears To Be Stuck ON

A pump appears to have been stuck ON when spa was last powered.

Call for service. Note: This message can be reset from the topside panel with any button press.

Call for service.

POWER DOWN THE SPA. DO NOT ENTER THE WATER. Call for service.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

TP800 Control Panel Operation

The Main Screen

Spa Status

When the spa has nished priming,

Water Temperature

Desired Temperature

you will see the Main Screen.

Important information about spa operation can be seen quickly from the Main Screen. The most important

features can be accessed from this screen.

• The actual water temperature

can be seen in large text and the

Status

102°F

Set: 104°F Spa 8:32 PM Ozone Filter 1

Ready in Rest Mode Heating

desired, or Set Temperature, can be selected and adjusted.

• Time-of-day, ozone operation and lter operation status are shown,

along with other messages and alerts.

• Temperature Range (High or Low) is indicated in the upper right corner.

• A Lock icon is visible if the panel or settings are locked.

Navigation

There are four selections you can make on the Main Screen:

Set temperature - Press the left arrow button to change the Set Temperature number to white. The

Temperature Range

Left, Right, Up, Down

and Select Buttons

Messages

Pump and Heat

High Range

Scenes

Settings

Menus Lock Indicator

Set Temperature can then be adjusted with the up and down buttons. Pressing the Select button or the Right Arrow button will save the new set temperature.

Menu selections - The three menu choices on the right, Spa, Shortcuts, and Settings, can be selected and the screen will change to show more detailed controls or programming functions. They will be discussed further in this section.

Messages

At the bottom of the screen, messages may appear at various times. Some of these messages must be dismissed by the user (see page 24).

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Ready in Rest Mode Heating

Back Jets 1 Jets 2 Jets 3 Light

Invert

Spa Screen

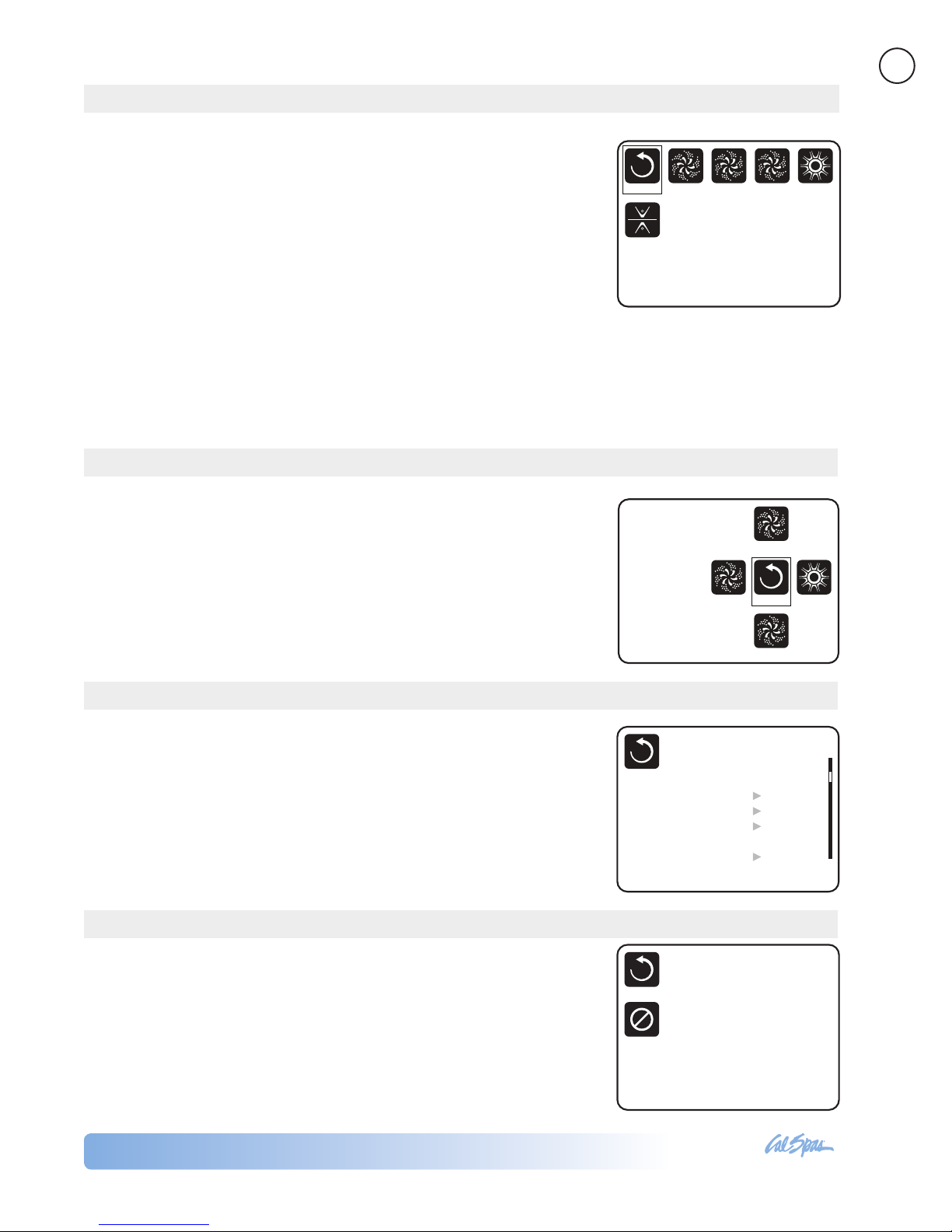

The Spa Screen shows all available equipment to control, as well as other features, like Invert, in one easy-to-navigate screen. The display shows icons that are related to the equipment installed on a particular spa model, so this screen may change depending on the installation.

Back Jets 1 Jets 2 Jets 3 Light

The navigation buttons are used to select an individual device. The device that is chosen is highlighted with a white outline and the text under the icon

Invert

changes to white. Once a device is selected, it can be controlled using the center Select Button.

Ready in Rest Mode Heating

Some devices, like pumps, may have more than one ON state, so the icon

will change to reect the state that the equipment is in. Below are some

examples of 2-speed Pump indicators.

If the Spa has a Circ Pump, a Circ Pump Icon will appear to indicate its activity, but outside of Priming Mode, the Circ Pump cannot be controlled directly. NOTE: The icon for the pump that is associated with the heater (Circ or P1 Low) will have a red glow in the center when the heater is running.

Shortcut Screen

The Shortcut Screen requires no navigation.

Each button is xed on a specic function and can be used as a very

simple user interface for the spa.

Shortcuts

Jets 1

Operating Your Spa

Each button function is illustrated in the display and mapped according to the manufacturer’s instructions.

Settings Screen

The Settings Screen is where all programming and other spa behaviors are controlled.

This screen has several features that can be acted on directly. These features include Temp Range, Heat Mode, and Invert Panel. When one of these items is highlighted, the Select Button is used to toggle between two settings. All other menu items (with an arrow pointing to the right) go to another level in the menu.

Setting Time of Day

Setting the time of day is important for determining ltration times and

other background features. “Set Time” will appear on the Main Screen if no time of day is set.

Jets 2

Ready in Rest Mode Heating

Settings

Temp Range

Back

Heat Mode Time of Day Filter Cycles Light Cycle Invert Panel Lock

Time of Day

12 : 00 PM 12 HR

10:05 PM 12 HR

Back

Save

Back

Jets 3

High

Ready

Normal

Light

2017 Fitness Spa

LTR20171005, Rev. D

Cancel

www.calspas.com

Operating Your Spa

Setting Dual Temperature Ranges

This system incorporates two temperature range settings with independent

set temperatures. The speciﬁc range can be selected on the Settings screen

and is visible on the Main Screen in the upper right corner of the display.

These ranges can be used for various reasons, with a common use being a “ready to use” setting vs. a “vacation” setting. Each range maintains its own set temperature as programmed by the user. This way, when a range is chosen, the spa will heat to the set temperature associated with that range.

High Range can be set between 80°F and 104°F. Low Range can be set

between 50°F and 99°F. More speciﬁc Temp Ranges may be determined by

the Manufacturer. Freeze Protection is active in either range.

Selecting Heat Modes – Ready vs. Rest

Back

Settings

Temp Range

Heat Mode Time of Day Filter Cycles Light Cycle Invert Panel Lock

High

Ready

Normal

In order for the spa to heat, a pump needs to circulate water through the heater. The pump that performs this function is known as the “heater pump.”

The heater pump can be either a 2-speed pump (Pump 1) or a circulation pump. If the heater pump is a 2-Speed Pump 1, Ready Mode will circulate water every 1/2 hour, using Pump 1 Low, in order to maintain a constant water temperature, heat as needed, and refresh the temperature display. This is known as “polling.”

Back

Settings

Temp Range

Heat Mode Time of Day Filter Cycles Light Cycle Invert Panel Lock

High

Ready

Normal

Rest Mode will only allow heating during programmed ﬁlter cycles. Since

polling does not occur, the temperature display may not show a current temperature until the heater pump has been running for a minute or two. While Pump 1 High can be turned on and off, Pump 1 Low will run until set temperature is reached, or 1 hour has passed.

Freeze Protection

to keep it lled and operating. If you don’t want to drain your spa, you can continue to run it safely through

the winter, providing you program it correctly.

If the temperature sensors within the heater detect a low enough temperature, then the pumps and the blower automatically activate to provide freeze protection. The pumps and blower will run either continuously or periodically depending on conditions.

Setting Filter Cycles

Filter cycles are set using a start time and a duration. Each setting can be adjusted in 15-minute increments. The panel calculates the end time and displays it automatically.

Filter cycle 2 is off by default, but can be selected for use if desired.

www.calspas.com

Filter Cycles

Filter Cycle 1

Back

Starts at 12:00 AM Runs 0 HR 0 Min Ends at 12:00 AM

Filter Cycle 2 NO Starts at 12:00 AM Runs 0 HR 0 Min Ends at 12:00 AM

Filter Cycles

Filter Cycle 1

Back

Save

Starts at 6:15 AM Runs 3 HR 0 Min Ends at 9:15 AM

Cancel

Filter Cycle 2 NO Starts at 12:00 AM Runs 0 HR 0 Min Ends at 12:00 AM

2017 Fitness Spa

LTR20171005, Rev. D

Lock

Back

Settings

Panel

OFF

Ready-in-Rest Mode

READY/REST appears in the display if the spa is in Rest Mode and the Jets 1 Button is pressed. It is assumed that the spa is being used and will heat to set temperature. While Pump 1 High can be turned on and off, Pump 1 Low will run until set temperature is reached, or 1 hour has passed. After 1 hour, the System will revert to Rest Mode. This mode can also be reset by entering the Settings Menu and changing the Heat Mode.

102°F

Set: 104°F 8:32 PM Ozone Filter 1

Ready/Rest Heating

High Range

Spa

Shortcuts

Settings

Circulation Mode

If the spa is conﬁgured for 24HR circulation, the heater pump generally runs continuously. Since the heater

pump is always running, the spa will maintain set temperature and heat as needed in Ready Mode, without

polling. In Rest Mode, the spa will only heat to set temperature during programmed ﬁlter times, even though the water is being ﬁltered constantly when in Circulation Mode.

Locking and Unlocking the Control Panel

The control can be restricted to prevent unwanted use or temperature adjustments.

Locking the Settings allows jets and other features to be used, but the set temperature and other programmed settings cannot be adjusted.

Back

Lock

Settings

Panel

OFF

Operating Your Spa

When settings are locked, there is a reduced selection of menu items. These include Set Temperature, Invert, Lock, Utilities, Information and Fault Log. They can be seen, but not changed or edited.

Locking the Panel prevents the controller from being used, but all automatic functions are still active.

Locking and Unlocking -- Use the navigation buttons from the Lock Screen. The Lock and Unlock Sequence is the same for both Panel Lock and Settings Lock.

Additional Settings

Light Cycle

If Light Cycle does not appear in the Settings Menu, the light timer feature is not enabled by the manufacturer. When available, the light timer is OFF by default. The settings can be edited the same way

as lter cycles.

Invert Panel

Selecting Invert Panel will ip the display and the

buttons so the panel can be easily operated from inside or outside the hot tub.

Press: Twice

Then Press:

Once

Hold

Hold Mode is used to disable the pumps during

service functions like cleaning or replacing the lter. (See page 39 for instruction on cleaning the lter.)

Hold Mode will last for 1 hour unless the mode is exited manually.

Utilities

This menu feature is for system information only and is used mainly for repair and troubleshooting.

102°F

Set: 104°F 8:32 PM Ozone Filter 1

Ready in Rest Mode Heating

High Range

Unlock

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Preferences

This allows you to set the following preferences for system operation:

• Change the temperature between Fahrenheit

• Change the clock between 12-hour and 24-hour

Diagnostic Messages

Message Meaning

Operating Your Spa

---F - ---C Water temperature is unknown. After the pump has been running for

Possible freezing condition

The water is too hot

Water ow is low

Water ow has failed

The heater may be dry

The heater is dry

The heater is too hot

Sensors are out of sync The temperature sensors MAY be out of sync by 2°F or 3°F. Call for

Sensors are out of sync -Call for service

Sensor A Fault, Senor B Fault A temperature sensor or sensor circuit has failed. Call for service.

Communications error The control panel is not receiving communication from the System. Call

°F or °C is replaced by °T The Control System is in Test Mode. Call for service.

and Celsius

display

• Turn periodic reminded (like “CLEAN FILTER”) on

or off

Information

This menu feature is for system information only and is used mainly for repair and troubleshooting.

one minute, the temperature will be displayed.

A potential freeze condition has been detected. All water devices are activated. In some cases, pumps may turn on and off and the heater may operate during Freeze Protection. This is an operational message, not an error indication.

The system has detected a spa water temp of 110°F (43.3°C) or more, and spa functions are disabled. System will auto reset when the spa water temp is below 108°F (42.2°C). Check for extended pump operation or high ambient temp.

There may not be enough water ow through the heater to carry the

heat away from the heating element. Heater start up will begin again after about 1 min. See “Flow Related Checks” below.

There is not enough water ow through the heater to carry the heat

away from the heating element and the heater has been disabled. See “Flow Related Checks” below. After the problem has been resolved, you must press any button to reset and begin heater start up.

Possible dry heater, or not enough water in the heater to start it. The spa is shut down for 15 min. Press any button to reset the heater startup. See “Flow Related Checks” below.

There is not enough water in the heater to start it. The spa is shut down. After the problem has been resolved, you must clear the message to restart heater start up. See “Flow Related Checks” below.

One of the water temp sensors has detected 118°F (47.8°C) in the heater and the spa is shut down. You must clear the message when water is below 108°F (42.2°C). See “Flow Related Checks” below.

service.

The temperature sensors ARE out of sync. The fault above has been established for at least 1 hour. Call for service.

for service.

Flow-Related Checks

Check for low water level, suction ow restrictions, closed valves, trapped air, too many closed jets and

pump prime. On some systems, even when spa is shut down by an error condition, some equipment may occasionally turn on to continue monitoring temperature or if freeze protection is needed.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

spaTouch Icon Driven Control Panel

The Main Screen (Home)

Operating Your Spa

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Operating Your Spa

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Operating Your Spa

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Operating Your Spa

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Cal Spas Hot Tub Wi-Fi App

The Cal Spas Hot Tub Wi-Fi app can provide you with instant access and control of your spa wherever you connect within the spa’s Wi-Fi range. This optional feature is available for use with any smart device (Android™ or iOS™ systems only). You must have the Wi-Fi module installed in your spa in order to use the app. It is only available for spas with the BP501 or BP2000 control box.

Spa owners who do not have this feature installed on their spa at the factory can order it as an after-market item.

Installing the app

Go to the Apple app store or Google Play and search for the free spa app using the key words “Cal Spas Hot Tub.” Select the app. The icon for the app will appear on your device as shown at left.

Make sure you enable Wi-Fi on your phone before you run the app.

On the Wi-Fi connections screen on your device, a network will appear called “BWGSpa_ xxxxxx_”. (The x’s represent the Wi-Fi module’s local address and is unique for every spa.) Once you are connected to the network, start the Cal Spas app and follow the prompts on the screen. (Your start screen maybe different.)

Operating Your Spa

1. Tap the app button on the main screen of your device.

2. Connect to the spa’s Wi-Fi signal.

3. When connected, you will be

taken to the main app screen.

4. You are now directly connected to

your hot tub and can control all the hot tub functions via the app.

Troubleshooting connection problems

You should have few problems connecting with the Wi-Fi app. However, if you are unable to connect quickly and easily to the spa’s Wi-Fi source, try doing the following.

• Enable Wi-Fi on your device. This is the most likely reason you may not be able to connect to the app.

Check your devices Wi-Fi settings and try connecting again.

• Power cycle the spa. Shut off power to the spa for 30 second and turn it back on. Wait until the spa has

gone through its complete set-up routine before you try to connect with the Wi-Fi app.

• Wait until the spa has completely primed. When you turn on the spa, it will go through a priming routine,

which is followed by temperature polling, where no temperature is shown on the control panel. As soon as a temperature appears, you can connect with the Wi-Fi app.

• If you use your home network router, it MUST be close enough to the spa in order for the spa’s Wi-Fi

signal to reach the router. If you have connectivity problems, you may need to relocate your router closer to your spa or consider adding a wireless signal booster to your router.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Operating Your Spa

Connecting to a Device or Network

Direct connection

Range: About 20 feet Range limit: Limited to the range

HOW TO CONNECT TO IT: Install the app on your phone or device -- see the following section “Installing the app”.

Through home network with no internet access

Allows one local connection at a time

Range: About 50 feet Range limit: Limited to the range of your

HOW TO CONNECT TO IT:

1. Install the app on your phone or device.

2. Exit the app and go to wi- settings on your phone or device.

3. Select and enable your local router.

4. Start the app. After you connect, select Settings on the home screen.

5. On the Settings screen, select Advanced, then on the Advanced screen, select Wi- Settings.

6. On the Wi- screen, select WPA. Then select the name of your home router from the drop-down menu.

7. Enter the SSID and Key for your router, the tap Save and select OK twice.

8. Close the app and re-start it to connect to your home network.

of the wi- module

home router’s signal

Through a network with internet access, using Cloud connection or other hotspot connection

Allows unlimited simultaneous connections

Range: Worldwide Range limit: Limited to 3G / 4G / hotspot

HOW TO CONNECT TO IT: Follow connection instructions from section (2) above. The Cloud icon appears automatically when network connection is made. You can then connect to the spa’s wi- module.

Your

spa

Wi-

signal

availability

Phone or

other

device

Your home

network

router

Internet cloud

connection

Local wi-

connection

Internet

3G or 4G

Wi-

Local hotspot

Cloud Service

Cal Spas Wi-Fi can be used as a point to point remote control to be added to any home network free of charge. Those using the Cloud to access spa control from nearly anywhere in the world via the Internet will enjoy one year Cloud service free of any access charge. After the initial year of Cloud service, the user will receive a notice from the Cloud provider requiring a small charge for each continuing year of Cloud service. At the time of this publication, the annual fee for this service is $24. Once your device is paired and connected, all sounds from your device will be played through the spa’s optional sound system, including system sounds and telephone messages. The Wi-Fi package contents are pictured below.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

For More Information

If you have any trouble connecting, you can nd more in-depth instructions at the Balboa Water Group web site

at www.balboawatergroup.com/bwa and download the PDF document “Setting Up Your Wi-Fi”.

Operating Your Spa

There are also installation and setup videos at www.youtube.com/user/balboawatergroup.

Electrical Power Efciency Jets

Your new spa comes equipped with an electric heater. Following the directions listed below will ensure the

most efcient operation:

NOTE: This method is only for spa usage under two hours a week.

• Keep the spa’s operating temperature 5˚F below

the desired usage temperature when not in use. One or two hours before use, set the temperature to the desired temperature.

• If the spa usage exceeds two hours a week, the

set temperature should remain at the desired usage temperature.

• The air venturis should be used sparingly. When

open, water temperature drops quite rapidly and can also dissipate chemicals.

Allowing the water temperature to lower more than

10˚F below the desired usage temperature and

reheating it prior to usage will cause the heater to operate longer than it normally would maintaining the desired temperature. Doing this will increase your operating cost and makes your heater work more than necessary.

Almost all of the jets in your spa are adjustable. Rotating the face of an adjustable jet to the left (counter-clockwise) will decrease the amount of

water ow through the jet. Rotating the face of an

adjustable jet to the right (clockwise) will increase

the amount of water ow through the jet. (See

example shown below.)

Neck jets adjust in the opposite directions (counterclockwise to increase, clockwise to decrease).

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

LED Lighting

Press the LIGHT button on the topside control panel to turn the spa light on. If your spa has perimeter LED lights, they will also light up at the same time as the spa light.

The LEDs operate in three modes:

1. Cycle: When you continually press the LIGHT button, the LEDs will cycle through the three main LED colors (Red, Green, and Blue) or combinations of the three that produce the following colors:

Operating Your Spa

light green, purple, light blue, yellow, etc.

Each time you press the button, you immediately advance to the next color in sequence or eventually a different light pattern.

Diverter Knobs

Diverter knobs are 1” and 2” knobs located around the top of your spa. They allow you to divert water through jets from one side of the spa to the other, or in most cases

from oor jets to wall jets. This is accomplished by rotating the diverter knob to the left (counterclockwise), decreasing the amount of water ow through a section of jets. To increase the amount of water ow through the other section of jets, rotate the handle to

the right (clockwise).

2. Flashing: When you are cycling through all the colors, the next time you push the LIGHT button,

the LED lights may start ashing. This is another

normal operational pattern option.

3. Fading cycle: The next phase of operation when you push the LIGHT button is a slow and/or fast fade random transition from one color to the next.

Spas with exterior corner LED lighting generally work in the same mode as described above. The variations in color and patterns provide you with multiple options to suit almost any lighting preference.

Waterfalls

Some spa series include optional waterfalls. When the booster pump is on, rotate the dial on top (for the cascade waterfall) or turn the knob (for the hydro streamer -- see below).

Air Venturis

Air venturis are the 1” knobs located around the top of your spa. Each one will let you add a mixture of air with the jet pressure. This is accomplished by rotating the air venturi knob to the left (counterclockwise) to increase

the amount of airow through the jets. To decrease the amount of airow

through the jets, rotate the handle to the right (clockwise).

Hydro Streamer Waterfall

Your spa may include two to eight streamer waterfalls. When the booster

pump is on, turn the 1” diverter knob to adjust the rate of ow to the

waterfall jets.

The waterfall jet faces are not adjustable. Do not turn the jet faces because you may accidentally remove them.

Always shut off water to the hydro streamer jets before you place the cover on the spa. Water from the hydro streamer jets sprays in an arc that is higher than the top surface of the spa. When water from the hydro streamer sprays the bottom of the cover, it will collect and run to the edge of the spa and drip over the top.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Filtration

Ing et augait alit esto dolut dio doleniam quat am vel etue vendiam quis duip ea ating et utem quam, sendit, velesequisit am dunt niscil ilit alit nonumsan utatin utat num voloreril in ut pratie dionull umsandio consed dolumsandit at. Rat, consequi tinim ilisi bla feuis euguerc ilisi.

Em verit iliqui endiam nulluptat lamcore minibh elestio numsandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.

Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.

Met prate er sit dolor iriureetuer si. Feummy nullamcore magna ad dio er sequamconum nis eu feugiamet, vent et wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons aut alit lut lore tin hent adiam iustrud molor sustis essit wiscilit wisi.

Regularity

Em verit iliqui endiam nulluptat lamcore minibh elestio numsandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.

Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.

Sanitation

Em verit iliqui endiam nulluptat lamcore minibh elestio numsandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.

Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.

Chemical Balance

ilisi bla feuis euguerc ilisi.

Em verit iliqui endiam nulluptat lamcore minibh elestio numsandip eraesectem diatio ercing ea cortis delissed dunt utpatisi.

Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea consequat.

Met prate er sit dolor iriureetuer si. Feummy nullamcore magna ad dio er sequamconum nis eu feugiamet, vent et wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons

Your Key

To Clear

Water

Water Clarity

This section is intended for new spa owners with no experience with water chemistry. Everyone’s experience with maintaining water quality is different, but there are some general concepts you need to know.

Water maintenance is not difcult, although it requires regular attention. The most important thing to understand

about taking care of your spa water is that preventive action is much easier than correcting water quality issues.

The Key to Clear Water

Excellent water quality is a simple matter of four things:

Chemical Balance

You will need to test and adjust the chemical balance of your spa water. Although this is not

difcult, it needs to be done regularly.

Depending on your choice of sanitizer, you need to test the level of calcium hardness, total alkalinity, and pH. Spa owners with a Cal Clarity II bromine generator also need to check total dissolved solids and phosphates.

See page 38 to learn how to balance your spa water.

Sanitizers kill bacteria and viruses and keep the water clean. A low sanitizer level will allow microbes to grow quickly in the spa water. We recommend using either chlorine or bromine as your sanitizer.

Spa owners with an ozonator also need to add sanitizer, although their requirements are different.

See page 38 to learn how to use sanitizer.

Sanitation

Water Clarity

Filtration

Cleaning your lter regularly

is the easiest and most effective single thing you can do to keep your water clear.

A clogged or dirty lter will

cause the heater and pump to work harder than they need to, possibly causing them to fail.

The spa’s heating system will only function with

the proper amount of water ow through the

system.

See page 39 for lter cleaning instructions.

Testing and Adjusting Spa Water

You have two types of testing methods to choose from:

• The reagent test kit is a method which provides a high level of accuracy. It is available in either liquid or tablet form.

• Test strips are a convenient testing method commonly used by spa owners.

2017 Fitness Spa

LTR20171005, Rev. D

Maintaining your water quality helps the enjoyment of your spa and extends your spa’s life by preventing damage from neglect and chemical abuse.

See page 40 for the schedule of recommended maintenance.

Clear water requires regular maintenance. Establish a routine based on a regular schedule for your spa water maintenance.

Regularity

www.calspas.com

Balancing the Total Alkalinity

Water Clarity

Total alkalinity (TA) is the measure of the total levels of carbonates, bicarbonates, hydroxides, and other alkaline substances in the water. TA can be considered a “pH buffer”. It is the measure of the ability of the water to resist changes in pH level.

The recommended total alkalinity is 80 - 120 ppm.

If the TA is too low, the pH level will uctuate widely from high to low. Low TA can be corrected by adding an alkalinity increaser

If the TA is too high, the pH level will tend to be too

high and may be difcult to bring down. High TA can

be corrected by adding an alkalinity decreaser.

When the TA is balanced, it normally remains stable, although adding water with high or low alkalinity will raise or lower the TA level.

Balancing the pH

The pH level is the measure of the balance between acidity and alkalinity.

If the pH is too low, it can cause corrosion of metal xtures and the heating element. Low pH can be corrected by adding a pH increaser.

Balancing the Calcium Hardness

Calcium hardness (CH) is a measure of the total amount of dissolved calcium in the water. Calcium helps control the corrosive nature of the spa’s water and is why soft water is not recommended. The low calcium content of soft water is very corrosive to the equipment and can cause staining of the spa shell.

The recommended calcium hardness is 150 200 ppm.

If the CH is too low, add a calcium hardness increaser.

If the CH is too high, dilute the spa water with soft water.

When the CH is balanced, it normally remains stable, although adding soft water or very hard water will raise or lower the CH level.

If the pH is too high, it can cause scaling by allowing metals or minerals to form deposits and stain spa surfaces. High pH can be corrected by adding a pH decreaser.

Ideal Water Chemistry

Ideal Range (ppm)

Testing For:

Total Alkalinity 80 120

Calcium Hardness 150 200

pH 7.2 7.6

Minimum Maximum

Sanitation

Sanitizers kill bacteria and other organic waste by breaking them down to non-harmful levels and are ltered out. Before you ll your spa, you need to decide which chemical sanitizer you wish to use. Consult your Cal Spas

dealer for the right decision with regards to your lifestyle and spa usage.

We recommend either bromine or chlorine as your sanitizer. Both work well when maintained regularly.

DO NOT use trichlor. Trichlor is very acidic and the hot temperature of the spa causes it to dissolve too quickly. It will cause damage to your spa and will void your warranty.

Whichever plan you decide on, follow it completely and don’t take shortcuts. It will provide you with clean, safe, clear spa water with a minimum of effort. Spa owners with an ozonator still need to use a chemical sanitizer. See page 40 for a description of how the ozonator works.

Using Chlorine as a Sanitizer

If you choose to use chlorine as a sanitizer, only use granulated chlorine, not liquid chlorine.

Once a week, check the chlorine level using either a test strip or a reagent kit. See the table on the following page for the ideal range. Add one or two tablespoons granulated chlorine to the spa water weekly. Note that chlorine dissipation rate will be faster at higher water temperatures and slower at lower temperatures. When you add chlorine, open all of the jets and run the spa at high speed with the cover open for at least 30 minutes.

Follow the maintenance schedule on page 40.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Using Bromine as a Sanitizer

Bromine is a very effective sanitizer that produces low chemical odors. Unlike chlorine, it can break down bacteria and other impurities to a safe level with a low burn-out rate.

Use granulated sodium bromide to establish your bromine base.

When you begin with fresh water, add 2 ounces of granulated bromide. Open all of the jets and run the spa at high speed with the cover open for at least 30 minutes.

Follow the maintenance schedule on page 40.

Bather Load

“Bather Load” is the term used to describe the number of people using a spa, combined with the length of usage, and the frequency of usage. All these factors have a great effect on the spa water. The higher the bather load, the more chemicals

need to be added and a longer ltration time will

be needed.

Shocking the Water

In addition to using a chemical sanitizer, you will periodically need to shock the water. Shocking the water helps remove burned-out chemicals, bacteria, and other organic material from your spa’s water and improves your sanitizer’s effectiveness.

Do not use chlorinating shock, which will damage your spa’s jets and pump seals. Only use an oxidizer shock. It can be used with either chlorine or bromine sanitizers.

Add one ounce of oxidizer shock once a week, after heavy bather loads, or if water has a strong odor.

Spa must be running with all of the jets on high for 30 minutes with the cover open. If necessary, repeat oxidizer shock in 30 minute intervals.

Testing For: Ideal Range

(ppm)

Minimum Maximum

Chlorine level

Without ozonator

3.0 5.0

Water Clarity

Recommendations are designed for spas with average bather load (3 to 4 people, 15 minutes of usage, three times a week at 100 degrees) If your bather load exceeds these guidelines, and you experience water quality problems, increase

the amount of ltration rst, (go to the next higher ltration number) then if water quality is still not

adequate, consult the advice of your Cal Spas dealer for additional chemical or system recommendations. Be sure to give them your bather load information.

With ozonator

Bromine level

Without ozonator

With ozonator

2.0 4.0

6.7 11.0

5.7 10.0

Filter Cleaning

The lter is the part of your spa that removes the debris from the water and needs to be cleaned on a regular basis to maximize your spa’s ltering performance and heating efciency.

In addition to spraying off the lter weekly to remove surface debris, your lter should be deep cleaned periodically to dissolve scale and particles that get lodged deep within the lter bers and impede the ltration process. Even if the lter looks clean, scale and particles can clog the bers and prevent water from owing through the lter resulting in the most common spa problem—no heat, caused by a dirty lter. We recommend you clean your lter once a month and replace it once a year or as necessary.

It is extremely important that you never run the spa without a lter. There is a possibility that debris may be sucked into the plumbing through the lter well.

Set the spa in Hold Mode before you remove the lter. Hold Mode pauses all spa operations for 60 minutes for service functions like cleaning or replacing the lter. See page 15 for instructions on

using Hold Mode.

Cleaning the lter

1. Remove the lter by unscrewing it and pulling it up and out.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

2. Place the dirty lter into a bucket of water deep enough to cover the lter. Add 8 oz of liquid lter cleaner

to the bucket of water.

Note: It is a good idea to keep a spare lter to use in the spa while the dirty lter is being deep cleaned. This way, you can rotate the lters and both will last longer.

3. Soak the lter for a minimum of 24 hours.

4. Spray the lter with a water hose. Spray each pleat carefully.

5. Reinstall the lter. Do not overtighten.

Pure Cure™ Water Sanitizer

Water Clarity

The Pure Cure™ water sanitizer is an optional water purication system installed at the factory. It eradicates

germs in the water that are resistant to chlorine-based chemicals using high intensity UV light. Although the water sanitizer works automatically with your spa, you will still need to test for chlorine or bromine and occasionally replenish it to return the sanitizer level to the baseline.

For spas without a circulation pump, pump 1 will run at low speed and the water sanitizer will run during

ltration. For spas with a circulation pump, the water sanitizer will run with the circulation pump.

The spa’s control system is factory-programmed with one lter cycle that will run in the evening when energy rates are often lower. The time and duration of the lter cycle can be set according to your needs. In addition, a second lter cycle can be enabled. Filtration time may need to be increased with heavy bather load. See instructions for setting ltration cycles on page 16.

The water sanitizer is virtually maintenance-free. Once a year the UV light needs to be replaced. See page 45 for instructions. However, the water sanitizer is not a user-serviceable item and maintenance

must be performed by a spa technician. Have your service technician consult the manufacturer’s instruction and service manual.

Ozonator

The ozone generator releases ozone into the spa water. You will still need to test for chlorine or bromine and occasionally replenish it to return the sanitizer level to the baseline.

For spas without a circulation pump, pump 1 will run at low speed and the ozonator will run during ltration.

For spas with a circulation pump, the ozonator will run with the circulation pump.

Maintenance Schedule

Each time you rell the spa Follow the section “Filling and Powering Up Your Portable Spa” on page 8.

Prior to each use Test the spa water using either test strips a reagent test kit. Adjust chemical levels

Once a week Test the spa water using either test strips a reagent test kit. Adjust chemical levels

Once a month Deep clean your spa’s lter. (Follow lter cleaning instruction at beginning of this

www.calspas.com

as necessary.

If your water source is high in calcium, add stain and scale preventer.

section.)

2017 Fitness Spa

LTR20171005, Rev. D

Every two to four months Change the spa water. How often you change the water depends on how much you

Once a year Replace lter cartridges if the pleats appear frayed.

use the spa. When you change the water, you will need to:

• Clean and polish the acrylic surface (see page 45)

• Clean and treat the spa cover and pillows (see page 45)

• Deep clean the lter (see page 39)

• Rell your spa (see page 8)

If you use the Cal Pure UV water sanitizer, you will need to replace the UV lamp (see page 45 for UV lamp maintenance)

Troubleshooting Water Clarity Problems

Problem Probable Causes Possible Solutions

Cloudy Water • Dirty lter

• Excessive oils / organic matter

• Improper sanitization

• Suspended particles / organic

matter

• Overused or old water

Water Odor • Excessive organics in water

• Improper sanitization

• Low pH

Chlorine Odor • Chloramine level too high

• Low pH

Musty Odor • Bacteria or algae growth • Shock spa with sanitizer – if problem is visible or

Organic buildup / scum ring around spa

Algae Growth • High pH

Eye Irritation • Low pH

Skin Irritation / Rash • Unsanitary water

Stains • Total alkalinity and/or pH too

Scale • High calcium content in water –

• Buildup of oils and dirt • Wipe off scum with clean rag – if severe, drain the

• Low sanitizer level

• Free chlorine level above 5 ppm

low

• High iron or copper in source

water

total alkalinity and pH too high

2017 Fitness Spa

LTR20171005, Rev. D

• Clean lter

• Shock spa with sanitizer

• Add sanitizer

• Adjust pH and/or alkalinity to recommended range

• Run jet pump and clean lter

• Drain and rell the spa

• Shock spa with sanitizer

• Add sanitizer

• Adjust pH to recommended range

• Shock spa with sanitizer

• Adjust pH to recommended range

persistent, drain, clean and rell the spa

spa, use a spa surface and tile cleaner to remove

the scum and rell the spa

• Shock spa with sanitizer and adjust pH

• Shock spa with sanitizer and maintain sanitizer

level

• Adjust pH

• Shock spa with sanitizer and maintain sanitizer

level

• Shock spa with sanitizer and maintain sanitizer

level

• Allow free chlorine level to drop below 5 ppm

before spa use

• Adjust total alkalinity and/or pH

• Use a stain and scale inhibitor

• Adjust total alkalinity and pH – if scale requires removal, drain the spa, scrub off the scale, rell

the spa and balance the water

• Use a stain and scale inhibitor

www.calspas.com

Water Clarity

Cleaning and Maintenance

Removing and Reseating the Pillows

You can remove the pillows for cleaning and maintenance quickly and easily. This method works for all types of pillows.

Grab the lower edge of the pillow with

both hands rmly and pull up. As you

do this, the pillow inserts will pop out of the holes.

Cleaning and Maintenance

Reseat the pillows by aligning the pillow inserts with the holes and striking the pillow hard enough to insert the pegs back into the holes.

Jet Remove/Replace

Jets can be easily removed for cleaning.

Grasp the outer rim of the jet and turn it counter-clockwise. The jet will

unscrew from the tting until it is free.

To replace the jet, place it in the tting and

turn it clockwise until it is snug in place. Do not overtighten the jet.

Spa Cover

Important! Keep the spa covered when not in use!

• Covered spas will use less electricity in

maintaining your set temperature.

• Covering your spa will protect your spa’s nish from the sun’s ultraviolet rays.

• You are required to keep the spa covered to maintain warranty coverage.

• Covering your spa helps prevent children from drowning in the spa.

See the manual enclosed with your cover for instructions on mounting the locks and how to lock and unlock the cover.

In addition, while the spa cover is rigid, it is not designed to support any weight. Therefore, as a safety precaution and to preserve the life of your cover, you must not sit, stand, or lie on it, nor should you place objects of any kind on top of it.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Draining Your Portable Spa

Your spa should be drained every four to six months for cleaning and maintenance and relled with fresh tap

water. See page 45 for instructions on cleaning the shell, cover, and pillows. See page 8 for instructions on

relling your spa. Before you begin, turn off power to the spa at the breaker and remove all lters.

1. Locate your drain.

Cleaning and Maintenance

For spas with drain inside the spa

Using a Phillips screwdriver, remove the screws to the access panel and open it. Locate hose ending with the

¾ inch hose-bib xture as shown below.

2. Remove the cap

Make sure the valve is in the closed position, then unscrew and remove the cap. Unscrew the cap.

For spas with drain inside the spa

For spas with cabinet mounted drain

Pull the knob out of the cabinet. The cabinet drain is screwed into the drain pull knob.

For spas with cabinet mounted drains

3. Connect valve to a garden hose.

Attach a garden hose to the hose-bib xture. Place the

other end of the garden hose where you would like the water to drain.

4. Drain the spa.

Turn the valve on the hose-bib xture to open the

drain. When the spa has drained completely, turn the

valve on the hose-bib xture, remove garden hose,

and replace the cap.

2017 Fitness Spa

LTR20171005, Rev. D

For all spas

www.calspas.com

Winterizing (Cold Climate Draining)

In many areas of the country, the temperature drops below 32˚F (0°C). We recommend that you always have your spa full of water and running at normal spa temperatures (80˚F to 100˚F, 26.7°C to 37.8°C). This will help

reduce the risk of freezing in your spa and your spa’s equipment.

Warning: If you nd the need to drain your spa, be aware of the potential of freezing in your

spas equipment and plumbing. Even if the directions below are followed perfectly, there is no guarantee that your spa will not suffer freeze damage. Freeze damage is not covered by your warranty.

1. Open all lter covers.

2. Remove the lter baskets and lters.

3. Drain your spa completely as described in the

Cleaning and Maintenance

instructions above.

4. Vacuum water from the spa’s main drain tting with a wet/dry vacuum.

5. Open the bleeder valves on the pumps.

6. For spas with the UV lamp chamber mounted at

on the equipment oor:

Loosen the quartz tube nut at the top of the UV lamp chamber and pull up the quartz tube to let the water drain from the UV lamp chamber.

7. Disconnect the unions from both sides of the pump.

8. Blow any remaining water out of the jets and equipment area with the wet/dry vacuum.

9. When it has completely nished draining, replace the quartz tube in the UV lamp chamber and retighten the nut. Close the bleeder valves and re-connect the unions on the pumps. Replace the

lter baskets and lters.

10. Cover your spa with a good spa cover and an allweather tarp to ensure that neither rain nor snow enters the spa.

Cleaning and Replacing the Filter

Filtration is one of the most important steps you can take to ensure clean, clear water. It is far less expensive to

x water clarity problems by ltering your spa than by using excessive amounts of chemicals, excessive ltration

times, or by water replacement.

See the section “Filter Cleaning” on page 39 for more information.

Vacation Care

You can leave your spa unattended for up to two weeks if you follow these instructions.

ALWAYS lock your cover using the cover locks if you plan to be away from home and the spa is

lled with water.

1. Select the Low Range temp choice used for vacation mode. (See instructions on page 13 for vacation setting.)

2. Following the water quality instructions starting on page 37, adjust the pH.

3. Shock the water (add either chlorine or bromine sanitizer).

4. When you return, check and adjust the pH and shock the water.

If you will not be using your spa for longer than 14 days and a spa maintenance service is not available, we strongly recommend you drain or winterize your spa.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Cleaning Your Spa

Spa Cover and Pillows

Due to the constant punishment your spa cover and pillows receive, you should protect them by applying

a vinyl and leather cleaner as part of your monthly maintenance plan. Use a product that is specically

designed to protect spa covers and pillows from chemical and ultraviolet light damage without leaving an oily residue behind that is normally associated with common automotive vinyl protectants.

Warning: Do not use automotive vinyl protectants on spa covers or pillows. These products are generally

oil-based and will cause severe water clarity issues that are difcult to correct.

Spa Shell

Each time you drain your spa, before you rell it you should clean your spa shell with an all-purpose cleaner

and apply a coat of surface protectant.

Use a low detergent, non-abrasive cleaner specically formulated to clean the spa without damaging its

acrylic nish.

Use a non-oil based surface protectant that is specically formulated to protect the spa’s nish from the

chemicals and minerals associated with normal spa use.

Changing the UV Lamp

Cleaning and Maintenance

CAUTION: Always turn off power to the spa at the GFCI prior to any maintenance.

Note: Periodically you should the check the light on the transformer for the UV light system. The transformer is mounted in the spa equipment area close to the system control box. When it is operating normally, the light will be green. When it requires maintenance, it will be red. This usually happens when the UV lamp needs replacing. The UV lamp is a wearable part that needs replacing about once a year.

To remove the UV lamp

1. Disconnect power.

2. Turn water off and open down stream of system to relieve

pressure.

3. Cut the tie wrap that attaches the UV lamp chamber to the

spa frame.

4. Remove the water-proof strainer (1) and unscrew the

aluminum nut (2).

5. Pull out the lamp (4) approximately 2” from the chamber (7).

6. While holding the lamp end, remove the lamp socket (3) from

the end now exposed.

7. Remove the lamp from the chamber.

8. Remove the O-ring (5) from the end of the quartz thimble (6).

9. Remove the quartz thimble.

To reinstall the replacement UV lamp, follow these steps in reverse.

When replacement UV lamp has been installed, conduct a nal

leak check:

1. Restore power to the spa at the GFCI.

2. Turn on the pump and let water run for ve minutes to check

for leaks.

2017 Fitness Spa

LTR20171005, Rev. D

1 Water-proof strainer

2 Aluminum nut

3 Lamp socket and lead

wire

4 Germicidal UV lamp

5 Rubber O-ring

6 Quartz thimble

7 Chamber

8 Clip

9 Ballast

www.calspas.com

Using the Digital Media Locker

The Aquatic AV digital media locker is fully integrated with your Cal Spa. It will accommodate any digital device, such as iPhones, smart phones, and MP3 players,

that is USB or Bluetooth capable.

The docking station comes with its own owner’s manual. It describes parts included, installation, and

Although the media locker features a locking door with seals, it is water resistant and NOT waterproof. You must take every precaution to keep the interior of the media locker dry.

• Make sure that hands are dry before coming in

contact with the media locker.

• Always CLOSE AND LOCK the protective door.

proper use. Owners of this system must read the manufacturer’s instructions prior to operating this unit. The instructions are shipped inside the docking station behind the remote control.

See this page for instructions on protecting the media locker from water damage. Water damage caused

by negligence or improper use is not covered under warranty.

The instructions contained in this manual describe only basic functions. See the manufacturer’s operating instructions for other features and functions.

Note: The digital media locker comes with a remote control and does NOT INCLUDE an MP3 player such as an iPod.

Aquatic AV AQ-DM-5UBT Media Locker

Using the Digital Media Locker

Synchronizing (Pairing) the Remote Control with the Media Locker

Before you can use the remote control with the docking station, they need to be synchronized, or paired. Follow the simple instructions below.

Before you begin, make sure the docking bay is OFF. If the red Power light inside the dock-

ing bay is on, press it once to turn it off.

Press the red Power button on the remote.

The media locker shown in this instruction is model AQ-DM-5UBT, although this pairing instruction can be used with earlier Aquatic AV media lockers that use a remote control. Model AQ-DM-3B does not require a remote and does not need to be paired in order to function.

Press and hold the Mode button

on the remote. The display on the remote will read PAIR.

While still holding the Mode button, press and hold the Power

button inside the docking station for five seconds.

The display on the remote will read WELCOME or show a mode position such as RADIO.

If they do not pair the first time, repeat these four steps until it is successful.

www.calspas.com

When the remote and docking bay

are paired, the power button light will turn blue.

AQ-DM-5UBT

If you have trouble pairing the devices:

• Re-read the instructions and follow them carefully. You may have missed an

important detail.

• Make sure the red power light inside the docking bay is OFF before you

begin.

• PRESS and HOLD the Mode button on the remote until it reads PAIR. Do not

release the Mode button. Do not press the Power button inside the docking station until the remote reads PAIR.

• Press and hold the Power button for NO MORE than ve seconds. Otherwise,

the devices will not pair.

2017 Fitness Spa

LTR20171005, Rev. D

Listening to Devices

There are three ways to connect your device to the media locker: With the USB connection, Bluetooth connection, and the auxiliary input.

Using the Digital Media Locker

1. Connecting via USB

The Aquatic AV digital media locker comes with one USB connector for Apple devices. If you have another kind of device, you will need to supply your own USB connector, such as the type shown below.

Apple USB connector USB micro B connector

1. Attach your device to the USB cable inside the digital media locker using the appropriate USB connector.

2. Secure the device with the anchor straps.

3. Close and lock the media locker’s protective door.

4. Press POWER on the remote control or Power button on the locker to turn it ON.

5. Press MODE on the remote control to select USB mode. Use the buttons as shown in the remote function chart.

Note: When USB devices are connected to the USB input, the device’s battery will charge.

Search for Songs and Playlists

Apple devices

1. Press SEARCH to enter iPod searching mode.

2. Once in searching mode, the remote will display ‘Playlist’. Continue to press SEARCH to scroll through the search modes below:

1) Playlist 2) Artist 3) Album 4) Song 5) Genre 6) Composer 7) Audio Book

3. Press PLAY/PAUSE To select the desired search mode.

4. Press Volume UP/DOWN to scroll through your media in the selected search mode.

artist, album, genre, composer or audio book, the songs in the selected folder will be visible. Press PLAY/PAUSE to play the desired song within the folder.

Other USB devices

1. Press SEARCH to enter the USB searching mode.

2. Press Volume UP/DOWN to scroll through the folders on your USB device. To select a folder, press the PLAY/PAUSE button.

3. Press Volume UP/DOWN to scroll through the songs in the folder and press PLAY/PAUSE to play the desired song.

2. Connecting via Bluetooth

1. Switch on your Bluetooth device.

2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed).

Only one Bluetooth device can be paired with the Digital Media Locker at any time.

Bluetooth mode will be activated once a Bluetooth device is linked. Play the song from device and the sound will play through the Digital Media Locker.

• Press PLAY/PAUSE to play or pause the

song.

• Press FAST REWIND or FORWARD

buttons to play previous/next song le.

Track and volume can be controlled directly from your Bluetooth device, remote control or door controls.

3. Connecting via Auxiliary Input

When you connect your device via the auxiliary input, you play media directly to the audio input of the media locker. The remote control can not control your device when it is connected through the auxiliary input. You will need a 3.5 mm audio connector as shown below.

5. Once you nd the desired media, press PLAY/

PAUSE to make your selection. If your selection is a song, it will begin to play. If you select a playlist,

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

1. Connect your MP3 device to the 3.5 mm jack input.

2. Secure the device with the anchor straps.

3. Close and lock the media locker’s protective door.

4. Press POWER on the remote control or the

POWER button on the locker to turn it ON.

Remote and Keypad Functions

All of the functions on remote control and the keypad on the media locker’s door are identical. For a detailed description of all key functions, see the manual for the Aquatic AV media locker.

5. Press MODE on the remote control to select ‘AUX IN’ mode.

Only one auxiliary input (3.5 mm jack) can be used at any one time.

Listening to FM Radio

Press MODE on remote control to switch to FM radio

mode. If this is the rst time you listen to FM radio, the

default frequency will be 87.5MHz, as shown on the remote LCD.

To scan or seek FM radio channels, press FAST REWIND or FAST FORWARD to seek another station. Press and hold either FAST REWIND or FAST FORWARD for

Using the Digital Media Locker

manual tuning back or forward.

To save the current radio station into memory, press and hold the 1, 2, or 3 button for more than 2 seconds. The station will be stored to that button. Press the 1, 2, or 3 button to listen to the preset station.

Closing and Locking the Door

Always CLOSE and LOCK the media locker door after you place or remove a media device inside it.

Slide the clasp down to lock the door as shown at

right. Make sure the door is rmly pressed into the

watertight seal before you slide the lock into place.

Water damage caused by negligence or improper use is not covered under warranty.

Search functions and audio menu

Volume UP

Fast rewind /

previous track

Volume DOWN

In USB mode:

Folder functions

In FM mode:

radio presets

Mode (select function)

Play / pause

Fast forward / next track

Random playback

Power

Using the Freedom Sound System

The Freedom Sound System™ entertainment option contains a Bluetooth-enabled speaker system that is available for certain Cal Spa models. Any Bluetooth-enabled device can be used to play audio through your spa.

Before you can use the sound system, you need to pair the Bluetooth module with your device. The Bluetooth module is installed within the spa cabinet. Everything can be done with your device. The example shown below is from an iPhone device. Your device may appear differently. Before you begin, make sure Bluetooth in enabled on your device.

1. Select Bluetooth from your device’s option list.

2. Select SWA8-1BT... from the list of available devices to pair.

3. Allow your device to pair with the spa’s Bluetooth module.

4. When the devices have been connected, the device SWA8-1BT... will be highlighted.

Only one Bluetooth device can be paired with the Freedom Sound System™ at any time.

Once your device is paired and connected, all sounds from your device will be played through the sound system, including system sounds and telephone.

1 2 3 4

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Keeping Fit With Your Swim Spa

Jetstream Propulsion System

Use the control panel to start and stop the Jetstream Propulsion System. The JETS1 and JETS2 buttons control the top and bottom jets.

Use the air venturi valves to inject air in the water streams.

Swim Tether

The swim tether pole has three pieces and assembles easily. Slide the ends of the top and middle sections into the middle and bottom sections.

Keeping Fit With Your Swim Spa

Insert the tether in the anchor hole when you are ready to use it.

Buckle the strap around your waist. It is easily adjustable and can accommodate most sizes.

Exercise Equipment

IMPORTANT: Always consult your physician before starting any exercise activity or program. The Ultimate Fitness series spas feature rubber exercise bands. When stretched, these bands create a high tension condition. Improper use or failure to connect the exercise bands properly may cause injury. Always inspect all of the exercise equipment prior to beginning any exercise. Do not use any damaged equipment.

This equipment attaches to the exercise anchors located on the spa walls.

Connecting the Exercise Equipment

The drawings below show different ways the exercise kit can be connected depending on the exercises you wish to do.

For 14 foot spas and model F1222

For 16 and 17 foot spas

The exercise kit contains:

• Two hand grips

• Two ankle braces

• Two 6” elastic bands

• Two 18” elastic bands

• Two 25” elastic bands

• Two rowing bars

2017 Fitness Spa

LTR20171005, Rev. D

The exercise kit contains:

• Two hand grips

• Two ankle braces

• Two 18” elastic bands

• Two 25” elastic bands

• Two 56” elastic bands

• Two rowing bars

www.calspas.com

18” band

25” bands

56” bands

with hand grips

6” bands with

hand grips

56” bands

with hand grips

When attaching the rowing bar, place the hook into the eye pad as shown.

6” bands with

hand grips

18” band

25” bands

56” bands

with hand grips

When attaching the rowing bar, place the hook into the eye pad as shown.

Elastic bands attach to the eye pad as shown.

All elastic bands can be connected to the end of the spa and used with either hand grips or ankle braces.

6” bands with

hand grips

18” band

25” bands

18” band

25” bands

56” bands

with hand grips

Elastic bands

with hand grips

When attaching the rowing bar, place the hook into the eye pad as shown.

Typical conguration for F1222 spa

Elastic bands attach to the eye pad as shown.

18” band

All elastic bands can be connected to

Keeping Fit With Your Swim Spa

either end of the spa and used with hand grips or ankle braces.

Typical conguration for 12’, 13’, 14’ spa

6” bands with

hand grips

18” band

Typical conguration for 16’ and 17’ spa

56” bands

with hand grips

25” bands

www.calspas.com

25” bands

18” band

2017 Fitness Spa

LTR20171005, Rev. D

Appendix

Replacement Parts

Please visit www.quickspaparts.com to order your replacement parts.

Appendix

Jets Inserts - Screw-in

ELE 2” Euro No Eyeball

PLUCS2295021SL

MED 3” XL Cluster Storm Directional

PLUCS2295031SL

mfd 3” Micro Flow Directional

PLUCS2295061SL

Jets Inserts - Screw-in

PSD 5” Power Storm

PLUCS2295131SL

PSR 5” Power Storm Riffed

PLUCS2295141SL

MM 3” Mini Storm Massage

PLUCS2297061SL-8

MFD 3.5” Maxi Flow Directional

PLUCS2295091SL

PST 5” Power Storm Wagon Wheel

PLUCS2295191SL

River Jet Assembly Black with Stainless Steel Rim 210-5101SCS

PLU210-5101SCS

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Please visit www.quickspaparts.com to order your replacement parts.

SQN candy cane, 2” neck jet, 100% shut-off

Candy cane w/clear center

PLU29923-144-000

Appendix

SQL, SQR dual hydrostream (#25269-404-

000) - includes jet insert, jet body, gasket and nut

PLU25269-404-000

Jets Inserts - Snap-in SQR

Waterfall

Pillows

Water Diverter Valves

Diverter Valve 1½” On/ Off ASSY (600-4601)

PLU21100045

Air Control Valve

Air Control Black/Titanium

Drains

Drain Super Hi Flo Suction 2½” Black (640-3581LGV)

PLU21400146

Low Prole Drain ¾” Black

(640-0511)

PLU21400401

Cascade Pillow No Insert Black

ACC01401031

Innity Pillow

Ribbed Black

ACC01401051

Innity Pillow Plain

Black

ACC01401061

Water Diverter Valves

Diverter Valve 2” Black/Titanium

PLU21300465

Diverter Valve 1” Black/Titanium

Teleweir Skimmer

Teleweir lter skimmer 50 sq.

ft. (510-4601)

FIL11700006

Filter

50 sq ft female threaded antibacterial (for Teleweir skimmer shown above)

FIL50-5D15H15FCT-3

LED Lights

1-LED light string

LIT16100330

2-LED light string

PLU21300453

www.calspas.com

LIT16100331

2017 Fitness Spa

LTR20171005, Rev. D

Please visit www.quickspaparts.com to order your replacement parts.

4-LED light string

LIT16100332

1 to 3 ext. cord

LIT16100335

1 to 1 port ext. cord

LIT16100338

Interior light with logic (7 LED)

LIT16100333

Interior light without logic (7 LED)

LIT16100337

Main light housing, LED

lens, tting

nut

LIT16100336

LED Lights

Pure Cure™ UV Water Sanitizer

Clips

LIT16000385

Main Light Without Logic LIT16100629

Exercise Equipment

Exercise Kit for 7 Foot and 8 Foot Spas EXC12000006

Exercise Kit for 11 Foot Spas

EXC12000005

Exercise Kit for 12 Foot and 14 Foot Spas EXC12000008

Exercise Kit for 16 Foot and 17 Foot Spas EXC12000007

Exercise Kit Attachment Plate

EXC11000065

Replacement Cabinet Panels

The complete selection of replacement cabinets for all models is very extensive and too lengthy for this owner’s manual. To order replacement panels for your spa, visit www.quickspaparts.com.

Appendix

Pure Cure™ UV Water Sanitizer

Pure Cure complete system (Wonder PP-

LIT16000380

Germicidal UV lamp (T515)

LIT16000381

Rubber O-ring (D24.5)

LIT16000384

Quartz thimble (24.5X350)

LIT16000383

Ballast (UV-3)

LIT16000382

2017 Fitness Spa

LTR20171005, Rev. D

Covers

All spa covers are designed with a tapered height, angling downward from the center to the sides to drive off rain and prevent water from

pooling. The covers listed below are lled with either 1 lb, 1.5 lb,

or 2.0 lb foam.

Deluxe

5” - 3”

2.0 Lb. foam

93” x 141”

Fits spa models: F-1222

93” x 171”

Fits spa models: F-1420, F-1437

93” x 200”

Fits spa models: F1640, F-1770

93” x 151”

Fits spa model 1335

Deluxe

Gray COV93151D53G-CC

Slate COV93151D53S-WN

www.calspas.com

Please visit www.quickspaparts.com to order your replacement parts.

Basic Troubleshooting

The troubleshooting guidance provided here is intended to cover the most common problems a spa owner may encounter. For more indepth troubleshooting, go to www.calspas.com/troubleshooting.

Appendix

Problems starting up

Pump won't prime See priming instructions on page 10.

Breaker keeps shutting off Reset the GFCI breaker. If this continues, contact your dealer or a qualied spa technician.

Power and system problems

System won’t start up or breaker keeps shutting off

Control panel doesn’t respond Turn on or reset the GFCI circuit breaker. If this does not solve the problem, contact your dealer or a

Spa does not turn off Spa may be trying to heat up. Check if spa is in Ready or Rest mode (see page 14).

Message on the control panel There may be a problem. See Diagnostic Messages on page 18.

Heat problems

Spa water does not get hot Spa may be in low temperature range. Set the spa to high temperature range.

Spa overheats - temperature greater than 110°F / 43°C

Symptom Possible Solutions

Power may be shut off. Turn on GFCI circuit breaker. If this continues, contact your dealer or a

qualied spa technician.

If you hear the pump running but the control panel doesn’t respond, contact your dealer

In cold climates, if spa is not equipped with full foam or any kind of insulation, it will try to maintain the set temperature. Set the spa to low temperature range and set the temperature to 80°F.

Spa may be in lter cycle. If it is, this is normal and no adjustment is necessary.

The lter may be dirty or may need to be replaced. Clean or replace the lter.

The water level may be too low. Fill the spa with water level at 4 to 6 inches from the top.

The temperature is not turned up high enough. Raise temperature on topside control.

Cover the spa. The cover will keep heat in the spa and help keep heat from escaping. Make sure cover is on at all times when spa is not in use.

The heater element may be old, deteriorated, coated with scale, or defective. Contact your dealer for more assistance.

The gate valves may be partially or completely closed. NEVER OPERATE YOUR SPA WITH THE GATE

VALVES CLOSED!

Overheating can occur during summer months and may not necessarily indicate a malfunction. When it occurs, a message code may also appear on the control panel.

Temperature may be set too high. Turn the set temperature down to a lower temperature.

Filtration time may be too long. Turn the ltration cycles down during the warm months.

The spa may not be properly ventilated. Make sure the front of the spa is not blocked to allow air

ow.

High speed pumps may have been running too long. Limit pump running time to no more than 15 to 30 minutes.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

Symptom Possible Solutions

Water pressure problems

Low water pressure Jet valves may be partially or fully closed. Open the jet valves.

Filter cartridge may be dirty. Clean or replace the lter.

Pump may have airlock. Remove airlock by priming spa (page 10)

The suction ttings may be blocked. Remove any debris that may be blocking them.

The lter skimmer may be blocked. Remove the blockage.

Gate valves may be closed. Open gate valves. Note: Never operate your spa with the gate valves

closed!

Spa may be running in ltration mode. Press JETS or JETS 1 button to turn on high speed pump.

No water pressure (no water stream from any jets)

Jets surge on and off Water level may be too low. Add water to normal level.

Pump problems

Power may be switched off. Turn the power back on.

The pump may be defective. After you have tried all other troubleshooting, contact your dealer for assistance.

Appendix

Pump runs constantly – will not shut off

Noisy pump The water level may be too low. Fill the spa with water level at 4 to 6 inches from the top.

Pump turns off during operation Automatic timer may have completed its cycle. Press JETS or JETS 1 button to start the cycle again.

Pump has a burning smell while running

Pump does not run Pump may have over heated. Let it cool for an hour and try operating the spa for a shorter time.

There may be a problem with circuit board. Contact your dealer.

Filter cartridge may be dirty. Clean or replace the lter.

Pump may have airlock. Remove airlock by priming spa (page 10)

The suction ttings may be blocked. Remove any debris that may be blocking the suction ttings.

Gate valves may be closed. Open gate valves. Note: Never operate your spa with the gate valves

closed!

Air may be leaking into the suction line. Contact your dealer for assistance.

Debris may be inside the pump. Contact your dealer for assistance.

Noise may be a sign of damage. Contact your dealer for service.

Pump may have overheated due to the vents on the equipment door being blocked. Make sure the

front of the spa is not blocked to allow air ow.

The pump motor may be defective. Contact your dealer for assistance.

A burning smell may be a sign of damage. Contact your dealer for service.

Power to the spa may be shut off. Turn on or reset the GFCI circuit breaker. If this does not solve the

problem, contact your dealer or a qualied spa technician.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Limited Warranty

This Limited Warranty is extended to the original purchaser of a Cal Spa brand portable spa manufactured after January 1, 2017 and installed for residential use in the United States of America and Canada. This warranty begins on the date of delivery of the spa, but in no event later than one year from the date of manufacture.

Appendix

Shell Structural

Warranted against water loss due to defects in the spa shell.

Shell Finish

Warranted against blistering, cracking, or delaminating of the interior surface of the spa shell.

Equipment and Controls

Electrical equipment components – specically limited to the pumps, standard

titanium heater, and control system – are warranted against malfunctions due to defects in workmanship or materials.

Plumbing

Warranted against leaks due to defects in workmanship or materials.

Cabinet - synthetic, berglass, or wicker

Warranted against defects in workmanship or materials. Normal wear and weathering of

the nish will occur naturally over time and are not defects.

10 years

7 years

5 years

Warranties for Other Components

The fuses, headrests, cabinet nish, and lters are warranted to be free of defects in workmanship and material at the time of delivery. The factory installed water purication system is warranted against malfunction due

to defects in workmanship or material for one year from the original date of delivery, except for the UV bulb and quartz tube, which are warranted for 90 days from the original date of the spa delivery. All stereo-related components (receiver, speakers, sub-woofer, stereo media locker, power supply, wireless remote control etc.) are warranted against malfunction due to defects in workmanship or material for one year from the original date

of delivery. All other factory-installed components not mentioned specically, including, but not limited to the wood frame, jets, diverter valves, LED lighting systems, lter lids, and mechanical components, are warranted

against malfunction due to defects in workmanship and material for two years from the original date of delivery. The spa cover delivered with the spa is warranted for one year for Escape, Platinum, Fitness, and Special Edition spas, 90 days for Zone, Connect, and New Age spas.

Genuine Cal Spas Parts & Accessories

This Limited Warranty is void if Cal Spas (the “Manufacturer”) or its designated representative determines that the spa has been subjected to damage or failure due to installation of aftermarket parts that are not genuine

Cal Spas branded parts and accessories. This disclaimer includes, but is not limited to lters, UV bulbs, ozone

systems, salt systems, repair parts and other accessories. Genuine Cal Spas brand parts and accessories are built to our highest standards of quality, durability and performance, and they are designed to work with your spa to ensure optimal performance and function.

Performance

This warranty begins on the date of delivery of the spa, but in no event later than one year from the date of manufacture.

To obtain service in the event of a defect covered by this Limited Warranty, notify your Cal Spa dealer or Cal Spas as soon as possible and use all reasonable means to protect the spa from further damage. Upon proof of purchase, a designated service representative will correct the defect subject to the terms and conditions contained in this Limited Warranty. There will be no charge for parts or labor to repair the defect, although providing access to affect the repair is your responsibility as the spa owner. Freight charges for replacement parts is the responsibility of the spa owner. You may be assessed reasonable repairman travel mileage charges.

www.calspas.com

2017 Fitness Spa

LTR20171005, Rev. D

In the event that the spa is removed to a repair facility for repair and reinstalled, the cost of removal and reinstallation will be your responsibility as the spa owner. If the Manufacturer determines that repair of the covered defect is not feasible, it reserves the right to provide a replacement spa instead, equal in value to the purchase price of the original spa. In such an event, reasonable costs for removal of the original spa, shipping costs from the factory for the replacement spa and delivery and installation of the replacement will be your responsibility as the spa owner. The replacement spa will carry the balance of the original spa’s warranty. Spa covers are not included.

This warranty ends either by specied time frame, owner-transfer, relocation, or installation of any component

other than by manufacturer.

Warranty Limitations

This Limited Warranty is void if Cal Spas or its designated representative determines that the spa has been subjected to alteration, neglect, misuse or abuse, or freight damage caused by the common carrier; any repairs have been attempted by anyone other than a designated representative; the failure is caused by accident, acts of God or other causes beyond the control of the Manufacturer; neglect, misuse and abuse include any installation, operation or maintenance of the spa other than in accordance with the instructions contained in the owner’s manual provided with the spa, including but not limited to the failure to maintain proper water chemistry and chemical balance and the use of abrasive or improper cleaners or non-genuine parts and accessories. This Limited Warranty does not provide coverage for any item attached to or installed on the spa after the date of manufacture or for gaining access to any component for repair or replacement. Spa units in commercial use are excluded from any coverage whatsoever. The spa owner accepts liability for repair work performed by anyone other than the Manufacturer or a designated Cal Spa representative.

Limitations

The Manufacturer disclaims all warranties, expressed or implied, in fact or in law, to the extent allowed by your

State’s Law, including the warranty of merchantability and tness for use, except as stated specically herein.

All warranty service must be performed by the Manufacturer or its designated representative using authorized Cal Spa parts. No agent, dealer, distributor, service company or other party is authorized to change, modify or extend the terms of this limited warranty in any manner whatsoever. The Manufacturer will not be responsible for any statements or representations made in any form that go beyond, are broader than, or are inconsistent

with any authorized literature or specications furnished by Cal Spas.

Appendix

Disclaimers

The Manufacturer and its representatives shall not be liable for any injury, loss, cost or other damage, whether incidental or consequential, arising out of any defect covered by this limited warranty, including without limitation, loss of use of the spa and cost for removal of defective product even if the Manufacturer was advised of the possibility of damage. The liability of the Manufacturer under this limited warranty, if any, shall not exceed the original amount paid for the defective product. Coverage under this limited warranty shall commence as of the original date of delivery and the duration of such coverage shall not extend for any reason whatsoever beyond the stated time periods. These disclaimers shall be equally applicable to any service provided by the Manufacturer and its designated representatives.

Legal Rights

This Limited Warranty gives you specic legal rights. You may also have other rights that vary from state to

state. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.

2017 Fitness Spa

LTR20171005, Rev. D

www.calspas.com

Please visit www.quickspaparts.com to order your replacement parts.

Locating the product serial number

The serial number of your spa is located on a metal plate attached to the inside of the door for the equipment area. You will need this number to properly register your spa and activate coverage. Write this information in the space provided below.

Spa Model: ___________________________________________________________________________

Spa Serial Number: ____________________________________________________________________

Date Purchased: ______________________________________________________________________

Date Installed: ________________________________________________________________________

Dealer’s Phone Number: ________________________________________________________________

Dealer’s Address: ______________________________________________________________________

It is important that you register your Cal Spas product as soon as possible. By taking just

a few quick minutes to register, you can enjoy product alerts, more efcient support, and

quicker service. Go to www.calspas.com/warranty.

LTR20171005, Rev. D

7/20/2017

Cal Spas F-1222, F-1681, F-1325, F-1420, F-1439 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
