Calrec CP650 Diagram
CP650 Installation Manual Installation
Projector 1
Cat. No. 701
Digital Reader
OR
Inboard Digital
Basement Reader
Projector 2
Cable Part Numbers:
83141 (30 feet) (9.1 meters)
83237 (50 feet) (16.2 meters)
13
+15V 100 mA MAX
To Automation
(See Interface Requirements
in Appendix B)
100 - 240 Vac 50 - 60 Hz 120 W
CAUTION
Toreduce the risk of fire
replace only with same
250V time-lag fuse.
FUSE T 6.3A L
5mmx20mm
~
type and rating
SHIELD
GROUND
MUTE
NONSYNC
CUS
LISTED
PROFESSIONALAUDIO
EQUIPMENT 4J06
U2
U1
11
10
05
04
01
U
L
25
Cat. No 771
Terminals
V
DATA
GND
Notes:
1.
Follow all local electrical and building codes.
2.
Use grounded (earthed) conduit wherever possible. Avoid
routing signal wiring near electric motors, rectifiers, power
wiring, dimmer wiring, or other sources of electrical noise.
3.
For two conductor with shield wiring, use Belden 8451
2-conductor shielded cable or equivalent: tinned copper,
twisted pair, 22 AWG stranded tinned copper drain wire,
aluminum-polyester shield, 100% shield coverage,
conductor-to-conductor 111 pF per meter.
1
MUTE
U2
NONSYNC
U1
11
10
REMOTES AND AUD. FADER
REMOTE
FADER
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This Class Adigital apparatus complies with Canadian ICES003.
Remote Fader
Cat. No 771
7.0
V
DATA
GND
4.
5.
Projector 1
Projector Changeover Relays,
Pulsed Contacts
Open
Closed
50 ms
minimum
Projector 2
OR
Projector Changeover Relay
Maintained Closed Contact
Selects Projector 2
For Dolby Digital Installations
Proj 1 Motor Start Relay
Projector Motor
Proj 2 Motor Start Relay
Projector Motor
AUTOMATION
13
+
DATA
IN
N/C
H/I OUTPUT
132546
O
San Francisco U.S.
1
READER 1
01
04
05
READER 2
1
14
17 20 23 24 25
MAIN AUDIO OUTPUT
V
DATA
GND
13
Auditorium Fader
(100K Linear Pot)
Remote Control Unit
Cat. No. 779
7.0
Digital Cinema Processor
Wootton Bassett U.K.
Dolby Digital
L
L+
C
C
R
R+
Ls
Ls +
Rs
Rs +
SW
SW +
+
NONSYNC IN 1
NONSYNC IN 2
Front View
of Pot
SERIAL DATA
CP650
MOTOR START
WARNING
RL
Risk of electric shock.
Do not open.
No user serviceable parts
inside. Refer all service
to qualified personnel.
This equipment must be
RL
earthed/grounded.
6-CH AUDIO INPUT
(External Digital Processor)
Cat. No. 779
Terminals
V
DATA
GND
MS1
P1
P1/ P2
P2
MS2
For three conductor with shield wiring, use Belden 8771
3-conductor shielded cable or equivalent: tinned copper,
twisted pair, 22 AWG stranded tinned copper drain wire,
aluminum-polyester shield, 100% shield coverage,
conductor-to-conductor 75 pF per meter.
All shields must be connected to the CHASSIS of the CP650.
This achieves the required RF interference immunity. A metal
housing must be used for all D-connectors and the shields
must be connected to the housing. Chassis ground and circuit
(audio) ground are internally connected.
(RS-232)
ETHERNET
OPTION CARD I/O
5
9
For future
Automation use
MIC. INPUT
OPTICAL IN 1
R
R
L
L
OPTICAL IN 2
1
6
FB425A02.CDR
CD, Tape, etc.
Single Projector2-Projector Changeover
5
9
Jumper Plug
(shipped installed on unit)
All shields must be connected
to the metal shield of the D-connector.
Non-Sync 2
Non-Sync 1
1
6
5 4 23 1
9 786
+-
Projector 1
Projector 2
5
43 12
6987
13
25
black
black
black
black
red
red
PA Microphone 1
(Or Mic-multiplexer
red
red
OR:
15 V phantom power switchable via front
setup control panel dip switch number 3.
red
black
OR
Be aware
Cat. No. 794
Board Jumpers
for setup)
32
1
12
15
black
red
12
Reverse Scan / LED
Analog Reader Board
J1
J2
132465321
The physical board mounting in the projector and
the connector affect which channel
appears on which pin of the connector.
that pin allocations for the channels will vary
depending on mounting arrangements of the
board and connector
solder hole witha square outline is pin 1.
AES/EBU
Digital Output Source
32
1
S/PDIF
Digital Output Source
1
OUT 1 +
1
OUT 1 OUT 2 +
OUT 2 -
orientation
. The J2 connector pin
Solar Cell
R
green
black
red
L
1
SHIELD
L
Rs
Ls
R
C
SW
6-Channel Analog Input
(all unlabeled pins are signal ground)
(normal operating level = 300 mV)

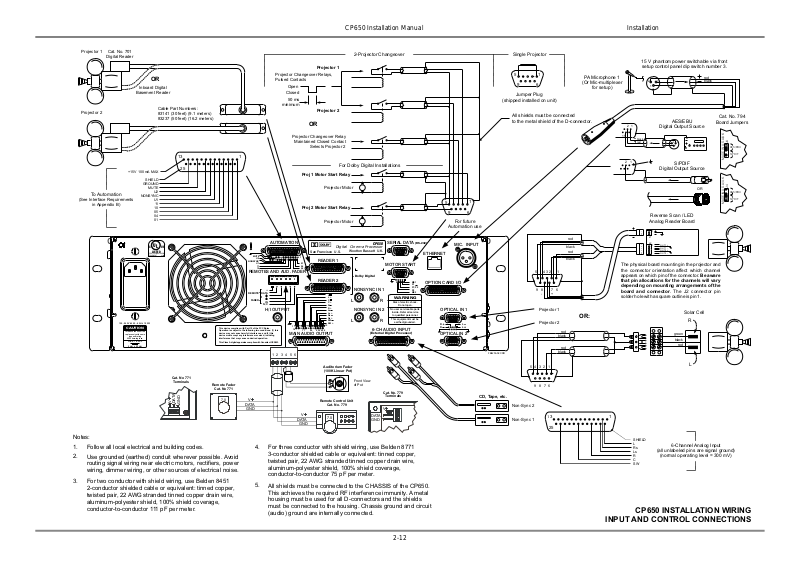

CP650 INSTALLATION WIRING
INPUT AND CONTROL CONNECTIONS
MADE IN U.S.A/U.K.
MADE IN U.S.A/U.K.
J4
AES/EBU
S/PDIF
J4
AES/EBU
S/PDIF
2-12
CP650 Installation Manual Installation
Hearing
Impaired
System
Front Speakers
L
C
R
Surround Speakers
(without Dolby Digital
Surround EX )
Ls
For unbalanced input amplifier
one channel shown
Signal
Signal
Signal
Signal
Signal
Gnd
Gnd
Gnd
Gnd
Gnd
red
black
black
red
black
red
black
red
black
red
black
red
L+C+R
red
blk
~
100 - 240 Vac 50 - 60 Hz 120 W
CAUTION
Toreduce the risk of fire
replace only with same
type and rating
250V time-lag fuse.
FUSE T 6.3A L
5mmx20mm
U
CUS
L
LISTED
PROFESSIONALAUDIO
EQUIPMENT 4J06
MUTE
13
U2
NONSYNC
U1
11
10
REMOTES AND AUD. FADER
+
REMOTE
DATA
FADER
IN
N/C
H/I OUTPUT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This Class Adigital apparatus complies with Canadian ICES003.
1 1
14
14
black
red
2
17
black
red
5
black
20
red
8
black
10
red
23
AUTOMATION
1
MAIN AUDIO OUTPUT
O
San Francisco U.S.
1
01
04
05
Digital Cinema Processor
READER 1
READER 2
L
L+
C
C
+
R
R+
Ls
Ls +
Rs
Rs +
SW
SW +
14
17 20 23 24 25
13 13
25 25
13
CP650
Wootton Bassett U.K.
Dolby Digital
NONSYNC IN 1
NONSYNC IN 2
6-CH AUDIO INPUT
(External Digital Processor)
SERIAL DATA
(RS-232)
ETHERNET
MOTOR START
MS1
OPTION CARD I/O
P1
P1/ P2
P2
MS2
WARNING
RL
Risk of electric shock.
Do not open.
No user serviceable parts
inside. Refer all service
to qualified personnel.
This equipment must be
RL
earthed/grounded.
OPTICAL IN 1
R
R
OPTICAL IN 2
CP650 with Dolby Digital Surround EX
Model CP650D requires optional UEX/650 upgrade kit.
14
black
3
red
16
black
6
red
19
10
black
red
23
black
11
red
24
Model CP650SR requires optional UEX/650 and
MIC. INPUT
L
L
FB425B02.CDR
Included with Model CP650.
UD/650 upgrade kits.
AES/EBU inputs
(see inputs diagram)
black
Signal
red
Gnd
black
Signal
red
Gnd
black
Signal
red
Gnd
black
Signal
red
Gnd
Back
Surround
Left
Back
Surround
Right
Left
Surround
Right
Surround
Gnd
Gnd
black
red
black
red
Rs
Signal
Signal
Subwoofer
Notes:
1.
Follow all local electrical and building codes.
2.
Use grounded (earthed) conduit wherever possible. Avoid
routing signal wiring near electric motors, rectifiers, power
wiring, dimmer wiring, or other sources of electrical noise.
3.
For two conductor with shield wiring, use Belden 8451
2-conductor shielded cable or equivalent: tinned copper,
twisted pair, 22 AWG stranded tinned copper drain wire,
aluminum-polyester shield, 100% shield coverage,
conductor-to-conductor 111pF per meter.
4.
All shields must be connected to the CHASSIS of the CP650.
This achieves the required RF interference immunity. A metal
housing must be used for all D-connectors and the shields
must be connected to the housing. Chassis ground and circuit
(audio) ground are internally connected.
2-13
black
red
black
red
11
24
red
black
For unbalanced input amplifier
one channel shown
Signal
red
Gnd
black
12
25
CP650 INSTALLATION WIRING
AUDIO OUTPUT CONNECTIONS
