Caloritech BX2033S, BX2023S, BX2071S, BX2073S, BX2081S Installation, Operation, Maintenance Instructions & Spare Parts

Convection Heaters

ISO 9001

BX Series

Installation, Operation, Maintenance Instructions & Spare Parts

WARNING. The BX convection heater is a heavy duty baseboard designed
for use in industrial environments and is not intended for use in residential

WARNIN G

and commercial locations. The heater is not thermally protected and air
flow obstruction with flammable materials could create a fire hazard. All
openings must be clear at all times.

Part No. M I114 Rev.9.02 Issued: July 2017 Printed in Canada

TABLE OF CONTENTS

A. Initial Inspection 2

B. Installation 3

C. Electrical Connections 4

D. Temperature Control 5

E. Maintenance 5

F. Replacement Parts 6

G. Elements 6

A. INITIAL INSPECTION

1. Upon receipt from the carrier, inspect the heater for
possible damage in transit. If necessary, immediately
report damage to shipping company.

2. Verify that the nameplate voltage, phase, and wattage
are as ordered and are suitable for use on the electrical
power supply available. DO NOT CONNECT THE BX
CONVECTION HEATER TO AN ELECTRICAL SUPPLY
VOLTAGE OTHER THAN THAT SHOWN ON THE
PRODUCT NAMEPLATE.

2

3. The BX convection heater is CSA approved for operation
in non-hazardous areas only. Ensure that no hazardous
conditions exist before energizing the heater.

B. INSTALLATION

1. The BX convection heater is symmetrically designed and
CSA approved so that the electrical connection box can
be located at either end. Before attaching the universal
mounting legs, be sure to identify the end to be electrically
connected.

2. The BX is CSA approved as an industrial baseboard heater
for floor or wall mounting. A minimum distance of 90 mm
(3 1/2") must be maintained between the heater and walls
or floors. The universal mounting brackets (supplied) are
designed to provide this clearance.

NOTE: The BX heater weighs 45 lbs (21 kg). The wall supports

must be strong enough to carry this weight.

3. Attach the mounting brackets to the floor or wall. All
studs, bolts, nuts and other fasteners shall be secured
so that there is no possibility of loosening over prolonged
periods. These must be inspected at regular intervals and
retightened when necessary.

4. See Figure 1 – Floor Mount or Figure 2 – Wall Mount.,
page 3 for bracket mounting details.

4.1 Remove the two screws located on the front panel.

4.2 Remove the heater front panel.

4.3 Back off the screws on the universal mounting legs

enough to allow penetration of the screw heads
through the keyhole openings in the back of the
heater.

4.4 Slide the heater assembly to the side so that the

mounting screws engage the keyhole openings.

4.5 Tighten the mounting screws to secure the heater to

the mounting brackets.

4.6 The electrical connection box is exposed upon

removal of the heater front panel, allowing for
electrical connections to be made at this time. See
Section C. Electrical Connections, page 4 for
electrical suggestions.

4.7 Thermostat - If the heater selected is equipped

with a built-in thermostat, see Figure 3, page 3
for final mounting. The thermostat is connected
electrically, but the sensing bulb and capillar y tube
must be secured into the final mounting position
as shown. The simple final assembly will ensure
good temperature control. Be certain not to “kink”
the capillary tube or crush the sensing bulb during
installation.

Figure 1 – Floor Mount

Figure 2 – Wall Mount.

Figure 3 – Locating Thermostat Sensing Bulb

3

C. ELECTRICAL CONNECTIONS

1. Verify that the heater nameplate voltage and supply
voltage are the same (see A.2, page 2).

2. Select the proper electrical conductor size rated at 194°F
(90°C) (Canadian Electrical Code). The connection box
volume is 5200 cm³.

3. The control cabinet of the BX convection heater is
constructed to EEMAC 1 standards. Combination 1/2" ­3/4" knockouts are provided for easy connection.

4. The BX convection heater is completely prewired internally.
Connect the power conductors and control conductors to
the terminations as illustrated on the wiring diagram enclosed.

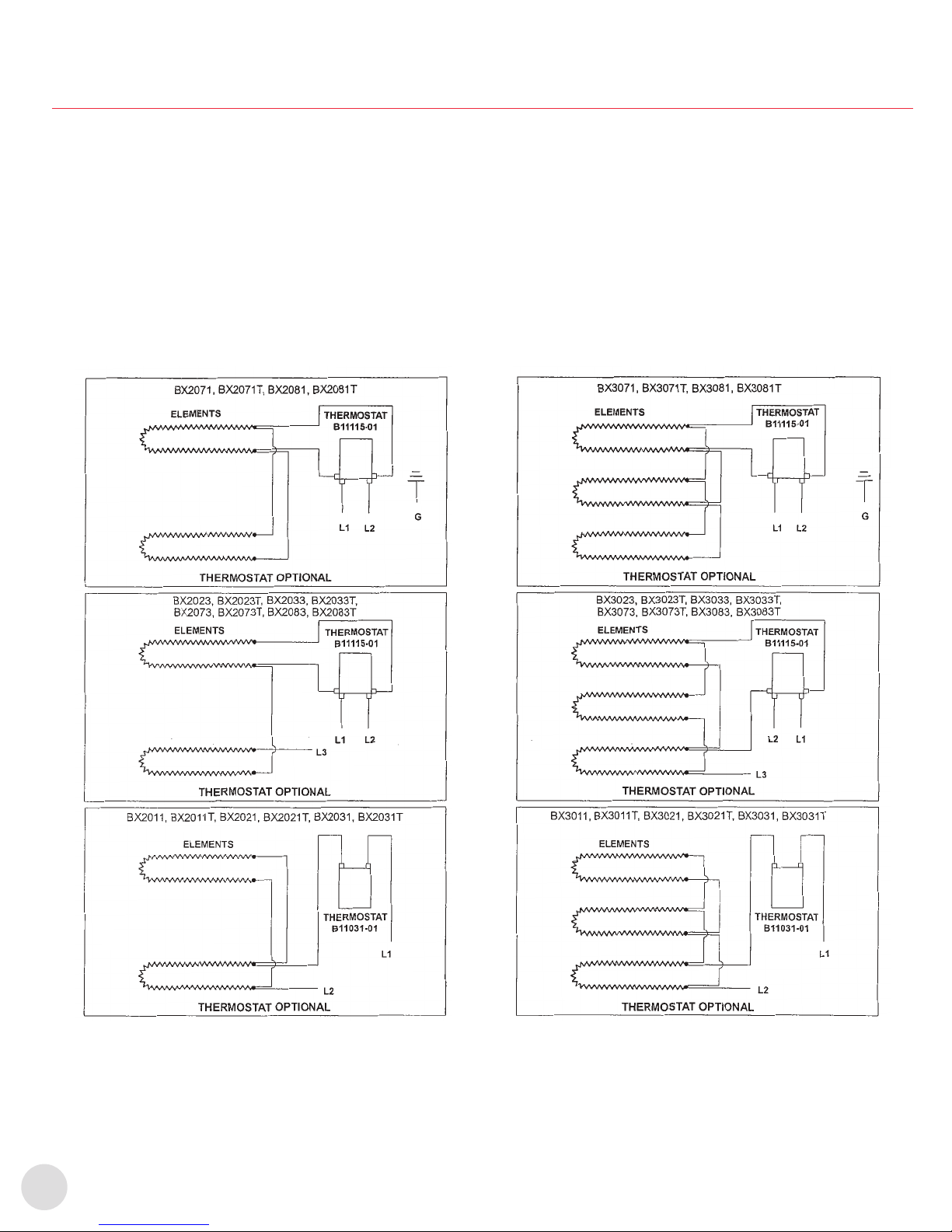

5. The schematic wiring diagrams shown below illustrate the
BX convection heater with various control options. Some
of this equipment is optional and may not be included with
your BX heater.

6. Replace the front panel after all wiring is completed and
before turning on the electrical disconnect switch.

4

D. TEMPERATURE CONTROL

1. BUILT-IN Thermostat - Heaters with a factor y installed
thermostat are prewired and require only power

connection. The thermostat sensing bulb must be

assembled into its final position. See B.4.7. for final
assembly.

2. The thermostat supplied is a high quality device with a
factory calibrated range of 50 to 104°F (10 to 40°C). Due
to the proximity of the sensing bulb to the heater, the
actual thermostat setting will not be the same as the

desired room ambient temperature. This is normal with all

unit mounted thermostats. It should be a simple matter to
find the setpoint to provide the desired comfort level.

3. REMOTE LINE VOLTAGE THERMOSTAT - A remote
thermostat rated to operate on full voltage may be

desired. Installation and wiring of the selected thermostat

must comply with the manufacturer’s instructions.
CCI Thermal Technologies Inc. can supply appropriate
thermostats.

E. MAINTENANCE

WARNING. The BX convection heater is constructed to

operate in tough industrial applications with minimum

WARNIN G

maintenance. However, some routine maintenance is
recommended to extend the life of the heater and its
components. ALWAYS DISCONNECT THE
ELECTRICAL SOURCE BEFORE PERFORMING ANY
MAINTENANCE.

1. TERMINAL ENCLOSURE - The periodic intervals, but
not more than once a year, open the terminal enclosure
to inspect for cleanliness and dampness. Vacuum any

dust and wipe up any moisture. Check all electrical
connections and tighten if necessary.

2. HEATER PAINT FINISH - The BX convection heater
is finished with a heav y duty enamel paint to provide
maximum resistance to corrosion due to air-born

contaminants. We recommend the cabinet to be wiped
down periodically using a mild detergent.

5

F. REPLACEMENT PARTS

Description Part No.

Front Cabinet (26 1/2” Units) D11131-12

Front Cabinet (40” Units) D11131-02

Knob - Thermostat B11 037- 01

Mounting Legs D11131-04

Thermostat - SP B11 031-01

Thermostat - DP B11115 - 01

G. ELEMENTS

Catalog No. Prefix

BX 2011S 120 1 IXS 1113 2 -10

BX2021S,BX2023S 208 1 & 3 IXS 1113 2 -13

BX2031S,BX2033S 240 1 & 3 I XS11132 -14

BX 2071S

BX2073S 480 3 IXS 1113 2 -15

BX 20 81S 600 1 I X S11132 -12

BX2083S 600 3 IX S 1113 2-16

BX 2011

BX2021, BX3021, BX2023, BX3023 208

BX2031, BX3031, BX2033, BX3033 240 IXS 1113 2 - 0 3

BX2071, BX3071, BX2073, BX3073 480 IX S 1113 2- 07

BX2081, BX3081, BX2083, BX3083 600 IXS 1113 2 - 0 8

Heater

V Phase

480

120

1 & 3

Element

1 I XS11132 -11

1 IX S1113 2- 01

IXS 1113 2 - 0 2

6

NOTES

PLEASE ADHERE TO INSTRUCTIONS IN THIS MANUAL

Failure to do so may be dangerous and may void certain provisions

of your warranty.

For further assistance, please call 24hr hotline: [phone] (U.S.A. and Canada)

Please have model and serial numbers available before calling.

WARRANTY: Under normal use the Company warrants to

the purchaser that defects in material or workmanship will be

repaired or replaced without charge for a period of 18 months

from date of shipment, or 12 months from the start date of

operation, whichever expires first. Any claim for warranty must

be reported to the sales of fice where the product was purchased

for authorized repair or replacement within the terms of this

warranty.

Subject to State or Provincial law to the contrary, the Company

will not be responsible for any expense for installation, removal

from service, transportation, or damages of any type whatsoever,

including damages arising from lack of use, business interruptions,

or incidental or consequential damages.

The Company cannot anticipate or control the conditions of

product usage and therefore accepts no responsibility for

the safe application and suitability of its products when used

alone or in combination with other products. Tests for the

safe application and suitability of the products are the sole

responsibility of the user.

This warranty will be void if, in the judgment of the Company,

the damage, failure or defect is the result of:

• Vibration, radiation, erosion, corrosion, process

contamination, abnormal process conditions, temperature

and pressures, unusual surges or pulsation, fouling,

ordinary wear and tear, lack of maintenance, incorrectly

applied utilities such as voltage, air, gas, water, and others

or any combination of the aforementioned causes not

specifically allowed for in the design conditions or,

• Any act or omission by the Purchaser, its agents, ser vants

or independent contractors which for greater certainty, but

not so as to limit the generality of the foregoing, includes

physical, chemical or mechanical abuse, accident,

improper installation of the product, improper storage

and handling of the product, improper application or the

misalignment of parts.

No warranty applies to paint finishes except for manufacturing

defects apparent within 30 days from the date of installation.

The Company neither assumes nor authorizes any person to assume for it

any other obligation or liability in connection with the product(s).

The Purchaser agrees that all warranty work required after the initial

commissioning of the product will be provided only if the Company

has been paid by the Purchaser in full accordance with the terms and

conditions of the contract.

The Purchaser agrees that the Company makes no warranty or

guarantee, express, implied or statutory, (including any warranty of

merchantability or warranty of fitness for a particular purpose) written

or oral, of the Ar ticle or incidental labour, except as is expressed or

contained in the agreement herein.

LIABILITY: Technical data contained in the catalog or on the

website is subject to change without notice. The Company reserves

the right to make dimensional and other design changes as required.

The Purchaser acknowledges the Company shall not be obligated

to modify those articles manufactured before the formulation of the

changes in design or improvements of the products by the Company.

The Company shall not be liable to compensate or indemnify the

Purchaser, end user or any other party against any actions, claims,

liabilities, injury, loss, loss of use, loss of business, damages, indirect

or consequential damages, demands, penalties, fines, expenses

(including legal expenses), costs, obligations and causes of action of

any kind arising wholly or partly from negligence or omission of the

user or the misuse, incorrect application, unsafe application, incorrect

storage and handling, incorrect installation, lack of maintenance,

improper maintenance or improper operation of products furnished

by the Company.

Edmonton (Head Office)

1-780-466-3178

F 780-468-5904

5918 Roper Road

Oakville

1-800 -410-3131

1-905-829-4422

F 905-829-4430

Alberta, Canada T6B 3E1

Orillia

1-877-325-3473

1-705-325-3473

F 705-325-2106

Houston

1-855-219-2101

1-281-506-2310

F 281-506-2316

Denver

1-855-244-3128

1-303-979-7339

F 303-979 -7350
