365B
User Manual
9 pgs455.38 Kb0

California air tools 365B User Manual

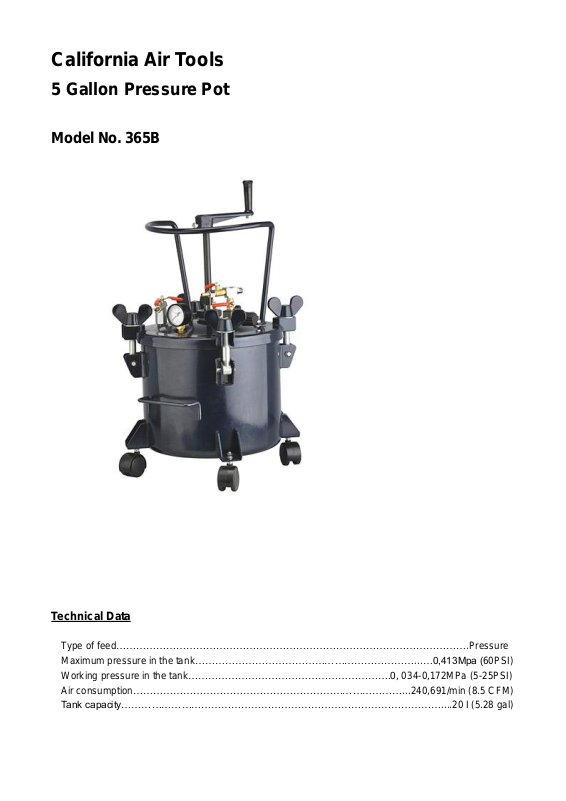

California Air Tools
5 Gallon Pressure Pot
Model No. 365B
Technical Data
Tank capacity……………………………………………………………………………………....20 I (5.28 gal)
Safety Guidelines- Definitions
Hazard
What Could Happen
How To Prevent It
WARNING!
Explosion of objects
Attachments whose pressure rating is lower than the adjusted pressure in the tank could explode, resulting in serious injury or property damage.
Always make sure that equipment connected to tank has a higher pressure rating than the regulated air pressure tank
NOTE!
Information that you should pay special attention to.
DANGER!
URGENT SAFTEY INFORMATION A HAZARD THAT WILL CAUSE SERIOUS INJURY OR LOSS OF LIFE
CAUTION!
Information for preventing damage to equipment
WARNING!
IMPORTANT SAFETY INFORMATION A HAZARD THAT MIGHT CAUSE SERIOUS INJURY OR LOSS OF LIFE
Important Safety Instructions
Save These Instructions
IMPROPER OPERATION OR MAINTENCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAMAG. READ AMD UNDERSTAND ALL WARNING AND OPERATING INSTRUCTIONS BEFORE USING EQUIPMENT.
Over pressurization of Attachments
WARNING!
When performing maintenance disconnect the air line. If for any reason it is required to replace any parts, it is recommend to replace part with original parts. Never operate equipment while under the influence of alcohol or drugs. If you have signs of exhaustion stop usage, it may cause an accident
Caution!
This pressure tank is not designed for highly abrasive or corrosive applications. If used with such materials, frequent and thorough cleaning is advised to reduce excess wear and repair issues.
Assembly Read the instructions carefully
Read instructions carefully before using this product. This equipment can be used to supply material up to a maximum of 60 pounds (PSI). This equipment has an agitator, air regulator, pressure gauge, safety valve and outlet for the material. The tank has been coated to last. The agitator allows you to maintain the uniformity of the material before being applied as long as the material is not too heavy. This tank can also be used with other materials other than paint.
The picture above illustrates the best set up and operation of this equipment.
Important Notes
This picture is only for the purpose of illustration the air compressor “A”, air filter “B”, air hose & spray gun “E” and operator safety equipment are all sold separately. This product is subject to slight changes as to what is presented in this owner’s manual. Without notice in both changes in design and parts can occur in order to better increase the performance of the product.
Air Compressor
Use an air compressor that can produce at less 90 PSI.
1. WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the tool. Too high air pressure and unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage or personal injury.
2. Drain the air compressor air tank daily. Water in the air line will damage the tool.
3. Clean air inlet air filter weekly.
4. The air hose should not be longer than 50ft. The minimum hose diameter should be 1/4” I.D. and fittings must have the same inside dimensions.
5. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.

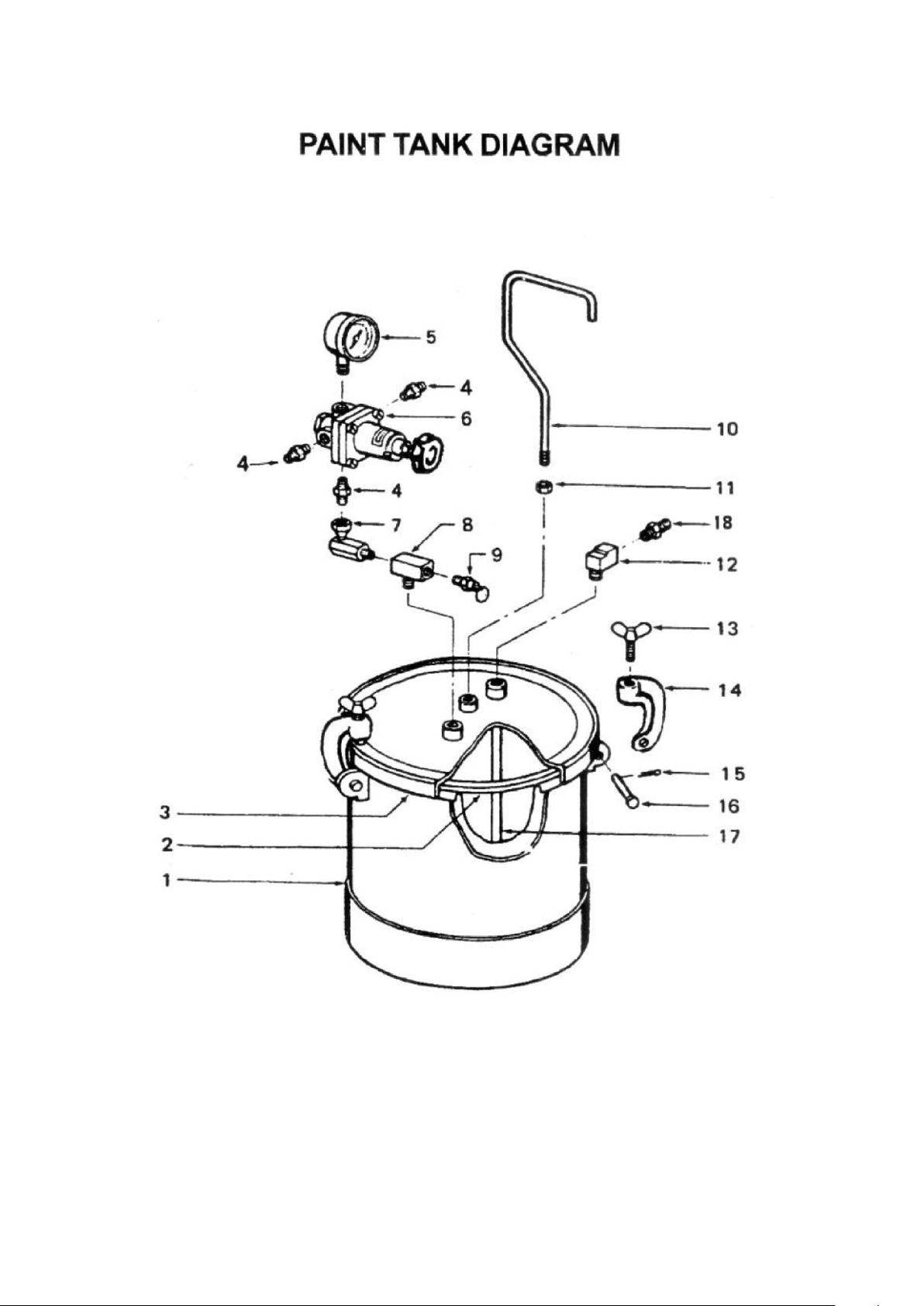

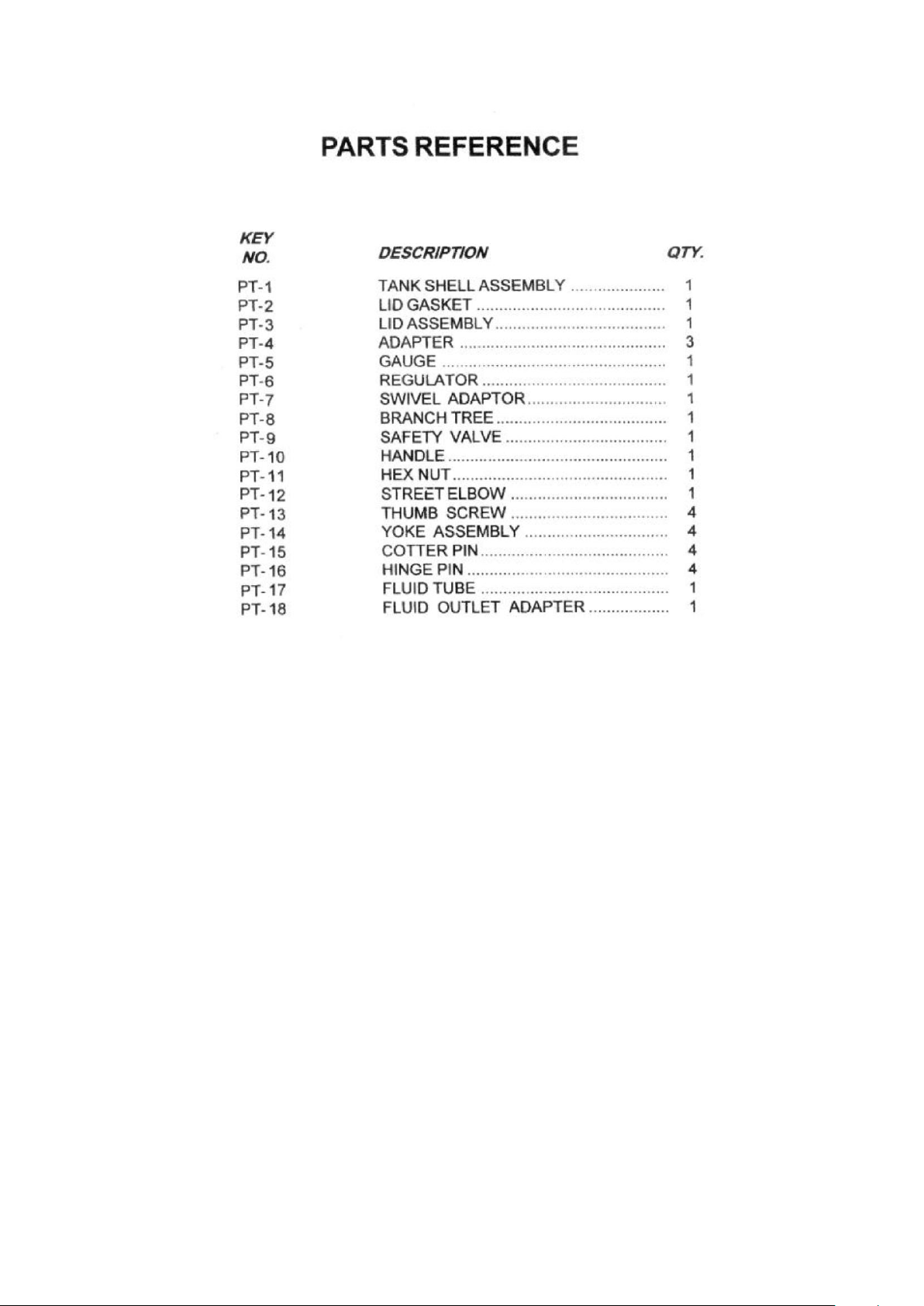

Assembly Instructions
1. Install the regulator assembly to the swivel adaptor on the tank lid.
Check the bottom of regulator for location of tank connection
2. Install the handle in the treaded hole in the center of the tank lid. Tighten hex nut.
3. Connect the air supply hose to the air inlet fitting on tank regulator. (Right or left optional)
4. Attach the atomization air hose to an air outlet fitting which is directly opposite air inlet fitting.
5. Connect material hose to the fluid outlet adaptor located on the tank lid.
