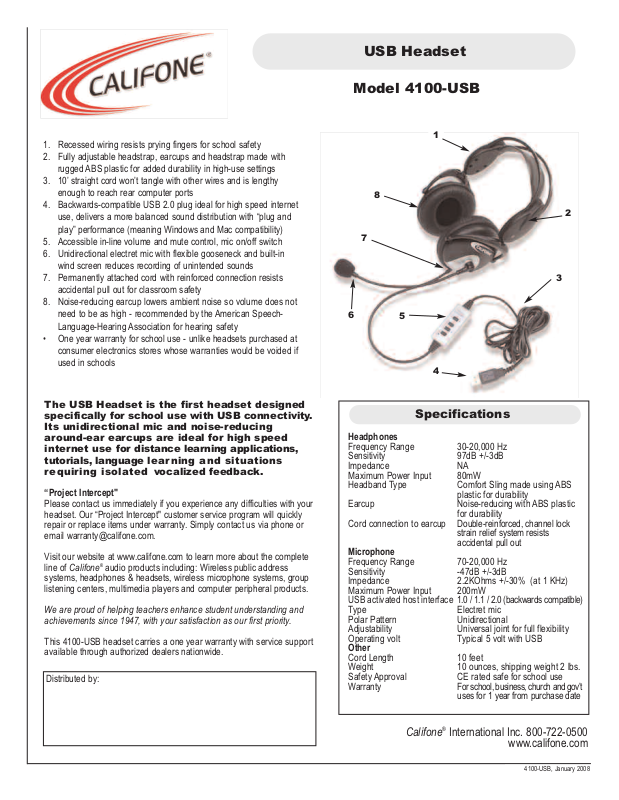

Califone 4100 User Manual

USB Headset

Model 4100-USB

1. Recessed wiring resists prying fingers for school safety

2. Fully adjustable headstrap, earcups and headstrap made with
rugged ABS plastic for added durability in high-use settings

3. 10’ straight cord won’t tangle with other wires and is lengthy
enough to reach rear computer ports

4. Backwards-compatible USB 2.0 plug ideal for high speed internet
use, delivers a more balanced sound distribution with “plug and
play” performance (meaning Windows and Mac compatibility)

5. Accessible in-line volume and mute control, mic on/off switch

6. Unidirectional electret mic with flexible gooseneck and built-in
wind screen reduces recording of unintended sounds

7. Permanently attached cord with reinforced connection resists
accidental pull out for classroom safety

8. Noise-reducing earcup lowers ambient noise so volume does not
need to be as high - recommended by the American Speech­Language-Hearing Association for hearing safety

• One year warranty for school use - unlike headsets purchased at
consumer electronics stores whose warranties would be voided if
used in schools

The USB Headset is the first headset designed
specifically for school use with USB connectivity.
Its unidirectional mic and noise-reducing
around-ear earcups are ideal for high speed
internet use for distance learning applications,
tutorials, language learning and situations
requiring isolated vocalized feedback.

“Project Intercept"

Please contact us immediately if you experience any difficulties with your
headset. Our “Project Intercept" customer service program will quickly
repair or replace items under warranty. Simply contact us via phone or
email [e-mail].

Visit our website at www.califone.com to learn more about the complete
line of Califone®audio products including: Wireless public address
systems, headphones & headsets, wireless microphone systems, group
listening centers, multimedia players and computer peripheral products.

We are proud of helping teachers enhance student understanding and
achievements since 1947, with your satisfaction as our first priority.

This 4100-USB headset carries a one year warranty with service support
available through authorized dealers nationwide.

Distributed by:

1

8

2

7

3

6

5

4

Specifications

Headphones

Frequency Range 30-20,000 Hz
Sensitivity 97dB +/-3dB
Impedance NA
Maximum Power Input 80mW
Headband Type Comfort Sling made using ABS

Earcup Noise-reducing with ABS plastic

Cord connection to earcup Double-reinforced, channel lock

Microphone

Frequency Range 70-20,000 Hz
Sensitivity -47dB +/-3dB
Impedance 2.2KOhms +/-30% (at 1 KHz)
Maximum Power Input 200mW
USB activated host interface 1.0 / 1.1 / 2.0 (backwards compatible)
Type Electret mic
Polar Pattern Unidirectional
Adjustability Universal joint for full flexibility
Operating volt Typical 5 volt with USB

Other

Cord Length 10 feet
Weight 10 ounces, shipping weight 2 lbs.
Safety Approval CE rated safe for school use
Warranty For school, business, churchandgov’t

plastic for durability

for durability

strain relief system resists
accidental pull out

uses for 1 year from purchase date

Califone®International Inc. 800-722-0500

www.califone.com

4100-USB, January 2008
