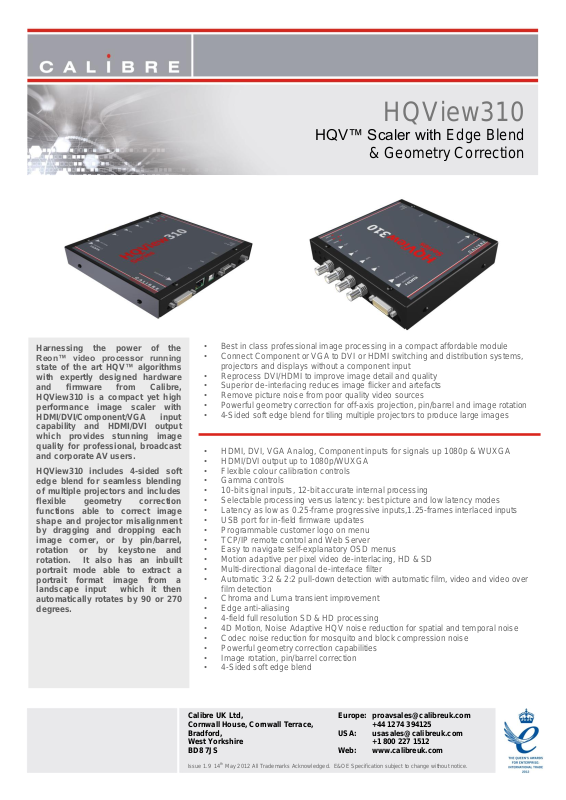

HQView310
HQV™ Scaler with Edge Blend
& Geometry Correction
Issue 1.9 14th May 2012 All Trademarks Acknowledged. E&OE Specification subject to change without notice.
Calibre UK Ltd,
Cornwall House, Cornwall Terrace,
Bradford,
West Yorkshire
BD8 7JS
Europe: proavsales@calibreuk.com
+44 1274 394125
USA: usasales@calibreuk.com
+1 800 227 1512
Web: www.calibreuk.com
Harnessing the power of the
Reon™ video processor running
state of the art HQV™ algorithms
with expertly designed hardware
and firmware from Calibre,
HQView310 is a compact yet high
performance image scaler with
HDMI/DVI/Component/VGA input
capability and HDMI/DVI output
which provides stunning image
quality for professional, broadcast
and corporate AV users.
HQView310 includes 4-sided soft
edge blend for seamless blending
of multiple projectors and includes
flexible geometry correction
functions able to correct image
shape and projector misalignment
by dragging and dropping each
image corner, or by pin/barrel,
rotation or by keystone and
rotation. It also has an inbuilt
portrait mode able to extract a
portrait format image from a
landscape input which it then
automatically rotates by 90 or 270
degrees.
• Best in class professional image processing in a compact affordable module
• Connect Component or VGA to DVI or HDMI switching and distribution systems,
projectors and displays without a component input
• Reprocess DVI/HDMI to improve image detail and quality
• Superior de-interlacing reduces image flicker and artefacts
• Remove picture noise from poor quality video sources
• Powerful geometry correction for off-axis projection, pin/barrel and image rotation
• 4-Sided soft edge blend for tiling multiple projectors to produce large images
• HDMI, DVI, VGA Analog, Component inputs for signals up 1080p & WUXGA
• HDMI/DVI output up to 1080p/WUXGA
• Flexible colour calibration controls
• Gamma controls
• 10-bit signal inputs, 12-bit accurate internal processing
• Selectable processing versus latency: best picture and low latency modes
• Latency as low as 0.25-frame progressive inputs,1.25-frames interlaced inputs
• USB port for in-field firmware updates
• Programmable customer logo on menu
• TCP/IP remote control and Web Server
• Easy to navigate self-explanatory OSD menus
• Motion adaptive per pixel video de-interlacing, HD & SD
• Multi-directional diagonal de-interlace filter
• Automatic 3:2 & 2:2 pull-down detection with automatic film, video and video over
film detection
• Chroma and Luma transient improvement
• Edge anti-aliasing
• 4-field full resolution SD & HD processing
• 4D Motion, Noise Adaptive HQV noise reduction for spatial and temporal noise
• Codec noise reduction for mosquito and block compression noise
• Powerful geometry correction capabilities
• Image rotation, pin/barrel correction
• 4-Sided soft edge blend
HQView310
HQV™ Scaler with Edge Blend
& Geometry Correction
Issue 1.9 14th May 2012 All Trademarks Acknowledged. E&OE Specification subject to change without notice.
Calibre UK Ltd,
Cornwall House, Cornwall Terrace,
Bradford,
West Yorkshire
BD8 7JS
Europe: proavsales@calibreuk.com
+44 1274 394125
USA: usasales@calibreuk.com
+1 800 227 1512
Web: www.calibreuk.com
Inputs
1 x Component analog video YPbPr(S) or RGBS/RGsB
via 3 or 4 x BNC jack
1 x DVI/HDMI with HDCP via DVI-I connector, supports
HDMI with HDCP, 8/10/12 bit video compatible
1 X VGA analog via DVI-I connector (common with
DVI/HDMI input)
Supported video formats:
HD 720p, 1080i, 1080psf (psf digital only),
1080p23.97/24/25/30, 1080p30, 1080p59.94, 1080p60
ED 480p, 576p
SD 625i (576i), 525i (480i)
Common Versa graphics formats from 640x480 to
1920x1200 (with reduced blanking for 1920x1200 and
1600x1200 modes)
Outputs
1x DVI/HDMI with HDCP
(HDMI with deep color 8/10/12 bit support, via DVI connector.)
Supported Output formats:
Common VESA formats from 640x480 to 1920x1200, 720p, 1080p
Selectable I/O lock mode, or frame rate conversion mode
Selectable aspect ratio conversion, or incoming aspect ratio preserve
mode
User Controls
Remote control via RS232, TCP/IP API and Web Server.
Keypad for OSD menu access
USB port for uploading software updates and new features.
Power Requirements
12VDC@approx 1.5A, external 100-265VAC PSU included.
Warranty
3-years return to base warranty covers parts and labor, shipping
excluded.
HQView model >
100S
200S
210
300S
310
320
325
400S
410
420
500S
510
520
530
Front LCD menu or OSD control
OSD
OSD
OSD
OSD
OSD
OSD
OSD
OSD
OSD
OSD
OSD
OSD
OSD
LCD
DVI/HDMI Inputs
x x x x x x x x x x
x
Component Input
x x x x x x x x x x Composite/S-Video Inputs
x x x x x x x
x
VGA Analog Input
x x x x x x x x x
x
HD-SDI Input
x x x 3G-SDI Input
x x x x x
x
DVI/HDMI Output
x x x x x x x x x x x x x
x
VGA Analog Output
x x x x x x x 3G-SDI Output
x x x
x
3G-SDI Audio embed/de-embed
x x x
x
HQV Processing
x x x x x x x x x x x x x x PIP/POP/PAP
x x x x x x
x
TCP/IP Control
x x x x x x x x x x x x x
x
Low Latency Mode
x x x x x x x x x x x x x x Flicker Filter for Interlaced Output Modes
x x x
x
Geometry Correction, 4-Corner, Rotate
x x x x x x x x
x
Genlock (V-Lock)
x x x x Pan, Zoom, Tilt
x x x x x x x x x x x x x
x
Edge Blending
x x x x x x x
x
Edge Blend Black Level Correction
x x x x Auto pan/zoom/tilt of content for blending
x x x x x x x
x
Warp Mapping
x x x x
x
