SPECIFICATIONS

GENERAL

Power Supply DC 11 -14V Polarity Negative Ground Speaker impedance 4 ohms Power Output 4 x 55W

CD PLAYER

System Compact disc audio system Usable disc Compact disc Sampling frequency 44.1KHz No of quantization bits 1bit Frequency 5-20,000Hz Number of channels 2 stereo S/N Ratio 70dB

RADIO SECTION FM

Frequency Range 87.5-108 Mhz Usable Sensitivity Better than 15dB at S/N 30 dB Stereo Separation 25 dB at 1KHz S/N Ratio 50 dB

AM/MW

Frequency Range 522-1620 Khz Intermediate Frequency 450KHz Usable Sensitivity Better than 45dB S/N Ratio 40 dB

REMARK : Specifications subject to change without notice.

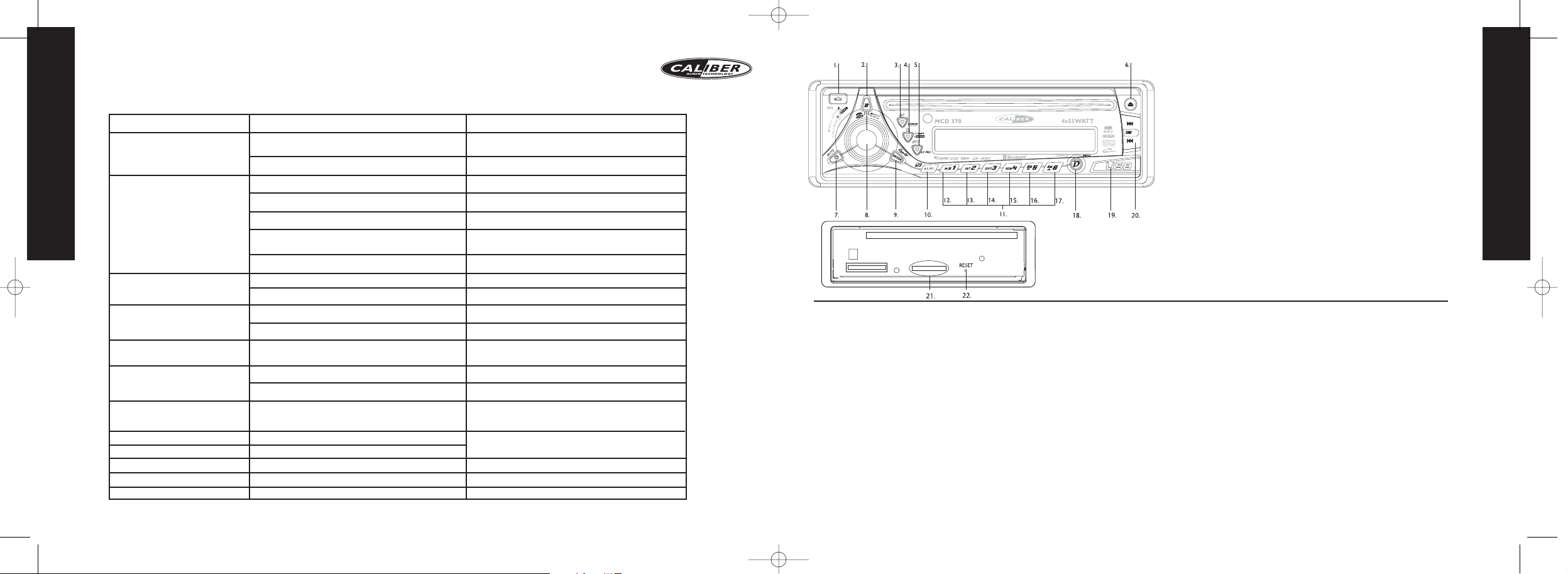

1. PANEL RELEASE BUTTON

2. BAND/FILE & FOLDER SEARCH/FILE ERASE/IPOD SEARCH BUTTON

3.AF/SUBWOOFER BUTTON

4.TA/RECORD & COPY BUTTON

5. PTY/IX BASS BUTTON

6. DISC EJECT

7. POWER/MUTE BUTTON

8. ROTARY VOLUME KNOB AUDIO SELECT/ENTER/DIAL BUTTON

9. MODE/CALL TRANSFER/DIAL BUTTON

10.AUTOMATICALLY STORE/PRESET SCAN (AS/PS)/ID3/IPOD

INFORMATION BUTTON

11. PRESET STATIONS BUTTONS (1~6)

12.PAUSE/PLAY BUTTON

13. INTRO BUTTON

14. REPEAT BUTTON

15. SHUFFLE (RANDOM) BUTTON

16. PREVIOUS FOLDER BUTTON

17. NEXT FOLDER BUTTON

18. DISPLAY BUTTON/MENU BUTTON

19. USB COVER

20.TUNING UP/DOWN,TRACK UP/DOWN BUTTONS

21. SD/MMC CARD INPUT

22. RESET BUTTON

MCD 370 GB-PT werkdoc 18-12-2006 11:07 Pagina 1

ENGLISH

DISC PLAY

PRECAUTIONS

• Use only in a 12-volt DC negative-ground electrical system.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

• When replacing the fuse, be sure to use one with an identical amperage rating.

•Using a fuse with a higher amperage rating may cause serious damage to the unit.

•DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.

• Make sure that pins or other objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car become normal before operating the unit.

• Keep the volume at a level at which you can hear outside warning sounds (horns sirens, etc.).

CD NOTES

• Playing a defective or dusty CD can cause dropouts in sound.

• Hold CDs as illustrated.

• DO NOT touch the unlabeled side.

• DO NOT attach any seal, label or data protection sheet to either side of a disc.

• DO NOT expose a CD to direct sunlight or excessive heat.

• Wipe a dirty CD from the center outward with a cleaning cloth.

•Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch ( 8cm ) CDs.

• NEVER insert a 3-inch CD contained in the adapter or an irregularly shaped CD.

• The unit may not be able to eject it, resulting in a malfunction.

BEFORE OPERATION

•DO NOT raise the volume level too much,as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operation.

CAUTION

DO NOT open covers and do not repair by yourself. Consult the dealer or an experienced technician for help.

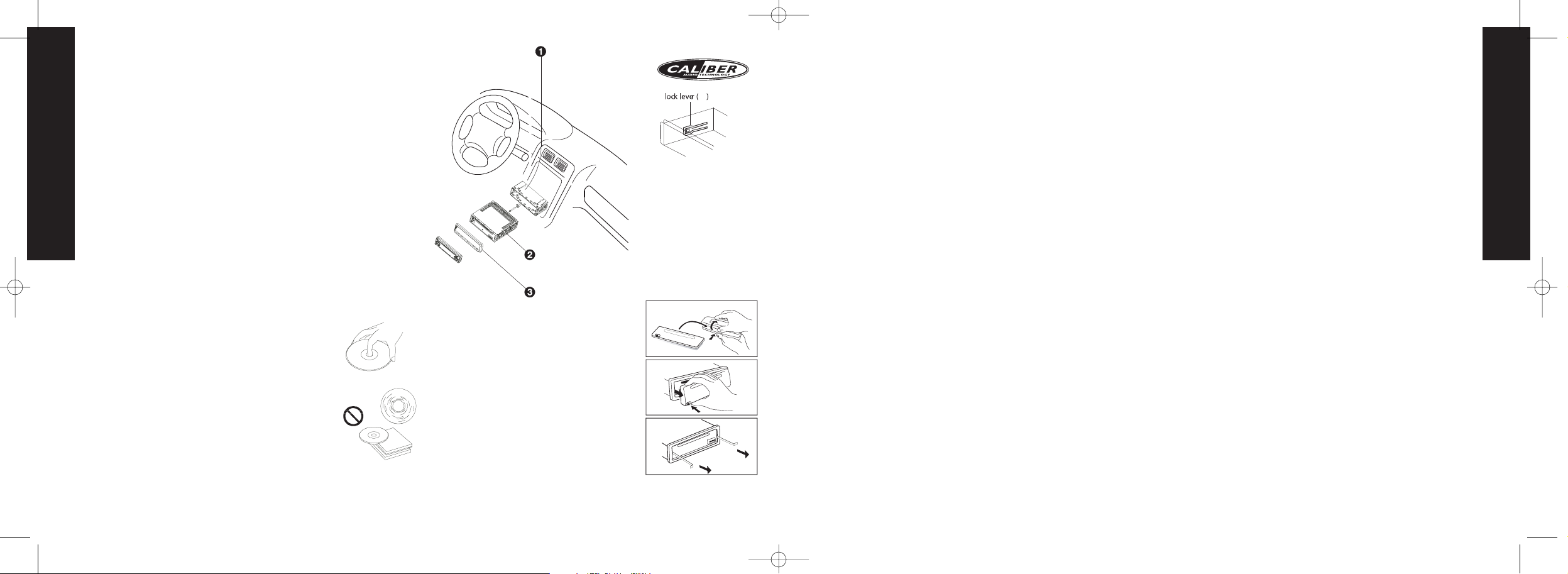

Installation procedures

First complete the electrical connections, and then check them for correctness.

Anti-Theft System

This unit is equipped with a detachable panel. Removing this panel makes the radio totally inoperable.

Removing the panel

1. Switch off the power of the unit.

2. Remove the detachable panel (REL button).

3. Gently press the button of the case and open the cover. Place the panel into the case and take it with you when you leave the car.

Install detachable panel

1.Fix right part of face plate in the right part of panel slot

of the unit.

2.Press down the left side of the face plate until it clicks

into the panel slot of the unit.

Remove the unit

Switch of the power of the unit.

1. Remove the panel and the trim plate.

2. Insert both T-Keys into hole in front of the set until

they lock.

3. Pull out the unit.

BASIC OPERATIONS

ON/OFF

Switch on the unit by pressing POWER button (7) or any other button on the radio (except eject) when system is on, press POWER button(7) to turn off the unit.

FACEPANEL RELEASE

Press REL button (1) to remove the facepanel.

SOUND ADJUSTMENT

Press button (8) volume knob to enter the sound set up,the sound set up will change in the following order Volume, Bass, Treble, Balance, Fader and back to Volume.

Press the button (7) “MUTE” momentarily to mute the audio volume, and "Mute" will flash in the display. Press the mute button again to restore volume to the previous setting.

IX-BASS (IX-BASS LEVEL)

Press button (5) “iX-Bass” for longer than 3 seconds to turn on the iX-Bass function, and “iX-Bass will appear on the display for 3 seconds.Press button (5) again to turn off the iX-Bass function.

SUBWOOFER

Press button (3) “SUB-W” for longer than 3 seconds to turn on the subwoofer function.

SOURCE

Press button (9) “MODE“ to switch between Tuner, CD, USB, SD/MMC, iPod and Aux Line-In.

MENU OPERATIONS

Press the button (18) “DISPLAY/MENU” longer then 3 seconds to access the menu. Press button (18) “DISPLAY/MENU” momentarily to move forward to the next option.The menu can also be navigated by using the buttons (20) Tuning Up or Tuning Down to move to the next or previous option.Once the desired option appears on the display, adjust that option by rotating the volume control within 5 seconds. The following options can be adjusted:

PAIRING

This option can be used to pairing the unit’s Blue Tooth system to your mobile phone or other Blue Tooth device. Press audio button (8) to start pairing.

NOTE: Please refer to BLUE TOOTH HAND FREE Operation for the details

operation of “pairing”.

RE-CONNECTION/DIS-CONNECTION

This option can be used to Re-connect or Dis-connect the paired mobile phone or Blue tooth device manually. Rotate the volume knob (8) to select “RE-CONN” or “DIS-CONN”.Then press button (8) to activate the connection mode.

INCOMING CALL RINGING VOLUME (PHONE VOL)

Rotate the volume knob (8) to select the desired ringing volume from “00” to “+38”. The default “Ringing volume level value” is “+20”.

AUTO ANSWER (A ANSWER)

Rotate the volume knob to select Auto answer “ON” or “OFF”. If “ON” is selected the unit will automatically answer any incoming call without pressing the phone button.

CONTRAST

The contrast level of the display is set at “contrast 05” by default. Rotate the volume control to adjust the contrast level from 00 to 10.

CLOCK FORMAT

This option allows selection of a 12 hour or 24 hour clock format.“CLK FORMAT 12” is the default setting. Rotate the volume button to change the 24 hour clock format.

TIME SET

The time on the clock will be set to 12:00 as the default. Program the current time by rotating the volume button clockwise to adjust the minutes and counterclockwise to adjust the hours.

LOCAL/DISTANCE SELECT

This option can be used to designate the strength of the signals which the radio will stop during automatic tuning. Rotate the volume knob (8) or press button (2) longer then 3 seconds to select “Distance” or “Local”.“Distance” (is the default):The radio will stop tuning at a broader range of signals.“Local”:The radio will stop tuning at only strong local stations.

AREA (TUNER FREQUENCY SPACING)

With this option you can select the frequency spacing appropriate for your area.The default setting is “AREA Europe”. Rotate the volume knob (8) to select USA Latin America, Europe or Oirt options.

REGIONAL ON/OFF (REGION)

Rotate the volume knob (8) to select regional “ON” or “OFF”. If “ON” is selected and “AF search” or “PI seek” is selected, the unit will implement to the station which have all the PI codes which are the same as current station. If “OFF” is selected, the regional code in the format PI code will be ignored.A regional station can be received. NOTE:The regional function ON/OFF setting is valid when the “AF” function is “ON”.

PROGRAMMABLE TURN-ON VOLUME (VOL PGM)

This option allows selection of the volume level the radio will automatically assume when first turned on.“VOL PGM 12” is the default setting, which will turn the radio on at the volume level selected when the unit was last turned off.To program a specific volume level for the radio to turn on at, rotate the volume control to select “VOLUME LEVEL”.Within 5 seconds.

BEEP TONE

Rotate the volume knob (8) to select the following options: BEEP ON: Beeps when any button is pressed. BEEP OFF:To disable the beep option.

ILLUMINATION COLOR (COLOR)

With this option you can choose the display backlight. Rotate the volume button (8) to select “COLOR 1” (Blue) or “COLOR 2” (Red).

1. Insert mounting bracket into the dashboard, and bend the mounting tabs out with a screwdriver. (Make sure that lock lever is flush with the mounting bracket. Not projecting outward)

2. Secure the rear of the unit After fixing mounting bolt and power connector,fix the rear of the unit to the car body by rubber cushion.

3. Insert trimplate

MCD 370 GB-PT werkdoc 18-12-2006 11:07 Pagina 2

ENGLISH

REPEAT THE SAME TRACK

Press button (14) “RPT” to continuously repeat the same track. Press it again to stop repeat.

SCAN TRACKS

Press button (13) “INT” to play first several seconds of each track of current CD.Press again to stop intro and listen to track.

PLAY TRACKS IN RANDOM

Press button (15) “RDM” to play all tracks on CD in random order. Press again to cancel the function.

EJECT

Press button (6) “ ” to stop playing and eject the CD.

PLAYING A CD-R/RW

Depending on the type of CD-R/RW CD, surface condition of the CD,as well as writer, certain CD-R/RW CD may not operate normally on this unit.

MP3/WMA FUNCTION How to select MP3 files

1. SEARCHING MUSIC FILE

Press button (2) BAND and the unit will display “NUMBER”. Rotate the volume knob (8) to scroll through the numbers, then press MP3 enter button (2) to confirm.

2. SEARCHING BY FOLDERS AND FILE NAME

Press button (2) BAND twice and the unit will display “NAVIGATE”.Rotate the volume knob (8) to navigate through all folders and sub-folders on the disc.The folder names will be displayed on the LCD. Press the volume knob (8) for more than 3 seconds to play the first file in the folder. Press the volume knob (8) for less than 3 seconds to access the sub-folders or files. Rotate the volume knob to navigate, then press the volume knob to play the file. Press button (10) “AS/PS” or rotate the volume button counter-clockwise during navigation search to move back to the last upper level of a folder.

3. NAVIGATING THROUGH DIRECTORY BY USING PREVIOUS/NEXT FOLDER (M5/M6) BUTTONS

Press next folder (M6) or previous folder (M5) buttons to skip in the current directory

.On a multi-level directories CD, the movement will take place at the current level until last folder is reached.At this point press previous folder (5) again,it will move to the next level or directory

ID3 INFORMATION DISPLAY

Press button (10) AS/PS repeatedly to display ID3 TAG information. If the MP3 file is available with ID3 TAG,pressing the button (10) repeatedly will show information in the following sequence: Track title -> Artist title -> Album title If the MP3 file is without ID3 TAG, pressing the display button (18), and “NO ID3 TAG” will be displayed on the display.The file name and music file number of the MP3 file will scroll repeatedly through the display during the playing of the MP3 file.

NOTE OF ID3 ICONS ON DISPLAY ICON DESCRIPTION

TRACK

ARTIST

ALBUM

RECORDING OPERATIONS

With this unit you can store your favorite Music and Audio to the USB stick/SD- and MMC-card.

RECORDING CD MUSIC

This operation only can be performed when the unit is in the CD playing mode.

1.Playback a track to be recorded, press button (4) “COPY/RECORD” longer than 3 seconds to activate the RECORD mode.

2.The unit will display “REC -> USB” as default,rotate the volume knob (8) to select the storage media:“REC -> USB” or “REC -> CARD”.

3.Press button (8) to confirm and start to record to the selected media. If no button is press within 10 seconds time, the unit will automatically switch to the previous mode.

4.If the selected storage media is full, the unit will display “Memory Full” then automatically switch to the previous mode.

5.After pressing button (8) to start the record, the unit will re-start playback from the beginning of the track and the recording will start at the same time.The unit displays “REC >> USB”.

6.When the recording is completed, the unit will display “REC -> USB” for a few seconds and automatically playback the next track on the CD.The recorded track is automatically saved as a file into the folder “My CD” by the advance “File management” system of this unit.

NOTE:

While recording, all the CD operations like Track up/down, Repeat,Random etc. can’t be used.

- The audio will remain recording even MUTE function is activated.

- Recording will automatically stop if the storage media is full.

ENGLISH

RADIO OPERATIONS

BAND SELECTION

At tuner mode, press button (2) shortly to select the desired band.The reception band will change in the following order: FM1,FM2, FM3 and MW

STATION SELECTION

Press up or down button (20) shortly to activate automatic seek function. Press for 3 seconds until “ MANUAL” appeared on the display, the manual tuning Mode is selected. If the buttons are not touched for more then 3 seconds it automatic goes back to “AUTO SEEK”

AUTOSTORE AS AUTOMATIC MEMORY STORING

Press func button (10) “AS/PS” longer then three seconds , activate AS.The radio searches for the 6 strongest stations and stores them into the preset of the currently selected band.

NOTE: Any stations that were previously stored in this memory bank are replaced by

a new station.

PRESET SCAN PS

Press func button (10) “AS/PS” for less then three seconds.The unit will pause for ten seconds at each preset station. Press button (10) “AS/PS” again to stop scanning when the desired station is reached.

Station store and recall

Press any one of the preset buttons (12 to 17) to recall a station which had been stored in the memory.Press a preset button for 2 seconds, previous preset station is overwritten by current tuned frequency.

RDS (RADIO DATA SYSTEM) OPERATIONS

The RDS data are the PI, PS,TP, PTY,TA and AF data. PI: Program indentification code

Code for identifying program

PS: Program service name

Broadcast station name data expressed In alphanumerically character

TP:Traffic program identification

Identification data for traffic information broadcasting station

TA :Traffic announcement identification

Identification data showing traffic information is being transmitted or not

AF:Alternative frequencies

Frequency list of broadcasting station transmitting the same program

SETTING AF MODE

Press button (3) AF for less then three seconds to select AF to be ON or OFF Whenever AF is switched on, symbol “AF” appears on the display. The tuner will return to Alternative Frequencies whenever the reception signals

getting worse.“ALARM” will be displayed when an emergency broadcasting is received;meanwhile sound output level will be adjusted to the preset output level automatically when the volume control is set at minimum.

USING PTY TO SELECT PROGRAM

The PTY function allows you to search for stations with a particular program type. To select your program type, press the button (5) “PTY” less then three seconds. Display will show:“pop music” or “news. Now you can select the music type or speech type using preset keys 1 to 6 for your selection as listed table:

Preset number PTY “pop” group PTY in “news” group

1 pop m, rock m news,affairs,info 2easy m, light m sport,educatie,drama 3 classics, other m culture, science, varied 4 jazz, country weather, finance, childeren 5 nation m, oldies social, religion, phone in 6folk m travel, leisure, document While selecting PTY engagement, its selection is implemented by preset button as described in notes.When PTY is selected, the radio starts to search corresponding PTY information is detected. If corresponding PTY information is not found ,normal radio reception is resumed.After the text “NON PTY” is at the display for 5 seconds.

LISTENING TO TRAFFIC ANNOUNCEMENT

Traffic announcement can interrupt CD play or radio listening when broadcast. Briefly press the button (4) “TA” to select the TA mode on or off.When TA mode is on, you will hear the traffic announcement when broadcast.During traffic announcement ,you can interrupt it by short press of TA button (4).Without switching off the TA mode. By doing so, the set will return to the previous operating mode. Long press on TA button(4) allows ON/OFF selection of EONTA LOCAL/EONTA DX EONTA LOCAL will only allow traffic announcement from strong station to come through. EONTA DX selection will allow all received announcements to interrupt CD play or radio listening.

CD/MP3/WMA OPERATIONS

SELECT TRACKS

During CD operations, press button (20) “ ” for next track. Press button (20) “ ” for previous track.Tracknumber shows on display.

During CD operation, hold button (20) “ ” for fast forward. Hold button (20) “ ” for fast reverse. Cd will starts from when you release the button.

PAUSE

Press button (12) “ ” to pause the CD player. Press it again to resume play.

MCD 370 GB-PT werkdoc 18-12-2006 11:07 Pagina 4

ENGLISH

ERASING MUSIC FILES FROM USB/SD- OR MMC-CARD

There are 2 different methods for erasing music files.

1. ERASING MUSIC FILES FROM THE MEDIA.

1.Press button (2) longer than 3 seconds to activate the ERASE mode.The unit will display “ERASE 010”

2.Press the volume knob (8) to enter into the ERASE mode.

3.Now you can rotate the volume knob (8) to select “<-” to confirm erasing or ”X” to cancel the erasing. Press the volume button (8) again to confirm. If no button is press within 5 seconds time, the unit will automatically switch to the previous mode.

4.If you have pressing the volume knob (8) to start erase the present music file, the music file will stop and the erasing will start at the same time.The unit will display “ERASE V” after the music file erase is succesfull, the unit will automatically start playback the next music file.

2. ERASE UNDER FILES NUMBER/FILES NAVIGATE SEARCH MODE

1.After select the file number/file name you want to erase press button (2) longer than 3 seconds to activate the ERASE mode.The unit will display “ERASE 010”

2.Press the volume knob (8) to enter into the ERASE mode.

4.If you have pressing the volume knob (8) to start erase the selected music file.The unit will display “ERASE V” after the music file erase is succesfull,the unit will automatically start playback the next music file.

WARNING:

1. Do not switch the power “OFF” during erasing

2. Do not change mode during erasing

3. Do not switch the ignition key “OFF” during erasing

4. Do not detach the face panel from the main unit

FILES MANAGER

With this “File management” function you can organize all the music files just like on a PC.

FOLDERS MANAGEMENT

This unit will automatically self-create the below default folders onto any USB/SD/MMC media if these are inserted into the unit. MY_CD: Folder for saving all the tracks source from CD. MY_MP3: Folder for saving all the MP3 music files transfer from other device. MY_WMA: Folder for saving all the WMA music files transfer from other device. MY_FM: Folder for saving all the music files source from FM Program. MY_AUX: Folder fo saving all the music files source from AUX Line In. MY_iPod: Folder for saving all music files source from iPod Player.

FILES MANAGEMENT

This unit will automatically self-create the file name following with the folder name. For example: Music file which recorded from CD, the file name “CD0001.MP3” will be automatically created & saved in the respective folder.

IPOD OPERATIONS

This unit is equipped with iPod Ready function.The user has direct control of the iPod on the front panel.

CONNECT THE IPOD ->

TURNING IPOD POWER ON AND OFF

The iPod power turns automatically on when it is connected to the 30 Pin connector and as long as the vehicle’s ignition is turned ON.The iPod power can be turnde OFF by removing the iPod from the 30 Pins connector or the vehicle’s ignition is turned OFF. The iPod will go into the pause mode and goes into sleep mode about 2 minutes later.

NOTE:While the iPod is connected, the power cannot be turned ON or OFF from the

iPod itself.

IPOD BATTERY CHARGING

The iPod will automatically start recharging as long as the vehicle’s ignition key is turned to ACC or ON.

SWITCH TO IPOD MODE

When the Headunit is ON and the iPod is connected to the 30 pin connector, press button (9) “MODE” to change to iPod mode and the unit will display “iPod” for a while. The headunit will starts reading the music files on the iPod and the playback will automatically start. Press button (9) “MODE” repeatedly to change to other modes or switch back to iPod mode.

ENGLISH

CANCEL RECORDING

Press button (4) “COPY/RECORD” for more than 3 seconds to cancel recording.The unit will display “REC USB”.The track that has been recorded incompletely will be deleted.

WARNING:The unit will cancel recording automatically if:

1.The power is switched to “OFF” mode

2.Change mode

3.Inserting a CD

4.Insert a USB

5.Detach the face panel from the main unit

TRANSFER MUSIC FILES

With this unit you can easily transfer music files between USB stick,SD or MMC card.

TRANSFER MP3 OR WMA MUSIC FILES

1.Playback a music file to be transferred, press button (4) “COPY/RECORD” longer than 3 seconds to activate the Transfer mode.

2.The unit will display “ -> USB” as default, rotate the volume knob (8) to select the storage media:“REC -> USB” or “REC -> CARD”.

3.Press button (8) to confirm to transfer the playing music file to the selected media. If no button is press within 10 seconds time, the unit will automatically switch to the previous mode.

4.If the selected storage media is full, the unit will display “Memory Full” then automatically switch to the previous mode.

After pressing button (8) to start the transfer, the playing music file will stop and the transferring will start at the same time. (The following step is an example if USB is selected).

6.When the transfer is processing, the unit will display “10% >> USB”.

7.When the transfer is completed, the unit will display “100% >> USB” for a few seconds and automatically playback the present music file which have been transferred.The transferred music file is automatically saved as a file into the folder “My_MP3” or “MY_WMA” by the advance “File management” system of this unit.

NOTE:

- While transferring, all the MP3/WMA operations like Track up/down, Repeat,Random etc. can’t be used.

- The audio will remain transferring even MUTE function is activated.

- Transferring will automatically stop if the storage media memory is less than 2MB.

CANCEL TRANSFERRING

Press button (4) “COPY/RECORD” for more than 3 seconds to cancel transferring.The unit will display “ USB”.The music file that has been transferred incompletely will be deleted.

WARNING:The unit will cancel transferring automatically if:

1.The power is switched to “OFF” mode

2. Change mode

3. Inserting a CD

4. Insert a USB

5. Detach the face panel from the main unit

SD/MMC OPERATIONS

USB DRIVE OPERATIONS

Flip open the USB cover.

Plug in the USB drive.The unit automatically starts playing.

WARNING: Switch off the unit or switch to another mode before removing the USB

stick. Never try removing the USB stick while playing music from the USB stick. It may damaged the USB stick.

Detach the control panel. Insert the SD/MMC Card

with Label up side.

Push in untill a “click” sound is heard.

Close the control panel.

Press button (9) “MODE” after a SD or MMC card was inserted to select “SD/MMC” mode.The unit automatically starts playing. If you want to select another source you can use button (9) “mode” to select the desired source.You can leave the card in the unit. Press button (20) “up/down” to go through the tracklist.

MCD 370 GB-PT werkdoc 18-12-2006 11:07 Pagina 6

ENGLISH

activate the connection mode.

2.The unit will display “RE-CONN:1 >>” during the connecting period.

3.If the re-connection is succesfull, the unit will display “RE-CONN:1 V”.If the re-connection is failed, the unit will display “RE-CONN:1 X”.Than the unit will automatically switch to the previous mode.

NOTE:- Keep the mobile phone within 2 meter from the unit during Re-connection.

-The manual re-connect is only function with the mobile phone if it has already been paired with the head unit before.

The head unit will automatically re-connect by the following operations:

-Every time you turn on the ignition key from “OFF” to “ON”.

-Every time you press the volume knob (8) longer than 3 seconds and press button (9) “MODE” shortly to confirm dialing a call.

DIS-CONNECTION

This option can be used to Dis-connect the paired mobile phone from the head unit.

1.Press volume knob (8), rotate the volume knob to select “DIS-CONN”.Then press button (8) to activate the dis-connection mode.

2.The unit will display “DIS-CONN:1 >>” during the Dis-connecting period.

3.If the re-connection is succesfull, the unit will display “DIS-CONN:1 V” and the unit will automatically switch to the previous mode.

INCOMING CALL ANSWER AN INCOMING CALL

1.When there is an incoming call, the unit will display “Caller ID” and keep blinking. If the incoming call has no caller ID,the unit will display “PHONE IN”.Than you can press the volume knob (8) or button (9) “MODE” to answer/accept the call.

2.Use the volume knob (8) to adjust the volume level.

3.Press button (2) “CLEAR” to end the conversation. the unit will automatically switch to the previous mode and release the mute of the previous mode at the same time.

NOTE:- If their is an incoming call in the stand by mode (Ignition on & Power off), the

system will automatically switch on the head unit.

- If the bluetooth related operation is not performing normally,like cannot make pairing/outgoing calls etc, try to make a SOFT-RESET by removing the face panel from the unit and wait about 1 minute.Then re-attach the face panel and try the bluetooth operation again. Or reset the whole unit by pressing the RESET button (22) behind the panel (warning all the stored memory will resume to factory default).

REJECTING AN INCOMING CALL

Press button (2) “CLEAR” to reject the incoming call.

NOTE:The audio output of the present mode will be muted and the ringing tones will

be heard if an incoming call is not being answered.After pressing button (2) “CLEAR” the mute of the present mode will be released.

OUTGOING CALL

MAKING AN OUTGOING CALL

1.Press the volume knob (8) to start making an outgoing call. A cursor is blinking.

2.Rotate the volume knob to navigate through the numeric 0-9, # and +.

3. Press the volume knob to confirm the selected numeric.

4. Use the track up/dpown buttons (20) to move the cursor back or forward to the wrong input numeric.

5. If the phone number has been entered completely, press the volume knob (8) for longer than 3 seconds or press button (9) “MODE” shortly to start dailing the call. The unit will display “CALLING >>”.

NOTE: If you need to enter any number under the calling mode, for example a Pin

Code or Service Number Dial input. Press the volume knob (8) to enter the numeric input interface, then rotate the volume knob to navigate through the numeric. Press the volume knob again to confirm the selected numeric. Press the volume knob longer than 3 seconds to exit the numeric interface. The audio output of the present mode will only be muted after pressing the volume knob (8) as confimation to dial.

6.The unit will display the duration “PHONE >> 00:06” of the conversation.

7.Use the volume knob (8) to adjust the volume level.

8.Press button (2) “CLEAR” to end the conversation. the unit will automatically switch to the previous mode and release the mute of the previous mode at the same time.

9. If the Ignition is being turned “OFF” during the talking mode,the unit will keep the conversation. Press button (2) “CLEAR” to switch off the unit after finished the conversation.

CALL TRANSFER TO AUDIO TRANSFER FROM HEAD UNIT BACK TO THE MOBILE PHONE

Press button (9) “TRANSFER” during the talking mode to transfer the audio from the unit back to the mobile phone (for privacy reason).The unit will display “TRANSFER <-->” for 3 senconds. NOTE: - After pressing button (9) “TRANSFER” the mute of the present mode will be released at the same time.

- When making an outgoing call, it’s not possible to CALL TRANSFER if the call is not

answered yet.It’s possible to Transfer the call to mobile phone after the

call is answered.

- Depending on different types of mobile phones, the time for activating the CALL TRANSFER mode is different. For example a Nokia mobile phone usually takes 3-5 seconds after pressed button (9) “TRANSFER” for audio transfer or forth through unit to mobile phone.

ENGLISH

IPOD INFORMATION ON THE HEADUNIT DISPLAY

Press button (10) “AS/PS” repeatedly while the iPod song is playing,the unit will display: Song -> Artist -> Album name -> Elapsed time

SEARCHING A DESIRE SONG

Press button (2) “BAND” to go into the iPod searching Mode. Pressing button (2) “BAND” repeatedly to access the following searching methods: 1. Playlist -> 2.Artist

-> 3.Album -> 4. Song -> 5.Genre Press within 10 seconds button (8) to confirm and access the searching mode, then rotate button (8) volume knob to navigate through the Album,Artist or Song list on the iPod. Press button (8) to confirm and play the selected song. Press button (10) “AS/PS” during the searching mode as quick move back to the last upper level of Album, Playlist, Genre etc.

SONG SELECT

During iPod operations, press button (20) “ ” for next track. Press button (20) “ ” for previous track.Tracknumber shows on display.

During iPod operation, hold button (20) “ ” for fast forward. Hold button (20) “ ” for fast reverse. iPod song will starts play from when you release the button.

SONG REPEAT/REPEAT ALL

Press button (14) “RPT” to continuously repeat the same track. Press it again to stop repeat. Press button (14) “RPT” for more then 3 seconds to repeat all songs of the current album.

SHUFFLE PLAY/SHUFFLE ALBUM

Press button (15) “RDM” to play all songs in random order. Press again to cancel the function. Press button (15) “RDM” for more then 3 seconds to play all songs of the current album in random order. Press again to cancel the function.

BLUETOOTH HAND FREE OPERATION

2. Reject incoming call Edit number Clear

8. Enter phone number input mode Confirm dailing the input phone number Use for numeric input

9. Transfer phone conversation backward to mobile phone

18. Blue-tooth multi-function key (Pairing / Re-connection etc.)

20. Move cursor Edit number

23. Microphone

Please read this part of the user-guide to establish a connection with your mobile phone. Please note: you need to have a phone with Bluetooth capability. This device utilizes Bluetooth wireless technology version V1.2 that supports Bluetooth headset and/ or Handsfree profile. See our website (www.caliber.nl -> headunits -> MCD 370) for the updated list with examples of bluetooth mobile phones available on the market. If you mobile phone is not on the list, please try it out in practice.The phone can be in your pocket or your bag while handling in- and outgoing calls (Max 3m distance).

PAIRING

This option can be used to pairing the unit’s Blue Tooth system to your mobile phone or other Blue Tooth device.

1.Check your mobile phone’s user guide and find out how to turn on the Bluetooth

function.

2.Press menu button (18) till “PAIRING:1” is displayed.Then press button (8) again to

select.

3.To terminate the pairing, you can press button (2) “CLEAR” at any time.

4.Select the Blue Tooth set up on the mobile phone.

5.“BT60” will appear in the pairing list on the mobile phone.You have to select “BT60”

and enter the password “1234” (default). If the pairing is succesfull, the unit will display “PAIRING:1 V” and the mobile phone name. If the pairing failed,the unit will display “PAIRING:1 X” for 3 seconds and it will switch back to the previous mode automatically.

NOTE:- Keep the mobile phone within 2 meter from the unit during pairing.

- Please make sure the phone battery is fully charged when making the pairing or re-

connection.

- Please always try pairing the mobile phone a few minutes after the mobile phone was

switched “ON” to ensure the best pairing results.

- Only power,clear,volume knob or mute are functional during pairing.

RE-CONNECTION

This option can be used to Re-connect the paired mobile phone or Blue tooth device manually.

1.Press menu button (18) till “RE-CONN” is displayed.Then press button (8) to

MCD 370 GB-PT werkdoc 18-12-2006 11:07 Pagina 8

ENGLISH

Cause

The car ignition switch is not on

The fuse is blown

Presence of disc inside the player

Inserting the disc in reverse direction

The disc is extremely dirty or defective

Temperature inside the car is too high

Condensation

Volume is in minimum

Wiring is not properly connected

The installation angle is more than 30 degrees

The disc is extremely dirty or defective

The built-in microcomputer is not operating properly due to noise

The antenna cable is not connected

The signals are too weak

Mechanism error

The media device is not able to copy or record The media device is not able to play file The media device memory is full, is not allow to copy No file format supports for playback on the disc/media device Maybe disc dirty/disc scratched/disc upside down

Solution

If the power supply is properly connected to the car accessory terminal,switch the ignition key to "ACC"

Replace the fuse

Remove the disc in the player, then insert a new one

Insert the compact disc with the label facing upward

Clean the disc or try to play a new one

Cool off or until the ambient temperature returns to normal

Leave the player off for an hour, then try again

Adjust volume to a desired level

Check wiring connection

Adjust the installation angle less than 30 degrees

Clean the compact disc, then try to play a new one

Front panel is not properly fixed into its place Press the RESET button.

Insert the antenna cable firmly

Select a station manually

Press the reset button to correct the problem.If the error code does not disappear, consult your nearest service dealer.

Replace the media device or format the SD/MMC card

Replace the media device or erase some un-usage files Replace the disc or media device replace the disc

Problem

No power

Disc cannot be loaded or ejected

No sound

Sound skips

The operation keys do not work

The radio does not work

Error 1

Write error Read error Memory full No file Disc error

TROUBLESHOOTING

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

Location Function

1 Rear right (+) - Purple 2 Rear right (-) - Purple / Black stripe 3Front right (+) - Gray 4 Accu 12V(+) Front right (-) - Gray / Black stripe 5 Auto Antenna Front Left (+) - White 6Front Left (-) - White / Black stripe 7ACC+ Rear left (+) - Green 8Ground Rear Left (-) - Green / Black Stripe

DIALED LIST TO FIND THE LAST 10 DIALED NUMBER

The unit can memory up to 10 last dialed number.

1.Press the volume knob (8), after the cursor is blinking press the volume knob longer than 3 seconds.

2.The first number on the display will be the last dialed number.Rotate the volume knob to navigate through the 10 last dialed numbers.

3.Press the volume knob (8) “DIAL” for longer than 3 seconds or press button (9) “MODE” shortly to start dailing the number from the list.

4.You also can edit the number in the dialed list. If the dialed list is displayed on the unit, press the volume knob (8) to enter the number edit mode. Use the track up/down button to move the cursor back or forwardto the numeric which want to edit.

NOTE:The unit only memorized the dialed numbers which dialed with the

unit, it cannot memorize the numbers dialing with the mobile phone.

HIGHLIGHT FEATURES INCOMING CALL RINGING VOLUME (PHONE VOL)

Rotate the volume knob (8) to select the desired ringing volume from “00” to “+38”.The default “Ringing volume level value” is “+20”.

AUTO ANSWER (A ANSWER)

Rotate the volume knob to select Auto answer “ON” or “OFF”. If “ON” is selected the unit will automatically answer any incoming call without pressing the phone button.

MCD 370 GB-PT werkdoc 18-12-2006 11:07 Pagina 10

+ 11 hidden pages

CALIBER MCD 370 User Manual [fr]

Specifications and Main Features

Frequently Asked Questions

User Manual
