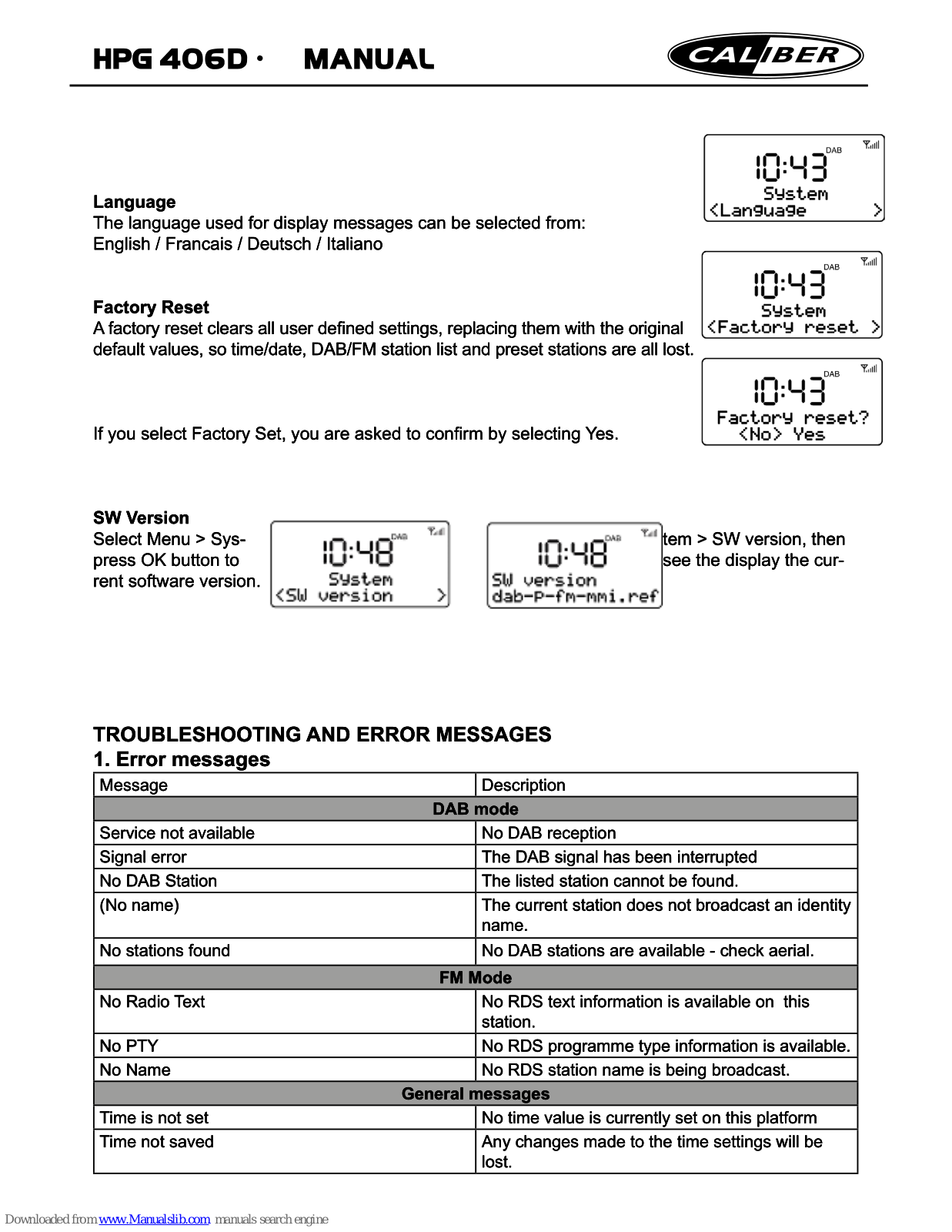

Language

The language used for display messages can be selected from:
English / Francais / Deutsch / Italiano

Factory Reset

A factory reset clears all user dened settings, replacing them with the original
default values, so time/date, DAB/FM station list and preset stations are all lost.

If you select Factory Set, you are asked to conrm by selecting Yes.

SW Version

Select Menu > Sys- tem > SW version, then
press OK button to see the display the cur-

rent software version.

TROUBLESHOOTING AND ERROR MESSAGES

1. Error messages

Message Description

DAB mode

Service not available No DAB reception
Signal error The DAB signal has been interrupted

No DAB Station The listed station cannot be found.

(No name) The current station does not broadcast an identity

name.

No stations found No DAB stations are available - check aerial.

FM Mode

No Radio Text No RDS text information is available on this

station.

No PTY No RDS programme type information is available.
No Name No RDS station name is being broadcast.

General messages

Time is not set No time value is currently set on this platform
Time not saved Any changes made to the time settings will be

lost.

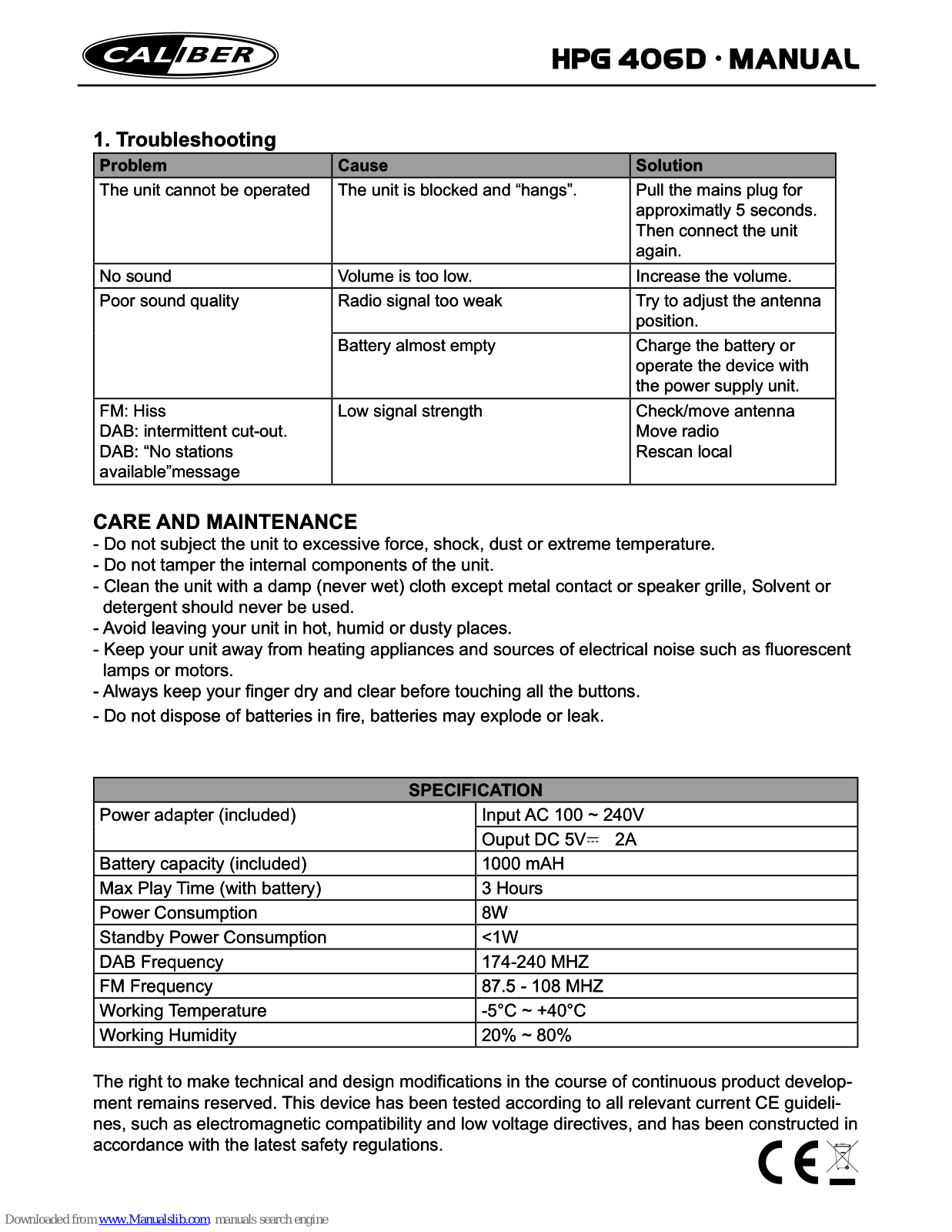

1. Troubleshooting

Problem Cause Solution

The unit cannot be operated The unit is blocked and “hangs”. Pull the mains plug for

approximatly 5 seconds.

Then connect the unit

again.

No sound Volume is too low. Increase the volume.
Poor sound quality Radio signal too weak Try to adjust the antenna

position.

Battery almost empty Charge the battery or

operate the device with
the power supply unit.

FM: Hiss
DAB: intermittent cut-out.
DAB: “No stations
available”message

Low signal strength Check/move antenna

Move radio

Rescan local

CARE AND MAINTENANCE

- Do not subject the unit to excessive force, shock, dust or extreme temperature.

- Do not tamper the internal components of the unit.

- Clean the unit with a damp (never wet) cloth except metal contact or speaker grille, Solvent or
detergent should never be used.

- Avoid leaving your unit in hot, humid or dusty places.

- Keep your unit away from heating appliances and sources of electrical noise such as uorescent
lamps or motors.

- Always keep your nger dry and clear before touching all the buttons.

- Do not dispose of batteries in re, batteries may explode or leak.

SPECIFICATION

Power adapter (included) Input AC 100 ~ 240V

Ouput DC 5V 2A

Battery capacity (included) 1000 mAH
Max Play Time (with battery) 3 Hours
Power Consumption 8W
Standby Power Consumption <1W
DAB Frequency 174-240 MHZ
FM Frequency 87.5 - 108 MHZ
Working Temperature -5°C ~ +40°C
Working Humidity 20% ~ 80%

The right to make technical and design modications in the course of continuous product develop­ment remains reserved. This device has been tested according to all relevant current CE guideli­nes, such as electromagnetic compatibility and low voltage directives, and has been constructed in
accordance with the latest safety regulations.
