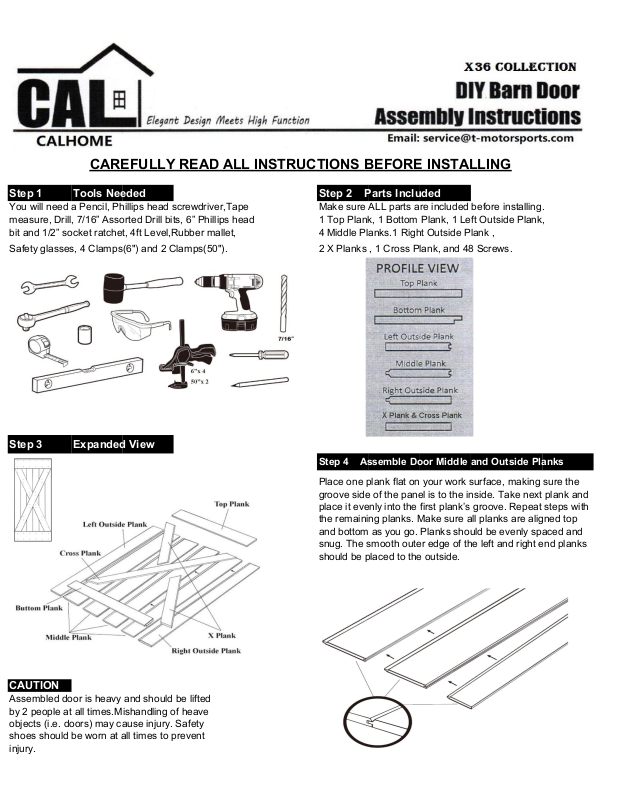

CAREFULLY READ ALL INSTRUCTIONS BEFORE INSTALLING
Step 1 Tools Needed Step 2 Parts Included
You will need a Pencil, Phillips head screwdriver,Tape
Make sure ALL parts are included before installing.
measure, Drill, 7/16” Assorted Drill bits, 6” Phillips head
1 Top Plank, 1 Bottom Plank, 1 Left Outside Plank,
bit and 1/2” socket ratchet, 4ft Level,Rubber mallet, 4 Middle Planks.1 Right Outside Plank ,
Safety glasses, 4 Clamps(6") and 2 Clamps(50"). 2 X Planks , 1 Cross Plank, and 48 Screws.
Step 3 Expanded View
Step 4 Assemble Door Middle and Outside Planks
Place one plank flat on your work surface, making sure the
groove side of the panel is to the inside. Take next plank and
place it evenly into the first plank’s groove. Repeat steps with
the remaining planks. Make sure all planks are aligned top
and bottom as you go. Planks should be evenly spaced and
snug. The smooth outer edge of the left and right end planks
should be placed to the outside.
CAUTION
Assembled door is heavy and should be lifted
by 2 people at all times.Mishandling of heave
objects (i.e. doors) may cause injury. Safety
shoes should be worn at all times to prevent
injury.
Step 5 Assemble Top and Bottom Planks Step 6 X Planks & Cross Plank
Place the top and bottom planks onto the assembled door
planks with the pre-drilled opening side up. Make sure both
panels are flush with the door edges on top and sides.
There should not be any overhang. Planks should be
evenly spaced and snug. Do not insert any of the screws at
this point.
Place the X and cross planks onto the door with
the pre-drilled opening side up. Make sure it lays
flush against the top and bottom planks.
Step 8 Secure the X & Cross Plank
Once the top and bottom planks are installed, drill
shallow pilot holes in door planks through X and
cross plank(using the pre-drilled holes as a guide)
and then with a screwdriver, secure with the
screws provided. Do not drill completely through
the door plank. It is important to check that the
plank is still flush as you go.
Step 7 Secure Top and Bottom Planks
Once all planks are flush and squre, secure the top and
bottom planks with the screws provided. Using the clamps,
secure all 4 corners. With the pre-drilled holes as your
guide, drill(1/8"bit) a shallow pilot hole into 4 corner holes.
Do not drill completely through the door plank.Using a
screw driver insert screws into the 4 corner pre-drilled
holes. Continue process with the remaining screws. Make
sure all screws are installed and secure. It is important to
check that all planks are still flush and squre as you go.
Step 9 Install Sliding Door Hardware
The door is now ready to have the sliding door
hardware track brackets installed
Note: The below guide is for our SDH-SWD11
hardware. If using the wood barn door track
included in the kit, please refer to the
provided hardware installation instructions
prior to installing.
Door Color
36A = 266260 GOLDEN PECAN 20066 22051
36B = 266167 DARK WALNUT 20066 22002
36C = 266256 EBONY 20066 22047
