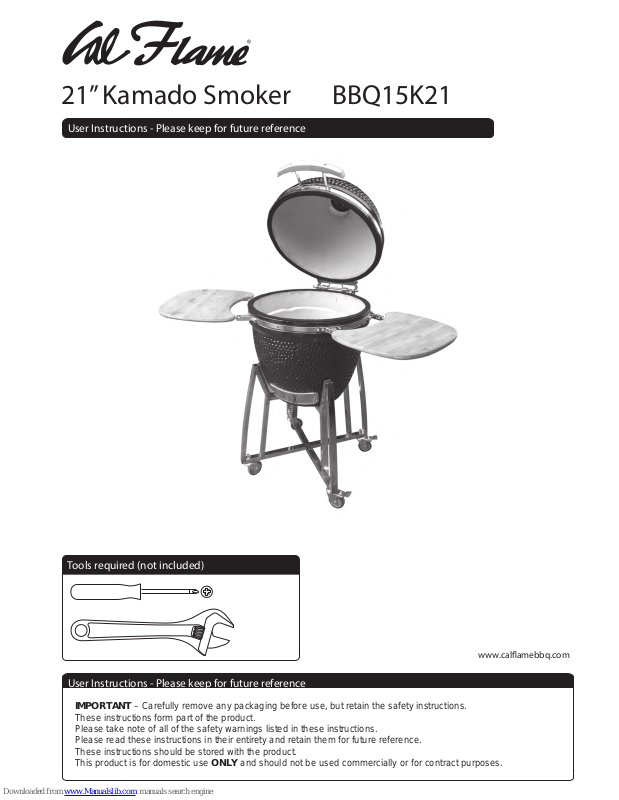

Cal Flame BBQ15K21 User Instructions

User Instructions - Please keep for future reference
User Instructions - Please keep for future reference
21” Kamado Smoker BBQ15K21
www.calamebbq.com
Tools list
Tools required (not included)
IMPORTANT – Carefully remove any packaging before use, but retain the safety instructions. These instructions form part of the product. Please take note of all of the safety warnings listed in these instructions. Please read these instructions in their entirety and retain them for future reference. These instructions should be stored with the product. This product is for domestic use ONLY and should not be used commercially or for contract purposes.
2
Car
e and safe use guidelines
ABOUT
YOUR KAMADO
Dating back 4000 years ago archaeologists have discovered large clay vessels thought to be early incarnations of the Kamado ceramic cooker. Since then it has evolved in many ways; removable lid, added draft door for better heat control and the switch from wood to charcoal as the primary fuel. In Japan the Mushikamado was a round clay pot with a removable domed lid designed for steaming rice. The name ‘Kamado’ is, in fact, the Japanese word for ’stove’ or ‘cooking range’. This name was adopted by the Americans and has now become a generic term for this style of ceramic cooker.
Kamado cookers are extremely versatile. Not only can they be used for grilling or smoking but also pizzas, bread, pies and cookies can be baked effortlessly inside them. Due to their excellent heat retention properties, high temperatures can be achieved and maintained by precise contol of airflow via the top and bottom vents. High temperatures are ideal for fast cooking burgers and sausages whilst low heats will cook larger joints over a longer period of time. Why not try adding some wood chips to the charcoal or try combining different flavour wood chips to make your meats even more flavoursome.
WARNINGS – CAUTION!
• This product is intended FOR OUTDOOR USE ONLY. DO NOT use indoors.
• ALWAYS keep children and pets at a safe distance from the oven when in use.
• NEVER leave a burning fire unattended.
• DANGER of carbon monoxide poisoning – NEVER light this product or let it smoulder or cool down in confined spaces.
• DO NOT use this product in a tent, caravan, car, cellar, loft or boat.
• DO NOT use under any awnings, parasols or gazebos.
• FIRE HAZARD – Hot embers may emit while in use.
• CAUTION - DO NOT use petrol, white spirit, lighter fluid, alcohol or other similar chemicals for lighting
or relighting. Use only firelighters complying to EN1860-3.
• It is highly recommended that you use lump charcoal in your Kamado. It burns for longer and
produces less ash which can restrict the airflow.
• DO NOT use coal in this product.
• IMPORTANT: When opening the lid at high temperatures it is essential to lift the lid only slightly,
allowing air to enter slowly and safely, preventing any backdraft or flare-ups that may cause injury.
• ALWAYS follow the FOOD COOKING INFORMATION stated on page 4 of this instruction manual.
• DO NOT use the Kamado on decking or any other flammable surfaces such as dry grass, wood chips,
leaves or decorative bark.
• Ensure that the Kamado is positioned at least 2 metres away from flammable items.
• DO NOT use this Kamado as a furnace.
• ATTENTION: This product will become very hot, DO NOT move it during operation.
• ALWAYS USE heat resistant gloves when handling hot ceramics or cooking surfaces.
• Allow the unit to cool down completely before moving or storing.
• Always inspect the unit prior to use for fatigue and damage and replace as and when necessary.
CURING THE KAMADO
To start a fire place rolled up newspaper with some lighter cubes or solid firelighters on the charcoal plate (7) in the base of the Kamado. Then place 2 or 3 handfuls of lump charcoal over the top of the newspaper.
DO NOT use petrol, white spirit, lighter fluid, alcohol or other similar chemicals for lighting or relighting.
Open the bottom vent and light the newpaper using a long nosed lighter or safety matches.
DO NOT overload the unit with fuel – if the fire is too intense this could damage the Kamado.
• Leave until all the fuel is used and extinguished.
• If the first burns are too high it could damage the felt gasket seal before it has had the chance to mature
properly.
• After first use inspect all fasteners for tightness. The metal band connecting your lid to the base will expand
from the heat and this could become loose. It is recommended you check and if neccessary tighten the band with a spanner.
• You can now use your Kamado as normal.
EXTINGUISHING
• To extinguish unit – stop adding fuel and close all the vents and the lid to allow the fire to die natuarally.
DO NOT use water to extinguish the charcoals as this could damage the ceramic Kamado.
3
Car
e and safe use guidelines
STORAGE
• When not in use, and if stored outside, cover the Kamado once completely cooled with a suitable rain cover.
The chrome plated cooking grill is NOT dishwasher safe; use a mild detergent with warm water.
• When using the Kamado push down on both of the locking wheels to stop the unit moving about during use.
• It is recommended the Kamado be stored under cover in a garage or shed over winter for complete protection.
CLEANING
• The Kamado is self cleaning. Heat it up to 260ºC for 30 minutes and it will scorch off all of the food and debris.
DO NOT use water or any other types of cleaning product to clean the inside of your Kamado. The walls are
porous and will absorb any fluids used, this could cause the Kamado to crack. If the soot becomes excessive then use a wire brush or the ash tool (not supplied) to scrape off the carbon remnants before the next use.
• To clean the grills and grates use a non-abrasive cleaner once the unit has fully cooled.
• To clean the outer surface wait until the Kamado is cool and use a damp cloth with a mild detergent.
MAINTENANCE
• Tighten the bands and oil the hinge 2 times a year or more if needed.
LIGHTING, USAGE AND CARE INFORMATION
• Ensure the Kamado is positioned on a permanent, flat, level, heat resistant non-flammable surface away
from flammable items.
• Ensure the Kamado has a minimum of 2m overhead clearance and has a minimum 2m clearance from
other surrounding items.
To start a fire place rolled up newspaper with some lighter cubes or solid firelighters on the charcoal plate (7) in the base of the Kamado. Then place 2 or 3 handfuls of lump charcoal over the top of the newspaper.
DO NOT use petrol, white spirit, lighter fluid, alcohol or other similar chemicals for lighting or relighting.
Open the bottom vent and light the newpaper using a long nosed lighter or safety matches. Once it has caught, leave the bottom vent and lid open for about 10 minutes to build a small bed of hot embers.
• Allow the charcoal to heat up and be kept red hot for at least 30 minutes prior to the first cooking on the
kamado. DO NOT cook before the fuel has a coating of ash.
• It is recommended you don’t stoke or turn the coals once they are alight. This allows the charcoals to burn
more uniformly and efficiently.
Once alight ONLY use heat resistant gloves when handling hot ceramics or cooking surfaces.
See below for cooking instuctions depending on temperature and duration.
LOW TEMPERATURE COOKING GUIDE
Light the lump charcoal according to the the instructions above. DO NOT move or stoke the coals once lit.
• Open the bottom vent fully and leave the lid open for about 10 minutes to build a small bed of hot embers.
• Monitor the Kamado until it has risen to the desired temperature. See page 4 for a temperature cooking guide.
Fully close the bottom vent to maintain the temperature.
• You are now ready to use the Kamado for cooking on.
IMPORTANT: When opening the lid at high temperatures it is essential to lift the lid only slightly, allowing air to enter slowly and safely, preventing any backdraft or flare-ups that may cause injury.
ALWAYS follow the FOOD COOKING INFORMATION stated on page 4 of this instruction manual.
ALWAYS use heat resistant gloves when handling hot ceramics or cooking surfaces.
SMOKING GUIDE
Follow the instructions above as if you were starting a slow cook.
• Monitor the Kamado until it has risen to the desired temperature. See page 4 for a temperature cooking guide.
Leave the bottom vent slightly open.
Close the top vent and continue to check the temperature for a few more minutes.
Using heat resistant gloves sprinkle the wood chips in a circle over the hot charcoal.
• You are now ready to use the Kamado to smoke on.
TIP: Soak your wood chips or cooking planks in water for 15 minutes to prolong the smoking process.
IMPORTANT: When opening the lid at high temperatures it is essential to lift the lid only slightly, allowing air to enter slowly and safely, preventing any backdraft or flare-ups that may cause injury.
ALWAYS follow the FOOD COOKING INFORMATION stated on page 4 of this instruction manual.
ALWAYS use heat resistant gloves when handling hot ceramics or cooking surfaces.
