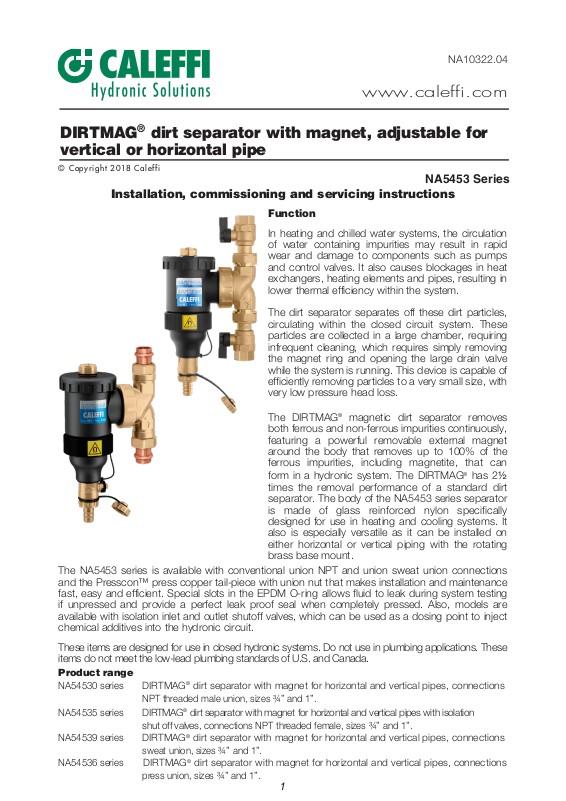

Page 1
NA10322.04
www.caleffi.com
DIRTMAG® dirt separator with magnet, adjustable for
vertical or horizontal pipe
© Copyright 2018 Caleffi
Installation, commissioning and servicing instructions
The NA5453 series is available with conventional union NPT and union sweat union connections
and the Presscon™ press copper tail-piece with union nut that makes installation and maintenance
fast, easy and efficient. Special slots in the EPDM O-ring allows fluid to leak during system testing
if unpressed and provide a perfect leak proof seal when completely pressed. Also, models are
available with isolation inlet and outlet shutoff valves, which can be used as a dosing point to inject
chemical additives into the hydronic circuit.
These items are designed for use in closed hydronic systems. Do not use in plumbing applications. These
items do not meet the low-lead plumbing standards of U.S. and Canada.
Product range
NA54530 series
NPT threaded male union, sizes
NA54535 series
shut off valves
NA54539 series
sweat union, sizes
NA54536 series
press union, sizes
DIRTMAG® dirt separator with magnet for horizontal and vertical pipes, connections
DIRTMAG® dirt separator with magnet for horizontal and vertical pipes with isolation
DIRTMAG® dirt separator with magnet for horizontal and vertical pipes, connections
DIRTMAG® dirt separator with magnet for horizontal and vertical pipes, connections
NA5453 Series
, connections NPT threaded female, sizes
¾” and 1”.
¾” and 1”.
Function
In heating and chilled water systems, the circulation
of water containing impurities may result in rapid
wear and damage to components such as pumps
and control valves. It also causes blockages in heat
exchangers, heating elements and pipes, resulting in
lower thermal efficiency within the system.
The dirt separator separates off these dirt particles,
circulating within the closed circuit system. These
particles are collected in a large chamber, requiring
infrequent cleaning, which requires simply removing
the magnet ring and opening the large drain valve
while the system is running. This device is capable of
efficiently removing particles to a very small size, with
very low pressure head loss.
The DIRTMAG® magnetic dirt separator removes
both ferrous and non-ferrous impurities continuously,
featuring a powerful removable external magnet
around the body that removes up to 100% of the
ferrous impurities, including magnetite, that can
form in a hydronic system. The DIRTMAG
times the removal performance of a standard dirt
separator. The body of the NA5453 series separator
is made of glass reinforced nylon specifically
designed for use in heating and cooling systems. It
also is especially versatile as it can be installed on
either horizontal or vertical piping with the rotating
brass base mount.
¾” and 1”.
¾” and 1”.
1
®
has 2½
Page 2
SAFETY INSTRUCTION
This safety alert symbol will be used in this manual to draw attention to safety related
instructions. When used, the safety alert symbol means.
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY RESULT IN A SAFETY HAZARD.
WARNING: This product can expose you to chemicals including lead, which is
known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
CAUTION: All work must be performed by qualified personnel trained in the
proper application, installation, and maintenance of systems in accordance
with all applicable codes and ordinances.
CAUTION: If the DIRTMAG® separator is not installed, commissioned
and maintained properly, according to the instructions contained in this
manual, it may not operate correctly and may endanger the user.
CAUTION: Make sure that all the connecting pipework is water tight.
CAUTION: When making the water connections, make sure that the
pipework connecting the DIRTMAG® is not mechanically over-stressed. Over
time this could cause breakages, with consequent water losses which, in turn,
could cause harm to property and/or people.
CAUTION: Water temperatures higher than 100°F (38°C) can be dangerous.
During the installation, commissioning and maintenance of the DIRTMAG®
separator, take the necessary precautions to ensure that such temperatures
do not endanger people.
Leave this manual for the user
2
Page 3
CONSIGNE DE SÉCURITÉ
Ce symbole d'avertissement servira dans ce manuel à attirer l'attention sur la
sécurité concernant instructions. Lorsqu'il est utilisé, ce symbole signifie.
ATTENTION! DEVENEZ ALERTE ! VOTRE SÉCURITÉ EST EN JEU ! NE
PAS SUIVRE CES INSTRUCTIONS PEUT PROVOQUER UN RISQUE DE
AVERTISSEMENT:
le plomb, qui est connu dans l’État de Californie pour causer le cancer, dommages à
la naissance ou autre. Pour plus d’informations rendez-vous www.P65Warnings.
ATTENTION: Tous les travaux doivent être effectués par du personnel
qualifié formé à la bonne application, installation et maintenance des systèmes
conformément aux codes et règlements locaux.
ATTENTION: Si le DIRTMAG® n'est pas installé, mis en service et
entretenu correctement, selon les instructions contenues dans ce manuel, il
peut ne pas fonctionner correctement et peut mettre en danger l'utilisateur.
ATTENTION: S'assurer que tous les raccordements sont étanches.
ATTENTION: Lorsque vous effectuez les raccordements d'eau, assurez-
vous que la tuyauterie reliant le DIRTMAG® n'est pas mécaniquement des
overstressed. Au fil du temps, ceci pourrait causer des ruptures, avec
pour consequence des pertes en eau qui, à leur tour, peuvent causer des
dommages à la propriété et/ou les gens.
ATTENTION: Les températures de l'eau supérieure à 100°F (38°C) peut
être dangereux. Au cours de l'installation, mise en service et l'entretien de
le réducteur de pression, le DIRTMAG®, prendre les precautions nécessaires
afin de s'assurer que de tells températures ne compromettent pas les gens.
Technical specifications
Ce produit peut vous exposer à des produits chimiques comme
LAISSEZ CE MANUEL AVEC L’UTILISATEUR
Materials
Body: glass reinforced nylon PA66G30
Dirt separator cover: glass reinforced nylon PA66G30
Top dosing point port plug: brass EN 12164 CW614N
Drain screw: brass EN 12164 CW614N
Tee pipe fitting: brass EN 1982 CB 753S
Locking nut for tee pipe fitting: brass EN 12420 CW617N
Internal element: HDPE
Hydraulic seals: peroxide-cured EPDM
Drain valve: brass EN 12165 CW617N
3
Page 4
Performance
Suitable Fluids: water, glycol solutions
Max. percentage of glycol: 30%
Max. working pressure: 45 psi (3 bar)
Working temperature range: 32–195°F (0-90°C)
Magnets: neodymium rare earth
m ( 0.2 mil)
Paricle separation capacity: to 5
µ
Ferrous impurities separation efficiency: up to 100% removal
Dosing capacity:
12 fluid oz
Connections
Main connections:
¾” and 1” NPT male union
¾” and 1” NPT female
¾” and 1” sweat union
¾” and 1” press union
Lay length (press connection): size
size
¾": 4
1": 4
7/8
½"
Drain valve: hose connection

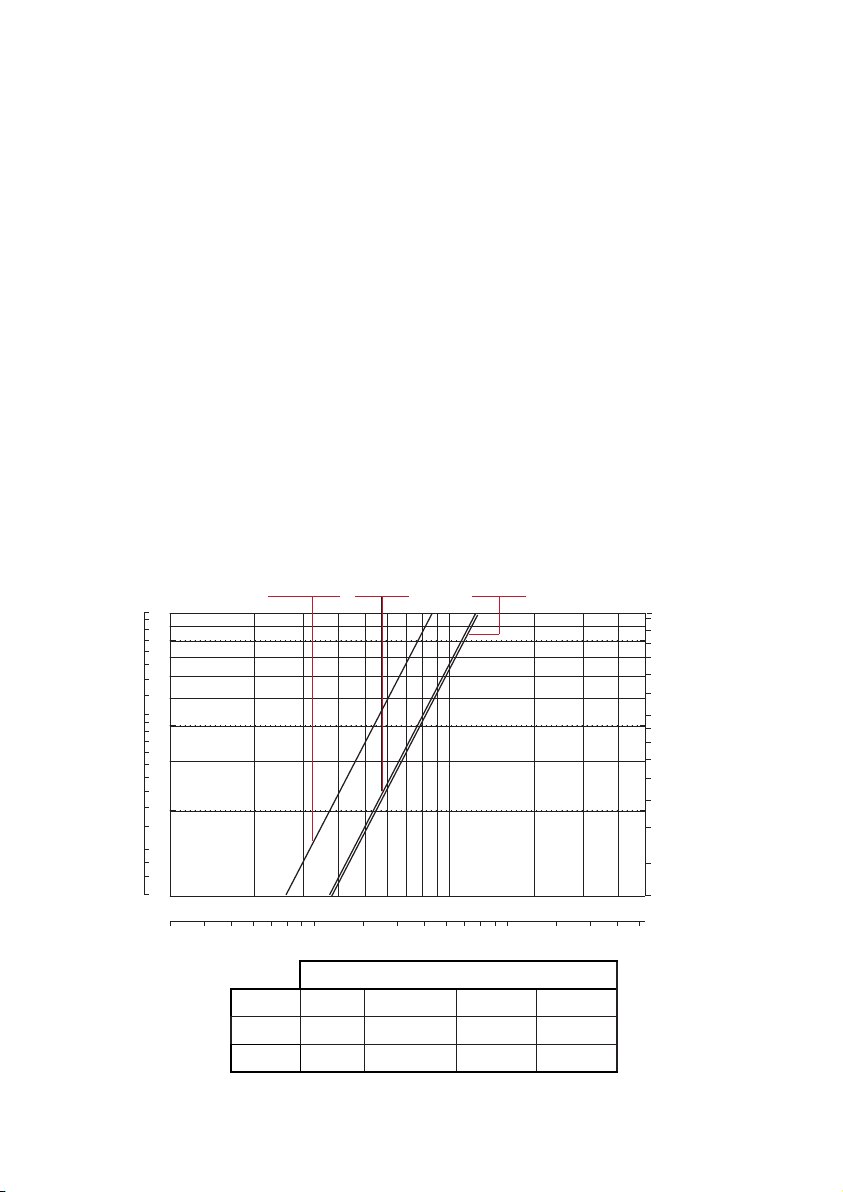

Hydraulic characteristics
3/4”
∆ P ∆ P
kPa
6.9
1
.9
6
5.5
.8
5
.7
4.5
.6
4
3.5
.5
3
2.8
.4
2.6
2.4
2.2
.3
2
1.8
1.6
1.4
.2
1.2
1
.9
.8
.69
.1
1 2 3 4 5 6 7 8 9 10 20 30 40 50
.06 .08 .1 .12 .14.16.18.2 .3 .4 .5 .6 .7 .8 .9 2 1.5 2 2.5 3
3/4”NA545355
1” NA545356
NA545305
NA545395
NA545365
1”
NA545306
NA545396
NA545366
ft. of hdpsid
2.3
2
1.8
1.6
1.4
1.2
1
.9
.8
.7
.6
.5
.4
.3
.23
gpm
ow rate
l/s
”
FLOW RATE (4 f/s)
Size ¾"
¾”
*
GPM 6 4 10 4
Cv 12 8.7 12.2 8.7
1”
*unit with isolation shutoff valves
4
1”
*
Page 5

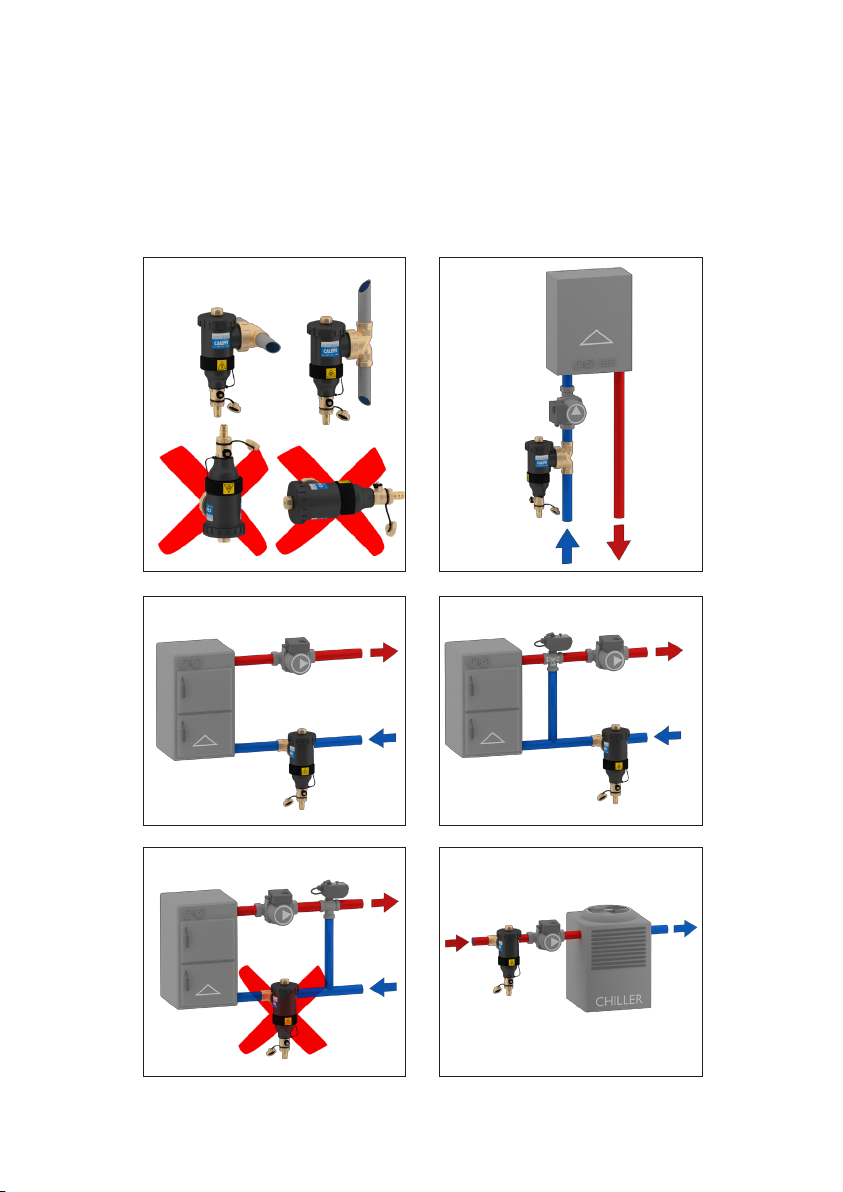

Installation
The magnetic dirt separator should be installed in accordance with the flow direction indicated by
the arrow on the tee fitting and the return circuit upstream of the boiler.
The magnetic dirt separator should always be installed upstream of the pump and always with its
body in vertical position.
5
Page 6

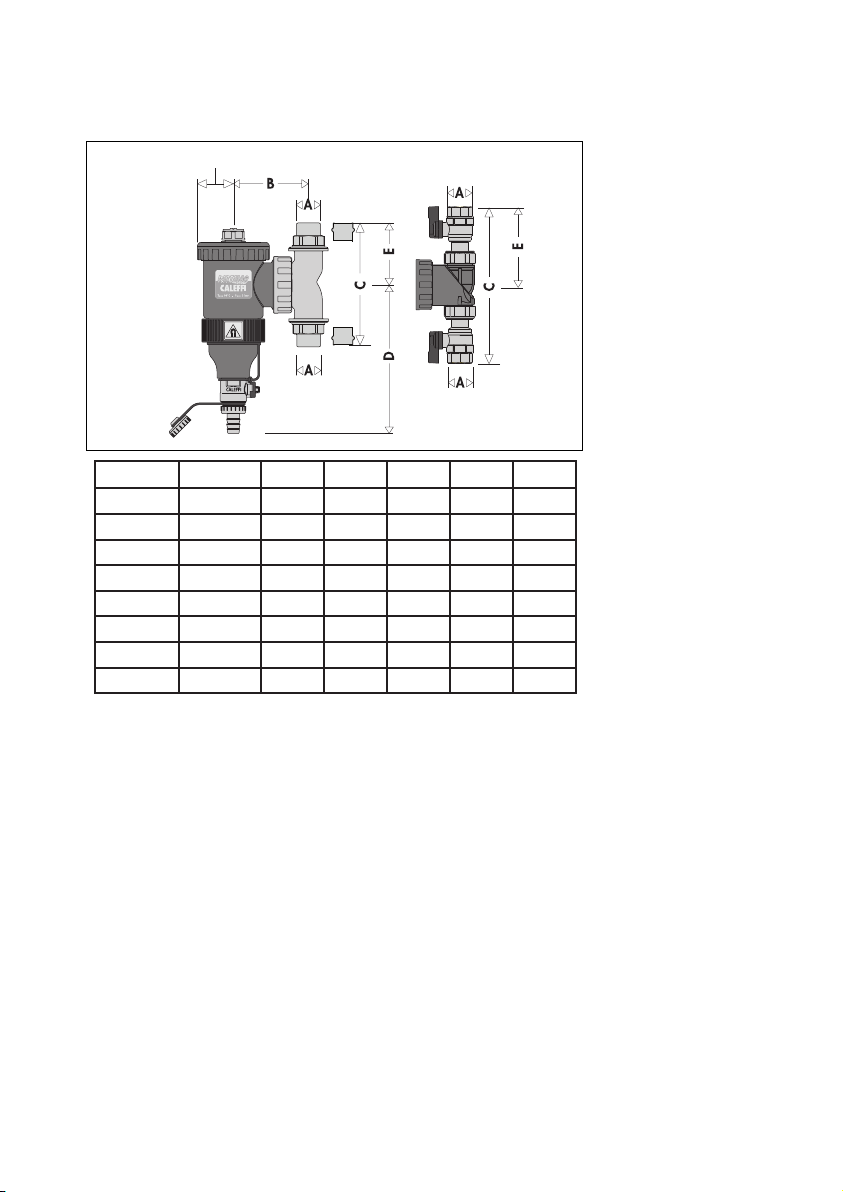

Dimensions
1 5/8"
NA545355
NA545356
Code A B C D E Weight
NA545305 ¾” M NPT 3 7/16” 6 1/8” 7” 3” 4.5 lbs.
NA545395 ¾” sweat 3 7/16” 6 5/8” 7” 3 5/16” 4.5 lbs.
NA545365 ¾”press 3 7/16” 6 1/2” 7” 3 1/8” 4.5 lbs.
NA545306 1” M NPT 3 7/16” 6 3/4” 7” 3 1/2” 4.5 lbs.
NA545396 1” sweat 3 7/16” 7 3/4” 7” 4” 4.5 lbs.
NA545366 1” press 3 7/16” 6 3/4” 7” 3 1/2” 4.7 lbs.
NA545355 ¾” F NPT 3 7/16” 8 1/2” 7” 4 1/4” 5.5 lbs.
NA545356 1” F NPT 3 7/16” 8 3/4” 7” 4 3/8” 5.5 lbs.
6
Page 7

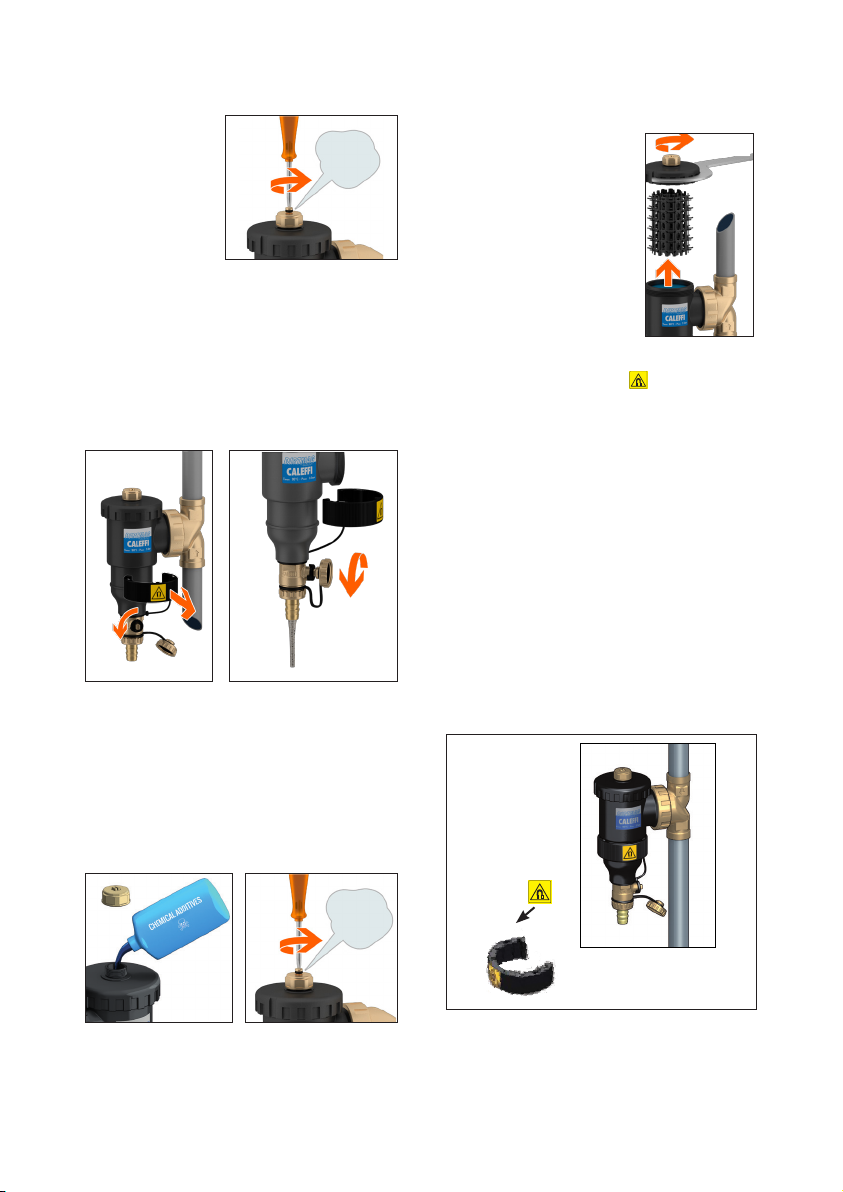

Air vent
Maintenance
Eliminate air
collected in the
top of the body
by loosening the
top plug screw.
Draining off dirt and ferrous impurities
Remove the magnetic ring (1) and drain the
collected dirt and ferrous impurities. This can
be done while the system is running, using
the key provided (2).
1
2
Dosing
This multifunction device can also be used as a
dosing point to inject chemical additives into the
circuit. Codes NA545355 and NA545356 offer
integral isolation check valves making for a more
convenient dosing vessal, providing an easy
access point for routine system water treatment
in hydronic systems.
To perform maintenance
after isolating the separator,
simply unscrew the top cover
using the provided key
and remove the attached
internal element inside the
collection chamber.
WARNING: The symbol shown on the
removable ring indicates the presence of
magnets that generate a strong magnetic
field. This could cause damages to electronic
devices kept in its proximity.
1. Remove the magnetic ring containing the
two magnets, that during operation attracted
the magnetites.
2. Flush out the ferrous and nonferrous debris
by turning the handle to open the drain valve.
3. When finished, replace the magnetic ring
and close the drain valve.
7
Page 8
Leave this manual at the service of users for their use
Scan to view
Installation Tip
·
NA5453 DIRTMAG
Caleffi North America, Inc.
3883 W. Milwaukee Road
Milwaukee, WI 53208
T: 414.238.2360 F: 414.238.2366
7-23-18
