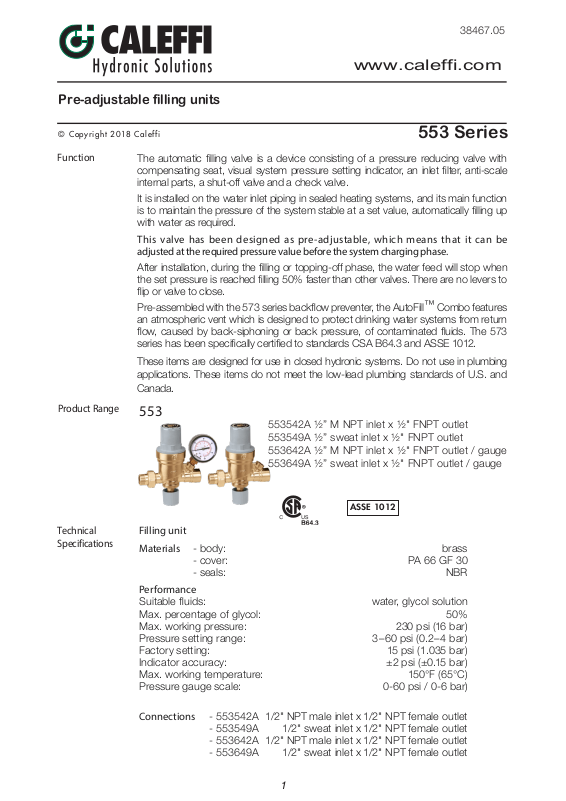

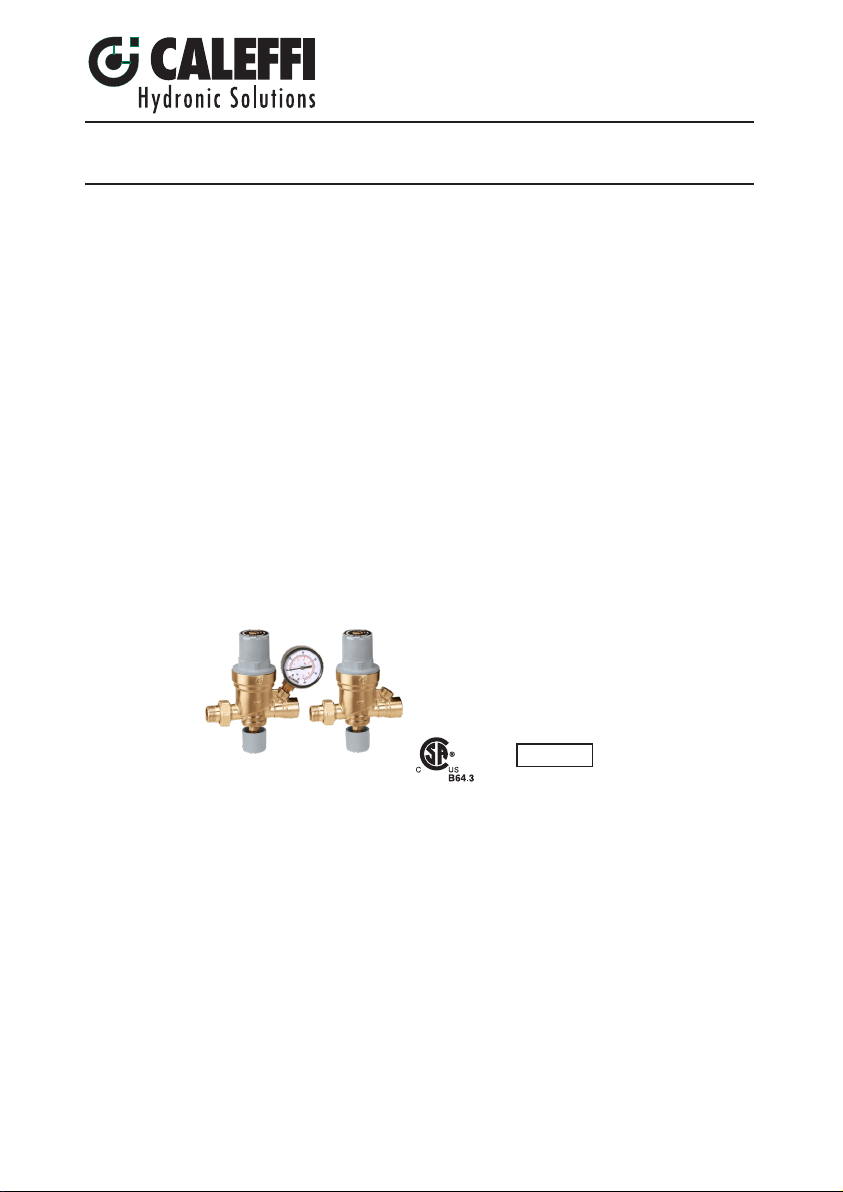

Pre-adjustable filling units

Function

Product Range

The automatic ﬁlling valve is a device consisting of a pressure reducing valve with compensating seat, visual system pressure setting indicator, an inlet ﬁlter, anti-scale internal parts, a shut-off valve and a check valve.

It is installed on the water inlet piping in sealed heating systems, and its main function is to maintain the pressure of the system stable at a set value, automatically ﬁlling up with water as required.

This valve has been designed as pre-adjustable, which means that it can be adjusted at the required pressure value before the system charging phase.

After installation, during the ﬁlling or topping-off phase, the water feed will stop when the set pressure is reached ﬁlling 50% faster than other valves. There are no levers to ﬂip or valve to close.

Pre-assembled with the 573 series backﬂow preventer, the AutoFill™ Combo features an atmospheric vent which is designed to protect drinking water systems from return ﬂow, caused by back-siphoning or back pressure, of contaminated ﬂuids. The 573 series has been speciﬁcally certiﬁed to standards CSA B64.3 and ASSE 1012.

These items are designed for use in closed hydronic systems. Do not use in plumbing applications. These items do not meet the low-lead plumbing standards of U.S. and Canada.

553

553 Series

553542A ½” M NPT inlet x ½" FNPT outlet 553549A ½” sweat inlet x ½" FNPT outlet 553642A ½” M NPT inlet x ½" FNPT outlet / gauge 553649A ½” sweat inlet x ½" FNPT outlet / gauge

Technical Specifications

Filling unit Materials - body: brass

- cover: PA 66 GF 30

- seals: NBR

Performance

Suitable ﬂuids: water, glycol solution Max. percentage of glycol: 50% Max. working pressure: 230 psi (16 bar) Pressure setting range: 3–60 psi (0.2– 4 bar) Factory setting: 15 psi (1.035 bar) Indicator accuracy: ±2 psi (±0.15 bar) Max. working temperature: 150°F (65°C) Pressure gauge scale: 0-60 psi / 0-6 bar)

Connections - 553542A 1/2" NPT male inlet x 1/2" NPT female outlet

- 553549A 1/2" sweat inlet x 1/2" NPT female outlet

- 553642A 1/2" NPT male inlet x 1/2" NPT female outlet

- 553649A 1/2" sweat inlet x 1/2" NPT female outlet

1

ASSE 1012

SAFETY INSTRUCTION

This safety alert symbol will be used in this manual to draw attention to safety related instructions. When used, the safety alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS

INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A SAFETY HAZARD.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

CAUTION: All work must be performed by qualified personnel trained in the proper application, installation, and maintenance of systems in accordance with all applicable codes and ordinances.

CAUTION: If the automatic filling unit is not installed, commissioned and maintained properly, according to the instruction contained in the manual, it may not operate correctly and may endanger the user.

CAUTION: Make sure that all the connecting pipework is water tight.

CAUTION: When making the water connections, make sure that the unit

connecting pipework is not mechanically over-stressed. Over time this could cause breakages, with consequent water losses which, in turn, could cause harm to property and/or people.

CAUTION: In the case of highly aggressive water, arrangements must be made to treat the water before it enters the unit, in accordance with current legistion. Otherwise the unit may be damaged and will not operate correctly.

LEAVE THIS MANUAL FOR THE USER

2

CONSIGNE DE SÉCURITÉ

Ce symbole d'avertissement servira dans ce manuel à attirer l'attention sur la sécurité concernant instructions. Lorsqu'il est utilisé, ce symbole signifie.

ATTENTION! DEVENEZ ALERTE ! VOTRE SÉCURITÉ EST EN JEU ! NE PAS SUIVRE CES INSTRUCTIONS PEUT PROVOQUER UN RISQUE DE SECURITE.

AVERTISSEMENT:

le plomb, qui est connu dans l’État de Californie pour causer le cancer, dommages à la naissance ou autre. Pour plus d’informations rendez-vous www.P65Warnings.

ATTENTION: Tous les travaux doivent être effectués par du personnel qualifié formé à la bonne application, installation et maintenance des systèmes conformément aux codes et règlements locaux.

ATTENTION:

service et entretenu correctement, selon les instructions contenues dans ce manuel, il peut ne pas fonctionner correctement et peut mettre en danger l'utilisateur.

ATTENTION: S'assurer que tous les raccordements sont étanches.

ATTENTION: Lorsque vous effectuez les raccordements d'eau, assurez-vous

que la tuyauterie reliant réducteur de pression n'est pas mécaniquement des overstressed. Au fil du temps, ceci pourrait causer des ruptures, avec pour consequence des pertes en eau qui, à leur tour, peuvent causer des dommages à la propriété et/ou les gens.

Ce produit peut vous exposer à des produits chimiques comme

Si le réducteur de pression, Série 535H, n'est pas installé, mis en

ATTENTION: Dans le cas de l'eau très agressive, des dispositions doivent

être prises pour traiter l'eau avant qu'elle entre dans l'unité, conformément à l'legistion. Sinon l'appareil peut être endommagé et ne fonctionne pas correctement.

LAISSEZ CE MANUEL AVEC L’UTILISATEUR

3

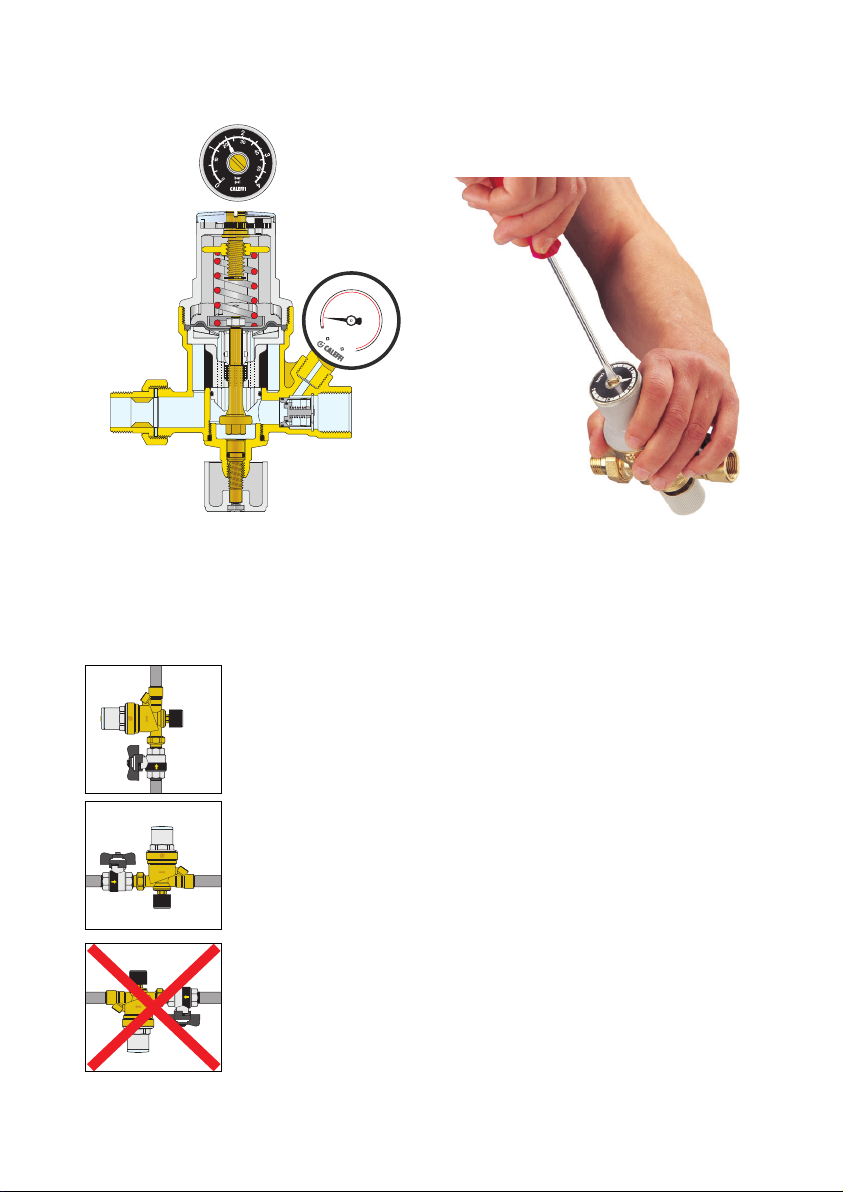

Construction details

Pre-calibration

This model is equipped

30

|

15

|

2

|

bar

|

0

psi

4

|

60

with a

|

pressure

|

45

|

setting indicator

|

for the commissioning operation. The system charge pressure can be input by means of the adjusting screw, before the start of the system filling phase.

Removable filter cartidge

Installation

The cartridge containing the operating mechanisms, protected by a large surface area strainer, is removable. This makes it very easy and quick to carry out inspections, internal cleaning and even replacement of the cartridge itself. Water intake is proportional to the air vented from the system.

1. Filling unit can be installed in either horizontal or vertical position. It is, however, vital that the unit is not installed upside down.

2. The special method of mechanical pre-adjustment with pressure setting indicator makes it possible to set the unit to the required value in the system before the beginning of the filling phase.

3. The unit is normally set at a pressure not less than that obtained by adding the hydrostatic pressure and 4 psi (0,3 bar).

4. During filling, the internal mechanism will automatically regulate the pressure until it reaches the required value, without the need to oversee the filling operation itself. This prevents the system being charged to a higher pressure than required.

5. Given the pre-calibrating function, the presence of the downstream pressure gauge is not essential.

6. When the system is filled, the shut-off valve can be closed. In order to restore the automatic topping-off condition, merely re-open the valve. The pressure in the system will gradually return to the set pressure.

4

D

A

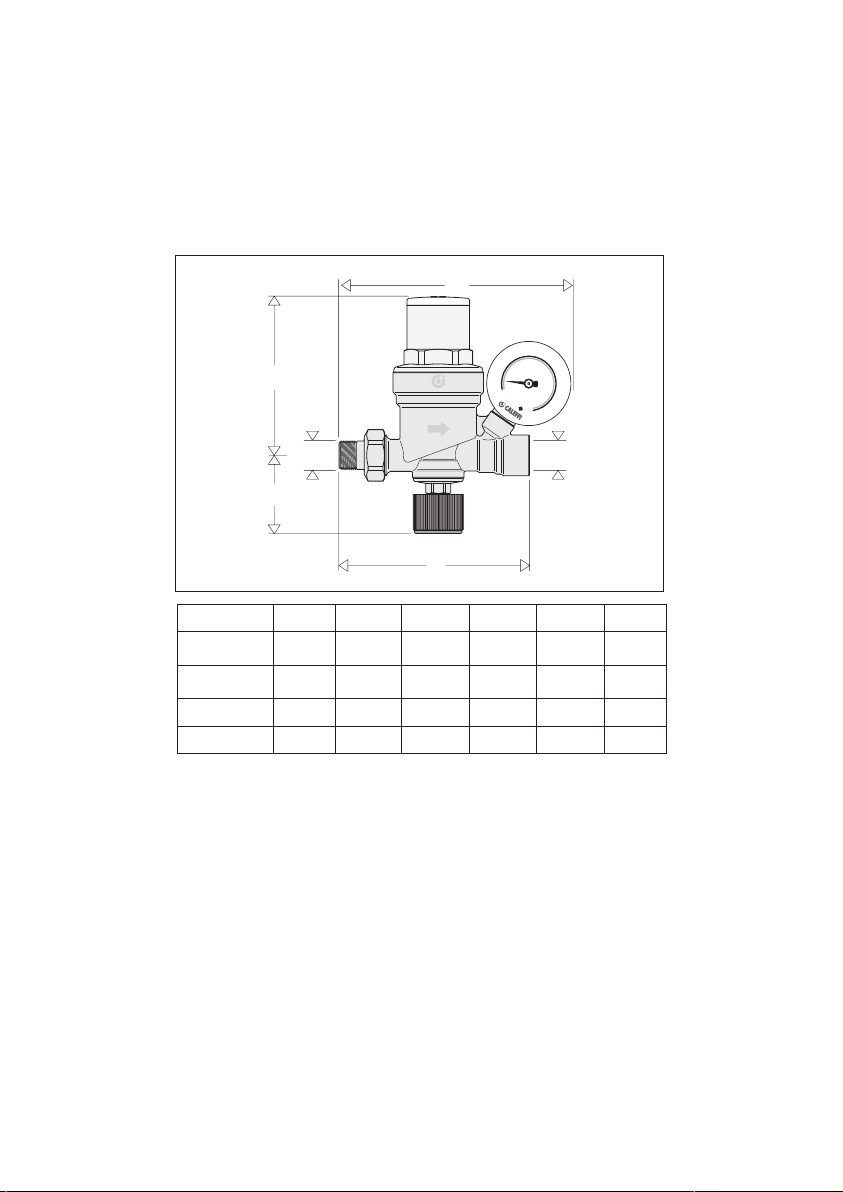

Dimensions

C

30

|

15

|

2

|

bar

|

E

|

45

|

0

|

0

|

psi

|

4

|

60

A

A´

D

B

Code A A´ B C D E

553542A1⁄2" NPT1⁄2" NPT 4 ¾"

553549A1⁄2" SWT1⁄2" NPT 4 ¾"

553642A1⁄2" NPT1⁄2" NPT 4 ¾" 5 ¾" 115⁄16" 4" 553649A1⁄2" SWT1⁄2" NPT 4 ¾" 5 ¾" 115⁄16" 4"

__

115⁄16" 4"

5

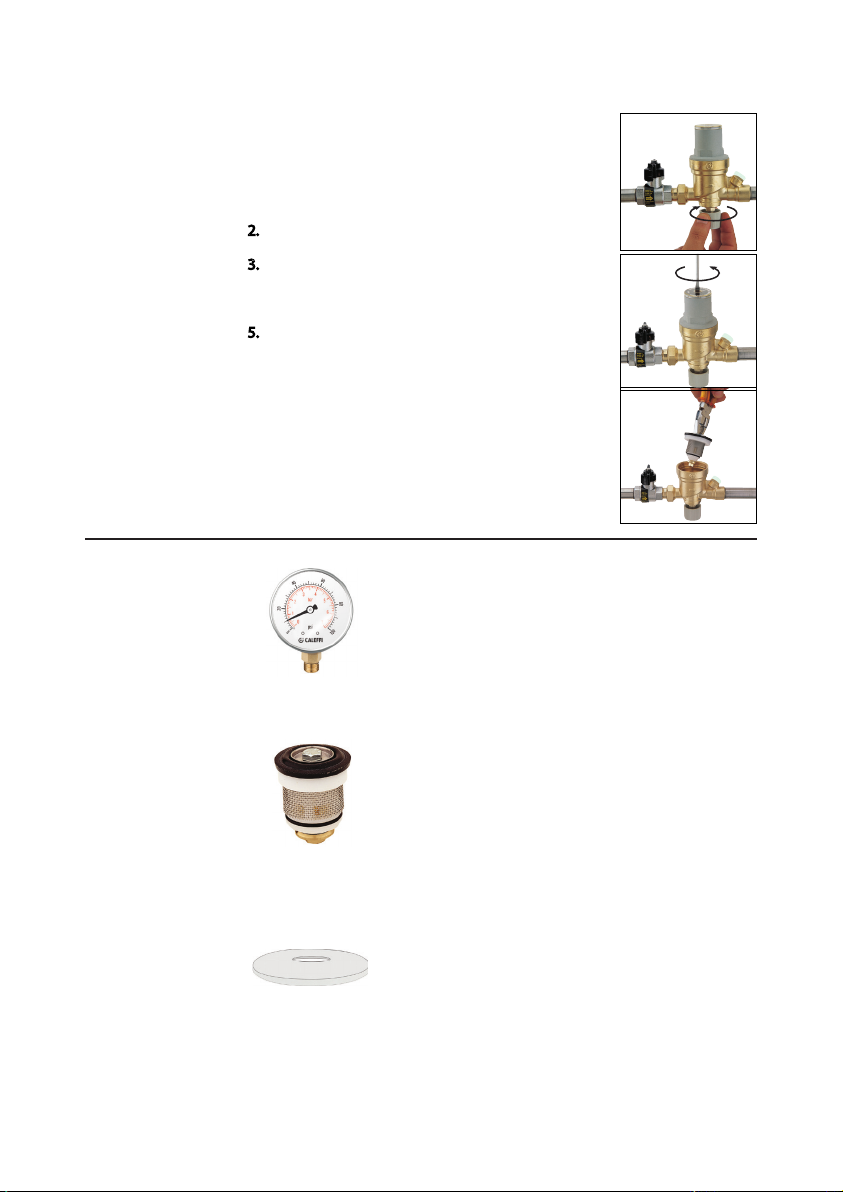

Maintance

Replacement

parts

For cleaning, inspection or replacement of the entire cartridge, proceed as follows:

1. Isolate the unit.

2. Open the lower control knob.

3. Unscrew the adjusting screw until it stops.

4. Remove the upper cover.

5. Extract the cartridge using pliers.

6. The entire unit, after inspection, can be

reassembled or replaced using a spare cartridge.

7. Re-adjust the equipment.

2

3

5

NA10363

F59650

NA10197

6

Replacement gauge 0-60 psi/0-4 bar, ¼" NPT

AutoFill™ 553 series replacement cartridge

AutoFill™ clear plastic disc cover

|

1

5

30

60

0

4

2

p

s

i

bar

P

A

T

F

T

BACKFL

O

W

5

73

Sizes:

1/2”

- 3

/4”

S/

N

VENT

45

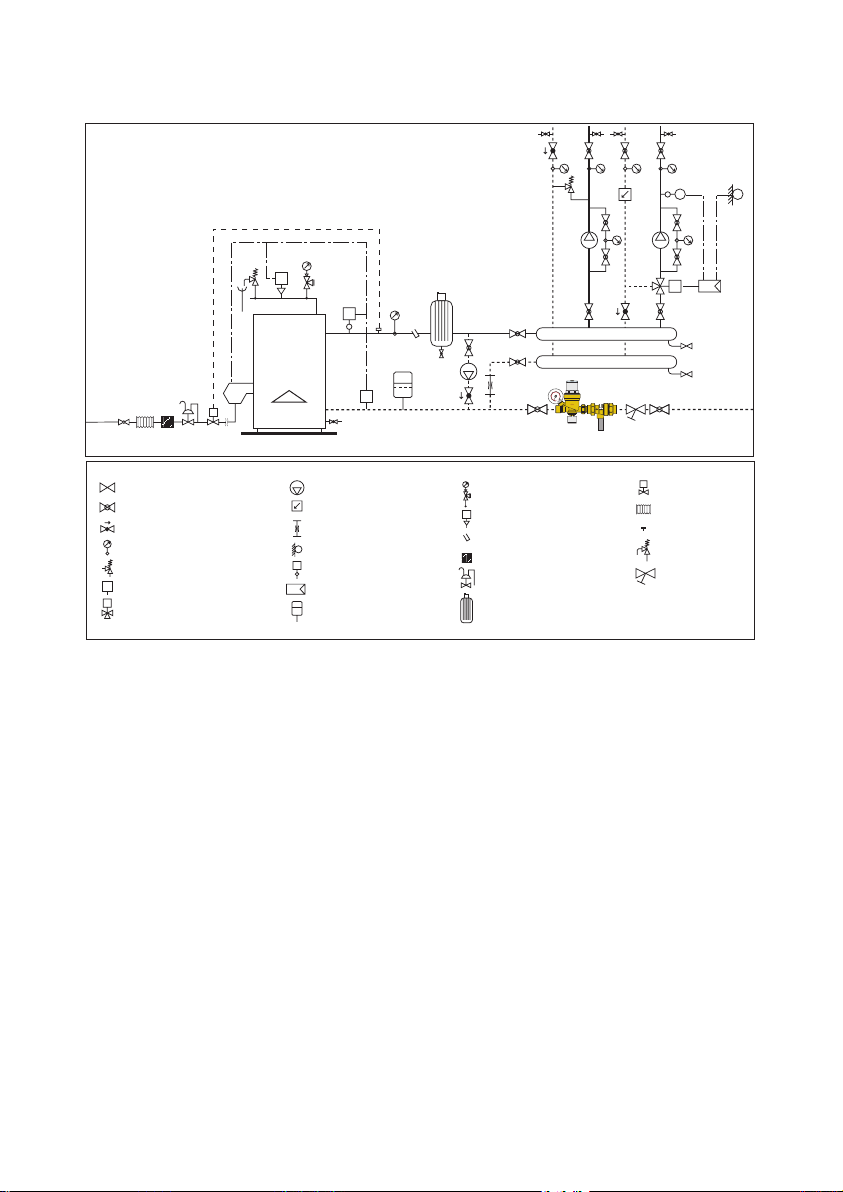

Application diagram

T

P

T

|

30

|

2

|

bar

|

4

|

60

|

5

|

1

i

|

s

|

p

|

A

F

|

0

|

/4”

PREV W

- 3

O

73 5 1/2”

N

BACKFL

Series:

Sizes:

S/

45

VENT

Shut-off valve

Ball valve

BALLSTOP

Thermometer

Differential by-pass valve

F

Flow switch

Zone valve

Pump

FlowCal

Flow meter

T

Temperature probe

T

Safety thermostat

Regulator

Expansion vessel

™

P

Pressure switch

Control pocket

Gas filter

Gas regulator

Air separator

3-way valve

A

Fuel shut-off valve

Anti-vibration joint

Sensor pocket

Safety valve

Y-strainer

7
