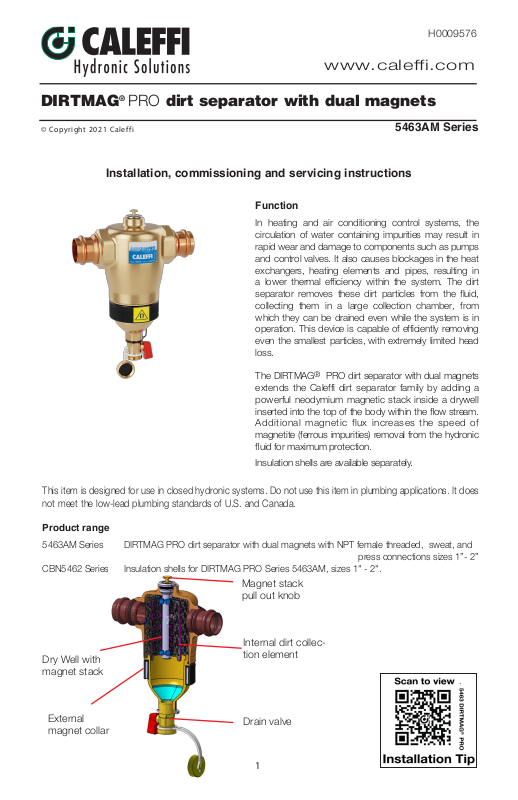

DIRTMAG® PRO dirt separator with dual magnets
www.caleffi.com
Doc. DT-002 rev.3
H0009576
© Copyright 2021 Caleffi
5463AM Series
Installation, commissioning and servicing instructions
Function
In heating and air conditioning control systems, the
circulation of water containing impurities may result in
rapid wear and damage to components such as pumps
and control valves. It also causes blockages in the heat
exchangers, heating elements and pipes, resulting in
a lower thermal efficiency within the system. The dirt
separator removes these dirt particles from the fluid,
collecting them in a large collection chamber, from
which they can be drained even while the system is in
operation. This device is capable of efficiently removing
even the smallest particles, with extremely limited head
loss.
The DIRTMAG® PRO dirt separator with dual magnets
extends the Caleffi dirt separator family by adding a
powerful neodymium magnetic stack inside a drywell
inserted into the top of the body within the flow stream.
Additional magnetic flux increases the speed of
magnetite (ferrous impurities) removal from the hydronic
fluid for maximum protection.
Insulation shells are available separately.
This item is designed for use in closed hydronic systems. Do not use this item in plumbing applications. It does
not meet the low-lead plumbing standards of U.S. and Canada.
Product range
5463AM Series DIRTMAG PRO dirt separator with dual magnets with NPT female threaded, sweat, and
press connections sizes 1”- 2”
CBN5462 Series Insulation shells for DIRTMAG PRO Series 5463AM, sizes 1" - 2".

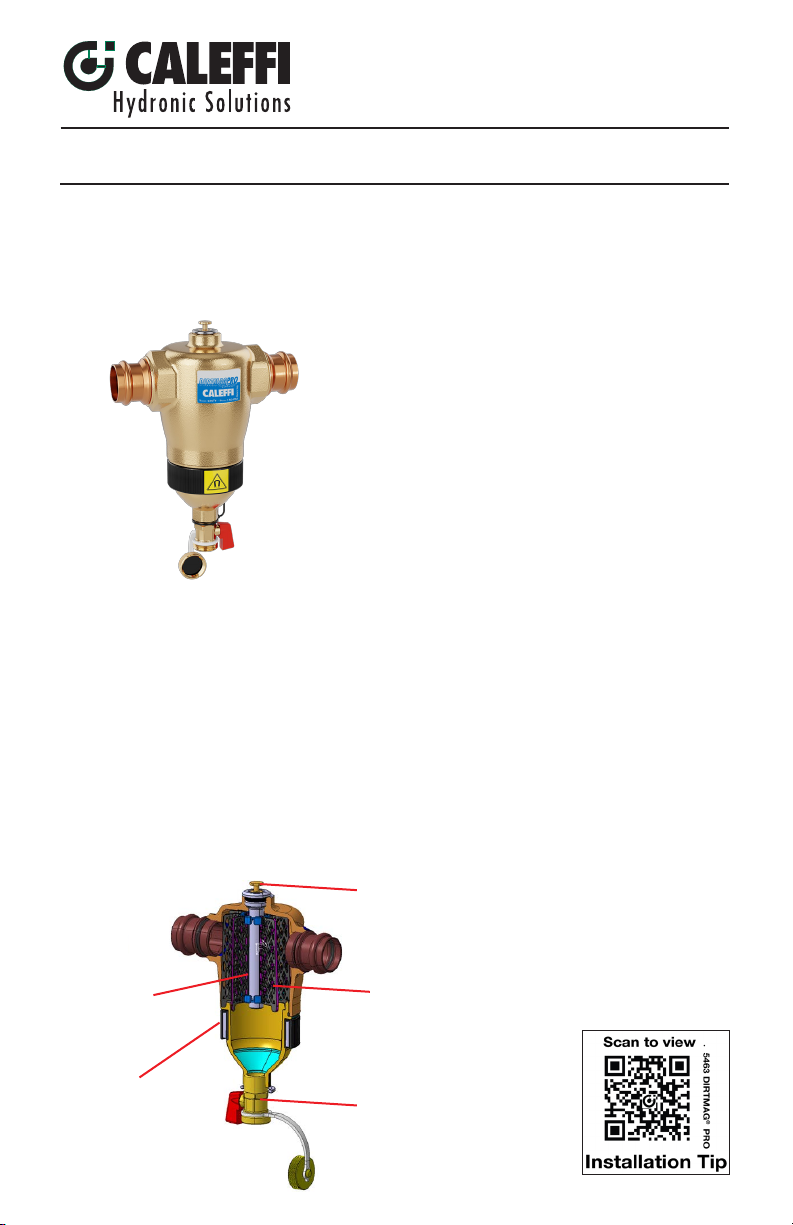

Magnet stack
pull out knob
Internal dirt collec-
Dry Well with
tion element
magnet stack
External
magnet collar
Drain valve
1
Page 2
SAFETY INSTRUCTION
This safety alert symbol will be used in this manual to draw attention to safety related instructions. When
used, the safety alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A SAFETY HAZARD.
Ce symbole d'avertissement servira dans ce manuel à attirer l'attention sur la sécurité concernant instructions.
Lorsqu'il est utilisé, ce symbole signifie ATTENTION ! DEVENEZ ALERTE ! VOTRE SÉCURITÉ EST EN JEU ! NE PAS SUIVRE CES
INSTRUCTIONS PEUT PROVOQUER UN RISQUE DE SECURITE.
WARNING: This product can expose you to chemicals including lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more nformation go
to www.P65Warnings.ca.gov.
AVERTISSEMENT:
connu dans l’État de Californie pour causer le cancer, dommages à la naissance ou autre. Pour plus
d’informations rendez-vous www.P65Warnings.ca.gov.
CAUTION: All work must be performed by qualified personnel trained in the proper application,
installation, and maintenance of systems in accordance with all applicable codes and ordinances.
ATTENTION: Tous les travaux doivent être effectués par du personnel qualifié formé à la bonne
application, installation et maintenance des systèmes conformément aux codes et règlements locaux.
CAUTION: If the dirt seperator is not installed, commissioned and maintained properly, according to
the instructions contained in this manual, it may not operate correctly and may endanger the user.
ATTENTION: Le séparateur de saletés n'est pas installé, mis en service et entretenu correctement,
selon les instructions contenues dans ce manuel, il peut ne pas fonctionner correctement et peut mettre en
danger l'utilisateur.
CAUTION: Make sure that all the connecting pipework is water tight.
ATTENTION: S'assurer que tous les raccordements sont étanches.
/ CONSIGNE DE SÉCURITÉ
Ce produit peut vous exposer à des produits chimiques comme le plomb, qui est
CAUTION: When making the water connections, make sure that the dirt separator connecting
pipework is not mechanically over-stressed. Over time this could cause breakages, with consequent
water losses which, in turn, could cause harm to property and/or people.
ATTENTION: Lorsque vous effectuez les raccordements d'eau, assurez-vous que la tuyauterie reliant
disconnecte séparateur de saletés ur n'est pas mécaniquement des overstressed. Au fil du temps, ceci
pourrait causer des ruptures, avec pour conséquence des pertes en eau qui, à leur tour, peuvent causer
des dommages à la propriété et/ou les gens.
CAUTION: Water temperatures higher than 100°F (38°C) can be dangerous. During the installation,
commissioning and maintenance of the dirt separator, take the necessary precautions to ensure that
such temperatures do not endanger people.
ATTENTION: Les températures de l'eau supérieure à 100°F peut être dangereux. Au cours de
l'installation, mise en service et l'entretien de le séparateur de saletés, prendre les précautions
nécessaires afilde s'assurer que de telles températures ne compromettent pas les gens.
WARNING: Caleffi shall not be liable for damages resulting from stress corrosion, misapplication or
misuse of it’s products.
AVERTISSEMENT:
tension, d'une mauvaise application ou d'une mauvaise utilisation de ses produits.
Caleffi ne sera pas responsable des dommages résultant de la corrosion sous
LEAVE THIS MANUAL FOR THE USER
LAISSEZ CE MANUEL AVEC L’UTILISATEUR
2
Page 3
Technical specifications
CDE
CD E
A
B
A
B
NPT
Sweat
G
B
A
D
H
K
T
max
110 C
P
max
10 bar
T
max
105 C
P
max
10 bar
BI-DIRECTIONAL
CDE
A
B
Press
C
DE
A
B
Press
Connections: - Main: 1”, 1 1/4”, 1 1/2”, 2” NPT female
1”, 1 1/4”, 1 1/2”, 2” sweat
1”, 1 1/4”, 1 1/2”, 2” press
- Top magnet probe drywell: 1/2” NPT female
- Drain: 3/4” garden hose connection
vertical: hose connection
- Lay length (press connections): size 1 inch: 4 3/4"
size 1 ¼ inch: 5 1/8"
size 1 ½ inch: 5 1/4"
size 2 inch: 5 5/8"
Materials: - Body, dirt collection chamber: brass
- Internal element: glass reinforced nylon PA66G30
- Hydraulic seal: peroxide-cured EPDM
- Drain valve: brass
- Magnets: neodymium rare-earth
Suitable fluids: water, glycol solution
Max percentage of glycol: 50%
Max working pressure: 150 psi (10 bar)
Temperature range: 32 - 250°F (0 - 120°C)
Particle separation capacity: to 5 μm (0.2 mil)
Ferrous impurities separation efficiency: 100%

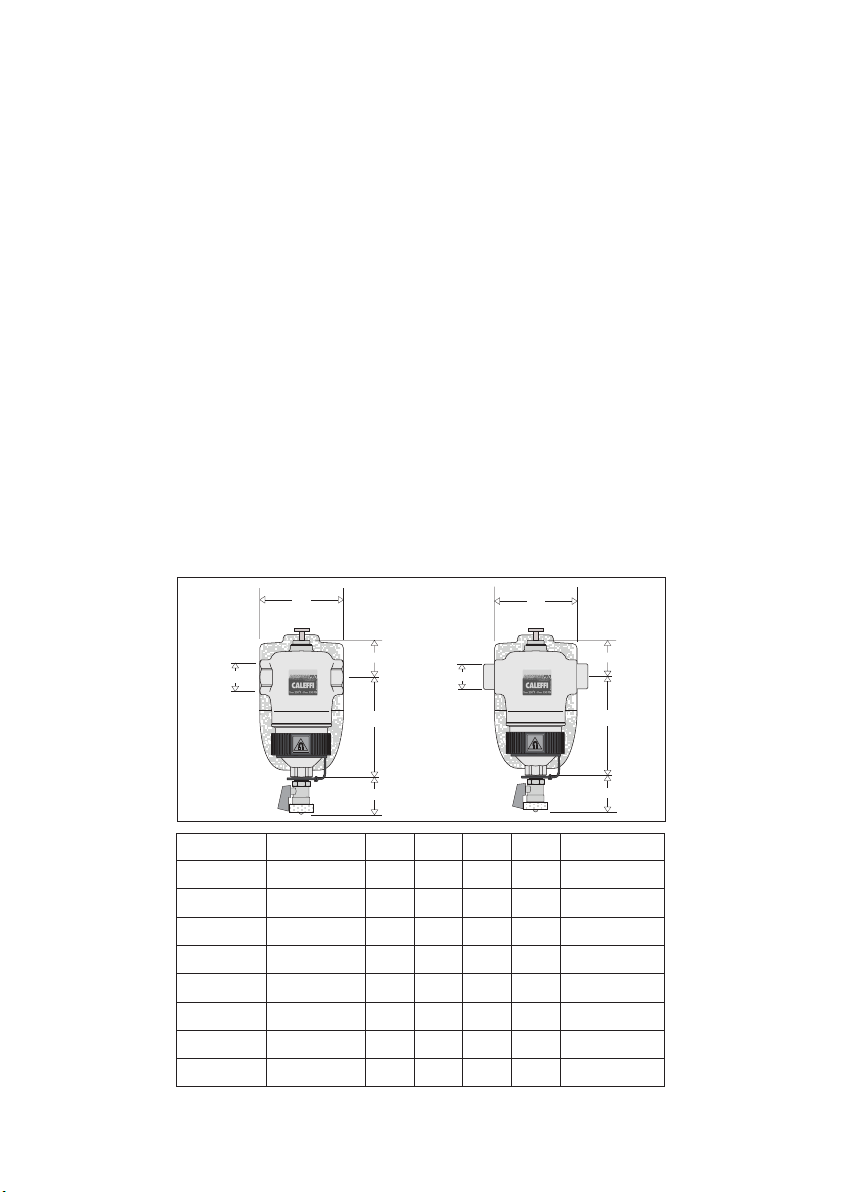

Dimensions
NPT
Sweat
B
B
A
A
DE
C
Code A B C D E Wt. lb (kg)
546306AM 1" FNPT 4
546328AM 1" SWT 5
546307AM 1¼" FNPT 4
546335AM 1¼" SWT 5
546308AM 1½" FNPT 4
5
⁄16" 1¼" 5" 2" 4.7 (2.1)
1
⁄16" 1¼" 5" 2" 4.7 (2.19)
7
⁄8" 1¼" 6" 2" 5.8 (2.6)
3
⁄16" 1¼" 6" 2" 4.7 (2.1)
7
⁄8" 1¼" 6" 2" 6.7 (3.0)
546341AM 1½" SWT 5¾" 1¼" 6" 2" 5.4 (2.4)
546309AM 2" FNPT 5
1
⁄8" 1¼" 6" 2" 6.7 (3.0)
546354AM 2" SWT 61⁄8" 11⁄4" 6" 2" 6.0 (2.7)
The magnet stack is 4½" (115 mm) long. The minimum required space to
extract the magnet for removing collected ferrous inpurities (magnetite)
is 4¾" (120 mm).
3
CDE
Page 4
CD E
A
B

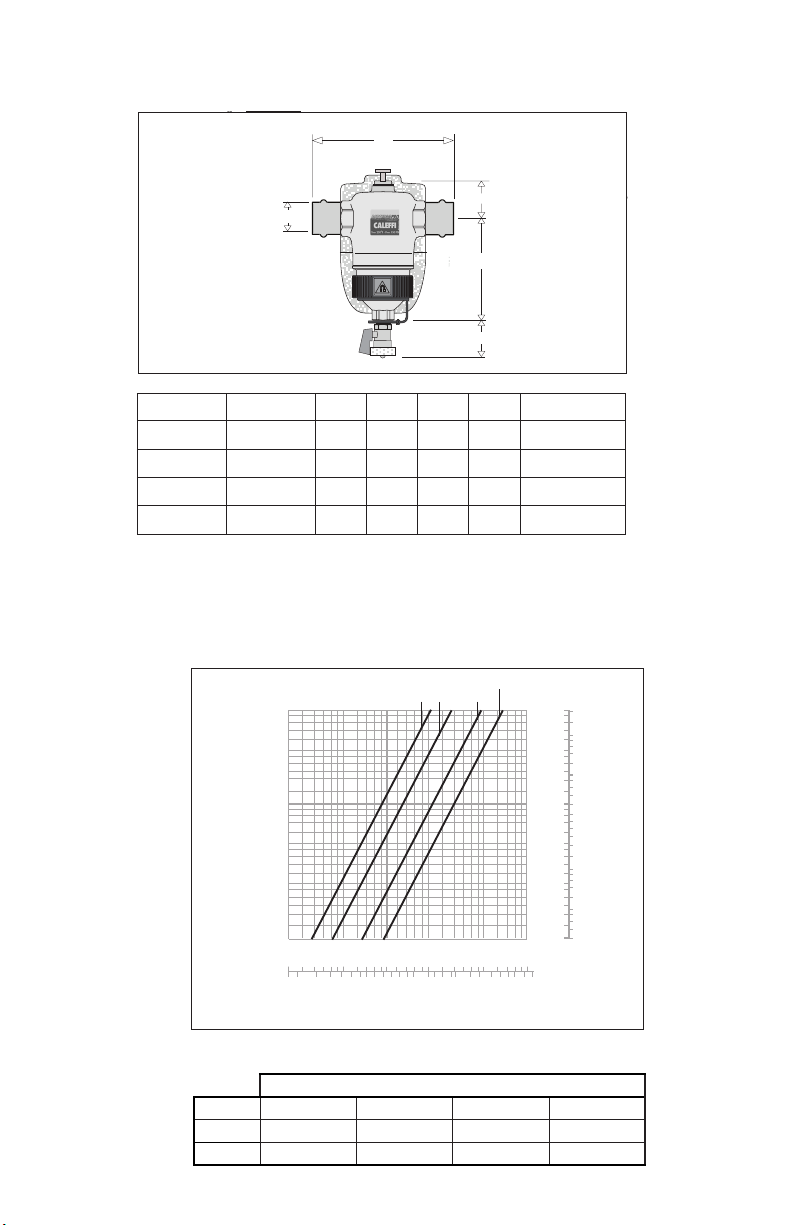

Dimensions
Code A B C D E Wt. lb (kg)
546366AM 1" press 6
546367AM 1¼" press 7
546368AM 1½" press 8" 1¼" 6" 2" 7.0 (3.2)
546369AM 2" press 8½" 1¼" 6" 2" 7.0 (3.2)
Lay length:
size 1 inch: 4 3/4"
size 1 ¼ inch: 5 1/8"
size 1 ½ inch: 5 1/4"
size 2 inch: 5 5/8"
Hydraulic characteristics
Press
B
A
DE
C
3
⁄16" 1¼" 5" 2" 4.5 (2.0)
7
⁄16" 1¼" 6" 2" 5.6 (2.5)
The magnet stack is 4½" (115 mm) long. The
minimum required space to extract the magnet for
removing collected ferrous inpurities (magnetite) is
4¾" (120 mm).
∆p
(ft of water)
1
0.9
0.8
0.7
0.6
0.5
0.45
0.4
0.35
0.3
0.25
0.2
0.18
0.16
0.14
0.12
0.1
0.09
0.08
0.07
0.06
0.05
0.045
0.04
0.035
0.03
0.025
0.02
678
3
2
3.544.5
2.5
0.25
0.40
0.30
0.35
0.15
0.125
0.20
1"
9
12141618253035404560708090
10520
1
0.6
0.7
0.8
0.9
0.45
1.4
0. 5
2”
1-1/4"
1-1/2"
50
467
2
1.6
2.533.5
(ft of water)
100
5
1
0.9
0.8
0.7
0.6
0. 5
0.45
0.4
0.35
0.3
0.25
0. 2
0.18
0.16
0.14
0.12
0. 1
0.09
0.08
0.07
0.06
0.05
0.045
0.04
0.035
0.03
0.025
0.02
(kPa)
3
2.5
2.0
1.8
1.6
1.4
1.2
1
0.9
0.8
0.7
0.6
0. 5
0.45
0.4
0.35
0.3
0.25
0.20
0.18
0.16
0.14
0.12
0.10
0.09
0.08
0.07
0.06
G (l/s) (gpm)
ft of water x .433 = psi
MAX. FLOW RATE
Size 1" 1¼" 1½" 2"
GPM 9 15 24 36
Cv 32 45 69 104
4
Page 5
Installation
Tmax 110°C
P
max
10 bar
Tmax 105°C
P
max
10 bar
BI-DIRECTIONAL
Tmax 110°C
P
max
10 bar
Tmax 105°C
P
max
10 bar
BI-DIRECTIONAL
Tmax 110°C
P
max
10 bar
Tmax 105°C
P
max
10 bar
BI-DIRECTIONAL

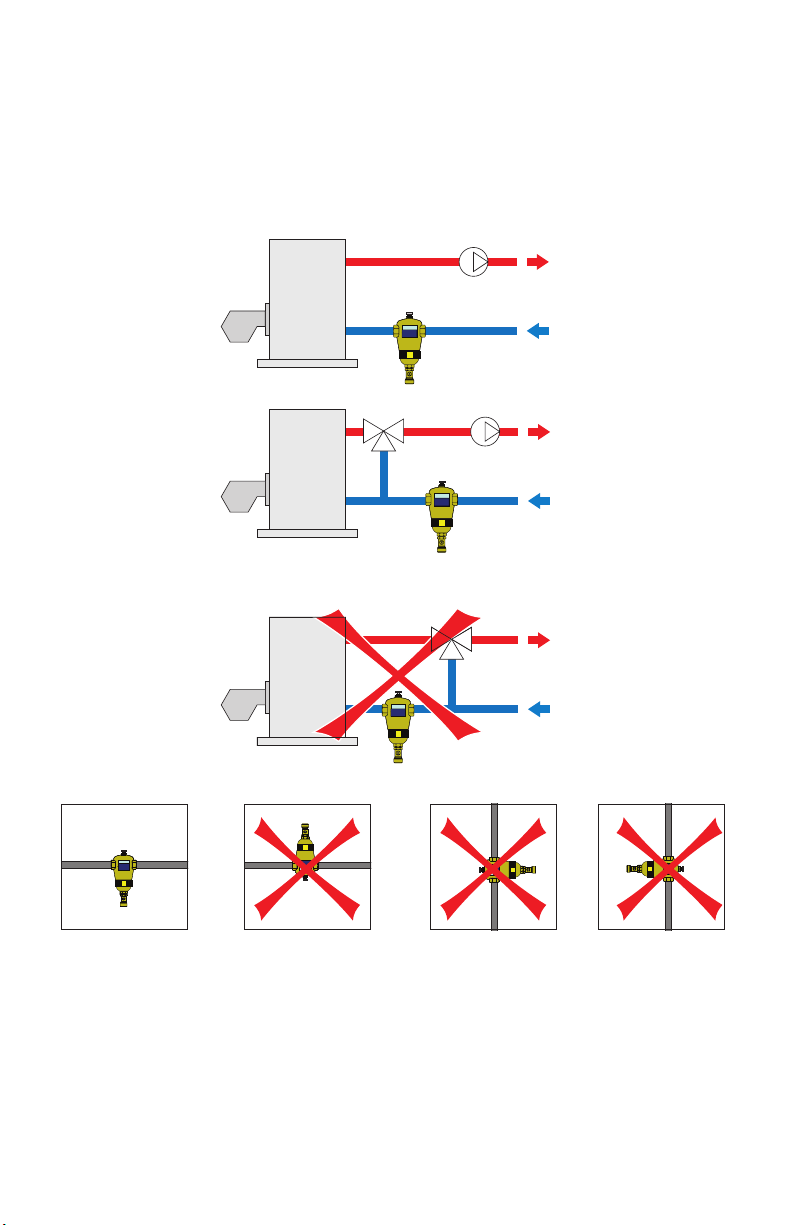

The dirt separator must always be installed in a vertical position, preferably on the return circuit
upstream of the boiler (or chiller). This enables it to intercept dirt particles already present in the
circuit, particularly when it is first started, before they reach the boiler (or chiller).
Flow direction for the DIRTMAG PRO dirt separators is bi-directional; flow in either direction is
permitted.
5
Page 6
Draining off dirt and ferrous impurities
The dirt separator collection chamber has a drain
valve. Using the handle provided it is possible to drain
off the accumulated dirt particles without removing
the element from the fluid.
For the DIRTMAG PRO, captured impurities are
easily flushed by unclamping the magnetic collar,
pulling out the fexible magnet stack from the topmounted brass dry-well and opening the drain valve.
Allow for a minimum 4¾ inch space above the
separator to completely remove the magnet stack.
Aided by the system pressure, the dirt and ferrous
impurities, including magnetitie, flushes out quickly
and effectively.

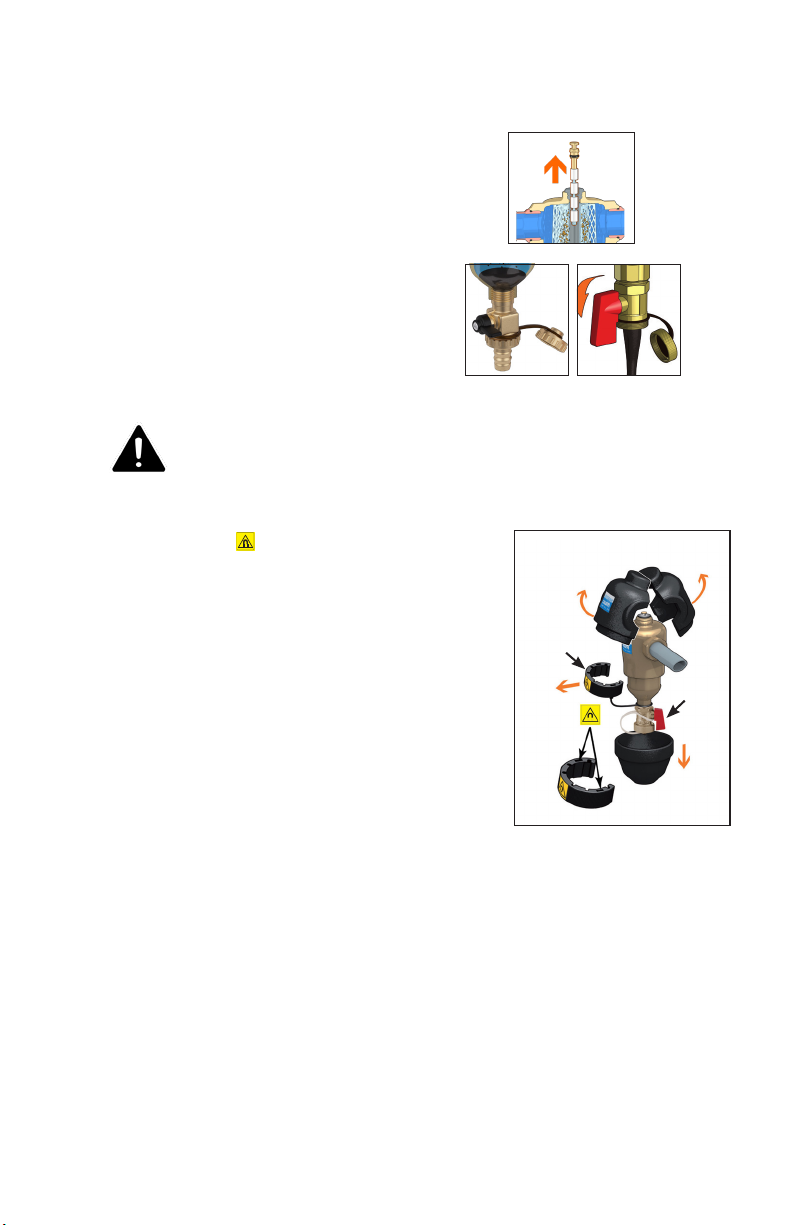

Procedure for removing insulation and draining dirt particles in
the DIRTMAG PRO 5463AM series
WARNING: The symbol shown on the removable ring (A)
indicates the presence of magnets that generate a strong
magnetic field. This could cause damage to electronic devices
kept in its proximity.
1. Turn off circulator
2. Remove the ring (A) containing the two magnets and
pull out the flexible magnetic stack from the top drywell.
3. Open the ball shut-off valve (B) to drain the accumulated
dirt and ferrous impurity particles.
A
B
6
Page 7
1
Tmax 110°C
P
max
10 bar
Tmax 105°C
P
max
10 bar
BI-DIRECTIONAL
1
1

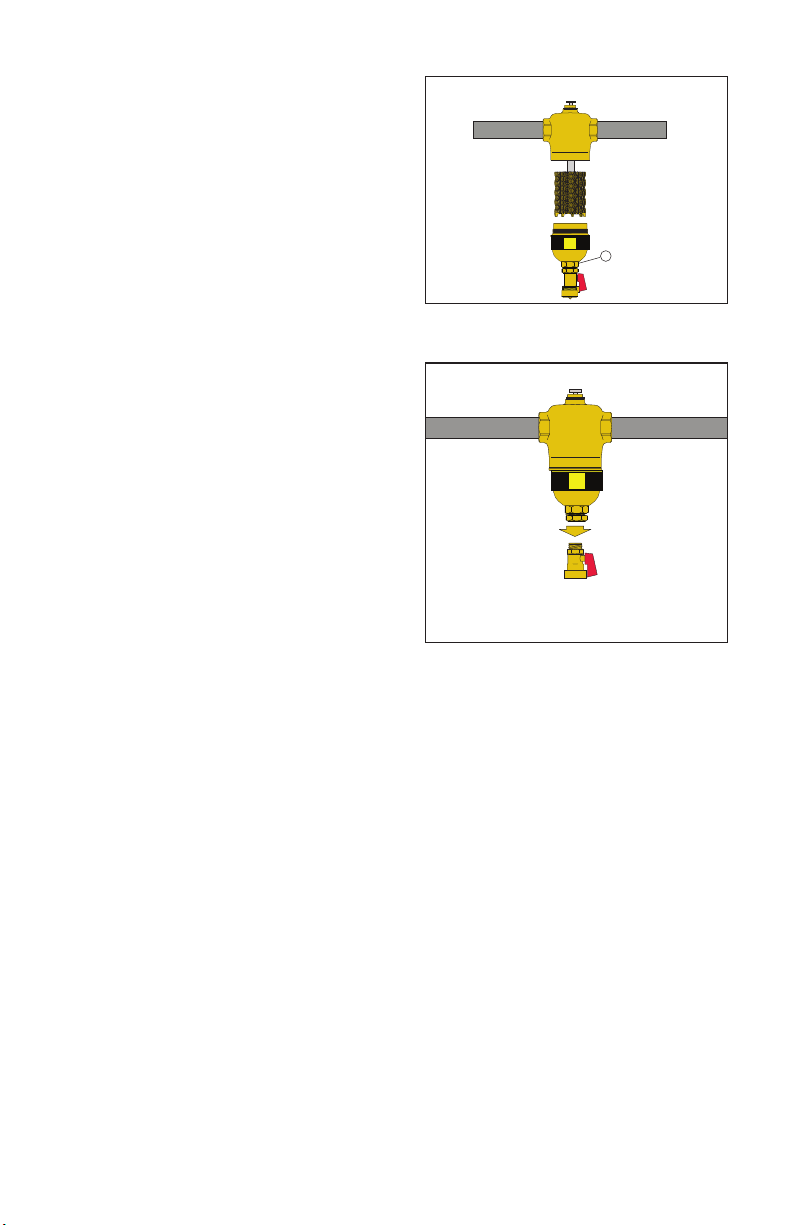

Maintenance
To perform annual inspection and maintenance, if
needed, simply use a 26 mm hexagon wrench (1) to
unscrew the dirt collection chamber, of the DIRTMAG
PRO, to which the inner mesh element is connected for
removal and cleaning.
Bottom connection
The DIRTMAG PRO comes complete with a
drain valve installed on the bottom port, Caleffi
code 538402 FD.
1
7
Page 8
Safety
The dirt separator must be installed by a licensed plumber in accordance with national regulations and/
or relevant local requirements.
Make sure that all connecting joints are water tight.
When making pipe connections take care not to damage the thread in the body of the valve by over
tightening. Take care not to apply too much force to the body of the valve when making pipe connections.
Water temperatures greater than 120°F may cause serious burns. When installing, using and
maintaining dirt separators take appropriate measure to ensure that these temperatures do not cause
harm to persons.
Leave this manual at the service of users for their use
Caleffi North America, Inc.
3883 W. Milwaukee Road
Milwaukee, WI 53208
T: 414.238.2360 F: 414.238.2366
4-15-21
