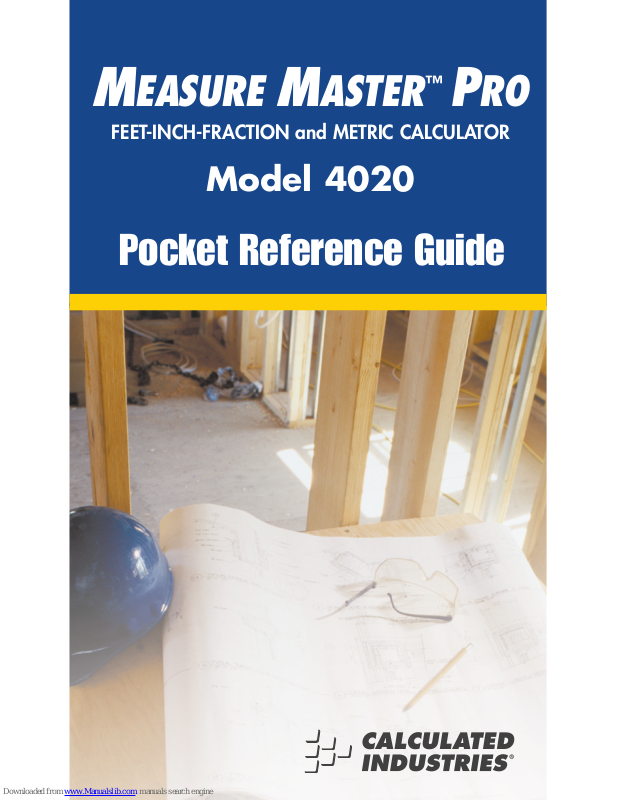

M
EASURE
M
ASTER
™
P
RO
FEET-INCH-FRACTION and METRIC CALCULATOR
Model 4020
Pocket Reference Guide
POCKET REFERENCE GUIDE — 1
The
Measure Master Pro
calculator helps
you save time, cut costly errors and
measure and estimate
like a pro!
Quickly Solve:
• Feet-Inches-Fractions, Yards, and
Metric Dimensional Problems
• Feet-Inches-Fractions, Yards, and
Metric Conversions
• Problems Involving All Fractions –
1/2-1/64ths!
• Instant Areas, Volumes and Weights
• Circle/Arc Calculations
• Material Quantity (e.g., Concrete,
Flooring)
• Squaring-up, and more
MEASURE MASTER®PRO
POCKET REFERENCE GUIDE — 2
KEY DEFINITIONS..................................4
Dimension Keys...................................4
Miscellaneous Functions .....................6
Paperless Tape Example.....................8
Preference Settings.............................9
EXAMPLES...........................................11
Adding and Subtracting Strings of
Dimensions....................................11
Dividing Dimensions..........................12
Percent Calculations..........................13
Square Area .......................................14
Square Root.......................................14
Rectangular Area and Volume...........15
Multi-Function h Key .....................16
Entering Square and Cubic and
Adding a Waste Allowance............17
Linear Conversions............................18
Square and Cubic Conversions.........19
Weight Conversions...........................20
Weight per Volume ............................21
Using the Memory .............................22
Using the Memory—
Finding Quantity
of Carpet Required
........................22
Board Feet and Cost .........................23
Circle Area and Circumference..........24
Arc Angle or Degree..........................25
TABLE OF CONTENTS
POCKET REFERENCE GUIDE — 3
Concrete Volume for Driveway..........26
Squaring-up a Foundation.................26
APPENDIX A.........................................27
Setting Fractional Resolution .............27
Auto-Shut Off.....................................28
Accuracy/Errors.................................28
Batteries .............................................29
Replacing the Batteries .....................30
Reset Key..........................................30
APPENDIX B.........................................31
Area Formulas...................................31
Volume Formulas ...............................32
REPAIR AND RETURN.........................33
Warranty, Repair and Return
Information.....................................33
WARRANTY..........................................34
FCC Class B......................................36
Looking For New Ideas......................36
POCKET REFERENCE GUIDE — 4
Dimension Keys
y Yards
f Feet
i Inch
/ Fraction Bar (used to enter
feet-inch-fractions)
m Meters
c Centimeters
M Millimeters
b
Board Feet
– Enters or
converts cubic values to
board feet.
l Enters length for calcula-
tion of area or volume.
W Enters width and calcu-
lates: area, square-up and
perimeter.
h Enters height and calcu-
lates: volume, area,
square-up, perimeter wall
area and total room area.
KEY DEFINITIONS
POCKET REFERENCE GUIDE — 5
Ç 1 Enters or converts to kilo-
grams.
Ç 3 Enters or converts to
Metric tons.
Ç 4 Enters or converts to
pounds.
Ç 6 Enters or converts to tons.
C
Circle
– Calculates circle
area and circumference
based on entered diameter.
a Calculates arc length or
degree based on entered
diameter and arc degree
or length (i.e., if arc degree
is entered, it will compute
arc length, and vice versa).
ß 5 Stores on-center spacing
value (e.g., 16”) for rafters
and rake-walls. Also used
for studs.
Ç a
Radius
– Enters or calcu-
lates the circle radius.
POCKET REFERENCE GUIDE — 6
Miscellaneous Functions
B Backspace key
Ç B ( ) Square Root
Ç ÷ (1/x) Inverse
Ç x Clear All
Ç – (+/–) Toggle
Ç + Pi (π) 3.141593
Ç % x
2
Ç ß Preference Settings
ß 0 Stores Weight per Volume
Ç 0 Total Cost (based on entry
of per unit cost)
Ç • Converts between D:M:S
and decimal degrees.
µ (M+) Memory +
Ç µ (M–) Memory –
® ® Recall and Clear M+
ß 1 (M1) Register
ß 2 (M2) Register
ß 3 (M3) Register
® µ, Recall M+, M1, M2 or M3
1, 2 or 3
POCKET REFERENCE GUIDE — 7
® =
Paperless Tape
– Useful
for checking figures, as it
scrolls through your past
20 entries or calculations.
Press ® = to access
Paperless Tape mode.
Press + or – to scroll forward or backward. Press
= to exit mode and continue with a new entry or calculation.
POCKET REFERENCE GUIDE — 8
Paperless Tape Example
Add 6 feet, 5 feet and 4 feet, then access
the paperless tape mode and scroll back
through your entries. Then, back up one
entry, exit the tape mode and add 10 feet
to the total.
KEYSTROKE DISPLAY
o o 0.
6 f + 6
FEET 0 INCH
5 f + 11 FEET 0 INCH
4 f = 15 FEET 0 INCH
® = TTL= 15 FEET 0 INCH
+ 01 6 FEET 0 INCH
+ 02 + 5 FEET 0 INCH
+ 03 + 4 FEET 0 INCH
– 02 + 5 FEET 0 INCH
= TTL= 15 FEET 0 INCH
+ 1 0 f = 25 FEET 0 INCH
POCKET REFERENCE GUIDE — 9
Preference Settings
Press
Ç
, then
ß
, then keep pressing
ß
to toggle through the main settings.
Press the
+
key to advance within sub-
setting. Use the
–
key to back up. Press
any key to exit mode.
PRESS Ç AND: SETTING--FUNCTION
1st press
of
ß
Fractional Resolution:
--1/16
+ --1/32
+ --1/64
+ --1/2
+ --1/4
+ --1/8
+ --1/16
(repeats options)
2nd press
of
ß
Area Displays:
--Standard
+ --0.
SQ FEET
+ --0. SQ YD
+ --0. SQ M
+ --Standard
(repeats options)
(Cont’d)
POCKET REFERENCE GUIDE — 10
(Cont’d)
PRESS Ç AND: SETTING--FUNCTION
3rd press
of
ß
Volume Displays:
--Standard
+ --0.
CU YD
+ --0. CU FEET
+ --0. CU M
+ --Standard
(repeats options)
4th press
of
ß
Exponential Display:
--Off
+ --On
+ --Off
(repeats options)
5th press
of
ß
Meter Linear Display:
--0.000 M
+ --FLOAt M
(floating point)
+ --0.000 M
(repeats options)
6th press
of
ß
Decimal Degree Displays:
--0.00°
+ --FLOAt
(floating point)
+ --0.00°
(repeats options)
POCKET REFERENCE GUIDE — 11
Adding and Subtracting Strings of
Dimensions
Add the following measurements:
• 6 feet 2-1/2 inches
• 11 feet 5-1/4 inches
• 18.25 inches
Then subtract 2-1/8 inches.
KEYSTROKE DISPLAY
o o 0.
6 f 2 i 1 / 2 +
6
FEET 2-1/2 INCH
1 1 f 5 i 1 / 4 +
17
FEET 7-3/4 INCH
1 8 • 2 5 i = 19 FEET 2 INCH
– 2 i 1 / 8 = 18 FEET 11-7/8 INCH
EXAMPLES
POCKET REFERENCE GUIDE — 12
Dividing Dimensions
Divide 15 feet 3-3/4 inches into thirds
(divide by 3):
KEYSTROKE DISPLAY
o o 0.
1 5 f 3 i 3 / 4 ÷ 3 =
5
FEET 1-1/4 INCH
How many 3’6” pieces can you cut from
one 25-ft. board?
KEYSTROKE DISPLAY
o o 0.
2 5 f ÷ 3 f 6 i = 7.142857
(or 7 whole pieces)
POCKET REFERENCE GUIDE — 13
Percent Calculations
Add a 10% waste allowance to 2.78 cubic
yards.
KEYSTROKE DISPLAY
o o 0.
2 • 7 8 y y y + 1 0 %
3.058
CU YD
What is 25% of $1,575?
KEYSTROKE DISPLAY
o o 0.
1 5 7 5 x 2 5 % 393.75
POCKET REFERENCE GUIDE — 14
Square Area
Find the area of a square room with sides
measuring 15 feet 8-1/2 inches.
KEYSTROKE DISPLAY
o o 0.
1 5 f 8 i 1 / 2
15
FEET 8-1/2 INCH
Ç %
(x2)
246.7517 SQ FEET
Square Root
What is the square root of 200?
KEYSTROKE DISPLAY
o o 0.
2 0 0 Ç B 14.14214
POCKET REFERENCE GUIDE — 15
Rectangular Area and Volume
Find the area and volume:
• Length: 20 feet 6-1/2 inches
• Width: 12 feet 8-1/2 inches
• Height: 10 inches
KEYSTROKE DISPLAY
o o 0.
2 0 f 6 i 1 / 2 l
LNTH 20
FEET 6-1/2 INCH
1 2 f 8 i 1 / 2 W W*
AREA 261.0503
SQ FEET
1 0 i h h*
VOL 8.057109
CU YD
*Press
W
and
h
keys a second time (after
entry of Width and Height) to calculate area and
volume.
POCKET REFERENCE GUIDE — 16
Multi-Function h Key
Find the volume, area, square-up,
perimeter, wall area, and total room area
of an 18’ x 25’ room measuring 12’ tall.
KEYSTROKE DISPLAY
o o 0.
1 8 f l LNTH 18
FEET 0 INCH
2 5 f W WDTH 25 FEET 0 INCH
1 2 f h HGHT 12 FEET 0 INCH
h VOL 5400. CU FEET
h AREA 450. SQ FEET
h SQUP 30 FEET 9-11/16 INCH
h PER 86 FEET 0 INCH
h WALL* 1032. SQ FEET
h ROOM** 1482. SQ FEET
*Wall Area adds the lengths, multiplies them by
2 and then multiplies by height.
**Room Area=Wall Area+Ceiling Area
POCKET REFERENCE GUIDE — 17
Entering Square and Cubic and Adding
a Waste Allowance
Add a 10% waste allowance to 55 square
feet. Then add a 20% waste allowance to
150 cubic feet:
KEYSTROKE DISPLAY
o o 0.
5 5 f f + 1 0 % 60.5
SQ FEET
1 5 0 f f f + 2 0 %
180.
CU FEET
POCKET REFERENCE GUIDE — 18
Linear Conversions
Convert 10 feet 6 inches to other dimensions, including Metric:
KEYSTROKE DISPLAY
o o 0.
1 0 f 6 i 10
FEET 6 INCH
Ç y 3.5 YD
i 126 INCH
m 3.200 M
c 320.04 CM
M 3200.4 MM
Convert 14 feet 7-1/2 inches to decimal
feet:
KEYSTROKE DISPLAY
o o 0.
1 4 f 7 i 1 / 2
14
FEET 7-1/2 INCH
Ç f 14.625 FEET
Convert 22.75 feet to feet-inches:
KEYSTROKE DISPLAY
o o 0.
2 2 • 7 5 f 22.75
FEET
Ç f 22 FEET 9 INCH
POCKET REFERENCE GUIDE — 19
Square and Cubic Conversions
Convert 14 square feet to square yards:
KEYSTROKE DISPLAY
o o 0.
1 4 f f 14
SQ FEET
Ç y 1.555556 SQ YD
Convert 25 square yards to square feet:
KEYSTROKE DISPLAY
o o 0.
2 5 y y 25
SQ YD
Ç f 225. SQ FEET
Convert 12 cubic feet to cubic yards:
KEYSTROKE DISPLAY
o o 0.
1 2 f f f 12
CU FEET
Ç y 0.444444 CU YD
POCKET REFERENCE GUIDE — 20
Weight Conversions
Convert 150 pounds to other weights
(tons, Metric tons, kg):
KEYSTROKE DISPLAY
o o 0.
1 5 0 Ç 4 150
LB
Ç 6 0.075 Ton
Ç 3 0.068039 MET Ton
Ç 1 68.03886 kG
POCKET REFERENCE GUIDE — 21
Weight per Volume
Convert 20 cubic yards of concrete to
pounds, tons, Metric tons and kilograms,
if concrete weighs 1.5 tons per cubic yard
(default value):
KEYSTROKE DISPLAY
o o 0.
2 0 y y y 20
CU YD
Ç 4 60000. LB
Ç 6 30.Ton
Ç 3 27.21554 MET Ton
Ç 1 27215.54 kG
Now convert again, if concrete weighs 2
tons per cubic yard (store new Wt/Vol.
value):
KEYSTROKE DISPLAY
2 ß 0 2.Ton Per CU YD
2 0 y y y 20 CU YD
Ç 4 80000. LB
Ç 6 40.Ton
Ç 3 36.28739 MET Ton
Ç 1 36287.39 kG
Ç x* ALL CLEARED
*Clear stored Wt/Vol
POCKET REFERENCE GUIDE — 22
Using the Memory
Add 100 and 200 to the Memory, then
subtract 50 and recall the total while
clearing the memory:
KEYSTROKE DISPLAY
o o 0.
1 0 0 µ M+ 100.
2 0 0 µ M+ 200.
5 0 Ç µ M– 50.
® ® M+ 250.
Using the Memory —
Finding Quantity
of Carpet Required
--Room 1: 12’ 4” x 15’
--Room 2: 14’ 8” x 16’
--Add 10% waste allowance
KEYSTROKE DISPLAY
o o 0.
1 2 f 4 i 12
FEET 4 INCH
x 1 5 f = 185. SQ FEET
µ M+ 185. SQ FEET
1 4 f 8 i 14 FEET 8 INCH
x 1 6 f = µ
M+ 234.6667
SQ FEET
® ® M+ 419.6667 SQ FEET
Ç y 46.62963 SQ YD
+ 1 0 % 51.29259 SQ YD
M
M
M
M
M
M
POCKET REFERENCE GUIDE — 23
Board Feet and Cost
Find the total board feet for the following
boards: 2 x 4 x 16, 2 x 10 x 18 and 2 x 12
x 20. What is the total cost at $275 per
Mbm*?
*Per thousand board foot measure.
KEYSTROKE DISPLAY
o o 0.
2 x 4 x 1 6 b µ
BDFT 10.66667
2 x 1 0 x 1 8 b µ
BDFT 30.
2 x 1 2 x 2 0 b µ
BDFT 40.
® ® BDFT 80.66667
x 2 7 5 Ç 0 $ 22.18
M
M
M
POCKET REFERENCE GUIDE — 24
Circle Area and Circumference
Find the area and circumference of a
circle with a diameter of 25 inches:
KEYSTROKE DISPLAY
o o 0.
2 5 i C DIA 25
INCH
C AREA 490.8739 SQ INCH
C CIRC 78-9/16 INCH
POCKET REFERENCE GUIDE — 25
Arc Angle or Degree
Find the arc angle (or degree of arc),
given a 5-foot diameter and an arc length
of 3 feet 3 inches.
KEYSTROKE DISPLAY
1. Enter circle diameter and arc length:
o o 0.
5 f C DIA 5
FEET 0 INCH
3 f 3 i a ARC 3 FEET 3 INCH
2. Find degree of arc:
a ARC 74.48°
POCKET REFERENCE GUIDE — 26
Concrete Volume for Driveway
Calculate the cubic yards of concrete
required to pour a driveway that measures: 45 feet 5 inches long x 13 feet 6
inches wide x 5 inches deep. If concrete
is $65 per cubic yard, what will it cost?
KEYSTROKE DISPLAY
o o 0.
4 5 f 5 i 45
FEET 5 INCH
x 1 3 f 6 i 13 FEET 6 INCH
x 5 i = 9.461806 CU YD
x 6 5 Ç 0 $ 615.02
(total cost)
Squaring-up a Foundation
Square-up 15’ 6” (run) x 10’ 2” (rise):
KEYSTROKE DISPLAY
o o 0.
1 5 f 6 i l
LNTH 15
FEET 6 INCH
1 0 f 2 i W
WDTH 10
FEET 2 INCH
W W SQUP 18 FEET 6-7/16 INCH
POCKET REFERENCE GUIDE — 27
Setting Fractional Resolution
Your calculator is set to display fractional
answers in 16ths. To select other formats
(e.g., 1/64ths, 1/32nds, etc.) follow the
keystrokes below:
KEYSTROKE DISPLAY
1. Clear calculator:
o o 0.
2. Set calculator to 1/2:
Ç 2 FRAC 0-1/2 INCH*
3. Set calculator to 1/32:
Ç 3 FRAC 0-1/32 INCH
4. Set calculator to 1/4:
Ç 4 FRAC 0-1/4 INCH
5. Set calculator to 1/64:
Ç 6 FRAC 0-1/ 64 INCH
6. Set calculator to 1/8:
Ç 8 FRAC 0-1/8 INCH
7. Return calculator to 1/16:
Ç 1 FRAC 0-1/16 INCH
*Display will flash the new setting for one second, then it will clear. Press
® /
to display
setting.
APPENDIX A
POCKET REFERENCE GUIDE — 28
Auto-Shut Off
Your calculator will shut itself off after
about 8-12 minutes of non-use.
Accuracy/Errors
Accuracy/Display Capacity
— Your calculator has a twelve-digit display made up of
eight digits (normal display) and four fractional digits. You may enter or calculate
values up to 19,999,999.99. Each calculation is carried out internally to twelve digits.
Errors
— When an incorrect entry is
made, or the answer is beyond the range
of the calculator, it will display the word
“ERROR.” To clear an error condition you
must hit the o button once. At this
point, you must determine what caused
the error and re-key the problem.
Err
or Codes:
DISPLAY ERROR TYPE
OFLO Overflow (too large)
MATH Error Divide by 0
DIM Error Dimension error
ENT Error Entry error
POCKET REFERENCE GUIDE — 29
Auto-Range
— If an “overflow” is created
because of an input and calculation with
small units that are out of the standard
seven-digit range of the display, the
answer will be automatically expressed in
the next larger units (instead of showing
“ERROR”) — e.g., 10,000,000 mm is
shown as 10,000 m. Also applies to inches,
feet and yards.
Batteries
This model uses two (2) LR44 batteries
(included).
Should your calculator display become
very dim or erratic, replace the batteries.
Note: Please use caution when disposing of
your old battery, as it contains hazardous
chemicals.
Replacement batteries are available at
most discount or electronics stores. You
may also call Calculated Industries at
1-775-885-4900.
POCKET REFERENCE GUIDE — 30
Replacing the Batteries
To replace the batteries, slide open the
battery door (at top backside of unit) and
replace with new batteries. Make sure the
batteries are facing positive side up.
Reset Key
If your calculator should ever “lock up,”
press Reset — a small hole located to the
left of the O key — to perform a total
reset.
POCKET REFERENCE GUIDE — 31
Area Formulas
APPENDIX B
POCKET REFERENCE GUIDE — 32
Volume Formulas
POCKET REFERENCE GUIDE — 33
Warranty, Repair and Return Information
Return Guidelines
1. Please read the
Warranty
in this User ’s
Guide to determine if your Calculated
Industries calculator, measuring device or
electronic tool remains under warranty
before
calling or returning any device for
evaluation or repairs.
2. If your calculator won’t turn on, try pressing
the “Reset Button” first. If it still won't turn
on, check the batteries as outlined in the
User's Guide.
3. If there is a black spot on the LCD screen,
THIS IS NO
T A WARRANTY DEFECT. The
unit can be repaired. Call for a repair
quote before returning your unit.
4. If you need more assistance, please go to
our website at www.calculated.com and click
on Support, then Repair Services FAQs.
5. If you believe you need to return your calculator, please speak to a Calculated Industries
representative for additional information!
Call
Toll Free: 1-800-854-8075
REPAIR AND RETURN
POCKET REFERENCE GUIDE — 34
Warranty Repair Service – U.S.A.
Calculated Industries (“CI”) warrants this product
against defects in materials and workmanship for a period of one (1) year from the date of original consumer
purchase in the U.S. If a defect exists during the warranty period, CI at its option will either repair (using new
or remanufactured parts) or replace (with a new or
remanufactured calculator) the product at no charge.
THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS BEEN DAMAGED BY MISUSE, ALTERATION, ACCIDENT, IMPROPER HANDLING OR
OPERATION, OR IF UNAUTHORIZED REPAIRS ARE
ATTEMPTED OR MADE. SOME EXAMPLES OF DAMAGES NOT COVERED BY WARRANTY INCLUDE,
BUT ARE NOT LIMITED TO, BATTERY LEAKAGE,
BENDING, OR VISIBLE CRACKING OF THE LCD,
WHICH ARE PRESUMED TO BE DAMAGES RESULTING FROM MISUSE OR ABUSE.
To obtain warranty service in the U.S., ship the product
postage paid to Calculated Industries (address listed on
the last page). Please provide an explanation of the
service requirement, your name, address, day phone
number and dated proof of purchase (typically a sales
receipt). If the product is over 90 days old, include payment of $6.95 for return shipping and handling within
the contiguous 48 states. (Outside the contiguous 48
states, please call CI for return shipping costs.)
A repaired or replacement product assumes the remaining warranty of the original product or 90 days, whichever is longer.
WARRANTY
POCKET REFERENCE GUIDE — 35
Non-Warranty Repair Service – U.S.A.
Non-warranty repair covers service beyond the warranty
period, or service requested due to damage resulting
from misuse or abuse.
Contact Calculated Industries at the number listed
above to obtain current product repair information and
charges. Repairs are guaranteed for 90 days.
Repair Service – Outside the U.S.A.
To obtain warranty or non-warranty repair service for
goods purchased outside the U.S., contact the dealer
through which you initially purchased the product. If you
cannot reasonably have the product repaired in your
area, you may contact CI to obtain current product
repair information and charges, including freight and
duties.
Disclaimer
CI MAKES NO WARRANTY OR REPRESENTATION,
EITHER EXPRESS OR IMPLIED, WITH RESPECT TO
THE PRODUCT’S QUALITY, PERFORMANCE, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE. AS A RESULT, THIS PRODUCT, INCLUDING BUT NOT LIMITED TO, KEYSTROKE PROCEDURES, MATHEMATICAL ACCURACY AND PREPROGRAMMED MATERIAL, IS SOLD “AS IS,” AND YOU
THE PURCHASER ASSUME THE ENTIRE RISK AS
TO ITS QUALITY AND PERFORMANCE.
IN NO EVENT WILL CI BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY DEFECT IN THE
PRODUCT OR ITS DOCUMENTATION.
POCKET REFERENCE GUIDE — 36
The warranty, disclaimer, and remedies set forth above
are exclusive and replace all others, oral or written,
expressed or implied. No CI dealer, agent, or employee
is authorized to make any modification, extension, or
addition to this warranty.
Some states do not allow the exclusion or limitation of
implied warranties or liability for incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific
rights, and you may also have other rights, which vary
from state to state.
FCC Class B
This equipment has been certified to comply with the
limits for a Class B computing device, pursuant to
Subpart J of Part 15 of FCC rules.
Looking For New Ideas
Calculated Industries, a leading manufacturer of specialfunction calculators and digital measuring instruments,
is always looking for new product ideas in these areas.
If you have an idea, or a suggestion for improving this
product or User's Guide, please submit your comments
online at www.calculated.com under “Contact Us,”
“Product Idea.” Thank you.
4020PRG-E-A
4/04
POCKET REFERENCE GUIDE — 37
POCKET REFERENCE GUIDE — 38
Loading...
