CalAmp Wireless Networks ME501 Users Guide

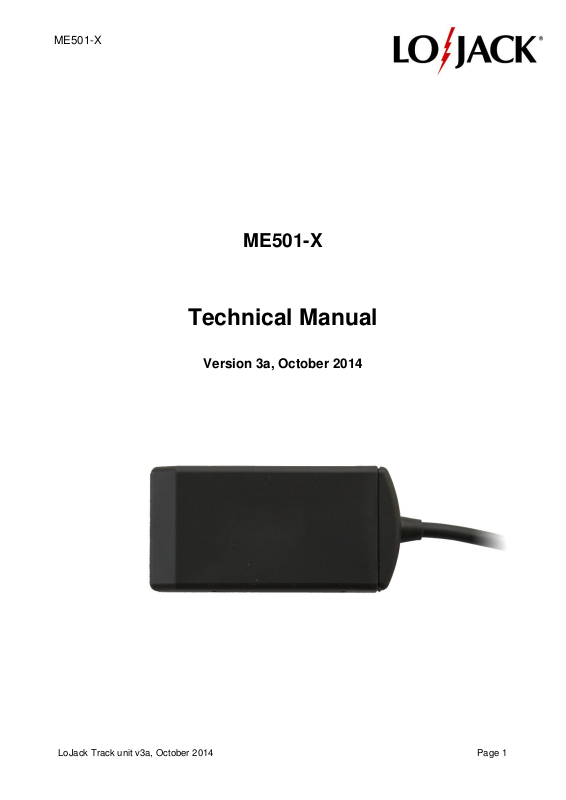

ME501-X
ME501-X
Technical Manual
Version 3a, October 2014
LoJack Track unit v3a, October 2014 Page 1
ME501-X
Content
Content .......................................................................................................... 2
Related Information .......................................................................................................... 4
Safety first...................................................................................................... 4
Simple Guidelines ............................................................................................................ 4
Detailed Safety Information ............................................................................ 5
Exposure to Radio Frequency Signals ............................................................................. 5
Delivered standard content ............................................................................ 8
Installing the unit ............................................................................................ 9
Practical installation advice .............................................................................................. 9
Connections ..................................................................................................................... 9
Power supply .............................................................................................................. 10
Digital inputs ............................................................................................................... 10
Digital output ............................................................................................................... 10
Motion/acceleration sensor ......................................................................................... 10
1-Wire input ................................................................................................................ 10
Functionality check ...................................................................................... 11
LED ................................................................................................................................ 11
Status SMS Commands ................................................................................................. 12
Installation of the digital output .................................................................... 14
SMS commands for output control ................................................................................. 15
Safety precautions.......................................................................................................... 15
Warranty ...................................................................................................... 16
Technical Assistance ................................................................................... 16
Minimum Information Required for Technical Assistance ............................................... 16
Return Merchandise Authorization - RMA ...................................................................... 17
Specifications .............................................................................................. 18
Product specifications .................................................................................................... 18
Connections: ............................................................................................................... 18
Temperature range: .................................................................................................... 18
GSM/GPRS-specifications: ......................................................................................... 18
UMTS/WCDMA-specifications: ................................................................................... 18
Mechanical specifications ........................................................................................... 20
Approvals and certificates ............................................................................ 20
LoJack Track unit v3a, October 2014 Page 2
ME501-X
Corporate Office
LoJack Corporation
40 Pequot Way
Canton, MA 02021
www.lojack.com
Copyright and Trademarks
© 2014, LoJack Corporation. All rights reserved.
, registered in the United States and in other countries. All other
trademarks are the property of their respective owners.
Embedded Software/Firmware
The Product and associated tools, if any, may contain embedded
software/firmware, which is licensed, not sold, and is only for
use within the Product as an integral part thereof. Such
embedded software/firmware (which includes all updates
thereto) contains valuable trade secrets and is proprietary to
LoJack and its suppliers. To the greatest extent permitted by
law, such embedded software/firmware may not be modified,
copied, disassembled, decompiled or reverse engineered. LoJack
reserves all other rights.
Notices
Class B Statement – Notice to Users. This equipment has been
tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the
receiver.
– Consult the dealer or an experienced radio/TV technician for
help.
Changes and modifications not expressly approved by the
manufacturer or registrant of this equipment can void your
authority to operate this equipment under Federal
Communications Commission rules.
Regulatory Approvals
CE
The ME501-X product comply with the essential requirements
of the R&TTE Directive 1999/5/EC as stated by the EC
Declaration of Conformity (CE 0682). The ME501-X product
comply with the European Telecommunications Standards
Institute Specifications EN 301 489-1, EN 301 489-7 and EN
301 489-24 (EMC for GSM/WCDMA 900MHz, DCS 1800MHz
and WCDMA 2100MHz Radio Equipment and Systems).
EC/ International
The ME501-X product comply with the essential requirements
of the Automotive directive 2004/104/EC clause 6.5, 6.6, 6.8
and 6.9, UN regulative ECE R10 EMC rev4.
The ME501-X product comply with the essential requirements
of the Directive 2003/37/EEC and Directive 2006/42/EEC.
The ME501-X product comply with the international standards
ISO-13309, ISO-13766 and EN ISO-14982, for tractors, forest
and agricultural machinery, moving machinery and construction
machinery.
The ME501-X product complies with the essential and
environmental requirements of the Interoperability of transEuropean conventional rail system 2001/16/EC and 2004/50/EC
directives according to ISO 50121-3-2 and DIN EN 50125-1,
when used as intended on rolling stock.
The ME501-X complies with the essential requirements of the
2011/65/EC directive on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.
FCC
The ME501-X product comply with the FCC Part 15, Part 22,
Part 24, and the Industry Canada requirements RSS-GEN, RSS102, RSS-132, RSS-133.
The ME501-X product comply with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device
must accept any interference received, including interference
that may cause undesired operation.
For fixed mounted operations the ME501-X must be installed to
provide a separation distance of at least 5 cm from all persons.
MIC (Japan)
The ME501-X product complies with the Japanese
Telecommunication Business Act for radio terminal equipment
supporting WCDMA 800 MHz.
ME501-X:
FCC ID: IDI-ME501
IC-ID: 9408A-ME501
LoJack Track unit v3a, October 2014 Page 3
ME501-X
Introduction
This document contains the installation guide for the (GSM/UMTS/GNSS) product type
series ME501-X units. This manual is intended for use by system integrators, service
providers and application developers (collectively, “Resellers”). It is not intended for endusers of the ME501-X. Any end-user documentation is to be prepared and furnished by the
Resellers.
This manual covers the ME501-X with 60.0 and later firmware operating on 2.5G bands
850 MHz, 900 MHz, 1800 MHz and 1900 MHz Global System for Mobile communication
(GSM) and 3G bands 800 MHz, 850 MHz, 900 MHz, 1900 MHz, 2100 MHz Universal
Mobile Telecommunication System (UMTS) networks.
Data and Event Reporting support is by Short Message Service (SMS), General Packet
Radio Service (GPRS), or both.
This manual describes how to set up, configure, install, operate, and troubleshoot the
product. Even if you have used other GSM, UMTS or Global Positioning System (GPS)
products before, LoJack recommends that you spend some time reading this manual to
learn about the special features of this product.
LoJack assumes that you are familiar with Microsoft Windows.
Related Information
The LoJack web site is found at www.LoJack.com. This site links to the fleet
management system from LoJack Corporation called LoJack Manager. ME501-X devices
are integrated to LoJack but can also be used together with third part system providers.
Safety first
Simple Guidelines
Please follow these guidelines when configuring, using or recycling the ME501-X. Violating
these guidelines may be dangerous, illegal or otherwise detrimental. Further detailed
information is provided in this manual.
Do Not Operate Where Prohibited
Do not allow the ME501-X unit to operate wherever wireless phone use is prohibited or
when doing so may cause interference or danger. The ME501-X cannot be turned off after
installation, so any vehicle, moving machinery, construction machinery using ME501-X etc.
must not enter areas where it is prohibited to operate wireless phones as the device
periodically turns on the transmitter in a short period of time to perform tracking reporting.
Examples include but are not limited to operation in hospitals, aircrafts, near blasting sites
or wherever operation can cause interference.
LoJack Track unit v3a, October 2014 Page 4
ME501-X
T
he ME501
-X
unit cannot be turned off after
Interference
Like all wireless devices, the ME501-X may encounter electrical interference that may
affect its performance.
Avoid Body Contact with Device during Operation
Do not operate the ME501-X in direct contact with your body. Maintain at least 2 inches (5
cm) separation between the device and any parts of your body.
Qualified Service
Except for batteries and Subscriber Identification Module (SIM) card, the ME501-X
contains no user serviceable or replaceable parts. Non-functioning units must be returned
to an authorized service center for repair or replacement.
Accessories and Batteries
Use only approved accessories or batteries. Do not connect incompatible products.
There is risk of explosion or fire if an incorrect type replacement battery contacts are
shorted. Do not exceed the temperature ranges or other environmental conditions
specified by the battery manufacturer. Dispose of used batteries according to the
instructions provided with the batteries.
Water-Resistance
The ME501-X series is water-resistant according to the IP-67 standard. It is however
recommended that it is be used where it is relatively dry and not subjected to either water
streams or submersion.
Detailed Safety Information
Exposure to Radio Frequency Signals
The ME501-X unit is a low power radio transmitter and receiver. Periodically the ME501-X
wakes up either due to activity or by a timer. When it is ON, it receives and also sends out
radio frequency (RF) signals for a short period of time.
installation; however the unit is mostly asleep waiting
for either the wake-up timer or activity on the
acceleration sensor.
The unit operation can continue for approximately 3 to
4 days depending on the charging state of the backup
battery.
LoJack Track unit v3a, October 2014 Page 5
ME501-X
The ME501-X unit is not designed to be worn on a person’s body.
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain
electronic equipment may not be shielded against the RF signals generated by the
ME501-X unit.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum separation of
six (6”) inches be maintained between a handheld wireless phone and a pacemaker to
avoid potential interference with the pacemaker. The following precautions apply:
• The ME501-X unit is not intended for handheld use or to be worn on the body.
• It is recommended that a minimum separation of ten (8”) inches (20 cm) is to be
maintained between the ME501-X unit and any persons’ body at all times. The
device is SAR tested and approved for a separation distance of only (2") inches (5
cm) between the ME501-X and any person’s body.
• Do not carry the ME501-X on your person.
Other Medical Devices
If any other personal medical devices are used in the vicinity of a ME501-X unit, consult
the manufacturers of the medical devices to determine if they are adequately shielded
from external RF energy. Physicians may be able to assist in obtaining this information.
The ME501-X unit cannot be turned off after installation, so any vehicle, moving
machinery, construction machinery installed with the ME501-X etc. must not operate near
health care facilities when any regulations posted in these areas prohibit the use of
wireless phones or two-way radios. Hospitals and health care facilities may be using
equipment that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles. Check with the manufacturer or its representative regarding the vehicle.
Also consult the manufacturer of any equipment that has been added to the vehicle.
Posted Facilities
The ME501-X unit cannot be turned off after installation, so any vehicle, moving
machinery, construction machinery installed with the ME501-X etc. must not enter any
facility where posted notices prohibit the use of wireless phones or two-way radios.
Aircrafts
FCC and FAA regulations prohibit using wireless phones while in the air. Do not carry the
ME501-X unit aboard an aircraft as it cannot be turned off.
The ME501-X unit cannot be turned off after installation, so any vehicle, moving
machinery, construction machinery installed with the ME501-X etc. must not enter a
“blasting area” or in areas posted “turn off two way radio” to avoid interfering with blasting
operations. Obey all signs and instructions.
LoJack Track unit v3a, October 2014 Page 6
ME501-X
Potentially Explosive Atmospheres
The ME501-X unit cannot be turned off after installation, so any vehicle, moving
machinery, construction machinery installed with ME501-X etc. must not enter any area
with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always marked clearly.
Potential areas may include: fueling areas (such as gasoline stations); below deck on
boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas
(such as propane or butane); areas where the air contains chemicals or particles (such as
grain, dust, or metal powders); and any other area where it would normally be advisable to
turn off motor vehicle engines it is not allowed to enter with a vehicle, moving machinery,
construction machinery installed with the ME501-X.
For Vehicles Equipped with an Airbag
An airbag inflates with great force. DO NOT place objects, including the ME501-X unit, in
the area over the airbag or in the airbag deployment area. If in vehicle wireless equipment
is improperly installed and the air bag inflates, serious injury could result.
Specific Human Absorption Rates (SAR)
THE ME501-X UNIT IS NOT DESIGNED TO BE WORN ON A PERSON’S BODY.
AS SUCH, BODY WORN TEST POSITIONS FOR THE ME501-X UNIT
ARE NOT REQUIRED BY EITHER THE IEC 62311 FOR GSM 900/1800, UMTS
800/900/2100 BANDS OR FCC/IEEE/ICNIRP REQUIREMENTS FOR GSM/UMTS
850/1900 BANDS.
The ME501-X unit is not intended for handheld use or to be worn on the body. A minimum
separation of ten (2”) inches (5 cm) is to be maintained between the ME501-X and any
persons’ body. Additional information on Specific Absorption Rates (SAR) can be found on
the Cellular Telecommunications & Internet Association (CTIA) Web site at www.ctia.org.
Battery Safety Information
Adhere to the following guidelines to avoid the risk of fire or explosion:
1. Dispose of the used battery according to the instructions provided with the battery.
2. Do not drop, puncture, disassemble, mutilate, or incinerate the battery.
3. Touching both terminals of a battery with a metal object will short circuit the battery. Do
not carry batteries loosely if the contacts may touch coins, keys, and other metal
objects (such as in pockets or bags).
4. Do not stack batteries taken out of the carry case.
5. Do not heat the batteries to try to rejuvenate their charge.
6. Do not exceed the temperature ranges or other environmental conditions specified by
the battery manufacturer.
7. Never use the ME501-X without the battery cover installed.
LoJack Track unit v3a, October 2014 Page 7
Loading...
