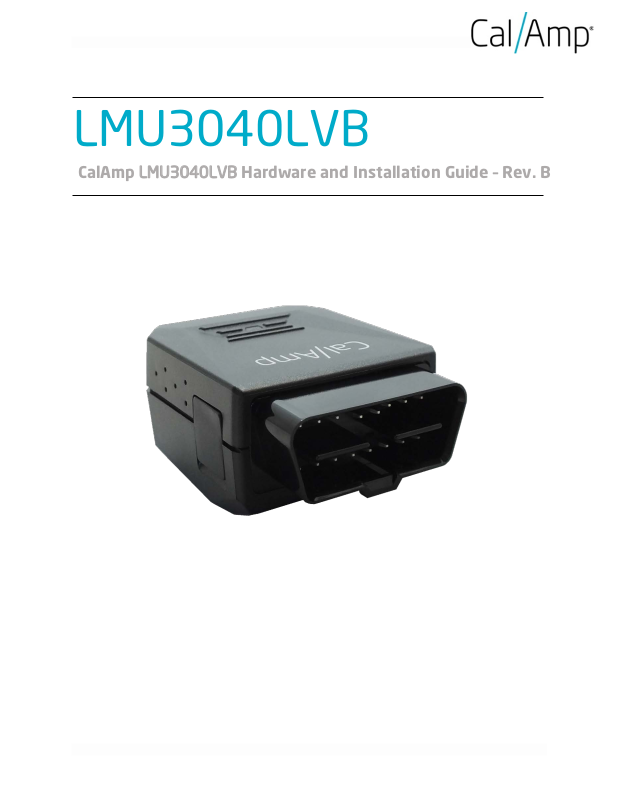

LMU3040LVB Hardware & Installation Guide
CalAmp reserves the rights to these documents and any information contained therein. Reproduction,
use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp
Table of Contents
1 Introduction .......................................................................................................................................... 4
1.1 About This Manual ........................................................................................................................ 4
1.2 About The Reader ......................................................................................................................... 4
1.3 About CalAmp ............................................................................................................................... 4
1.4
2 S
2.1 Overview ....................................................................................................................................... 6
2.2 Component Descriptions .............................................................................................................. 7
3 H
3.1 Location Messaging Unit-LMU3040LVB™ .......................................................................................... 9
About the CalAmp Location Messaging Unit-LMU3040LVB™ ........................................................... 5
ystem Overview .................................................................................................................................. 6
2.2.1 Wireless Data Network ......................................................................................................... 7
2.2.2
2.2
2.2.4 Backend Software ................................................................................................................. 7
2.2.5 PULS™ .................................................................................................................................... 8
2.2.6 LMU Manager™ ..................................................................................................................... 8
2.2.7 Wireless Data Network ......................................................................................................... 8
2.2.8
ardware Overview .............................................................................................................................. 9
3.1
LMU3040LVB™ ........................................................................................................................... 7
.3 LM Direct™ Server ................................................................................................................. 7
LMU3040LVB™ ........................................................................................................................... 8
LMU3040LVB™ Handling Precautions ....................................................................................... 9
.1
3.1
.2 Battery Back-up devices ...................................................................................................... 10
3.1.3 Environmental Specifications .............................................................................................. 11
3.2 LMU3040LVB™ Connectors ............................................................................................................. 13
.1 Primary Connector .............................................................................................................. 13
3.2
3.2.2 Serial Adapter ...................................................................................................................... 14
3.2.3 Accessories .......................................................................................................................... 14
3.3 I/O Descriptions .......................................................................................................................... 14
3
.3.1 3-Axis Accelerometer + 3-Axis Gyroscope .......................................................................... 15
3.3.2 Status LEDs .......................................................................................................................... 16
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 2 of 36
Page
LMU3040LVB Hardware & Installation Guide
4 Installing the LMU ............................................................................................................................... 16
4.1 Preventing Accidental or Unauthorized Modification ................................................................ 16
4.2 Installing the LMU in a vehicle .................................................................................................... 16
4.3 Installation Verification ............................................................................................................... 18
4.3.1 Comm Verification .............................................................................................................. 18
4.3.2 GPS Verification .................................................................................................................. 19
4.3.3 Inbound Verification ........................................................................................................... 20
4.3.4 Verification via SMS ............................................................................................................ 21
5 CalAmp Locations ............................................................................................................................... 24
6 License Agreement ............................................................................................................................. 25
7 Limited Warranty ................................................................................................................................ 31
8 Regulatory Information ...................................................................................................................... 34
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 3 of 36
Page
LMU3040LVB Hardware & Installation Guide
You are familiar with GPS concepts and terminology
You have some experience with installing equipment in vehicles
You are familiar with the use of AT Commands
You are familiar with the use of terminal programs such as HyperTerminal or PuTTY
IMPORTANT: DO NOT INSTALL OR USE THE SOFTWARE OR DOCUMENT ATION UNTIL YOU HAVE
READ AND AGREED TO THE LICENSE AGREEMENT AND REVIEWED THE LIMITED
WARRANTY AND REGULATORY INFORMATION.
1 Introduction
Welcome to the LMU3040LVB™ Hardware and Installation Guide. This manual is intended to give you
information on the basic setup and installation of the CalAmp LMU3040LVB™ product(s) including hardware
descriptions, environmental specifications, wireless network overviews and device installation.
1.1 About This Manual
The LMU3040LVB™ is a full featured OBD vehicle tracking device that is optimized for a diverse range of
applications including driver behavior management, car rental and automotive applications. Best suited
for accessing the vehicle diagnostics interface (OBD-II) in passenger or light-duty vehicles.
accurately describe the functionality of these units we have broken this manual into the following sections:
System Overview – A basic description of a CalAmp LMU3040LVB™ based tracking system.
This includes a description of roles and responsibilities of each of the CalAmp components as well
as a brief overview of the wireless data technologies used by the LMU3040LVB™.
In order to
Hardware Overview – Describes the physical charac
Installation and Verification – Provides guidance for the installation of the LMU3040LVB™
in a vehicle and instructions on how to verify the installation is performing adequately.
teristics and interfaces of the LMU3040LVB™
1.2 About The Reader
In order to limit the size and scope of this manual, the following assumptions have been made about the
reader.
1.3 About CalAmp
CalAmp is a leading provider of wireless communications products that enable anytime/anywhere access to
critical information, data and entertainment content. With comprehensive capabilities ranging from product
design and development through volume production, CalAmp delivers cost-effective high quality solutions to a
broad array of customers and end markets. CalAmp is the leading supplier of Direct Broadcast Satellite (DBS)
outdoor customer premise equipment to the U.S. satellite television market. The Company also provides
wireless data communication solutions for the telemetry and asset tracking markets, private wireless networks,
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 4 of 36
Page
LMU3040LVB Hardware & Installation Guide
public safety communications and critical infrastructure and process control applications. For additional
information, please visit the Company’s website at www.calamp.com.
1.4 About the CalAmp Location Messaging Unit-LMU3040LVB™
The CalAmp Location and Messaging Unit-LMU3040LVB™ (LMU3040LVB™) is a mobile device that resides
in private, commercial or government vehicles. The LMU3040LVB™ is a single box enclosure incorporating a
processor, a GPS receiver, a wireless data modem, and a vehicle-rated power supply. The LMU3040LVB™
also supports inputs and outputs to monitor and react to the vehicular environment and/or driver actions.
Flexibility
The LMU3040LVB™ features CalAmp's industry leading advanced on-board alert engine that monitors
vehicle conditions giving you the most flexible tracking device in its class. The next generation PEG-
2™ (Programmable Event Generator 2) script engine application supports hundreds of customized exception
based rules to help meet customers' dynamic requirements. Customers can modify the behavior of the device
to meet with a range of applications preprogrammed before shipment or in the field. Combining affordability
and device intelligence with your unique application can give you distinct advantages over your competition.
Seamlessly convert previous generation PEG script and upgrade to a more efficient, cost effective and robust
platform, while greatly reducing maintenance efforts.
Over-the-Air Serviceability
The LMU3040LVB™ also incorporates CalAmp's industry leading over-the-air device management and
maintenance system software, PULS™ (Programming, Updates, and Logistics System). Configuration
parameters, PEG-2 rules, and firmware can all be updated over the air. Our web-based maintenance server,
PULS™ scripts, and firmware, can all be updated over-the-air. PULS™ offers out-of-the-box hands free
configuration and automatic post-installation upgrades. You can also monitor unit health status across your
customers' fleets to quickly identify issues before they become expensive problems.
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 5 of 36
Page
LMU3040LVB Hardware & Installation Guide
A wireless data network
Host Device An LM Direct™ communications server
Backend mapping and reporting software which typically includes mapping and fleet reporting
functions
PULS™
LMU Manager™
2 System Overview
2.1 Overview
The entire purpose behind a fleet management system is to be able to remotely contact a vehicle, determine its
location or status, and do something meaningful with that information. This could include displaying the vehicle
location on a map, performing an address look-up, providing real-time driving directions, updating the vehicles
ETA, monitoring vehicle and driver status or dispatching the vehicle to its next pick up.
These functions, of course, are completely dependent on the capabilities of the vehicle management
application. The role of the CalAmp LMU3040LVB™ is to deliver the location information when and where it is
needed.
A typical fleet management system based on a CalAmp device includes the following components:
An
LMU3040LVB
™
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 6 of 36
Page
LMU3040LVB Hardware & Installation Guide
A location or status request from the LM Direct™ server
A location or status request from LMU Manager
An SMS request made from a mobile device such as a customer’s cell-phone
Request location updates from one or more LMU-3040s™
Update and change the configuration of one or more LMU-3040s™
2.2 Component Descriptions
2.2.1 Wireless Data Network
The Wireless Data Network provides the information bridge between the LM Direct™ server and the
LMU3040™. Wireless data networks can take a variety of forms, such as cellular networks, satellite systems or
local area networks. Contact the CalAmp sales team for the networks available to the LMU3040LVB™.
2.2.2 LMU3040LVB™
The LMU3040LVB™ is responsible for delivering the location and status information when and where it is
needed. Data requests mainly come from the following sources:
PEG-2™ script within the
LMU3040LVB™
In some cases, it is necessary to run an application in the vehicle while it is being tracked by the backend
software. Such examples could include instant messaging between vehicles or a central office, in-vehicle
mapping or driving directions, email or database access. In most of these cases you will be using the
LMU3040LVB™ as a wireless modem as well as a vehicle-location device.
2.2.3 LM Direct™ Server
LM Direct™ is a CalAmp proprietary message interface specification detailing the various messages and their
contents the LMU3040LVB™ is capable of sending and receiving. This interface allows System Integrators to
communicate directly with LMU3040LVB's™. Please refer to the LM Direct Reference Guide for details.
2.2.4 Backend Software
Backend software is a customer provided software application. Regardless of its purpose, one of its primary
functions is to parse and present data obtained from the LM Direct™ server. This allows the application to do
any of the following:
Display location database on reports received from the LMU3040LVB™ in a variety of
formats
Present historic information received from the LMU3040LVB™, typically in a report/chart style
format
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 7 of 36
Page
LMU3040LVB Hardware & Installation Guide
A location or status request from the LM Direct server
A location or status request from LMU Manager
A request made from a host device such as a laptop, PDA or MDT
2.2.5 PULS™
PULS™ (Programming, Update and Logistics System) is CalAmp’s web-based maintenance server offering
out-of-the-box hands free configuration and automatic post-installation upgrades. PULS™ provides a means for
configuration parameters, PEG-2 scripts, and firmware to be updated Over-The-Air (OTA) and allows CalAmp
customers to monitor unit health status across your customers’ fleets to quickly identify issues before they
become expensive problems.
2.2.6 LMU Manager™
LMU Manager is the primary configuration tool in the CalAmp system. It allows access to almost every feature
available to the LMU3040LVB™. Unlike the backend software, it has the option of talking directly to an
LMU3040™ or making a request forwarded by the LM Direct™ server.
For further details on using LMU Manager, please refer to the LMU Manager Users Guide.
2.2.7 Wireless Data Network
The Wireless Data Network provides the information bridge between the LM Direct server and the
LMU3040™s. Wireless data networks can take a variety of forms, such as cellular networks, satellite systems
or local area networks. At this point in time, the networks available to the LMU3040LVB™ are:
LTE (Long-Term Evolution)
Long-term evolution (LTE) is the latest and rapidly growing global data transmission technology.
Based on GSM and UMTS/HSPA standards, LTE is a standard of high-speed wireless data
transmission and communication. Continuously evolving, LTE advancements continue to push data
capacity and user experience on a global scale. With a peak downlink rate of 300 mbps, uplink rate of
75 mbps, LTE sits in 1.4 MHz to 20 MHz bands, while also supporting FDD, TDD, and not sacrificing
data capability.
2.2.8 LMU3040LVB™
The LMU3040LVB™ is responsible for delivering the location and status information when and where it is
needed. Data requests can come from any of the following sources:
PEG-2™ script within the
LMU3040LVB™
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 8 of 36
Page
LMU3040LVB Hardware & Installation Guide
Class 1B – Human Model (< 1 kV)
Class M1 – Machine Model (< 100V)
3 Hardware Overview
3.1 Location Messaging Unit-LMU3040LVB™
3.1.1 LMU3040LVB™ Handling Precautions
Electrostatic Discharge (ESD)
Electrostatic discharge (ESD) is the sudden and momentary electric current that flows between two objects at
different electrical potentials caused by direct contact or induced by an electrostatic field. The term is usually
used in the electronics and other industries to describe momentary unwanted currents that may cause damage
to electronic equipment.
ESD Handling Precautions
ESD prevention is based on establishing an Electrostatic Protective Area (EPA). The EPA can be a small
working station or a large manufacturing area. The main principle of an EPA is that there are no highly charging
materials in the vicinity of ESD sensitive electronics, all conductive materials are grounded, workers are
grounded, and charge build-up on ESD sensitive electronics is prevented. International standards are used to
define typical EPA and can be obtained for example from International Electro-technical Commission (IEC) or
American National Standards Institute (ANSI).
This ESD classification of the sub assembly will be defined for the most sensitive component, therefore the
following classifications apply:
When handling the LMU3040LVB’s™ main-board (i.e. sub assembly) by itself or in a partial housing proper
ESD precautions should be taken. The handler should be in an ESD safe area and be properly grounded.
GPS Ceramic Patch Handling
When handling the sub assembly it may be natural to pick it up by sides and make contact with the antenna
boards. In an uncontrolled ESD environment contact with the center pin of ceramic patch antenna can create a
path for electrostatic discharge directly to the GPS Module. The GPS Module is very sensitive to ESD and can
be damaged and rendered non-functional at low levels of ESD. One should avoid contact with the center pin of
the patch during handling.
Packaging
Anytime the sub assembly is shipped and it is not fully packaged in its final housing it must be sealed in an
ESD safe bag.
Electrical Over-Stress (EOS)
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 9 of 36
Page
LMU3040LVB Hardware & Installation Guide
The GPS receiver can be damaged if exposed to an RF level that exceeds its maximum input rating. Such
exposure can happen if a nearby source transmits an RF signal at sufficiently high level to cause damage.
Storage and Shipping
One potential source of EOS is proximity of one LMU3040LVB™ GPS Antenna to another LMU3040LVB™
GSM Antenna. Should one of the units be in a transmit mode the potential exists for the other unit to become
damaged. Therefore any LMU3040LVB™ GPS Antenna should be kept at least four inches apart from any
active LMU3040LVB™ GSM Antenna or any other active high power RF transmitter with power greater than
1 Watt.
3.1.2 Battery Back-up devices
Please properly dispose of the battery in any of the CalAmp products that utilize one, do not just throw used
batteries, replaced batteries, or units containing a back-up battery into the trash. Consult your local waste
management facility for proper disposal instructions
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 10 of 36
Page
LMU3040LVB Hardware & Installation Guide
3.1.3 Environmental Specifications
The LMU3040LVB™ is designed to operate in environments typically encountered by fleet vehicles, including
wide temperature extremes, voltage transients, and potential interference from other vehicle equipment.
To ensure proper operation in such an environment, the LMU3040LVB™ was subjected to standard tests
defined by the Society of Automotive Engineers (SAE). The specific tests included temperature, shock,
vibration, and EMI/EMC. These tests were performed by independent labs and documented in a detailed test
report. In accordance with Appendix A of SAE J1113 Part 1, the Unit is considered a “Functional Status Class
B, Performance Region II” system that requires Threat Level 3 Testing.
The following shows the environmental conditions the LMU is designed to operate in and the relevant SAE
tests that were performed. No formal altitude tests were conducted. Dimensions
2.49”(L) x 1.89”(W) x 1.14”(H)
63.25mm (L) x 48mm (W) x 29mm (H)
Weight
1.83oz (52g)
Operating Temperature
-30° C to 75° C
Storage Temperature
-40° C to 85° C
COMPANY CONFIDENTIAL: CalAmp reserves all rights to these documents and any information contained therein.
Reproduction, use or disclosure to third parties without express permission is strictly prohibited. ©2019 CalAmp 11 of 36
Page
Loading...
