FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 1/57

FREETIME

HEXAMOTION®

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 2/57

SUMMARY

I. RECEIVING THE EQUIPMENT ................................................................................................................. 4

I.1. Checks on reception ........................................................................................................................ 4

I.2. Unpacking ........................................................................................................................................ 4

I.3. Storing ............................................................................................................................................. 4

I.1. End of life ........................................................................................................................................ 5

II. INSTALLATION ........................................................................................................................................ 5

II.1. Handling .......................................................................................................................................... 5

II.2. Space required ................................................................................................................................ 5

II.2.a. FREETIME® ............................................................................................................................... 5

II.2.b. HEXAMOTION® ........................................................................................................................ 6

II.3. Installation ...................................................................................................................................... 6

III. GENERAL FONCTIONNING ..................................................................................................................... 9

III.1.

GENERAL ...................................................................................................................................... 9

III.1.a.

FREETIME® ........................................................................................................................... 9

III.1.a. HEXAMOTION® ........................................................................................................................ 9

III.2.

FUNCTIONNAL ANALYSIS ............................................................................................................. 9

III.3.

MODE DE REGULATION ............................................................................................................. 10

III.3.a. SEASON : ................................................................................................................................ 10

III.3.b. ECO : ....................................................................................................................................... 10

III.3.c. DIVA ....................................................................................................................................... 10

III.3.d. LOBBY® : ................................................................................................................................. 10

III.3.e. MAC2® : (impossible with version FREETIME 500-800 et HEXAMOTION 05-08) .................. 10

III.3.f. QUATTRO® : (impossible with version FREETIME 500-800 et HEXAMOTION 05-08) ........... 10

III.4.

COMPOSITION ........................................................................................................................... 11

III.4.a. FREETIME® ............................................................................................................................. 11

III.4.b. HEXAMOTION® FIRST-PREMIUM ........................................................................................... 12

III.4.c. HEXAMOTION® SEASON ......................................................................................................... 13

III.5.

ELEMENTS IN THE REGULATION ................................................................................................ 14

III.5.a. FREETIME® ............................................................................................................................. 14

III.5.b. HEXAMOTION® ...................................................................................................................... 15

IV. ELECTRIC WIRING ................................................................................................................................. 16

IV.1.

POWER SUPPLY.......................................................................................................................... 16

IV.1.a. FREETIME® ............................................................................................................................. 16

IV.1.b.

HEXAMOTION®................................................................................................................... 16

IV.2.

RACCORDEMENT SEASON ......................................................................................................... 17

IV.3.

TEMPERATURE SENSOR WIRING (Except SEASON) ................................................................... 18

IV.4.

TERMINAL BLOCKS OF FREETIME® (Except SEASON) ................................................................. 18

IV.5.

Raccordement électrique et fonctionnement de l’échangeur rotatif ...................................... 20

IV.5.a. Version SEASON ..................................................................................................................... 20

IV.5.b.

Version FIRST PREMIUM .................................................................................................... 20

IV.6.

Filters pressure switches wiring and connection ...................................................................... 22

IV.7.

Fan pressure switch wiring and connection .............................................................................. 22

IV.8.

Pressure transmitters wiring and connection LOBBY®/MAC2®/QUATTRO® .............................. 22

IV.9.

Motors wiring ............................................................................................................................ 23

IV.10. CO2 sensor wiring DIVA® QUATTRO® ......................................................................................... 23

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 3/57

IV.11. Night Cooling ............................................................................................................................. 23

IV.12. Hot water coil integrated (PREMIUM BC) – changeover water coil (PREMIUM CO) or external

cold or changeover coil ............................................................................................................................ 24

IV.13. DX battery (cold or reversible) .................................................................................................. 25

IV.14. Electrical battery ....................................................................................................................... 25

IV.15. Fire function .............................................................................................................................. 25

IV.16. Dehumidification function ........................................................................................................ 26

IV.17. MODBUS / WEB / BACNET wiring ............................................................................................. 27

IV.18. Repeater wiring ......................................................................................................................... 27

IV.19. LON ............................................................................................................................................ 28

V. SETTINGS .............................................................................................................................................. 28

V.1. Display ........................................................................................................................................... 28

V.2. Exemple of setting ........................................................................................................................ 28

V.3. Standard settings (opérator menu) .............................................................................................. 29

V.3.a. Menu Mode de fonctionnement ........................................................................................... 30

V.3.b. Temperature menu ................................................................................................................ 31

V.3.c. Ventilation menu ................................................................................................................... 31

V.3.d. Timer menu ............................................................................................................................ 32

V.4. Operator parameters modification ( password 3333 required) ................................................... 33

V.4.a. Dates and hours clocks setting .............................................................................................. 33

V.4.b. Speed /pressure modification in LS and HS ........................................................................... 33

V.4.c. Temperature setpoint modification ...................................................................................... 34

V.4.d. Forced stop of the unit or forced start LS or HS on the remote control ............................... 34

V.4.e. Choice of language................................................................................................................. 34

V.5. Intermediate settings (service level) ............................................................................................ 34

V.5.a. Menu configuration en accès service .................................................................................... 35

V.6. Modification of the services parameters (password 2222) .......................................................... 35

V.6.a. Regulation mode of the unit .................................................................................................. 35

V.6.b. Overventilation parameters .................................................................................................. 35

V.6.c. CO2 setpoint for DIVA / QUATTRO option ............................................................................ 35

V.7. Administrator settings .................................................................................................................. 36

V.7.a. Configuration menu with admin level access ........................................................................ 36

V.8. Modification of the service parameters ....................................................................................... 37

V.8.a. MODBUS ................................................................................................................................ 37

VI. REPAIR .................................................................................................................................................. 39

VI.1.

Different types of defaults....................................................................................................... 39

VI.2.

List of alarms ............................................................................................................................. 39

VI.3.

Acknowledge the default « timer service » .............................................................................. 41

VII. MAINTENANCE.................................................................................................................................. 41

VII.1. Obligatory maintenance ............................................................................................................ 42

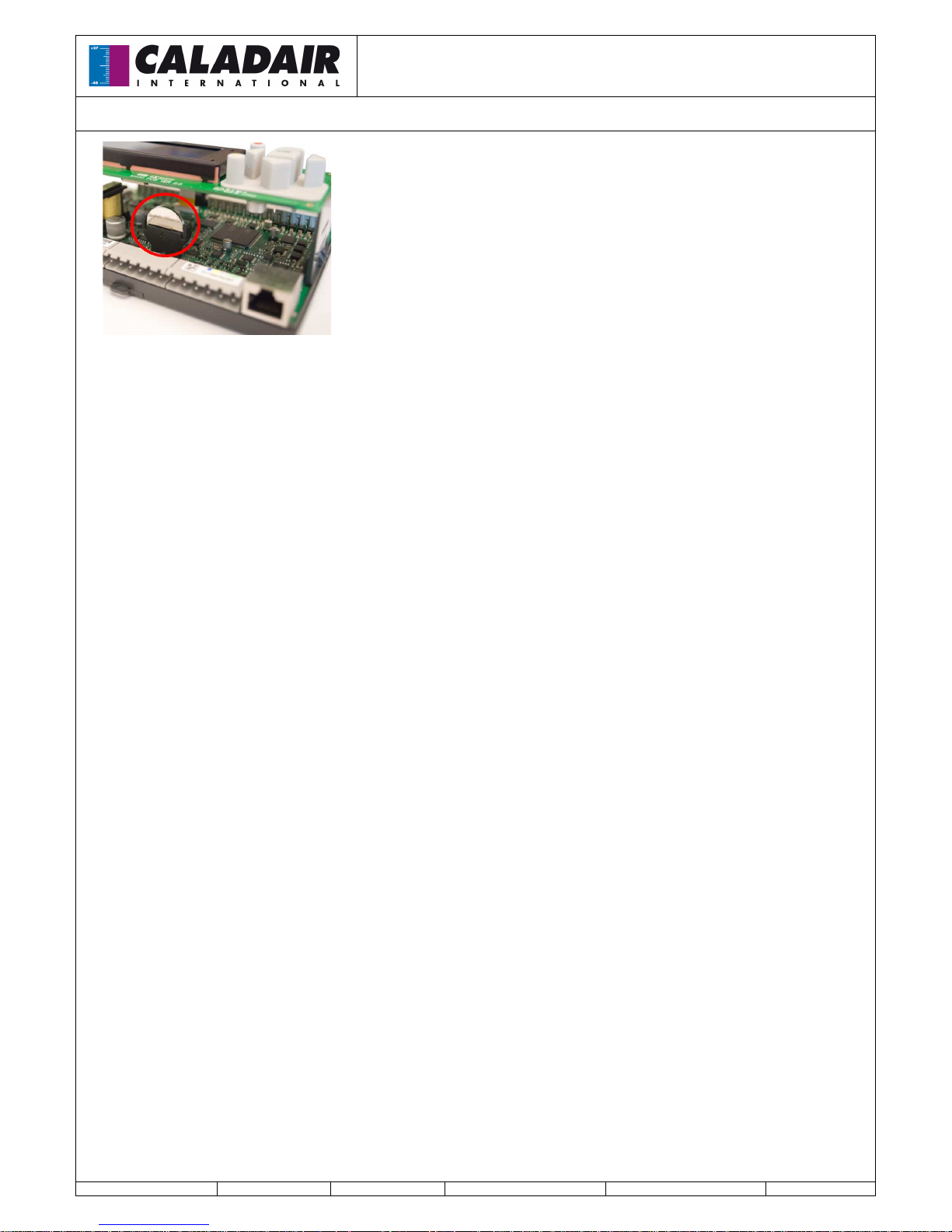

VII.2. Battery replacement ................................................................................................................. 42

•

ANNEXES .............................................................................................................................................. 44

•

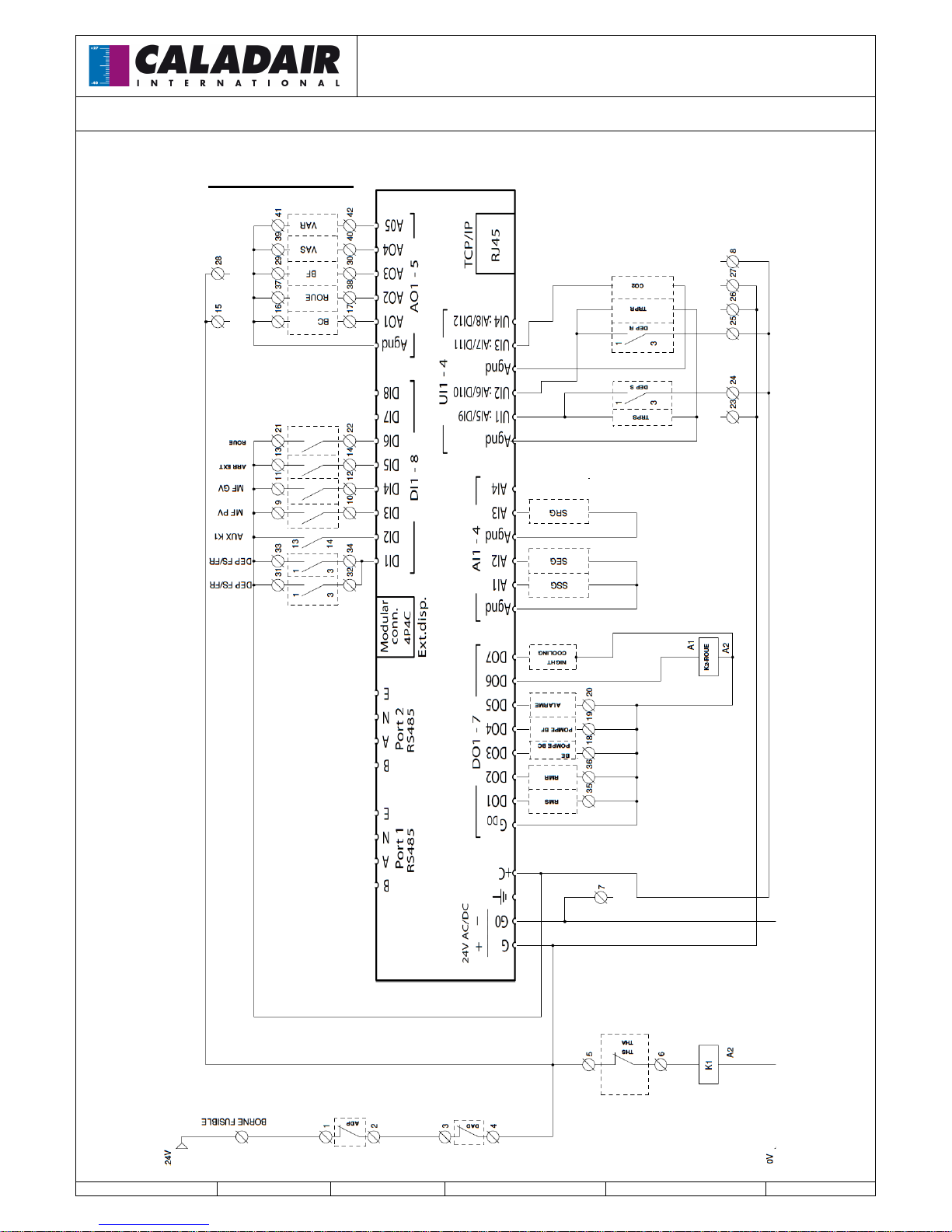

Command diagram ........................................................................................................................... 44

VII.3. Motors diagrams FREETIME® 500-800 HEXAMOTION® 05-08 .................................................. 45

VII.4. Motors diagrams FREETIME® 1500 HEXAMOTION® 15 ............................................................. 46

VII.5. Motors diagrams FREETIME® 2000 HEXAMOTION® 20 ............................................................. 47

VII.6. Motors diagrams FREETIME® 2700-3500 HEXAMOTION® 27-80 .............................................. 48

VII.7. Curves ........................................................................................................................................ 49

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 4/57

VII.7.a. FREETIME® ......................................................................................................................... 49

VII.7.b. HEXAMOTION®................................................................................................................... 51

VII.8. Table MODBUS et BACNET ........................................................................................................ 54

VIII. NOTES ............................................................................................................................................... 57

I. RECEIVING THE EQUIPMENT

The units are delivered on stringers or palettes then wrapped in plastic film

I.1. Checks on reception

When the equipment is received, the state of the packaging and the equipment must be checked. In the event of damage, make an accurate note of any problems on the carrier's delivery note

I.2. Unpacking

When the equipment is unpacked, check the following:

o The total number of packages is present. o All accessories are present (dampers, roof, electric switchgear, etc.). After unpacking the equipment, the waste must

be disposed of in compliance with the current standards. No packaging should be discarded into the environment

I.3. Storing

The equipment must be stored in shade, in a dry place, at a temperature between -20°C and 40°C. The packaging can’t be considered sufficient for an external storage.

SAFETY INSTRUCTIONS

In compliance with the current norms, the machine should be installed only by a technical person qualified for this type of work. Use the required personal protection devices so as to avoid injuries caused by electrical and mechanical hazards (injuries by touching panels, sharp edges, etc.). Use EN170 protective eyewear and ear protection. Do not use the unit for an other used which it designed. This unit can’t be use for extract or supply dangerous air. Move the machine as given in chapter handling. Grounding is carried out in compliance with current standards. Never start the device without grounding Before any intervention ensure that device is powered off and wait for complete stop of every rotative component such as damper, fan, rotative exchanger… During device is running inspection doors must be mounted and closed. Start is to be done only with padlockable swith. Do not shut off or short circuit the safety and control equipment. During interventions, be carefull with hot components such as hot water coil or electric resistances. The machine should be installed in compliance with fire norms. The waste must be disposed of in compliance with the current standards. No packaging should be discarded into the environment. We disclaim any responsibility for any damages resulting from wrong utilisation of the equipment, reparation, modification or non compliance of these instructions.

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 5/57

I.1. End of life

In accordance with the partnerships with the compagny ECOLOGIC. CALADAIR fulfills the obligations to finance the

collection, removal and treatment of Waste Electrical and Electronic Equipment. At the end of the life of this equipment, the user contacts the company ECOLOGIC who will propose a collection solution or a place of deposit for the product.

Contacts for pick-up requests: E-mail: operations-pro@ecologic-france.com Phone: 01 30 57 79 14 Internet: www.e-dechet.com

II. INSTALLATION

II.1. Handling

The units must only be moved in their installation position. If the device is handled using a fork-lift truck, ensure this supports the load-bearing structure If the device is moved using a crane, use four cables of identical lengths. These must be at least as long as the greatest distance between two fastening points.

II.2. Space required

II.2.a.

FREETIME

Generally speaking, it is desirable to provide access space equal to L

INDOOR INSTALLATION ONLY

Extract air

Supply air

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 6/57

II.2.b. HEXAMOTION®

II.3. Installation

The unit must be laid on a sufficiently rigid and flat surface (use vibration mounts if necessary). For the HVAC connection, select duct sections based on dimensions of the flexible bands that should be properly stretched. Install the unit such that bad weather or ambient temperature cannot damage the internal items of the unit during installation as well as when used later

Provide a siphon on each condensate drainage pipe. A siphon can only be used for one drainage system. Note: the siphon must be connected in accordance with Best Practices in order that the condensates are

removed as efficiently as possible

The height H must be at least equal to the maximum internal negative pressure of the unit (Dp in mm). Example : Dp = 500 Pa @ 50 mm CE

⇒

H > 50 mm 2H > 100 mm

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 7/57

HEXAMOTION® 60-80

Fasten the assembly tabs at the rear of the CTA (M8 screw + nut).

Disassemble the central panel of the access face and fix the 2 modules together (M8

screws + nut).

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 8/57

Version FIRST-PREMIUM

Version SEASON

Connect the connectors between the 2 modules

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 9/57

III. GENERAL FONCTIONNING

III.1. GENERAL

FREETIME® and HEXAMOTION® range are programme of double-flow units with high efficiency recovery, self-regulating recovery meant for office and industrial installations. Its performance is greater than 80%.

III.1.a.

FREETIME

FREETIME® SEASON : Manages the fans by potentiometers and rotative exchanger. No battery can be associated. FREETIME® FIRST : Econological management of fans and rotative exchanger. Allows managing a non-integrated

changeover battery or (hot water battery non-integrated or and cold water battery non integrated). FREETIME® PREMIUM BC : Econological management of the fans, rotative exchanger and a hot water integrated battery. If required, it can also manage a non-integrated cold water battery. FREETIME® PREMIUM BE : Econological management of the fans, rotative exchanger and an electrical integrated battery. If required, it can also manage a non-integrated cold water battery.

III.1.a. HEXAMOTION®

HEXAMOTION® SEASON : Manages the fans by potentiometers and rotative exchanger. No battery can be associated. HEXAMOTION

FIRST : Econological management of fans and rotative exchanger. Allows managing a non-integrated

changeover battery or (hot water battery non-integrated or and cold water battery non integrated).

HEXAMOTION

PREMIUM CO : Econological management of the fans, rotative exchanger and a changeover water

integrated battery. If required, it can also manage a non-integrated cold water battery. HEXAMOTION ® PREMIUM BE : Econological management of the fans, rotative exchanger and an electrical integrated battery. If required, it can also manage a non-integrated cold water battery. HEXAMOTION ® PREMIUM DXR : Econological management of the fans, rotative exchanger and an reversible directe expension battery.

III.2. FUNCTIONNAL ANALYSIS

Except SEASON version

Starting sequence :

o The supply air fan starts and the fresh air register opens. o The extract air fan starts and the extract air register opens o Temperature regulation starts defined in the regulation mode set. Electric heater (if set), starts with airflow controller.

Pumps start. o After a defined time, alarms management function is activated. Installation is in normal mode.

Start conditions : Installation starts when one of these conditions are filled:

o Timer normal or reduced are activate o Manual start is activated with controller o One of the digital input for extended operation is activated.

Stop sequence : Installation stops with following process:

o Deactivation of the alarm management function. o Electric heater stops (if set). o After a defined time (individually defined for each fan) fans are stopped. o Supply and return air registers are closed . o Signals toward actuator are reset and pumps closed

Stop conditions : Installation stops when one these conditions are filled:

o Timers normal or reduced are not activated and digital input for extended operation is not activated. o Digital Input for External stop is activated. o Manual stop is activated with controller o An alarm configured with stop function is activated. Installation will automatically start when alarm is reset.

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 10/57

Vitesse GV

Vitesse PV

III.3. MODE DE REGULATION

III.3.a. SEASON :

1 Adjustable speeds from potentiometers

Each fan is individually adjustable from integrated potentiometer

Possibility to add a remote forced stop (in standard on supply contactor (not supplied))

III.3.b. ECO :

1 or 2 speeds adjustable « MODE VENTIL (%) »

Adjustment of a minimum speed (LS - 1/2) and a maximum speed (HS - 1/1) in %. Fitted with a factory turned clocked set :

o (HS - 1/1) from 06h00 to 22h00 o (LS - 1/2) from 22h00 to 06h00

Possibility of adding a remote forced start (LS - 1/2) or (HS - 1/1) (free voltage contact NO) Possibility of adding a remote forced stop (free voltage contact NO)

III.3.c. DIVA

Proportional ventilation between two airflows (LS/HS) with CO2 management « AUTO CO2 MODE »

Adjustment of a minimum speed (LS - 1/2) and a maximum speed (HS - 1/1) in %. CO2’s setpoint is set in factory to 1000ppm (compliant to French RT2012). Variation between (LS - 1/2) and (HS - 1/1) is managed from CO2 level Fitted with a factory turned clocked set in (LS - 1/2) from 00h00 to 24h00. Possibility of adding a remote forced start (LS - 1/2) or (HS - 1/1) (free voltage contact NO) Possibility of adding a remote forced stop (free voltage contact NO)

Nota : In order for the CO2 regulation works, installation must follow these constraints :

o Clock (HS - 1/1) is not activated (normal speed timer) o Clock (LS - 1/2) is activated (reduced speed Timer) o External operation (HS - 1/1) and external stop are not activated.

III.3.d. LOBBY® :

Constant pressure ventilation. (Pa) « CONSTANT PA MODE»

Constant pressure adjustement (Pa). Fitted with a factory turned clocked set in (LS - 1/2) from 00h00 to 24h00. Possibility of adding a remote forced start (LS - 1/2) (free voltage contact NO) Possibility of adding a remote forced stop (free voltage contact NO)

III.3.e. MAC2® : (impossible with version FREETIME 500-800 et HEXAMOTION 05-08)

1 or 2 constant air flow (m3/h) adjustable « MODE CONSTANT M3/H » Adjustment of a minimum constant air flow (LS - 1/2) and a maximum air flow (HS - 1/1) in m3/h. Fitted with a factory turned clocked set :

o (HS - 1/1) from 06h00 to 22h00 o (LS - 1/2) from 22h00 to 06h00

Possibility of adding a remote forced start (LS - 1/2) or (HS - 1/1) (free voltage contact NO) Possibility of adding a remote forced stop (free voltage contact NO)

III.3.f. QUATTRO® : (impossible with version FREETIME 500-800 et HEXAMOTION 05-08)

Proportional ventilation between two constant airflows (m3/h) adjustable with CO2 management

Adjustment of a minimum constant air flow (LS - 1/2) and a maximum air flow (HS - 1/1) in m3/h. CO2’s setpoint is set in factory to 1000ppm (compliant to French RT2012). Variation between (LS - 1/2) and (HS - 1/1) is managed from CO2 level Fitted with a factory turned clocked set in (LS - 1/2) from 00h00 to 24h00. Possibility of adding a remote forced start (LS - 1/2) or (HS - 1/1) (free voltage contact NO) Possibility of adding a remote forced stop (free voltage contact NO)

Nota : In order for the CO2 regulation works, installation must follow these constraints :

Vitesse GV

Vitesse PV

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 11/57

o Clock (HS - 1/1) is not activated (normal speed timer) o Clock (LS - 1/2) is activated (reduced speed Timer)

o External operation (HS - 1/1) and external stop are not activated.

III.4. COMPOSITION

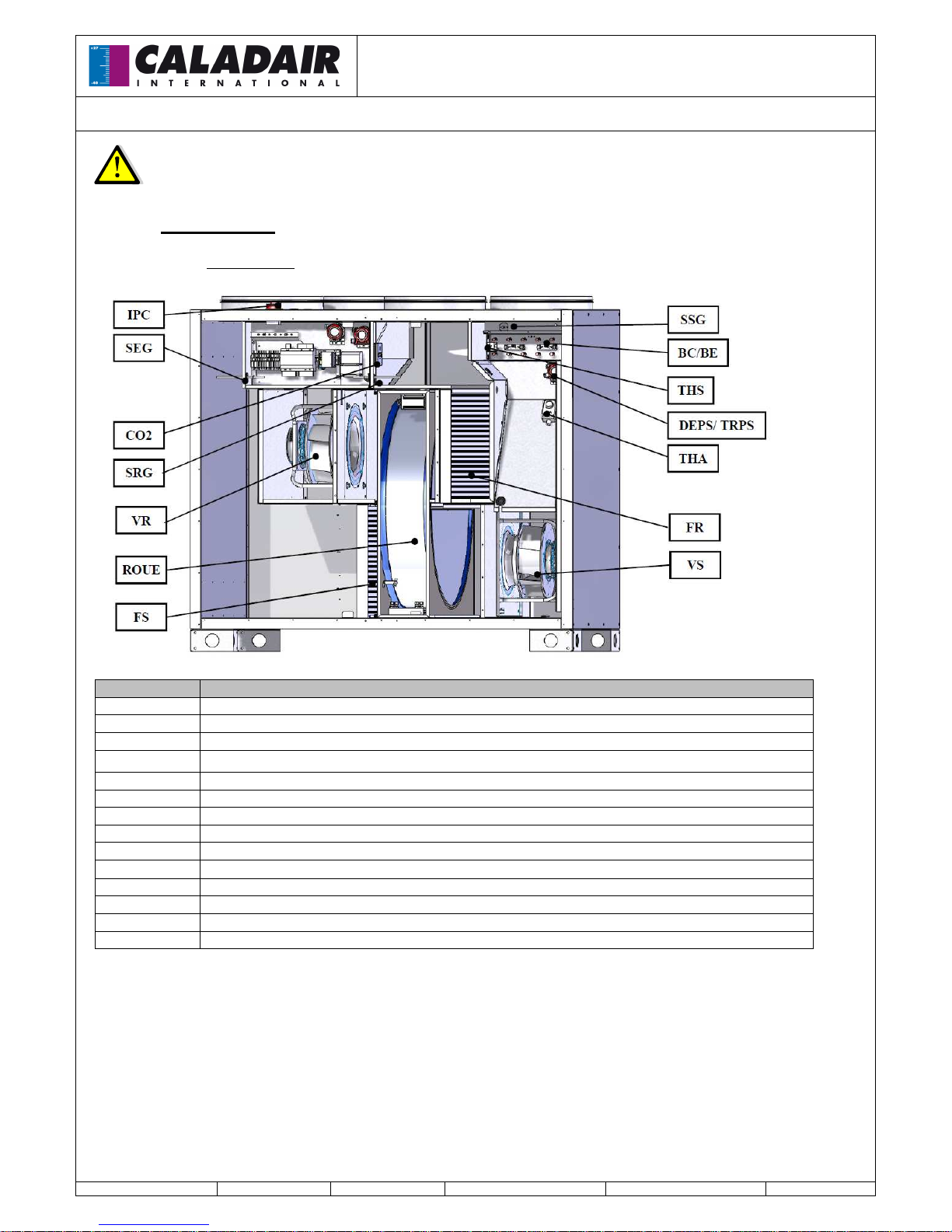

III.4.a. FREETIME®

Nom Détails IPC Padlockable switch VS Supply air fan VR Extract air fan CO2*

CO2 sensor (DIVA®-QUATTRO® only) SEG* Outdoor temperature sensor SRG* Extract temperature sensor SSG* Supply temperature sensor FS Supply filter FR Extract filter DEPS / TRPS

Supply pressure switch or supply pressure transmitter for version LOBBY®-MAC2®-QUATTRO® THA* External fros guard (version PREMIUM BC) THS* Overheat security thermostat (version PREMIUM BE) BC/BE* Hot water coil or electrical battery (see version) ROUE Rotative exhanger with rotative sentinel included *components non included in SEASON version

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 12/57

III.4.b. HEXAMOTION® FIRST-PREMIUM

05-45

60-80

FS1 FS2

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 13/57

Nom Détails VS Supply air fan VR Extract air fan CO2*

CO2 sensor (DIVA®-QUATTRO® only) SEG* Outdoor temperature sensor SSG* Supply temperature sensor FS1 Supply filter 1 FS2 Supply filter 2 (OPTION) DEPFS Filter guard pressure switch FR Extract filter DEPR / TRPR

Extract pressure switch or extract pressure transmitter for version LOBBY®-MAC2®-QUATTRO® THA External fros guard (version PREMIUM CO) THS Overheat security thermostat (version PREMIUM BE) BC/BE/DXR Hot water coil or electrical battery (see version) ROUE Rotative exhanger with rotative sentinel included

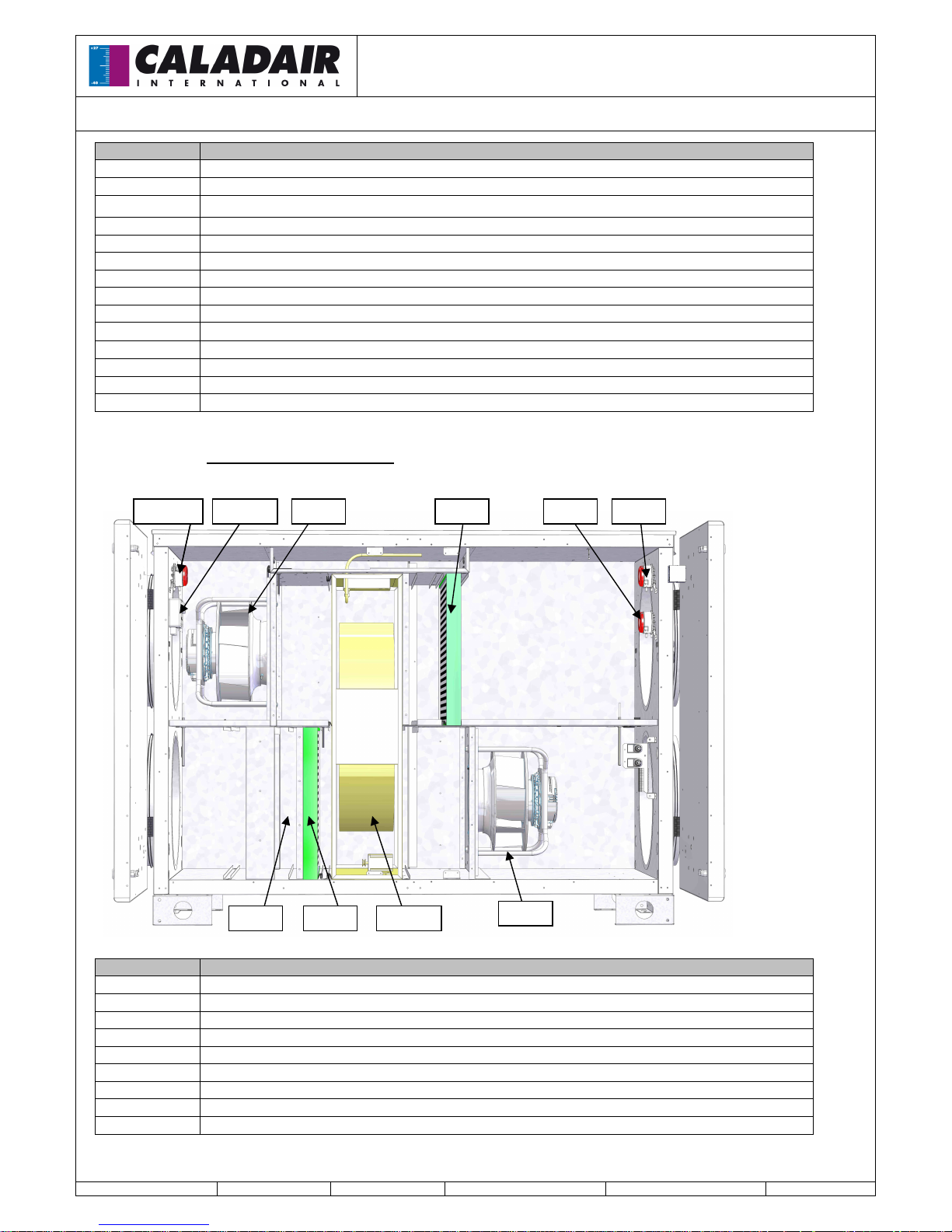

III.4.c. HEXAMOTION® SEASON

Nom Détails VS Supply air fan VR Extract air fan FS1 Supply filter 1 FS2 Supply filter 2 (OPTION) DEPFS Filter guard pressure switch DEPR Extract pressure switch DEPS Supply pressure switch TH1-2 Thermostat for Bypass ROUE Rotative exhanger with rotative sentinel included

FS2 FS1

VS FR DEP S

ROUE

TH1-2 DEP R DEP FS

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 14/57

III.5. ELEMENTS IN THE REGULATION

III.5.a. FREETIME®

III.5.a.1. REGULATION ECO/DIVA/LOBBY

III.5.a.2. REGULATION SEASON

Nom Détails DEPFS Filter pressure switch DEPS ou TRPS

Extract pressure switch or extract pressure transmitter for version LOBBY®-MAC2®-QUATTRO® TRAFO Transformer 230/24V K1 Contactor of electric battery heater K2 Rotative exchanger relay REGULATEUR CORRIGO E283W3 controller

Nom Détails DEPFS Filter pressure switch DEPR Extract pressure switch TH2 Summer setpoint thermostat for start rotative excanger TH1 Winter setpoint thermostat for start rotative excanger

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 15/57

III.5.b. HEXAMOTION®

III.5.b.1. REGULATION ECO/DIVA®/LOBBY®/MAC2®/QUATTRO®

III.5.b.2. REGULATION SEASON

Nom Détails DEPS ou TRPS

Supply pressure switch or extract pressure transmitter for version LOBBY®-MAC2®-QUATTRO® DEPR ou TRPR

Extract pressure switch or extract pressure transmitter for version LOBBY®-MAC2®-QUATTRO

(05-45 only) TRAFO Transformer 230/24V K1 Contactor of electric battery heater K2 Rotative exchanger relay K3 Contactor of electric battery heater (Step 2 = 60-80) REGULATEUR CORRIGO E283W3 controller

Nom Détails POTS Potentiometer supply air fan POTR Potentiometer extract air fan

08-45 60-80

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 16/57

IV. ELECTRIC WIRING

IV.1. POWER SUPPLY

IV.1.a. FREETIME®

IV.1.b. HEXAMOTION®

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 17/57

IV.2. RACCORDEMENT SEASON

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 18/57

IV.3. TEMPERATURE SENSOR WIRING (Except SEASON)

Temperature sensors are connected on the controller

o SSG : Supply temperature sensor on Agnd(30) and AI1(31) o SEG : Outdoor temperature sensor on Agnd(30) et AI2(32) o SRG : Extract temperature sensor on Agnd(33) et AI3 (34)

IV.4. TERMINAL BLOCKS OF FREETIME® (Except SEASON)

Désignation Bornes Raccordement

ADP (shunted if not used)

1-2 Connect on fire emergency stop (free voltage NC contact)

DAD (shunted if not used)

3-4 Connect on DAD (smoke detector) default contact (NC)

THA/THS (shunted if not used)

5-6

Connect to NC free voltage contact of THA (

PREMIUM BC - CO

) Or Connect to NC free voltage contact of THS (

PREMIUM BE

)

ED-TOUCH

7-8 + A*-B*

(port2)

Connect to remote touch screen display

MF PV

9-10 Connect to NO free voltage contact of reduced Speed extended operation

MF GV

11-12 Connect to NO free voltage contact of normal Speed extended operation

ARR EXT

13-14 Connect to NO free voltage contact of external stop

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 19/57

*A raccorder directement sur régulateur CORRIGO

** A raccorder directement sur régulateur CORRIGO et 8A max sur l’ensemble des DO

15-16-17 BC :Connect to 3 ways valve of the hot water battery (cf chapter IV.12)

18 + DO3** BE : Connect to static contactor of the electric battery (see chapter IV.14)

Heating pump (PREMIUM BC)

18 + DO3** Connect to hot water circulator (Note : 24V 2AMax to relay) (see chapter IV.12)

Cooling pump

19 + DO4** Connect to cold water circulator (Note : 24V 2AMax to relay)(see chapter IV.12)

20 + DO5** 24V output available if unit is in default (Note : 24V 2A Max to relay)

NC (Night cooling) (LOBBY®)

22 + DO7** 24V output available if unit runs with the

optional LOBBY EC for opening

dampers during Night Cooling. (pay attention : 24V 2A Max to relay)

TRPS

23 / Agnd* + UI1* Connect to supply Pressure Transmitter (see chapter IV.8)

DEPS

24 + UI1* Connect to terminal 1 and 3 of supply pressure switch (see chapter IV.7)

TRPR

25 / Agnd* + UI2* Connect to return pressure Transmitter (see chapter IV.8)

DEPR

26 + UI2* Connect to terminal 1 and 3 of return pressure switch (see chapter IV.7)

CO2

27 / Agnd* UI3* Connect to CO2 sensor (see chapter IV.10) DIVA/QUATTRO option

28-29-30 BF :Connect to 3 ways valve of the cold water battery (see chapter IV.12)

DEP FS DEP FR

31-32 33-34

Connect to terminal of exhaust filter switch (see chapter IV.6) Connect to terminal 1 and 3 of return filter switch (see chapter IV.6)

RMS

35 + DO1** Connect to fresh air damper actuator

RMR

36 + DO2** Connect to extract air damper actuator

ROUE

37-38 and 21-22 Rotative exchanger wiring (Cf IV.5)

0-10V S

39-40 Connect to Supply air fan (cf chapter VIII.2 and 5)

0-10V R

41-42 Connect to Extract air fan (cf chapter VIII.2 and 5)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 20/57

IV.5. Raccordement électrique et fonctionnement de l’échangeur rotatif

IV.5.a. Version SEASON

Rotative exchanger is factory wired Son fonctionnement est automatique grâce à deux thermostats : It automatically runs with two thermostats: In winter: if outside intake air is lower to 18°C (adjustable), The rotative exchanger starts to recover maximum calories. In summer: COLD RECOVERY : if outside intake air is higher to 24°C (adjustable), The rotative exchanger starts to recover maximum of calories. FREE COOLING : if outside temperature is between 24° et 18° (adjustable) The rotative exchanger stops to bring directly outside fresh air

IV.5.b.

Version FIRST PREMIUM

Rotative exchanger is factory wired CORRIGO controller drives automatically the bypass thanks to programmation and sensor mounted in standard on FREETIME units. In winter: when heat is needed, The rotative exchanger starts to recover maximum of calories. If it is not enough to reach the temperature setpoint, hot battery starts running. In summer : COLD RECOVERY : if outside temperature is higher than inside temperature and cold is needed , The rotative exchanger starts to recover maximum of calories. If it is not enough to reach the setpoint, cold battery starts running. FREE COOLING : if outside temperature is lower than inside temperature and cold is needed , The rotative exchanger stops to bring directly outside fresh air. If it is not enough to reach temperature setpoint cold battery starts running.

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 21/57

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 22/57

IV.6. Filters pressure switches wiring and connection

Le pressostat filtre air neuf est câblé et raccordé d’usine

IV.7. Fan pressure switch wiring and connection

Les pressostats ventilateurs sont câblés et raccordés aérauliquement d’usine

IV.8. Pressure transmitters wiring and connection LOBBY®/MAC2®/QUATTRO®

DEPFR DEP FS

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 23/57

IV.9. Motors wiring

See chapter VIII.2 et VIII.3

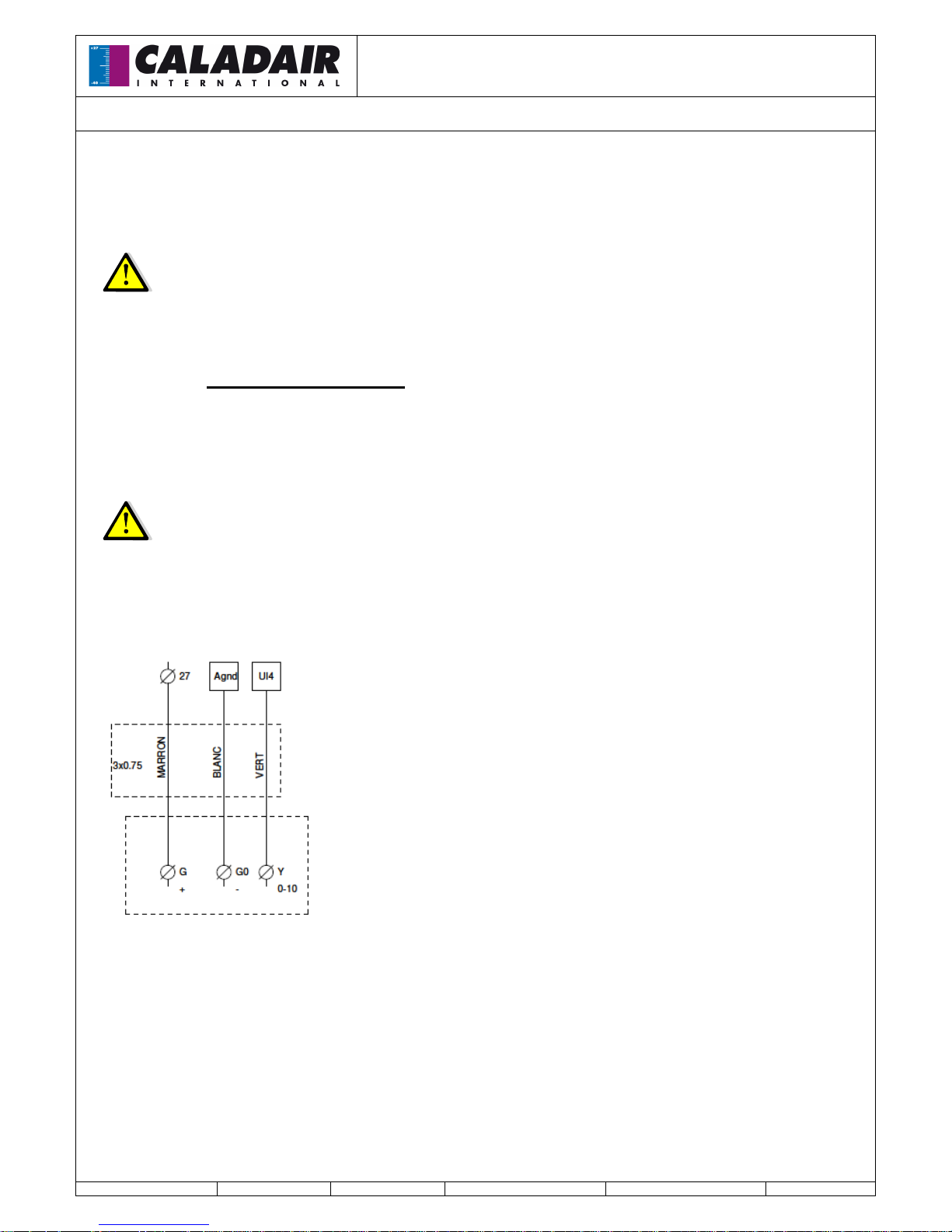

IV.10. CO2 sensor wiring DIVA® QUATTRO®

CO2 transmitter is factory connected

IV.11. Night Cooling

This function is used during summer to cool down buildings during nights with outside cool air. It decreases the cold needs during days. Night Cooling function runs only from 00:00 AM to 7:00 h AM. During Night Cooling, hot and cool outputs are locked on 0V. Exchanger runs only with fresh air. At the end of Night Cooling period heating is blocked to 0V during 60 minutes. Start conditions: customizable in chapter V.5.b.2

o Outside temperatures are higher to 22°C during the day. o Clocks are setted in LS or stopped during 00h00 and 07h00. o Outside temperature is lower than 18°C during Night Cooling period o Outside temperature is higher to 10°C during Night Cooling period o Room temperature is higher to 18°C

During Night Cooling period fans are running 85% of their capacity. This speed is adjustable (see chapter V.5.b.2) For LOBBY versions, a 24V output (to relay) is available between 22 and DO7 terminals to force the opening of damper’s zone during Night Cooling period.

SUPPLY LOBBY EXTRACT LOBBY

For version BC or CO, the pressure tube is installed after the coil

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 24/57

IV.12. Hot water coil integrated (PREMIUM BC) – changeover water coil (PREMIUM CO) or

external cold or changeover coil

Pay attention to let the doors free of access (ducts, cables) Hot water coil is mounted in the unit (PREMIUM BC and PREMIUM CO version), defrost Thermostat is connected. You have to cable the 3 ways valve. If a cold battery is used or changeover battery in duct is used, move the supply sensor after the battery.

3 WAYS VALVE MUST BE CONNECTED WHEN POWER IS OFF

Connect the servomotor of the 3 ways valve as following instructions: Hot Battery : Terminal 15 on +24V (G) of the 3 ways valve actuator Terminal 16 on 0V (G0) of the 3 ways valve actuator Terminal 17 on 10V (Y) of the 3 ways valve actuator Connect NC contact (C et 2) of the THA (Deicing Thermostat) on 5 and 6. Possibility to connect the circulator on the DO3 terminal of the regulator and the terminal block 18. (Note: 24V output to relay)

Cold Battery : Install siphon on the drain evacuation Terminal 28 on +24V (G) of the 3 ways valve actuator Terminal 29 on 0V (G0) of the 3 ways valve actuator Terminal 30 on 10V (Y) of the 3 ways valve actuator Connect NC contact (C and 2) of THA (Deicing Thermostat) on 5 and 6 Possibility to connect the circulator on the DO4 terminals of the regulator and the terminal block number 19. (Note: 24V output to relay)

Batterie changeover : Install siphon on the drain evacuation The changeover thermostat must be connected to the water inlet before Bypass. You must cable 3 ways valve to the changeover thermostat. Connect them following the instructions below : Red wire to the changeover thermostat (CO) on 10V (Y) of the valve Terminal 15 on +24V (G) of the 3 ways valve actuator Terminal 16 on the 0V (G0) of the 3 ways valve actuator Terminal 17 connected to the brown wire of the changeover thermostat (Heat signal) Terminal 30 connected to the black wire of the changeover thermostat (Cold signal) Connect the NC contact (C and 2) of THA (Deicing Thermostat) on 5 and 6

Possibility to connect the circulator on the DO3 terminal of the regulator and the terminal block 18 (heat demand) and on the

DO4 terminals of the regulator and the terminal block number 19 (cold demand ). (Note: 24V output to relay) ATTENTION In this case use a relay for each exit and cable in parallel on the ON/OFF of the circulator.

battery

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 25/57

IV.13. DX battery (cold or reversible)

DX battery is mounted in the unit (version PREMIUM CO) For units equipped with direct expansion battery, additionnal module is equipped with a drain pan. Plan to make a duct of the condensates with a siphon.

At your disposal :

o 24 V output when unit is on cold or heating needs. o 0-10V hot output and a 0-10V cold output.

Heating needs :

o 24V output: to connect to DO3 terminals of the controller and 18 of the terminal block. It allows the start to

drive the direct expansion battery module (Attention 24V 2A Max to relay)

o 0-10V output: to connect to 15 and 16 terminals(15=0V et 16 =0/10V)

Cold needs:

o 24V output: to connect to DO4 terminals of the controller and 19 of the terminal block. It allows the start to drive

the direct expansion battery module (Attention 24V 2A Max to relay)

o 0-10V output: to connect to 29 and 30 terminals (29=0V et 30 =0/10V)

ATTENTION: In case of a 24V output is used, make a relay between each output and cable them in parallel on the M/A of the direct expansion module.

ATTENTION: The command 24V et 0-10V start do not manage any safety … of the direct expansion module.

IV.14. Electrical battery

Heating Electric batteries are single phased for FREETIME 500 à 1500 – HEXAMOTION 05-15 and three-phased for FREETIME 2000 à 3500 – HEXAMOTION 20-80.

IV.15. Fire function

See configuration chapter V.8

There are 2 ways to drive the fire function:

o Emergency Fireman stop: cable between 1 and 2 terminals (NC free voltage contact). Total stop of the central control.

(no display available)

o Fire alarm: this function controls exhaust and return fans with 5 modes available in the parameters of the regulation

(the function can be activated on site). “fire alarm” will be will be on the display.

1. « stop » : complete stop of the unit

FREETIME 500-1500 HEXAMOTION 05-15

FREETIME 2000-3500 HEXAMOTION 20-45

HEXAMOTION 60-80

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 26/57

2. «continuous work » : Start of the unit in HS, fire function will have priority on all the other alarms.

3. «Normal work» : keeps the unit running with parameters activated on site (Stop/LS/HS)

4. « Supply fan only » : start or keeps in HS the supply fan (extract stopped)

5. « Extract fan only » : starts or keeps in HS the extract fan (supply stopped)

Digital input « external stop » is priority on fire function.

This function is not adapted anymore to the French market and will be in all cases validated by the control office.

Digital input fire alarm will be connected between DI8 terminal of the controller and 13 of the terminal block (free voltage

contact required) )

IV.16. Dehumidification function

See parameters in chapiter V.8

It is possible to associate the unit to a COMBIBOX CONCEPT

module equipped with a cold battery (water or cold direct expansion module only) followed by a hot battery (water or electric or hot direct expansion module DX heat). In this case controller will manage automatically the heating or cold inputs for the dehumidification and will keep an ideal functioning temperature. During cold needs period, the temperature management will have priority on dehumidification.

Function non available in DIVA mode

Connect batteries as indicated in chapters IV.12, IV.14 Install the humidity duct sensor in supply or extract air, following the humidity control mode.

Connect the humidity sensor as following instructions :

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 27/57

IV.17. MODBUS / WEB / BACNET wiring

(see parameters in chapters V.8) MODBUS RS485 and BACNET MSTP: Use armoured cable 2 crossed pairs wire type BELDEN 8723 or similar to connect

BMS to controller (to connect to port 1 (BANE) / connect armour to N and don’t connect E) WEB / MODBUS TCP/IP et BACNET IP: to connect to TCP/IP port

IV.18. Repeater wiring

see parameters in chapter V.8

You need to use a repeater in case of you want to connect:

o More than one unit on the same display (maximum 6) o A remote control at a distance higher than 100m

In this case you can move to 1 kilometer the remote control. Use 2 crossed wire type BELDEN 8723 or similar between repeater and controller. Supply repeater in 230V single mono phase. Connect on port 1 the wires as following instructions :

o B of repetitor on B terminal of the regulation board (armour wire as in drawing under) o A of repetitor on A terminal of regulation board (armour wire as in drawing under) o N of repetitor on N terminal of regulation board (armour wire as in drawing under)

Plan a 230V single phase power supply on the repetitor.

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 28/57

IV.19. LON

(see configuration in chapter V.8) Wired port 2 of master on port 1 of LON controller

V. SETTINGS

V.1. Display

FREETIME® is delivered in standard with ED-TOUCH touch screen display. With the ED-TOUCH, you have acces to emulator (see manual ED-TOUCH) HEXAMOTION® is delivered in standard with ED9200IP65 display

Once accessed to the emulator settings , you will have access to all function and screens below

o Directional arrows up, down left and right help to navigate in the menus. o Up and Down buttons help to increase or decrease the values of a parameter when you have access to. Right and left

buttons help to navigate inside the parameter.

o OK button help to enter the value and to confirm a choice. C button helps to cancel it. o Alarm button (red) allows the access of the defaults list. o Left arrow also helps to go out of the alarm menu and go back to the main menu o Cursors indicate the possible movements and which arrows to press.

V.2. Exemple of setting

o Move the cursor to the required menu

In the required menu: press OK

Enter the password if necessary

o Enter the required value with arrows or with numerical keyboard o Press OK to valid and go to next step.

When values are updated press the left arrow to come back to the welcome screen

Hour : ex :

10:33

Date : ex : 08/12/23 (year/month/day) Day : ex : Mardi

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 29/57

V.3. Standard settings (opérator menu)

Words in normal writing = viewing only / Words in bold = Modification is possible / Outlined words in bold= Modification is possible with password 3333 … = non accessible or not used

ATTENTION : Do not modify parameters which are not in bold characters, in this case no after sales will be admitted

Regulation mode Year: month :day Hour System: state of unit SP : Setpoint T°C Act : T°C actuelle

CORRIGO E Battery type Control type PG number

Ventilation Version : Id number :

Choose language

English

(10)

List of the accessible and modifiable main menus with password 3333. Humidity regulation menu is only accessible when unit is in humidity control mode

Running mode Temperature Ventilation Timer Access right

(10) Langu

e setting (see chapiter V.4.e)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 30/57

V.3.a. Menu Mode de fonctionnement

Running mode

…

Running mode

Auto (7)

Running time

Vent.SAF

: 00.0 H

Running time

Vent.EAF: 00.0 H

Rapport alarme

Visualisation de ’historique des alarmes

(Utilisez la flèche du bas pour faire défiler

l’historique)

… Input/output

AI Analogue Input

DI Digitale input

UI Universel Input

AO Analogue output

AI1: T° AS (suuply) AI2: T° Ext (outdoor) AI3: T° AR (extract) AI4:

DI1: Al Filter1 DI2: Over heat

External frost guard DI3: Ext 1/2 DI4: Ext 1/1 DI5: Ext stop

DI6 : rotative exchanger default

UAI1: Press AS

(LOBBY/MAC2/QUATTRO)

UAI2: Press AR

(LOBBY/MAC2/QUATTRO)

UAI3: CO2

(DIVA/QUATTRO)

UAI4: HR

(DEHU)

UDI1: Start VAS

UDI2

: Start VAR

AO1: Y1 Heating. AO2: Y2 Exchang. AO3: Y3 Cool AO4: Ctrl SAF AO5: Ctrl EAF

DO1: V.freq SAF DO2: V freq EAF DO3: Elec hot Batt. or heat pump DO4: Cold Pump DO5: Total Alarm DO6: rotative exchanger demand DO7: Night cooling (LOBBY)

(7) Unit Start/Stop (see chapter V.4.d)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 31/57

V.3.b. Temperature menu

V.3.c. Ventilation menu

Ventilation

Frequency control

(ECO OU DIVA)

SAF Output: 70 (5)

% or

Pressure Control EAF (LOBBY) Real : 183Pa (exemple) Setpoint : 180 Pa(5)

Frequency control manuel vent.SAF Output 1/1: 70% (5) Output 1/2: 50% (5)

(5) Speeds, pressures, airflows (see chapter V.4.b)

Frequency control manuel vent.EAF Output 1/1: 180Pa (5) Output 1/2: 180Pa (5)

Frequency control

(ECO OU DIVA)

manuel vent.SAF Output: 70 (5)

% or

Pressure Control EAF (LOBBY) Real : 183Pa (exemple) Setpoint : 180 Pa(5)

Frequency control manuel vent.SAF Output 1/1: 70% (5) Output 1/2: 50% (5)

Frequency control manuel vent.EAF Output 1/1: 180Pa (5) Output 1/2: 180Pa (5)

Temperature.

Extarct Temperature Real: Setpoint : 21°C (8)

Setpoint comp ext

-20°C = 25°C (8)

-15°C = 24°C (8)

-10°C = 23°C (8)

(8)

Temperature setpoint setting

(see chapter V.4.c)

Outdoor temp : Supply temp Real : Cons Setpoint :

Consigne comp ext

-5°C = 23°C (8) 0°C = 22°C (8) 5°C = 20°C (8)

Setpoint comp ext 10°C = 18°C (8) 15°C = 18°C (8)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 32/57

V.3.d. Timer menu

Timer

Hour/Date

Hour :

15:54 (1)

Date : 2011-01-25 (1) Day : Tuesday (1)

Timer normal speed

Normal speed Monday (2) Per 1 : 06:00 - 22:00 Per 2 : 00:00 - 00:00

Normal speed Monday - Friday (2) Per 1 : 06:00 - 22:00 Per 2 : 00:00 - 00:00

Normal speed Tuesday (2) Per 1 : 06:00 - 22:00 Per 2 : 00:00 - 00:00

Etc…untill sunday + holidays

Timer reduced speed

Slow speed Monday (2) Per 1 : 06:00 - 22:00 Per 2 : 00:00 - 00:00

Slow speed Monday - Friday (2) Per 1 : 06:00 - 22:00 Per 2 : 00:00 - 00:00

Slow speed Tuesday (2) Per 1 : 06:00 - 22:00 Per 2 : 00:00 - 00:00

Etc…untill sunday + holidays

Access rights

Enter

Exit

Enter password of the autorisation level required : **** Current level:

Exit this autorisation level ?

NO or

YES

Current level

1. Hour and date setting (see chapter V.4.a)

2. HS program setting (see chapter V.4.a)

3. LS program setting (see chapter V.4.a)

4. Holidays period setting (see chapter V.4.a)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 33/57

V.4. Operator parameters modification ( password 3333 required)

V.4.a. Dates and hours clocks setting

V.4.a.1. Date and hour of the CORRIGO controller [(1) chapter V.3.d]

Access : Hour Date setting Date and hour of the regulator are set by defaut in the CORRIGO controller. Summer/Winter time is automatically managed.

V.4.a.2. Hour programmation of the functionning system [(2) (3) chapter V.3.d]

Access :

o Timer normal speed : Time settings / normal speed programm o Timer reduced speed : Time settings / slow speed programm

System is set to work in normal speed (HS-1/1) 07:00 - 22:00 in slow speed (LS-1/2) 22:00 - 06:00 except DIVA / LOBBY / QUATTRO versions which work in slow speed (LS-1/2)

As indicated in arborescence you also have the possibility to modify Monday to Friday periods by pressing the right button when you are on the Monday screen Nota : if slow speed (LS-1/2) and normal speed (HS-1/1) are activated in the same time window, unit works in high speed Operation exceptions:

DIVA®/QUATTRO® : For CO2 regulation do not activate any normal speed time window (GV-1/1) LOBBY: Only slow speed clock (LS-1/2) must be activated NIGHT COOLING: Only works if unit is in slow speed (LS-1/1) between 00:00 and 07:00.AM (Example: If unit is in (LS-1/2) between 02:00 and 06:00 and in (HS-1/1) the rest of the time. Then NIGHT COOLING is allowed to work only from 02:00 to 06:00 AM)

V.4.a.3. Vacation time [(4) chapter V.3.d] (password 3333 required)

Access : Hour settings / holidays System is set with no vacation time. If you need to reduce functionnement time during vacation time, set the functionning time window as indicated in chapter V.3.4), and set the vacation days.

V.4.b. Speed /pressure modification in LS and HS

V.4.b.1. STANDARD (ECO) / DIVA [(5) chapter V.3.c]

Access : ventilation Regul / Frequency control VAS 1/1 and 1/2 or frequency control VAR 1/1 et 1/2 You can modify the rotation speed of the unit in PV-1/2 (slow speed) and in HS-1/1 (normal speed) for each fan to set the airflows.

o To set the initial airflow (GV-1/1), force the system in normal speed with available terminals « Forced start HS »

(bridge between 11 and 12 terminals).

o To set the initial airflow LS, force the system in slow speed with available terminals « Forced start LS » (bridge

between 9 and 10 terminals).

V.4.b.2. LOBBY [(5) chapter V.3.c]

Access : ventilation Regul / Pressure control VAS 1/2 or Pressure control VAR 1/2 You can modify the constant pressure of the unit for each fan to set the airflows.

o To set the initial airflows LS, force the le system in normal speed with available terminals « Forced start LS » »

(bridge between 9 and 10 terminals).

V.4.b.3. MAC2®/QUATTRO® [(5) chapitre V.3.c]

Access : ventilation Regul / Airflow control VAS 1/1 and 1/2 or Airflow control VAR 1/1 and 1/2 You can modify the rotation speed of the unit in PV-1/2 (slow speed) and in HS-1/1 (normal speed) for each fan to set the airflows.

o To set the initial airflow (GV-1/1), force the system in normal speed with available terminals « Forced start HS »

(bridge between 11 and 12 terminals).

o To set the initial airflow LS, force the system in slow speed with available terminals « Forced start LS » (bridge

between 9 and 10 terminals).

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 34/57

V.4.c. Temperature setpoint modification

[(8) chapter V.3.b] Access : temperature Regul Regulation is based on the temperature control of :

o Supply with external compensation (set in standard). Supply temperature setpoint follows outside temperature in

compliance with RT 2012 norm.

o Extracxt

V.4.d. Forced stop of the unit or forced start LS or HS on the remote control

[(7) chapter V.3.a] Access : running Mode / running Mode You can stop (7) (stop) unit with CORRIGO controller or do a forced start LS (7) (manual speed 1/2) or HS (7) (manual speed 1/1). In standard unit works automatically with clocks (7) (Auto)

If unit do not work in automatic mode an alarm will start. Manual speed 1/1 and manual speed 1/2 modes must be used only for the commissioning and repair. An other setting will lead to a failure of the unit.

V.4.e. Choice of language

[(10) chapter V.3] Access: Starting screen / language choice

V.5. Intermediate settings (service level)

Type of regulation type setting, Night Cooling parameters and CO2 setpoint require an acess to the Configuration menu. You need the access right to the « Service » level. Follow the instrcuctions below.

Enter 2222 with directional arrows and validate with OK. Press left arrow twice to reach the access of the menus. In case of mistake press C button twice and start again.

Access right

Enter

Enter password

2222 of the

required level : Current level : SERVICE

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 35/57

V.5.a. Menu configuration en accès service

V.6. Modification of the services parameters (password 2222)

V.6.a. Regulation mode of the unit

[(1) chapter V.5.a] Access : Configuration / Regulation function. Regulation type is set by default in the CORRIGO controller in outside compensation exhaust. You can also select return control mode.

(ATTENTION, if you want to regulate following a room temperature, select the regulation mode« Ctrl extract » Any other mode will lead to the failure of the unit)

V.6.b. Overventilation parameters

[(2) chapter V.5.a] Access : Configuration / Night cooling Night cooling speed is set in standard in 85%. You can modify it. You can also change the temperature of Night Cooling activation (outside temperature day…) and deactivate it.

V.6.c. CO2 setpoint for DIVA / QUATTRO option

[(3) Chapter V.5.a] Access: Configuration / Ctrl CO2/COV CO2 setpoint is set in standard: LS = 800ppm HS = 1000ppm. Unit will increase its speed proportionally to reach its maximum speed when CO2 will be at 1000ppm.

Configuration

Regulation Function

Night Cooling

Ctrl CO2/VO

Regulation Function Mode:

Supply t+comp ext (1)

Night cooling activated : YES

(2)

Outdoor temp activation : 22°C (2) Outdoor T° night High 18°C (2) Low 10°C (2) Room mini Temp: 18°C (2) Speed : 85%

Ctl CO2/COV activated : If timer ON Type : Fans Speed 1/2 : 800 ppm (3) Speed 1/1 : 1000 ppm (3) Diff : 160ppm

1. Regulation type choice (see chapter V.5.b.1)

2. Parameters modification Night Cooling (see chapter V.5.b.2)

3. CO2 set point modification (only in DIVA and QUATTRO) (see chapter V.5.b.3)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 36/57

V.7. Administrator settings

Activation of the communication, dehumidification and fire function requires an access to Configuration menu in system level. You have to get the access rights to « Admin » level. Follow the instructions below:

Enter 1111 with directionnal arrows and validate with OK button. Press left arrow twice to reach the menu. In case of mistake press C button twice and start again

V.7.a. Configuration menu with admin level access

Access rights

Enter

Enter password

1111

Of the required autoris. Current level : ADMIN

Configuration

Communication

Système

Port 1 Esclave

1 et 2 Activation MODBUS RS485 and settings (see chapter V.8) 3 et 4 Activation BACNET MSTP and settings (see chapter V.8) 5 et 6 Settings TCP/IP(see chapter V.8) 7 et 8 Activation du BACNET IP and settings (see chapter V.8) 9 Adressage Repetiteur (voir chapitre V.8)

Communication Modbus esclave Port 1

Active (1)

Device name : -

(4)

Mac : 0 (4) Id appareil Bas : 2640 (4) Id appareil Haut : 0 (4) (x10000) Vitesse : 9600 Bps(4)

Ad. maître max

127 (4)

Adresse Modbus : 1

(2)

Vitesse : 9600 Bps (2) 2 bits d’arrêt : Oui (2) Parité Non (2)

Adresses PLA : 254 (9)

ELA : 254 (9)

Communication Bacnet MSTP Port 1

Active (3)

TCP/IP

IP :

- (6)

Subnet Mask - (6) Subnet Mask - (6)

Gateway

- (6)

DHCP :

OUI (5)

Ip actuel

Communication Bacnet IP

Active (7)

Device name : -

(8)

Adresse BBMD : 0 (8) Id appareil Bas : 2640 (8) Id appareil Haut : 0 (8) (x10000) N° port UDP bas 7808(8) N° port UDP haut 4(8)

(x10000)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 37/57

V.8. Modification of the service parameters

V.8.a. MODBUS

You will find the simplified MODBUS at the end of the instructions and commissioning manual.

Access : Configuration / Communication MODBUS TCP/IP is activate in standard in DHCP. Possibility to know DHCP adress or set IP fixe [(5)(6) chapter V.7], Modbus Port = 502 / Device ID = 255 Le MODBUS RS 485 must be activate [(1) chapitre V.7]. Possibility to set speed, parity, stop bits… [(2) chapter V.7].

Modbus Type 1 = Coil status register (Modus fonction 1, 5 et 15) 2 = Input status register (Modus fonction 2) 3 = Holding register (Modus fonction 3, 6 et 16) 4 = Input resister (Modus fonction 4)

Supported Modbus functions Read Coils (1) Read discrete input (2) Read Holding registers (3) Read Input registers (4) Write single Coils (5) Write single register (6) Write multiple Coils (15) Write multiple register (16)

EXOL Type R = Real (-3.3E38 – 3.3E38) I = Integer (-32768 – 32767) X = Index (0 – 255) L = Logic (0/1)

Transmission mode Controller is set in RTU mode

A maximum of 47 registers can be read in one message

V.8.a.1. Repetitors and EXO communication

[(3) chapitre V.7] Access : Configuration / System An instruction and commissioning manual is delivered with repetitor. In the case of you have several CORRIGO connected to to the same remote control ( up to 6 CORRIGO), you have to modify the address PLA / ELA of each CORRIGO. In this case you will need a different address on each CORRIGO and enter them in the repetitor. Follow the instructions in the commissionining manual for the setting and use.

V.8.a.2. WEB Communication

You have the possibility to communicate via TCP/IP WEB in language. In this case the device is delivered with Web page and regulator set in DHCP. Possibility to know DHCP adress or set IP fixe [(5)(6) chapter V.7], or via E-tool software http://www.regin.se

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 38/57

V.8.a.3. BACNET IP Communication with BASC type

You will find the simplified BACNET at the end of the instructions and commissioning manual.

Accès : Configuration / Communication BACNET IP must be activate [(7) chapter V.7]. Possibility to know DHCP adress or set IP fixe [(5)(6) chapter V.7]. Possibility to set ID / N°port… [(8) chapter V.7]. BACNET MSTP must be activate [(3) chapter V.7]. Possibility to set speed, ID, adress… [(4) chapter V.7]. Speed = 9600 / MAC adress = 0 / Device ID = 2640 / Max master = 127

BACnet Type 10XXX = Read and write Binary 20XXX = Read binary 30XXX = Read and write analogue 40XXX = Read analogue 30XXX = Read and write multistate 40XXX = Read multistate (XXX = MODBUS Adress)

AV = Analogue Value BV = Binary Value MSV = Multistate value

BMMD Adress : The BBMD adress is used for discovering devices taht are attached to different BACnet/IP subnets and separates by an IP router. The address is entered as host:host can be the host’s name if DNS ins configures. If DNS is not configured, the host address should be entered in the format xxx.xxx.xxx.xxx follwed by the port number (default settings

47808)

MAC : The MAC address of the device. This need to be unique only to the subnet.

Device ID : The ID of a device, used to identify it on the BACnet network. This number cannot be duplicated anywhere on the BACnet network and must therefore be unique. To set an ID value of 34600, the low number would be set to 4600 and the high number to 3

For more information see CORRIGO Pics via http://www.regin.se

V.8.a.4. Communication LON (si CORRIGO avec option LON)

Set the LON function as below: In Configuration menu/ Communication / Fonction port 2 = Activate the Port 2 function in extension unit. Go on the right and activate extension unit. 1 en CORRIGO E28 LON Button for the PIN service is at the back of the regulator. Communication table is on http://www.regincontrols.com

V.8.a.5. Fire function activation

Setting of the Paramétrage de l’entrée

Access : Configuration / Input Output / DI / DI8

Déclarer l’input DI8 en « Al fire » « NO »

Paramétrage de la fonction

Access : Configuration / Fire function Choose the required mode when activating the fire function « Stop » : Complete stop of the unit «Continuous operation »: Start or keeping of the unit in HS. Fire function will have priority on all others alarms. «Normal operation»: keeps the unit in the same parameters chosen on site (stop/LS/HS) « Exhaust fan only »: Start or keep in HS the exhaust fan (return is stopped) « Return fan only »: Start or keeps in HS the return fan (exhaust stopped)

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 39/57

Alarm setting

Access: Configuration / alarm configuration Enter alarm number « 10 » go on the right and enter in priority « C alarm C » « Active »

V.8.a.6. Activation of the function dehumidification

Input settings

Access : Configuration / Input Output / UI / UI4 Declare UI4 input in « Ambiance Humidity »

Function setting

Access: Configuration / Ctrl Humidity Choose « Dehumidification »

Setpoint setting

Access: Humidity Regul Enter the required setpoint

VI. REPAIR

VI.1. Different types of defaults

A specific scrren apear if you have an alarm (see ED-TOUCH manual). Celui -ci sera de classe A, ou C (voir détail ci-dessous) Type of default: C : Default do not stop the ventilation system and automatically disappears when a solution is found. To solve a default press the alarm button (red), « delete » then « enter » the default with directional arrows and press OK button Attention : do not « block »

Description Cause

CORRIGO screen do not light up

- Unit is not powered correctly (LED P/B of CORRIGO switched off)

- To light up the screen, press a button (backlit).

- Command fuse is disused

Fans do not start

- Clocks are on 0

- No external start order

- External stop

- Active alarm

Remote control do not run

or gives wrong values

Remote control further than 100m Repetitor is not connected correctly

VI.2. List of alarms

n° View Description Type Tempo Cause

Malfunction

supply air fan

(UDI2 must be

closed « Fer »if

fan runs)

UAI2 must be

higher than 30Pa if

fan runs )

30s (120s

for

LOBBY)

1. Pressure switch is wrongly connected (pressure

switch must be set in 30Pa).

2. Pressure on the transmittor is lower to 30Pa.

(LOBBY®) (contact us)

3. Motor is disused

4. Thermic protection motor is activated

5. Contrôler le raccordement des tubes crystal (chapitre

IV.8 et IV.9

6. Présence d’eau dans le tube crystal

7. 0-10V motor is inverted

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 40/57

Malfunction

extract air fan

(UDI3 must be

closed « Fer »if fan

runs)

UAI3 must be

higher than 30Pa if

fan runs)

30s (120s

for

LOBBY)

1. Pressure switch is wrongly connected (pressure

switch must be set in 30Pa).

2. Pressure on the transmittor is lower to 30Pa.

(LOBBY®) (contact us)

3. Motor is disused

4. Thermic protection motor is activated

Control the connection of the crystal tubes (chapter

IV.8 and IV.9

6. Water in the crystal tubes

7. 0-10V motor is inverted

6 Filter guard 1

DI1 must be open « Ouv » if there is

no default

C 5s

1. Filters are dirty

2. Filters pressure switches are wrongly connected (Pressure switches must be set on 150 Pa for G4 200Pa for F7).

Control the connection of the crystal tubes (chapter

IV.8

External frost

guard

Ext DI3 must be

closed « Fer »if

there is not default

C 120s

1. THA thermostat is not set on 5°C

2. THA thermostat s disused

3. Circulating pump is disused

3 ways valve 3 is wrongly connected, hydraulically

or is disused

High supply air

temp

Ext AI1 is mounted

higher than 50°C

A 30s

1. Exhaust temperature is higher than 50°C

2. Temperature setting is too high

3. Exhaust fan is stopped (vent AS Default) when hot battery is in full capacity.

Electric heating

is overheated

Ext DI3 must be

closed « Fer » if

there is no default

A 5s

1. Safety thermostat THS is activated. To reset THS,

push on the rearmament on the electric battery

2. Power cut

3. Exhaust fan is stopped (vent

AS Default) when electric battery is in full capacity

Sensor error

outdoor temp

Control the value

Ext AI2

A 5s

Outside temperature sensor SEG is disused .Outside

temperature sensor SEG is wrongly connected (see chapter IV.3)

Rotation sentinel

exchanger

Control the value

DI6

C 300s The belt of the exchanger is brocken

Supply air fan

control error

Difference higher

than 50Pa between

exhaust setpoint and pressure on

Ext UAI1

C 30min

The network of blowing do not correspond to the fan or

to the setpoint.

Filter is dirty

Extract air fan

control error

Difference higher

than 50Pa between

exhaust setpoint and pressure on

Ext UAI2

C 30min

Return network do not correspond to the fan or to the

setpoint.

Filter is dirty

35 Manual

Runs in manual

mode

C 5s

Default à titre indicatif (le centrale est passée à l’arrêt en PV ou en GV directement sur l’afficheur (voir (7) chapitre V.3.a)

36 à

… in Manual

mode

Functions are

modified in

manual mode

C 5s In the Auto Manual menu everything must be in Auto.

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 41/57

Internal battery

error

Error battery intern A 5s

Intern battery of the CORRIGO is disused Change the battery quickly in order to not loose programm. See chapter VII.2

Sensor error

supply air temp

Control the

Value on Ext AI1

A 5s

Outside temperature sensor SSG is disused Outside temperature sensor SSG is wrongly connected (see chapter V.3.a)

Sensor error

extract air temp

Contrôler la

valeur sur Ext AI3

A 5s

Outside temperature sensor SRG is disused Outside temperature sensor SRG is wrongly connected (see chapter V.3.a)

Sensor error

pressure VAS

Control the value

on Ext UAI1

A 5s

0-10V signal is inverted Pressure transmittor on fresh air is in short-circuit

Sensor error extract VAR

Control the value

on Ext UAI2

A 5s

0-10V signal is inverted Pressure transmittor on intake air is short circuited

59 CO2 sensor error

Control the

Value on Ext AI4

A 5s

0-10V signal is inverted CO2 transmittor is in short-circuit

… in manual

mode

Functions are

modified in

manual mode

A 5s In Manuel Auto menu everything must be in Auto.

86 Time for service

Regular visit C 5s See chapter VI.3

… in manual

mode

Functions are

modified in

manual mode

C 5s In Manuel Auto menu everything must be in Auto.

VI.3. Acknowledge the default « timer service »

These settings require an access to the setting menu. You need the access rights to “service” level. Follow the instructions below.

Enter the code 2222 with directional arrows then press the OK button. Press the left arrow twice to reach the menus. In case of mistake press C button twice and start again.

An alarm occurs every 6 months to remind the maintenance visit. Enter YES to reset the counter to zero

VII. MAINTENANCE

Settings

Reset to zero Filters counter

filter alarm Reset to zero of the Timer : YES

access rights

Enter

Enter password

2222

Of the required autoris. level: Current level : SERVICE

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 42/57

VII.1. Obligatory maintenance

Outside the unit Check the ducts, flexible sleeves, anti-vibrating plots; replace them if necessary. Check that all elements connected to the unit do not give any vibration to the unit.

Unit and Regulation Check connection every year

Filtration Do not damage the filters

Classification Max pressure drop

Efficency of the

filtration

EUROVENT

Reference

Washing*

(Water + light detergent )

Aspiration*

Exhaust*

Gravimetric 150Pa EU4 G4 Limited (1 to 4 times) YES Opacimetric

200Pa EU7 F7 NO

Periodicity of the cleaning

Componants 1 MONTH 3 MONTHS 6 MONTHS 12 MONTHS

Filtration

Blowing

(for the G4filters)

Cleaning

(for the G4filters)

Washing

(for the G4filters )

Replacement

Of the filters if needed

Rotative exchanger (12 month) Check belt and change it if necessary

VII.2. Battery replacement

When low battery alarm starts and red LED is lighting, this indicates that the safety battery for the safeguard of the memory and clock is too low. Follow the instructions below to change them. A condenser keeps the safeguard and let the clock running for 10 minutes left after power cut. If the replacement of the battery takes less than 10 minutes, you will not have to reset the program and clock will work normally.

Replacement battety is a CR2032 type

Press the clips on each sides of the box with a little screwdriver to open the the top of the box.

Location of the battery

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 43/57

Take the battery and remove it softly . Press firmly the new battery in the support. Note : Attention to the direction and polarity of the battery.

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 44/57

ANNEXES

• Command diagram

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 45/57

VII.3.

Motors diagrams FREETIME® 500-800 HEXAMOTION® 05-08

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 46/57

VII.4. Motors diagrams FREETIME® 1500 HEXAMOTION® 15

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 47/57

VII.5. Motors diagrams FREETIME® 2000 HEXAMOTION® 20

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 48/57

VII.6. Motors diagrams FREETIME® 2700-3500 HEXAMOTION® 27-80

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 49/57

VII.7. Curves

VII.7.a. FREETIME®

FREETIME® 500

200

400

600

800

150 250 350 450 550 650

Débit (m3/h)

Pression statique (Pa)

100%

90%

80%

70%

60%

50%

40%

FREETIME® 800

100

200

300

400

500

600

700

200 300 400 500 600 700 800 900

Débit (m3/h)

Pression statique (Pa)

100%

90%

80%

70%

60%

50%

40%

FREETIME® 1500

100

200

300

400

500

600

700

800

300 500 700 900 1100 1300 1500 1700

Débit (m3/h)

Pression statique (Pa)

100%

90%

80%

70%

60%

50%

40%

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 50/57

FREETIME® 2000

100

200

300

400

500

600

700

800

600 800 1000 1200 1400 1600 1800 2000 2200

Débit (m3/h)

Pression statique (Pa)

100%

90%

80%

70%

60%

50%

40%

FREETIME® 2700

200

400

600

800

600 1000 1400 1800 2200 2600 3000 3400

Débit (m3/h)

Pression statique (Pa)

100%

90%

80%

70%

60%

50%

40%

FREETIME® 3500

200

400

600

800

600 1000 1400 1800 2200 2600 3000 3400 3800

Débit (m3/h)

Pression statique (Pa)

100%

90%

80%

70%

60%

50%

40%

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 51/57

VII.7.b. HEXAMOTION®

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 52/57

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 53/57

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 54/57

VII.8. Table MODBUS et BACNET

INPUT REGISTER

Fonction Description

Exo type

Modbus Adresse

Bacnet Adresse

Défaut value

Unit XXXXX Modbus :

0= stop 1= start 2= start Slow speed 3= start maxi speed 4= start normal speed 5= In operation 8= CO2 functionning 9= Night cooling 11= stopped

BACNET : 1= stop 2= start 3= start Slow speed 4= start speed maxi 5= start normal speed 6= In operation 9= CO2 functionning 10= Night cooling 12= stopped

X 3 MSV, 40003

Outdoor Temperature R 1 AV, 40001 Operating time of the supply fan R 4 AV, 40004 Operating time of the extract fan R 5 AV, 40005 Supply air Temperature R 7 AV, 40007 Extract Temperature R 9 AV, 40009 SAF pressure LOBBY EC R 13 AV, 40013 EAF pressure LOBBY EC R 14 AV, 40014 Supply constant air flow

MAC2®/QUATTRO®

R 15 AV,40015

Extract constant air flow

MAC2®/QUATTRO®

R 16 AV,40016

CO2

DIVA® QUATTRO

R 17 AV,40017

Humidity R 23 AV,40023 Analog output 0-10V Heating (water only) R 54 Analog output 0-10V Exchanger R 55 Analog output 0-10V Cooling R 56 Analog output 0-10V SAF R 57 Analog output 0-10V EAF R 58

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 55/57

HOLDING REGISTER

Fonction Description

Exo type

Modbus Adresse

Bacnet Adresse

Défaut

value Supply setpoint Set in constant supply R 1 AV, 30001 18 Supply setpoint Set in constant supply comp ext for T°C out –20°C R 10 25 Supply setpoint Set in constant supply comp ext for T°C out de –15°C R 11 24 Supply setpoint Set in constant supply comp ext for T°C out de –10°C R 12 23 Supply setpoint Set in constant supply comp ext for T°C out de –5°C R 13 23 Supply setpoint Set in constant supply comp ext for T°C out de –0°C R 14 22 Supply setpoint Set in constant supply comp ext for T°C out de +5°C R 15 20 Supply setpoint Set in constant supply comp ext for T°C out de +10°C R 16 18 Supply setpoint Set in constant supply comp ext for T°C out de +15°C R 17 18 Return setpoint Set in return control R 18 AV, 30018 21 speed supply HS setpoint In % for ECO and DIVA R 424 70 speed supply LS setpoint In % for ECO and DIVA R 425 50 speed return HS setpoint In % for ECO and DIVA R 426 70 speed return LS setpoint In % for ECO and DIVA R 427 50 pressure soufflage setpoint In Pa for LOBBY R 25 AV, 30025 150 pressure reprise setpoint In Pa for LOBBY R 27 AV, 30027 150 Airflow supply HS setpoint

In m3/h for MAC2® and QUATTRO®

R 28 AV,30028 xxx

Airflow supply LS setpoint

In m3/h for MAC2® and QUATTRO®

R 29 AV,30029 xxx

Airflow return HS setpoint

In m3/h for MAC2® and QUATTRO®

R 30 AV,30030 xxx

Airflow return LS setpoint

In m3/h for MAC2® and QUATTRO®

R 31 AV,30031 xxx

Forçed Functionning mode of the unit

MODBUS 0= Manual stop 1= Manual slow speed 2= Vitesse normale manuelle 3= Auto BACNET 1= manual stop 2= Manual slow speed 3= Normal manual speed 4= Auto

X 368 MSV,30368 xx:xx

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 56/57

INPUT STATUT REGISTER

Fonction Description

Exo type

Modbus Adresse

Bacnet Adresse

Défaut value

Alarm synthesis If 1 = ALARM L 30 BV,20030

SAF default If 1 = ALARM L 33 BV,20033

EAF default If 1 = ALARM L 34 BV,20034

Filter default If 1 = ALARM L 38 BV,20038

Antifreeze default If 1 = ALARM L 40 BV,20040

Fire default If 1 = ALARM L 42 BV,20042

Electric battery overheat If 1 = ALARM L 55 BV,20055

Outdoor temperature default If 1 = ALARM L 59 BV,20059

Battery default If 1 = ALARM L 80 BV,20080

Supply temperature default If 1 = ALARM L 90 BV,20090

Extract temperature Default If 1 = ALARM L 91 BV, 20091

FREETIME

® -

HEXAMOTION ®

High Efficiency Recovery Unit

OPERATING AND COMMISSIONING INSTRUCTIONS

MS-CDF-010 Ind F Maj.

18/05/2017

Créé par

: JC Validé par

: AR Page 57/57

VIII. NOTES

Caladair Hexamotion, Freetime 2000, Freetime 800, Freetime 500, Freetime 2700 Operating And Commissioning Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
