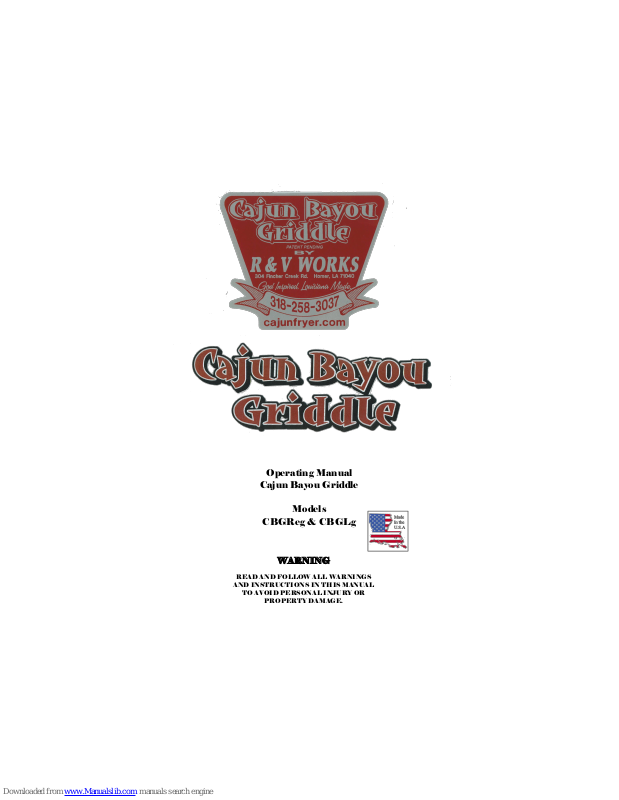

Cajun Grill CBGReg, CBGLg Operating Manual

1

Operating Manual

Cajun Bayou Griddle

Models

CBGReg & CBGLg

WARNING

READ AND FOLLOW ALL WARNINGS

AND INSTRUCTIONS IN THIS MANUAL

TO AVOID PERSONAL INJURY OR

PROPERTY DAMAGE.

2

Table of Contents

1. IMPORTANT SAFEGUARDS .......................................3

2. PROPER CARE AND MAINTENANCE .........................5

3. CLEANING THE GRIDDLE ...........................................5

4. OPERATING INSTRUCTIONS ......................................5

5. FREQUENTLY ASKED QUESTIONS ...........................6

6. LIGHTING INSTRUCTIONS ………………….………… 7

7. ASSEMBLY INSTRUCTIONS .......................................8

A. SKID ASSEMBLY ..................................................8

B. CBG-REG ..............................................................9

C. CGB-LG .................................................................11

8. LIMITED WARRANTY ................................................17

R & V Works

304 Fincher Creek Rd.

Homer, LA 71040

Office - [phone]

Fax - [phone]

Toll Free - 1(800)908-3037

After Hours - [phone]

E-mail - [e-mail]

3

IMPORTANT SAFEGUARDS

WE WANT YOU TO ASSEMBLE AND USE YOUR “Cajun Bayou Griddle”
AS SAFELY AS POSSIBLE.

PLEASE READ AND FOLLOW ALL SAFETY WARNINGS AND INSTRUC­TIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR
GRIDDLE.

• Always use caution when lighting griddle. Crack open the needle valve and

ignite through the oblong hole in the face with a long stem trigger propane
lighter. Do not allow the gas to build up in the griddle head. If griddle does
not ignite within 3 seconds, close needle valve and wait 1 minute before
attempting to light the griddle. Not doing this may cause an explosion and
may lead to personal injury or property damage.

• Always use caution when placing food on griddle. Be careful to never touch

cooking surfaces or any other part of the griddle head. Do not drop food on
griddle.

• Only use this griddle on a hard, level, noncombustible, stable surface

(concrete, ground, etc.) capable of supporting the weight of the griddle.

• Do not use this griddle for other than its intended purpose.

• For outdoor use only. Do not operate griddle indoors or in an enclosed ar-

ea. In windy weather, place griddle in an outdoor area that is protected
from the wind, with the griddle’s back facing the wind.

• The griddle side will be extremely hot during use. Use caution when work-

ing around your hot griddle. Always wear oven mitts or gloves to protect
your hands from burns. Avoid touching hot surfaces.

• Use caution and protective clothing when cleaning a hot griddle to avoid

burns from hot surfaces.

• Never operate this appliance within 10 feet (3.05m) of any structure, com-

bustible material or other gas cylinder

!

Warning

Warning

!

4

• Never operate this appliance within 25 feet (7.5m) of any flammable liquid.

• If a fire should occur, keep away from the appliance and immediately call

your fire department. Do not attempt to extinguish an oil or grease fire with
water. Failure to follow there instructions could result in a fire or explosion
that could cause property damage, personal injury or death.

• Place griddle in an area where children and pets cannot come into contact

with unit. Close supervision is necessary when griddle is in use. Do not
leave griddle unattended when in use. Heated liquids remain at scalding
temperatures long after the cooking process. Never touch cooking appli-

ance until liquids have cooled to 115°F or less.

• Never move griddle when it is in use.

• Use caution when assembling and operating your griddle to avoid scrapes

or cuts from sharp edges of metal parts.

• After each use, Cover the griddle to protect it from the weather.

• Use caution when lifting or moving griddle to prevent strains and back

injuries. Moving griddle may require the help of an additional person.

• We advise that a fire extinguisher be on hand. Refer to your local authority

to determine proper size and type of fire extinguisher.

• Accessory attachments not manufactured by R & V Works for these

products are not recommended and may lead to personal injury or
property damage.

• Store the griddle out of reach of children and in a safe location when not in

use.

• Do not attempt to service griddle other than normal maintenance as ex-

plained in the "Proper Care & Maintenance" section of this manual. Major
repairs can be authorized by R & V Works only.

• Properly dispose of all packaging material.

• Use caution when transporting the griddle. Make sure you tie down the

griddle so it will not move. Unit is top heavy.

USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR
GRIDDLE.

FAILURE TO ADHERE TO SAFETY WARNINGS AND GUIDELINES IN THIS
MANUAL COULD RESULT IN BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

Warning

!

5

PROPER CARE AND MAINTENANCE

The current propane tanks are equipped with a safety valve (OPD Valve)
that restricts the output of the propane in case the hose is cut or burned. If
this valve closes you will only get a small yellow flame.

To reset the OPD Valve;

• Close the tank valve.

• Remove the POL nut.

• Close the needle valve.

• Reattach the POL nut.

• Open the tank valve very slowly, approximately 1 1/2 to 2 turns.

• Open the needle valve and relight the “Cajun Bayou Griddle”.

Cleaning the Cajun Bayou Griddle

Your Cajun Bayou Griddle should be easy to clean and take care of. The
Cooking surface of this griddle is stainless steel and can be cleaned similar to
institutional griddles. Griddle Bricks can be purchased to aid in the cleaning
process. The recommended cleaning methods is: heat the griddle to a
medium\ low temperature. Place a small amount of vegetable oil on the
cooking surface, Work griddle brick over surface until all cooking residue is

scraped clean. Wipe griddle top with a clean damp rag, turning often to keep

a clean edge on the griddle surface.

OPERATING INSTRUCTIONS

1. Hook up regulator to a propane tank.

2. Close needle valve on either on the face plate (CBG LG) or on the right
side (CBG Reg). Open valve on propane tank.

3. Always use caution when lighting griddle. Crack open the needle valve and
ignite through the oblong hole with a long stem trigger propane lighter. Do not
allow the gas to build up in griddle head. If grill does not ignite within 3 sec­onds, close needle valve and wait 1 minute before attempting to light the
griddle.

4. Open the needle valve to increase temperature. Some adjustments may be
required if equipped with an adjustable regulator.

Warning !
