H300-50 Safety Information
This section contains important safety information
®
related to general use of the HELiOS
Personal Oxygen System, which consists of the
H300-50 Portable and a Reservoir.
Other important safety information appears
throughout the manual in sections that relate
specifically to the precautionary information. Be sure
to read all text surrounding all precautionary
information.
Before use, carefully read this manual and all
precautionary information in boldface type, and
product specifications.
Warnings
Plus H300-50
Warnings are identified by the WARNING symbol
shown above or other relevant symbols, as shown on
the following two pages.
Warnings alert the user to potential serious outcomes
(death, injury, or adverse events) to the patient or
user.
1
H300-50 Safety Information
WARNING: Oxygen supplied from this equipment is
for supplemental use and is not intended to be life
supporting or life sustaining. This equipment is not
intended for use by patients who would suffer
immediate, permanent, or serious health consequences
as a result of an interruption in the oxygen supply.
Do not smoke near this equipment. Keep cigarettes or
burning tobacco away from the area where equipment
is operated.
Keep flammable materials away from this equipment.
Oils, grease, including facial creams and petroleum
jelly, ignite easily and may burn rapidly in the
presence of oxygen. Never lubricate any part of this
equipment.
Do not touch liquid oxygen or parts that have been in
contact with liquid oxygen. Liquid oxygen is extremely
cold (-297 °F / -183 °C). When touched, liquid oxygen,
or parts of the equipment that have been carrying
liquid oxygen, can freeze skin and body tissue.
Always keep the Reservoir in an upright position.
Always keep the H300-50 Portable in one of the
following positions: upright, flat on its back or any
position in between.
2 H300-50 Home Use Guide
H300-50 Safety Information
WARNING: When transporting the H300-50
Portable, position the H300-50 horizontally, flat side
down, to ensure it does not tip over. Tipping over and
falling off a transport surface could damage the H30050 Portable or cause personal injury.
Keep this equipment away from electrical appliances.
Use and store Reservoir and H300-50 Portable at least
five feet from electrical appliances that may cause heat
or sparks.
Keep oxygen equipment away from open flames. Use
and store Reservoir and H300-50 Portable at least five
feet away from equipment such as furnaces, water
heaters, and stoves that may contain open flames.
Keep equipment in a well-ventilated area at all times.
The Reservoir and H300-50 Portable periodically
release small amounts of oxygen gas that must be
ventilated to prevent buildup. Do not store liquid
oxygen equipment in a closet, car trunk, or other
confined area. Do not place blankets, draperies, or
other fabrics over equipment.
Do not carry the H300-50 Portable under your
clothing. The Reservoir and H300-50 Portable
normally vent oxygen. Wearing a H300-50 Portable
under clothing may saturate fabrics with oxygen and
cause them to burn rapidly if exposed to sparks or
flame. It may take several hours for oxygen levels in
fabric to return to normal.
Keep dry.
3
H300-50 Safety Information
WARNING: Never tamper with the equipment. Doing
so could create a hazardous condition and possibly
cause the equipment to work improperly.
WARNING: Do not open the vent valve during non-fill
use, or put it into any position other than the closed,
upright, or vertical position. Excessive discharge of
liquid oxygen could create a fire hazard and/or cause
personal injury.
WARNING:Fill the H300-50 Portable only with liquid
oxygen.
4 H300-50 Home Use Guide
Cautions
H300-50 Safety Information
Cautions are identified by the CAUTION symbol
shown above.
Cautions alert the user to exercise care necessary for
the safe and effective use of the H300-50 Personal
Oxygen System.
CAUTION: Consistent with the recommendations of
the medical community on the use of conserving
devices (which includes the nasal cannula), it is
recommended that the H300-50 Personal Oxygen
System be qualified on patients in the situations it will
be used (rest, exercise, sleep). Differences in nasal
cannula design may vary the ability to trigger a
conserving device.
CAUTION: There are no specific risks associated with
the disposal of any components within this device.
Please, dispose of used parts or components in
accordance with local environmental laws and
regulations. Faulty components that are under
warranty may be returned to the manufacturer for
disposal.
5
H300-50 Safety Information
Notes
Notes are identified by the NOTE symbol shown
above.
Notes are listed before or after procedural steps or
information and provide additional guidelines or
information on the subject being described.
Definition Of Symbols
Symbol Definition
Portable Full
Portable Empty
6 H300-50 Home Use Guide
Introduction
Your HELiOS® Plus H300-50 Personal Oxygen
System is designed to store and deliver oxygen at a
prescribed rate. The system consists of the H300-50
Portable and a Mark III or Mark 4 Reservoir.
It is recommended that you breathe your prescribed
oxygen rate from the H300-50 Portable. You may fill
the H300-50 Portable with liquid oxygen so you can
be free to move about your home or leave your home
for extended periods.
The H300-50 System was designed to maximize your
freedom of movement. You can fill the H300-50
Portable with liquid oxygen from the Reservoir every
day to use as far from the Reservoir as you desire.
Your oxygen supplier or Homecare Provider must
refill your Reservoir periodically depending upon
your rate of oxygen use.
7
Introduction
Reservoir
(1)
(2)

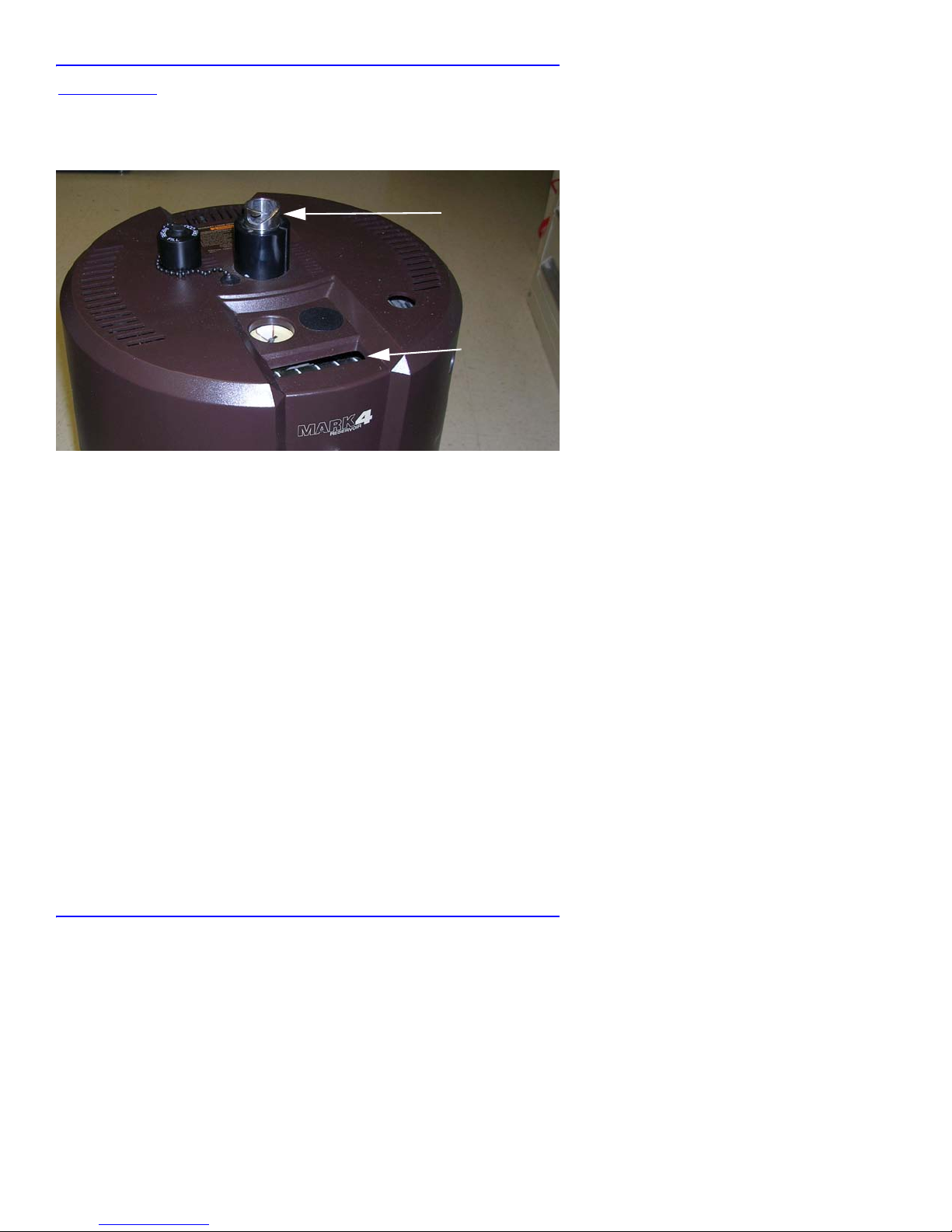

(1) Liquid Oxygen Fill Connector: Used to fill the H300-
50 Portable with liquid oxygen.
(2) Contents Indicator: Displays amount of liquid oxygen
remaining in the Reservoir (Mark 4 only).
8 H300-50 Home Use Guide
H300-50 Portable — front view
Introduction
(5)
(1)
(2)
(3)
(4)
(1) Flow Control Knob: Adjustable, rotary valve used to
control the rate of oxygen delivery and to select either
continuous flow or demand flow.
(2) Oxygen Delivery Connector: Attach one tube of dual-
lumen cannula to receive oxygen from the H300-50
Portable.
(3) Sense Connector: Attach one tube of dual-lumen
cannula to start and stop oxygen flow with each breath.
(4) Liquid Oxygen Fill Connector (on the bottom): Used to
connect H300-50 Portable to the Reservoir during the
filling process.
(5) Carrying Handle
9
Introduction
H300-50 Portable — rear view
(4)
(3)
(1)
(2)

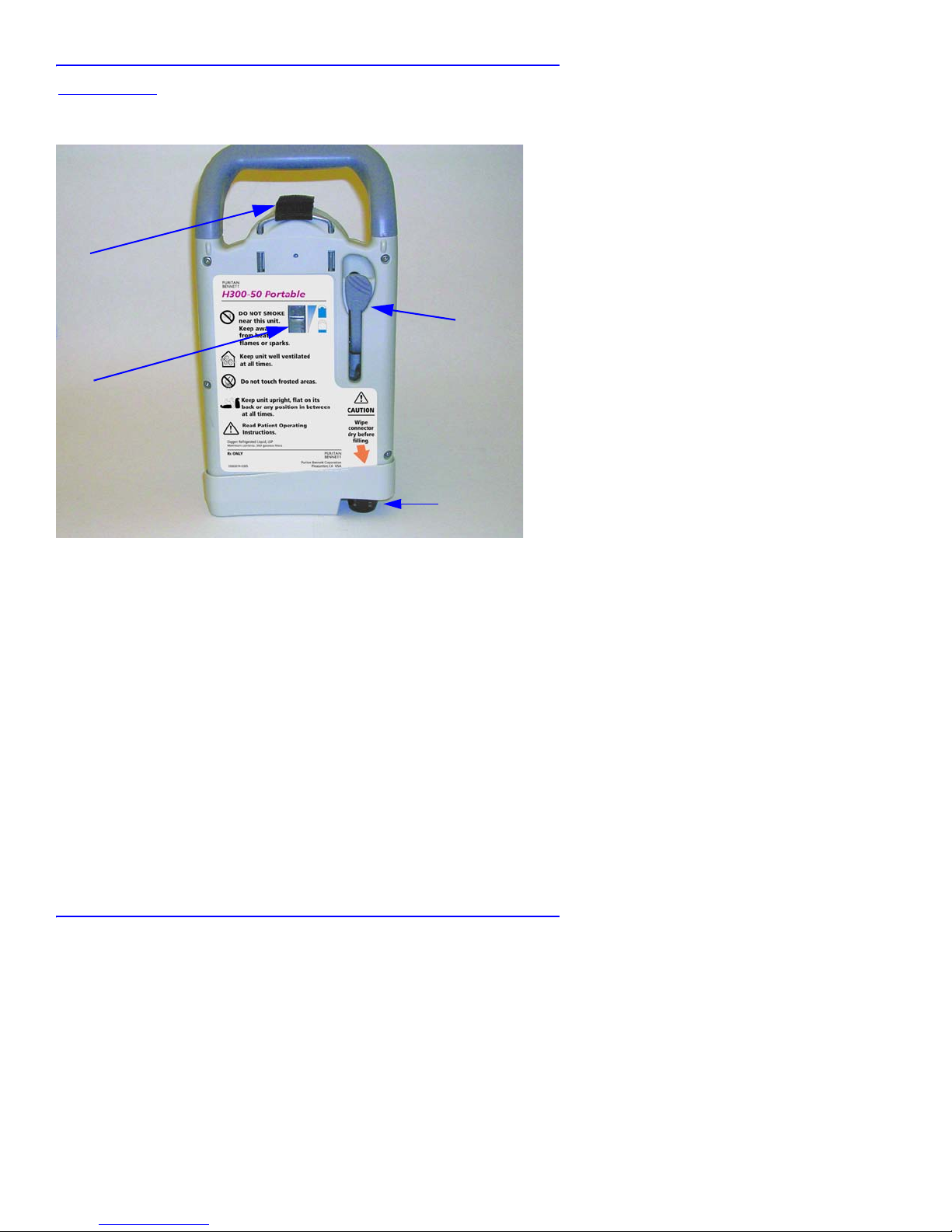

(1) Ven t Va lv e: Used to start and stop the filling process.
(2) Liquid Oxygen Fill Connector: Used to fill the H300-
50 Portable with liquid oxygen.
(3) Contents Indicator: Displays the amount of liquid
oxygen in the H300-50 Portable.
(4) Contents Indicator Strap: Used to lift the H300-50
Portable to measure the amount of oxygen it contains.
10 H300-50 Home Use Guide
Introduction
Other parts of your personal oxygen system include:
Dual-lumen
Cannula
Carrying Bag
(optional)
