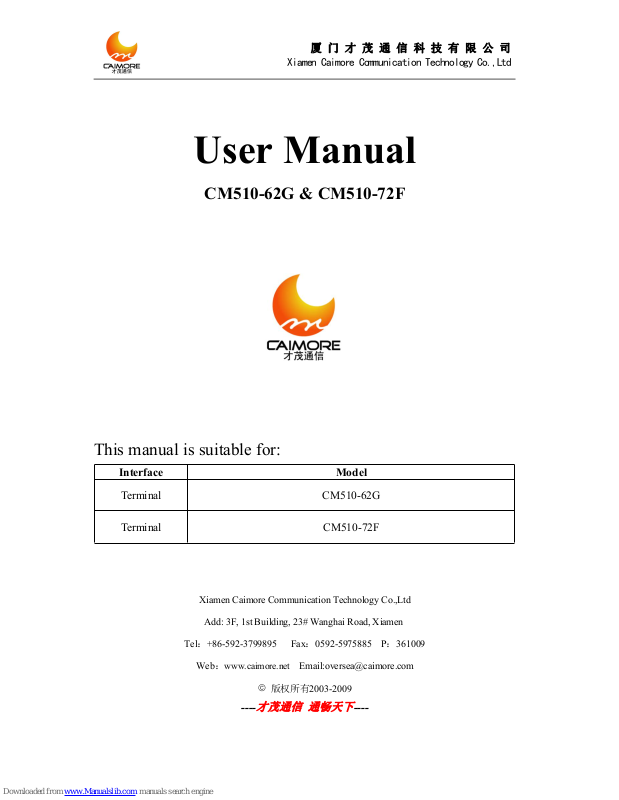

User Manual
CM510-62G & CM510-72F
This manual is suitable for:
Interface
Model
Terminal
CM510-62G
Terminal
CM510-72F
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Tel：+86-592-3799895 Fax：0592-5975885 P：361009
Web：www.caimore.net Email:oversea@caimore.com
版权所有2003-2009
----
才茂通信 通畅天下
----
厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Statement
Copyright Statement：
All contents included in this user manual are protected by copyright law, any organization
or person has no right to copy, reproduce and spread by any method, unless gets the written
authorization from Xiamen Caimore communication technology co.,Ltd.
Trademark：
Caimore and other Caimore brands are possessed by Xiamen Caimore communication
technology co.,Ltd. Other brands or registered brands mentioned in this page are possessed
by their owner.
Notice:
The file will be updated because of the unscheduled upgrade of products and other
reasons. Unless there are other agreement, the file is only used as the manual guide, the
information and suggestion included in this page do not constitute any express or implied
warranty.
厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Catalog
1.1 Overview.........................................................................................................................................................1
1.2 Unpacking...................................................................................................................................................... 1
1.3 Cable Connection...........................................................................................................................................2
1.4 Power Supply................................................................................................................................................. 3
1.5 Detect The Network.......................................................................................................................................3
2.1 Local Configuration...................................................................................................................................... 4
2.1.1 Center Server Config........................................................................................................................5
2.1.2 PLC Connection Config................................................................................................................... 5
2.1.3 Device&Net Config........................................................................................................................... 6
2.1.4 Advance Config................................................................................................................................. 7
2.2 Remote Configuration...................................................................................................................................8
Annex I AT Command........................................................................................................................................9
Annex II Indicator Light...................................................................................................................................11
Annex III TCP Protocol....................................................................................................................................11
Annex IV UDP Protocol....................................................................................................................................12
Technical Support............................................................................................................................................. 13
厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
1
1. Installation
1.1 Overview
To meet the design function, DTU must be installed correctly. Usually, the installation
should be under the guidance of qualified engineer who is approved by Xiamen Caimore
communication technology co.,Ltd.
Notice：
Please install the DTU without power!
1.2 Unpacking
To ensure the safe transportation, DTU should be packed reasonably. Please keep the
package material when you open the box so as to use them again when before transporting
in the future.
The components of DTU
：
One unit CAIMORE DTU
One power adapter
One companion CD-ROM
One dual-frequency vehicle-mounted antenna(SMA interface)
One 20Pin RS484 cable or one DB9 RS232 cross cable, selected by different
equipment
Optional accessories:
High power gain dual-frequency antenna (SMA interface)
Products guide rail
RS232 Direct connection line
Notice
：
Please confirm that the accessories coincides with packing list when you open the
product box.
厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
2
1.3 Cable Connection
Terminal interface
：
Definition of Interface:
NO.
Name
Function
Default Function
Input /
Output
Electrical
Characteristics
1
Power
Power
Power supply + pole
-
Power supply range:
6V - 32V
2
GND
Power ground
-
-
3
485A
RS485
RS485 interface A
-
-
4
485B
RS485 interface B
-
-
5
RXD
RS232(used
to transmit
data,
configure or
download)
RS232 interface, receiver pin (assuming that
DTU is connected to the computer, the flow
direction of this pin is: DTU <- computer)
Input
-
6
TXD
RS232 interface, sender pin (assuming DTU is
connected to the computer, the data flow of this
pin is: DTU -> computer)
Output
-
7
GND
RS232
RS232 interface, GND pin
-
-
8
DRX
RS232(used
to debug)
RS232 interface, receiving pin
Input
-
9
DTX
RS232 interface, sending pin
Output
-
10SWEnable pin
Enable pin
Input
When the input voltage
of 0V DTU power
supply is cut off; When
suspended or input high
level, DTU power is
connected.
11
IO1
IO
Switch measure and control
Input &
Output
IO control, IO alarm
12
IO2
Input &
Output
IO control, IO alarm
13
IO3
Input &
Output
IO control, IO alarm
14
IO4
Input &
Output
IO control, IO alarm
