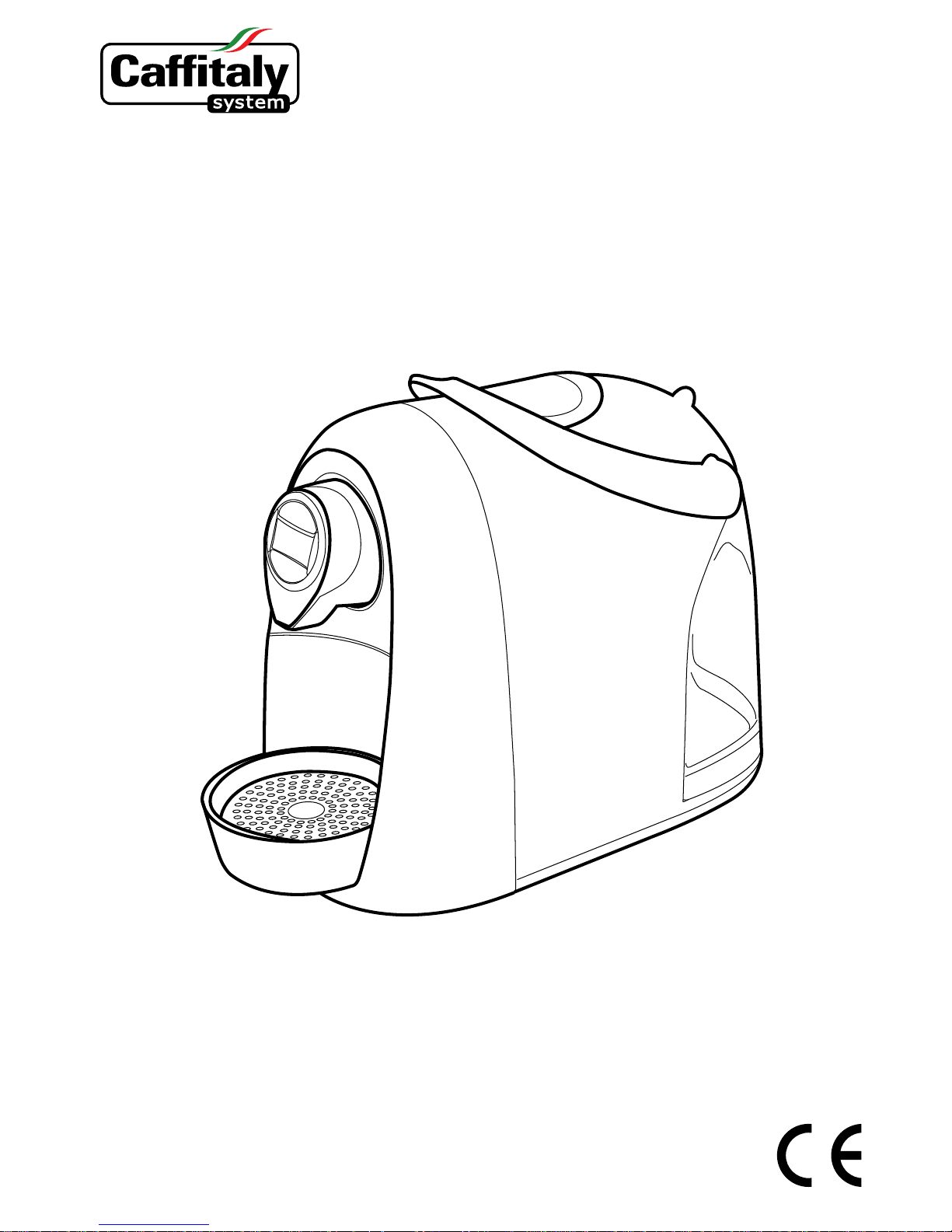

Roma
English Instruction book
Bahasa Buku Pedoman
Customer Service Centre/
Pusat Layanan Pelanggan: 0800 100 2653
www.caftaly.id
2
Thank You
Thank you for choosing the Caftaly Roma Capsule
Machine. You can savour your favourite hot beverages
at any time of the day with our appliance by choosing
one of the capsules that the Caftaly System offers.
An Espresso or a Chocolate avoured beverage will be
ready in just a few seconds.
English
3
Contents
1. Introduction
• Figure References .....................................................................................................4
• Machine Components ................................................................................................6
2. Safety
• Follow the Instructions (Symbols) ..............................................................................8
• Safety Instructions .....................................................................................................9
3. Setting Up Your Machine
• First Use or After a Long Period of Non-Use ............................................................10
• Turning on the Appliance ..........................................................................................10
• General Operating Indications ..................................................................................11
• Saving Energy...........................................................................................................11
• Adjusting the Cup Tray Height ..................................................................................11
4. Making Your Coffee Or Hot Chocolate
• Correct Use of the Buttons........................................................................................12
• Dispensing Your Beverage........................................................................................12
• Customising the Size of Your Beverage....................................................................13
• Adding Frothed Milk ..................................................................................................13
5. Cleaning & Maintenance
• Daily Maintenance ....................................................................................................14
• Descaling ..................................................................................................................15
6. Troubleshooting & Technical Specication
• Troubleshooting ........................................................................................................16
• Technical Specications ............................................................................................17
• Instructions for Disposal............................................................................................17
Untuk petunjuk Bahasa lihat halaman 18
English
4
1
2
3
5
4
7
8
6
5
9
14
11
13
15
12
10
6
B
A
C
D
E
F
L
K
M
N
I
G
H
J
7
English
A Red Button (30mL Pour)
B Blue Button (50mL Pour)
C Green Button (80mL Pour)
D Descaling Indicator Light
E Multifunction Indicator Light
F Capsule Compartment
G Water Tank Cover
H Lever for Opening & Closing
Capsule Compartment
I Water Tank
J Power Cord
K Power On/Off Switch
L Dispensing Spout
M Used Capsule Drawer
N - Drip Tray
Bahasa
A Tombol Merah (30mL)
B Tombol Biru (50mL)
C Tombol Hijau (80mL)
D Lampu Indikator Deskalsikasi
E Lampu Indikator Multifungsi
F Kompartemen Kapsul
G Tutup Tangki Air
H
Tuas untuk Membuka &
Menutup Kompartemen Kapsul
I Tangki Air
J Kabel Daya
K Tombol Daya On/Off
L Ceret Tuang
M Laci Kapsul Bekas Pakai
N Nampan Penadah
8
2. Safety
Follow the Instructions (Symbols)
Warning
This is the safety warning symbol.
It is used to call your attention to potential personal injury hazards.
Abide by the safety messages provided in order to avoid possible injury or death.
Note
This symbol is used to highlight some actions that will optimise machine use.
Not dishwasher safe Cleaning advice
English
9
Safety Instructions
Read the following instructions carefully to prevent the risk of accidents
and damage to the appliance.
• This appliance is designed for use in domestic, residential and other similar applications
such as hotel rooms and small ofce & workplaces.
• Only use the special Caftaly System capsules.
• Use of the appliance not according to these instructions could cause harm to persons and
void the guarantee. The manufacturer declines any liability for injury or damage resulting
from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. In case of damage,
or at the rst sign of fault (unusual noise or odours), or if any problem occurs inside the
appliance, do not use it. Contact our Customer Service Centre.
• The packaging elements (plastic bags, etc.) are potential hazards and must not be left
within reach of children.
• Only use the appliance if the power cord is intact. To replace a damaged cord, contact our
Customer Service Centre. Danger of death caused by electric shocks.
• Only use and store the appliance indoors. Make sure the electrical elements, plugs and
cords are dry. Never immerse the appliance in liquid. Water and electricity together create
a risk of electrocution. Protect the appliance from sprays and drips.
• Only connect the appliance to approved power sockets. Make sure the mains voltage
matches that shown on the data plate located on the bottom of the appliance.
• The surface on which the machine is placed must be level, solid, stationary and heat
resistant; the bearing surface must not exceed an angle of 2°.
• Do not allow the appliance to be used by children under the age of ten or by people with
impaired sensory awareness, unless they are carefully supervised and instructed by a
person responsible for their safety. Children must be supervised to prevent them from
playing with the appliance.
• Do not leave the power cord near hot surfaces and sharp edges or objects.
• Never place hands inside the capsule compartment. Danger of injury.
• Always close the lever. Never open the lever while a beverage is being dispensed.
• Never remove machine parts, except those indicated in the instructions for daily
maintenance.
• Do not insert anything in the openings. This could cause electric shocks. Any operation
not described in this instruction manual must be referred to our Customer Service Centre.
• Grip the plug without pulling on the cord to disconnect it.
• Descale the appliance regularly, following the instructions provided. Otherwise, the
appliance could become damaged.
• Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms could
be hazardous to the health. Unplug the appliance and allow it to cool before cleaning.
• Unplug the appliance if not using for a long period of time, for example whilst on holidays.
English
Customer Service Centre: 0800 100 2653
www.caftaly.id
10
3. Setting Up Your Machine
First Use or After a Long Period of Non Use
• Fill the tank with fresh, still water (Fig. 4).
• Plug in the appliance and turn it on (Fig. 13).
• Make sure the lever is closed (Fig. 3).
• As well as buttons
, warning light E also blinks in RED.
• Place a large container (at least 250 mL) under the dispensing spout (Fig. 9).
• Press one of the buttons
, wait for the machine to complete the priming cycle and
ll with water. Warning light E will switch off.
Note: If at the end of the priming cycle buttons
and warning light E
continue to blink, repeat the procedures as listed in the previous step.
• Buttons
will blink simultaneously to indicate that the machine is warming up.
• When buttons
turn on and remain steadily lit, perform a rinse by pressing
button
. Press the button again to perform a second rinse. Wait for the machine to
complete the rinse cycle.
• At the end of this operation, empty out the water from the used capsule drawer (Fig. 6).
Now your machine is ready for use
Turning on the Appliance for Regular Use
• Fill the tank with fresh, still water (Fig. 4).
• Switch on the appliance by pressing the power on/off switch (Fig. 14).
• Buttons
will blink simultaneously to indicate that the machine is warming up.
When the buttons turn on and remain steadily lit, the appliance is ready for use.
English
