Cafection Encore lite Service & Installation Manual

SERVICE & INSTALLATION MANUAL

Manufactured by:
Cafection Ventures Inc.
2355, avenue Dalton, Québec (Québec) G1P 3S3 Canada
Tel.: [phone] Fax: [phone]
[e-mail] www.cafection.com

Images may vary from the actual product.

ELINSA - Revision 3

05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

Table of Contents

1 SAFETY INSTRUCTIONS ........................................................................................................................ 5

1.1 Food-Contact Parts ................................................................................................................... 5

1.2 Warnings ....................................................................................................................................5

1.3 Power Supply ............................................................................................................................ 5

1.4 Disconnect the equipment if: ...................................................................................................... 5

2 WARRANTY ............................................................................................................................................. 6

2.1 Warranty Policy ..........................................................................................................................6

2.2 Warranty Return Procedure ........................................................................................................ 7

2.3 Shipping Liabilities ...................................................................................................................... 7

3 REFERENCE DRAWINGS .......................................................................................................................8

3.1 External View ............................................................................................................................. 8

3.2 Rear View .................................................................................................................................. 9

3.3 Internal View ............................................................................................................................ 10

3.4 Brew Group Assembly .............................................................................................................11

3.5 Brewing Process ...................................................................................................................... 12

3.6 Main Board ..............................................................................................................................13

3.6.1 Main Board (PCB) Description ................................................................................. 14

3.7 Hot Water Tank ........................................................................................................................ 15

3.8 Bean Hopper Installation .......................................................................................................... 16

3.9 Water Temperature ................................................................................................................... 17

Table of Contents

4 INITIAL SETUP ...................................................................................................................................... 18

4.1 On-Site Installation Requirements .............................................................................................18

4.1.1 Operating Environment ............................................................................................ 18

4.1.2 Power Supply .......................................................................................................... 18

4.1.3 Water Supply ........................................................................................................... 18

4.1.4 Tools Required ......................................................................................................... 18

4.1.5 Clearance ................................................................................................................ 18

4.2 Specifications ........................................................................................................................... 19

4.2.1 Hopper & Canisters Capacities ................................................................................ 19

4.2.2 Water Tank .............................................................................................................. 19

4.2.3 Electrical Requirements ............................................................................................ 19

4.3 Unpacking ............................................................................................................................... 20

4.4 Leveling the Equipment ............................................................................................................ 21

4.5 Drip Tray Installation ................................................................................................................. 21

4.6 Adjusting the Tank Overflow Cup .............................................................................................. 22

4.7 Water Line Connection ............................................................................................................. 23

4.8 Electrical Connection ............................................................................................................... 24

4.9 Loading Products .....................................................................................................................25

4.9.1 Soluble Canisters ..................................................................................................... 25

4.9.2 Bean Hopper ........................................................................................................... 25

4.10 Filter Paper Installation ............................................................................................................. 26

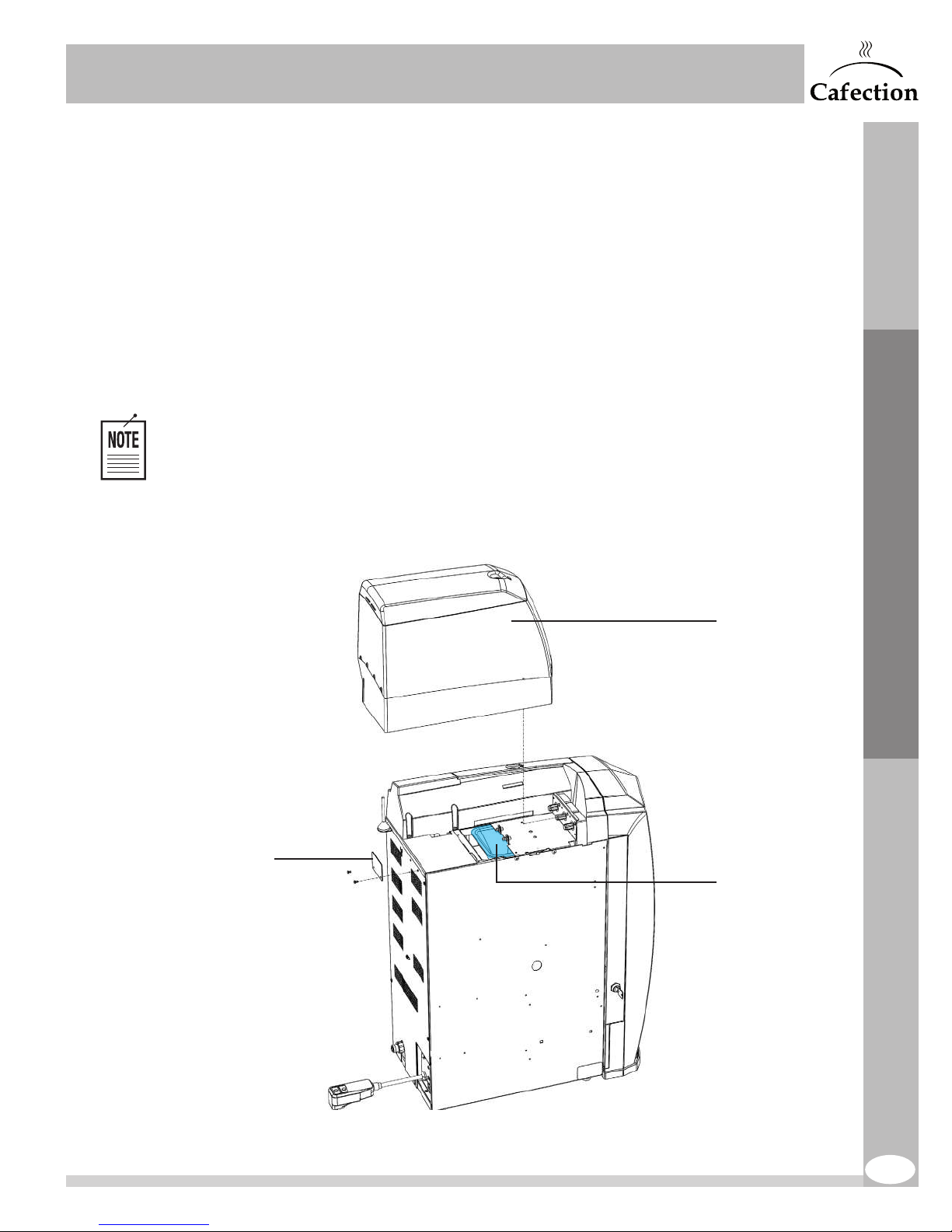

4.11 Chute Kit Installation (Optional) ................................................................................................. 27

4.12 Installation Verification ..............................................................................................................28

4.13 Coin Changer and Bill Acceptor ............................................................................................... 28

2

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

5 USER INTERFACE .................................................................................................................................29

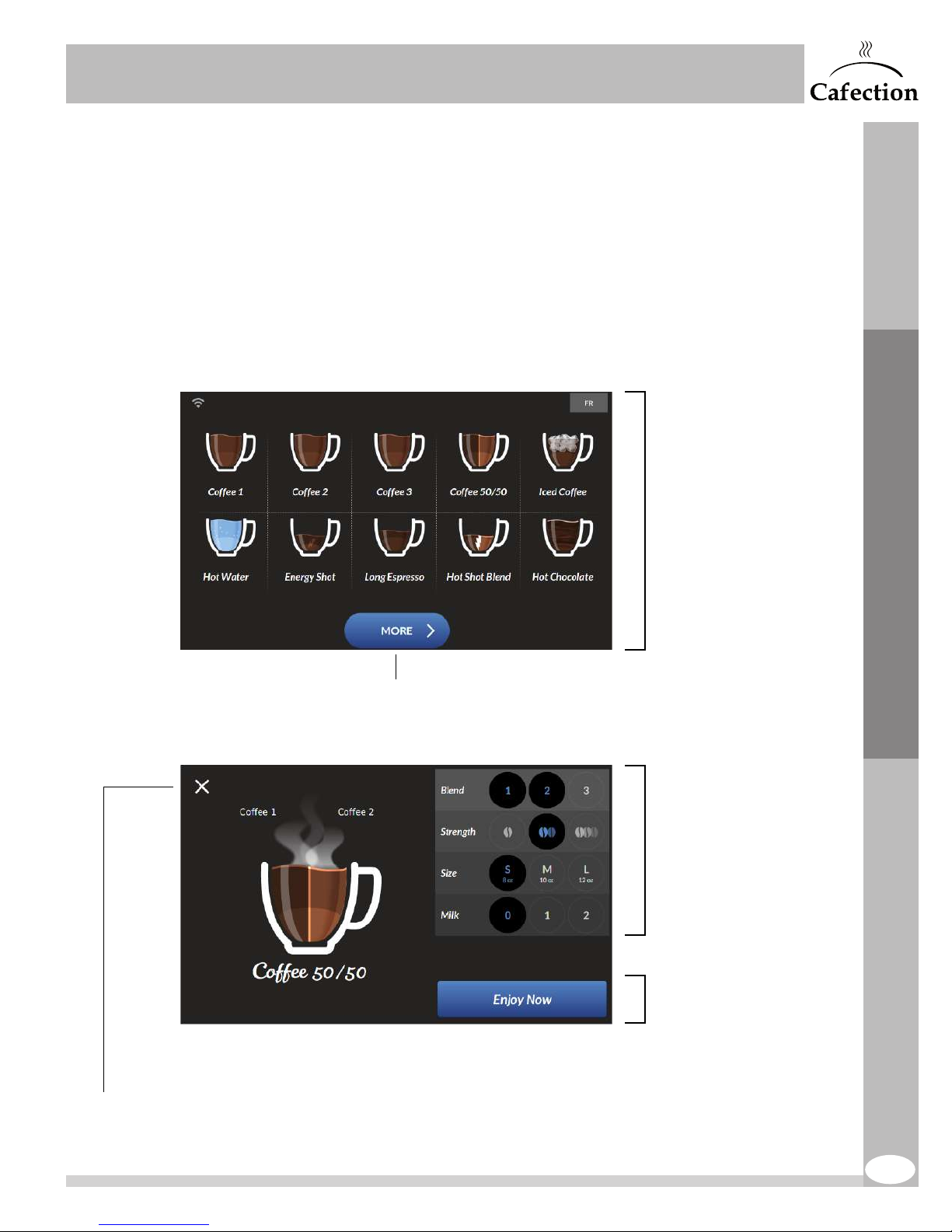

5.1 Selection Screen Interface ........................................................................................................ 29

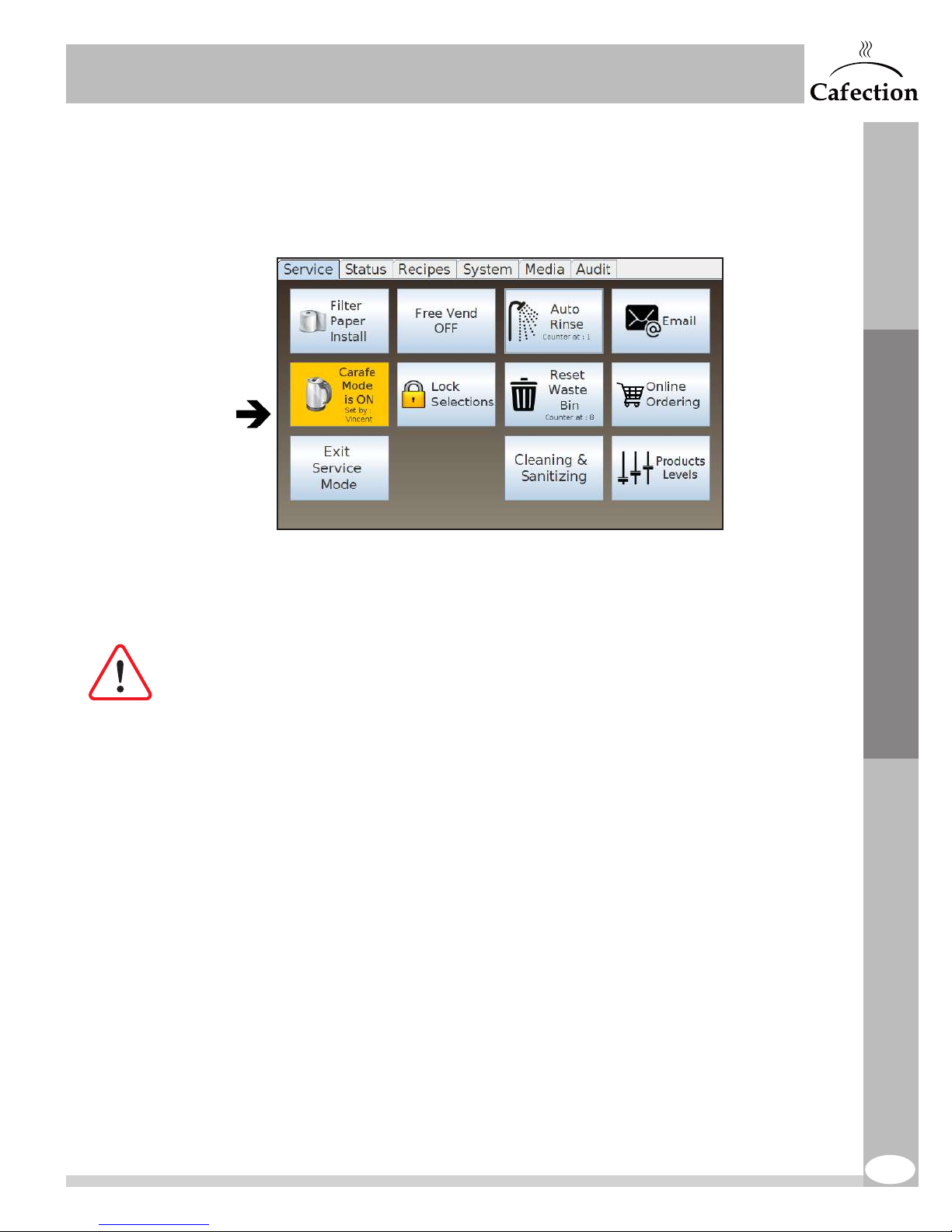

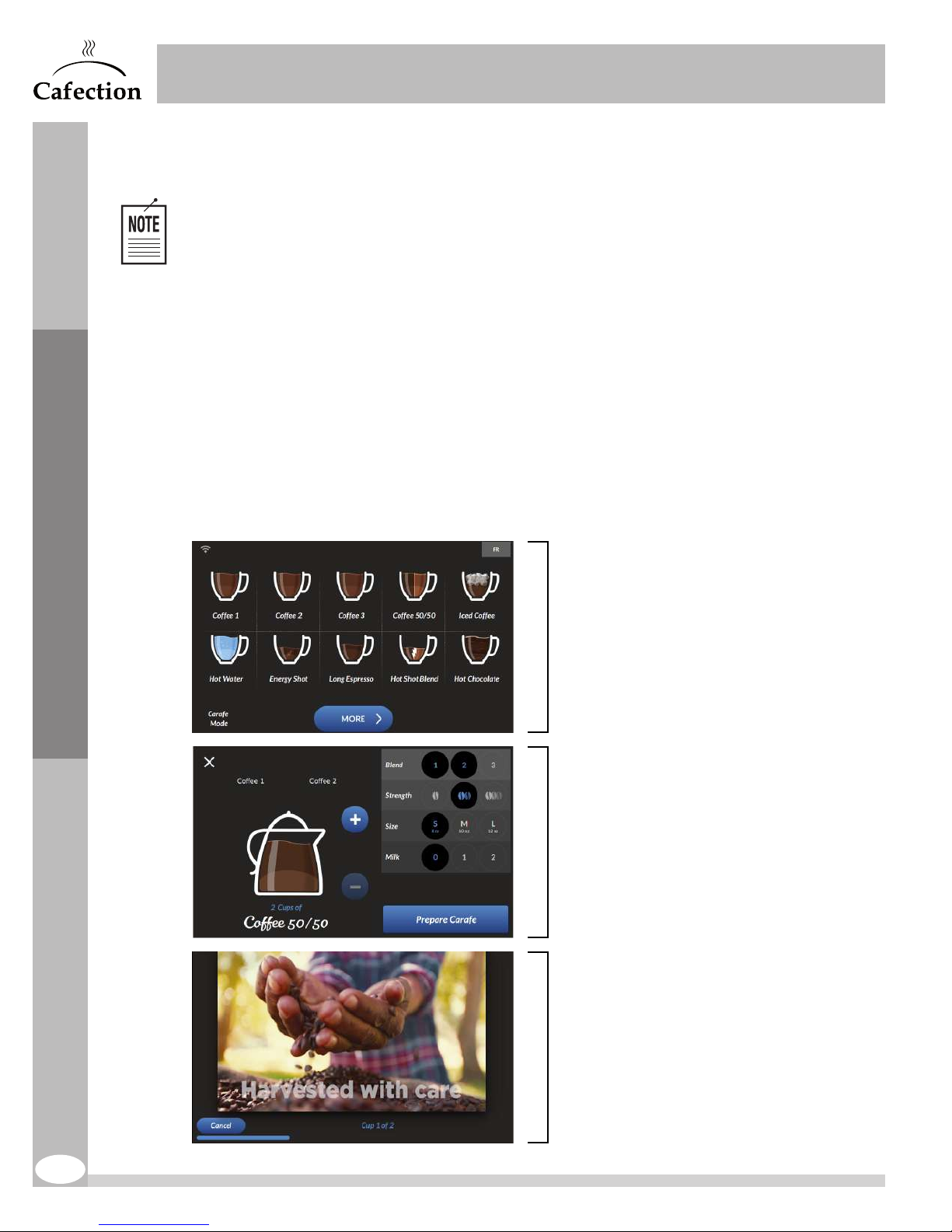

5.2 Carafe Mode ............................................................................................................................ 30

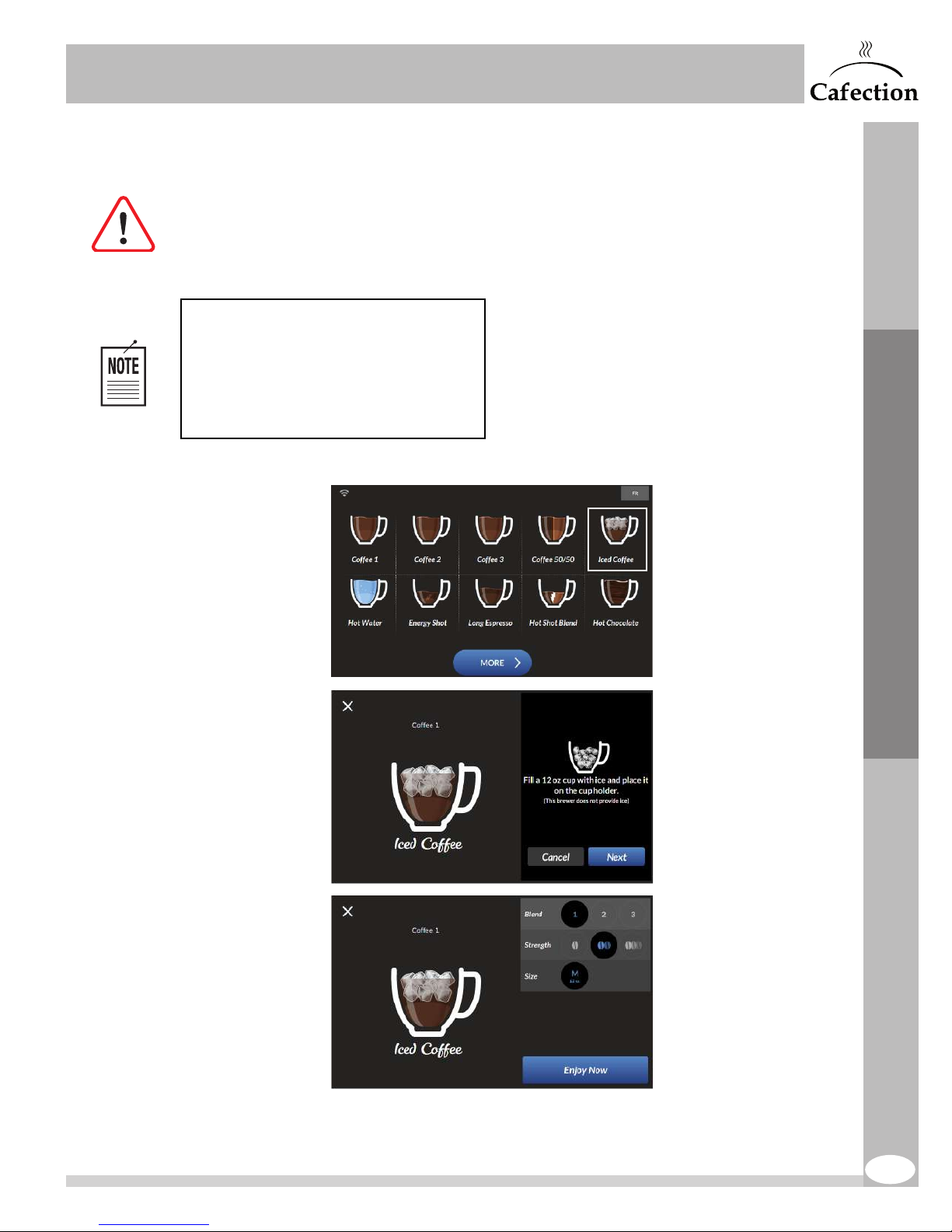

5.3 Iced Coffee ..............................................................................................................................31

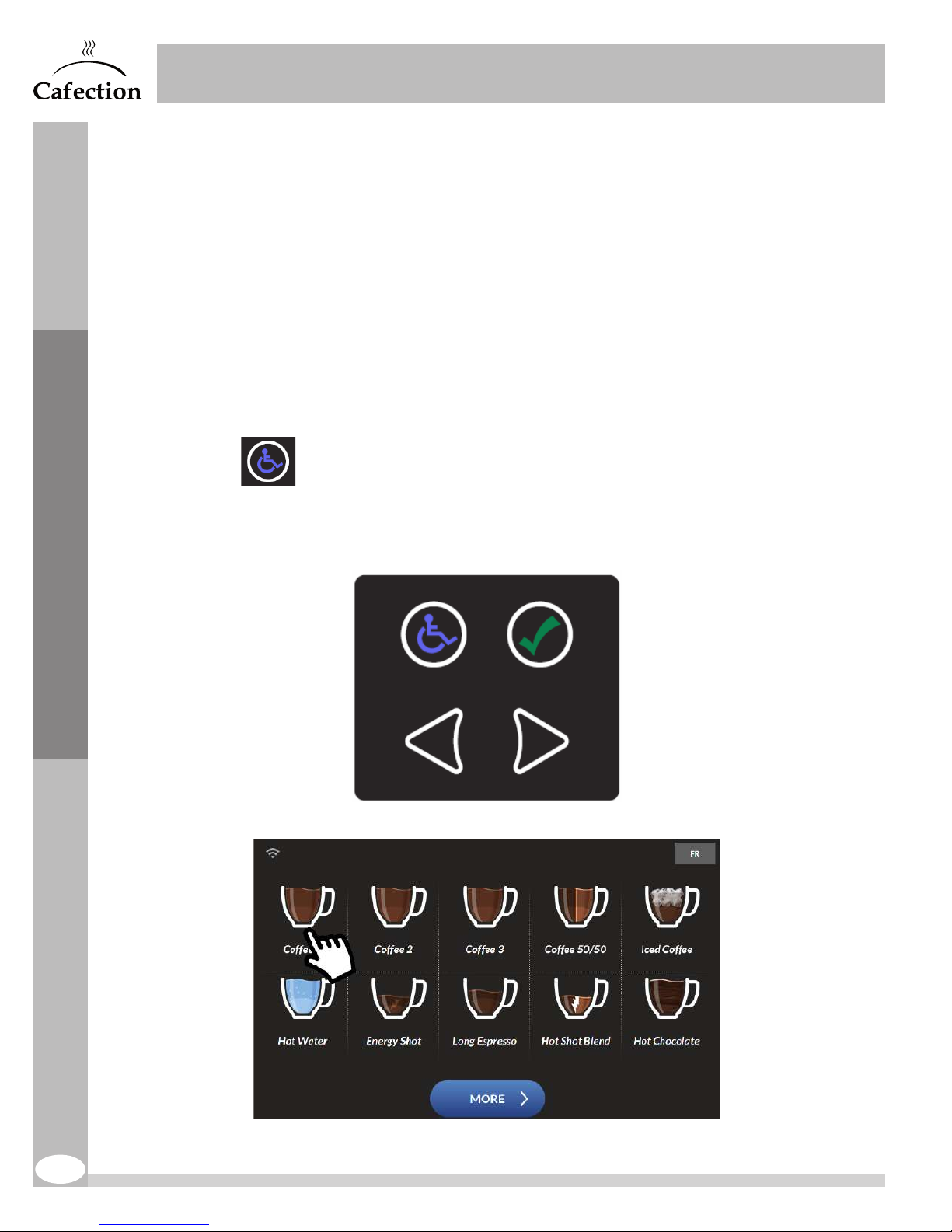

5.4 Selection Keyboard for People with Disabilities (Optional) ......................................................... 32

6 SERVICE MODE ....................................................................................................................................33

6.1 Users Levels ............................................................................................................................33

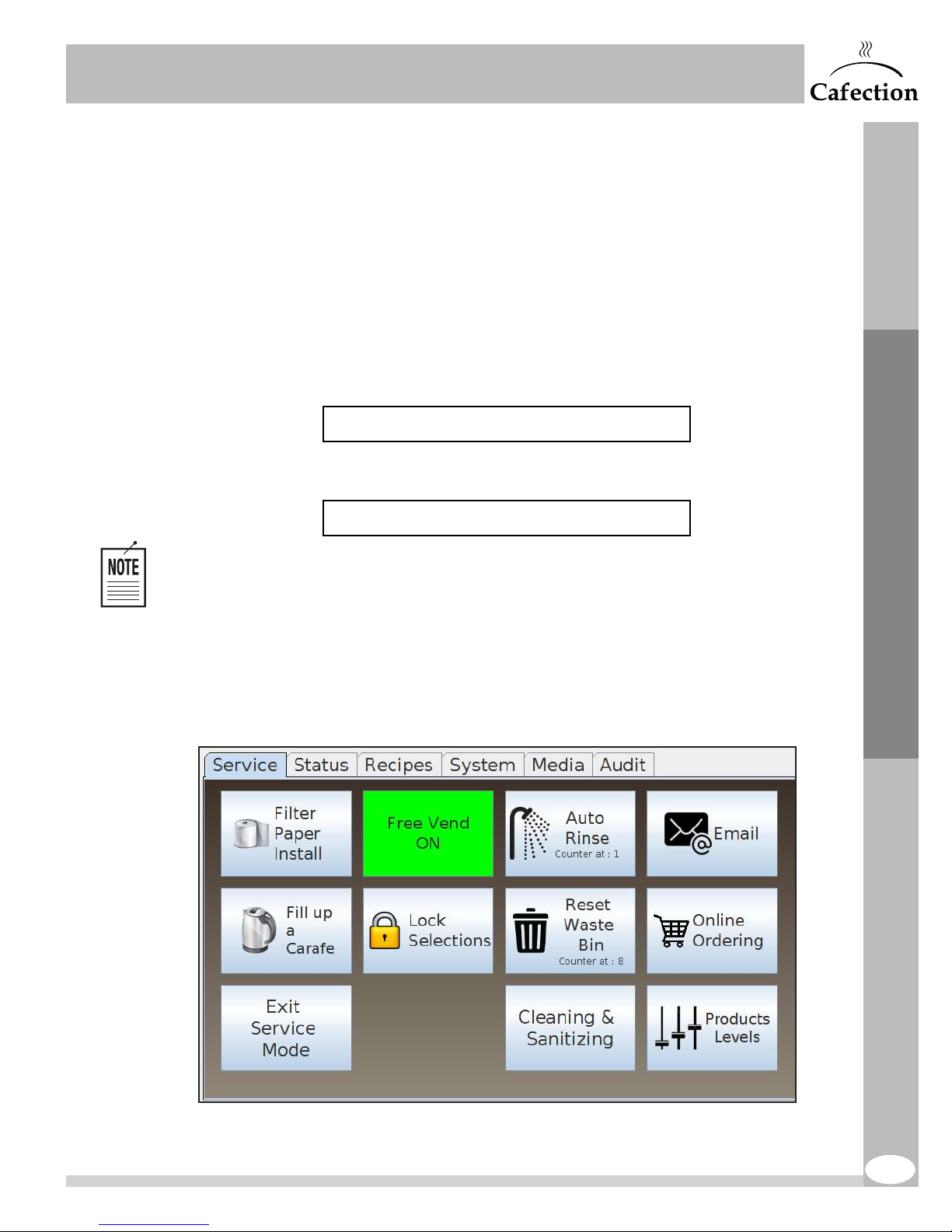

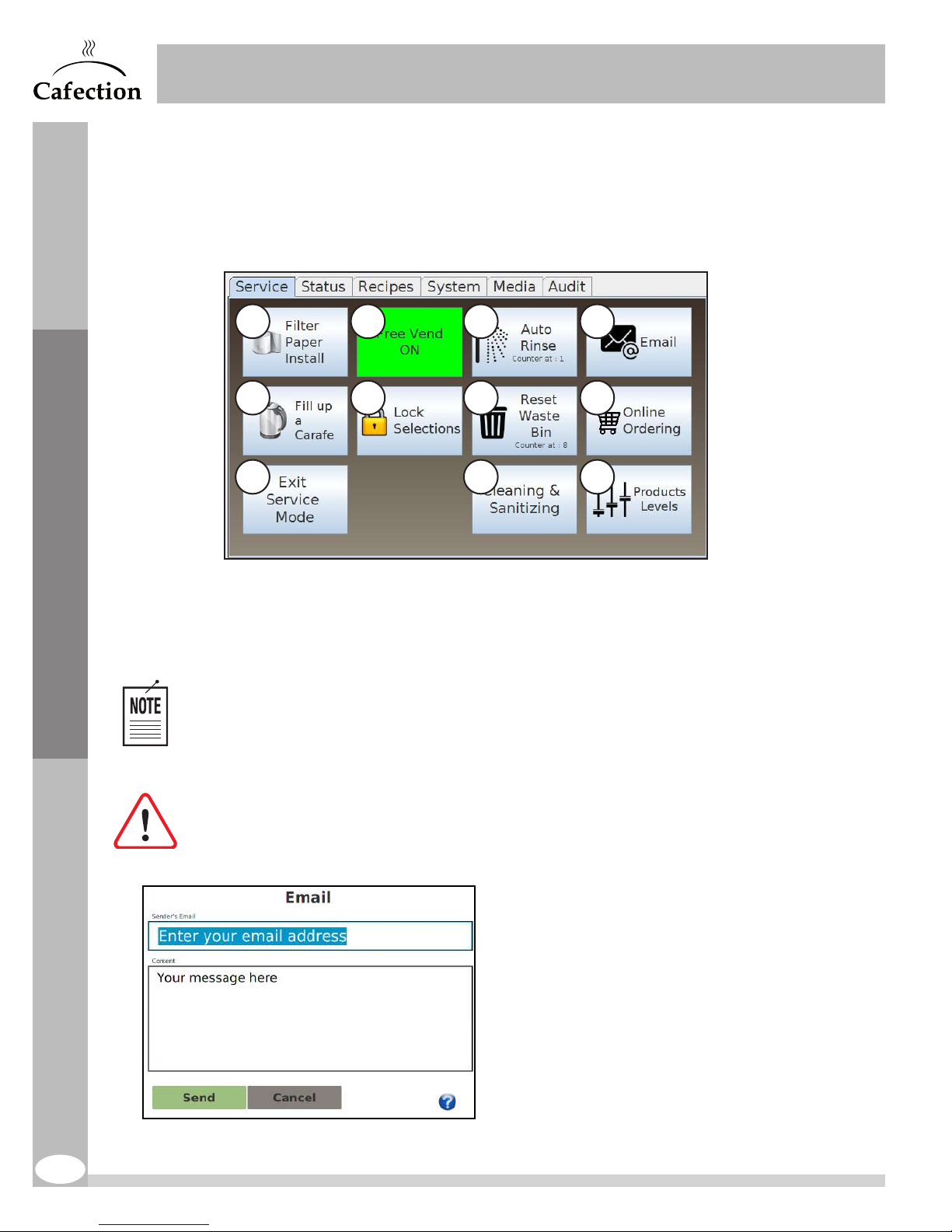

6.2 Service Tab .............................................................................................................................. 34

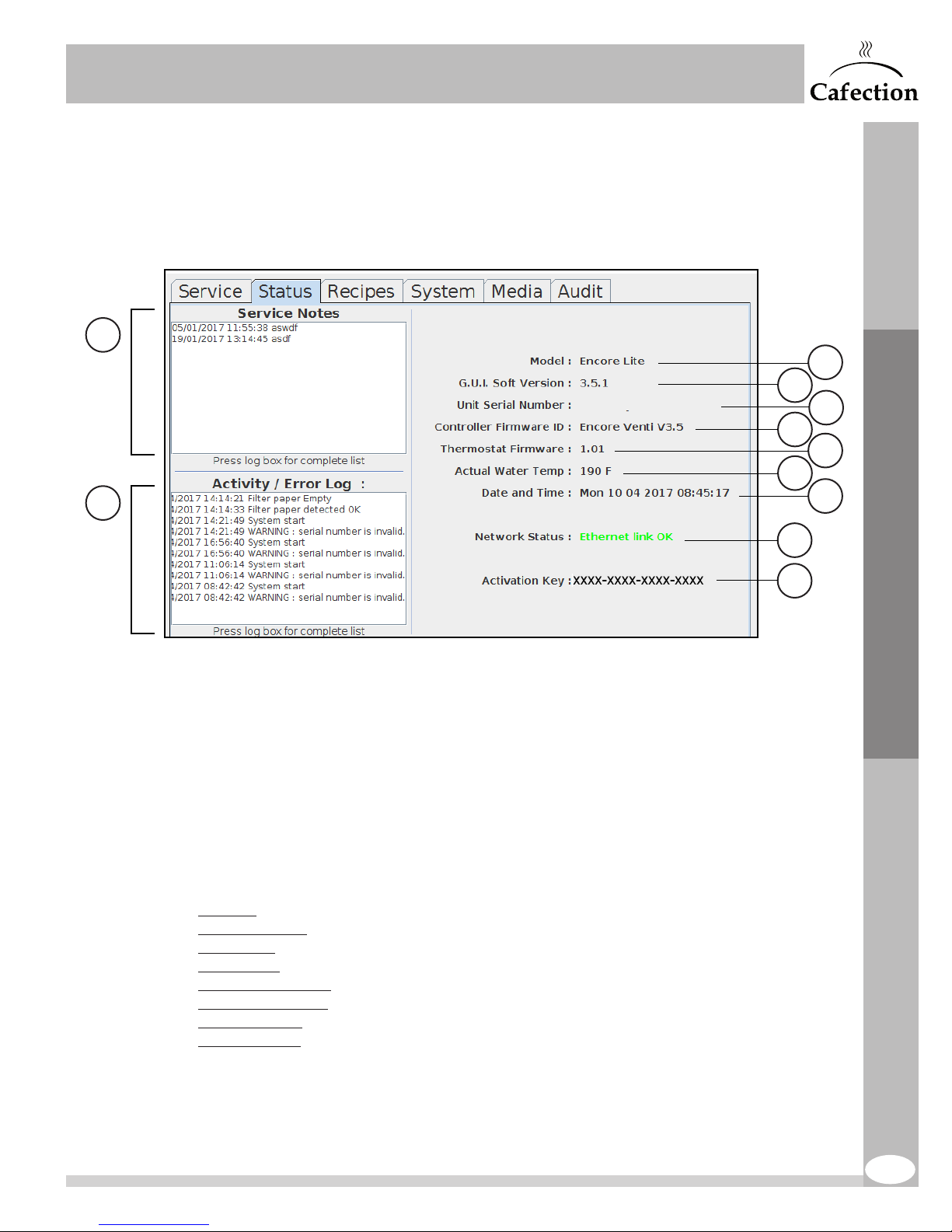

6.3 Status Tab ................................................................................................................................ 37

6.4 Password Pop-Up ...................................................................................................................38

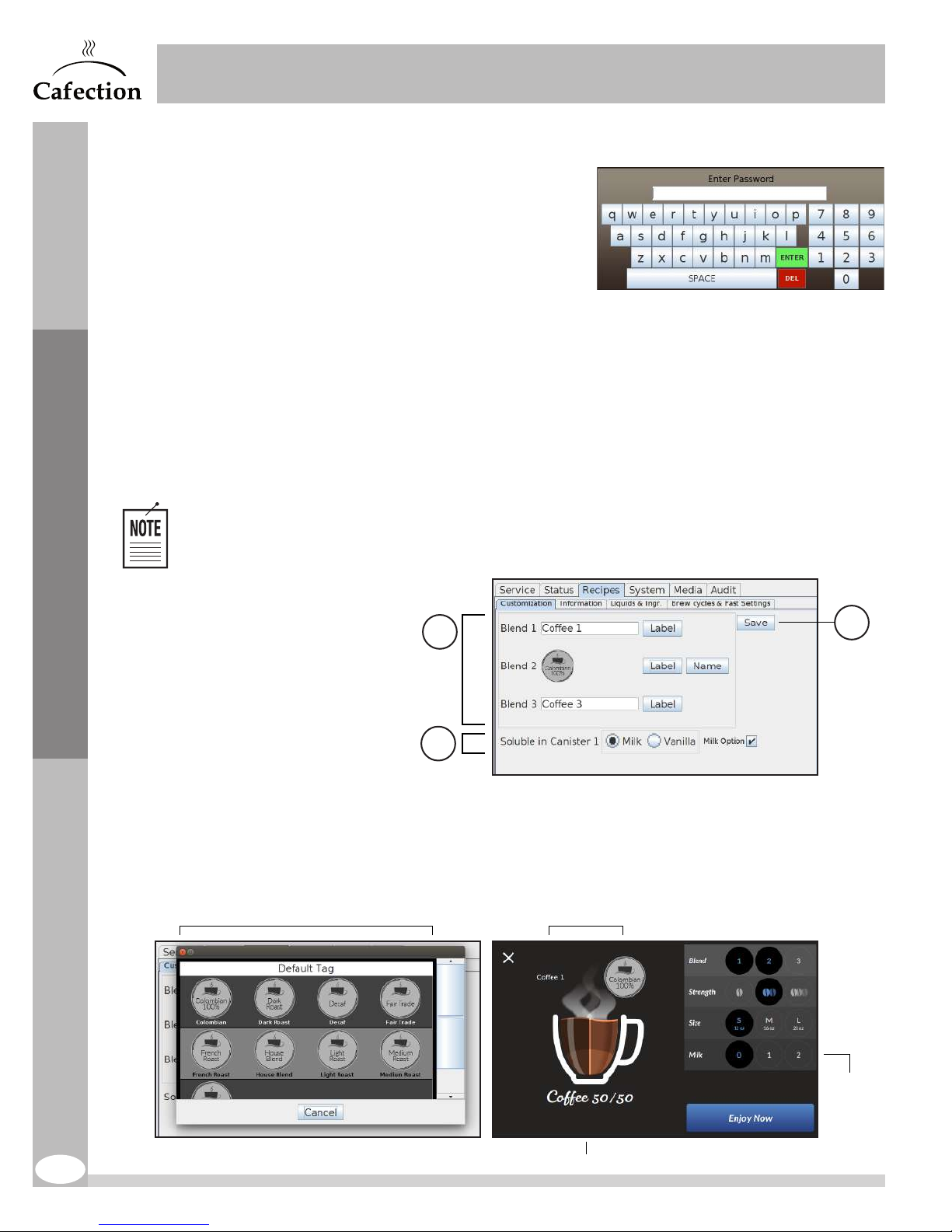

6.5 Recipes Tab ............................................................................................................................. 38

6.5.1 Customization Sub Tab ............................................................................................ 38

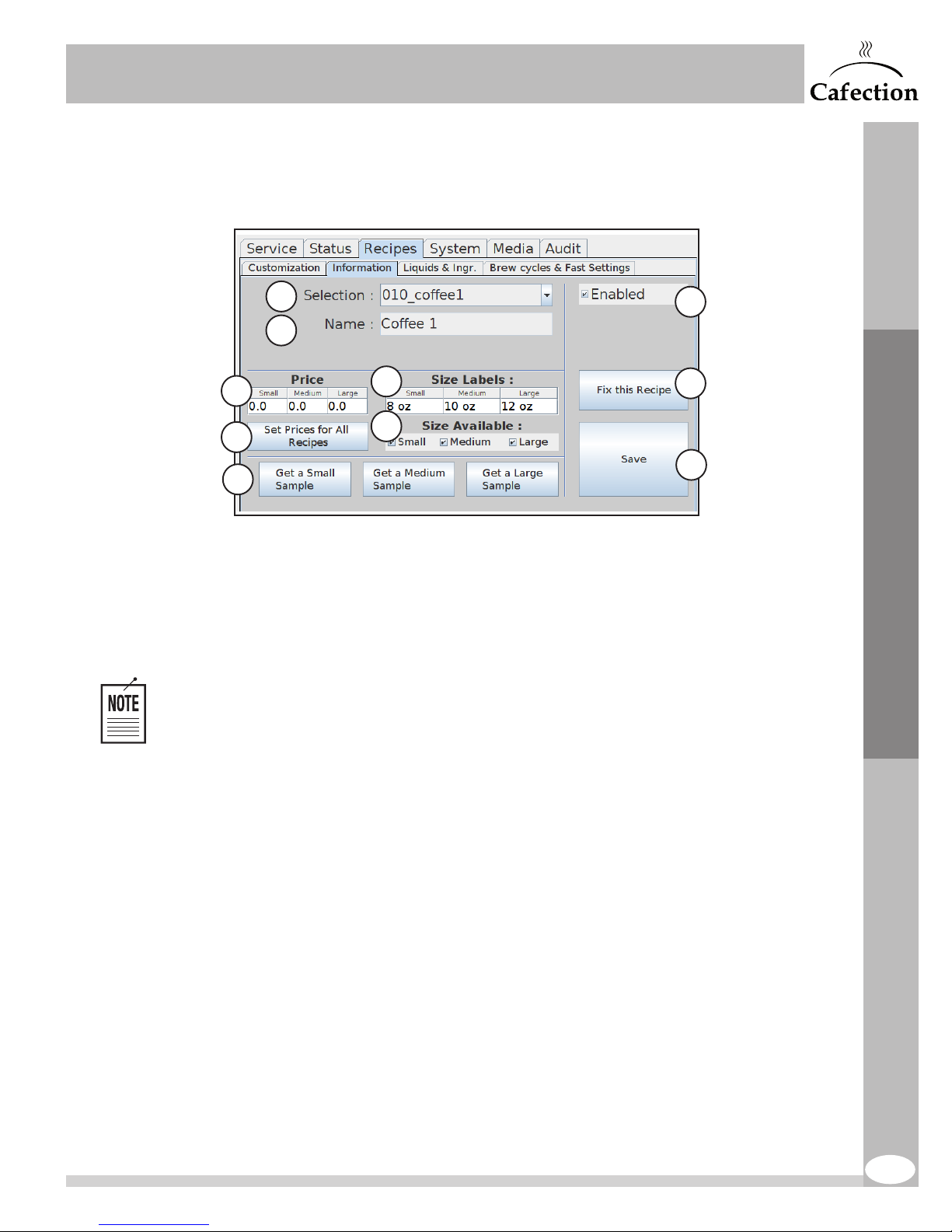

6.5.2 Information Sub Tab .................................................................................................39

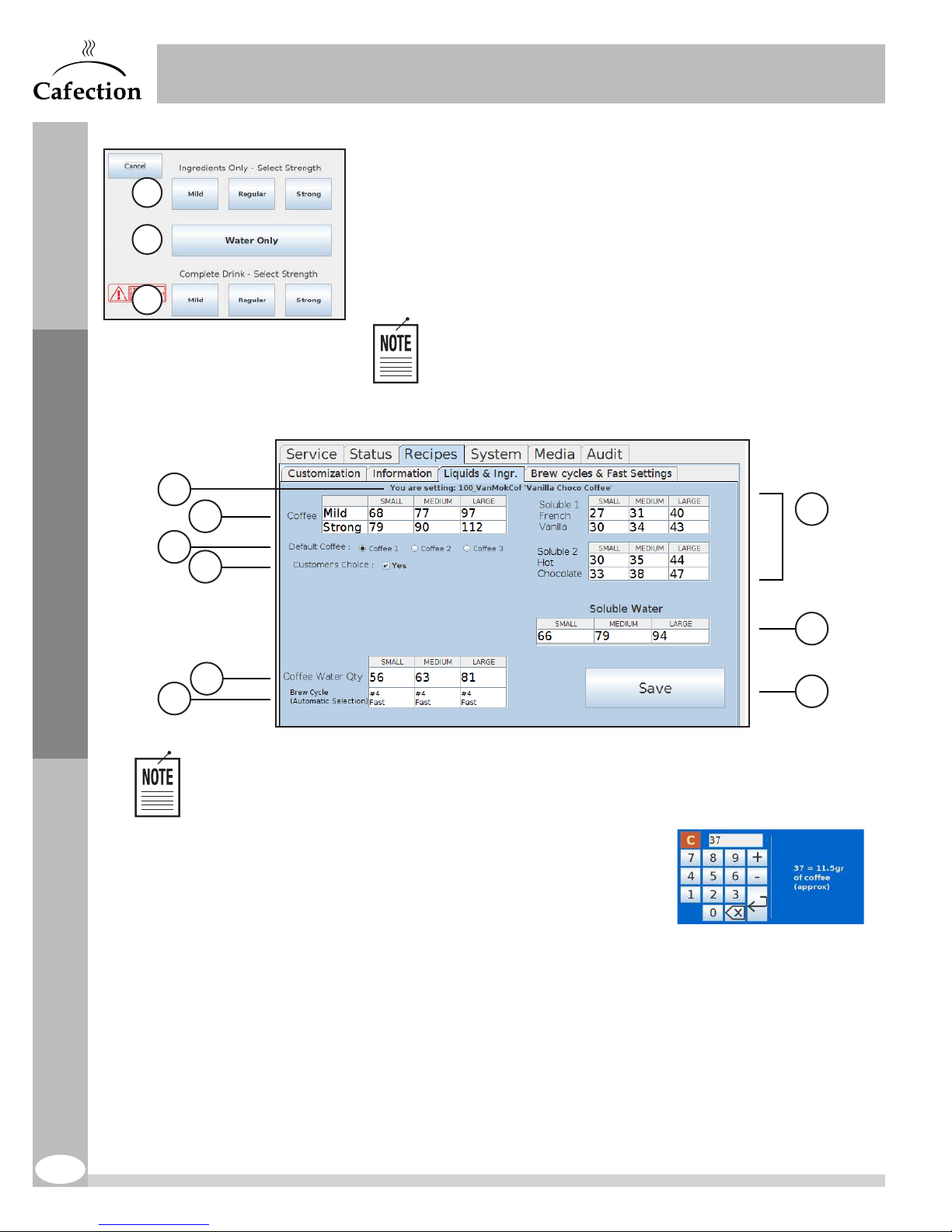

6.5.3 Liquids & Ingr. (Ingredients) Sub Tab ........................................................................40

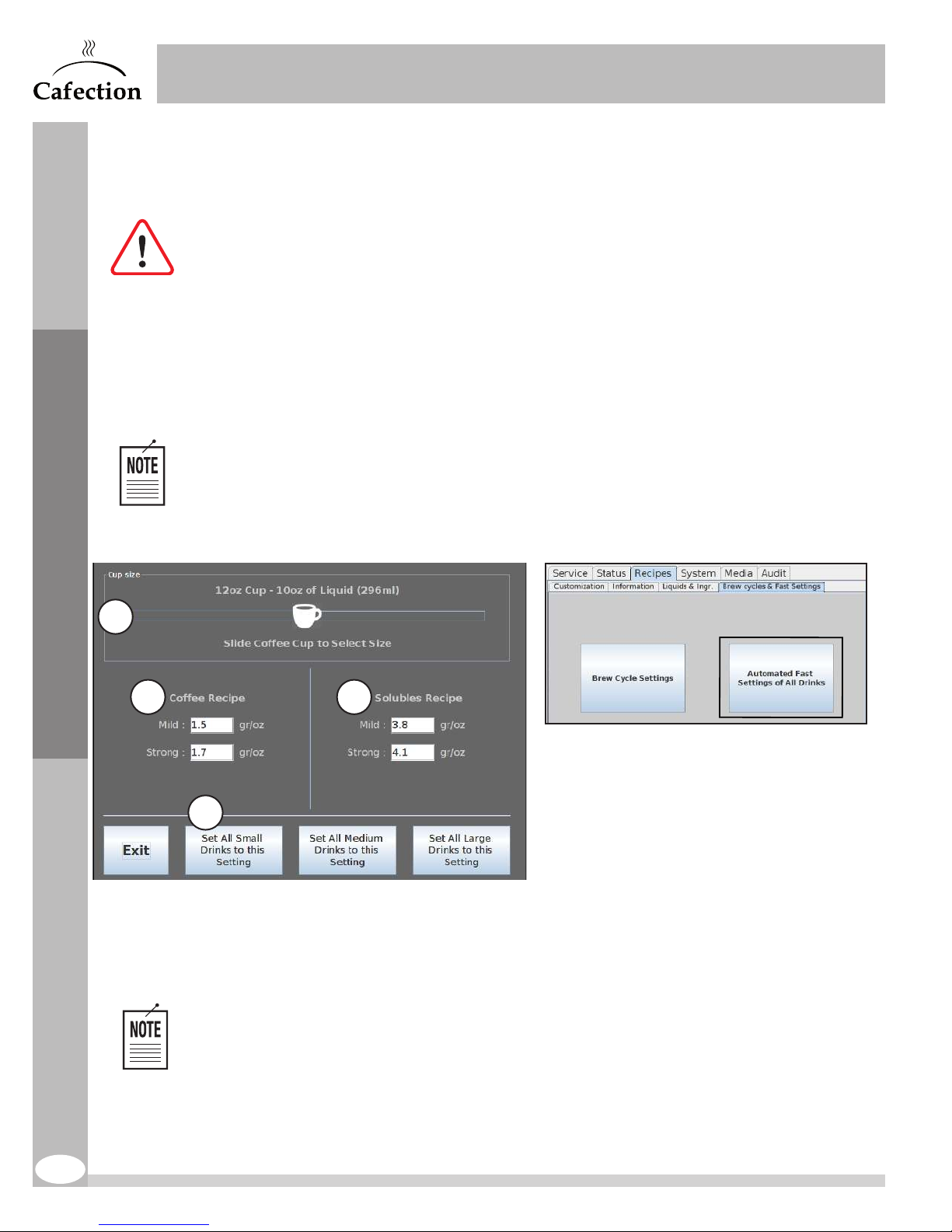

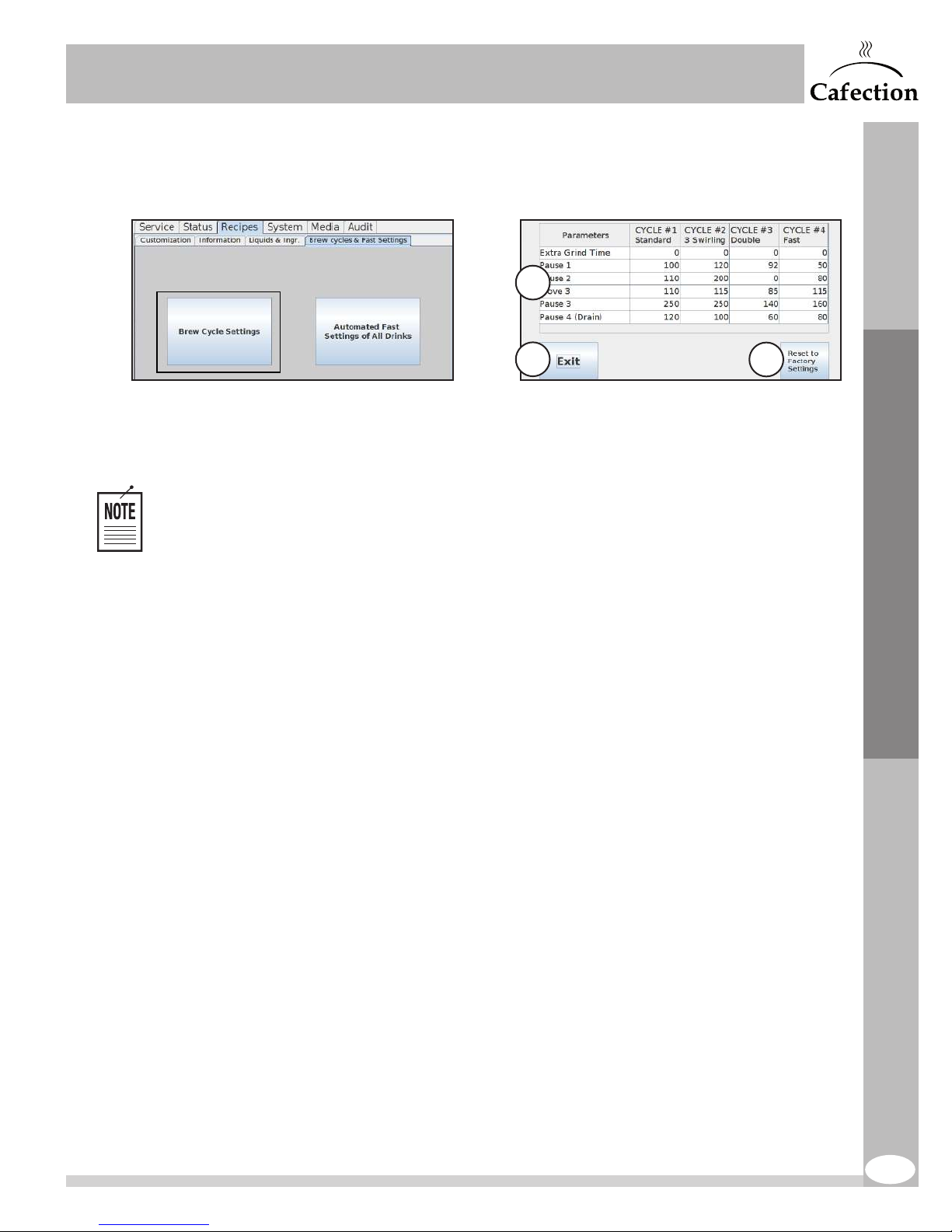

6.5.4 Brew Cycles & Fast Settings Sub Tab ...................................................................... 41

6.6 System Tab .............................................................................................................................. 43

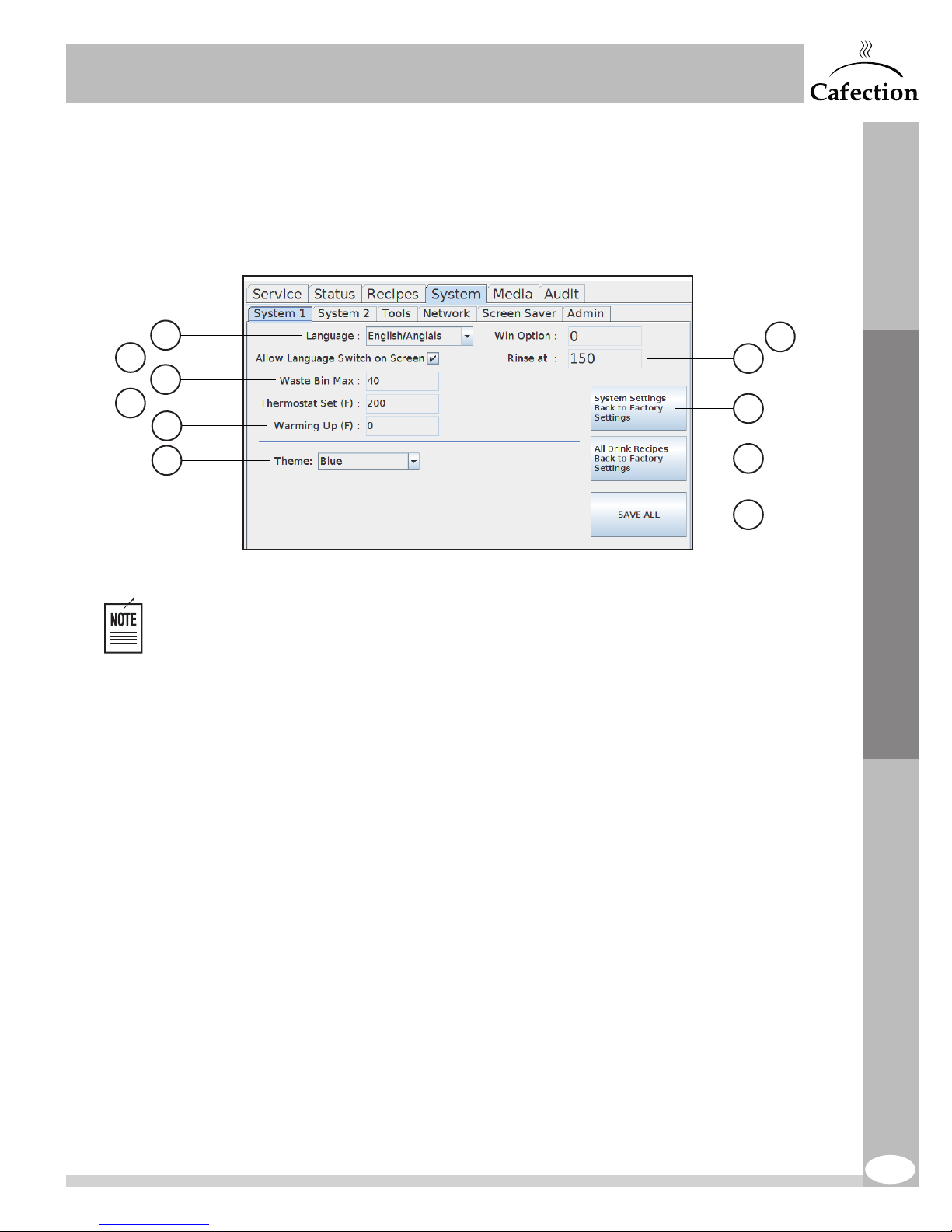

6.6.1 System1 Sub Tab ...................................................................................................43

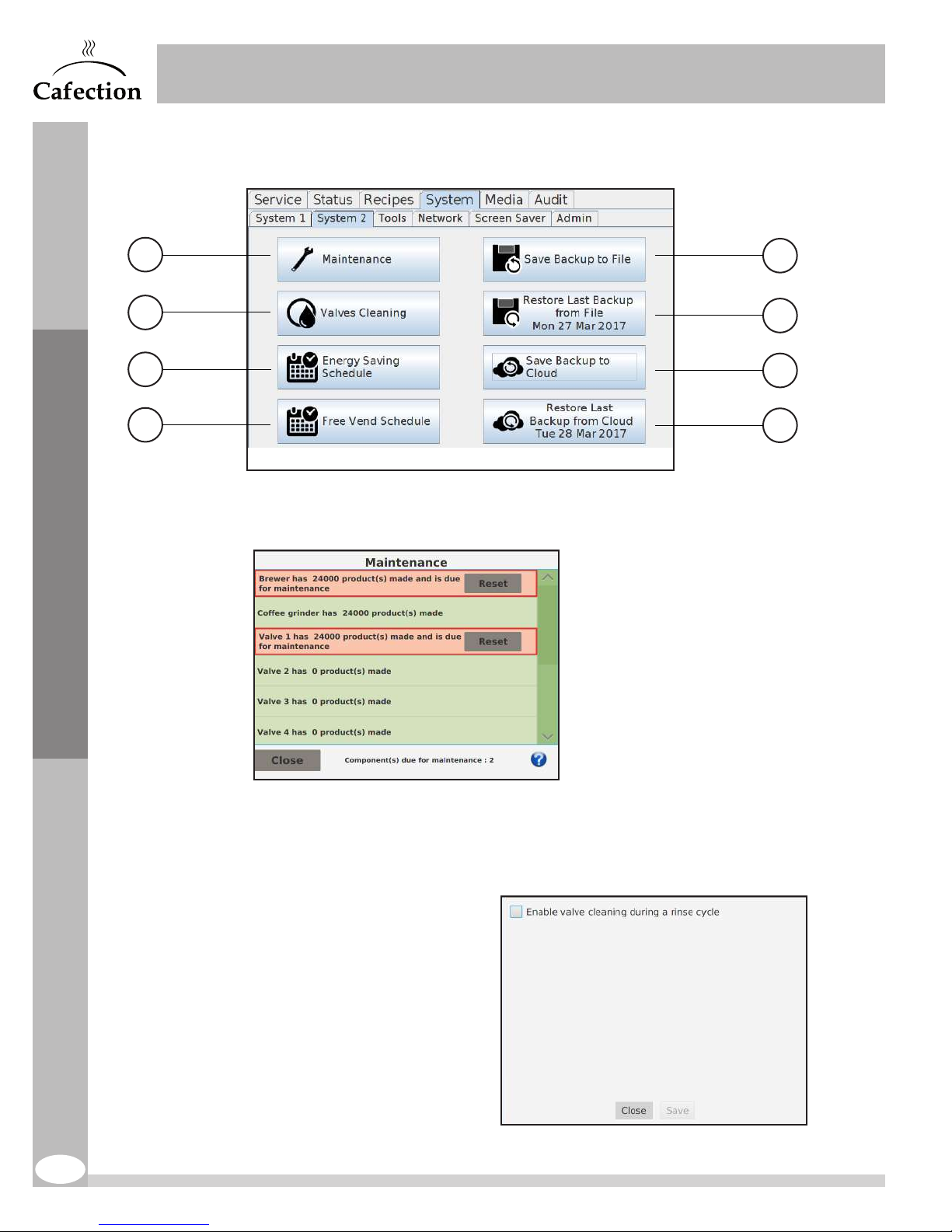

6.6.2 System2 Sub Tab ...................................................................................................44

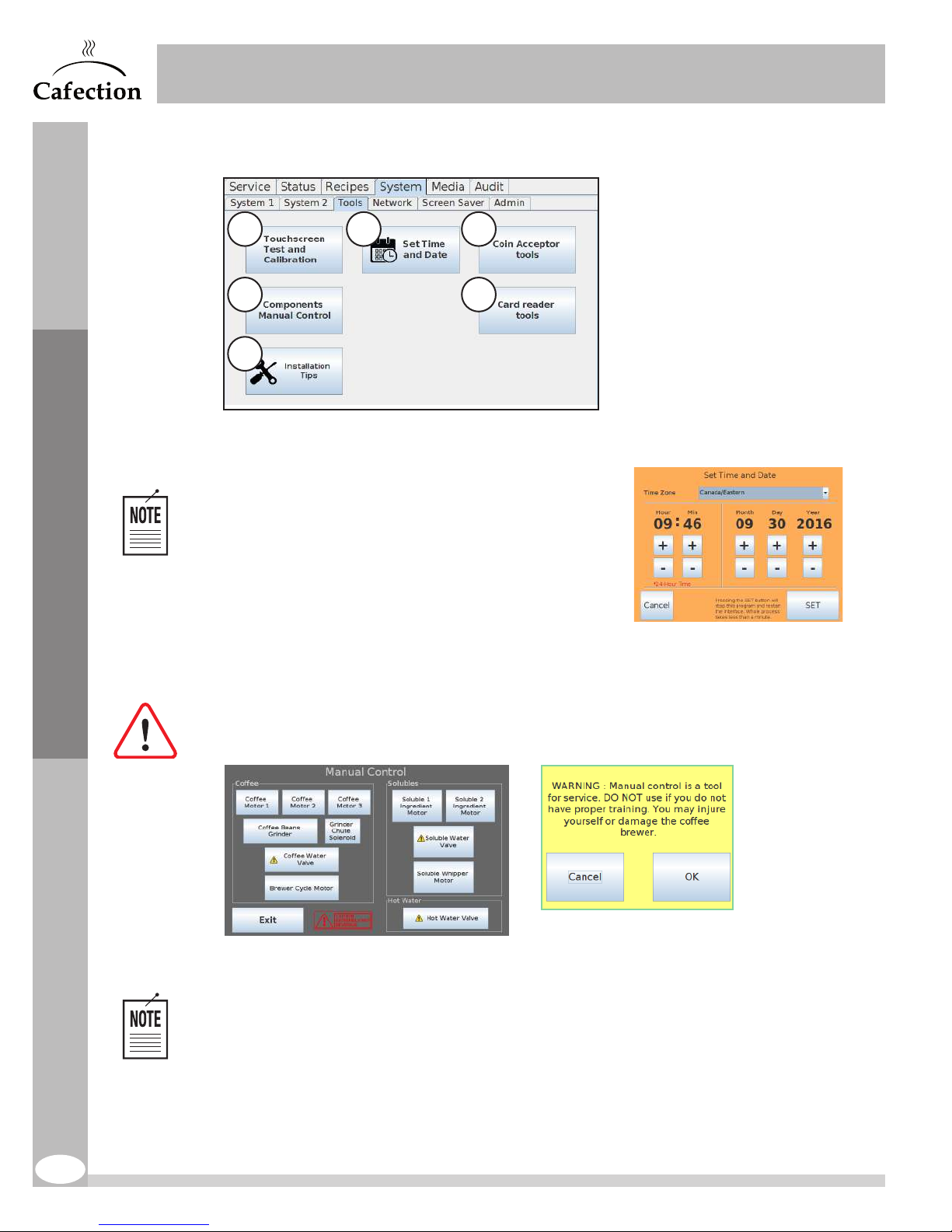

6.6.3 Tools Sub Tab .......................................................................................................... 46

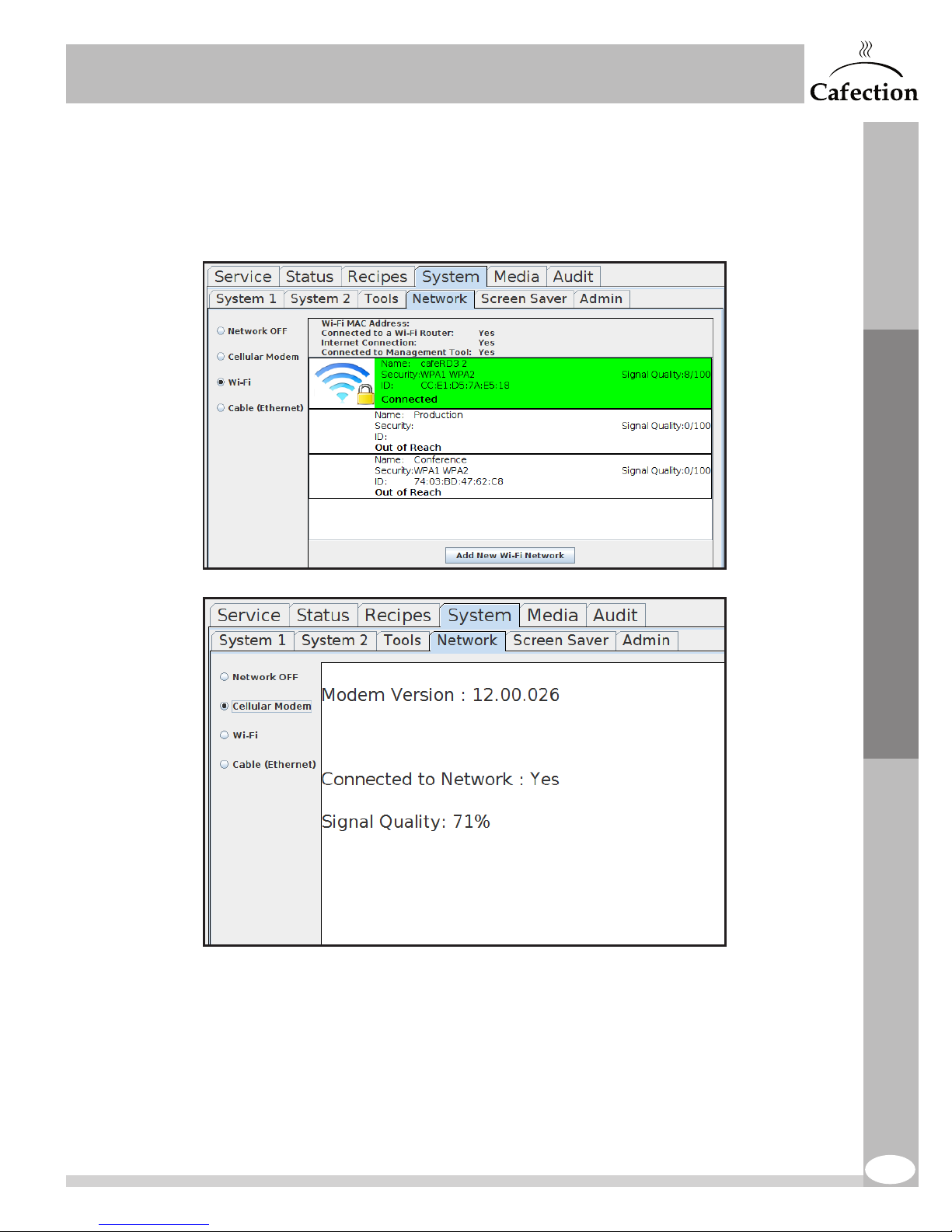

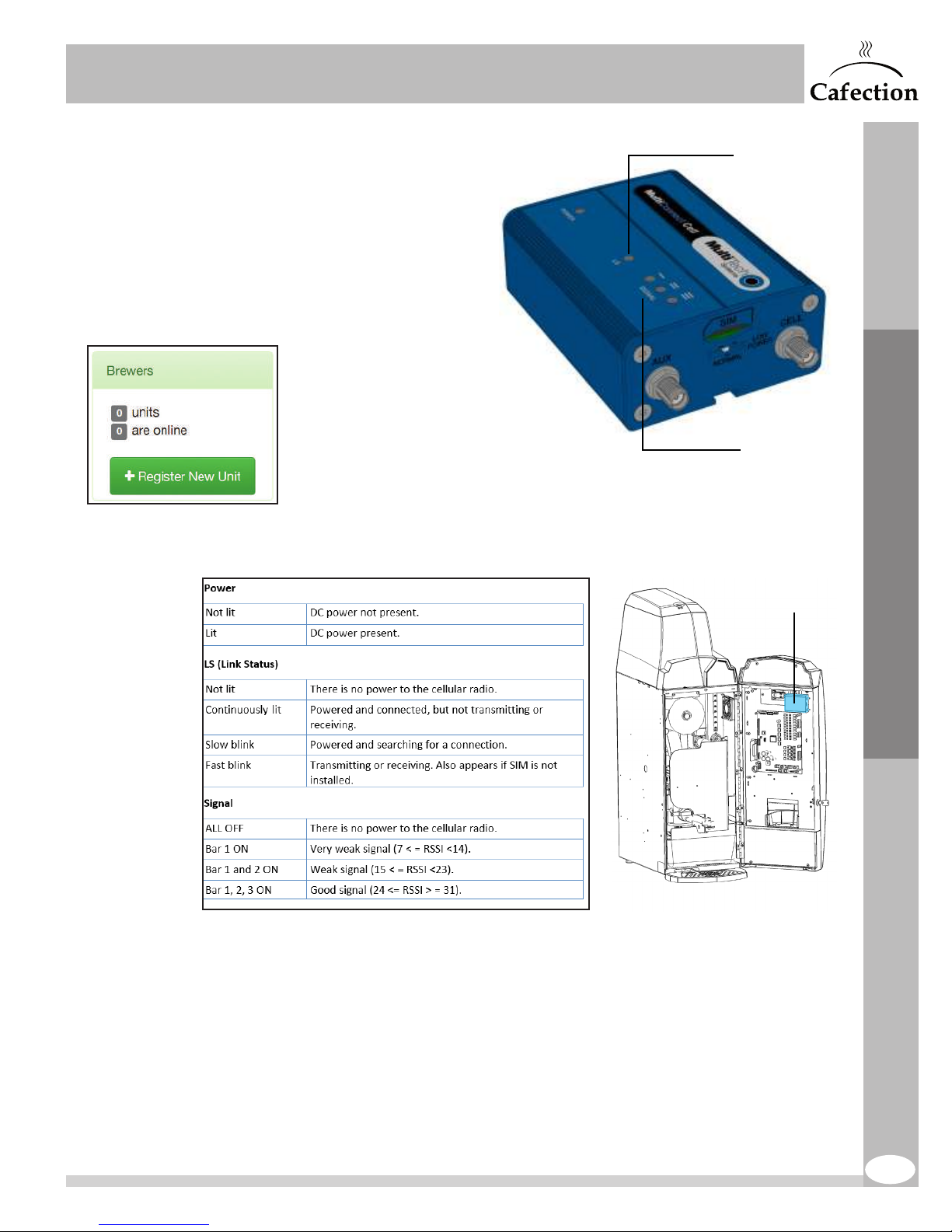

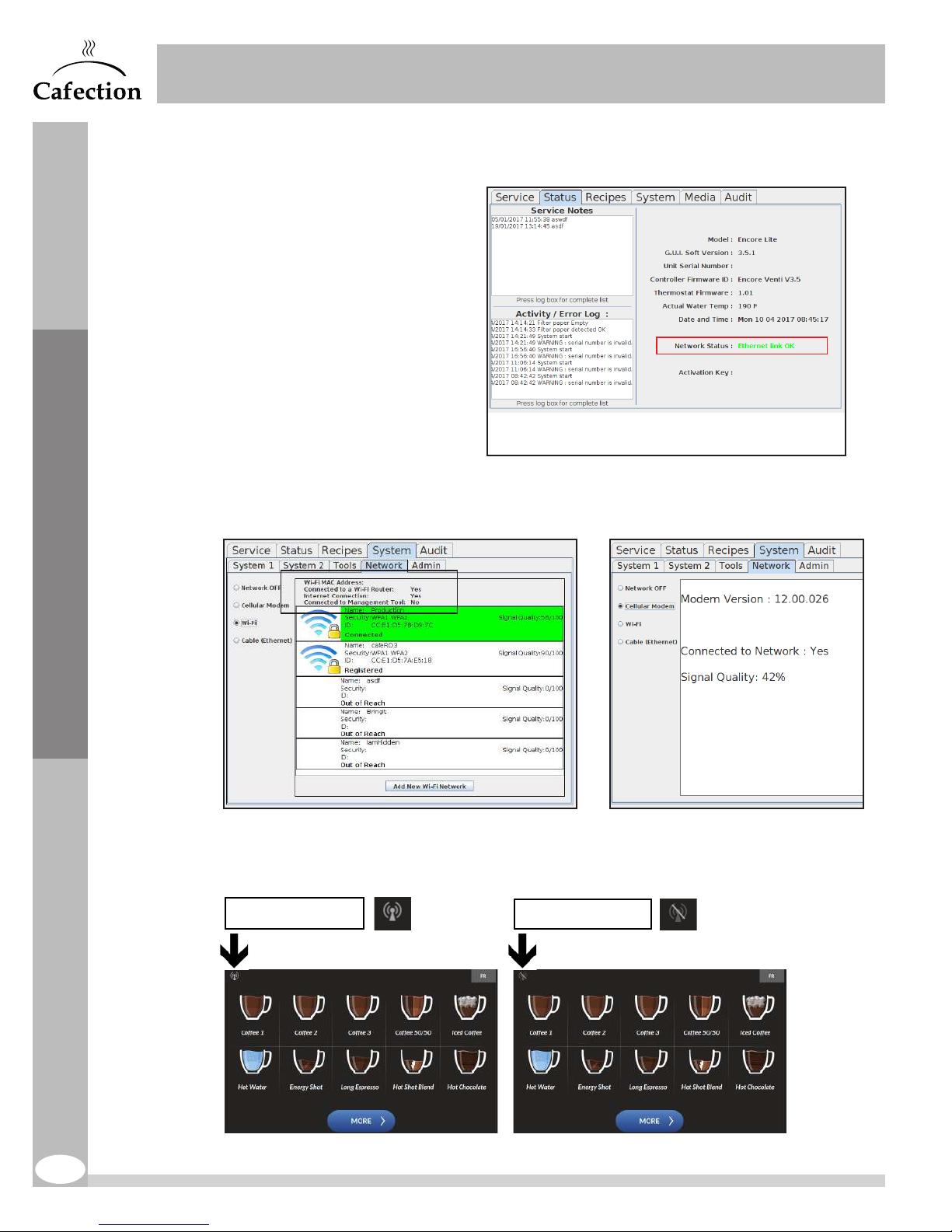

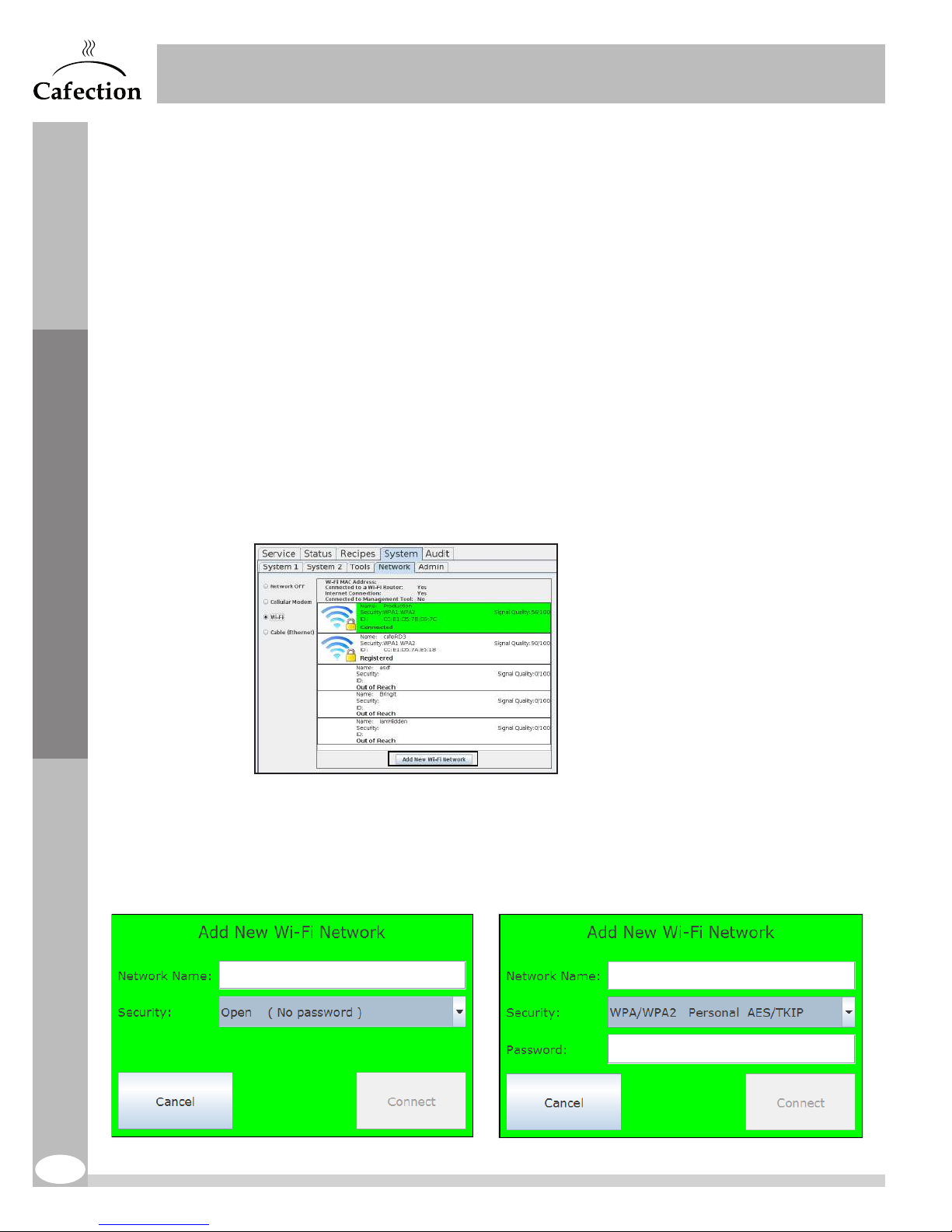

6.6.4 Network Sub Tab ..................................................................................................... 47

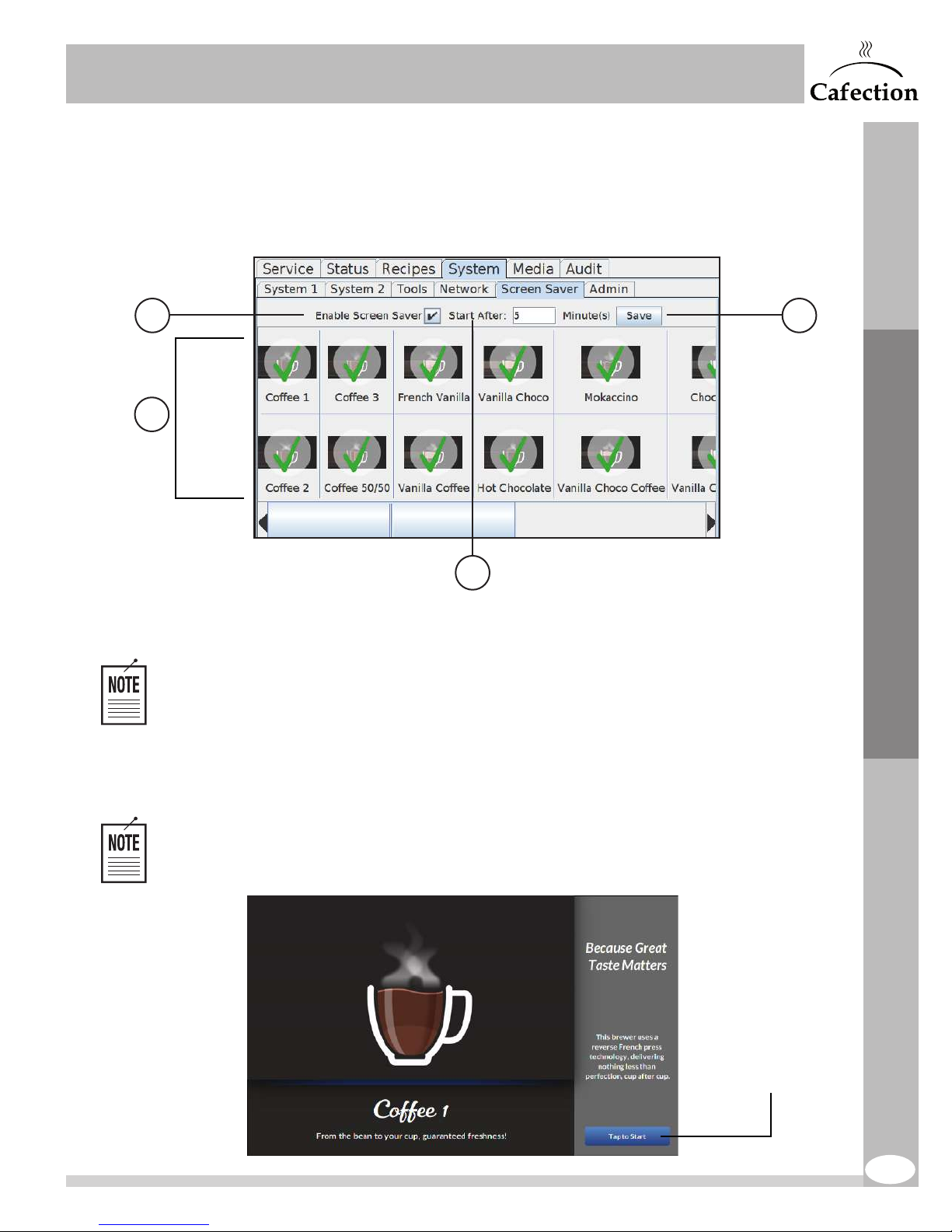

6.6.5 Screen Saver Sub Tab .............................................................................................51

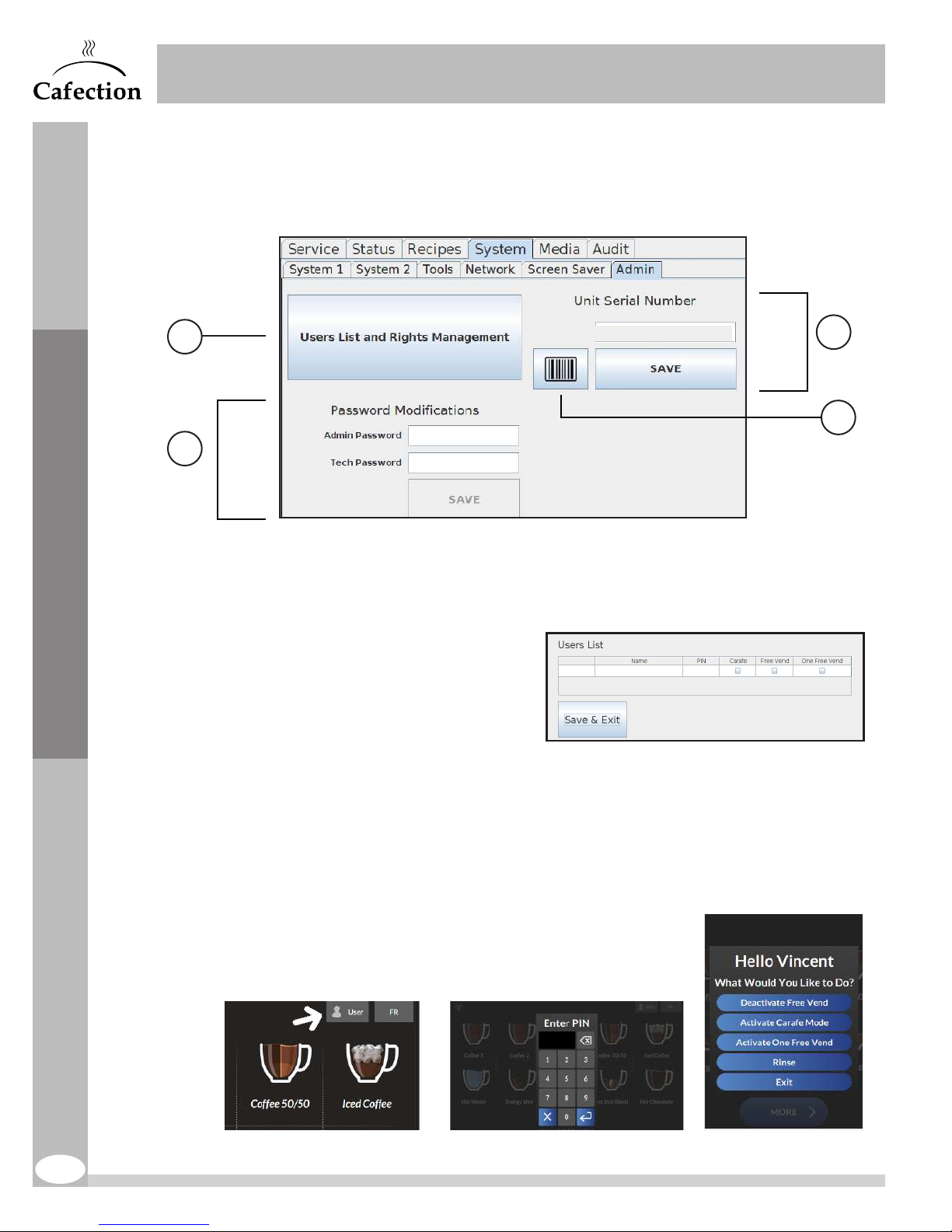

6.6.6 Admin Sub Tab ........................................................................................................ 52

6.7 Media Tab ................................................................................................................................ 54

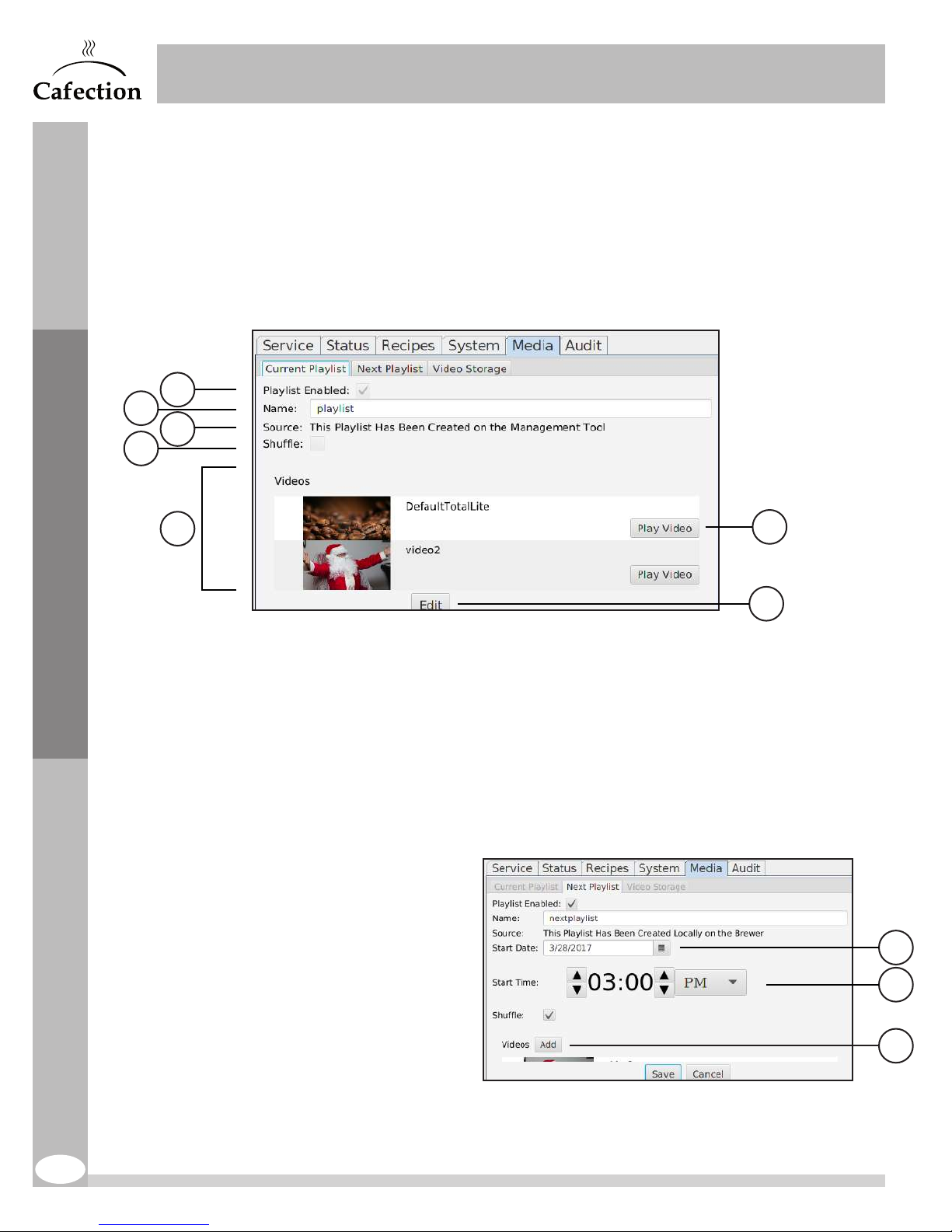

6.7.1 Current Playlist Sub Tab ........................................................................................... 54

6.7.2 Next Playlist Sub Tab ...............................................................................................54

6.7.3 Video Storage Sub Tab ............................................................................................ 55

6.8 Audit Tab.................................................................................................................................. 55

6.8.1 Permanent Sales Count ........................................................................................... 55

6.8.2 Erasable Sales Count ...............................................................................................55

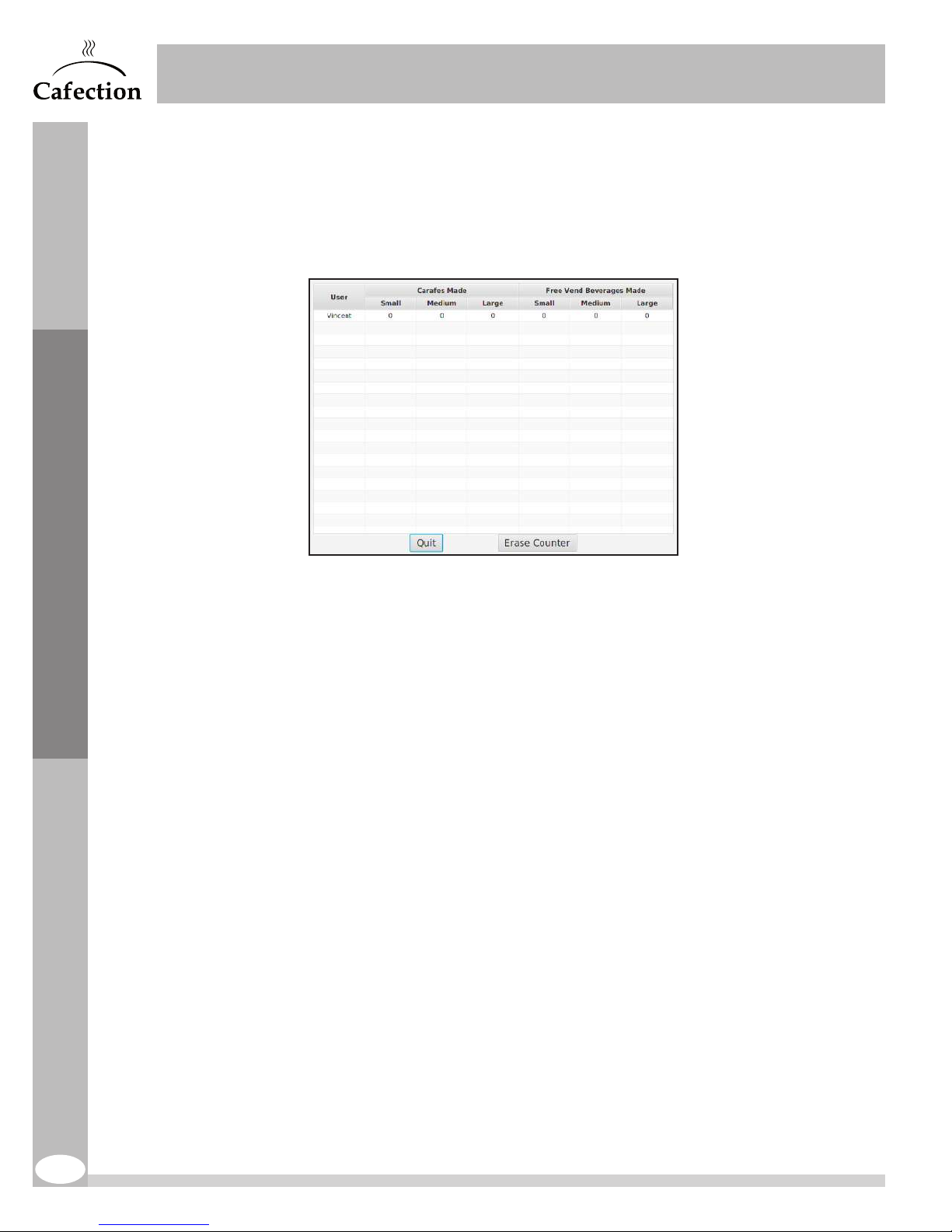

6.8.3 Users Sales Count ................................................................................................... 56

Table of Contents

7 CLEANING AND SANITIZING ...............................................................................................................57

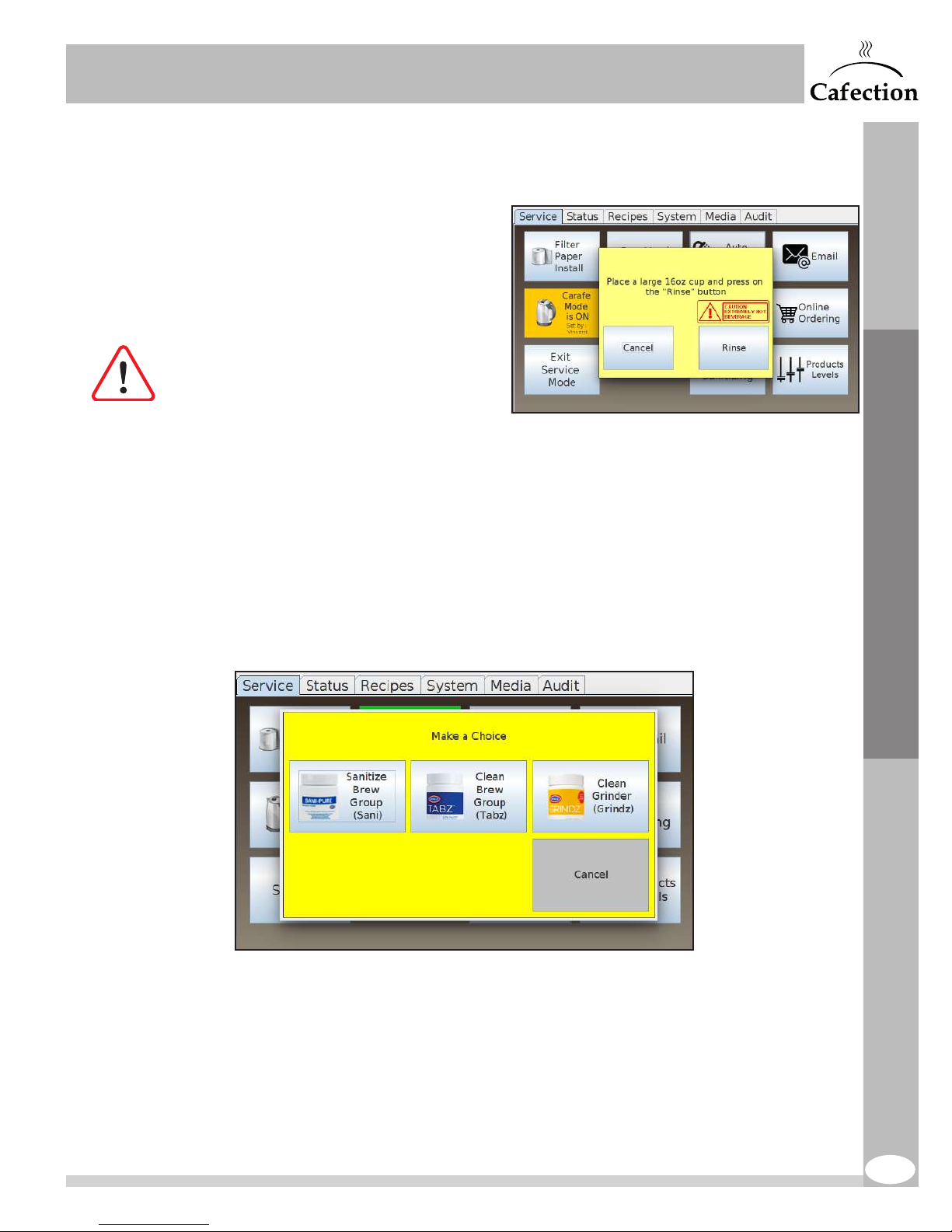

7.1 "Auto Rinse" Button .................................................................................................................57

7.2 "Cleaning & Sanitizing" Button ..................................................................................................57

7.3 Cleaning and Sanitizing Instructions .........................................................................................58

7.4 Recommended Cleaning Tools ................................................................................................. 59

7.5 Cleaning and Sanitizing Schedule .............................................................................................59

7.6 Overall Cleaning ....................................................................................................................... 60

7.7 Exterior Cleaning ...................................................................................................................... 60

7.7.1 Touch Screen ..........................................................................................................60

7.7.2 Drip Tray .................................................................................................................. 60

7.7.3 Waste Bin ................................................................................................................ 61

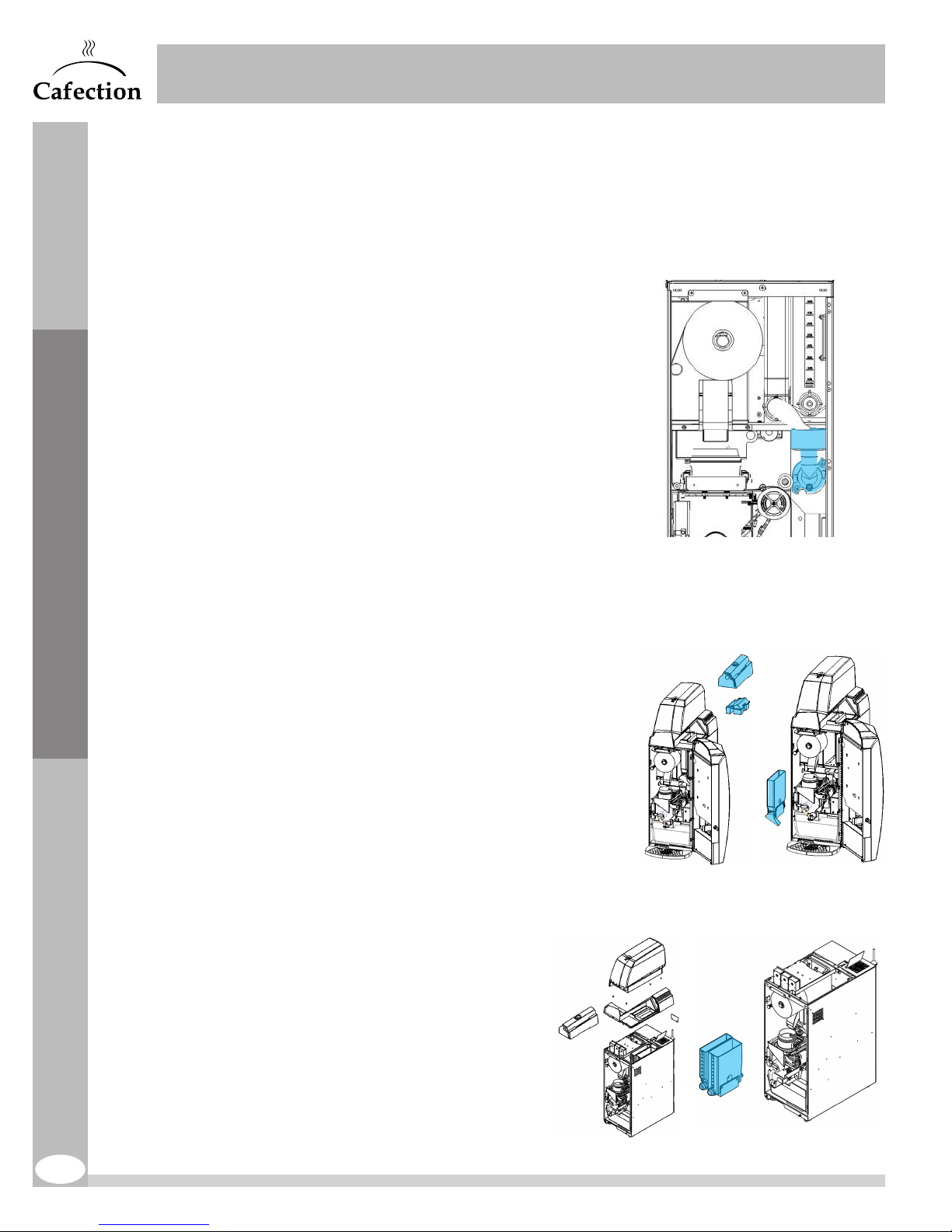

7.8 Interior Parts Cleaning & Sanitizing ........................................................................................... 62

7.8.1 Bean Hopper ........................................................................................................... 62

7.8.2 Bean Hopper Plastic Funnel .....................................................................................63

7.8.3 Soluble Canisters ..................................................................................................... 64

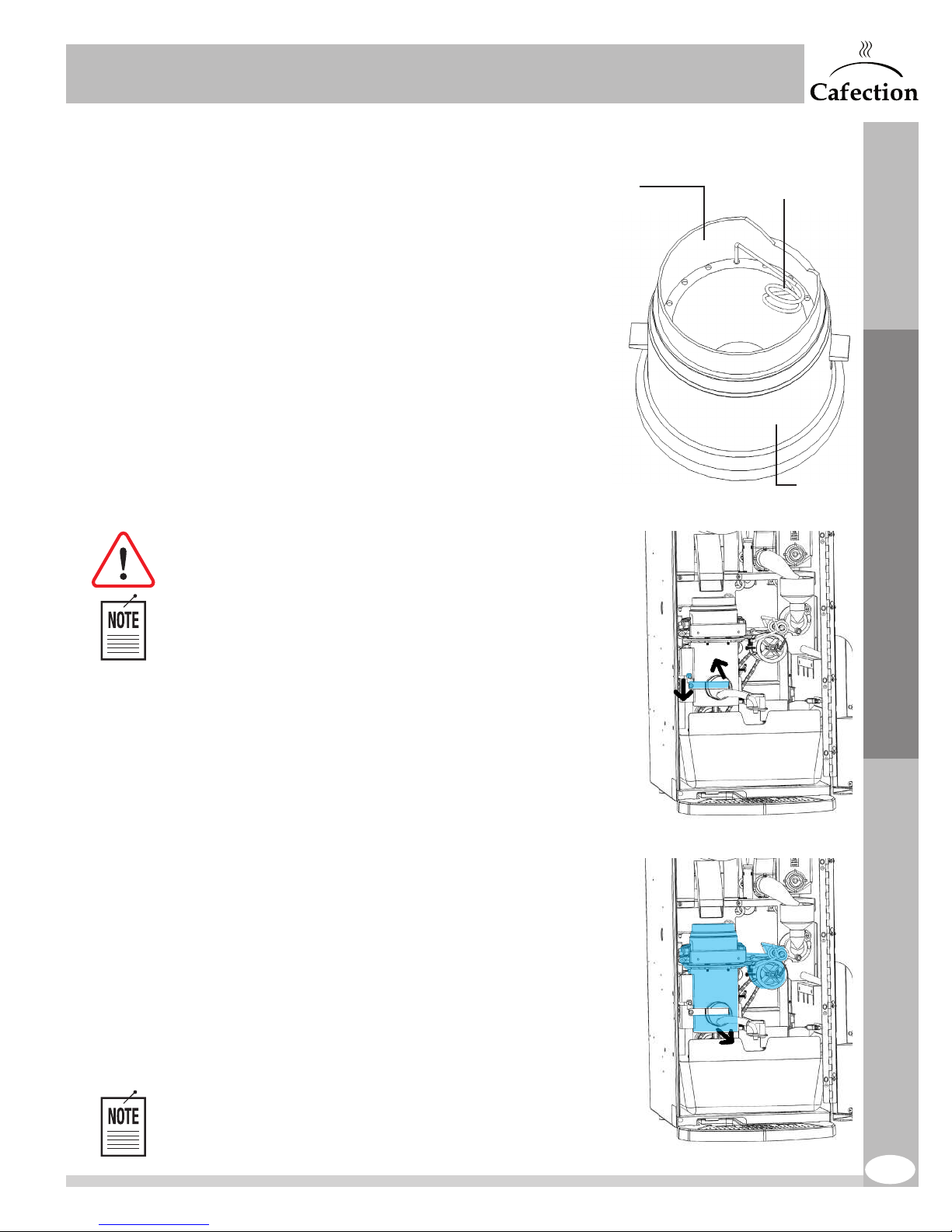

7.8.4 Brew Group ............................................................................................................. 65

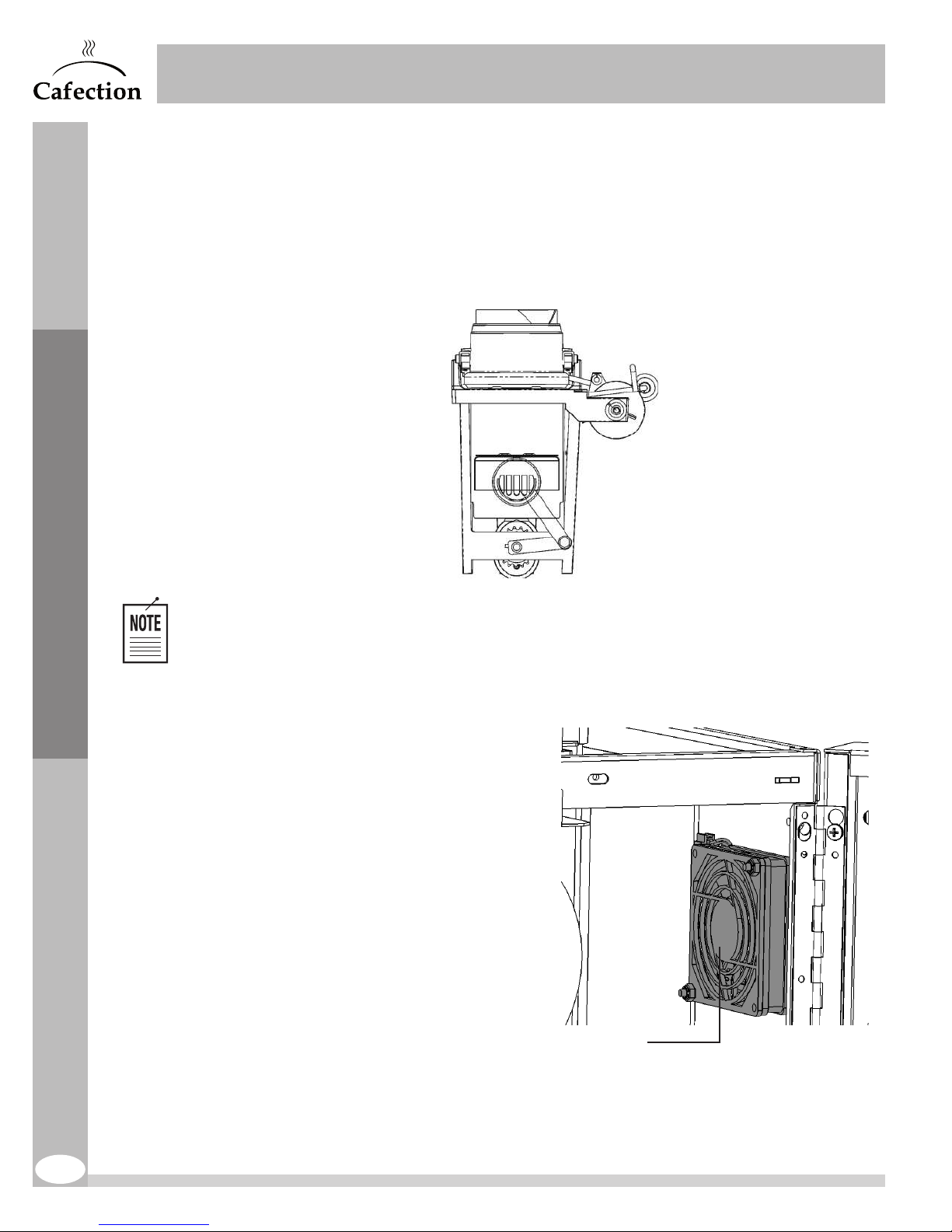

7.8.5 Fan .......................................................................................................................... 66

7.8.6 Stainless Steel Coffee Chute .................................................................................... 67

ENCORE LITE Rev. 3 05/2018

3

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

8 PREVENTIVE MAINTENANCE .............................................................................................................. 68

8.1 Preventive Maintenance (PM) Schedule ................................................................................... 68

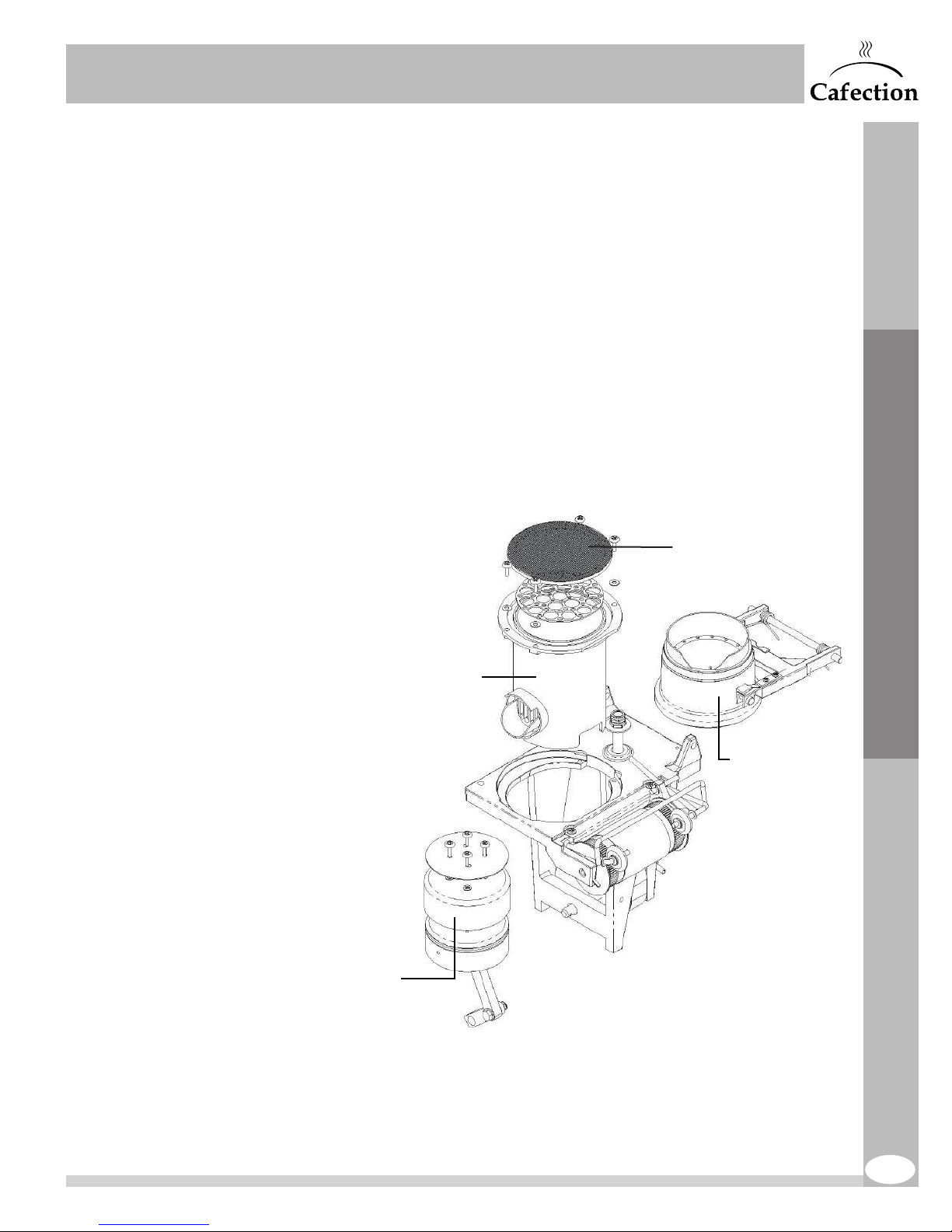

8.2 Brew Group Assembly .............................................................................................................69

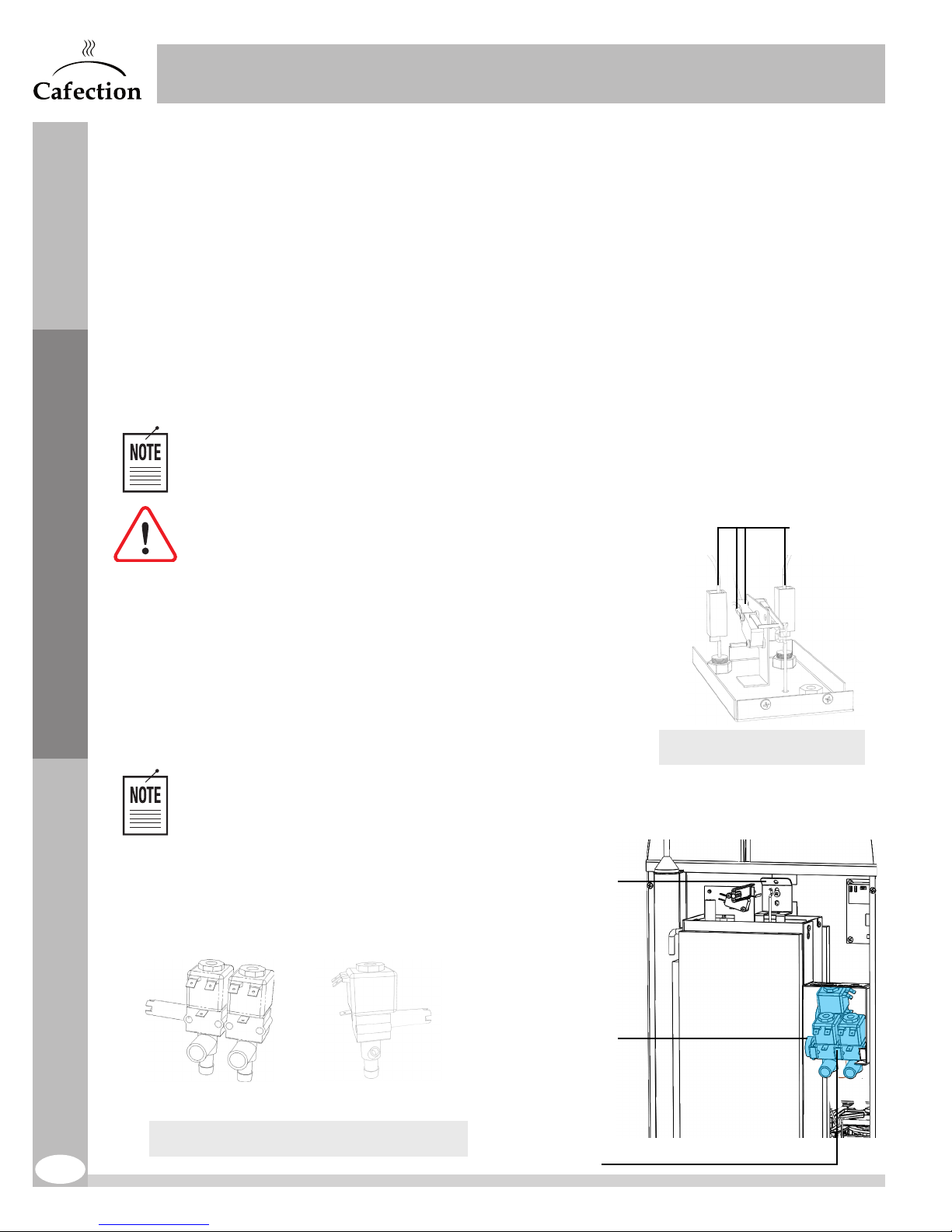

8.3 Outlet Valves ...........................................................................................................................70

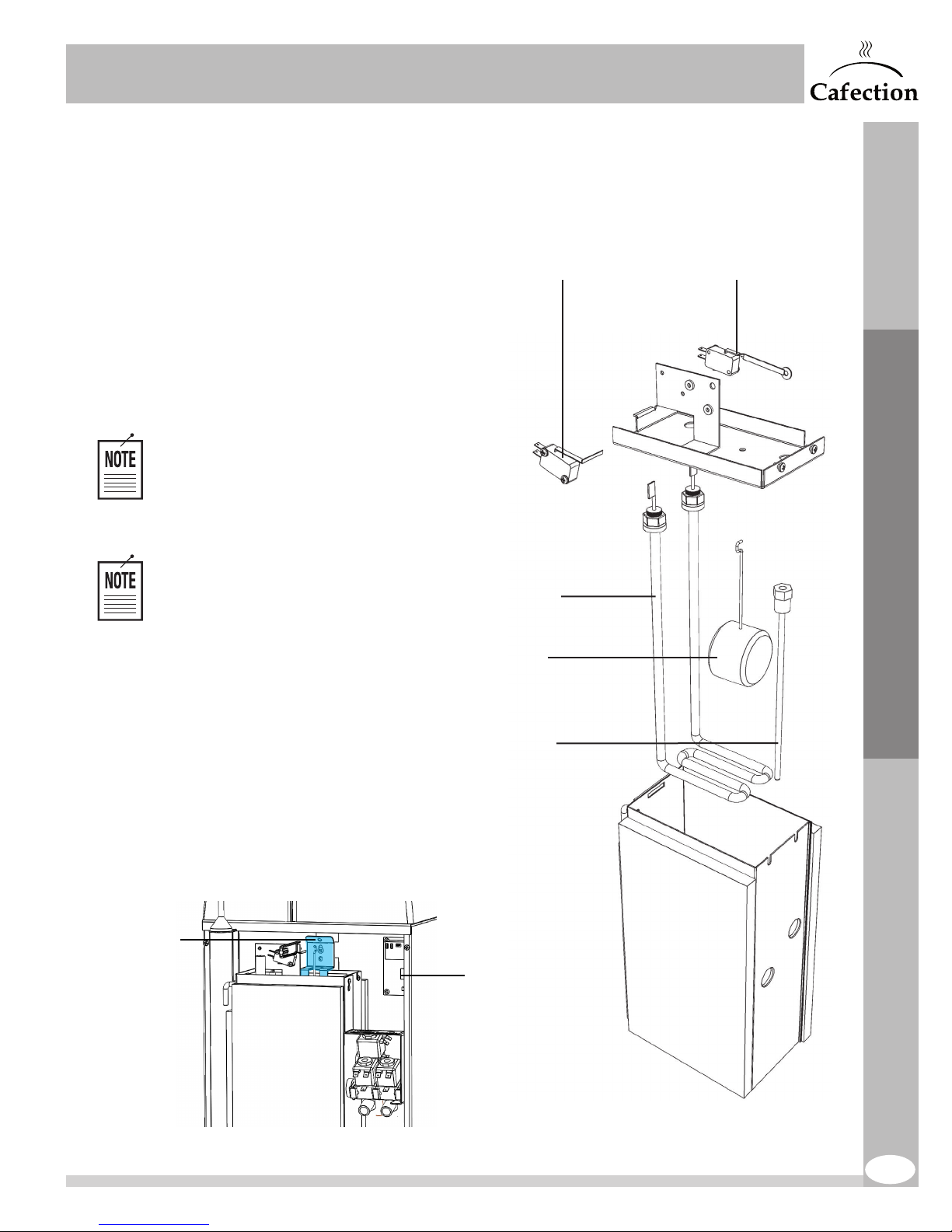

8.4 Hot Water Tank ........................................................................................................................ 71

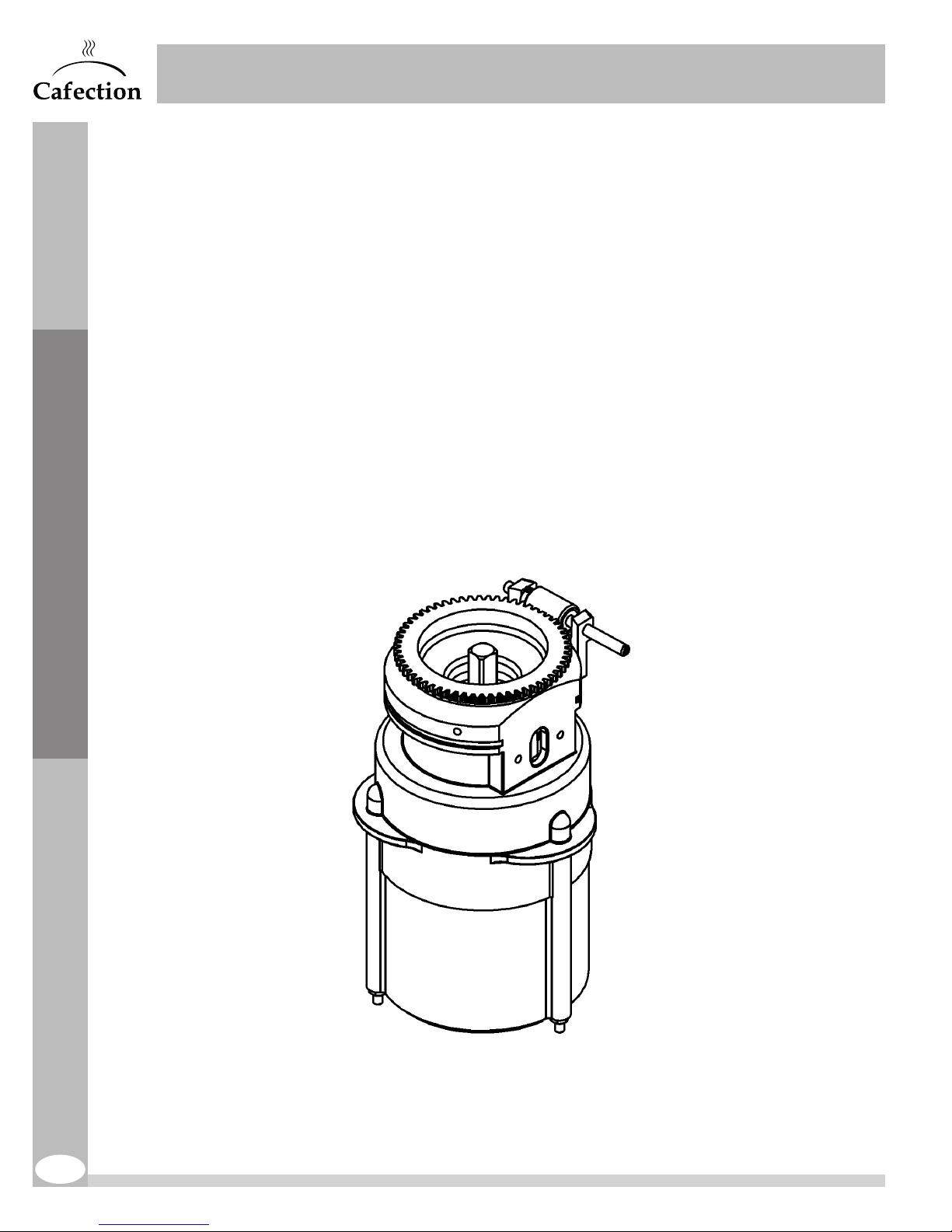

8.5 Grinder ..................................................................................................................................... 72

9 PARTS MAINTENANCE ......................................................................................................................... 73

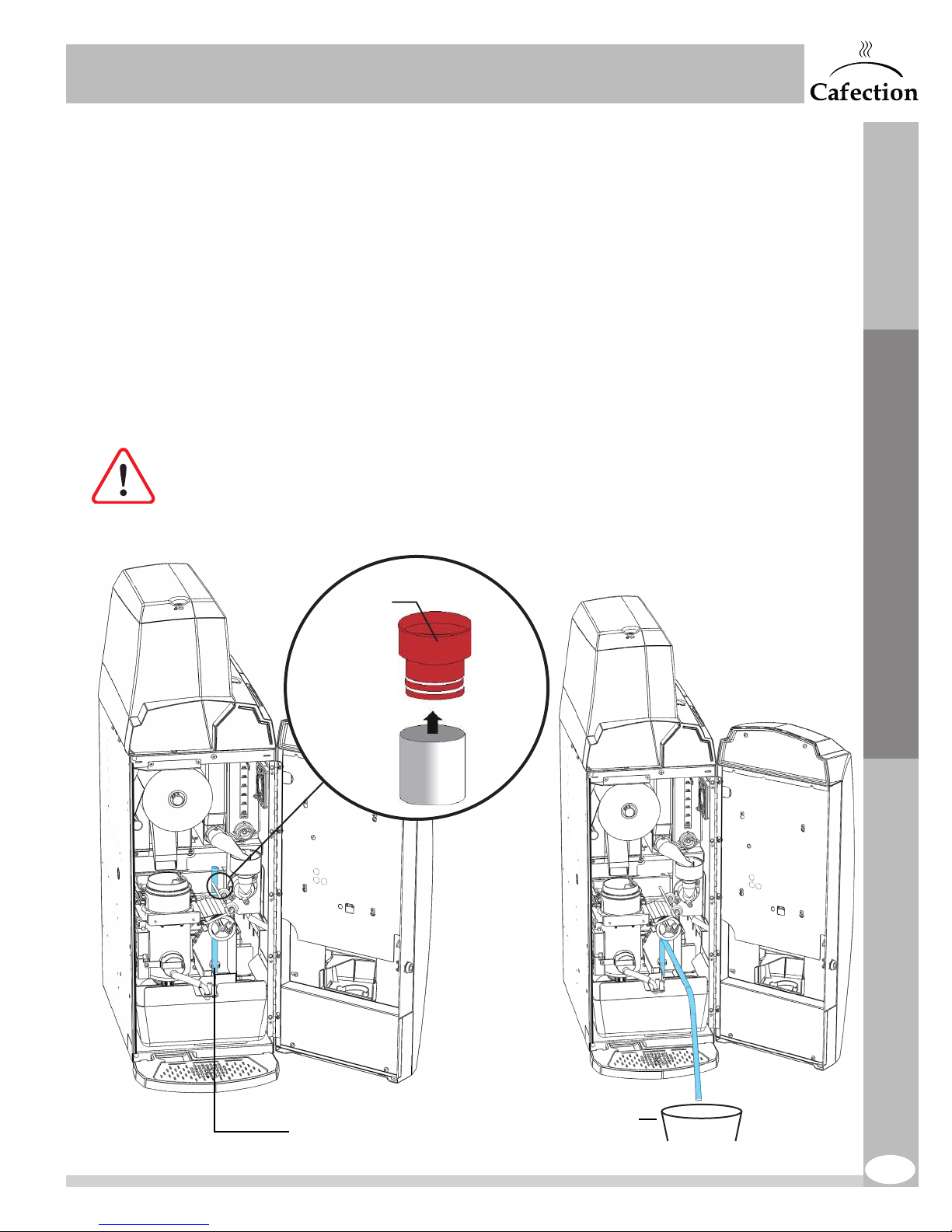

9.1 Hot Water Tank Draining........................................................................................................... 73

9.2 Shutdown and Storage ............................................................................................................ 74

9.2.1 Storing the Brew Group ........................................................................................... 74

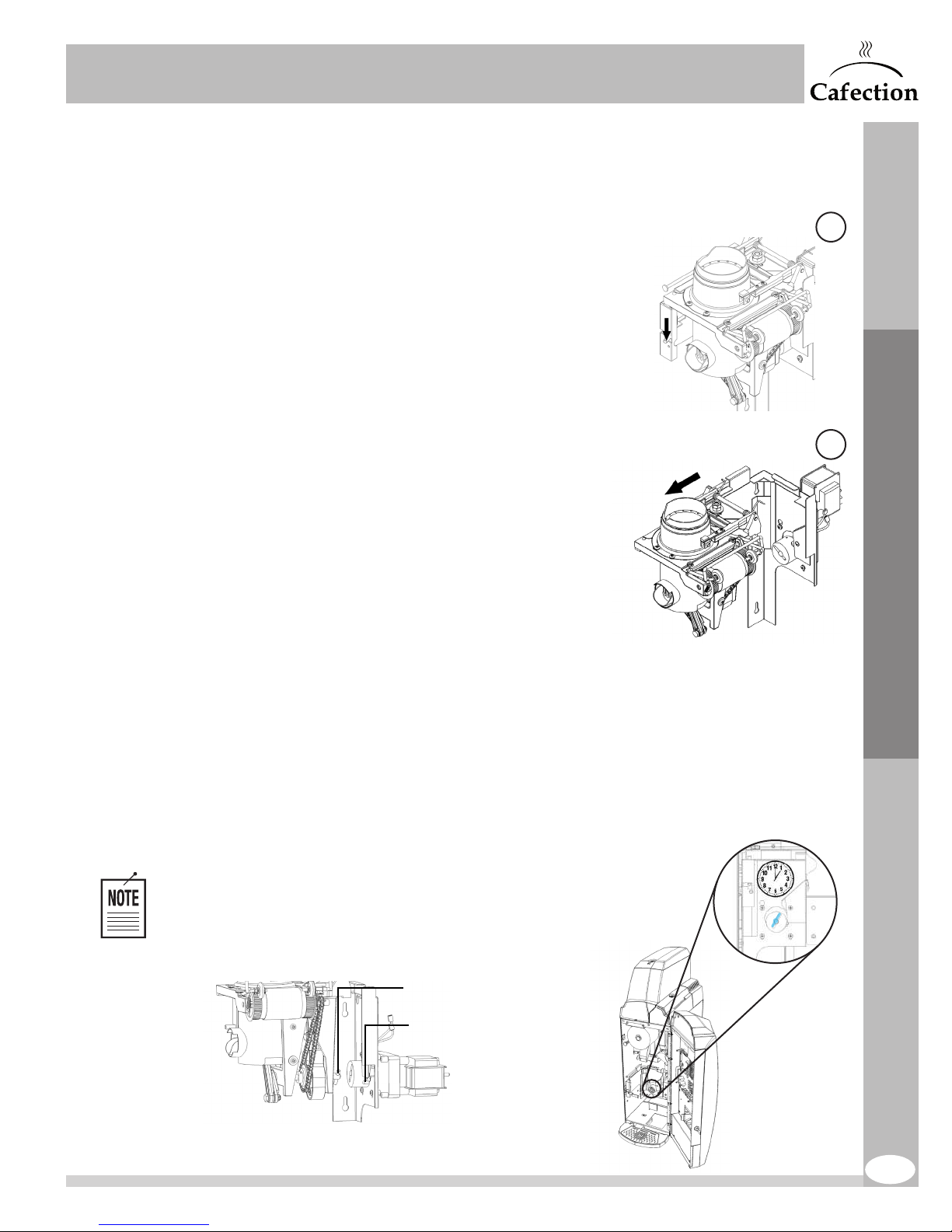

9.3 Brew Group Assembly .............................................................................................................75

9.4 Main Board ..............................................................................................................................76

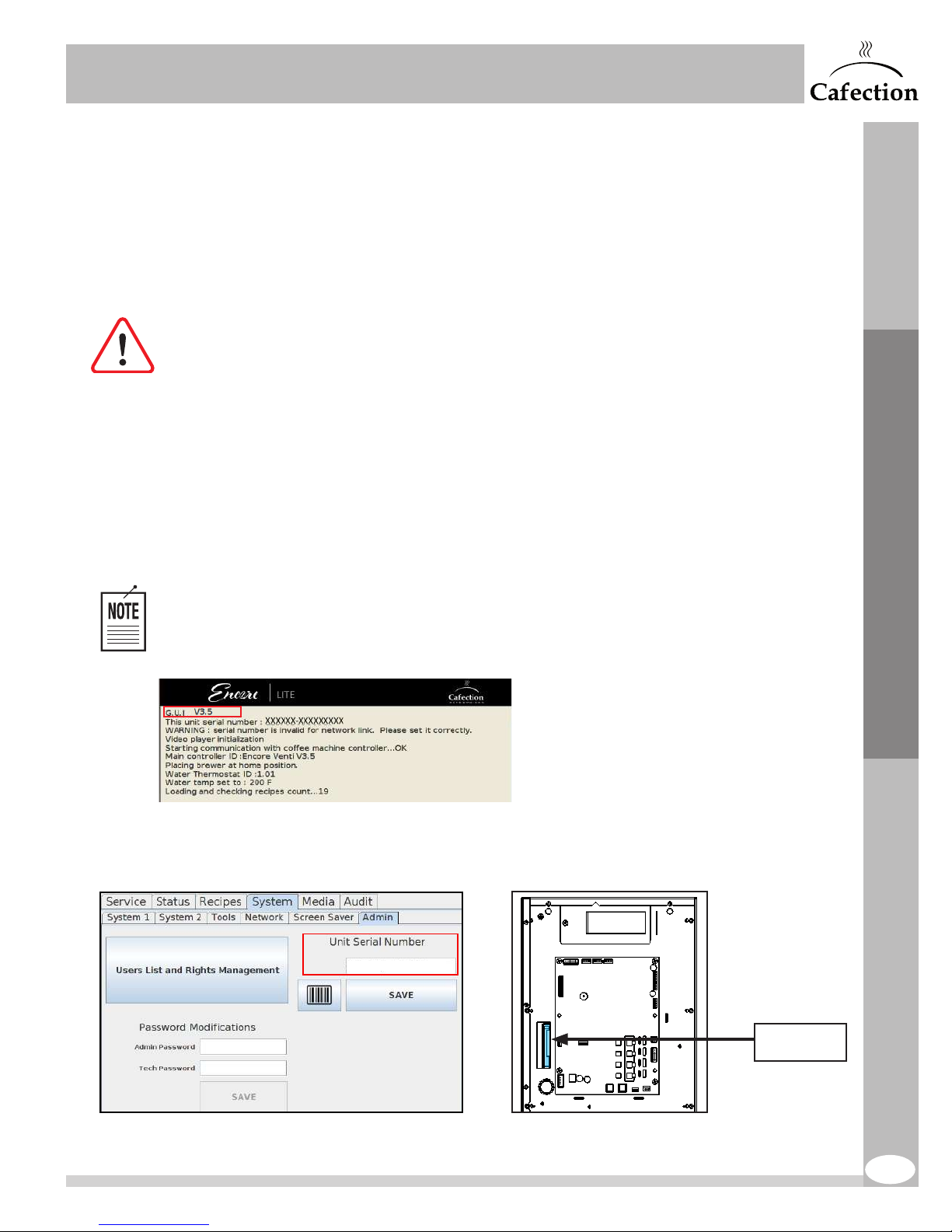

9.5 Flash Card Replacement .......................................................................................................... 77

10 TROUBLESHOOTING ............................................................................................................................ 78

10.1 Warning Messages List ............................................................................................................ 78

10.2 Error Messages List ................................................................................................................. 79

ANNEX 1 full maintenance schedule ................................................................................................... 81

Table of Contents

ANNEX 2 monthly maintenance schedule .......................................................................................... 82

ANNEX 3 weekly maintenance schedule ............................................................................................ 83

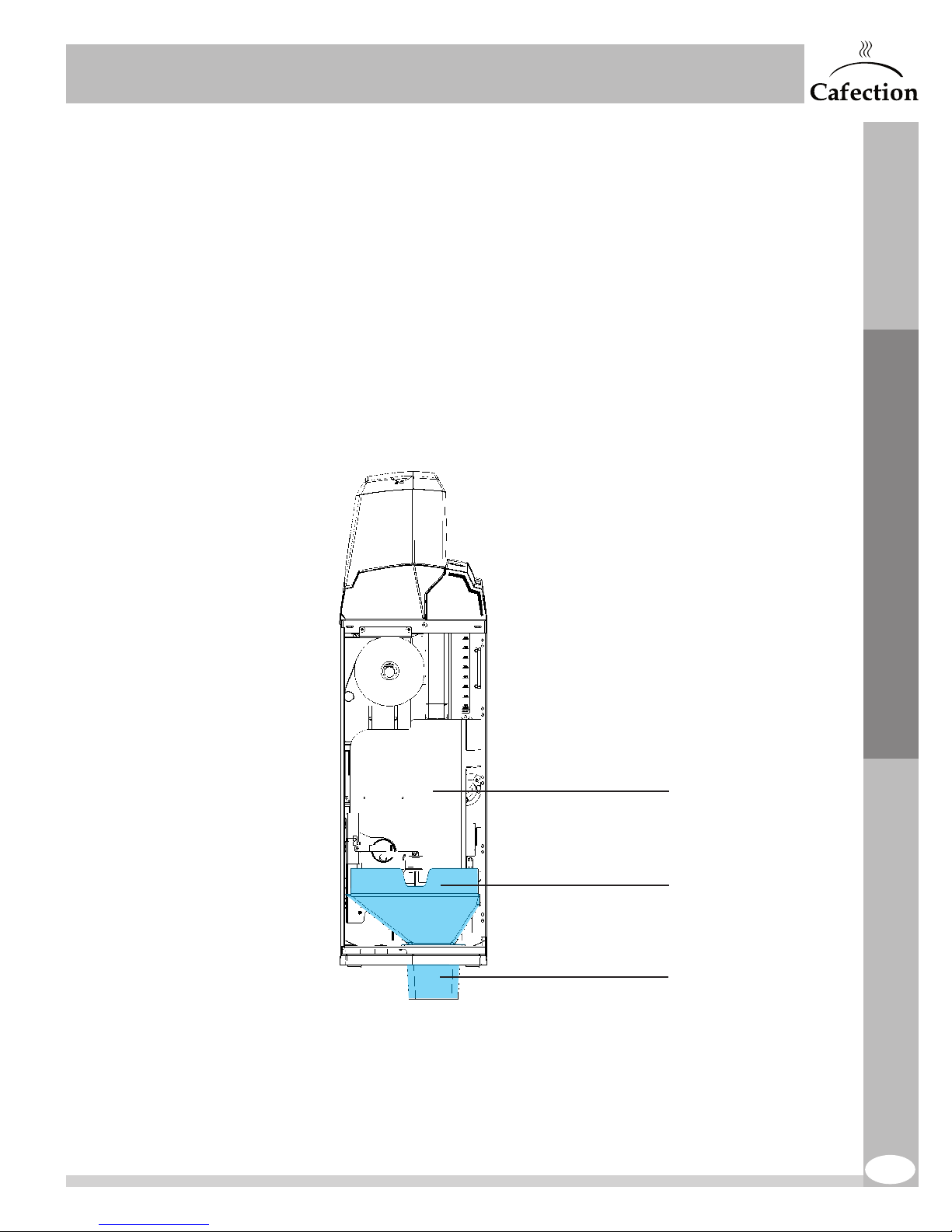

ANNEX 4 WASTE CHUTE POSITION ................................................................................................... 84

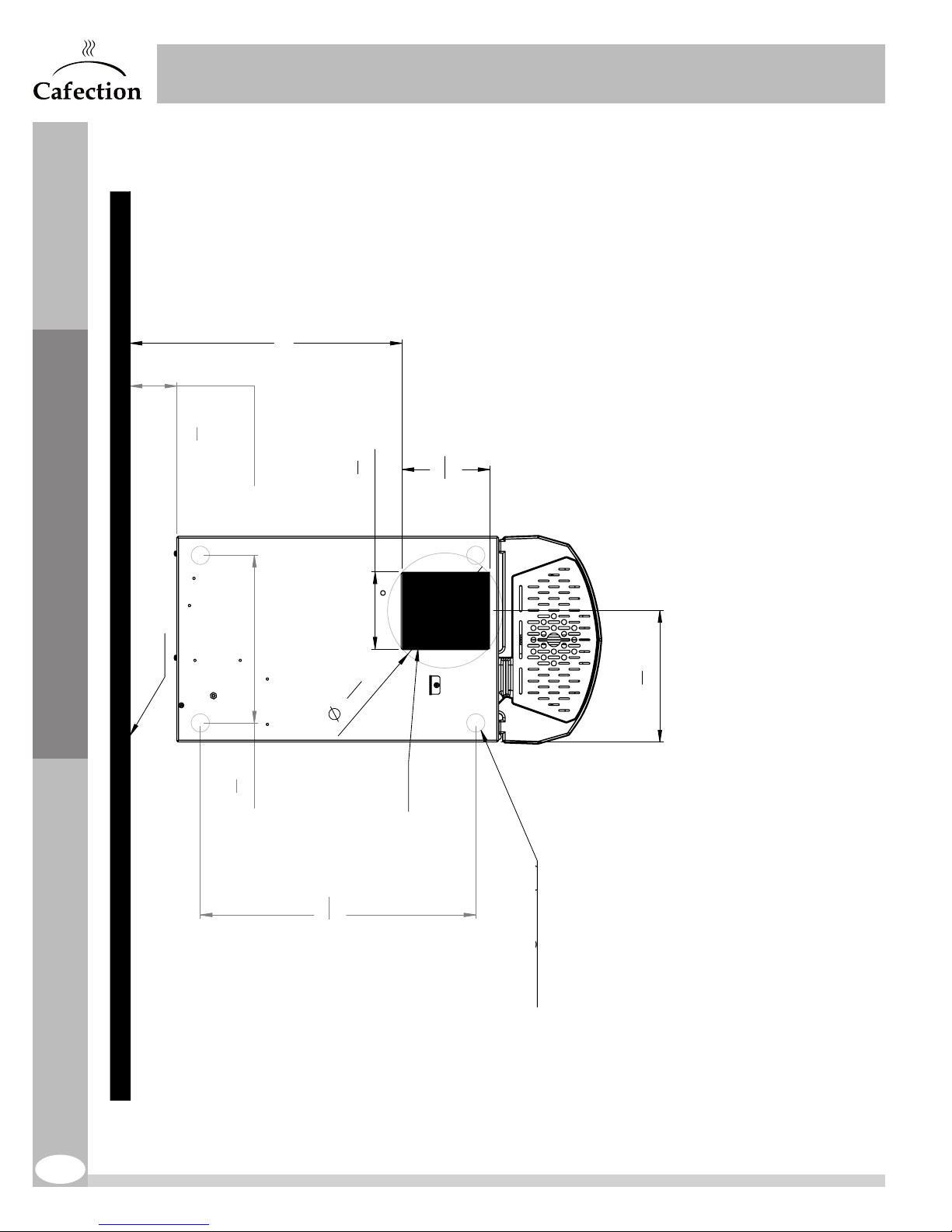

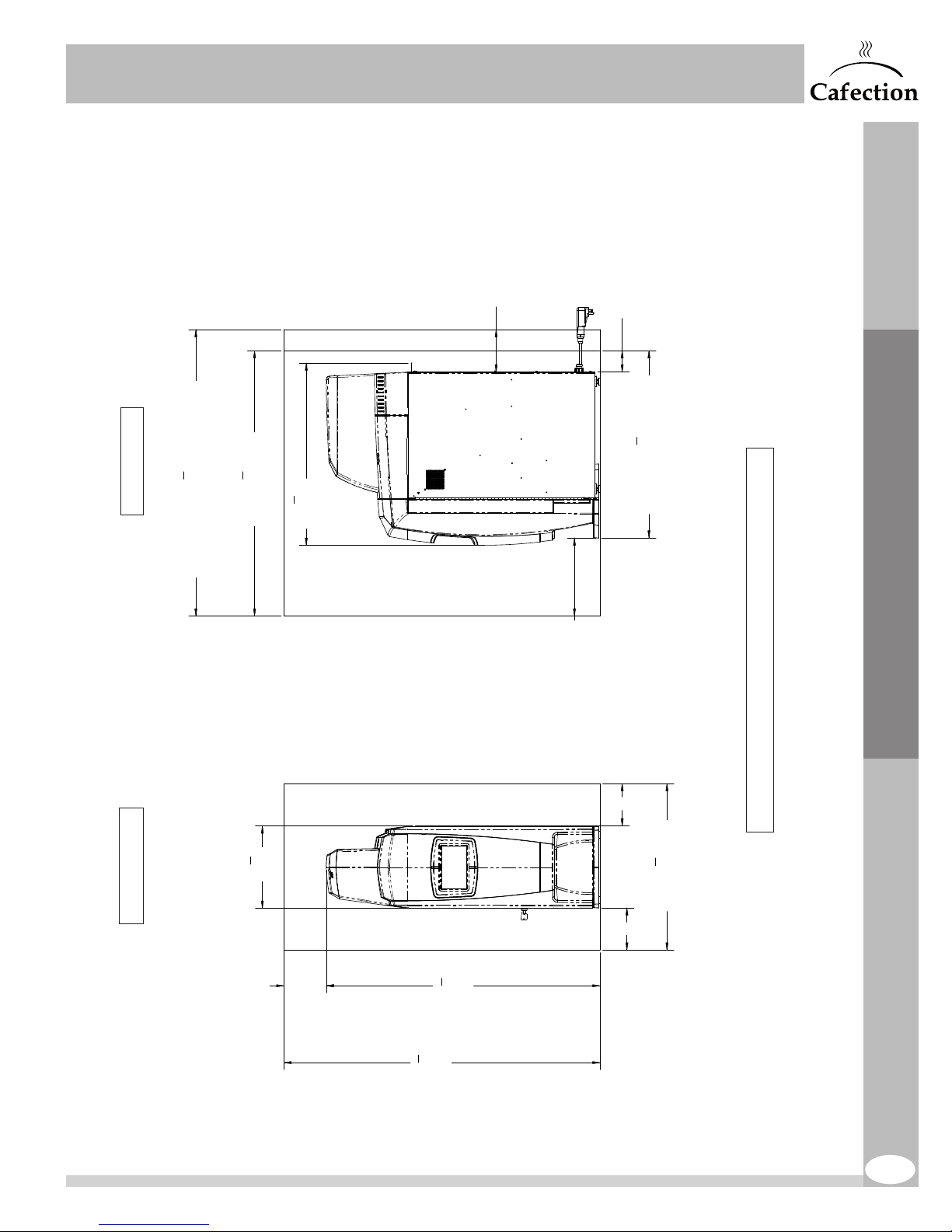

ANNEX 5 REQUIRED CLEARANCE ..................................................................................................... 85

4

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

1 SAFETY INSTRUCTIONS

Basic safety precautions should always be followed when using electrical appliances.
Read all instructions before using this brewing equipment.

1.1 Food-Contact Parts

Cafection recommends cleaning and sanitizing all parts in contact with food prior to installation
and use.
See Cleaning and Sanitizing (section7) for more details.

1.2 Warnings

To minimize the risk of fire or electric shock, do not expose this equipment to rain or moisture.
Do not immerse this equipment in water; it could lead to electric shock or other malfunctions.
Do not use this equipment other than for its intended use.
This equipment contains hot water. Never move it when full.
This brewing equipment is intended for indoor use only.

1.3 Power Supply

Always use a grounded 120V AC60Hz socket outlet rated for 15 A service.
Each brewing equipment must have its own electrical outlet, on a dedicated circuit.
Extension cords must not be used.
This brewer is equipped with a polarized alternating current line plug (one blade wider than the
other).
Only use this plug with an outlet in which the prongs can be fully inserted.

1.4 Disconnect the equipment if:

- Damage is done to the power cord.

- The equipment does not work properly.

- The temperature of the power cord or plug increases dramatically during use.

- Unusual conditions occur.

- Whenever a part has to be changed, plugged or unplugged.

Safety Instructions

FAILURE TO COMPLY CAN CAUSE EQUIPMENT DAMAGE, FIRE OR SERIOUS
INJURIES.

''INITIAL SETUP'' SECTION OF THIS MANUAL MUST BE COMPLETED BEFORE
PLUGGING IN THE BREWER.

ENCORE LITE Rev. 3 05/2018

5

2 WARRANTY

2.1 Warranty Policy

Warranty

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

Cafection hereby guarantees that the products it manufactured are, to the best of its knowledge,
free from all defects and faulty workmanship. The following warranties and conditions are
applicable:

• All parts in contact with water (outlet valves, heating element, probe, inlet valve, thermostat
and tank float) are warranted against material defects for a period of 90days from the date
of shipment.

• All remaining parts of the brewer are warranted against material and workmanship defects
for one(1)year from the date of shipment.

All warranted parts, services and returns must have prior authorization from Cafection. Please
contact Cafection’s Customer Service at 800-561-6162, ext.310.

The following circumstances will void the warranty policy:

• Use of substitute parts not manufactured or approved by Cafection.

• Improper installation or operation of the equipment.

• Abuse or neglect, including (but not limited to) failure to follow the preventive maintenance
schedule.

• Variation in equipment performance due to excessive mineral deposit or local water
conditions.

• Equipment altered in any way and/or dates, codes or serial numbers removed or modified.

• Equipment damaged in shipment from the customer to Cafection due to improper
packaging.

Please note that labor is not covered by the warranty and that the repair protocol is limited to
replacing the defective part(s). Should any additional repairs need to be done, they will be charged
to the customer.

Equipment or parts will not be accepted without a prior notification to Cafection.

2355, avenue Dalton, Québec (Québec) G1P 3S3
Tel.: [phone] - Fax: [phone]
[e-mail]

Customer Service Business Hours (EST):

Monday to Thursday: 8am to 8pm
Friday: 8am to 5pm

6

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

2.2 Warranty Return Procedure

In order to always offer better, faster service, Cafection requests your cooperation for the return of
parts under warranty. Cafection thanks you in advance for taking the time to follow this procedure:

Contact the Customer Service department to obtain a Return Merchandise Authorization(RMA)
number.
Send a copy of the original invoice to Cafection by fax at 800-463-2739 or by email at
[e-mail] for approval.
No parts must be destroyed before receiving a written confirmation from Cafection about credit or
exchange possibilities.
Keep a copy of the original invoice for your records. A copy of the original invoice must be
included with your parts return.

Cafection will not be held responsible for any loss or damage occurring during transport.

MAKE SURE THE MERCHANDISE IS WELL PACKED!
Please use original packaging.

Warranty

Upon receipt, Cafection will check the merchandise and authorize the repair or replacement by
identical or equivalent parts, if warranty is applicable. Only warranted parts are authorized for
return.
Cafection suggests keeping replacement parts on hand.
The warranty covers regular shipping only. Overnight shipping charges will be applied to your order
when required. Orders must be received before noon (12:00pm EST) to be shipped the same day*.

All returned parts showing no sign of malfunctioning will be subject to
administrative and test fees of $35, plus freight charges associated with the return.
A part returned in unacceptable condition will also be subject to this $35fee and its
warranty may be refused.

*Some conditions may apply.

2.3 Shipping Liabilities

YOU ARE RESPONSIBLE, SHIPMENT MUST BE INSPECTED!

You can refuse delivery if a shipment is damaged. Do not sign the shipment without proper
inspection. Should you choose to accept the delivery, it is mandatory that you record any
significant information on the delivery slip. Remember that you take responsibility of the
merchandise once you have signed the delivery receipt.

You have 24 hours to report and file a claim for concealed damages to the transportation
company.

Failure to comply with this procedure could lead to a claim refusal by the carrier.

FOR MORE INFORMATION, PLEASE CALL CUSTOMER SERVICE AT 800-561-6162, ext.310.

ENCORE LITE Rev. 3 05/2018

7

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

3 REFERENCE DRAWINGS

3.1 External View

www.cafection.com 800-561-6162

Bean hopper

Top lid

Reference Drawings

Plastic front
(fascia)

Metal door

Touch screen

Door lock

Back splash

Drip tray grill

8

Drip tray

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

3.2 Rear View

Antenna

Reference Drawings

Back panel

Water tank

Outlet valve

Electric box

Leveling glides

ENCORE LITE Rev. 3 05/2018

Overflow tray

Water inlet

9

3.3 Internal View

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

Soluble
canisters

Fan

Main board
(see section3.6)

COM connection

Reference Drawings

Coffee grinder
(behind the filter paper
roll and protector)

Filter paper

Soluble mixing
chamber

Brew group

Spout

Internal
waste bin

S

p

o

u

t

-

T

o

p

V

i

e

w

Flash card

Hot water

Soluble products
#1 and #2

Overflow cup

10

Coffee

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

3.4 Brew Group Assembly

Funnel

Brew chamber

Manufacturing date
(on the back)

Cylinder

Coffee spillway

Piston

Aluminum frame

Yoke

Wheel

Reference Drawings

ENCORE LITE Rev. 3 05/2018

11

3.5 Brewing Process

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

Reference Drawings

1

Step2 | Pause

Once the piston has reached its top point, it will pause to allow the
coffee to brew to the appropriate strength. At the end of the pause
time, there will be one shot of water to clean the brew chamber.

3

Step1 | Rise of the Piston

The ground coffee and the water are dispensed into the brew
chamber during the rise of the piston. This action compresses
the air in the cylinder and forces it through the coffee mixture
in the brew chamber, thereby agitating the brewing coffee.

Step3 | Descent of the Piston

2

12

The descent of the piston creates a vacuum allowing to extract
the coffee from the grounds through the filter paper and into
the cylinder. The piston makes another pause time, allowing
all the coffee to drain from the brew chamber.

4

Step4 | Coffee Delivery

The piston follows its course heading to its lowest point. Distribution
of coffee through the spout begins once the piston has lowered below
the coffee spillway. Meanwhile, the brew chamber lifts to allow the
filter paper to move and discard the spent grounds into the internal
waste bin or coffee chute.

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

3.6 Main Board

J22 ­Numeric input
(switches)

J11 - MDB port - Coin changer / bill acceptor / card reader

J12 - Thermostat board

J18 - 24V DC
output

Reference Drawings

J27 - 24V DC
output

17ELN01

HIGH VOLTAGE AREA

J21 - COM port­Link to touch screen
computer (option 1)

J14 - COM port­Link to touch screen
computer (option 2)

SW2 - Service button (black)
SW1 - Setup button (white)

J6 - 24V DC output - Fan
J3 - 24V DC input
(adjusted to 27V DC)

ENCORE LITE Rev. 3 05/2018

J2 - 120V AC
input

J19 - 120V AC
output

This is a schematic reference
drawing only. Not to scale.

The equipment should always be
unplugged from the electrical outlet
before servicing any component on
this main board.

13

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

Reference Drawings

3.6.1 Main Board (PCB) Description

Interactive Switches and Buttons

1. SW1 Setup Button (White)
This button gives access to the
parameters of the machine and
products through Service mode
(see section6.2 for details).

2. SW2 Service Button (Black)
There are two functions for this
button:

-In Selection mode, pressing this
button will enter the touch screen
calibration utility.

-In Service mode, pressing this
button will display the Factory reset
pop-up menu. This menu allows the
user to reset several settings back
to factory: configuration, passwords
and drink settings.

LEDs light up to indicate
the following statuses:

DS1 Power5V OK
DS15 Low water level
DS13 Brew group out of park position
DS14 Filter paper roll detected
DS18 Water detected in the overflow tray
DS20 Power 3.3V
DS30 Computer COM indicator

LEDs light up to indicate
the following parts are in use:

24V DC Outputs:
DS2 Ingredients motor (coffee # 1)
DS3 Ingredients motor (coffee # 2)
DS4 Ingredients motor (soluble # 2)
DS5 Ingredients motor (soluble # 1)
DS6 Hot water valve (coffee)
DS7 Hot water valve (soluble)
DS8 Hot water dispensing valve
DS21 N/A
DS23 Auxiliary
DS24 Ingredients motor (coffee # 3)
DS25 Fan
DS29 Soluble whipper motor

14

120V AC Outputs:
DS9 Brew group motor
DS12 N/A
DS11 Coffee bean grinder
DS10 Water inlet valve

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

3.7 Hot Water Tank

Make sure the equipment is unplugged when servicing.

Access the hot water tank by removing the back panel.

See images below for tank lid details.

See section8.4 for preventive maintenance.

Water tank

Reference Drawings

Heater safety switch

Left Side View

Heating element
connector

Water level switch (float)

Right Side View

Heating element wire

Water level switch
(float)

Probe

Heater safety
switch

ENCORE LITE Rev. 3 05/2018

15

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

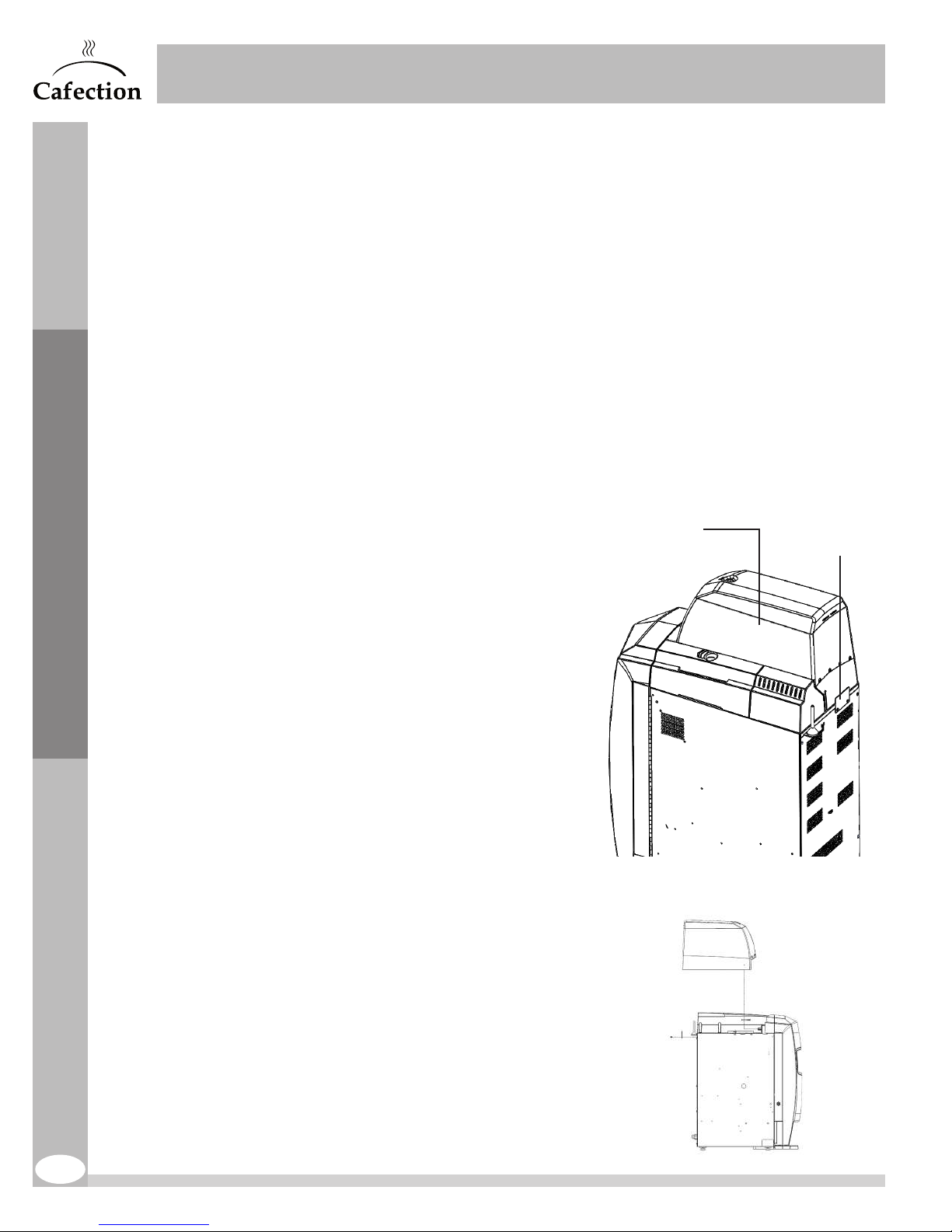

3.8 Bean Hopper Installation

The hopper is already installed on the
brewer when shipped. To remove it,
follow the steps below.

1. Unlock the bean hopper. The lock is
located on top of the lid.

2. Remove the bean hopper back plate.

3. Push the bean hopper backward and
then lift it.

4. Repeat steps in reverse order to
reinstall.

www.cafection.com 800-561-6162

Bean hopper
door lock

Bean hopper

Bean hopper
back plate

Reference Drawings

Transmissions (3x)

Motors (3x)

16

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

3.9 Water Temperature

This equipment has a coffee brewing setpoint of 200°F water temperature to ensure a consistent
beverage quality. There is a +/- 2°F tolerance.

This value represents an average and will not correspond to the temperature of a manual
measurement. The actual water temperature fluctuates because cold water is added to the
tank after every beverage delivery and time is needed to heat the new incoming water up to the
setpoint.

Water’s brewing temperature can also be taken manually by ordering a cup of hot water and
measuring its temperature with a thermometer. There may be a slight difference from the tank
reading. This is normal.

If the temperature measurements show a large temperature differential, verify that the tank is clean
and not obstructed by mineral deposits and scale.

Unit Safety Measures

In the event of a temperature probe failure, water in the tank might start to boil. This will cause it to
overflow into the overflow cup and will automatically shut the machine off. However, the computer
screen will remain active (ON).

Reference Drawings

Access from the back of the machine.

Temperature can be set by the user in the System1 sub tab (see section 6.6.1).

ENCORE LITE Rev. 3 05/2018

Electronic
thermostat board

17

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

4 INITIAL SETUP

Before the installation of the brewer on location, it is strongly suggested to unpack, inspect and bench test
the machine before it leaves the warehouse.

4.1 On-Site Installation Requirements

4.1.1 Operating Environment

Equipment is for indoor use only.

4.1.2 Power Supply

Make sure each unit has its own electrical circuit and is located within 6 feet of the
dedicated electrical outlet.
Use only a polarized grounded receptacle.
Domestic 120V AC / 60Hz- 15 A circuit.

4.1.3 Water Supply

Use a plastic 1/4” or 3/8” (outside diameter) dedicated line branched off a larger line. An
easily accessible shut off valve up stream of the unit is highly recommended for ease of
installation.

Initial Setup

Cold tap water pressure should be at least 20 psi and no more than 80 psi.

4.1.4 Tools Required

- #2 Phillips screwdriver

- Regular medium pliers

- Adjustable wrench

- Level indicator

Other tools may be required depending on the type of water supply tubing and
location.

4.1.5 Clearance

Unit Clearances Allowance for
Height 39 1/4” 45 1/4” Opening bean hopper.
Width 11 5/8” 23 5/8” Accessing lock (left side) and opening door (right side).
Depth 25 3/4” 37 1/2” Opening door (front) and back clearance.
Back

Clearance

2 1/2”

6”

Clearance for water hookup, hoses and adequate air
circulation.

Needed only if a filtration system is installed behind
the machine.

See Annex4 for waste chute positioning.

See Annex5 for a diagram illustrating required clearance.

18

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

4.2 Specifications

4.2.1 Hopper & Canisters Capacities

Whole bean hopper, left section: 3.7 lbs (1.7kg)

Whole bean hopper, middle section: 2.3 lbs (1kg)

Whole bean hopper, right section: 3.5 lbs (1.6kg)

Soluble, hot chocolate: 2.5 lbs (1.1kg)

Soluble, vanilla powder: 2 lbs (0.9kg) (or 1 lb (0.45kg) of soluble milk powder)

4.2.2 Water Tank

Initial Setup

Capacity: 0.8 gallon US (3.0L)

Water valves: 1 single valve; 1 double valve

Heating element: 1250 watts

4.2.3 Electrical Requirements

120V AC

15 A circuit

60Hz

ENCORE LITE Rev. 3 05/2018

19

4.3 Unpacking

To remove the unit from the box, carefully cut the straps holding the box in place on the skid.
Remove all staples from the box (top and bottom). Remove the top of the box, then the two (2)
side sleeves. Inspect the unit to see if any damage has occurred during shipment.

Some parts and accessories need to be installed on the equipment. Those were placed inside the
machine for shipment. Here is a list of all accessories and parts you should find in your machine.

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

Initial Setup

1

3 2

1. Internal Waste Bin

2. Drip Tray Grill

3. Drip Tray

4. 3/8'' Inlet Fitting

5. 3/8'' to 1/4'' Inlet Fitting

In the machine:

4

7 5 11

6. "Milk" Sticker for Soluble Canister

7. Filter Paper

8. Microfiber Cloth

9. Keychain

10. Service & Installation Manual

11. Chute Brush

Optional:

12. Plastic Chute Kit (Chute Base and Chute)

12

One of the machine keys is attached to the power cord at the back of the
machine. A second key is taped on the filter paper roll, located in the internal
waste bin.

20

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

4.4 Leveling the Equipment

For optimal performance of the equipment, it is important to ensure that it is leveled. Avoiding to do
so can create variations in product delivery.

1. Place a level indicator on top of the equipment (remove bean hopper to find a flat surface).

2. Adjust the four (4) threaded leveling glides of the equipment to reach a leveled position.

4.5 Drip Tray Installation

Place the drip tray grill on the drip tray, then slide the tray under the machine and find the two (2)
hooks to secure it in place. See the image below for reference.

Initial Setup

Hooks

ENCORE LITE Rev. 3 05/2018

Drip tray
grill

Drip tray

21

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

4.6 Adjusting the Tank Overflow Cup

The overflow cup is a safety feature. If the water tank overflows, the extra water will
leak in the pipe down to the overflow cup. If there is too much water, the float will go
up and activate the switch. The machine will then stop automatically.

It is important to verify that the float is positioned properly in the overflow cup
because it can move around in transportation. If the float is not properly in place, the
switch will be activated and the unit will automatically shut down sensing an overflow
situation. The computer screen will stay ON showing an error message.

It is important to verify that the overflow cup is in place with the highest side facing
front and well secured with the green tape. If the cup needs to be removed, make
sure that it is replaced with the highest side facing front and the overflow tube in
the cup. Fasten it in place with tape. This will ensure the float works properly and
activates the overflow switch if a problem occurs.

www.cafection.com 800-561-6162

Initial Setup

Hole in the exit
of the tube

Highest side
facing front

Overflow switch activated

The unit shuts down.

Cup

22

Switch deactivated

The unit is on.

Location of the cup

in the brewer

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

4.7 Water Line Connection

This equipment must be installed in compliance with applicable federal, state,
provincial and/or municipal plumbing codes having jurisdiction.

Make sure the equipment is unplugged before proceeding with the water supply
installation. Also verify that the incoming water pressure is greater than 20psi and
no more than 80psi.

1. Prior to installing the equipment, flush out the water line by running approximately 1 gallon of
water into a pail. This will ensure no sediment from a new installation gets in the equipment.

2. The incoming water supply must have a shut-off valve connected in-line. Water supply should
be a plastic 1/4” or 3/8” (outside diameter) dedicated line branched off a larger supply line.

3. Make sure the water source is turned off. Firmly secure the inlet fitting onto the inlet valve.
Do not overtighten.

4. Make sure the equipment is unplugged. Connect the water line to the quick connect inlet

fitting.

5. Turn the water valve on, sending water to the brewer. If there are any leaks, tighten
connections to stop leakage.

This procedure does not take into consideration the installation of a water filtration
system. Please refer to the water filter manufacturer installation instructions and
incorporate them into the above procedures.

Initial Setup

Water inlet

ENCORE LITE Rev. 3 05/2018

23

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

4.8 Electrical Connection

This equipment must be installed in compliance with applicable federal, state,
provincial and/or municipal electrical codes having jurisdiction.

Make sure:

- The equipment is OFF before plugging it in.

- The equipment has its own electrical outlet.

- NO extension cord is used.

1. Locate the unit’s power cord and remove it from its transport socket. Discard the transport
water tank safety part (recyclable).

The transport water tank safety part keeps the float out from moving during
transport. The water tank will not fill if this part is not removed.

www.cafection.com 800-561-6162

Initial Setup

2. Make sure the power switch at the back of the unit is in the OFF position before plugging in the
unit into its own grounded electrical outlet.

3. Access the back of the brewer and toggle the power switch to the ON position. Water will
automatically enter the brewer. The filling cycle should take a maximum of 2 to 3minutes.

4. Once the tank is full, water will take 10 to 20 minutes to heat to brewing temperature.

5. Once the coffee machine is ready, the selection screen will appear.

Transport water
tank safety part

OFF position

ALWAYS unplug the main power cord from the power outlet (AC line voltage) when
servicing any electrical component on the equipment.

24

ENCORE LITE Rev. 3 05/2018

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

www.cafection.com 800-561-6162

4.9 Loading Products

4.9.1 Soluble Canisters

1. Open the brewer's door.

2. Remove the plastic top lid.

3. Use the flipping cover to access
the canister needing to be filled.

4. Do not overfill the canisters.

4.9.2 Bean Hopper

1. Unlock and remove the cover of
the bean hopper.

2. Do not overfill the three (3)
sections of the hopper.

Using a step stool will facilitate the
filling of each section of the hopper.

Bean hopper
cover

Top lid

Flipping
cover

Initial Setup

3 whole bean hopper
(Coffee1, 2 & 3, from
left to right)

Soluble 1
Milk Powder
OR
French Vanilla

Soluble 2
Hot Chocolate

Caution! Flavored beans can contain ethyl alcohol that could affect the bean
hopper’s longevity. Cafection does not recommend using flavored beans.

ENCORE LITE Rev. 3 05/2018

25

SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite

4.10 Filter Paper Installation

Make sure the brewer is ON.

1. Place the filter paper roll on the bracket so it dispenses on the left-hand side (see the diagram
below).

2. Access Service mode (see section6.2), press the "Filter Paper Install" button and follow the
instructions on the screen.

The brew chamber will not lift up if the switch does not detect any filter paper.

3. Pass the filter paper under the left
guide bracket of the brew group,
under the brew chamber and
under the wheel guides by gently
lifting them using the yoke.

www.cafection.com 800-561-6162

Initial Setup

4. Pull on the paper and carry
it through the chute hole (if
applicable) and into the waste bin.

5. Make sure the paper is feeding
straight and stays within the guide
bracket.

Improper filter paper feeding will
cause a vacuum leak and may
cause grounds to spill inside the
equipment.

Guide
brackets

Yoke

26

ENCORE LITE Rev. 3 05/2018
