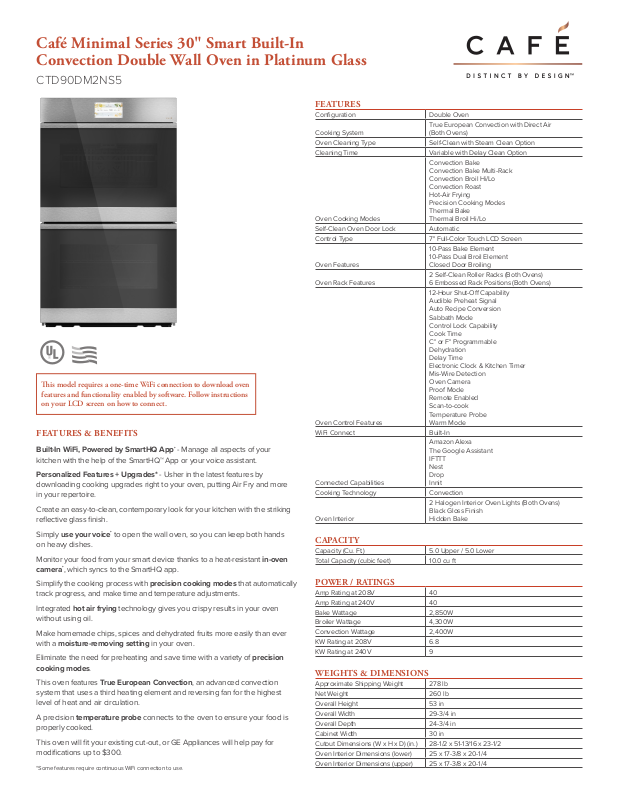

Café Minimal Series 30" Smart Built-In
Convection Double Wall Oven in Platinum Glass
CTD90DM2NS5
FEATURES
Configuration Double Oven
Cooking System
Oven Cleaning Type Self-Clean with Steam Clean Option
Cleaning Time Variable with Delay Clean Option
Oven Cooking Modes
Self-Clean Oven Door Lock Automatic
Control Type 7" Full-Color Touch LCD Screen
Oven Features
Oven Rack Features
is model requires a one-time WiFi connection to download oven
features and functionality enabled by software. Follow instructions
on your LCD screen on how to connect.
Oven Control Features
FEATURES & BENEFITS
Built-In WiFi, Powered by SmartHQ App* - Manage all aspects of your
kitchen with the help of the SmartHQ™ App or your voice assistant.
Personalized Features + Upgrades* - Usher in the latest features by
downloading cooking upgrades right to your oven, putting Air Fry and more
in your repertoire.
Create an easy-to-clean, contemporary look for your kitchen with the striking
reflective glass finish.
Simply use your voice* to open the wall oven, so you can keep both hands
on heavy dishes.
Monitor your food from your smart device thanks to a heat-resistant in-oven
camera*, which syncs to the SmartHQ app.
Simplify the cooking process with precision cooking modes that automatically
track progress, and make time and temperature adjustments.
Integrated hot air frying technology gives you crispy results in your oven
without using oil.
Make homemade chips, spices and dehydrated fruits more easily than ever
with a moisture-removing setting in your oven.
Eliminate the need for preheating and save time with a variety of precision
cooking modes.
This oven features True European Convection, an advanced convection
system that uses a third heating element and reversing fan for the highest
level of heat and air circulation.
A precision temperature probe connects to the oven to ensure your food is
properly cooked.
This oven will fit your existing cut-out, or GE Appliances will help pay for
modifications up to $300.
*Some features require continuous WiFi connection to use.
WiFi Connect Built-In
Connected Capabilities
Cooking Technology Convection
Oven Interior
CAPACITY
Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.0 cu ft
POWER / RATINGS
Amp Rating at 208V 40
Amp Rating at 240V 40
Bake Wattage 2,850W
Broiler Wattage 4,300W
Convection Wattage 2,400W
KW Rating at 208V 6.8
KW Rating at 240V 9
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 278 lb
Net Weight 260 lb
Overall Height 53 in
Overall Width 29-3/4 in
Overall Depth 24-3/4 in
Cabinet Width 30 in
Cutout Dimensions (W x H x D) (in.) 28-1/2 x 51-13/16 x 23-1/2
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
True European Convection with Direct Air
(Both Ovens)
Convection Bake
Convection Bake Multi-Rack
Convection Broil Hi/Lo
Convection Roast
Hot-Air Frying
Precision Cooking Modes
Thermal Bake
Thermal Broil Hi/Lo
10-Pass Bake Element
10-Pass Dual Broil Element
Closed Door Broiling
2 Self-Clean Roller Racks (Both Ovens)
6 Embossed Rack Positions (Both Ovens)
12-Hour Shut-O Capability
Audible Preheat Signal
Auto Recipe Conversion
Sabbath Mode
Control Lock Capability
Cook Time
C° or F° Programmable
Dehydration
Delay Time
Electronic Clock & Kitchen Timer
Mis-Wire Detection
Oven Camera
Proof Mode
Remote Enabled
Scan-to-cook
Temperature Probe
Warm Mode
Amazon Alexa
The Google Assistant
IFTTT
Nest
Drop
Innit
2 Halogen Interior Oven Lights (Both Ovens)
Black Gloss Finish
Hidden Bake
Page 2
Café Minimal Series 30" Smart Built-In
12"
B
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
9-1/2" MAX.
F
Conduit
48"
47" to
bottom of
junction box
Junction box
location
Cutout depth
23-1/2" MIN
B
21"
22" minimum
door opening
allowance
E
D
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
CTD70DM2NS5, CTD70DP2NS1, CTD90DM2NS5,
CTD90DP2NS1, CTD90DP3ND1, CTD90DP4NW2
B
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
CTD70DM2NS5, CTD70DP2NS1, CTD90DM2NS5,
CTD90DP2NS1, CTD90DP3ND1, CTD90DP4NW2
Convection Double Wall Oven in Platinum Glass
CTD90DM2NS5
APPEARANCE
Color Appearance Platinum Glass
Handle Push-to-Open, Soft Open Hinges
Installation
Above Warming Drawer
Side-by-Side
Flush Inset
DIMENSIONS AND INSTALLATION INFORMATION
Wall coverings, countertops and cabinets surrounding the wall oven
must be able to withstand a temperature of up to 200°F (94°C).
If the cabinet in which the wall oven is installed does not have a
solid bottom, two braces or runners must be installed to support the
weight of the oven. The runners and braces must support up to
400 lbs (181 kg).
ATTENTION INSTALLER: Electric wall ovens are NOT approved for
installation with a plug and receptacle. They must be hard wired into
an approved junction box.
IMPORTANT: Before installing, consult installation instructions
packed with product for current dimensional data.
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
B
For answers to your Café™ product questions, visit our website at cafeappliances.com.
A
C
30''
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
WARRANTY
Parts warranty Limited 1-year entire appliance
Labor warranty Limited 1-year entire appliance
Warranty notes See written warranty for full details
F
22" minimum
door opening
allowance
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
Suitable
bracing
to support
runners
C
L
(must support 400 lbs.)
Dimension and installation information are shown in inches.
21"
Conduit
48"
E
D
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
24-3/4"
9-1/2" MAX.
Cutout depth
23-1/2" MIN
Junction box
location
47" to
bottom of
junction box
Page 3
Café Minimal Series 30" Smart Built-In
Convection Double Wall Oven in Platinum Glass
CTD90DM2NS5
DIMENSIONS AND INSTALLATION INFORMATION
30" Double electric wall ovens are approved for installation above
27" and 30" warming drawers.
WHEN TO USE THE PEDESTAL RAILS: When replacing an older
GE Appliances 30" double wall oven with a new GE Appliances
model. Cutout Height =51-13/16" to 51-15/16". This is our traditional
cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS: When replacing a 30"
double wall oven from another manufacturer (ie Whirlpool) with a
new GE Appliances model. Cutout height = 50-1/4". You will need to
verify that the existing cutout matches the 50-1/4" dimension.
If the new GE Appliances 30" double wall oven is being
installed into new construction (ie not a replacement), then the
recommended installation is to use the pedestal rails.
ATTENTION INSTALLER: Electric wall ovens are NOT approved
for installation with a plug and receptacle. They must be hard
wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions
packed with ALL products for current dimensional and
combination data.
Attachment
screws
For answers to your Café™ product questions, visit our website at cafeappliances.com.
Flanges toward
center of cutout
Top cutout
toward front
Dimension and installation information are shown in inches.
Page 4
Café Minimal Series 30" Smart Built-In
Convection Double Wall Oven in Platinum Glass
CTD90DM2NS5
FLUSH INSET DIMENSIONS AND INSTALLATION INFORMATION
NOTES:
Junction Box location (may also be located in an adjacent cabinet.
A
Platform must be able to support 400 lbs (181 kg).
B
Cabinet surfaces must be an appearance finished surface for flush installation.
C
Cleats may be visible and should be finished to match cabinetry.
D
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with
a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with ALL
products for current dimensional and combination data.
TOP VIEW
24 13/16" (63.0)
min cutout depth
top
cleat
side
cleat
bottom
cleat
1 5/16"
(3.3)
53 3/8"
(135.6)
Flush inset
height with
1/8" (0.3)
reveal at top,
1/4" (0.6)
reveal at
bottom
2 1/2"
(6.4)
Side cleats
depth
30" (76.2) flush inset width
with
1/8" (0.3) reveals
1 1/16"
(2.7)
Top cleat
5 1/4"
(13.3)
3/4"
(1.9)
Side cleats
28 1/2" (72.4)
cutout width
A
ELEC.
9 1/2"
(24.1)
30" (76.2)
1/2" (1.3) Bottom cleat
(Extends full depth
of cabinet)
C
FLUSH INSET
B
FLUSH INSET INSTALLATION
INSTALLATION
For answers to your Café™ product questions, visit our website at cafeappliances.com.
D
FRONT VIEW
Allow 1/8" (0.3) clearances
from side edges of oven door.
Dimension and installation information are shown in inches.
