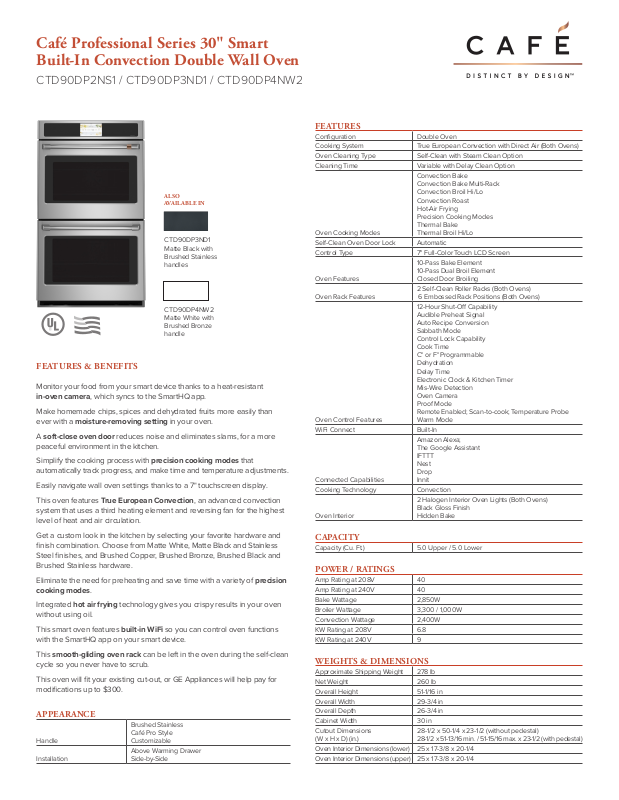

Café Professional Series 30" Smart
Built-In Convection Double Wall Oven
CTD90DP2NS1 / CTD90DP3ND1 / CTD90DP4NW2
ALSO
AVAILABLE IN
CTD90DP3ND1
Matte Black with
Brushed Stainless
handles
CTD90DP4NW2
Matte White with
Brushed Bronze
handle
FEATURES & BENEFITS
Monitor your food from your smart device thanks to a heat-resistant
in-oven camera, which syncs to the SmartHQ app.
Make homemade chips, spices and dehydrated fruits more easily than
ever with a moisture-removing setting in your oven.
A soft-close oven door reduces noise and eliminates slams, for a more
peaceful environment in the kitchen.
Simplify the cooking process with precision cooking modes that
automatically track progress, and make time and temperature adjustments.
Easily navigate wall oven settings thanks to a 7" touchscreen display.
This oven features True European Convection, an advanced convection
system that uses a third heating element and reversing fan for the highest
level of heat and air circulation.
Get a custom look in the kitchen by selecting your favorite hardware and
finish combination. Choose from Matte White, Matte Black and Stainless
Steel finishes, and Brushed Copper, Brushed Bronze, Brushed Black and
Brushed Stainless hardware.
Eliminate the need for preheating and save time with a variety of precision
cooking modes.
Integrated hot air frying technology gives you crispy results in your oven
without using oil.
This smart oven features built-in WiFi so you can control oven functions
with the SmartHQ app on your smart device.
This smooth-gliding oven rack can be left in the oven during the self-clean
cycle so you never have to scrub.
This oven will fit your existing cut-out, or GE Appliances will help pay for
modifications up to $300.
APPEARANCE
Handle
Installation
Brushed Stainless
Café Pro Style
Customizable
Above Warming Drawer
Side-by-Side
FEATURES
Configuration Double Oven
Cooking System True European Convection with Direct Air (Both Ovens)
Oven Cleaning Type Self-Clean with Steam Clean Option
Cleaning Time Variable with Delay Clean Option
Oven Cooking Modes
Self-Clean Oven Door Lock Automatic
Control Type 7" Full-Color Touch LCD Screen
Oven Features
Oven Rack Features
Oven Control Features
WiFi Connect Built-In
Connected Capabilities
Cooking Technology Convection
Oven Interior
Convection Bake
Convection Bake Multi-Rack
Convection Broil Hi/Lo
Convection Roast
Hot-Air Frying
Precision Cooking Modes
Thermal Bake
Thermal Broil Hi/Lo
10-Pass Bake Element
10-Pass Dual Broil Element
Closed Door Broiling
2 Self-Clean Roller Racks (Both Ovens)
6 Embossed Rack Positions (Both Ovens)
12-Hour Shut-O Capability
Audible Preheat Signal
Auto Recipe Conversion
Sabbath Mode
Control Lock Capability
Cook Time
C° or F° Programmable
Dehydration
Delay Time
Electronic Clock & Kitchen Timer
Mis-Wire Detection
Oven Camera
Proof Mode
Remote Enabled; Scan-to-cook; Temperature Probe
Warm Mode
Amazon Alexa;
The Google Assistant
IFTTT
Nest
Drop
Innit
2 Halogen Interior Oven Lights (Both Ovens)
Black Gloss Finish
Hidden Bake
CAPACITY
Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
POWER / RATINGS
Amp Rating at 208V 40
Amp Rating at 240V 40
Bake Wattage 2,850W
Broiler Wattage 3,300 / 1,000W
Convection Wattage 2,400W
KW Rating at 208V 6.8
KW Rating at 240V 9
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 278 lb
Net Weight 260 lb
Overall Height 51-1/16 in
Overall Width 29-3/4 in
Overall Depth 26-3/4 in
Cabinet Width 30 in
Cutout Dimensions
(W x H x D) (in.)
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
28-1/2 x 50-1/4 x 23-1/2 (without pedestal)
28-1/2 x 51-13/16 min. / 51-15/16 max. x 23-1/2 (with pedestal)
Café Professional Series 30" Smart
B
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.*
Recommended
minimum
cutout location
from the floor
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height without pedestal 51-1/16"
E - Overall height with pedestal 52-15/16"
F - Overall width 29-3/4"
9-1/2" MAX
F
Conduit
48"
Junction box
location
Cutout depth
23-1/2" MIN
B
21"
22" minimum
door opening
allowance
E
D
5-1/4"
MAX
2-1/2"
MAX
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.*
Recommended
minimum
cutout location
from the floor
12"
30''
*Without pedestal: cutout height is 50-1/4" min.
With pedestal: cutout height is 51-13/16" min.-51-15/16" max.
CTD70DM2NS5, CTD70DP2NS1, CTD90DM2NS5,
CTD90DP2NS1, CTD90DP3ND1, CTD90DP4NW2
Cabinet 30"
Junction box
location
Cutout depth
23-1/2" MIN
B
5-1/4"
MAX
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.*
Recommended
minimum
cutout location
from the floor
12"
30''
*Without pedestal: cutout height is 50-1/4" min.
With pedestal: cutout height is 51-13/16" min.-51-15/16" max.
CTD70DM2NS5, CTD70DP2NS1, CTD90DM2NS5,
CTD90DP2NS1, CTD90DP3ND1, CTD90DP4NW2
Built-In Convection Double Wall Oven
CTD90DP2NS1 / CTD90DP3ND1 / CTD90DP4NW2
WARRANTY
Parts warranty Limited 1-year entire appliance
Labor warranty Limited 1-year entire appliance
Warranty notes See written warranty for full details
DIMENSIONS AND INSTALLATION INFORMATION
Wall coverings, countertops and cabinets surrounding the wall oven
must be able to withstand a temperature of up to 200°F (94°C).
If the cabinet in which the wall oven is installed does not have a
solid bottom, two braces or runners must be installed to support the
weight of the oven. The runners and braces must support up to
400 lbs (181 kg).
Door handle protrudes 3" from door face. Cabinets and drawers on
adjacent 45° and 90° walls should be placed to avoid interference
with the handle.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for
installation with a plug and receptacle. They must be hard wired into
an approved junction box.
IMPORTANT: Before installing, consult installation instructions
packed with product for current dimensional data.
9-1/2" MAX
2-1/2"
MAX
F
Conduit
48"
E
Junction box
location
5-1/4"
MAX
Cutout depth
23-1/2" MIN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
30''
Cutout height
50-1/4" MIN.*
Recommended
minimum
cutout location
from the floor
12"
B
*Without pedestal: cutout height is 50-1/4" min.
With pedestal: cutout height is 51-13/16" min.-51-15/16" max.
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height without pedestal 51-1/16"
E - Overall height with pedestal 52-15/16"
F - Overall width 29-3/4"
For answers to your Café™ product questions, visit our website at cafeappliances.com.
22" minimum
door opening
allowance
21"
D
2 x 4 or
C
L
Suitable
bracing
to support
(must support 400 lbs.)
runners
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Dimension and installation information are shown in inches.
