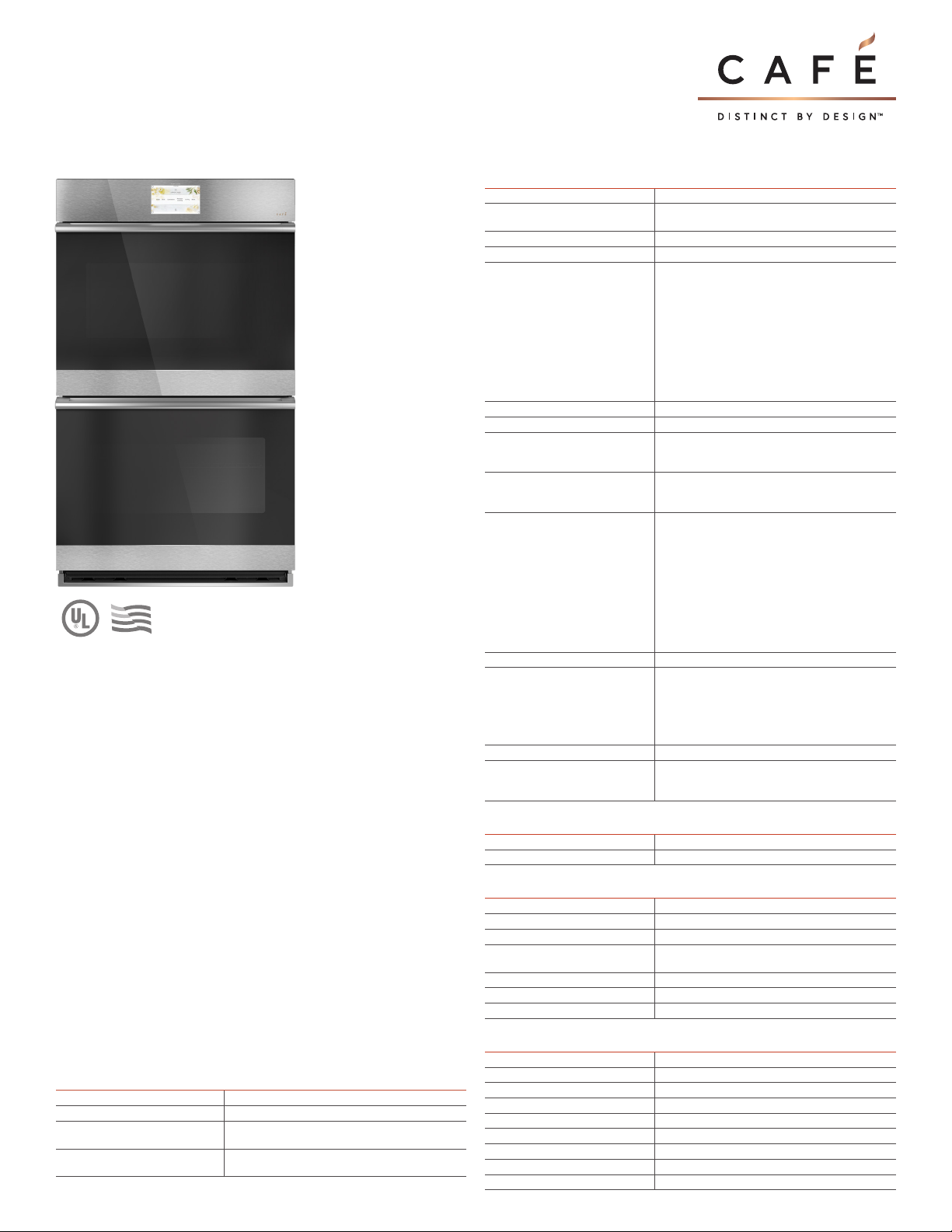

Page 1
Café™ 30" Built-In Convection
Double Wall Oven
CTD70DM2NS5
FEATURES & BENEFITS
Precision is the name of your cooking game - Confidently try new recipes and
perfectly execute your favorites, using a smart system that automatically tracks
progress, modifies temperatures and adjusts cook times
Brighten up life in the kitchen - Easily navigate wall oven settings using a stunning
full color display that adds an unexpected touch of style to your kitchen
The perfect bake is now perfectly easy - Achieve unrivaled performance with
the only system that delivers top-down true convection for consistent results on
special occasion favorites like roasts, chicken, turkey and more
No preheat, no hassle - Save time with a variety of precision cooking modes
that eliminate the need for preheating
Fried taste. Crisp texture. Less oil. - Make your favorite "fried" foods healthy,
thanks to a mode that crisps without using oil for frying
Enjoy convenient temperature control from anywhere - Preheat while running
errands or change oven temperatures while doing yard work with the Cafe
Appliances Kitchen app
The oven rack that handles it all - Easily remove heavy dishes with a roller rack
that is specially designed to glide smoothly and stay in the oven during the selfclean cycle, so you never have to handle cumbersome racks again
The perfect fit you’ve always dreamed of - When you’re updating your kitchen,
attention to detail is a priority. That’s why Café wall ovens are guaranteed for an
exact fit or Café Appliances will pay up to $300 toward modifications.
APPEARANCE
Color Appearance Platinum
Oven Door Features Big View Oven Window
Handle
Installation
Café Minimal Style
Brushed Stainless
Above Warming Drawer
Side-by-Side
FEATURES
Configuration Double Oven
Cooking System
Oven Cleaning Type Self-Clean with Steam Clean Option
Cleaning Time Variable with Delay Clean Option
Oven Cooking Modes
Self-Clean Oven Door Lock Automatic
Control Type 7" Full Color LCD Screen
Oven Features
Oven Rack Features
Oven Control Features
WiFi Connect Built-In
Connected Capabilities
Cooking Technology Convection
Oven Interior
True European Convection with Direct Air (Upper)
True European Convection (Lower)
Convection Bake
Convection bake Multi-Rack
Convection Broil Hi/Lo
Convection Roast
Thermal Bake
Thermal Broil Hi/Lo
Hot-Air Frying
Scan-to-cook
Keep Warm
Proof
Precision Cooking Modes
10-Pass Bake Element
10-Pass Dual Broil Element
Closed Door Broiling
2 Never Scrub Roller Rack
2 Never Scrub Flat Rack
6 Embossed Rack Positions per oven
12-Hour Shut-O Capability
Audible Preheat Signal
Auto Recipe Conversion
C° or F° Programmable
Sabbath Mode
Control Lock Capability
Cook Time
Delay Time
Electronic Clock & Kitchen Timer
Remote Enabled
Temperature Probe
Amazon Alexa
The Google Assistant
IFTTT
Nest
Drop
Innit
2 Halogen Interior Oven Lights (Both Ovens)
Black Gloss Finish
Hidden Bake
CAPACITY
Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.0 cu ft
POWER / RATINGS
Amp Rating at 208V 40
Amp Rating at 240V 40
Bake Wattage 2850W
Broiler Wattage
Convection Wattage 2400W
KW Rating at 208V 6.5
KW Rating at 240V 8.7
4300W
Dual Element
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 278 lb
Net Weight 260 lb
Overall Height 53 in
Overall Width 29-3/4 in
Overall Depth 26-3/4 in
Cabinet Width 30 in
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4

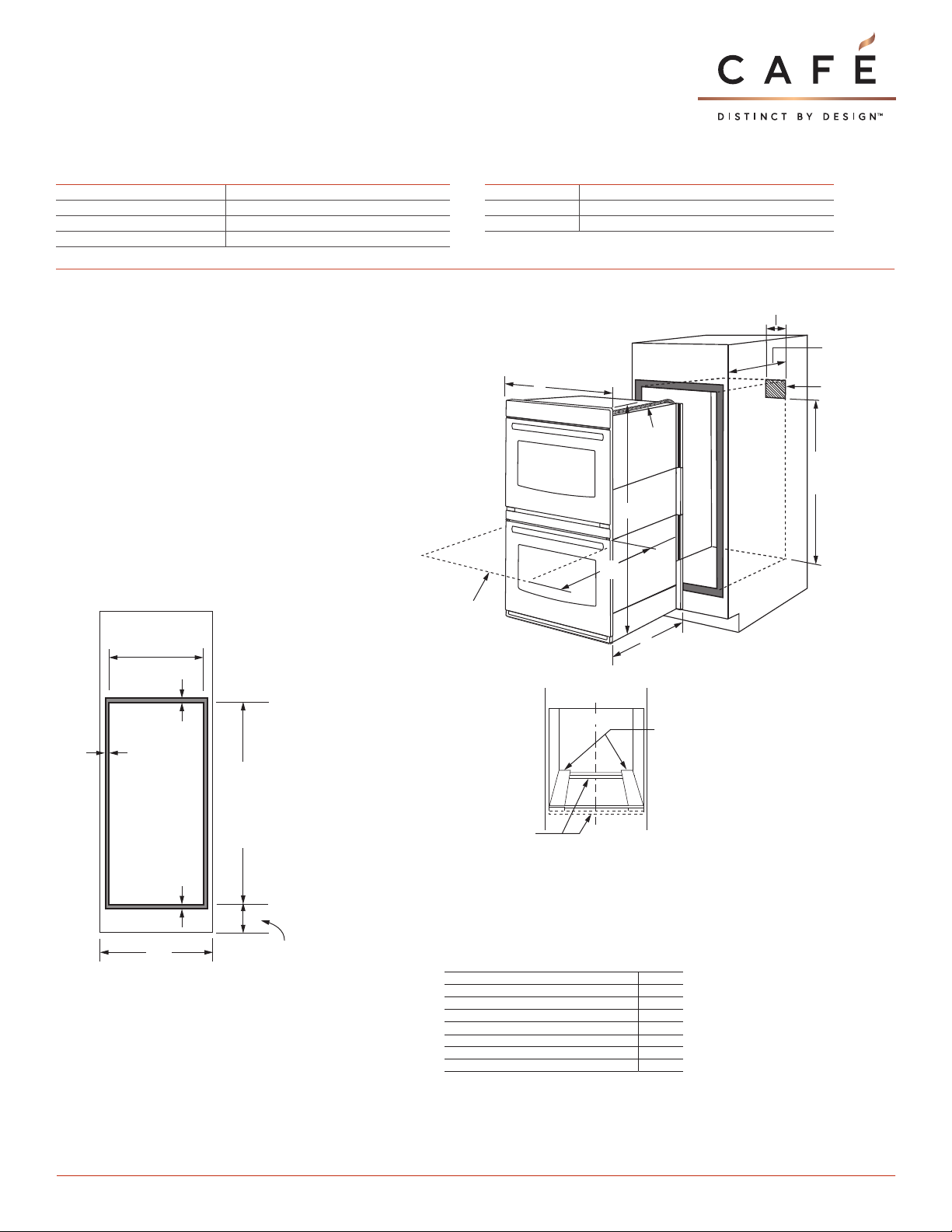

Page 2
Café™ 30" Built-In Convection
12"
B
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
9-1/2" MAX.
F
Conduit
48"
47" to
bottom of
junction box
Junction box
location
Cutout depth
23-1/2" MIN
B
21"
22" minimum
door opening
allowance
E
D
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
CTD70DM2NS5, CTD70DP2NS1, CTD90DM2NS5,
CTD90DP2NS1, CTD90DP3ND1, CTD90DP4NW2
B
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
CTD70DM2NS5, CTD70DP2NS1, CTD90DM2NS5,
CTD90DP2NS1, CTD90DP3ND1, CTD90DP4NW2
Double Wall Oven
CTD70DM2NS5
OPTIONAL ACCESSORIES
30" Never Scrub Roller Rack UXWORXR30
Large Broiler Pan WB48X10056
60" Replacement Electrical Conduit WB18T10574
72" Replacement Electrical Conduit WB18T10580
DIMENSIONS AND INSTALLATION INFORMATION
Wall coverings, countertops and cabinets surrounding the wall oven
must be able to withstand a temperature of up to 200°F (94°C).
If the cabinet in which the wall oven is installed does not have a
solid bottom, two braces or runners must be installed to support the
weight of the oven. The runners and braces must support up to
400 lbs (181 kg).
Door handle protrudes 3" from door face. Cabinets and drawers on
adjacent 45° and 90° walls should be placed to avoid interference
with the handle.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for
installation with a plug and receptacle. They must be hard wired into
an approved junction box.
IMPORTANT: Before installing, consult installation instructions
packed with product for current dimensional data.
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
B
For answers to your Café™ product questions, visit our website at cafeappliances.com.
A
C
30''
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
WARRANTY
Parts warranty Limited 1-year entire appliance
Labor warranty Limited 1-year entire appliance
Warranty notes See written warranty for full details
F
22" minimum
door opening
allowance
C
Suitable
bracing
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
to support
runners
(must support 400 lbs.)
L
Dimension and installation information are shown in inches.
21"
Conduit
48"
E
D
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
9-1/2" MAX.
Cutout depth
23-1/2" MIN
Junction box
location
47" to
bottom of
junction box
Page 3
Café™ 30" Built-In Convection
Double Wall Oven
CTD70DM2NS5
DIMENSIONS AND INSTALLATION INFORMATION
30" Double electric wall ovens are approved for installation above
27" and 30" warming drawers.
WHEN TO USE THE PEDESTAL RAILS: When replacing an older
GE Appliances 30" double wall oven with a new GE Appliances
model. Cutout Height =51-13/16" to 51-15/16". This is our traditional
cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS: When replacing a 30"
double wall oven from another manufacturer (ie
Whirlpool) with a new GE Appliances model. Cutout height = 501/4". You will need
to verify that the existing cutout matches the 50-1/4" dimension.
If the new GE Appliances 30" double wall oven is being installed
into new construction (ie
not a replacement), then the recommended installation is to use the
pedestal rails.
ATTENTION INSTALLER: Electric wall ovens are NOT approved
for installation with a plug and receptacle. They must be hard
wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions
packed with ALL products for current dimensional and
combination data.
Attachment
screws
For answers to your Café™ product questions, visit our website at cafeappliances.com.
Flanges toward
center of cutout
Top cutout
toward front
Dimension and installation information are shown in inches.
Page 4
Café™ 30" Built-In Convection
Double Wall Oven
CTD70DM2NS5
FLUSH INSET DIMENSIONS AND INSTALLATION INFORMATION
NOTES:
Junction Box location (may also be located in an adjacent cabinet.
A
Platform must be able to support 400 lbs (181 kg).
B
Cabinet surfaces must be an appearance finished surface for flush installation.
C
Cleats may be visible and should be finished to match cabinetry.
D
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with
a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with ALL
products for current dimensional and combination data.
TOP VIEW
24 13/16" (63.0)
min cutout depth
top
cleat
side
cleat
bottom
cleat
1 5/16"
(3.3)
53 3/8"
(135.6)
Flush inset
height with
1/8" (0.3)
reveal at top,
1/4" (0.6)
reveal at
bottom
2 1/2"
(6.4)
Side cleats
depth
30" (76.2) flush inset width
with
1/8" (0.3) reveals
1 1/16"
(2.7)
Top cleat
5 1/4"
(13.3)
3/4"
(1.9)
Side cleats
28 1/2" (72.4)
cutout width
A
ELEC.
9 1/2"
(24.1)
30" (76.2)
1/2" (1.3) Bottom cleat
(Extends full depth
of cabinet)
C
FLUSH INSET
B
FLUSH INSET INSTALLATION
INSTALLATION
For answers to your Café™ product questions, visit our website at cafeappliances.com.
D
FRONT VIEW
Allow 1/8" (0.3) clearances
from side edges of oven door.
Dimension and installation information are shown in inches.
© 2022 GE Appliances PC96509 01 /22
