Cafe CWB713P2NS1 Installation Manual

Installation Instructions
Advantium® 120V Built-In SpeedCook and 120V Built-In Convection Ovens
PSB9120
ZSC1201 ZSC1202 CWB7030 PWB7030
CWB713
31-2000001-5
01-19 GEA
Español
For a Spanish version of this manual, visit our Website at GEAppliances.com.
Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet GEAppliances.com.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
for local inspector’s use.
IMPORTANT
and ordinances.
Note to Installer Be sure to leave these
instructions with the Consumer.
Note to Consumer Keep these instructions
with your Owner’s Manual for future reference.
Skill LevelInstallation of this appliance
requires basic mechanical and electrical skills.
Completion Time — 1 Hour.
Proper installation is the responsibility
of the installer. Product failure due to improper installation is not covered under the warranty. See Owner’s Manual for warranty information.
NOTE: This oven is only approved to be installed
under the specific models as labeled on this unit.
IMPORTANT
intended purpose. Never use the oven for warming or heating a room. Prolonged use of the oven without proper ventilation can be hazardous.
CAUTION
house fuse or oven circuit breaker before beginning installation to avoid severe or fatal shock injury.
CAUTION
mounting surface must be capable of supporting the cabinet load, in addition to the added weight of the oven and drawer, plus additional oven loads.
CAUTION
Convection 120V Oven below 36Ǝ, you must use the plastic bottom trim due to burn risk to children. The plastic trim acts as insulation and will help prevent burns to children from hot surfaces.
CAUTION
Convection 120V Oven below 36Ǝ, do not remove the plastic door trim due to burn risk to children. The plastic trim acts as insulation and will help prevent burns to children from hot surfaces.
Save these instructions
Observe all governing codes
Use this oven only for its
For personal safety, remove
For personal safety, the
If installing the Advantium/
If installing the Advantium/
CONTENTS
Design Information
Models Available ...............................................2
Product Dimensions and Clearances ................3
Tools Required .................................................. 3
Parts Supplied ................................................... 3
Advance Planning ............................................. 3
Installation Preparation
Electrical Requirements .................................... 4
Preparing the Opening (Standard) .................5-8
Preparing the Opening (Flush Mount) ..........9-10
Storage Drawer Preparation
Standard .........................................................11
Flush ...............................................................11
Installation Instructions
Step 1, Remove Packaging and Parts ............12
Step 2, Door Trim Removal for above 36”
Installation only ...............................................13
Step 3, Slide the Oven into the Cutout ...........13
Step 4, Install Bottom Trim ..............................14
Step 5, Install Bottom Trim with Accessory
Drawer ...........................................................14
Step 6, Install Mounting Screws ......................14
Step 7, Finalize Installation .............................14
MODELS AVAILABLE
Profile Models:
PSB9120WW – White* PSB9120BB – Black PSB9120SS – Stainless Steel PSB9120ES – Slate PWB7030SL – Stainless Steel PWB7030EL – Slate PSB9120BL – Black Stainless Steel
Monogram Models:
ZSC1201SS – Stainless Steel ZSC1202SS
Café Model:
CSB9120SS – Stainless Steel
CWB7030SL – Stainless Steel
*No color-matched drawer available for this model.
**This unit cannot be installed with an accessory storage drawer.
– Stainless Steel**
2
Design Information

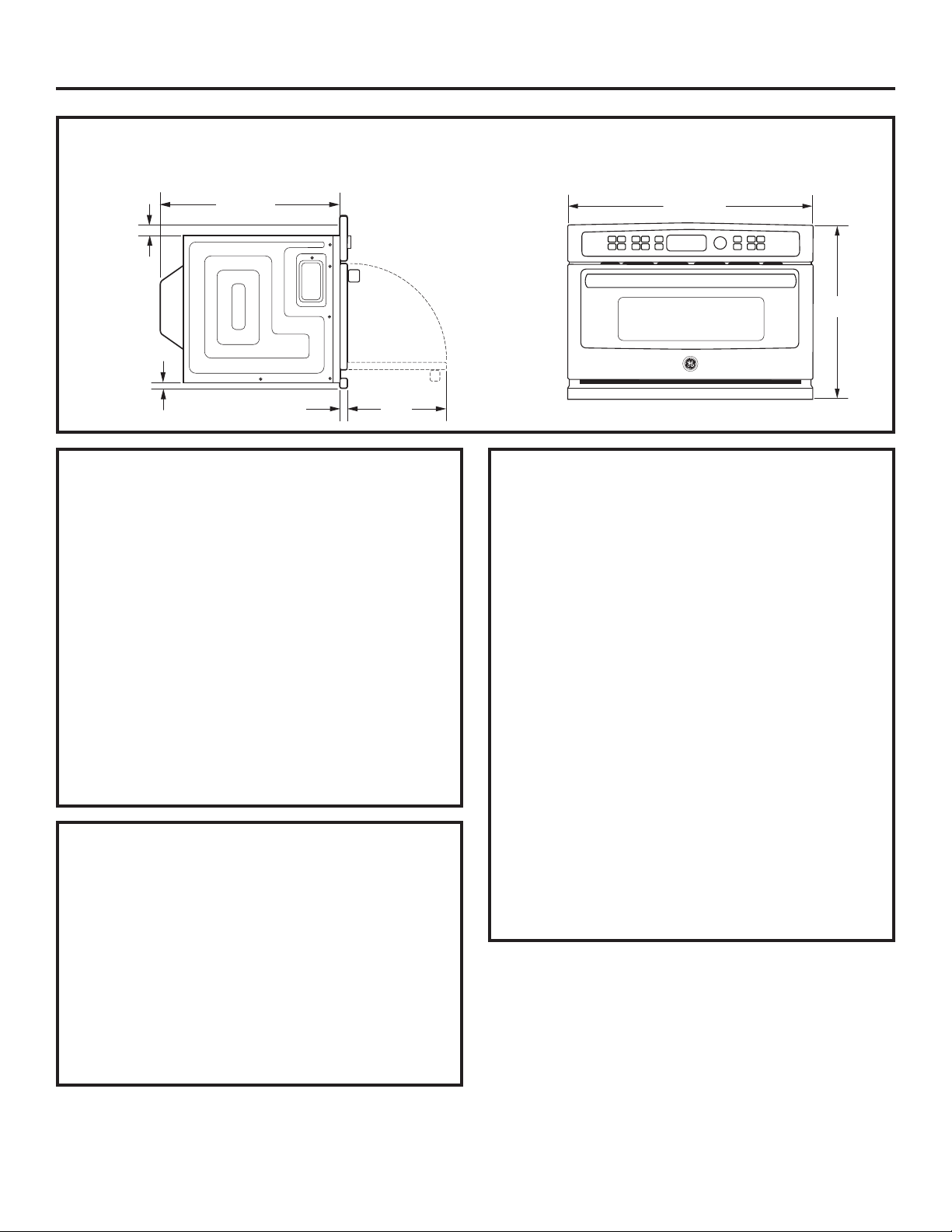

PRODUCT DIMENSIONS AND CLEARANCES NOTE: Appearance will vary by model.
21-1/2Ǝ
1-3/5Ǝ
1Ǝ
1-1/10Ǝ
13Ǝ
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
#2 Phillips screwdriver
Hand-held drill
High speed drill bit, 3/32Ǝ diameter
3/8Ǝ slot-head screwdriver
Level
Saw
3/8Ǝ min. plywood for floor (if required)
Wood screws or other hardware for installing
runner or shelf to support oven (if required)
Safety glasses or goggles
FLUSH MOUNT INSTALLATION (Monogram Only)
This installation method allows for the unit face to be inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN
CARPENTRY IS REQUIRED. Non-standard cabinetry may be required.
Flush installation of the oven will lead to the exposure of the cabinet face frame edges.
Side cleats may be visible and should be a finished surface.
29-3/4Ǝ
19Ǝ
ADVANCE PLANNING
7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ
wide oven cabinet with standard installation.
Cutout height dimensions are different for
installations with an accessory storage drawer. Make sure to use the correct cutout when preparing the opening.
• Allow for clearance to adjacent corners, walls, drawers, etc.
• Cabinets installed adjacent to wall ovens must have an adhesion spec of at least 194ºF
temperature rating.
The oven must be securely installed in a cabinet that is firmly attached to the house structure. Weight on the oven door could cause the oven to tip and result in injury. Never allow anyone to climb, sit, stand or hang on the oven door.
If installing the drawer accessory, the drawer must be assembled to the oven prior to installation into the cabinet. See the Accessory
Storage Drawer Assembly Instructions.
3
Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium/Convection 120 Installation:
This product requires a 120-volt, 60 Hz, 15-amp circuit and draws 1.8 kilowatts. This product must be connected to a supply circuit of the proper voltage and frequency.
• Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating.
• The power supply cord and plug should be brought to a separate 15 or 20 ampere branch circuit single grounded receptacle. The outlet box should be located within reach of the 48” power cord.
ELECTRICAL LOCATION
6”
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
9”
Locate outlet box in the shaded area
Install a recessed electrical outlet in the back wall of the opening within 6Ǝ of either side and at least 9Ǝ above the cutout floor.
WARNING
Improper use of the grounding plug can result in a risk of electric shock.
IMPORTANT: (Please read carefully).
The power cord of this appliance is equipped with a three-prong (grounding) plug that mates with a standard three-prong grounding wall receptacle to minimize the possibility of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.
4
Standard Installation Preparation
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation unless plastic trim is installed.
PREPARE THE OPENING
The Advantium/Convection 120 can be installed in combination with other GE Appliances/ Monogram appliances. Always follow each product’s Installation Instructions to complete the installation.
Single Advantium/Convection 120 Installation:
Order a 30” wide single oven cabinet or cut the opening in a wall to the dimensions shown.
30”
17-1/2”
36-3/4”
Min.
23-1/2”
25-1/4”
Construct solid bottom
- Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
PREPARE THE OPENING (CONT.)
Installation over a GE Appliances/ Monogram Warming Drawer:
30”
17-1/2”
36-3/4”
Min.
NOTE: Additional clearances between the cutouts may be required. Check to be sure the oven supports above the Warming Drawer location does not obstruct the required interior depth and height. See Warming Drawer installation instructions for details.
23-1/2”
25-1/4”
Construct solid bottom
- Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
2” Min. (3” Recommended)
Per Warming Drawer Requirement
Allow 1-1/4” case trim overlap
• at the top and 7/8” overlap on the bottom and 2-1/4” overlap for each side of the opening.
Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a
warming drawer, allow at least 2” between the two openings. This separation will provide clearance for bottom overlap of the Advantium/ Convection 120 and the other appliance overlaps.
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
5
Standard Installation Preparation
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation unless plastic trim is installed.
PREPARE THE OPENING (CONT.)
Installation over a GE Applainces/ Monogram Oven:
30”
17-1/2”
45-1/4”
Min.
* If you are replacing a GE Appliances/
Monogram electric double oven with the combined installation of an Advantium/ Convection 120 and a single oven, use the dimensions shown. The middle rail separating the two openings may need to be larger than the 2” minimum shown.
23-1/2”
25-1/4”
Construct solid bottom
- Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
2” Min. (3” Recommended)
Per Oven Requirement
PREPARE THE OPENING (CONT.)
Installation over a GE Appliances/ Monogram Oven and Warming Drawer:
30”
23-1/2”
25-1/4”
17-1/2”
45-1/4”
NOTE: Additional clearances between the cutouts may be required. Check to be sure the oven supports above the Warming Drawer location does not obstruct the required interior depth and height. See Warming Drawer installation instructions for details.
Construct solid bottom ­Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
2” Min. (3” Recommended)
Per Oven Requirement
2” Min. (3” Recommended)
Per Warming Drawer Requirement
CAUTION
For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of the oven and drawer, plus additional oven loads.
6
Standard Installation Preparation
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation unless plastic trim is installed.
PREPARE THE OPENING (cont.)

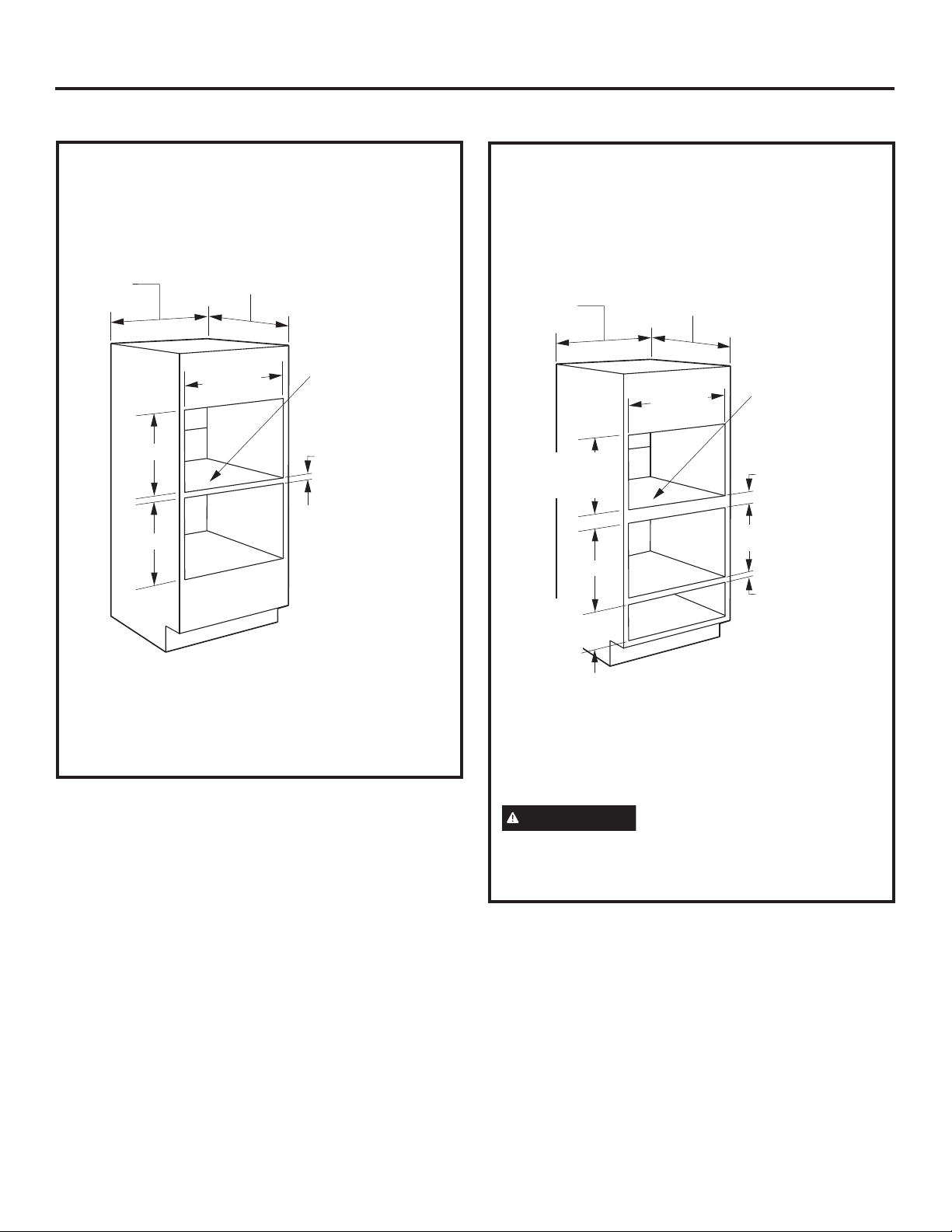

Installation over another GE Appliances/ Monogram Built-In SpeedCook Oven:
30Ǝ
17-1/2Ǝ
17-1/2Ǝ
23-1/2Ǝ
25-1/4Ǝ
Construct solid bottom - Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
2Ǝ Min. (3Ǝ Recommended)
PREPARE THE OPENING (cont.)
Installation under a GE Appliances/ Monogram Microwave Oven and over a Warming Drawer:
Construct
30Ǝ
Per Microwave
Oven Requirement
17-1/2Ǝ
Per Warming Drawer Requirement
23-1/2Ǝ
25-1/4Ǝ
solid bottom - Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
3.5Ǝ Min. (4.5Ǝ Recommended)
2Ǝ Min. (3Ǝ Recommended)
If you are mounting a GE Appliances
Appliances/Monogram Built-In Oven over another, use the dimensions
SpeedCook
shown. The middle rail separating the two openings may need to be larger than the 2Ǝ minimum shown.
NOTE: Additional clearances between the cutouts may be required. Check to be sure the oven supports above the Warming Drawer location do not obstruct the required interior depth and height. See Warming Drawer installation instructions for details.
CAUTION
For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of the oven and drawer, plus additional oven loads.
7
Standard Installation Preparation
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation unless plastic trim is installed.
PREPARE THE OPENING (cont.)

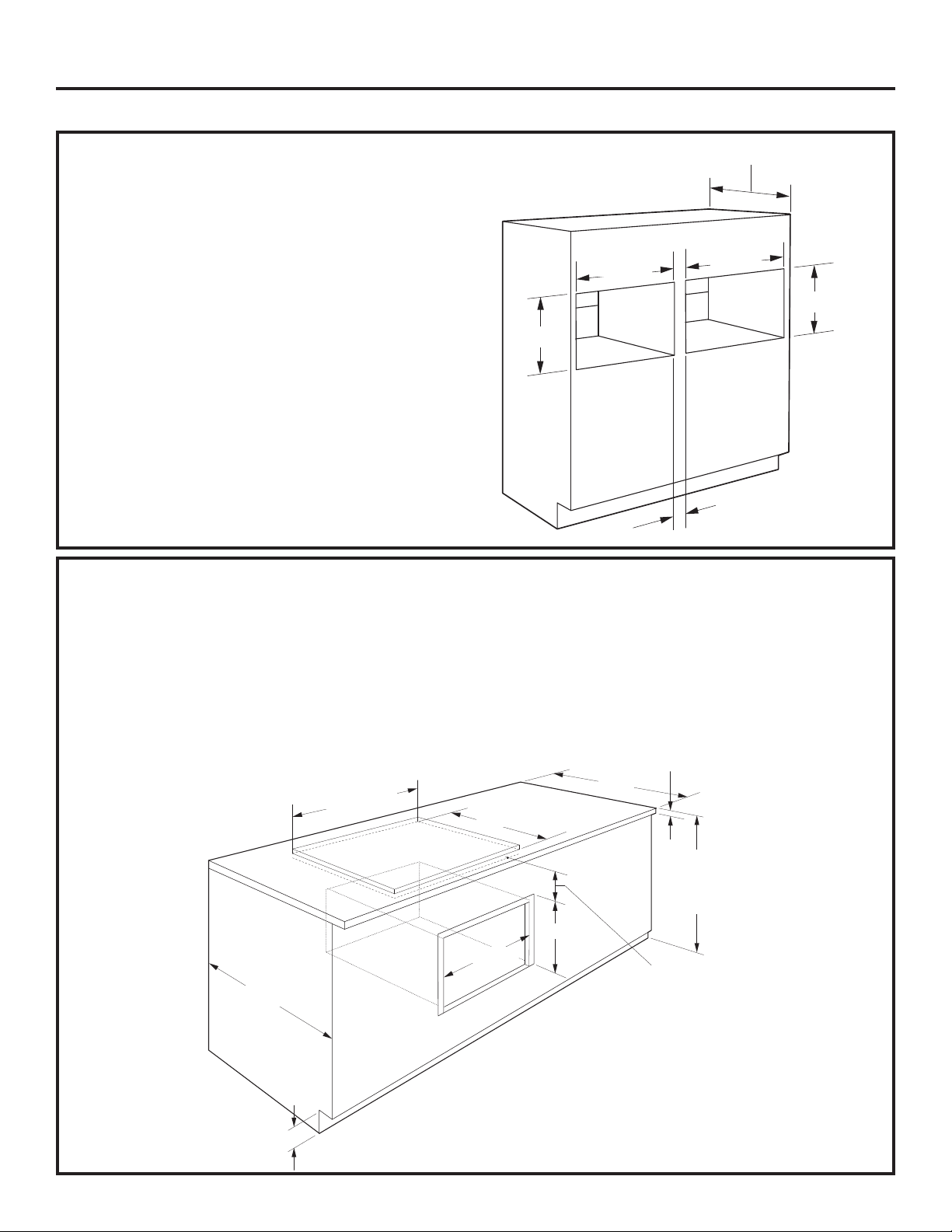

Installation beside another GE Appliances/Monogram Built-in Speedcook Oven:
• If you are mounting a GE Appliances/ Monogram Built-In another, use the dimensions shown. The middle rail separating the two openings may need to be larger than the 4-1/2Ǝ minimum shown.
SpeedCook Oven
beside
PREPARE THE OPENING (cont.)
17-1/2Ǝ
25-1/4Ǝ
23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
4-1/2Ǝ Min. (5-1/2Ǝ Recommended)
Installation under a GE Appliances/Monogram 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size. See the label on top of the oven for approved cooktop models. This oven requires a separate, properly grounded 15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 36Ǝ or wider base cabinet.
1-1/2Ǝ Min.
25Ǝ
36Ǝ
Countertop
Height
Ǝ
Cooktop height including depth of electrical box on some models. Refer to cooktop installation instructions. No minimum clearance required between cooktop and oven.
23-1/2
4Ǝ High
Toekick
Cooktop
Cooktop
17-1/2
25-1/4Ǝ
Ǝ
NOTE: The oven is only approved to be installed under the specific models as labeled on the unit.
8
Flush Mount Installation Preparation (Monogram Only)
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation unless plastic trim is installed.
PREPARE THE INTERIOR
Cut and install side cleats:
Cut side wood cleats to height of cabinet
opening and approx. 2-1/2” in depth. Install, on each side, 1-3/8” from the front face of the cabinet.
Cut and install bottom cleat:
Cut bottom wood cleat to a height of 1-1/8”, a
depth of the cabinet minus 1-3/8” and a width of 25-1/4” to fit between side cleats. Install onto the cabinet floor between the side cleats, push it all the way back against cabinet wall and make sure its front face aligns with the front faces of the side cleats (1-3/8” gap from the front cabinet face).
A A
C
B
D
E
PREPARE THE OPENING
The Advantium 120 can be installed in combination with other GE Appliances/ Monogram appliances. Always follow each product’s Installation Instructions to complete the installation.
Single Advantium 120 Installation:
Cut the opening in a cabinet to the dimensions shown.
*See table below for desired reveals on sides.
**19-1/4”
36-3/4”
Min.
23-1/2” min.
F *
Oven or warming drawer
Construct solid bottom
- Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
2” Min.
Per appliance specs.
A Side cleats depth 2-1/2” min. B Bottom cleat height 1-1/8”
C Bottom cleat depth Cabinet depth minus 1-3/8” D Bottom cleat width 25-1/4” E All three cleats Recess and install 1-3/8”
IURPGHVLUHGÀXVKVXUIDFH
D
TOP
C
VIEW
A A
Front Face of Cabinet
EE
• The support must be level and rigidly mounted, flush with the bottom edge of the cutout.
Approved Flush Installation
Single Advantium 30” 30-1/4” Over Warming Drawer 30” 30­Over Oven Over Oven and Warming Drawer Over Built-in Speedcook Oven Double Advantium (side by side) Under Cooktop or Countertop See page 10
Dimension F
1/8” Reveal 1/4” Reveal
1
/4” 30” 30-1/4” 30” 30-1/4” 30” 30-1/4
See page 10
** Top and bottom reveals are set to 1/8”.
9
Flush Mount Installation Preparation (Monogram Only)
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation unless plastic trim is installed.
PREPARE THE OPENING
The Advantium/Convection 120 can be installed beside another Advantium/Convection 120 in a side-by-side combination.
Double Advantium/Convection 120
Installation:
Cut the opening in a cabinet to the dimensions shown.
• Center divider acts as cleat for side of each respective unit. Only one additional side cleat needed per oven cutout.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
*See table for desired reveals on sides and between unit.
Dimension 1/8” Reveal 1/4” Reveal
G 59-7/8” 60-1/4” H 5-1/8” 5-1/4”
I 27-3/8” 27-1/2”
23-1/2” min.
G*
H*
I*
I*
19-1/4”
1-3/8”
36-3/4”
Min.
Construct solid bottom - Min. 3/8” plywood supported on all four sides. Must be able to support weight of oven and contents.
Installation under a GE Appliances/Monogram 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size. See the label on top of the oven for approved cooktop models. This oven requires a separate from the cooktop, properly grounded 15-Amp, 120-Volt, 60Hz power supply. Use a 36Ǝ or wider base cabinet.
1-1/2Ǝ Min.
25Ǝ
36Ǝ
Countertop
Height
Cooktop height including depth of electrical box on some models. Refer to cooktop installation instructions. No minimum clearance required between cooktop and oven.
*See table for desired reveals on sides.
Dimension 1/8”
Reveal
J 30” 30-1/4”
1/4”
Reveal
23-1/2
4Ǝ High
Toekick
Cooktop
Cooktop
19-1/4”
J*
Ǝ
NOTE: The oven is only approved to be installed under the specific models as labeled on the unit.
10
Loading...
+ 22 hidden pages
