Caesar Fireplace CHFP-30A, CHFP-102A, CHFP-50A Installation And Operating Instructions Manual

CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ETL

CHFP-30A

ELECTRIC FIREPLACE

INSTALLATION AND

OPERATING INSTRUCTIONS

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

!

WARNING

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.

SAFETY INFORMATION

!

WARNING

Phone [phone] Fax [phone] www.caesarfireplace.com [e-mail]· · ·

If the information in these instructions

are not followed exactly, a fire may

result, causing property damage,

personal injury or loss of life.

19295 E. Walnut Dr N, City of Industry, CA 91748

C US

2

NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

TABLE OF CONTENTS

1.0 PACKING LIST

2.0

3.0 INTRODUCTION

3.1 DIMENSIONS

3.2 LISTING APPROVALS

3.3 GENERAL INSTRUCTIONS

4.0 PLACING APPLIANCE

4.1 UNPACKING AND TESTING APPLIANCE

4.2 GROUNDING APPLIANCE

5.0 INSTALLATION

5.1 WALL-MOUNT INSTALLATION

5.2 RECESSED INSTALLATION

5.3 FREE STANDING INSTALLATION (OPTION)

6.0 FINISHING

6.1 GLASS DOOR REMOVAL

6.2 MEDIA BED KITS INSTALLATION

6.2.1 6 INTERCHANGEABLE MEDIA BED KITS OPTIONS

6.3 GLASS DOOR INSTALLATION

7.0 OPERATING INSTRUCTIONS

7.1 MAIN POWER BUTTON

7.2 REMOTE CONTROL

7.2.1 BATTERY INSTALLATION

7.2.2 REMOTE OPERATION

7.3 PANEL CONTROL

8.0

8.1 PARTIALLY REFLECTIVE GLASS CLEANING

8.2 GLASS DOOR CLEANING

8.3 SERVICING

9.0 REPLACEMENT PARTS

10.0 WARRANTY

WELCOME & CONGRATULATIONS

MAINTENANCE

3
4
4

5
5
6

7

7
7

8

9
10
10

11

11
12

12

13

13

13
14

14
14

15

16

16
16
16

17
18

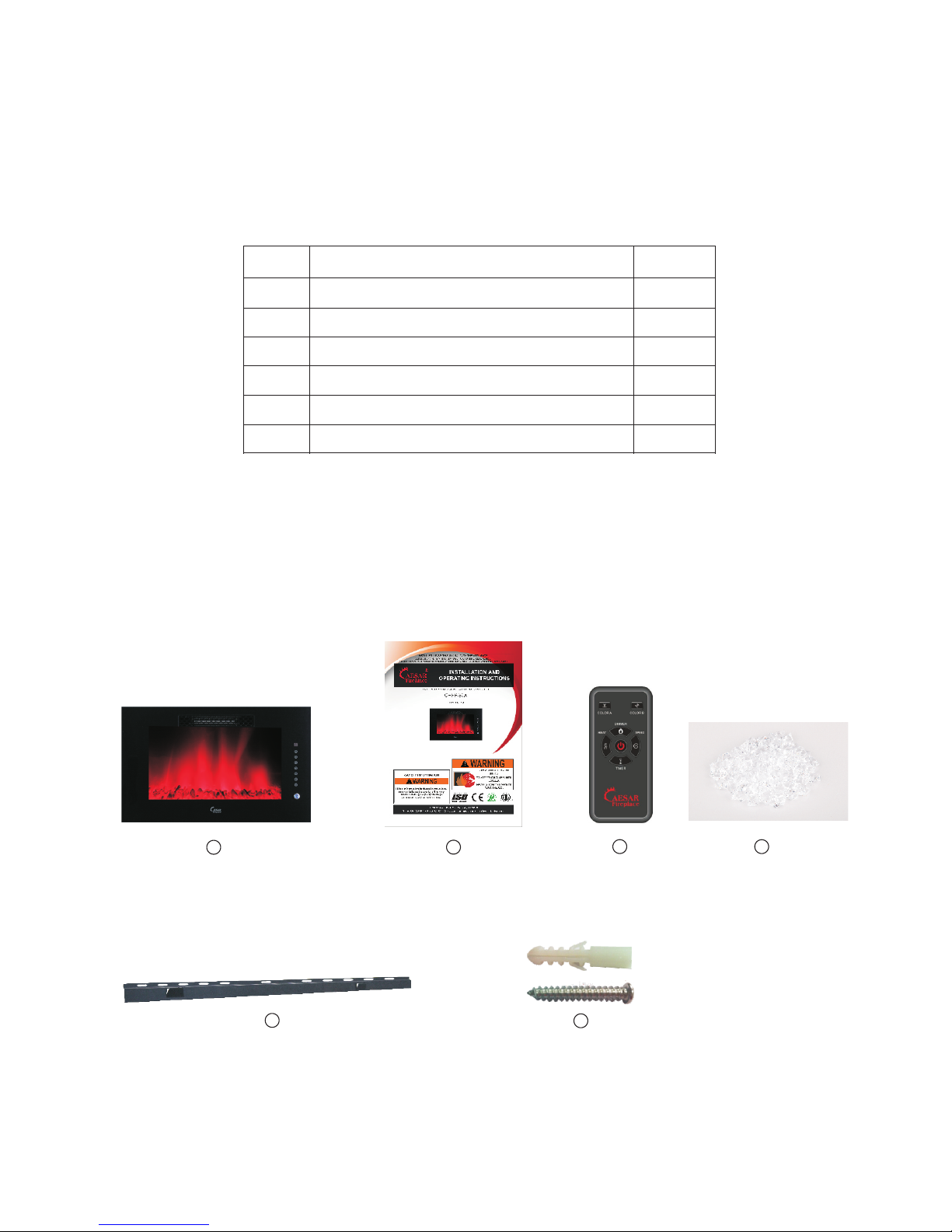

1.0 PACKING LIST

No

Description

Quantity

1

Electric fireplace

1 pc

2

Installation and operating instructions

1 pc

3

Remote control (battery included)

1 pc

4

Media bed kit (falling stars)

1 box

5

Wall mo unt bracket

1 pc

6

Wall an chors

7 sets

1

2

3

3

6

4

5

3.0 INTRODUCTION

!

WARNING

THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF TOUCHED.

Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.

Risk of burns. Power to the appliance should be turned off and the appliance allowed to cool before
servicing. To disconnect power to the appliance, turn controls to off, then remove plug
Do not install damaged, incomplete or substitute components.

Young children should be carefully supervised when they are in the same room as the appliance.

Toddlers, young children and others may be susceptible to accidental contact burns.

Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
It is imperative that the control compartments, circulating blower and its passageway in the appliance
and are kept clean. The appliance should be inspected before use and at least annually by a qualifed
service person.
Under no circumstances should this appliance be modified.
Do not use this appliance if any part has been in contact with water. Immediately call a qualified service
technician

to inspect the appliance and to replace any part of the control system which has been in contact
with water.

Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualifed service person.
Do not strike or slam shut the appliance glass door.
Keep the packaging material out of reach of children and dispose of the material in a safe manner. As

w ith all plastic bags, these are not toys and should be kept away from children and infants.

Servicing should be done only while the appliance is disconnected from the power supply circuit.

Always unplug appliance when not in use.
Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been
dropped or damaged in any manner. Return appliance to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
Do not use appliance outdoors.
Never place appliance where it may fall into a bathtub or other water container.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, etc. Arrange cord away
from cluttered area and where it will not be tripped over.
Connect to properly grounded outlets only.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
To prevent a possible f i r e , do not block air intakes or exhaust in any manner. Do not use on soft surfaces,
like a carpet, where openings may become blocked.

Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or r elocatable
power tap outlet/power strip)( .

To prevent accidental swallowing, media bed kits should be kept away from children and infants.

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

from outlet.

Remote control contains small batteries. Keep away from children. If swallowed, seek medical attention
immediately.
Do not install battery backwards, charge, put in fire or mix with used or other battery types-may explode
or leak causing injury.

·

·

2.0 WELCOME & CONGRATULATIONS

Thank you and congratulations for choosing to pur chase an electr ic fireplace from Caesar Fireplace,
the world leader in electric fireplaces. To vie w the full line of Caesar Fireplace pr oducts, pleas e visit

www.caesarfireplace.com.

4

3.1 DIMENSIONS

3.2 LISTING APPROVALS

This appliance has been tested in accordance with the ETL Standards for fixed and location-dedicated electric
room appliances in the United States and Canada. If you need assistance during installation, please contact
your local dealer.

NOTE: This appliance must be electrically wired and grounded
in accordance with local codes or, in the absence of local
codes, with National Electric Code ANSI/NFPA 70-latest edition
in the United States or the Canadian Electric Code, ETL in
Canada.

FRONT VIEW

TOP VIEW

SIDE VIEW

16- 3/4 (42 3mm)"

6-3 /4 (171 mm)"

30 (7 62mm)"

17" (429m m)

27- 3/4 (70 6mm)"

Hea t Vents

（Do no t cover）

Model Number CHFP-30A

Description

Voltage 110V AC

Watts Max 1500W

Amps

13 AMP

Appliance Width 30" 762mm)(

Appliance Height 17" 429mm( )

Appliance Depth 6-3/4" 171mm( )

Net Weight 39lbs (18kgs)

Gross Weight 42lbs (19kgs)

Btus

5100 BTU

Pow er Line

6-1 /2 (161 mm)"

5

Wall-mount,
recessed,
or free standing
Appliance

3.3 GENERAL INSTRUCTIONS

This electric appliance meets the construction and safety standards of H U D for application in manufactured

. . .

.

homes

when installed according to these instructions

!

WARNING

READ THESE INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTALLATION FAILURE TO .

FOLLOW THEM COULD CAUSE AN APPLIANCE MALFUNCTION RESULTING IN SERIOUS INJURY

AND/OR PROPERTY DAMAGE.

ALL ELECTRIC APPLIANCES HAVE HOT AND ARCING OR SPARKING PARTS INSIDE.

DO NOT OPEN RISK OF ELECTRIC SHOCK NO USER SERVICEABLE PARTS INSIDE. . - .

DO NOT USE DAMAGED ELECTRICAL CORDS.

SERVICING SHOULD BE DONE ONLY WHEN THE APPLIANCE IS DISCONNECTED FROM THE

POWER SUPPLY CIRCUIT.

TO PREVENT ELECTRIC SHOCK MATCH THE WIDE BLADE OF PLUG TO WIDE SLOT OF

RECEPTACLE AND FULLY INSERT.

A Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet are on
B. The appliance may emit a slight, harmless odor when first used. This odor is normal and it is caused by the
initial heating of internal appliance elements and will not occur again.

C. If your appliance does not emit heat, consult the operation section of this manual for further information.
D. Use with and ETL or UL certified surge protector.

. .

6
